SPECIFICATIONS

Application: Computer

Brand Name: NONE

Choice: yes

Condition: New

High-concerned chemical: none

Origin: Mainland China

Package: SMD

Quantity: 1

Type: Voltage Regulator

is_customized: Yes

semi_Choice: yes

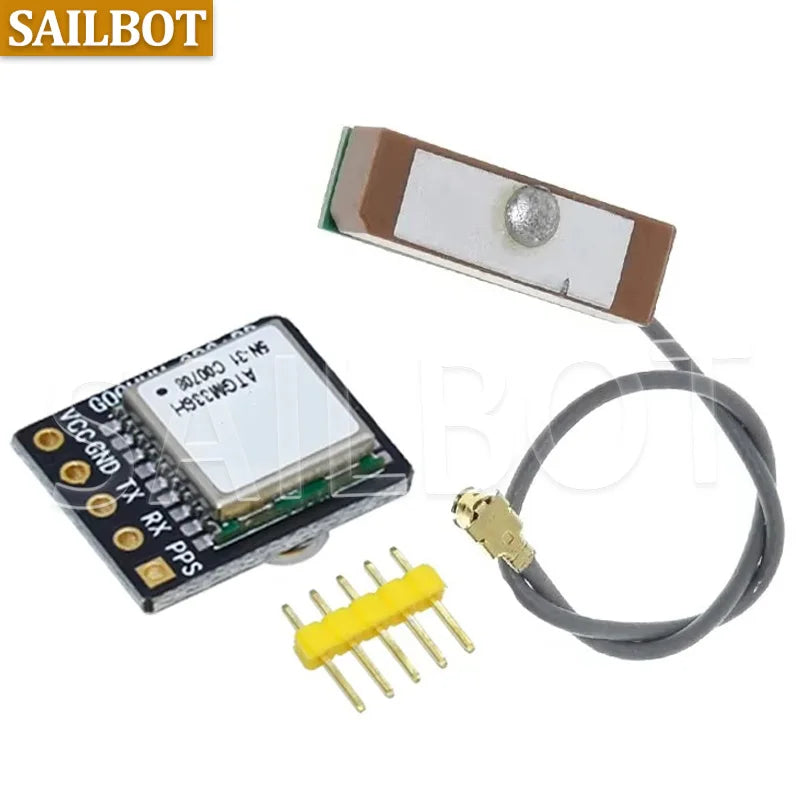

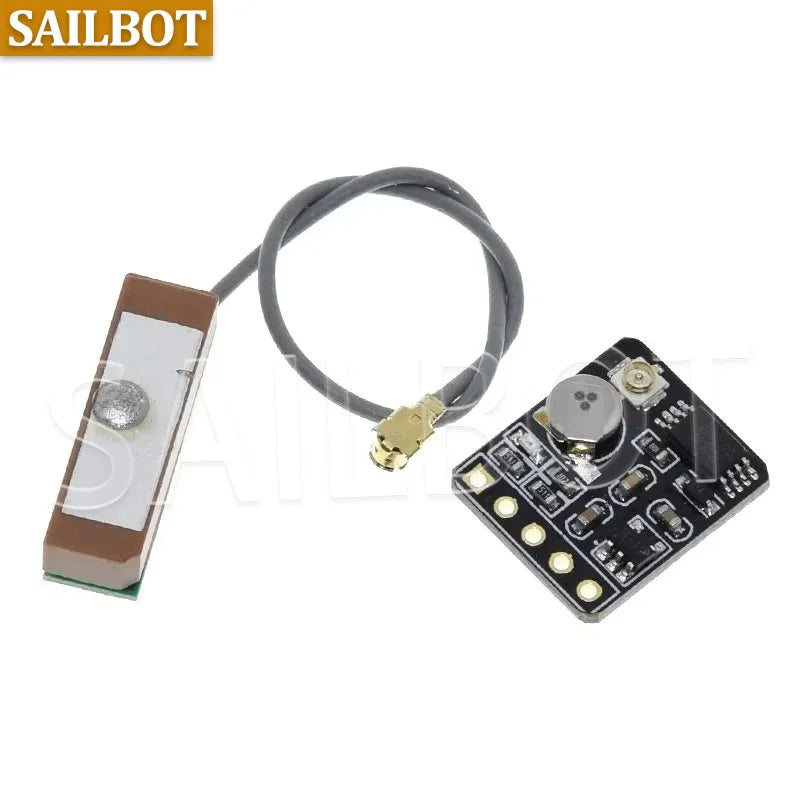

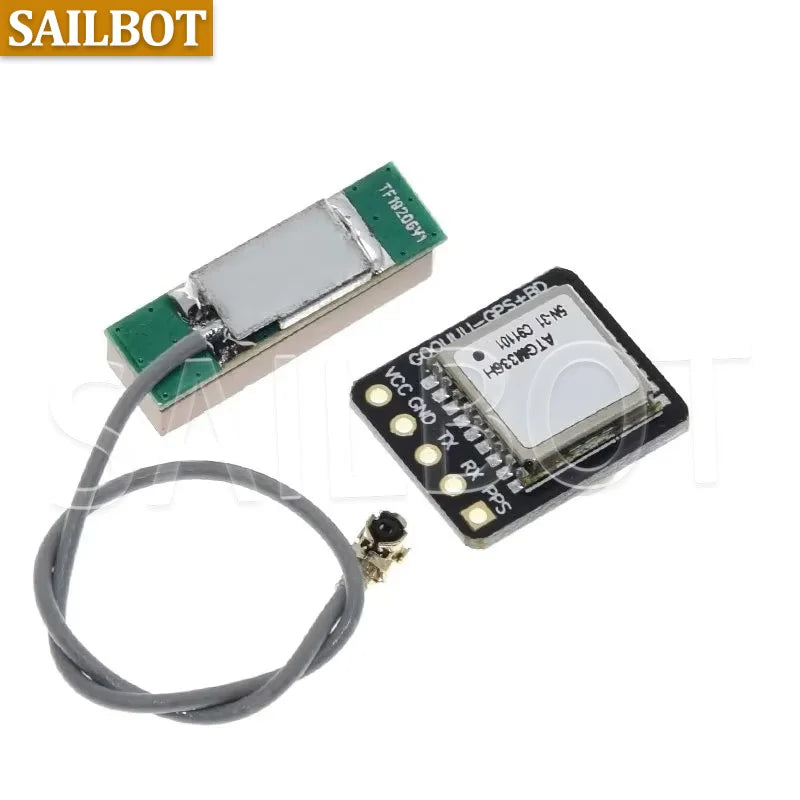

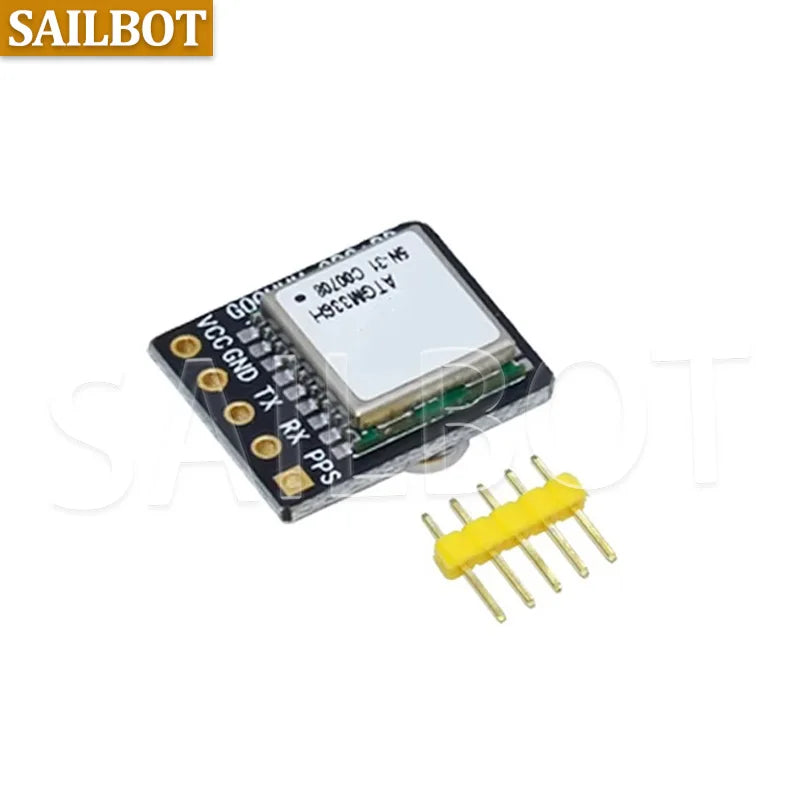

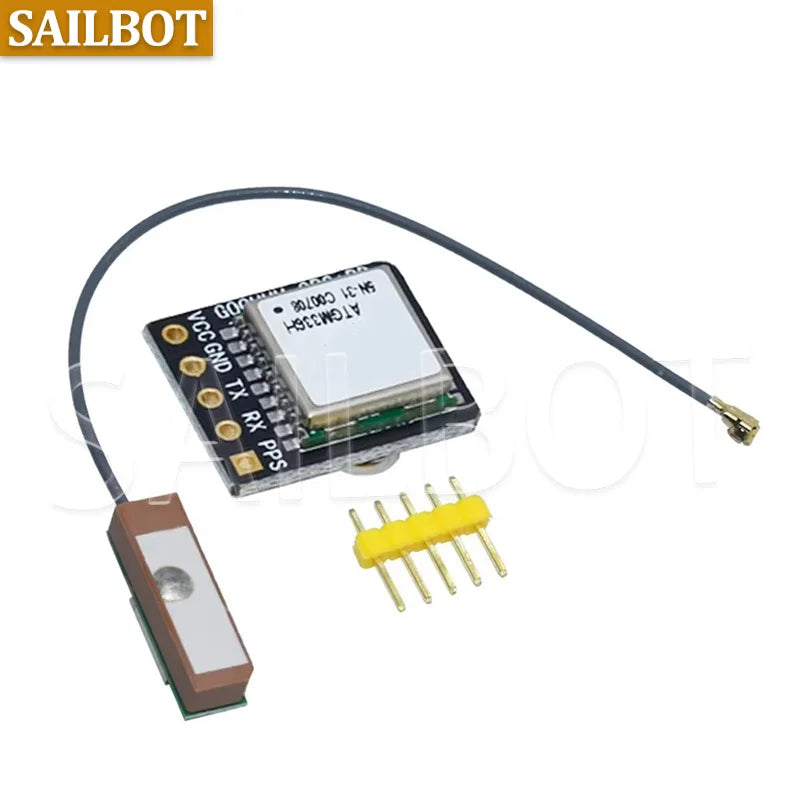

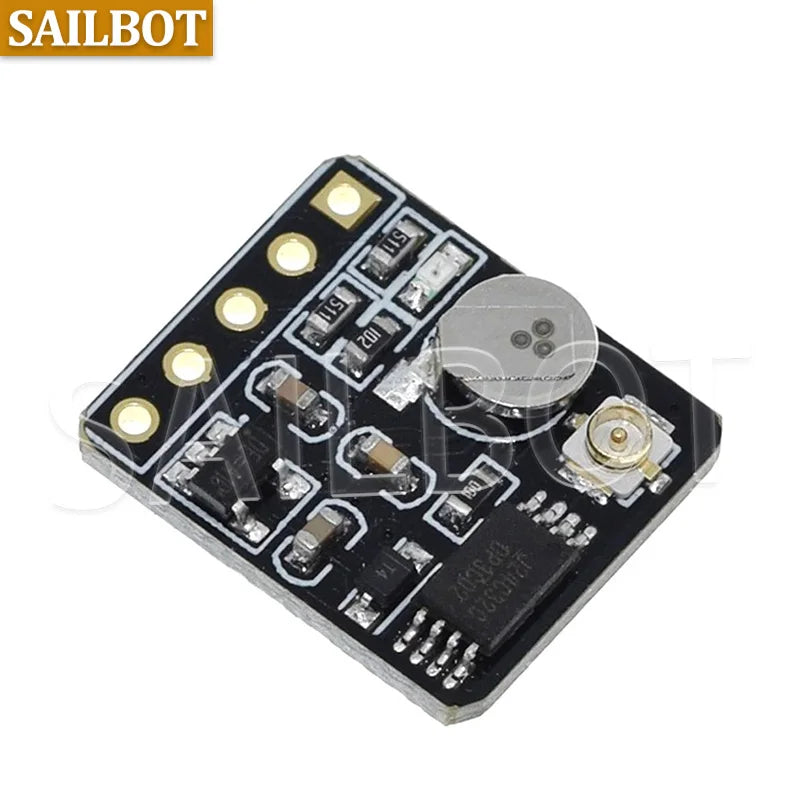

The ATGM336H-5N series modules are the general term for a series of small-sized high-performance BDS/GNSS all-constellation positioning and navigation modules. This series of module products are all based on the fourth-generation low-power GNSS SOC single-chip - AT6558 of Zhongke Wei, supporting multiple satellite navigation systems, including China's BDS (Beidou Navigation Satellite System), the United States' GPS, Russia's GLONASS, and the European Union's GALILEO. Japan's QZSS and satellite augmentation systems SBAS (WAAS, EGNOS, GAGAN, MSAS). The AT6558 is a truly six-in-one multi-mode satellite navigation and positioning chip, featuring 32 tracking channels. It can simultaneously receive GNSS signals from six satellite navigation systems and achieve joint positioning, navigation and timing. The ATGM336H-5N series modules have advantages such as high sensitivity, low power consumption and low cost. They are suitable for vehicle navigation, handheld positioning and wearable devices, and can directly replace the U-blox MAX series modules.

Output protocol

Output protocol: The ATGM332D-5N series module uses UART as the main output channel and outputs in the protocol format of NMEA0183. For specific information, please refer to the "CASIC Multimode Satellite Navigation Receiver Protocol Specification".

Performance indicators

Outstanding positioning and navigation functions, supporting single-system positioning of BDS/GPS/GLONASS satellite navigation systems, as well as multi-system joint positioning in any combination, and supporting QZSS and SBAS systems

Supports A-GNSS

Cold start capture sensitivity: -148 DBM

Tracking sensitivity: -162 DBM

Positioning accuracy: 2.5 meters (CEP50, open area)

Initial positioning time: 32 seconds

Low power consumption: Continuous operation <25mA (@3.3V)

It is equipped with built-in antenna detection and antenna short-circuit protection functions
