SPECIFICATIONS

Brand Name: NONE

High-concerned chemical: none

Model Number: GNSS Module

Origin: Mainland China

Product Overview

Characteristic parameter

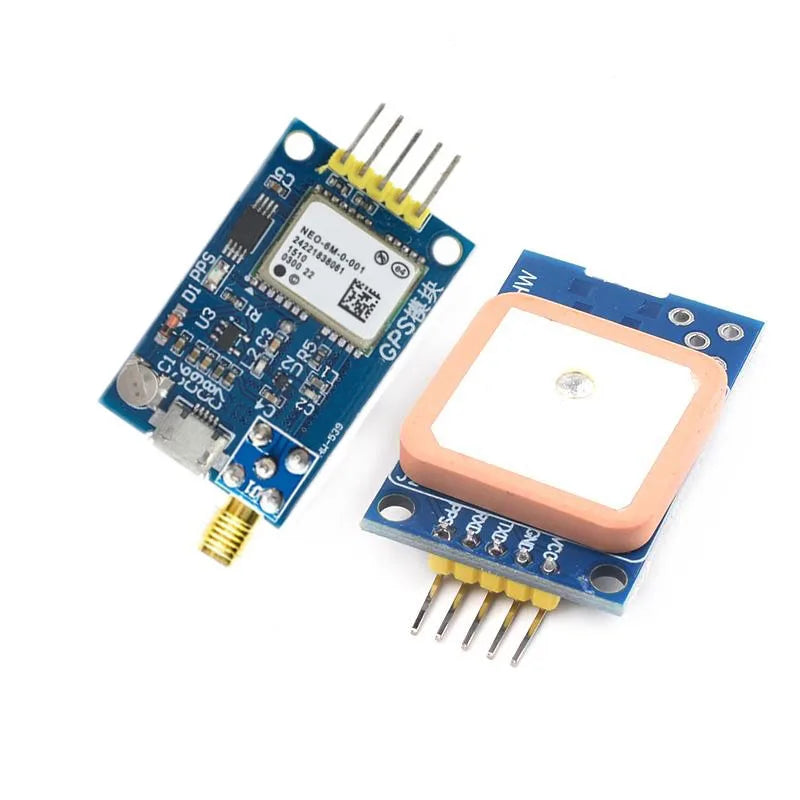

• The module adopts the U-BLOX NEO-6M module, which is compact and has excellent performance.

• Adding an amplification circuit to the module is beneficial for passive ceramic antennas to quickly search for satellites. (MINI version does not have onboard antenna)

• The module can set various parameters through the serial port and can be saved in EEPROM, making it convenient to use.

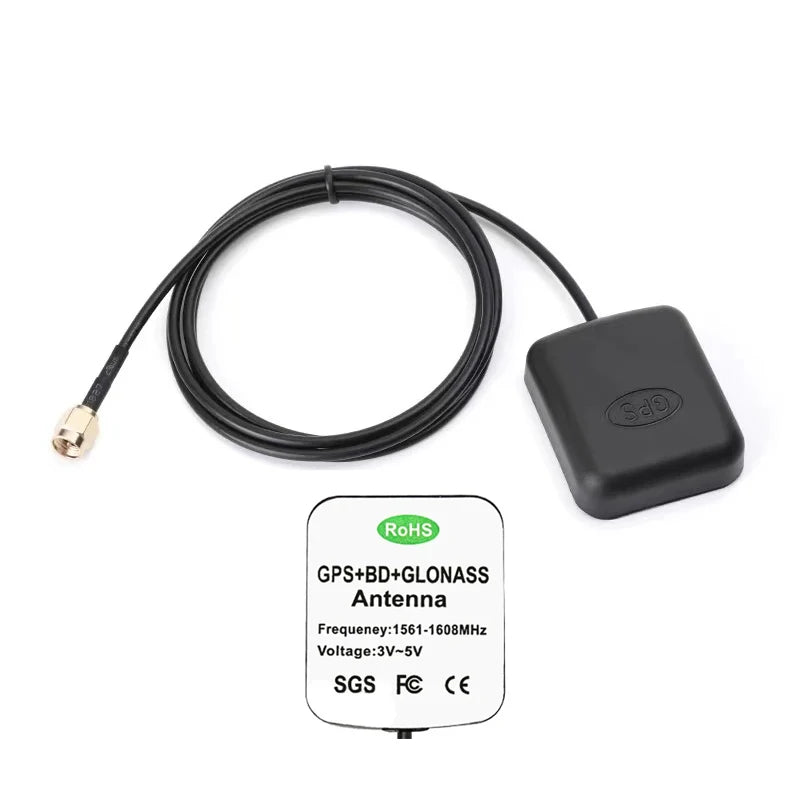

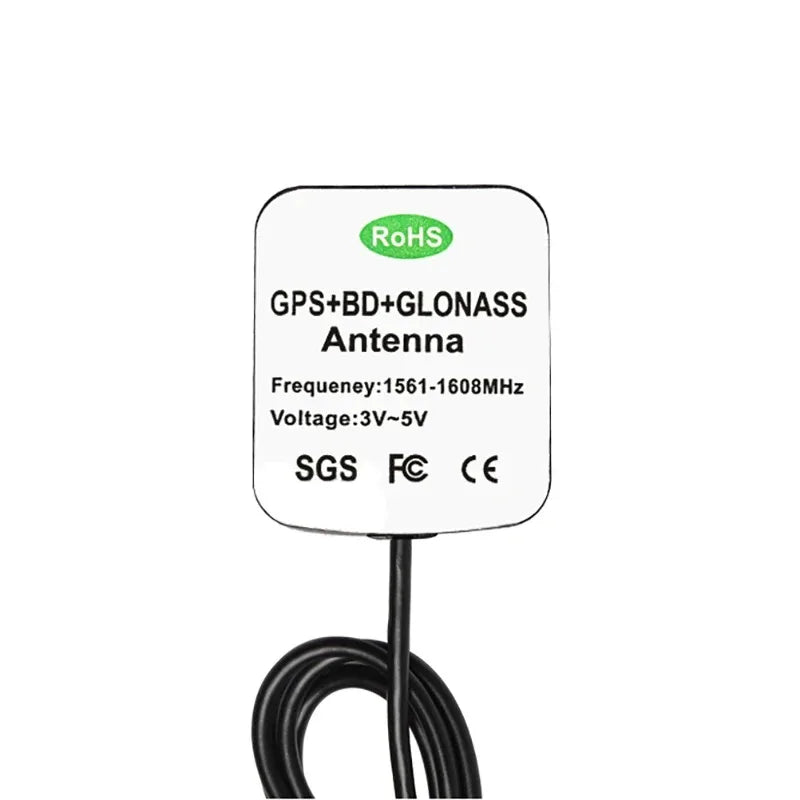

• The module comes with an SMA interface, which can connect various active antennas and has strong adaptability.

• In addition, the Mini version comes with an IPEX interface, which can connect to our store's small-sized active ceramic antenna.

• The module is compatible with 3.3V/5V levels, making it easy to connect to various microcontroller systems.

• The module has its own rechargeable Backup battery, which can maintain ephemeris data 1 in case of power failure.

Note 1: After the main power supply is disconnected, the Backup battery can maintain the storage of GPS ephemeris data for about half an hour to support warm start or hot start, so as to achieve rapid positioning.

Parameters

• The default Baud of this module is 9600;

• Power supply voltage 3.3V-5V (can be directly connected to 5V or 3.3V power supply, core working voltage 3.3V);

• Can be directly connected to 3.3V or 5V microcontroller IO for communication;

Pin Description

• VCC: Power supply (3.3V~5.0V)

• GND: Grounding

• TXD: Module serial port sending pin (TTL level, cannot directly connect to RS232 level!), can connect to microcontroller

• RXD: Module serial port receiving pin (TTL level, cannot directly connect to RS232 level!), can be connected to microcontroller

• PPS: Clock pulse output pin

Among them, the PPS pin is also connected to the module's built-in status indicator light: PPS, which is connected to the UBLOX NEO-6M

The TIMEPULSE port of the module, whose output characteristics can be programmed. PPS indicator light (i.e. PPS pin),

Under default conditions (without program settings), there are two states:

1. Constant light indicates that the module has started working but has not yet achieved positioning.

2. Flashing (100ms off, 900ms on) indicates that the module has been successfully positioned.

In this way, through the PPS indicator light, we can easily determine the current status of the module, making it convenient for everyone to use.
