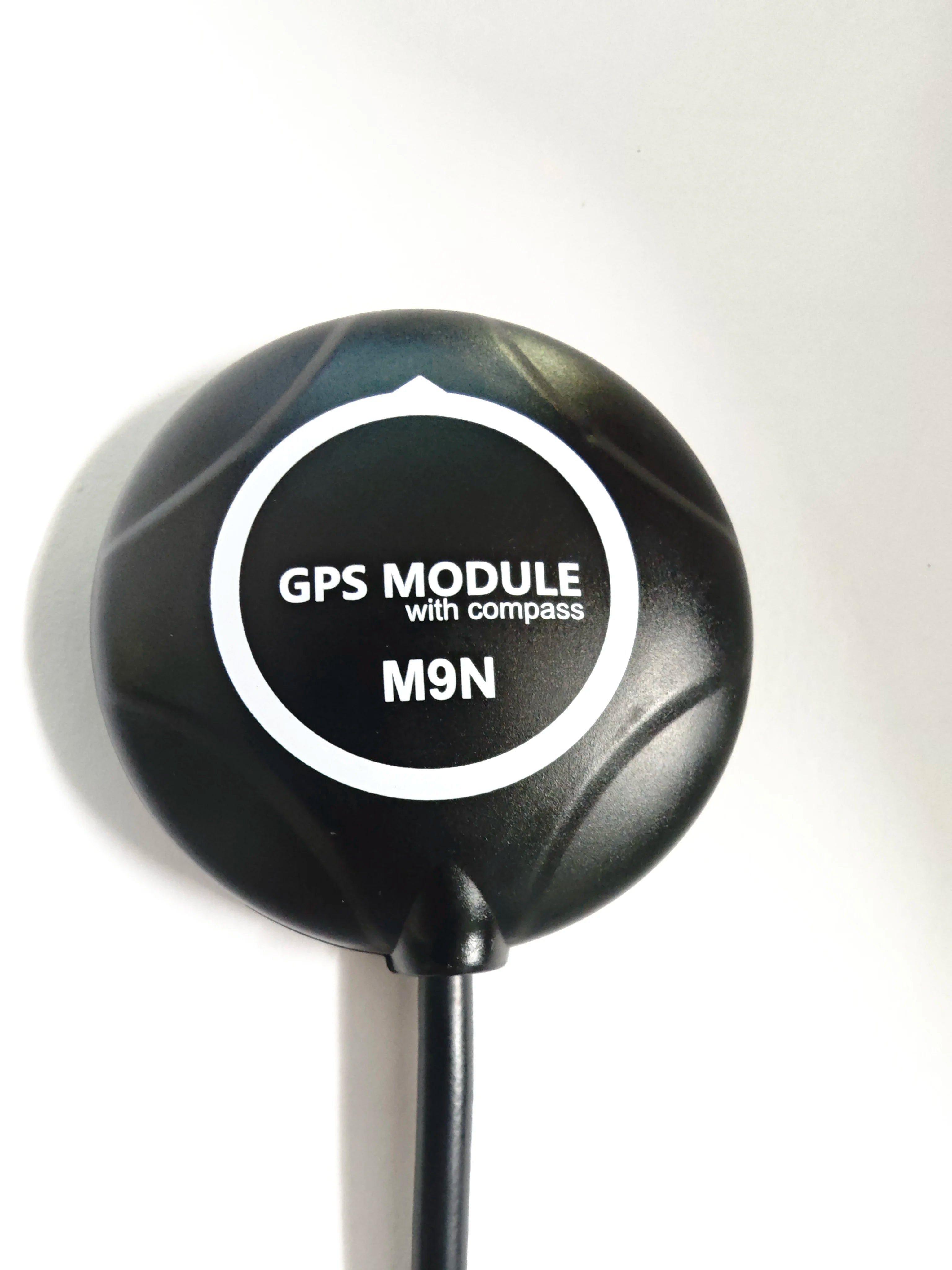

GPS M8N M9N M10 Module 8N/6M Flight Controller with Built-in Compass, Can Be Paired with APM Bracket 2.6 2.8 Pixhawk 2.4.6 2.4.8

GPS M8N M9N M10 Module 8N/6M Flight Controller with Built-in Compass, Can Be Paired with APM Bracket 2.6 2.8 Pixhawk 2.4.6 2.4.8

M9N GPS / China Mainland
$136.12
$136.12 $0.00
Skip to product information
GPS M8N M9N M10 Module 8N/6M Flight Controller with Built-in Compass, Can Be Paired with APM Bracket 2.6 2.8 Pixhawk 2.4.6 2.4.8
  • GPS M8N M9N M10 Module 8N/6M Flight Controller with Built-in Compass, Can Be Paired with APM Bracket 2.6 2.8 Pixhawk 2.4.6 2.4.8
  • GPS M8N M9N M10 Module 8N/6M Flight Controller with Built-in Compass, Can Be Paired with APM Bracket 2.6 2.8 Pixhawk 2.4.6 2.4.8
  • GPS M8N M9N M10 Module 8N/6M Flight Controller with Built-in Compass, Can Be Paired with APM Bracket 2.6 2.8 Pixhawk 2.4.6 2.4.8
  • GPS M8N M9N M10 Module 8N/6M Flight Controller with Built-in Compass, Can Be Paired with APM Bracket 2.6 2.8 Pixhawk 2.4.6 2.4.8
  • GPS M8N M9N M10 Module 8N/6M Flight Controller with Built-in Compass, Can Be Paired with APM Bracket 2.6 2.8 Pixhawk 2.4.6 2.4.8
  • GPS M8N M9N M10 Module 8N/6M Flight Controller with Built-in Compass, Can Be Paired with APM Bracket 2.6 2.8 Pixhawk 2.4.6 2.4.8
  • GPS M8N M9N M10 Module 8N/6M Flight Controller with Built-in Compass, Can Be Paired with APM Bracket 2.6 2.8 Pixhawk 2.4.6 2.4.8
  • GPS M8N M9N M10 Module 8N/6M Flight Controller with Built-in Compass, Can Be Paired with APM Bracket 2.6 2.8 Pixhawk 2.4.6 2.4.8
  • GPS M8N M9N M10 Module 8N/6M Flight Controller with Built-in Compass, Can Be Paired with APM Bracket 2.6 2.8 Pixhawk 2.4.6 2.4.8
  • GPS M8N M9N M10 Module 8N/6M Flight Controller with Built-in Compass, Can Be Paired with APM Bracket 2.6 2.8 Pixhawk 2.4.6 2.4.8
  • GPS M8N M9N M10 Module 8N/6M Flight Controller with Built-in Compass, Can Be Paired with APM Bracket 2.6 2.8 Pixhawk 2.4.6 2.4.8
  • GPS M8N M9N M10 Module 8N/6M Flight Controller with Built-in Compass, Can Be Paired with APM Bracket 2.6 2.8 Pixhawk 2.4.6 2.4.8
  • GPS M8N M9N M10 Module 8N/6M Flight Controller with Built-in Compass, Can Be Paired with APM Bracket 2.6 2.8 Pixhawk 2.4.6 2.4.8
  • GPS M8N M9N M10 Module 8N/6M Flight Controller with Built-in Compass, Can Be Paired with APM Bracket 2.6 2.8 Pixhawk 2.4.6 2.4.8
  • GPS M8N M9N M10 Module 8N/6M Flight Controller with Built-in Compass, Can Be Paired with APM Bracket 2.6 2.8 Pixhawk 2.4.6 2.4.8
  • GPS M8N M9N M10 Module 8N/6M Flight Controller with Built-in Compass, Can Be Paired with APM Bracket 2.6 2.8 Pixhawk 2.4.6 2.4.8
  • GPS M8N M9N M10 Module 8N/6M Flight Controller with Built-in Compass, Can Be Paired with APM Bracket 2.6 2.8 Pixhawk 2.4.6 2.4.8
  • GPS M8N M9N M10 Module 8N/6M Flight Controller with Built-in Compass, Can Be Paired with APM Bracket 2.6 2.8 Pixhawk 2.4.6 2.4.8
  • GPS M8N M9N M10 Module 8N/6M Flight Controller with Built-in Compass, Can Be Paired with APM Bracket 2.6 2.8 Pixhawk 2.4.6 2.4.8
  • GPS M8N M9N M10 Module 8N/6M Flight Controller with Built-in Compass, Can Be Paired with APM Bracket 2.6 2.8 Pixhawk 2.4.6 2.4.8
  • GPS M8N M9N M10 Module 8N/6M Flight Controller with Built-in Compass, Can Be Paired with APM Bracket 2.6 2.8 Pixhawk 2.4.6 2.4.8
  • GPS M8N M9N M10 Module 8N/6M Flight Controller with Built-in Compass, Can Be Paired with APM Bracket 2.6 2.8 Pixhawk 2.4.6 2.4.8
GPS M8N M9N M10 Module 8N/6M Flight Controller with Built-in Compass, Can Be Paired with APM Bracket 2.6 2.8 Pixhawk 2.4.6 2.4.8
GPS M8N M9N M10 Module 8N/6M Flight Controller with Built-in Compass, Can Be Paired with APM Bracket 2.6 2.8 Pixhawk 2.4.6 2.4.8
$136.12
$136.12 $0.00
Color
Ships FromChina Mainland
Description

SPECIFICATIONS

Brand Name: QX-MOTOR,QX-MOTOR

Certification: NONE,CE

Choice: yes

For Vehicle Type: Airplanes,Airplanes

Four-wheel Drive Attributes: Motors,Motors

High-concerned chemical: none

Is Batteries Included: No

Is Electric: No battery

Is it battery/power supply: N

Is it charger/adapter: N

Material: Composite Material,Composite Material

Model Number: M8N GPS

Origin: Mainland China,Mainland China

Quantity: 1 pcs,1 pcs

RC Parts & Accs: Radio Systems,Radio Systems

Recommend Age: 14+y

Remote Control Peripherals/Devices: ESC,ESC

Technical parameters: value 2,Value 2

Tool Supplies: Assembled class,Assembled class

Upgrade Parts/Accessories: Adapter,Adapter

Use: Vehicles & Remote Control Toys,Vehicles & Remote Control Toys

Wheelbase: Bottom Plate,Bottom Plate

semi_Choice: yes

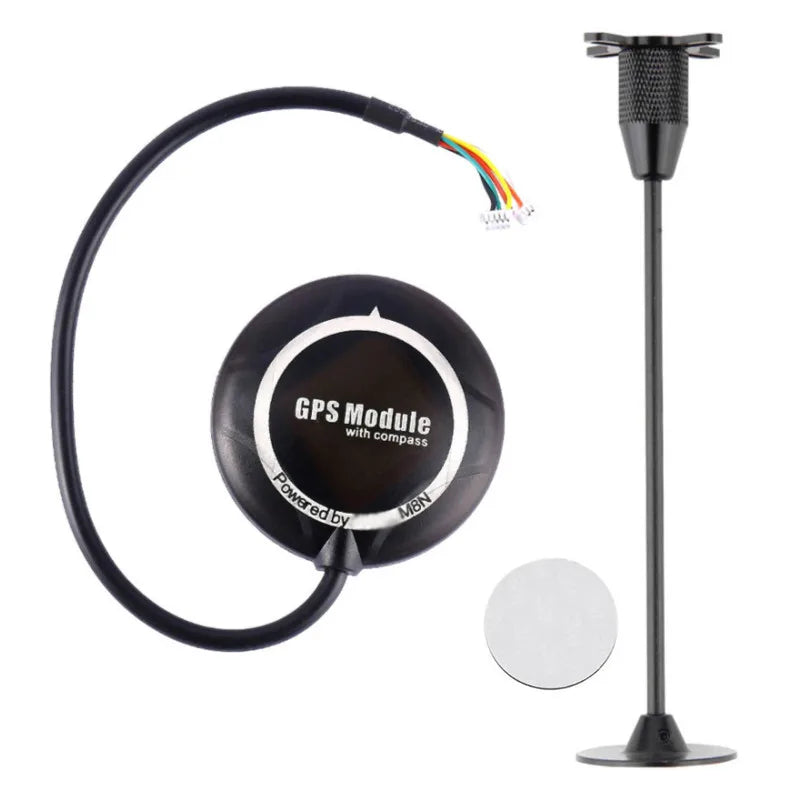

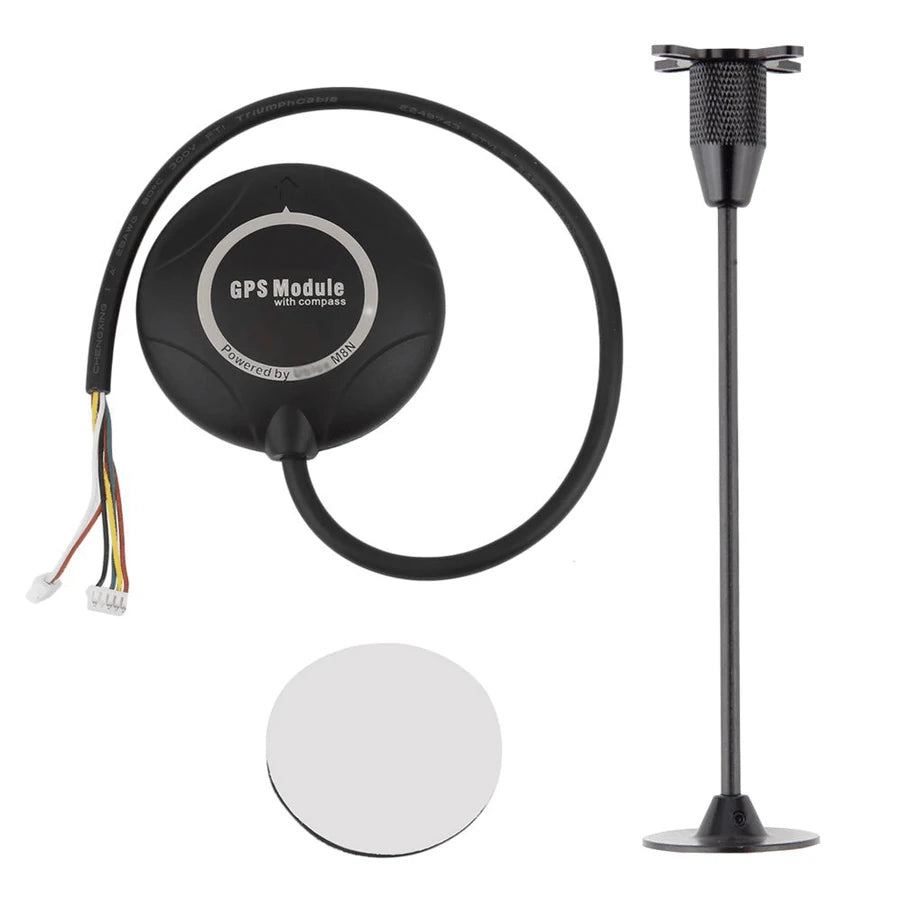

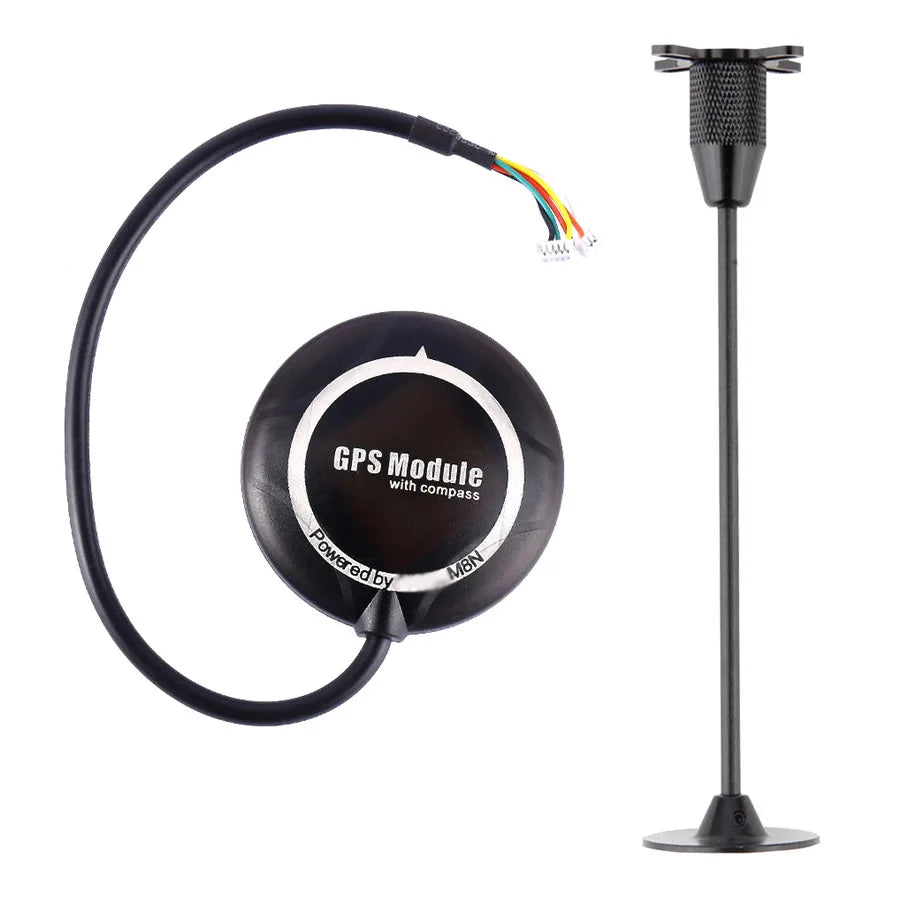

GPS M8N M9N M10 module 8N/6M flight controller with built-in compass, can be paired with APM bracket 2.6 2.8 Pixhawk 2.4.6 2.4.8

Product description:

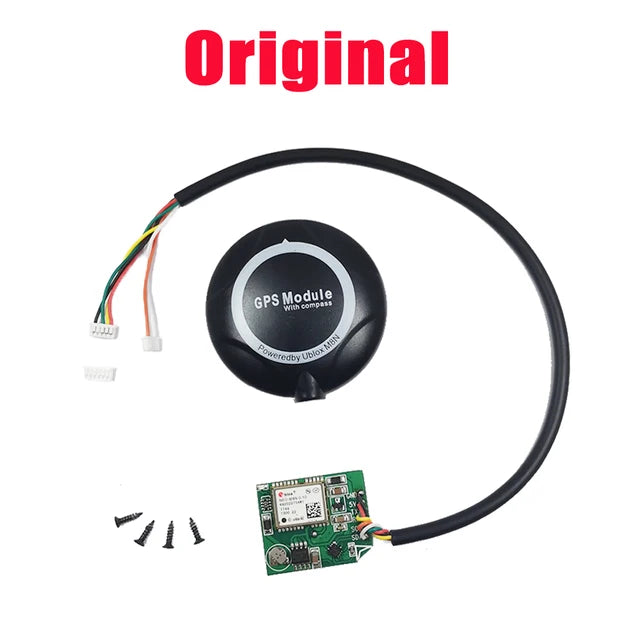

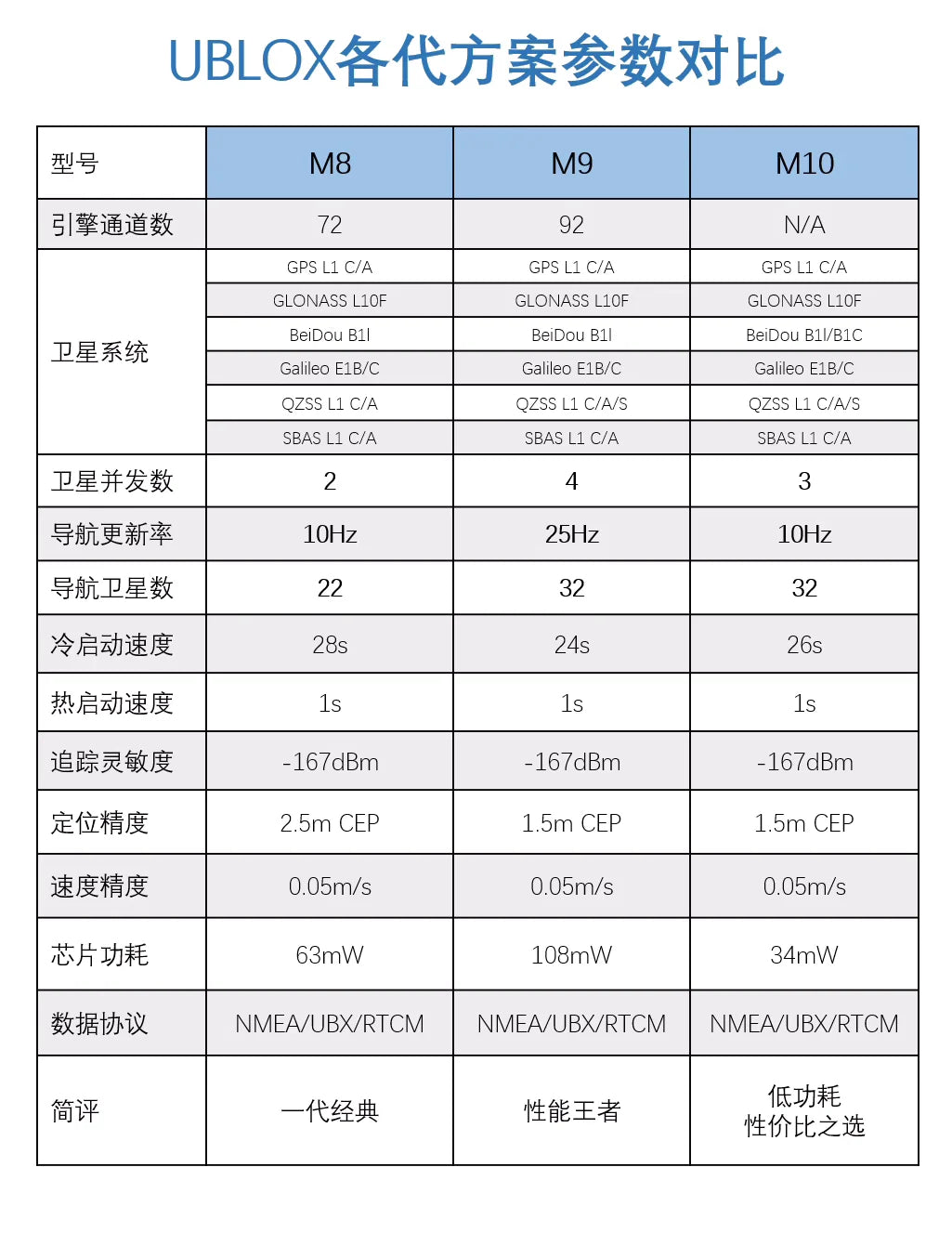

GPS M8N chip parameters:

Receiver type:72-channel u-blox M8
Engine: GPS/QZSS L1C/A, GLONASS L1OF, BeiDou B1SBAS L1C/A: WAAS, EGNOS, MSASGGalileo-ready E1B/C (M8N) Nav.
Number of navigation satellites: 22
Update rate for individual GNSS: up to 18 Hz
Concurrent global navigation satellite systems: up to 10 Hz
Position accuracy 2 2.0 m CES
Tracking and navigation: -167 dBm
Cold start: -148 dBm
Hot start: -156 dBm
Operating temperature: -40 ℃ to 85 ℃
Storage temperature: -40° C to 85° C (M8N/Q)
PP indicator light: The red light is always on when power is on, and the green light flashes after 3D positioning

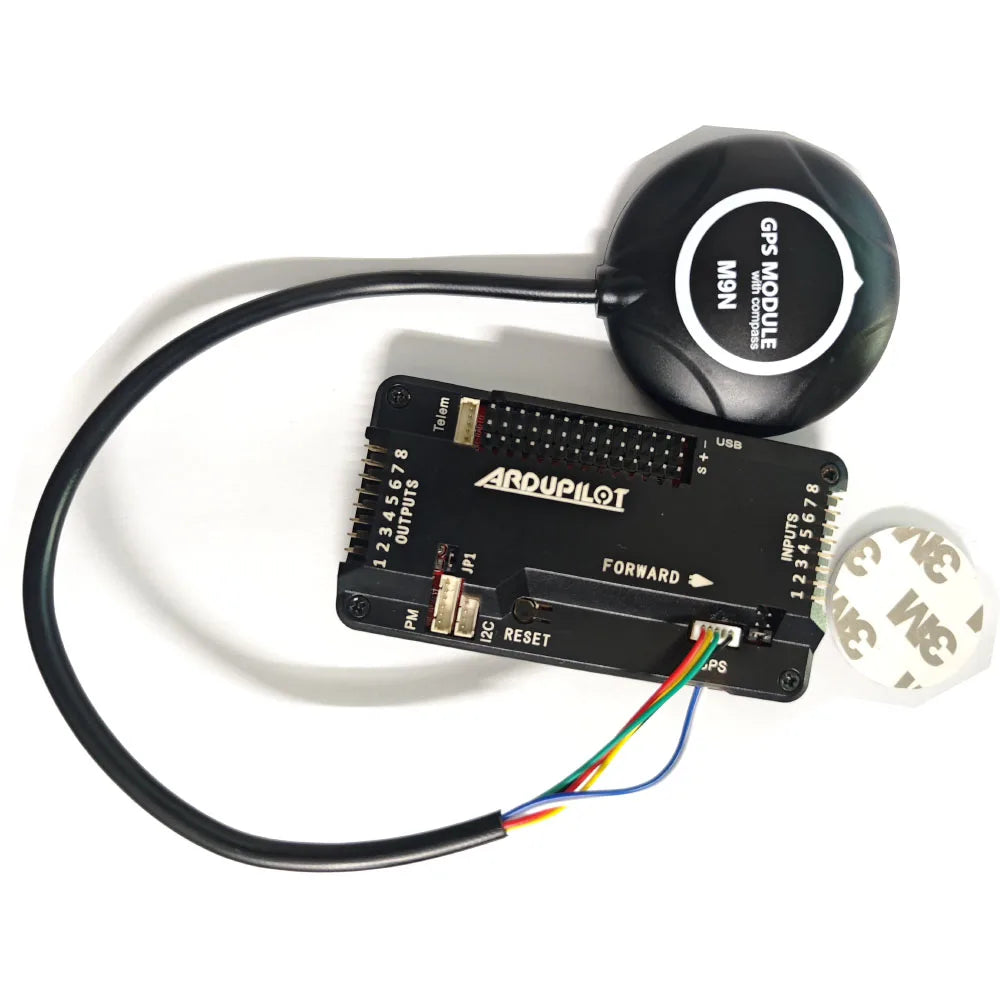

GPS M9N chip parameters:

Receiver type: 92-channel u-blox M9
Engine: GPS/L1C/A, GLONASS L1OF, BeiDou B1, SBAS L1C/A, WAAS, EGNOS, MSAS Galleo E1B/C,(M9N) Nav.
Number of navigation satellites: 32
Serial port baud rate: 4800-921600bps Default 115200bps
Update rate for individual GNSS: up to 10 Hz
Concurrent global navigation satellite systems: up to 25Hz
Position accuracy: 1.5m CEP
Tracking and navigation: -167 dBm
Cold start: -148 dBm
Hot start: -159 dBm
Operating temperature: -40 ℃ to 85 ℃
Storage temperature: -40° C to 85° C (M9N/Q)

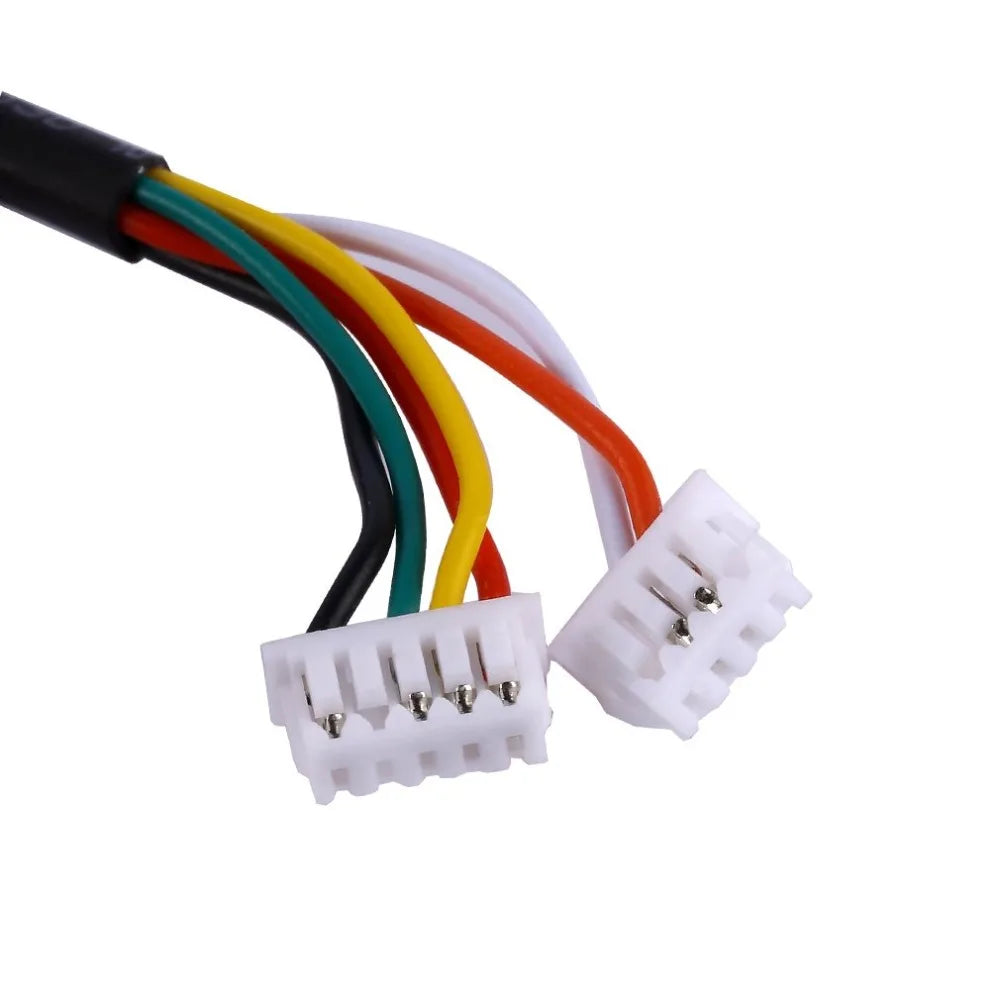

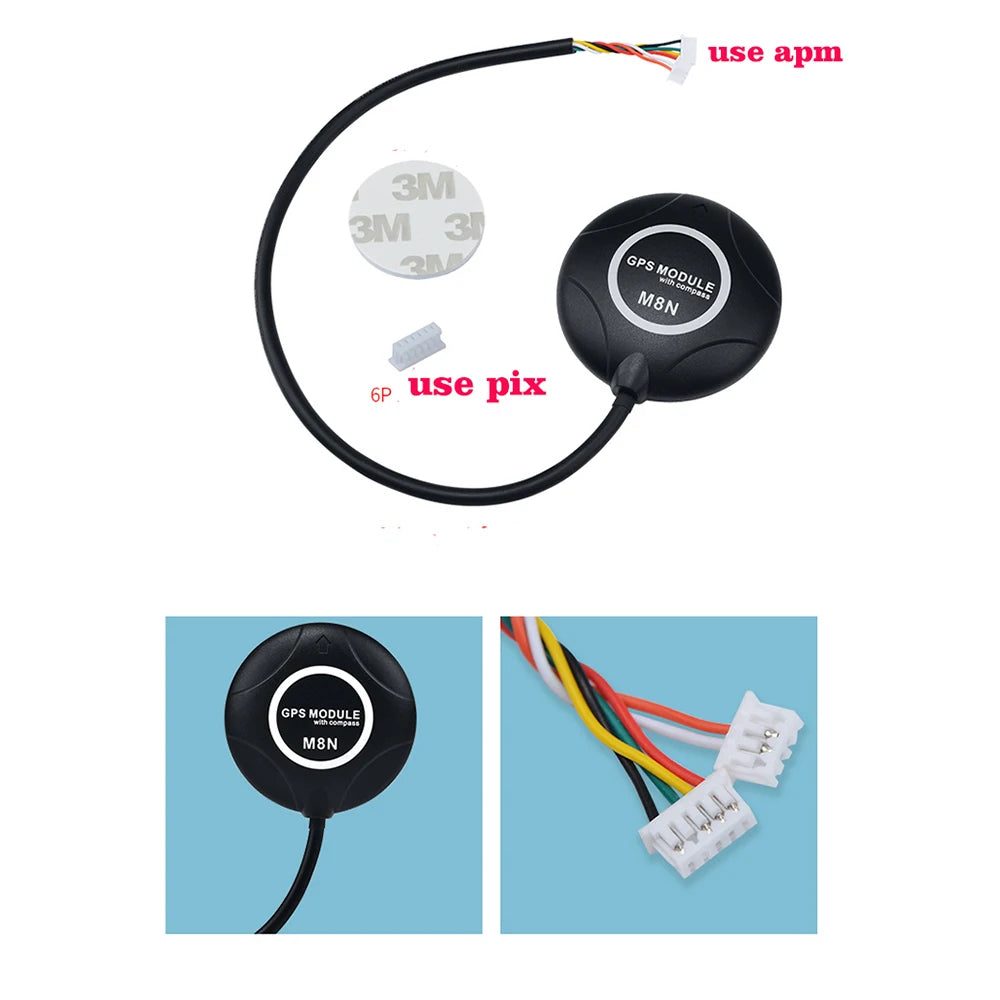

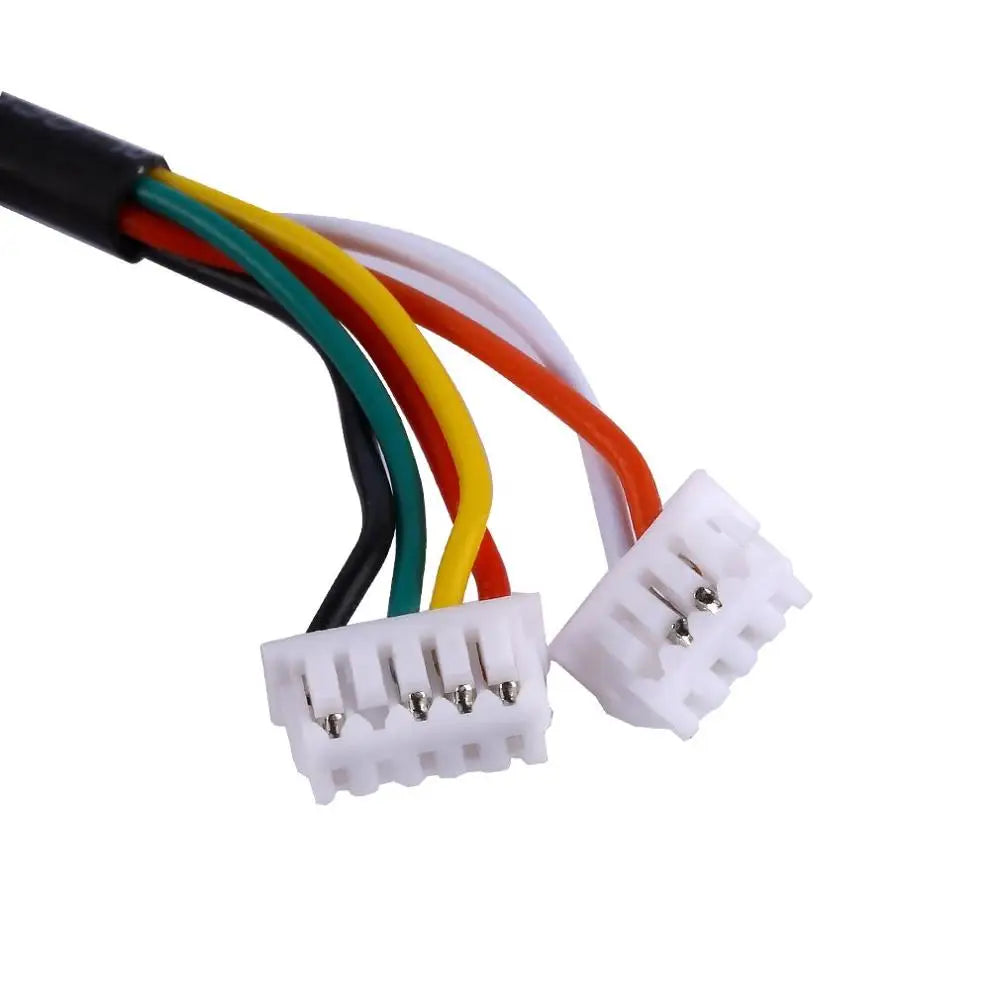

Connecting wire length: wire length 27CMAPM(5P +4P) or PIX(6P+4p)1.25 spacing
PP indicator light: The red light is always on when power is on, and the green light flashes after 3D positioning
Height limit: ≤50000m
Speed limit: ≤500m/s
Working voltage: DC 3.6-5.5V, typical value of 5.0V
Working current: 80mA@5v

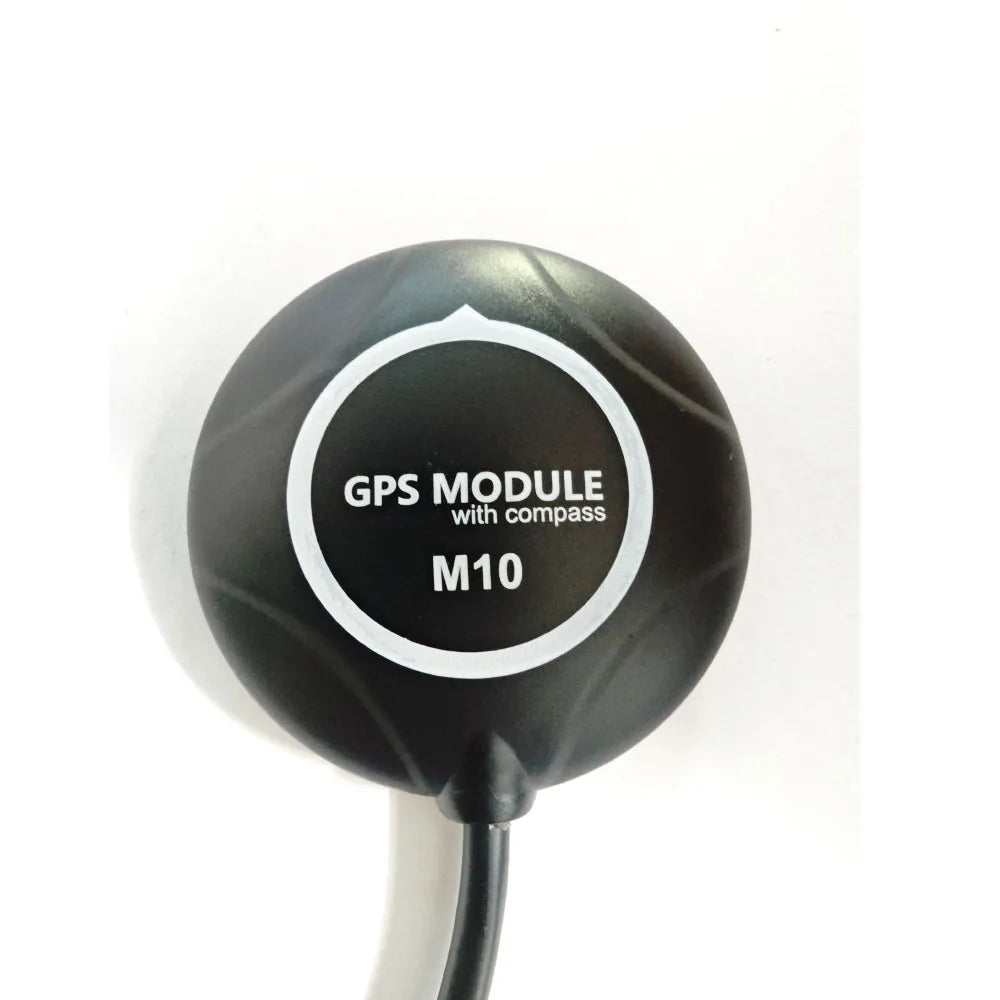

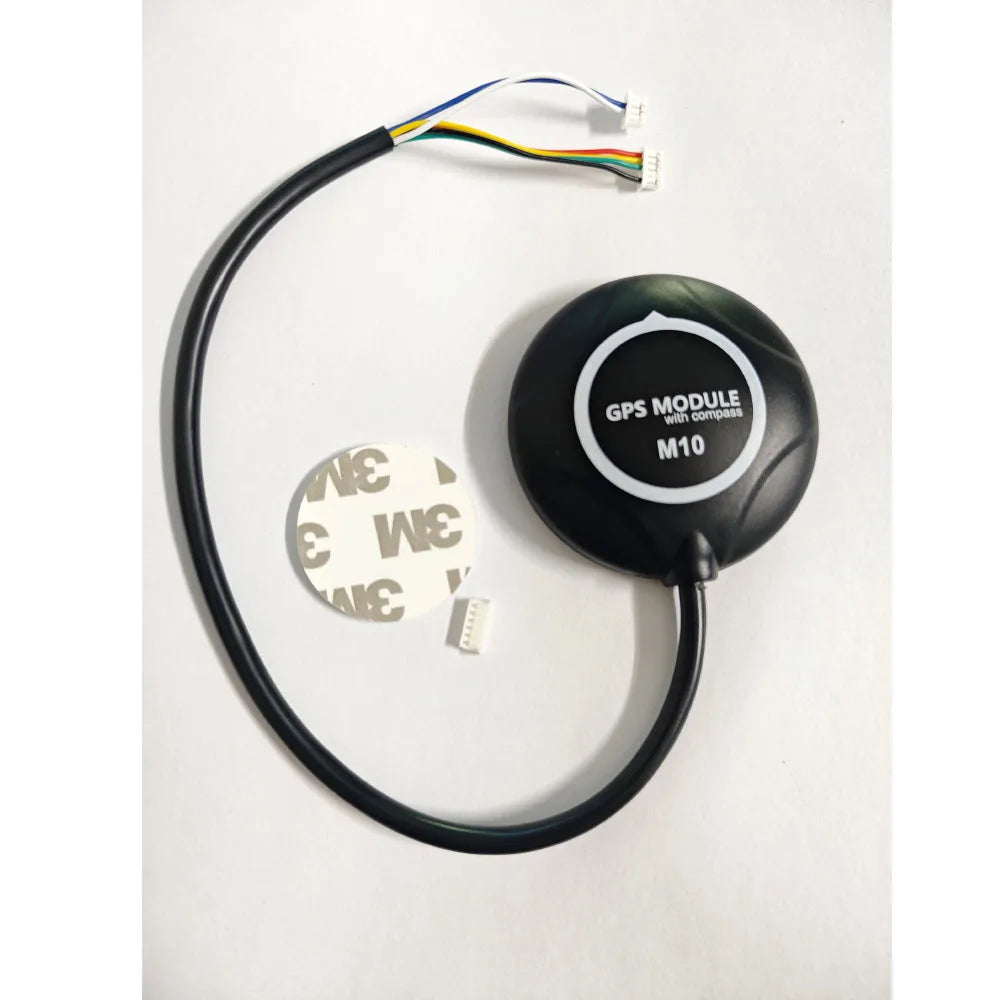

GPS M10 chip parameters:

Receiver type: N/A
Engine: GPS/L1C/A, GLONASS L1OF, BeiDou B1C, SBAS L1C/A, WAAS, EGNOS, MSAS Galleo E1B/C,(M10) Nav.
Number of navigation satellites: 32
Serial port baud rate: 4800-921600bps Default 115200bps
Update rate for individual GNSS: up to 10 Hz
Concurrent global navigation satellite systems: up to 25Hz
Position accuracy: 1.5m CEP
Tracking and navigation: -167 dBm
Cold start: -148 dBm
Hot start: -159 dBm
Operating temperature: -40 ℃ to 85 ℃
Storage temperature: -40° C to 85° C (M9N/Q)

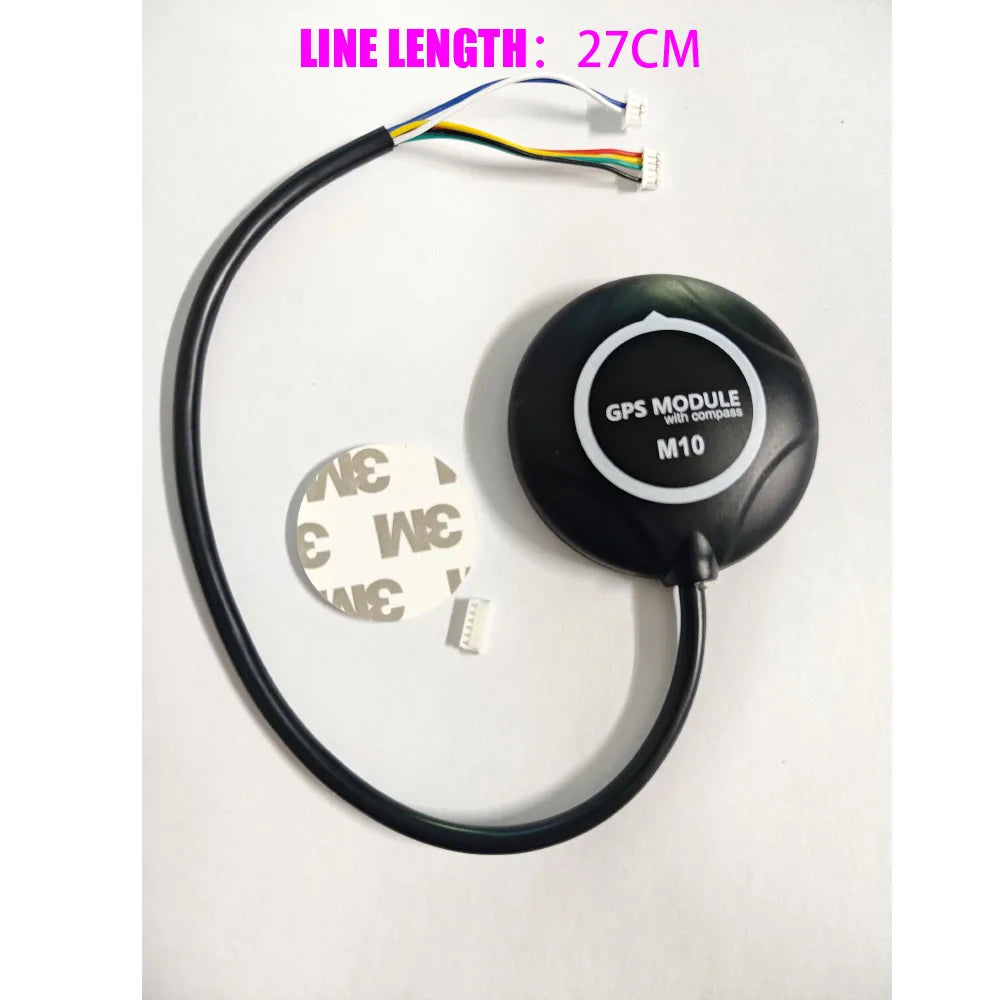

Connecting wire length: wire length 27CMAPM(5P +4P) or PIX(6P+4p)1.25 spacing
PP indicator light: The red light is always on when power is on, and the green light flashes after 3D positioning
Height limit: ≤50000m
Speed limit: ≤500m/s
Working voltage: DC 3.6-5.5V, typical value 5.0V
Working current: 80mA@5v
FLASH: On-board FLASH can be saved after configuration modification, and will not be lost when power is turned off
        The new generation of GPS has low power consumption and high accuracy. The ultimate accuracy is 0.6 meters, which is actually close to 0.9 meters. The measurement accuracy is M7N <M8N <M9N <M10. Higher accuracy, supporting GPS/QZSS L1C/A, GLONASS L10F, Beidou B1 protocols and modes or higher.
         Assistance now Assistance GNSS Online Assistance Now GNSS offline (up to 35 days) 3 Assistance Now autonomy (up to 6 days) GMA SUPL and 3GPP compliant oscillator TCXO, Crystal TTC Crystal built-in noise graphics on-chip NA. Additional LNA enables minimum noise figure anti-interference active CW detection and removal. Antenna supported by external surface acoustic bandpass filter active and passive odometer distance data loggers are used for position, speed and time.
