GRM8-01 Electronic Impulse Relay Din Rail Impulse Latching Relay Impulse Memory Relay AC/DC12-240V 35mm DIN Rail Mounting
$99.00
Sale price
$99.00
Regular price
$0.00
Description
SPECIFICATIONS
Brand Name: VBESTLIFE
Certification: CE
Choice: yes
EU LVD Voltage: High voltage: Above 50Vac or 75Vdc
High-concerned chemical: none
Origin: Mainland China
semi_Choice: yes
GRM8-01 Electronic Impulse Relay Latching Relay Memory Relay AC/DC12-240V
Specification:
Features:

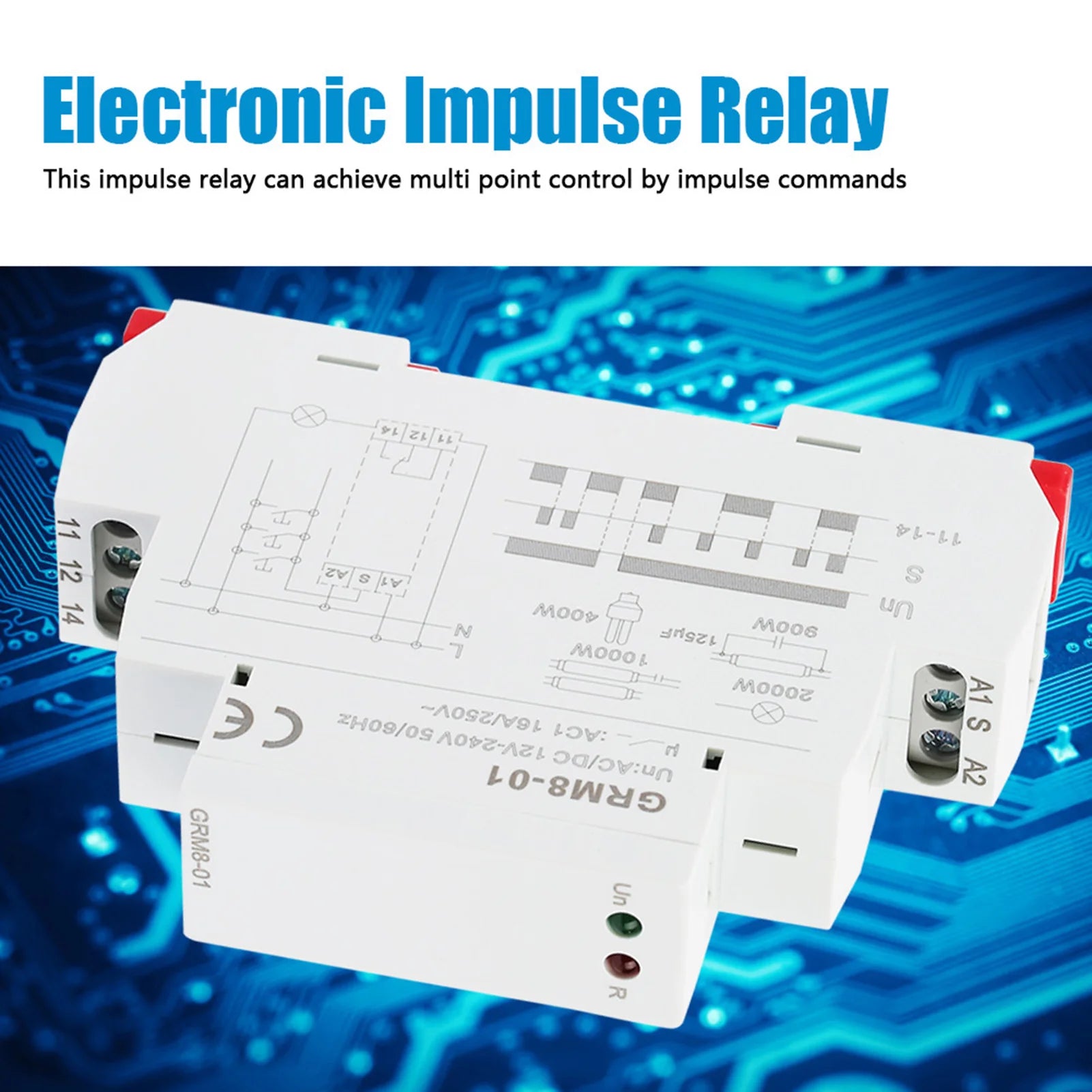

1. This impulse relay can achieve multi point control by impulse commands.

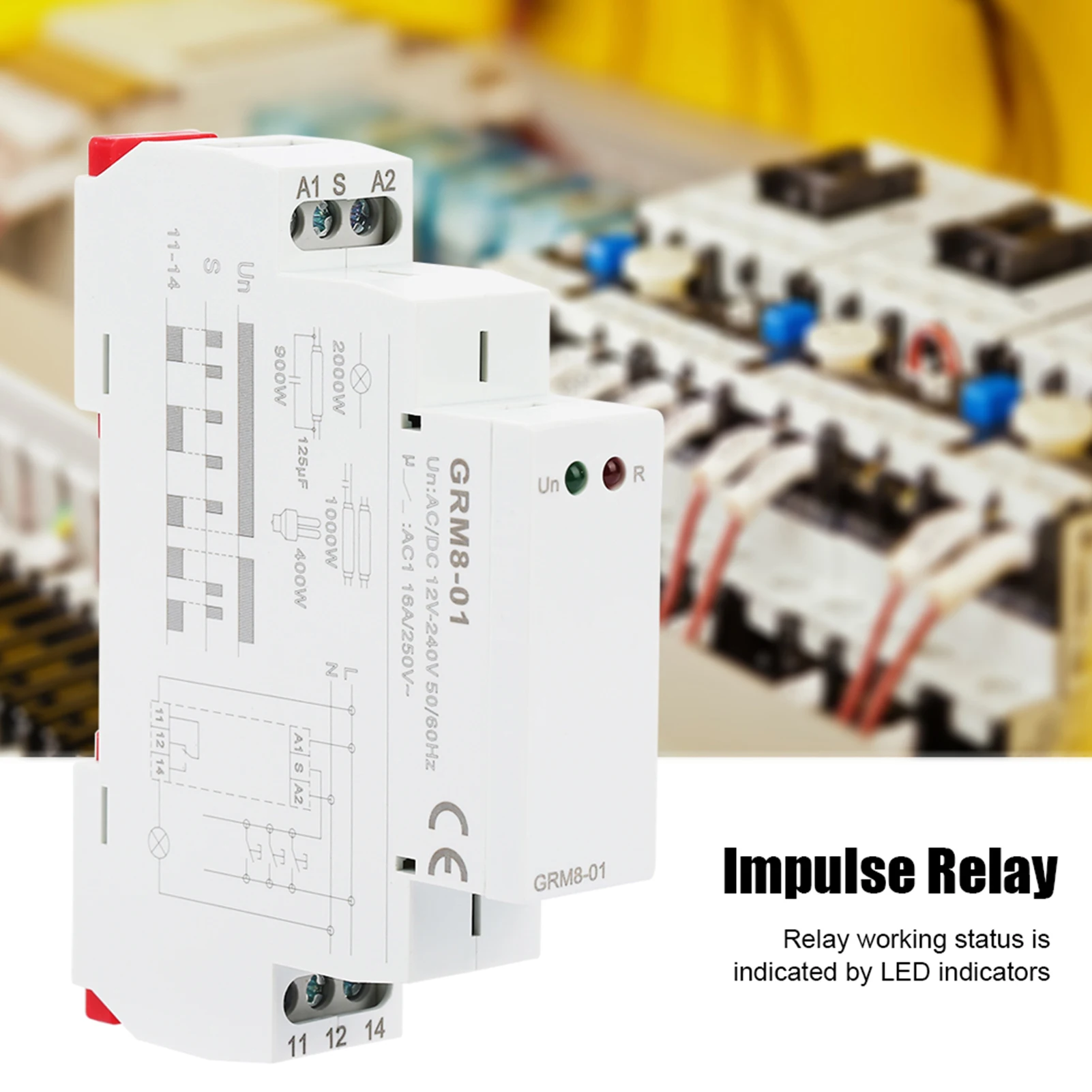

2. Relay working status is indicated by LED indicators.
3. With small volume, only 18mm width, 35mm DIN rail mount.
4. Simple structure, easy to wire and mount.
5. Stable performance, long service life.
Specification:
Model: GRM8-01

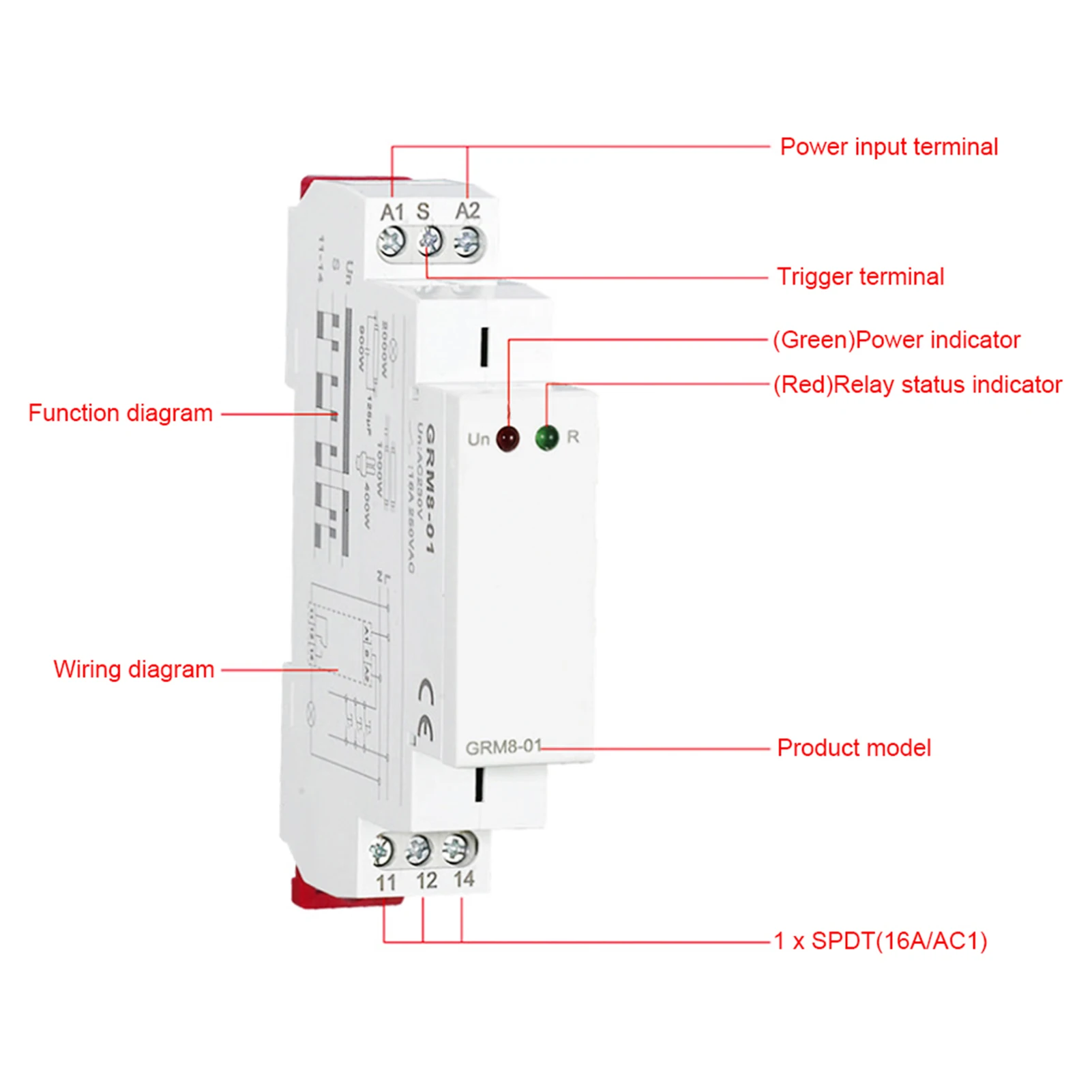

Power terminal: A1-A2
Rated power supply voltage: AC/DC 12-240V (50-60Hz)
Power consumption: AC0.09-3VA/DC0.05-1.2W
Supply voltage tolerance: -15%; +10%
Power indicator: Green LED
Control terminal: A1-S
Control signal width: Min. 25mm
Output contact: 1 x SPDT, 16A/AC1, 250VAC/24VDC
Minimum switching power: 500mW
Output indication: Red LED
Mechanical life: 1x107
Electrical life(resistive load): 1x106
Reset time: Max 200ms
Working temperature: -20℃~55℃

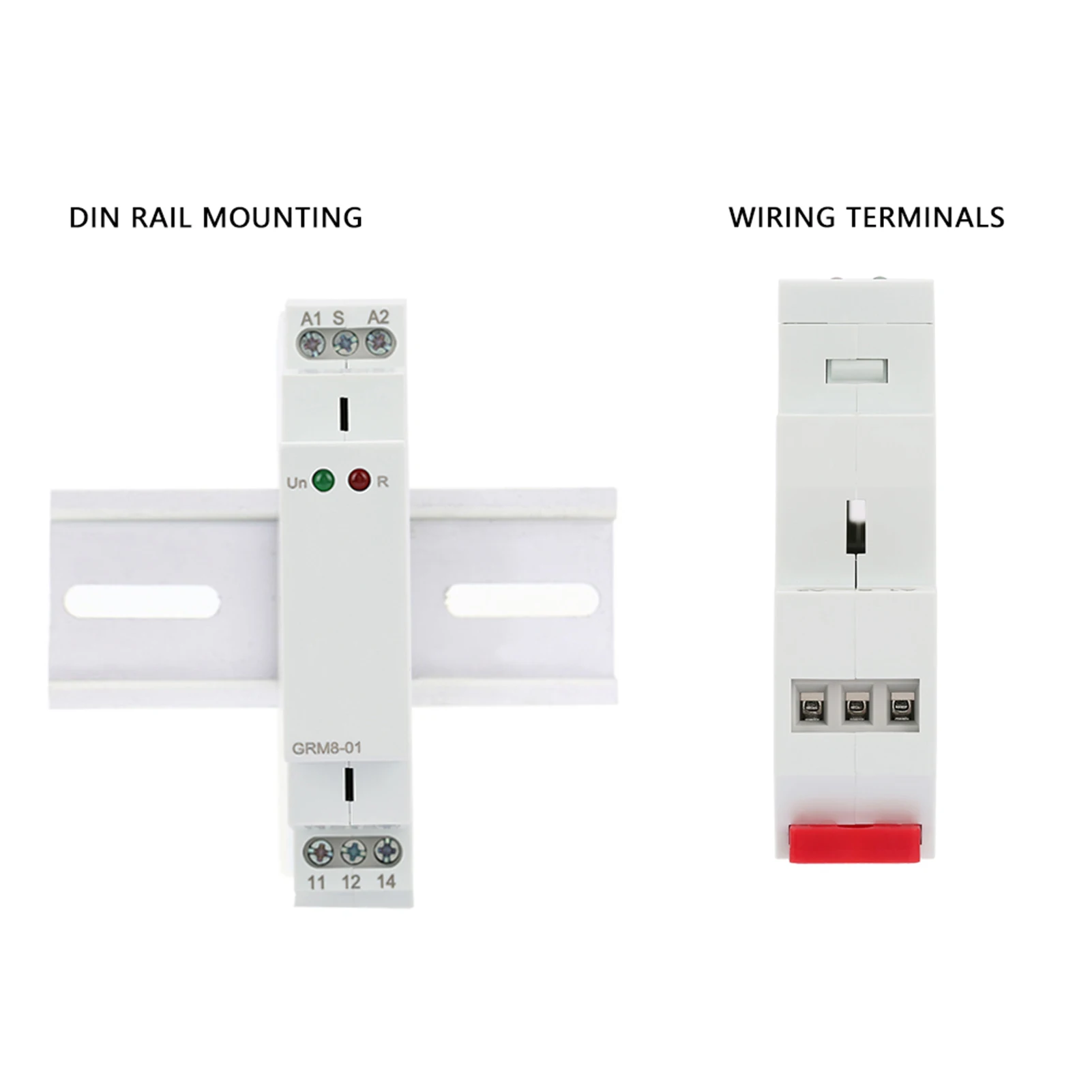

Mounting method: 35mm DIN rail
Mounting altitude: ≤2000m
Wiring capability: 1x2.5mm2 or 2x1.5mm2

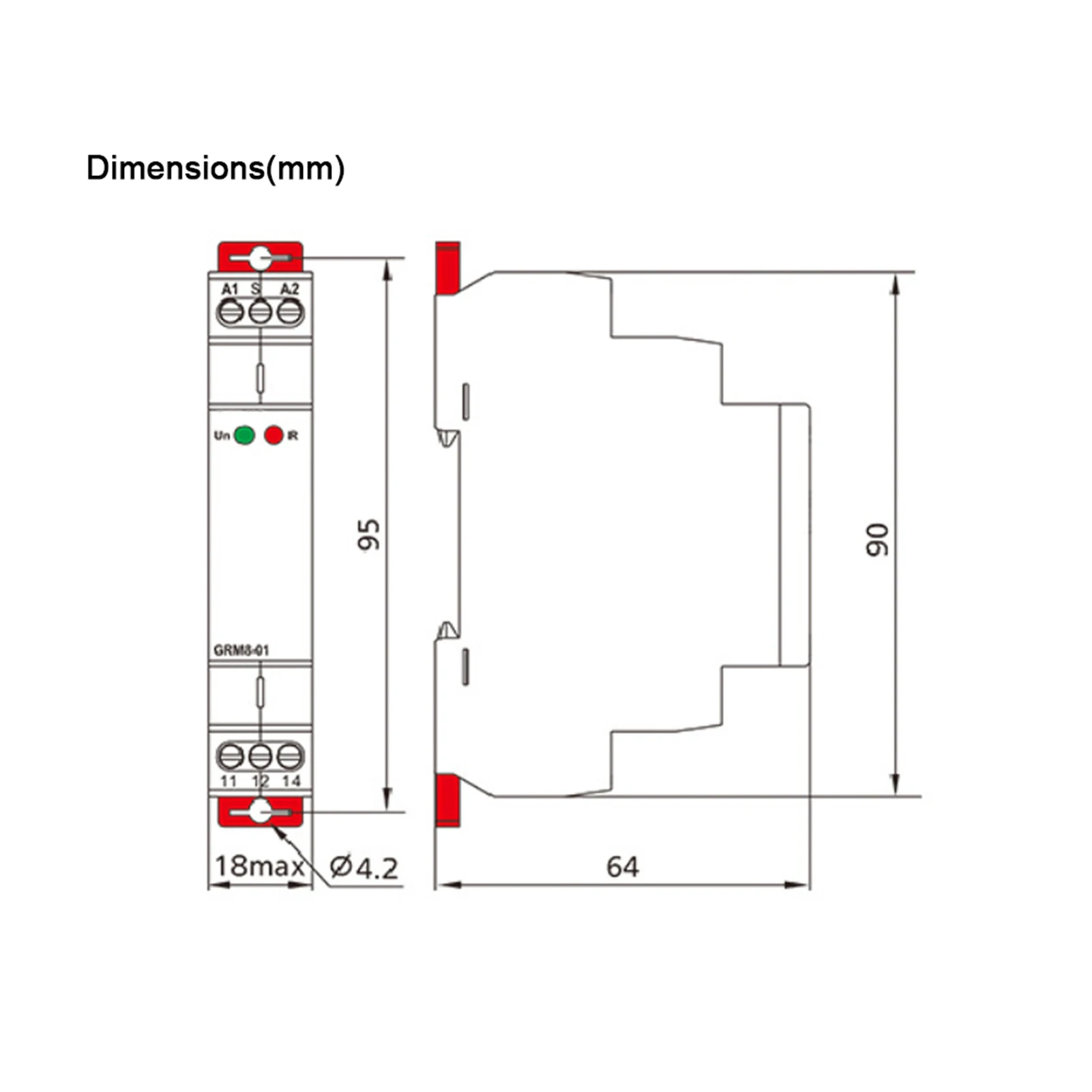

Dimensions: 90*18*64mm / 3.54*0.71*2.52in
Weight: Approx. 73g/2.6oz
Package List:
1 * Electronic Impulse Relay
Note:
1. Due to the difference between monitors and light effects, the pictures may not reflect the actual color of the item.
2. Please allow slight error due to manual measurement. Thanks for your understanding.
