Grove 162 16X2 1602 3.3-5V Serial IIC I2C FSTN Positive Negative Character LCD Module Display Screen LCM Panel w/ RGB Backlight

Grove 162 16X2 1602 3.3-5V Serial IIC I2C FSTN Positive Negative Character LCD Module Display Screen LCM Panel w/ RGB Backlight

$35.96

$35.96 $0.00

Description

SPECIFICATIONS

Backlight Type: RGB Backlight

Brand Name: SURENOO

Display Mode: NC

Display Type: FSTN Postive / Negative

High-concerned chemical: none

Model Number: SLC1602O

Origin: Mainland China

Resolution: 16*2

Semiconductors & Actives Type: lcds & displays

Type: Character

is_customized: Yes

Surenoo SLC1602O Character LCD Module

☛ (Surenoo Character LCD Module Series Selection Guide) ☚

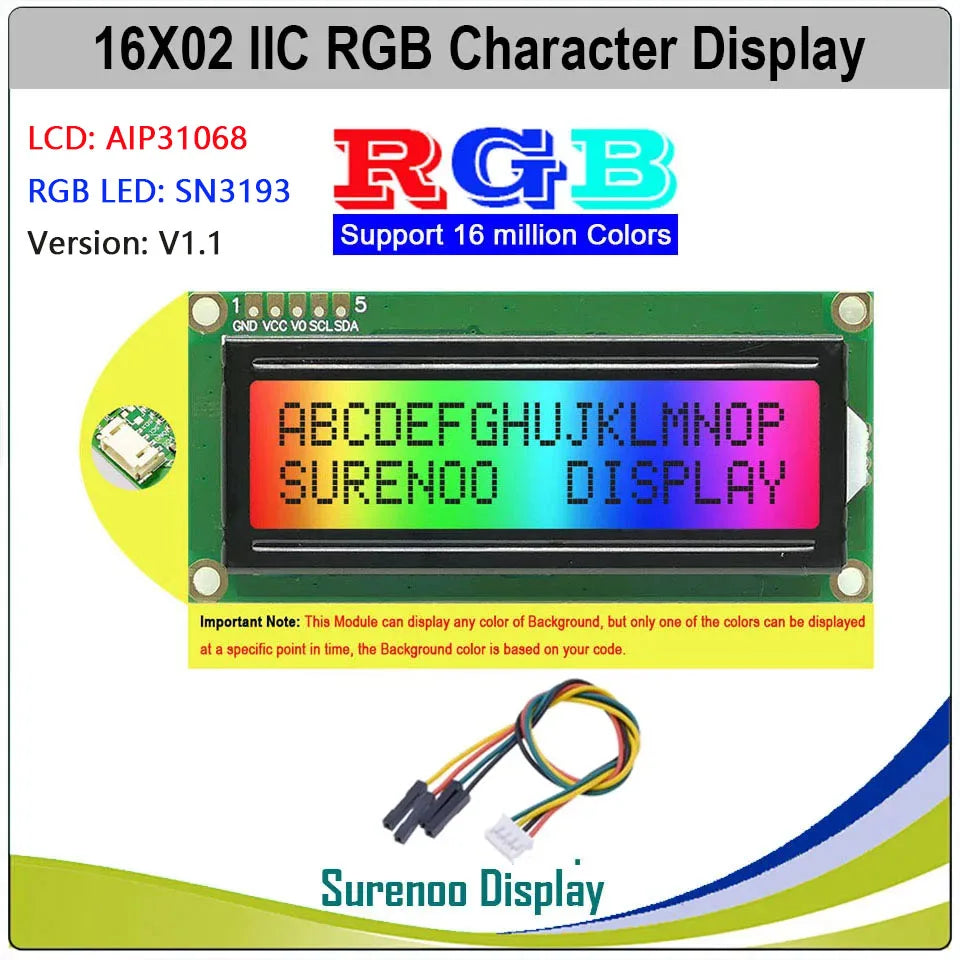

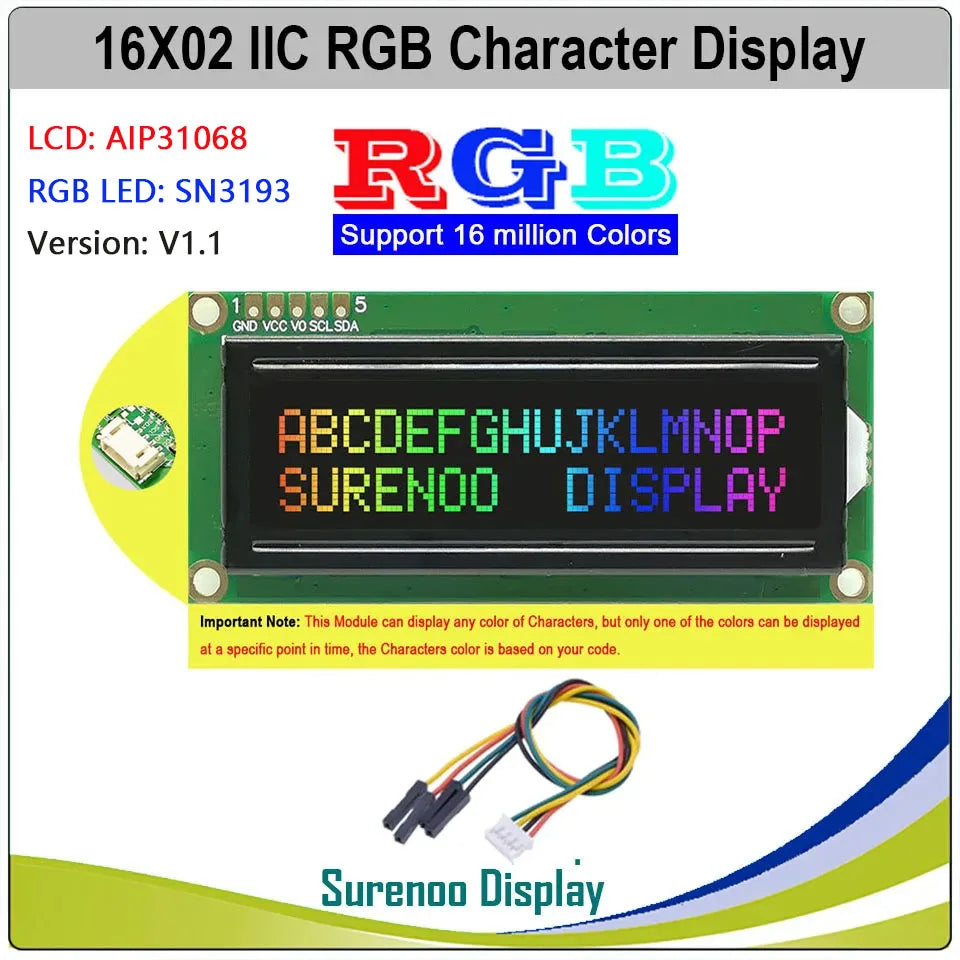

V1.1: AIP31068 LCD Controller + SN3193 RGB LED Controller

V1.0: AIP31068 LCD Controller + PCA9633 RGB LED Controller

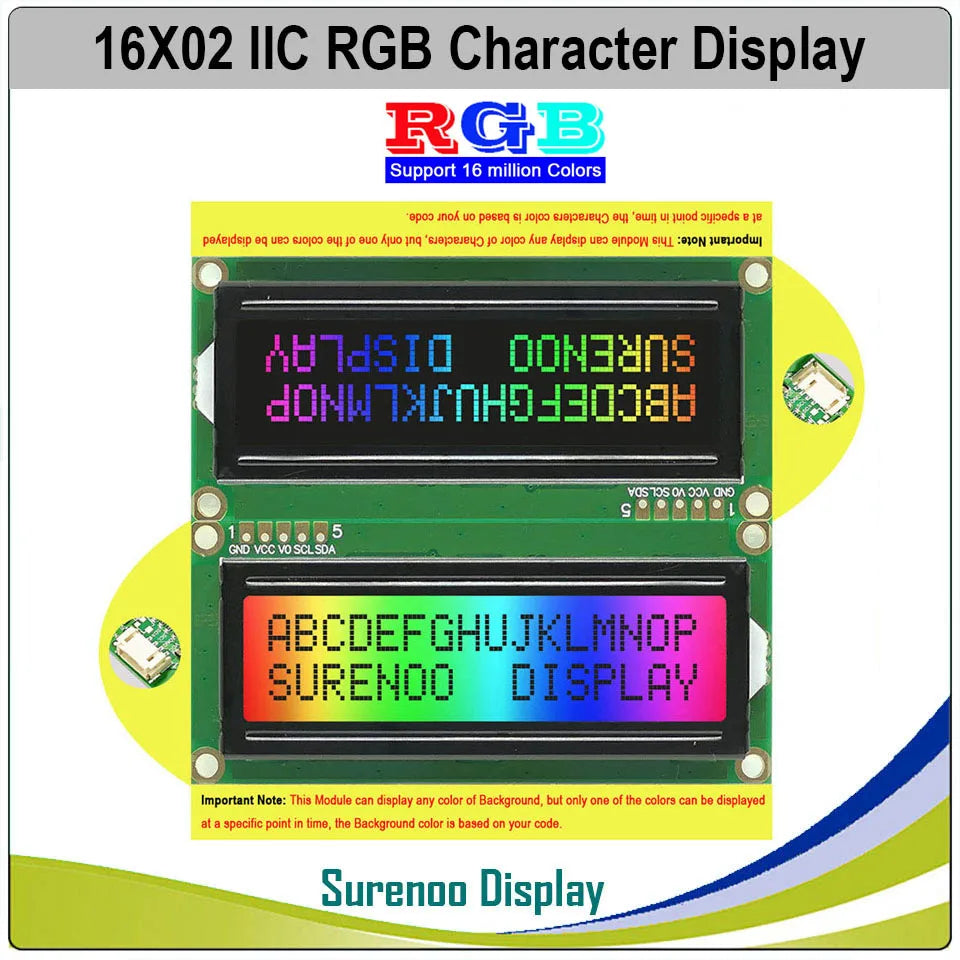

Important Note:

This Module can display any color of Characters / Backgound, but only one of the colors can be displayed at a specific point in time.
The Characters / Backgound color is based on your code.

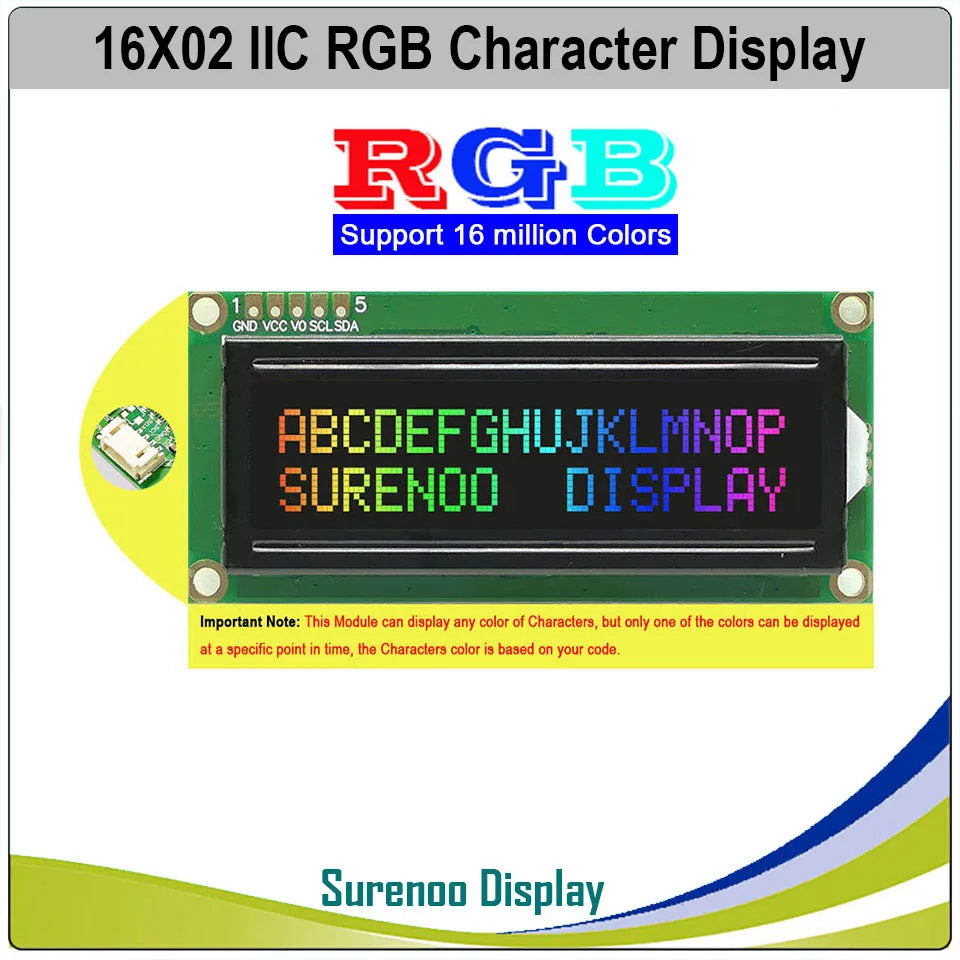

SLC1602O_FNCIT: RGB Colors Dots on Black Background(Support 16 million Colors)

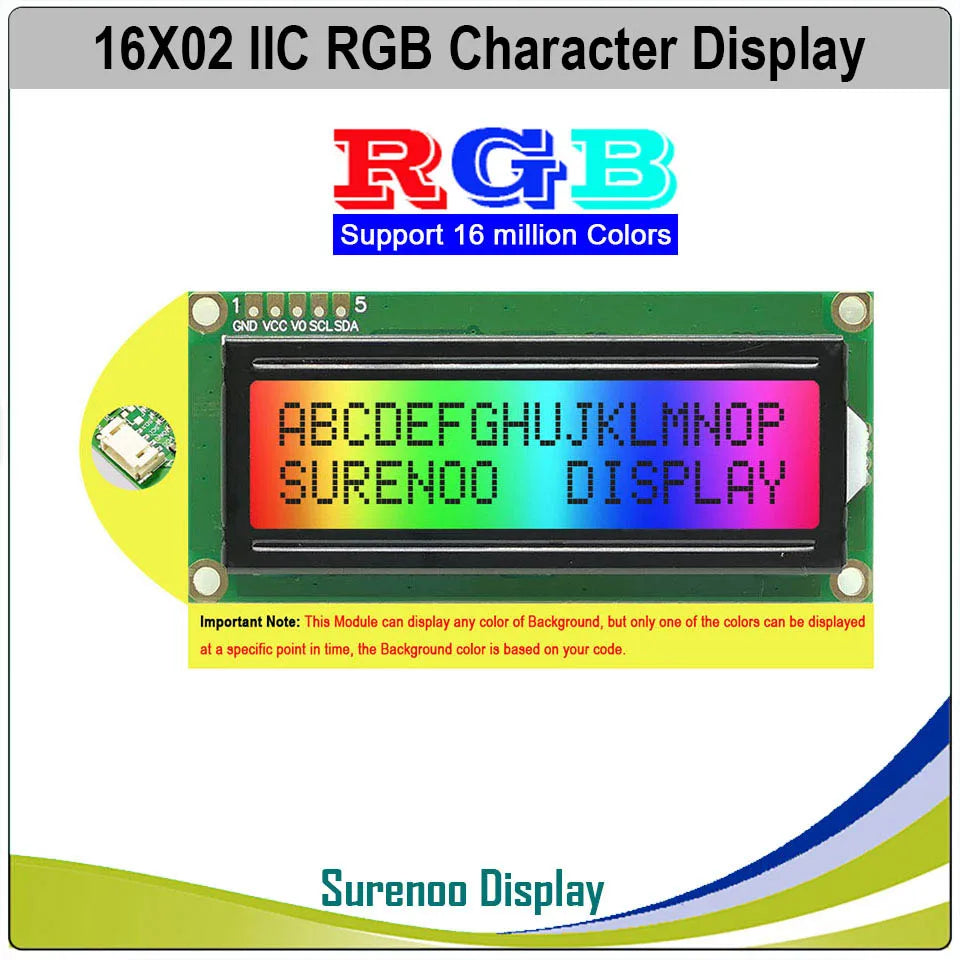

SLC1602O_FPCIT: Black Colors Dots on RGB Background (Support 16 million Colors
SLC1602O V1.0: RGB LED Controller_PCA9633DP2 (Cost is very higher,off manufactrure already)

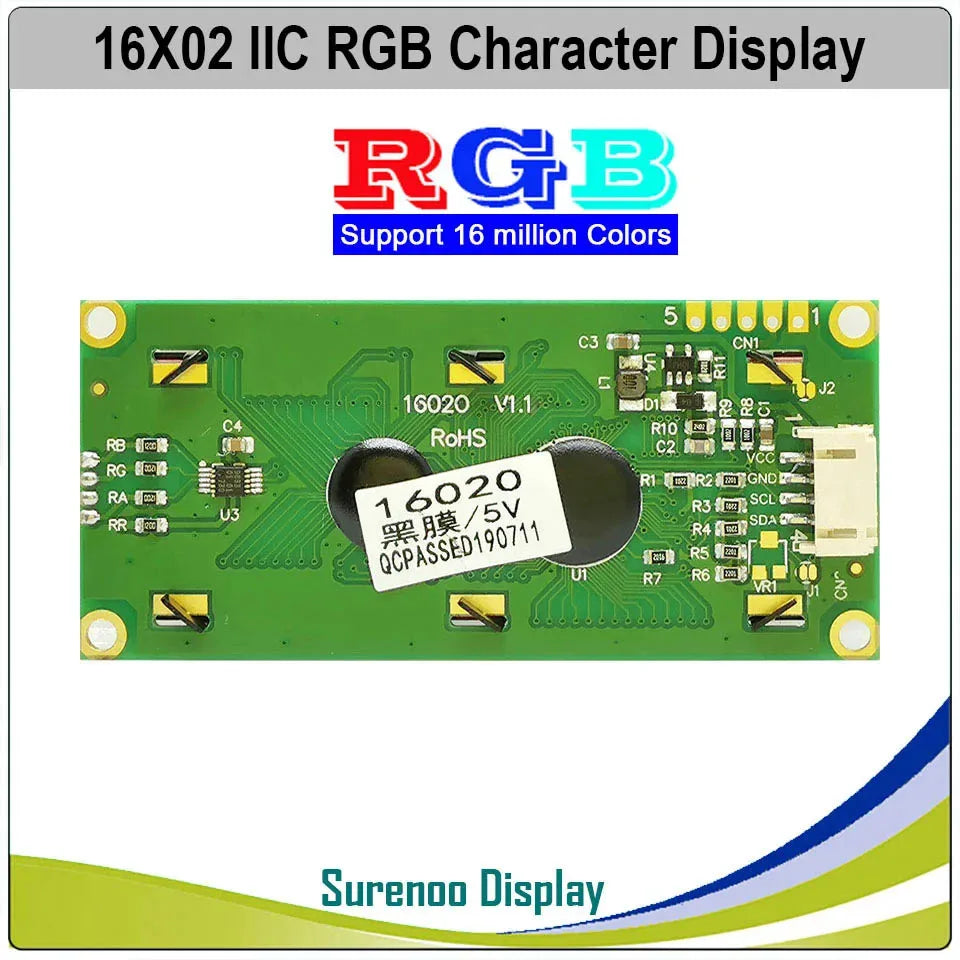

SLC1602O V1.1: RGB LED Controller_SN3193 (Main Supply Part No.: SN3193)
Surenoo 51 Library (1602_AI31068+SN3193_IIC)
Surenoo Arduino Library (1602_AI31068+SN3193_IIC)

1. You need to install the Rust compiler on your system (https://rustup.rs/):

2. Then you need to install the AVR build components for Rust.

3. The instructions for set up your computer to compile the AVR rust code and then burn it to the Arduino is here:

4. Once the computer has the build system installed, build the code code with this command issued from the folder:

Surenoo Arduino Library (1602_AI31068+SN3193_IIC)

5. Cargo run --release -- -P /dev/cu.usbserial-14340

Of course, change the USB serial port connection to the Arduino to what ever is appropriate for your compute.

Surenoo Testing Video (51 & Arduino):

➤ Basic Information

>> Model No.: SLC1602O
>> Product Type: Character LCD Module
>> Brand: Surenoo
>> Display Format: 16*02 Characters
>> Interface: Serial IIC
>> IC or Equivalent: AIP31068(LCD), SN3193(RGB Backlight)

>> Font: English/Japanese
>> Outline Dimension: 80.00(W)x36.00(H)x13.00(T)mm
>> Visual Area: 64.50x16.00mm
>> Active Area: 56.20x11.50mm
>> Viewing Direction: 6:00
>> IC Package: COB
>> Power Supply (Type): 3.3-5.0V

➤ Datasheet Download (Surenoo Display)

https://www.surenoo.com/products/8109143

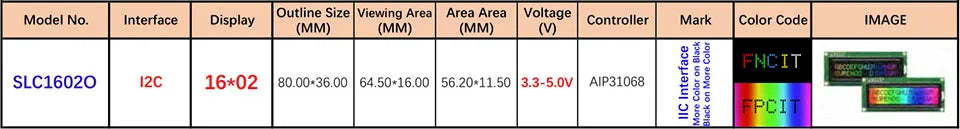

➤ SLC1602O Series Table

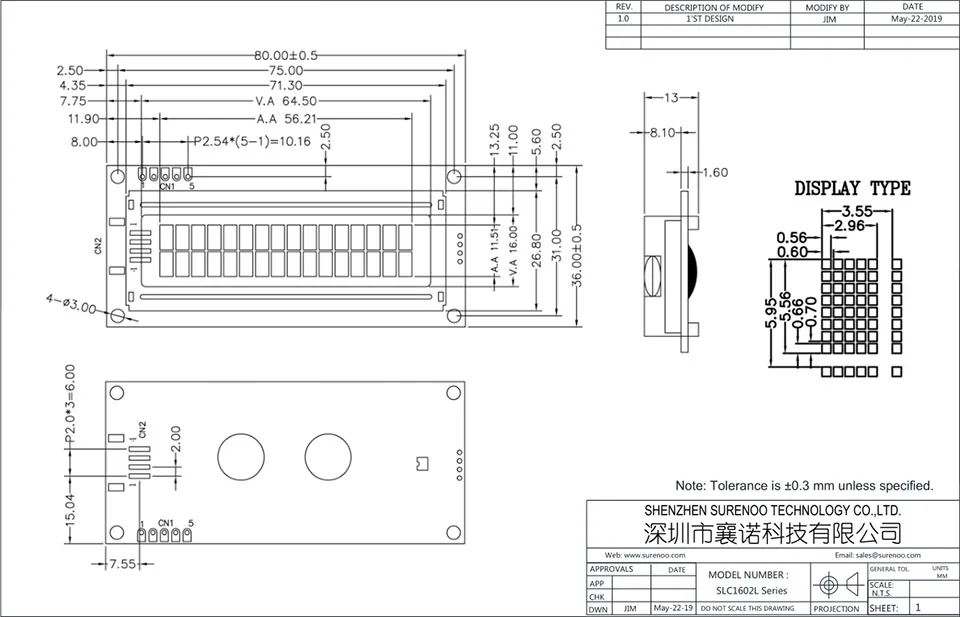

➤ SLC1602O Outline Drawing

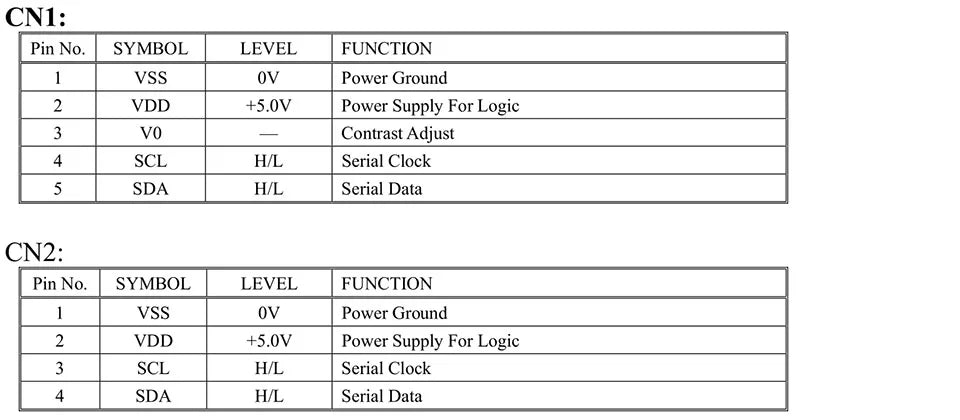

➤ SLC1602O Pin Configuration

"Shenzhen Surenoo Technology Co., Ltd." is a professional display supplier since 2005, The company has its own trademark "Surenoo Display", dedicated to the LCD industry over 10 years, supply service for numerous domestic and foreign eBay and Alixpress buyers and companies. After more than ten years of development, it has gradually gained recognition and recognition from domestic and foreign customers. The company has a rich product line. The company's designers are composed of a group of experienced and experienced professionals who can provide customers with fast, high-quality design solutions and meticulous technical support.

In June of 2019, we joined the Alibaba China Supplier Gold Certified Member, and we will provide professional services to our customers with more advantageous LCD product resources.

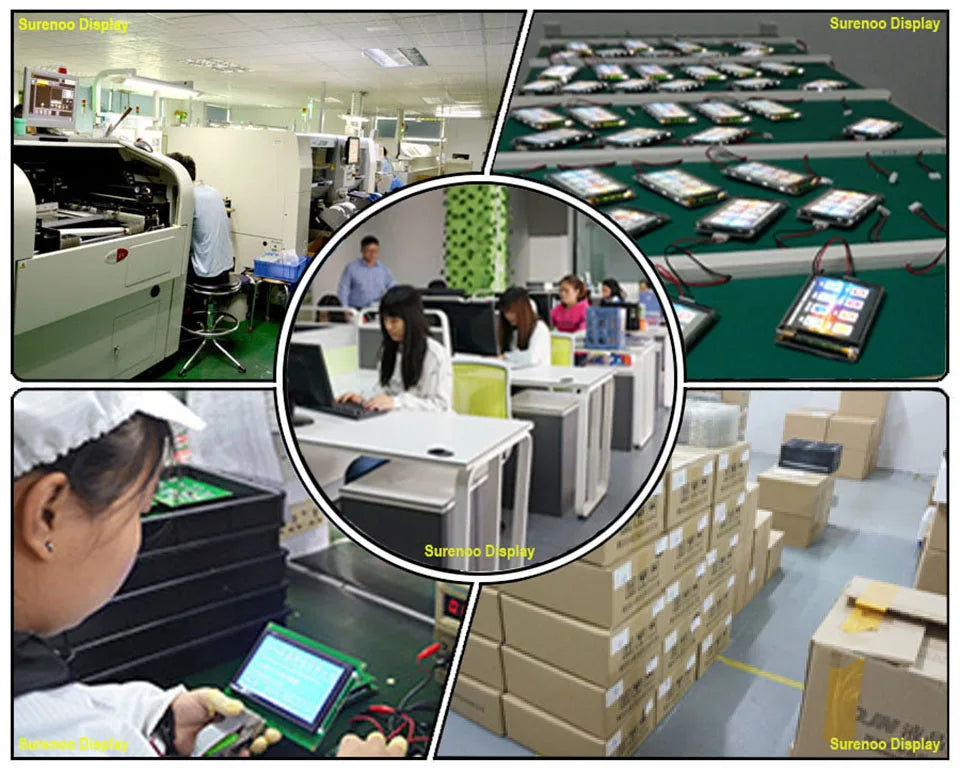

Factory
