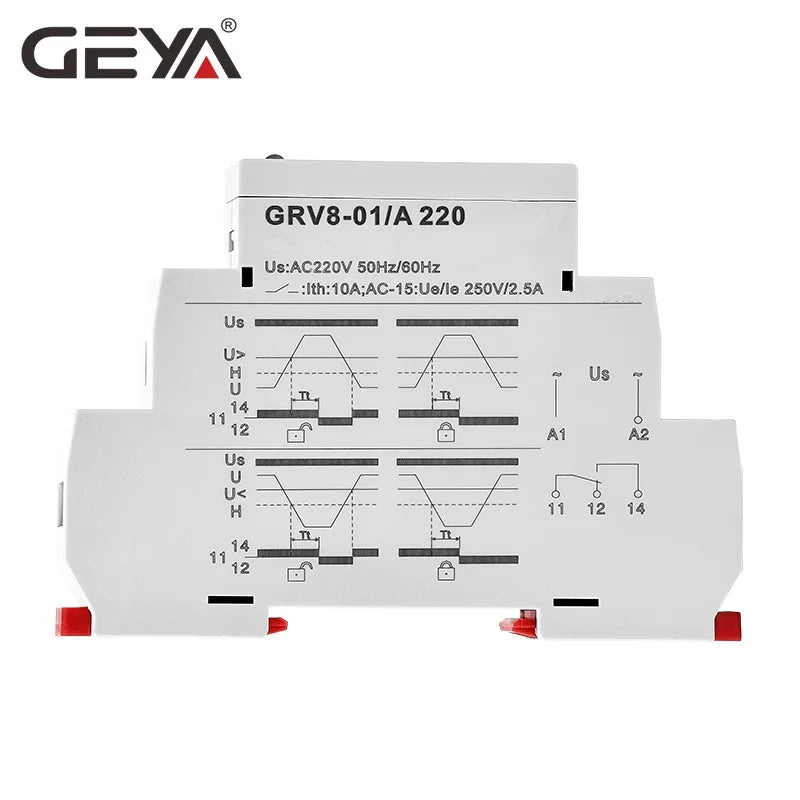

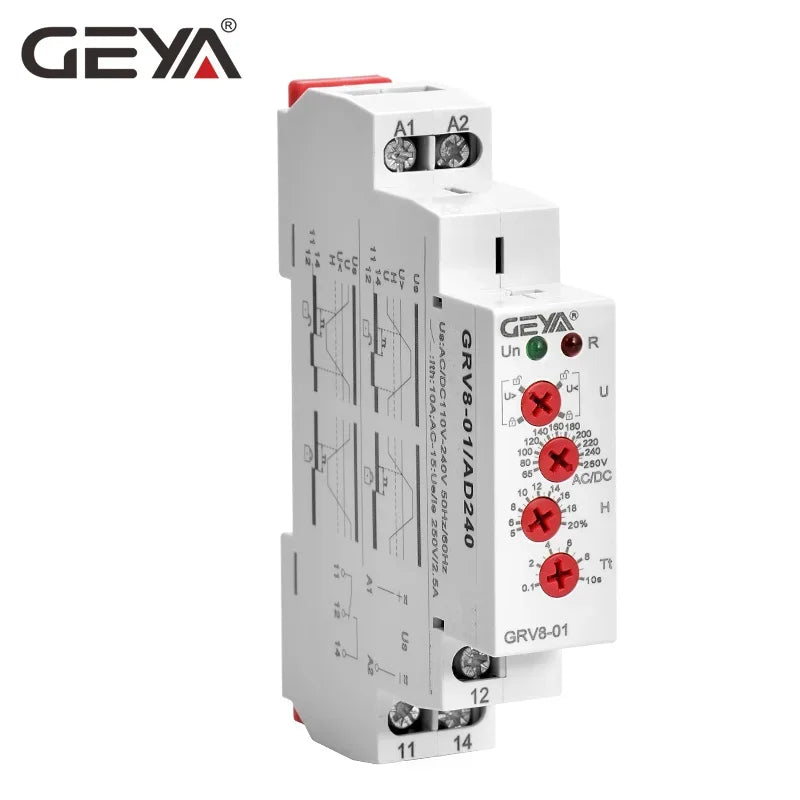

GRV8-01/02 Single Phase Voltage Relay Adjustable Over Under Voltage Protection Relay AC110V 240V DC12V Voltage Regulator

GRV8-01/02 Single Phase Voltage Relay Adjustable Over Under Voltage Protection Relay AC110V 240V DC12V Voltage Regulator

$138.83

$138.83 $0.00

Size GRV8-02 ACDC110-240V GRV8-02 DC12V GRV8-02 ACDC24-48V GRV8-01 ACDC110-240V GRV8-02 AC220V GRV8-01 AC220V GRV8-01 ACDC24-48V GRV8-01 DC12V

Ships FromChina Mainland

Description

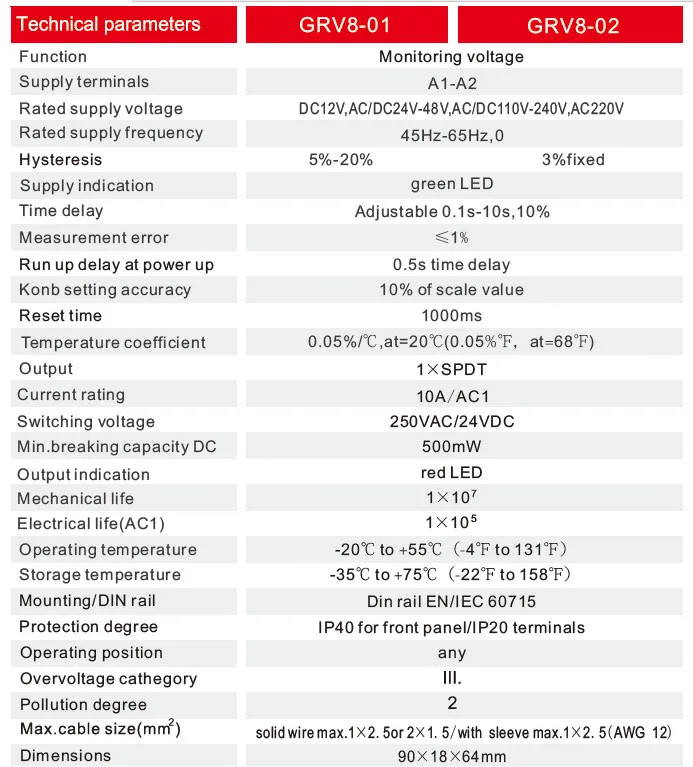

SPECIFICATIONS

Brand Name: GEYA

Certificate: CE CB

Certification: CE

Contact Arrange: SPDT

Contact Load: Low Power

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

Function: Over-voltage Under-voltage Protection

High-concerned chemical: none

Model Number: GRV8-01/02 Voltage Relay

Origin: Mainland China

Output Contact: 1SPDT

Power Source: DC

Product Name: GRV8-01/02 Single Phase Voltage Relay

Protect Feature: Sealed

Rated Current: 10A

Rated Frequency: 50/60Hz

Theory: Voltage relay

Time Delay: Adjustable 0.1s-10s, 10%

Use: Protective

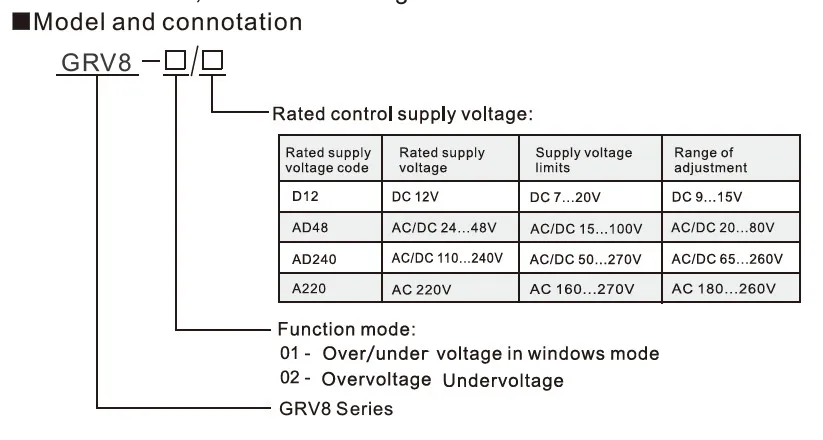

Voltage: 24V,DC12V OR AC/DC24-28V, AC/DC110V-240V, AC220V

is_customized: Yes

TIPS: This link is for GRV8-01/02 Single Phase Overvoltage/Undervoltage Protection Relay, If you need 3 Phase Voltage Protection Relay, Please click here thanks!

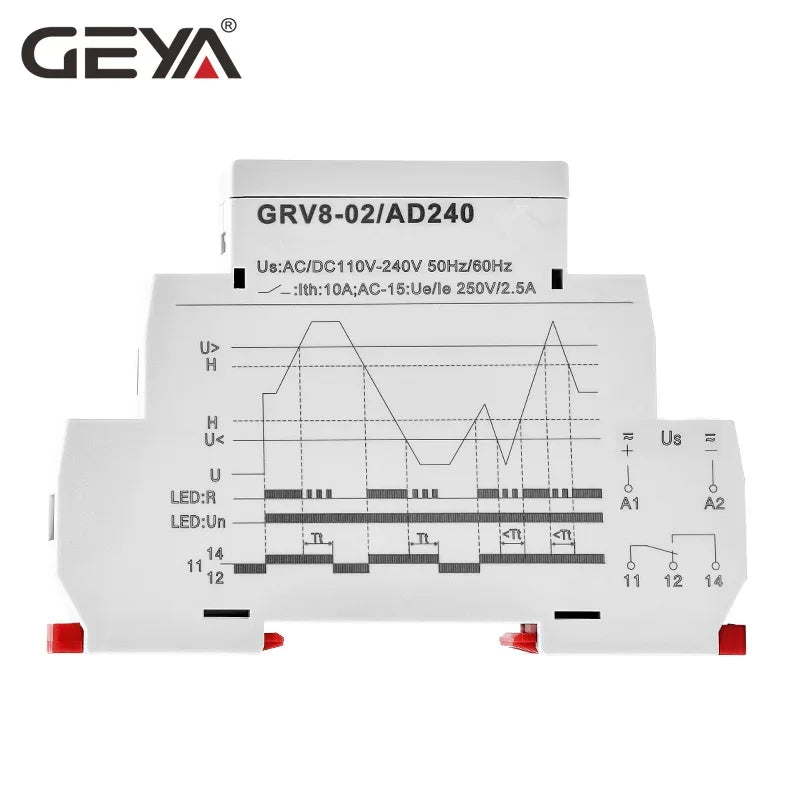

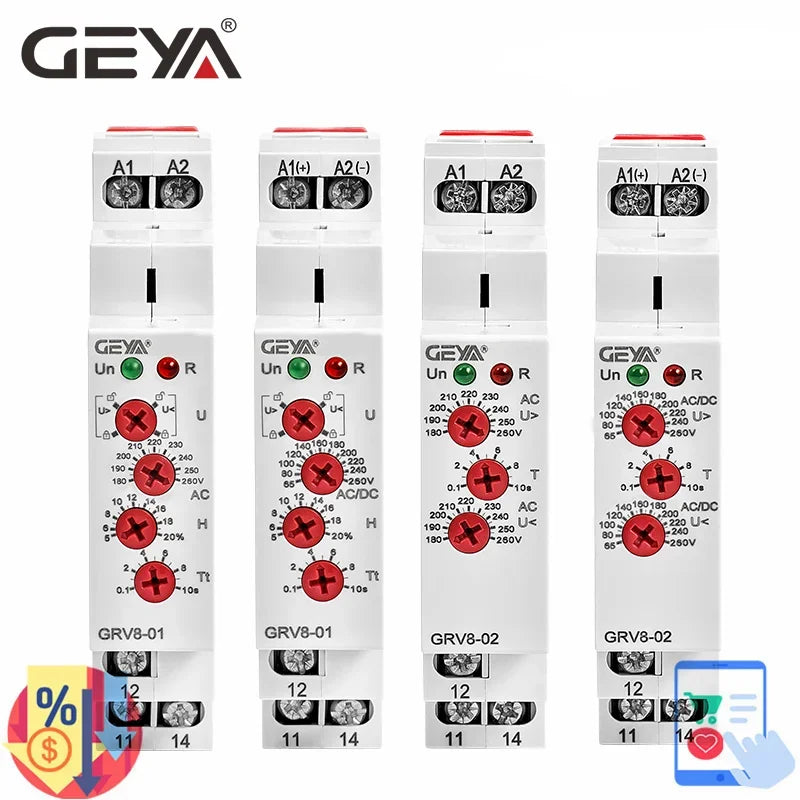

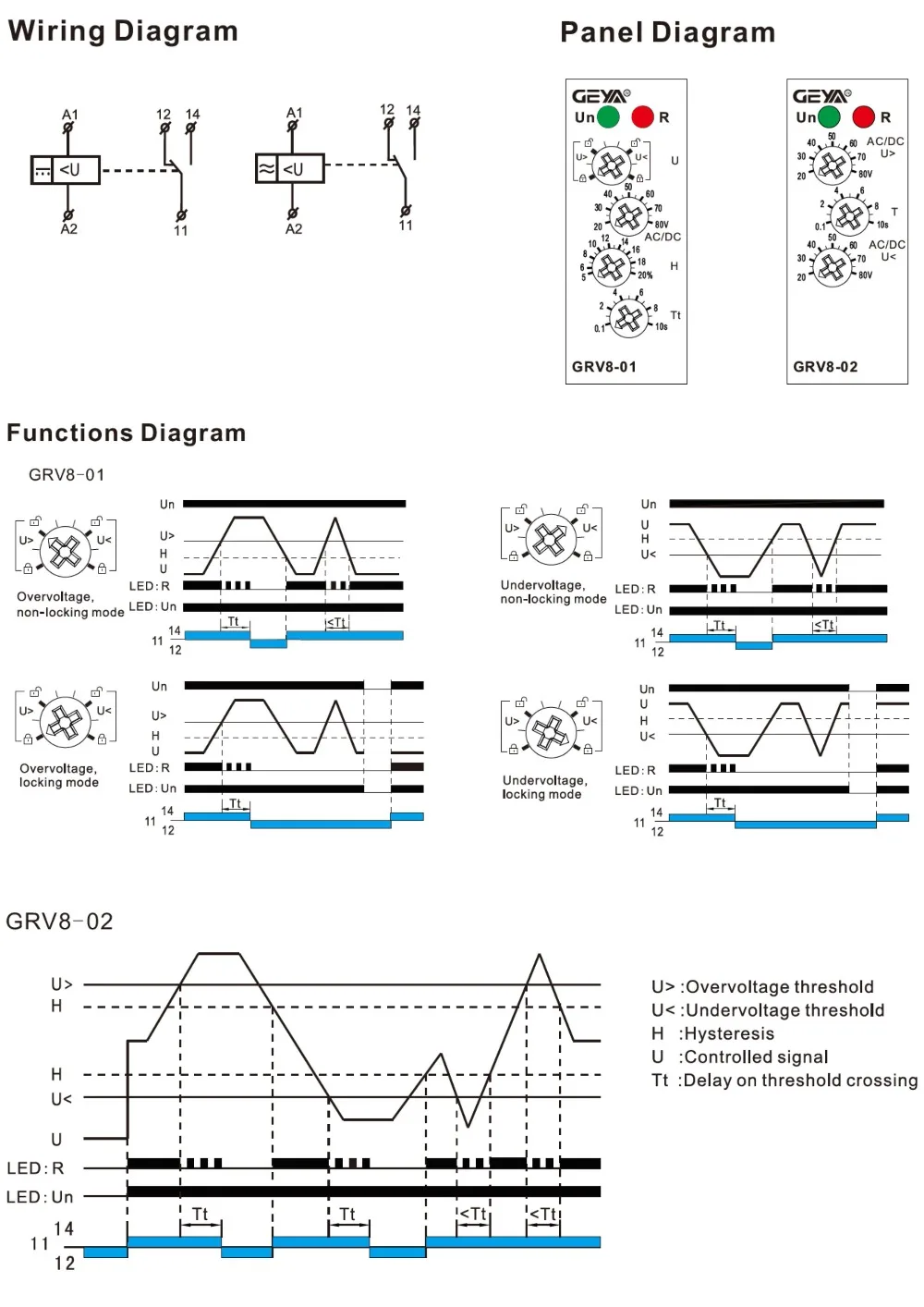

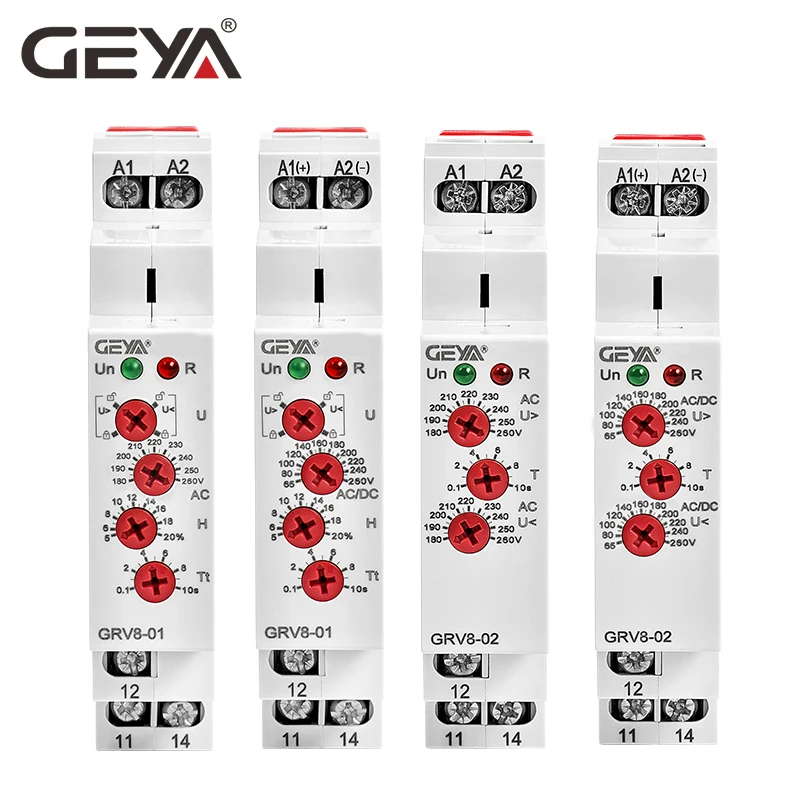

GRV8-01 Over or Under Voltgae Protect

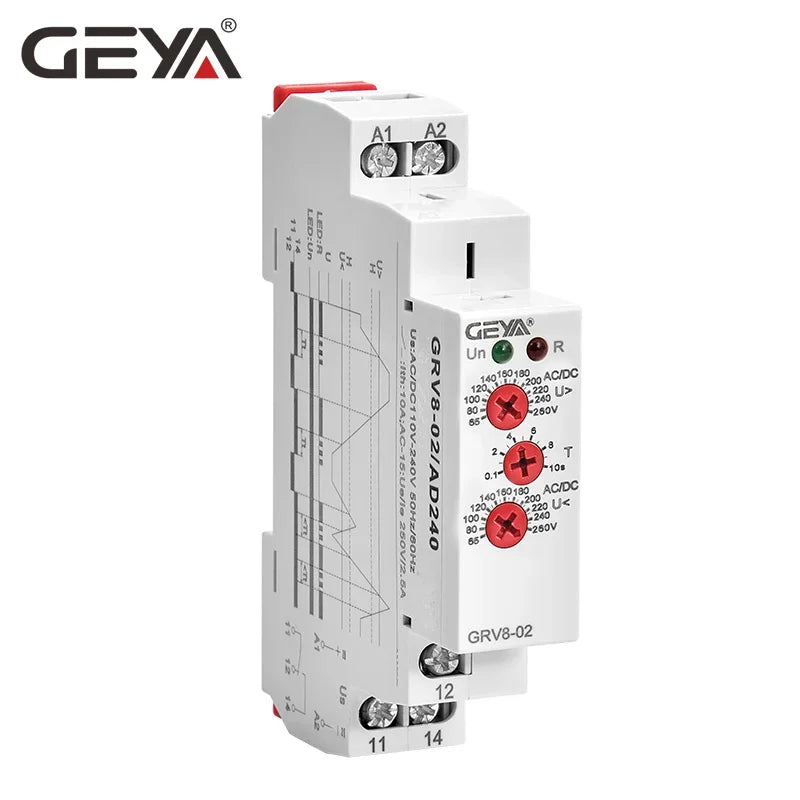

GRV8-02 Over and Under Voltage Protect

General

Applications
-Protect electrical equipment and motors from over-voltage or under-voltage.
-Normal/emergency power supply switching.

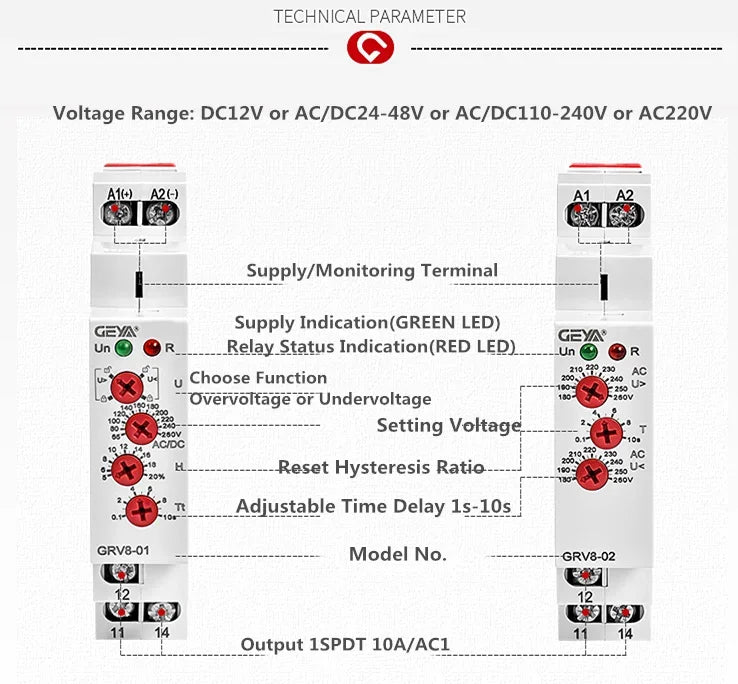

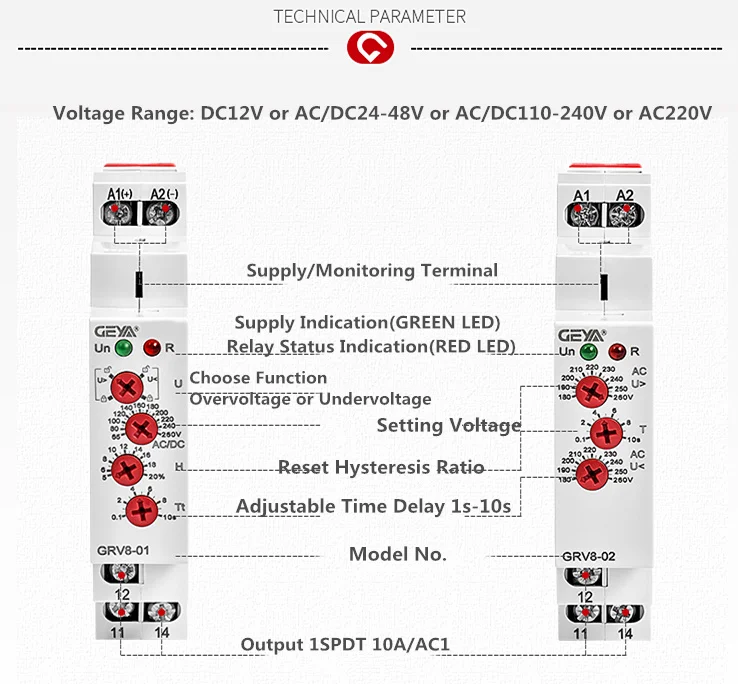

Function Features
- Controls its own supply voltage(True RMS measurement)
-.User may select operation mode through knob.
- Voltage measurement accuracy<1%.
-Voltage Range AC/DC12-240V or DC12V or AC/DC24-48V or AC220V
-Rated Current 10A/AC1 &1SPDT
- Relay status is indicated by LED.
- 1-MODULE,DIN rail mounting.
