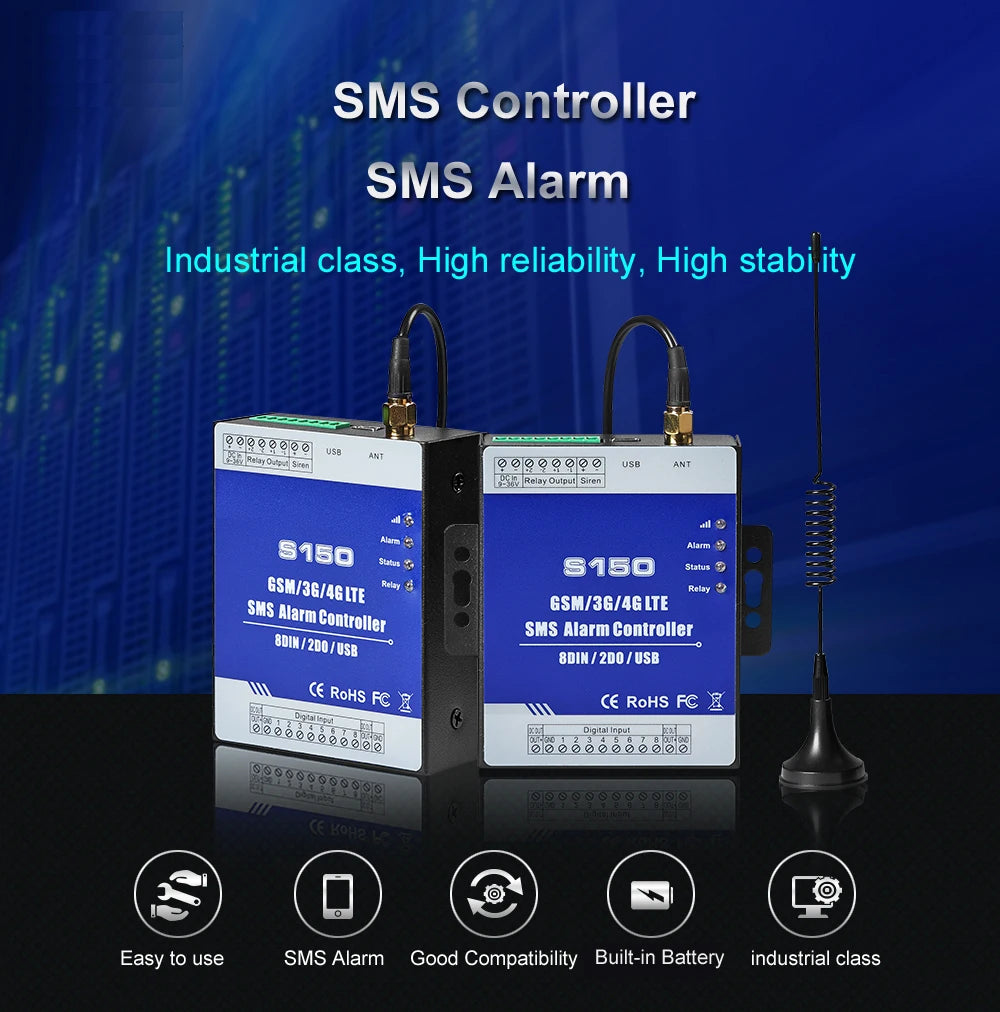

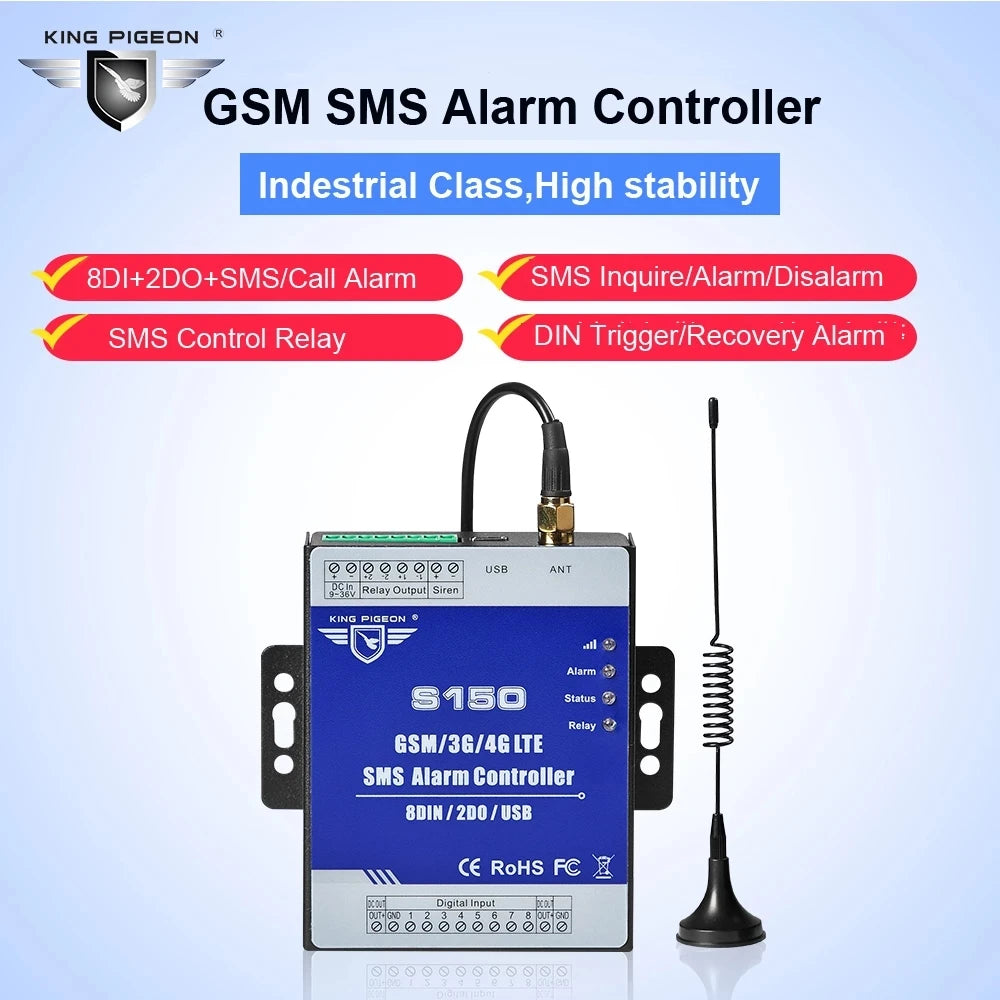

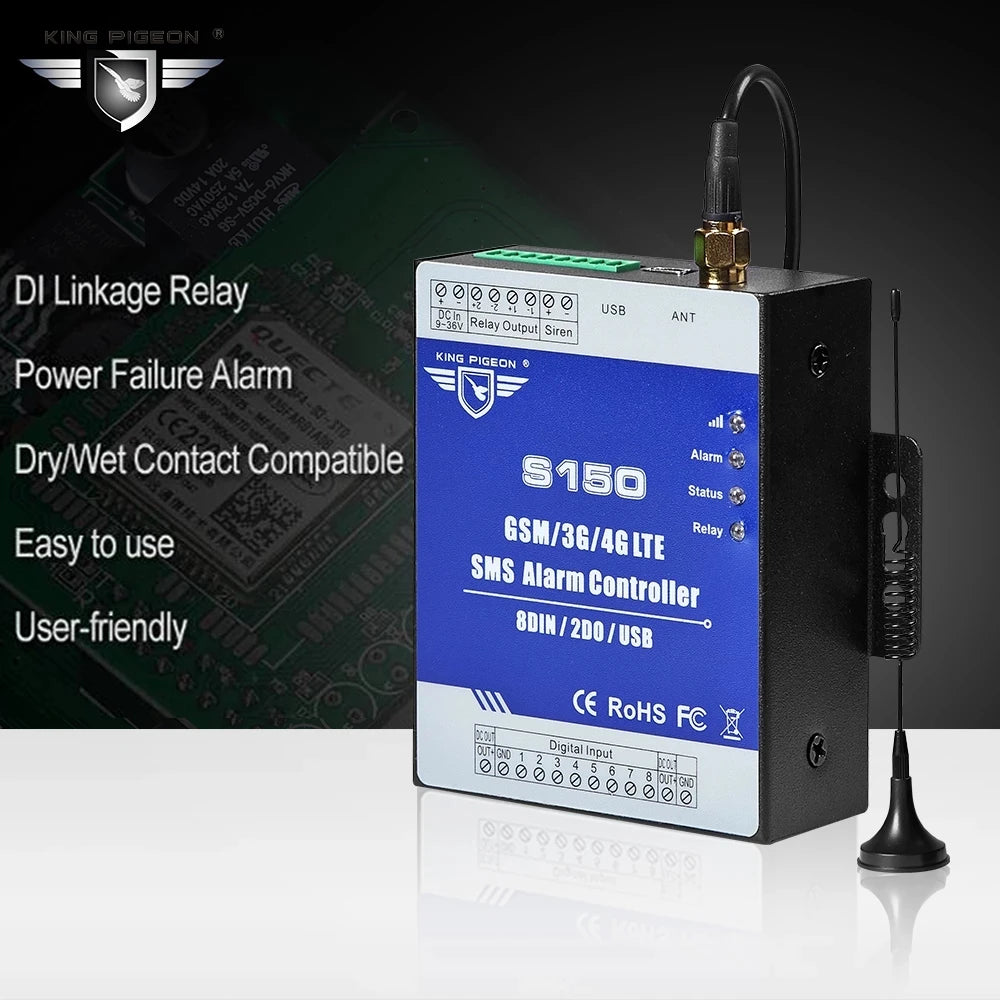

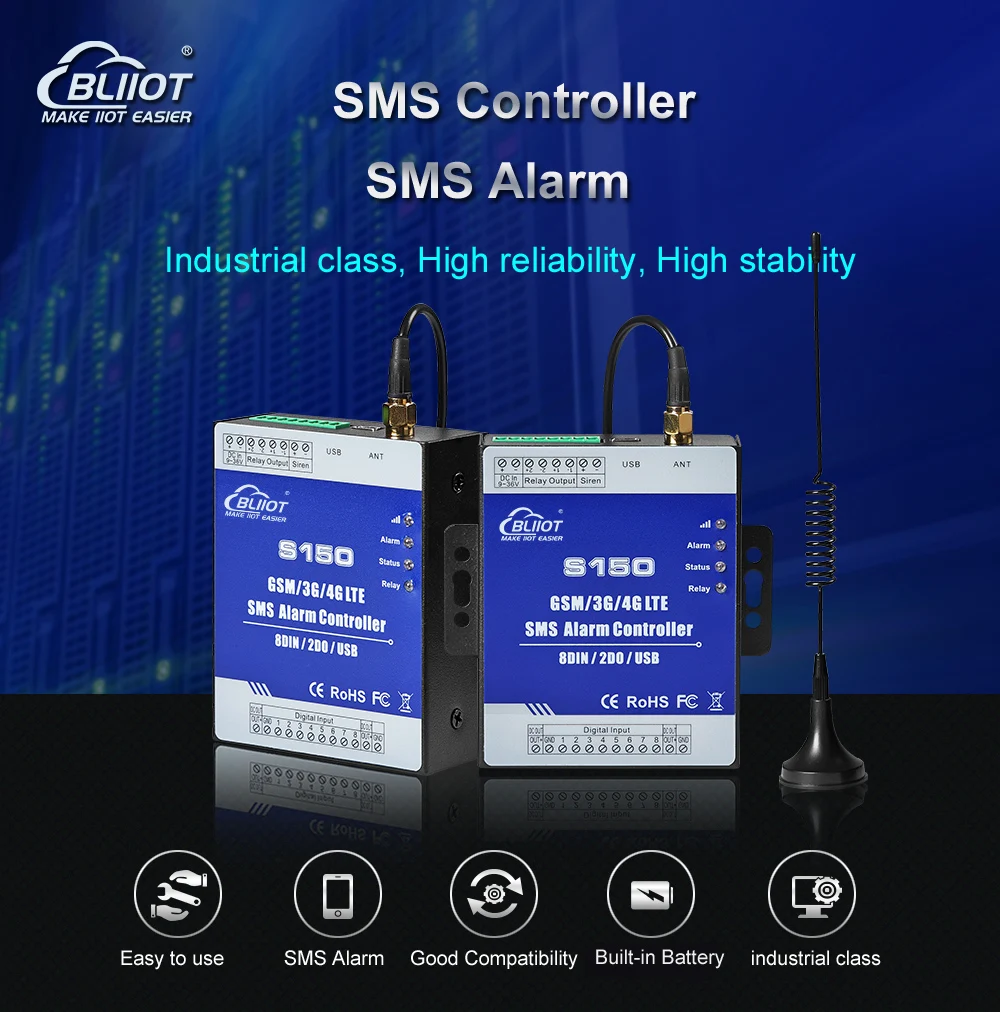

GSM 3G 4G Cellular RTU SMS Alarm Controller S150 8DIN 2Relay Switch Industrial IoT Monitoring System In-Built Watchdog
S150-4G
$955.89
Sale price
$955.89
Regular price
$0.00
Skip to product information
GSM 3G 4G Cellular RTU SMS Alarm Controller S150 8DIN 2Relay Switch Industrial IoT Monitoring System In-Built Watchdog
$955.89
Sale price
$955.89
Regular price
$0.00
Description
SPECIFICATIONS
Brand Name: UandaGad
Certification: CE
High-concerned chemical: none
Model Number: S130/150
Origin: Mainland China
Whether or Not 50Vac or 75Vdc or Higher Power Supply: No

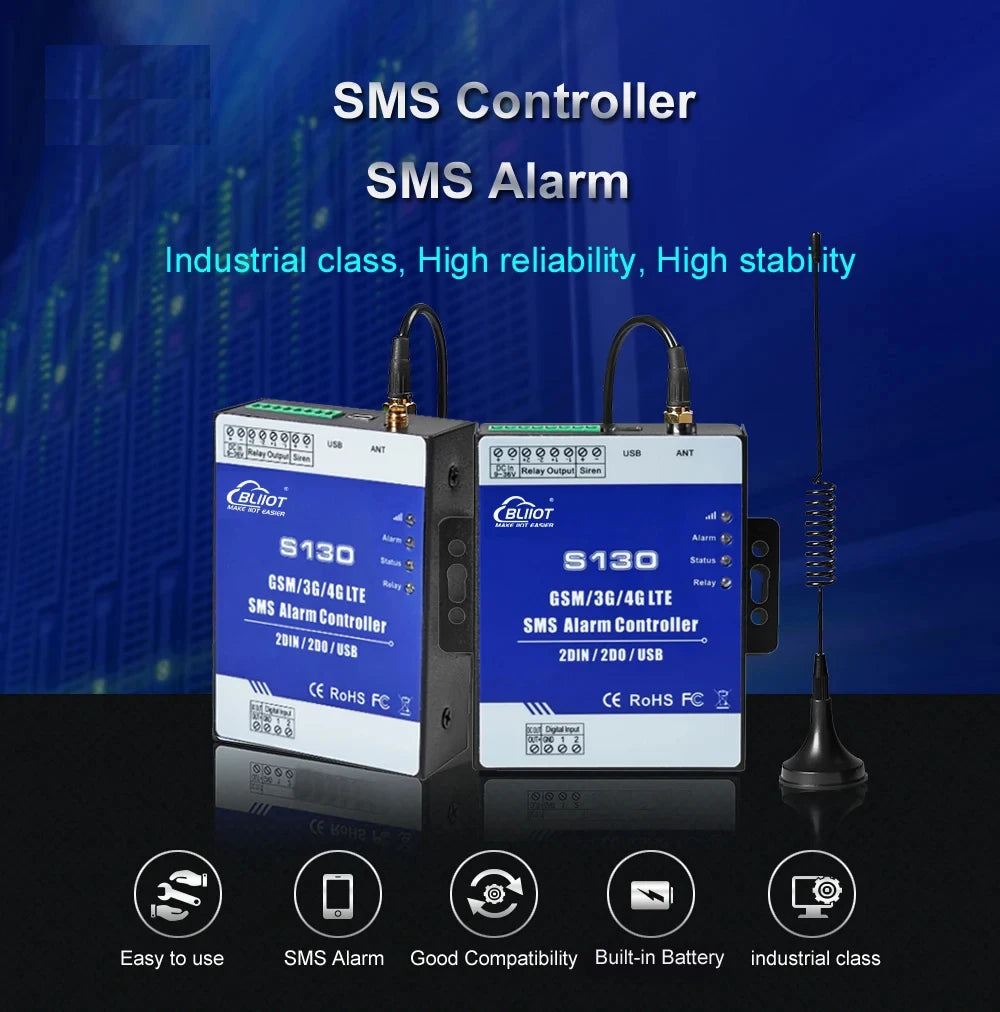

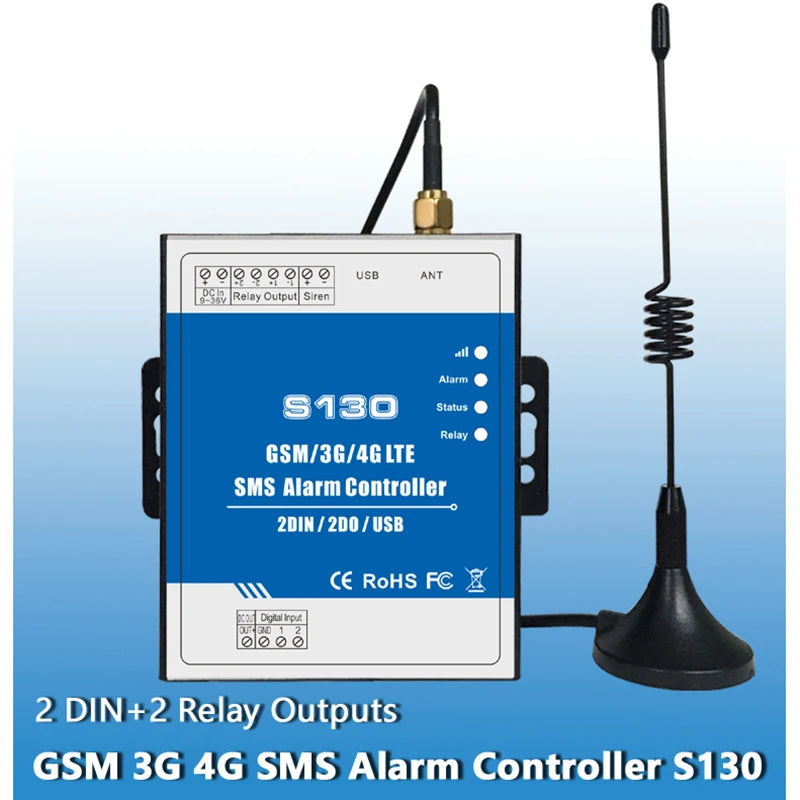

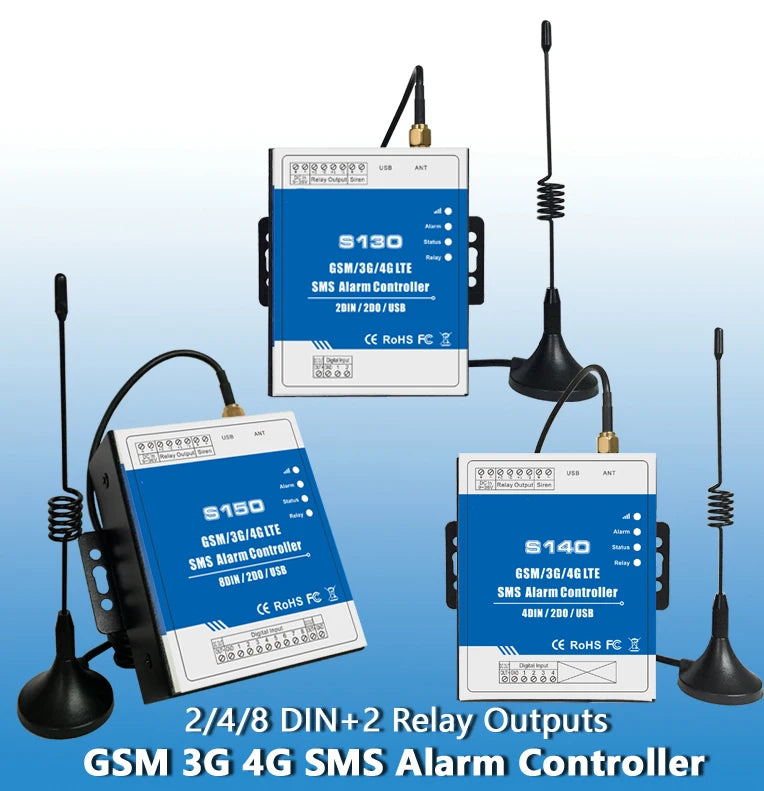

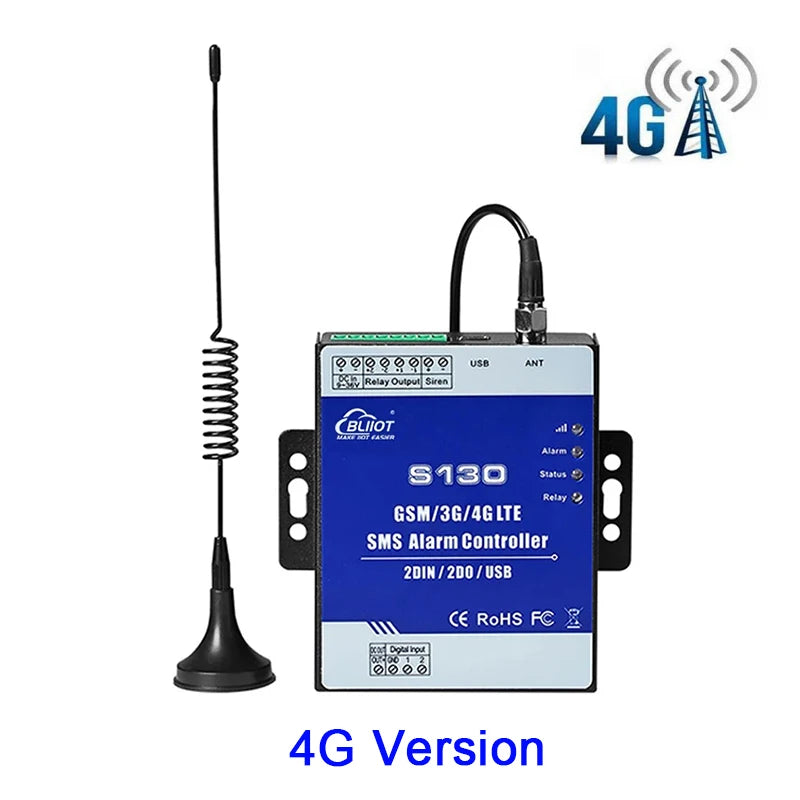

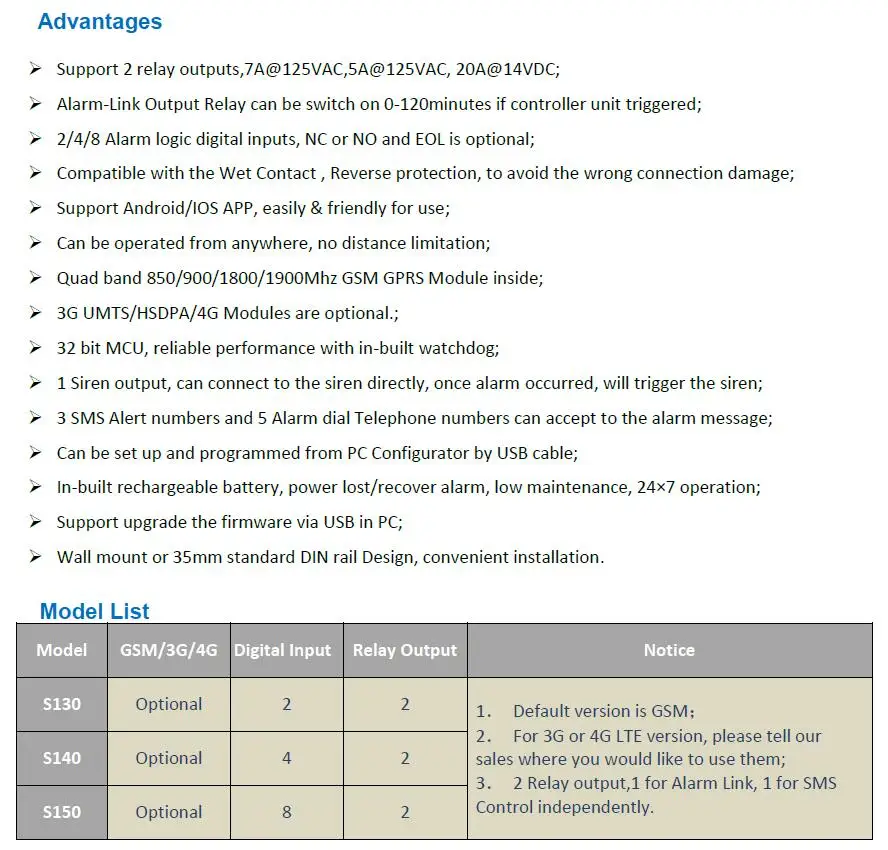

S130 / S150
S130/S150 is a cost-effective Cellular SMS Controller. The SMS controller features digital inputs, relay outputs, it can be used in places which require turning ON/OFF your system, machines, and equipment remotely with a text message from your mobile phone and protect your assets.

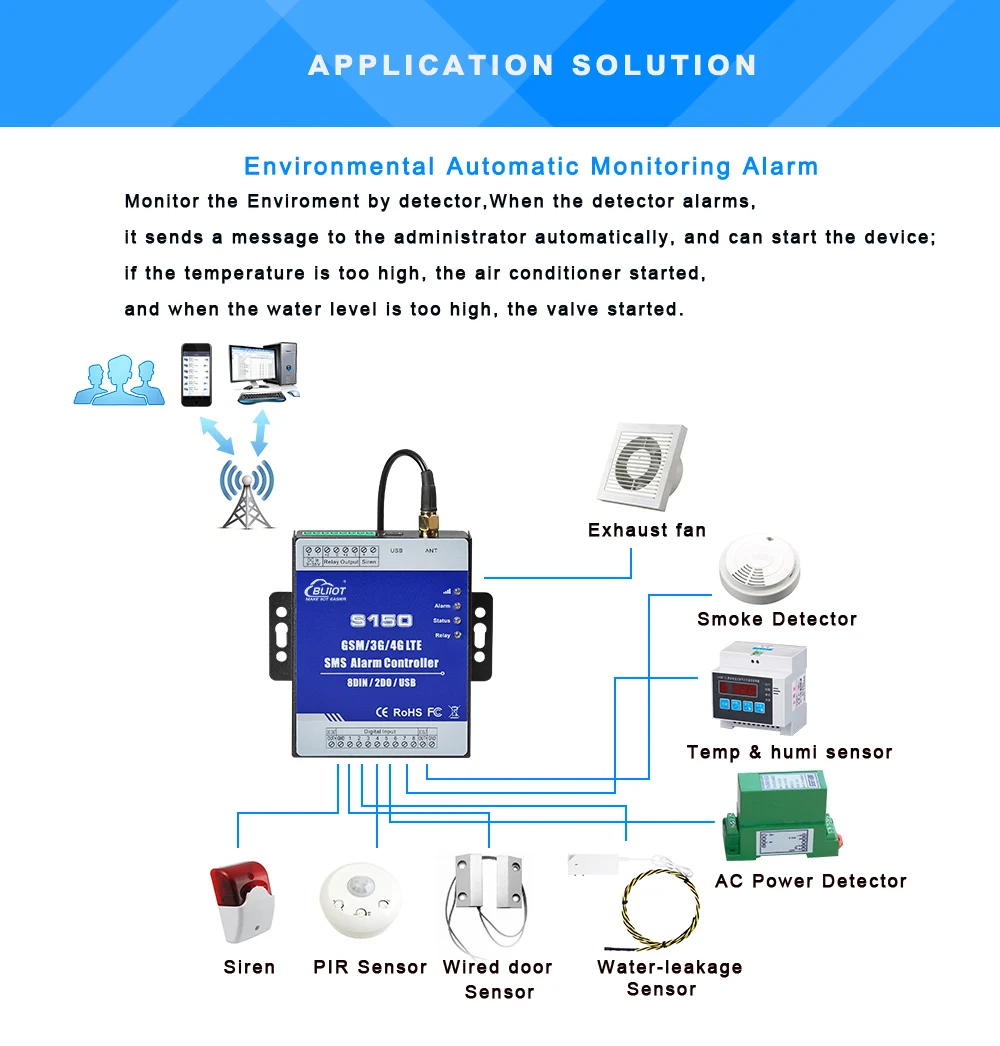

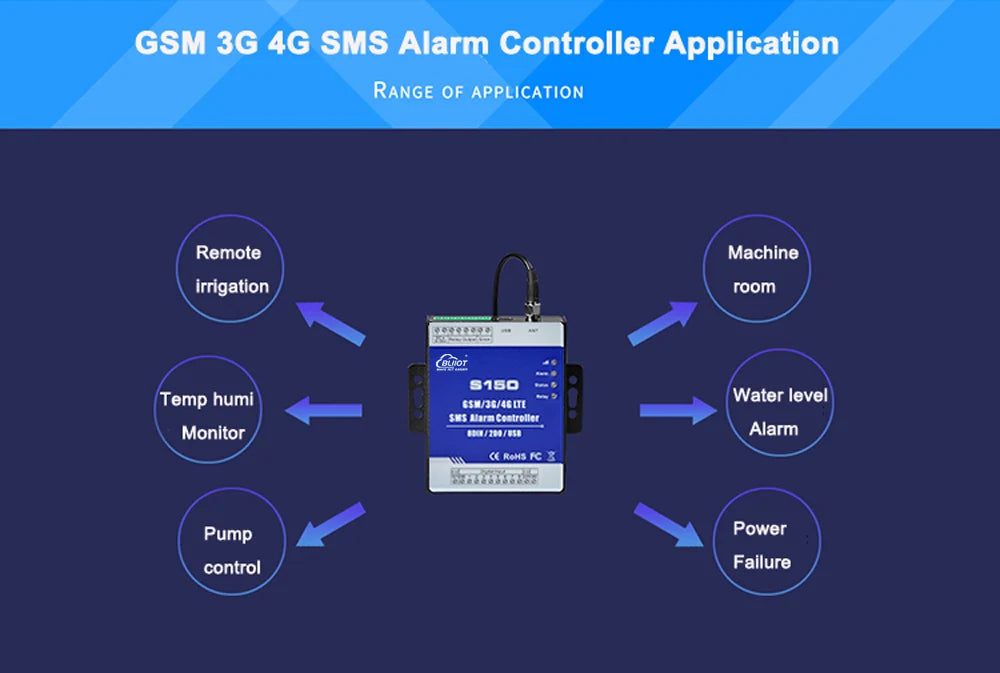

Typical Applications:
1. Security Alarm System applications;
2. Supervision and monitoring alarm systems;
3. Automatic monitoring system;
4. Vending Machines security protection;

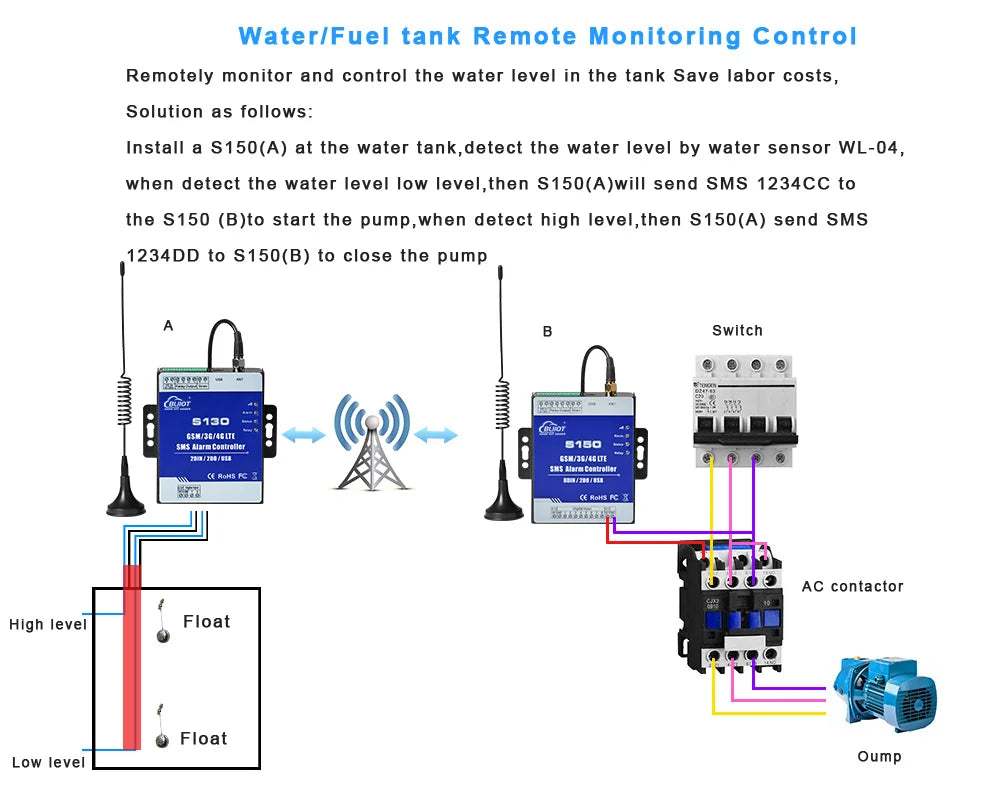

5. Pumping Stations, Tanks, Oil or Water levels;
6. Buildings and Real Estate;
7. Weather Stations;
8. River Monitoring and Flood Control;
9. Oil and gas pipelines;
10. Corrosion protection
11. Temperatures, water leakage applications;
12. Wellheads, boat, vehicle;
13. Energy saving, street lights control system;
14. Valve controls;
15. Transformer stations;
16. Unmanned machine rooms;
17. Control room application;
18. Automation System, M2M;
19. GSM Access Control System, GSM Gate Opener, etc.
2. Supervision and monitoring alarm systems;
3. Automatic monitoring system;
4. Vending Machines security protection;
5. Pumping Stations, Tanks, Oil or Water levels;
6. Buildings and Real Estate;
7. Weather Stations;
8. River Monitoring and Flood Control;
9. Oil and gas pipelines;
10. Corrosion protection
11. Temperatures, water leakage applications;
12. Wellheads, boat, vehicle;
13. Energy saving, street lights control system;
14. Valve controls;
15. Transformer stations;
16. Unmanned machine rooms;
17. Control room application;
18. Automation System, M2M;
19. GSM Access Control System, GSM Gate Opener, etc.

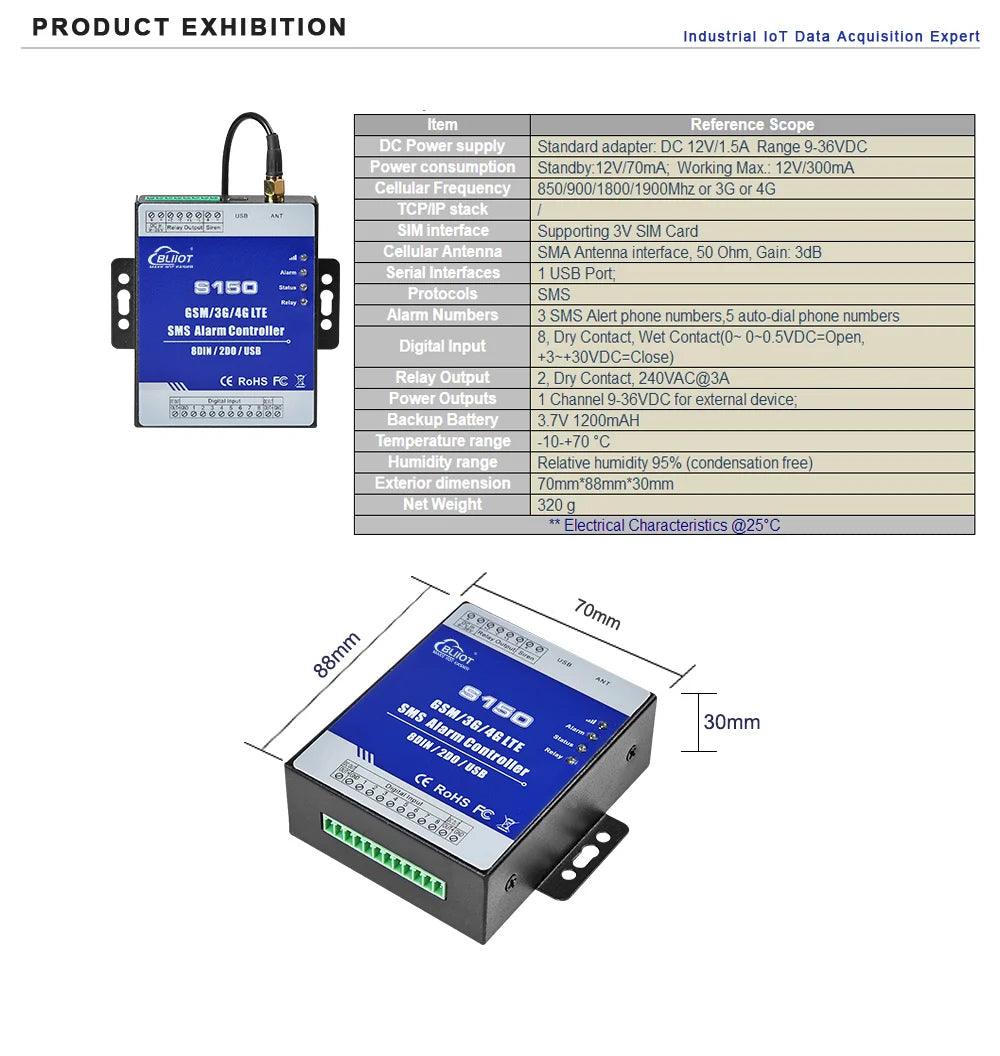

Specifications
Item |
Specifications |
|
DC Power Supply |
Standard Adapter: DC 12V/1.5A |
|
Power Consumption |
Regular: 50mA; Max.:500mA |
|

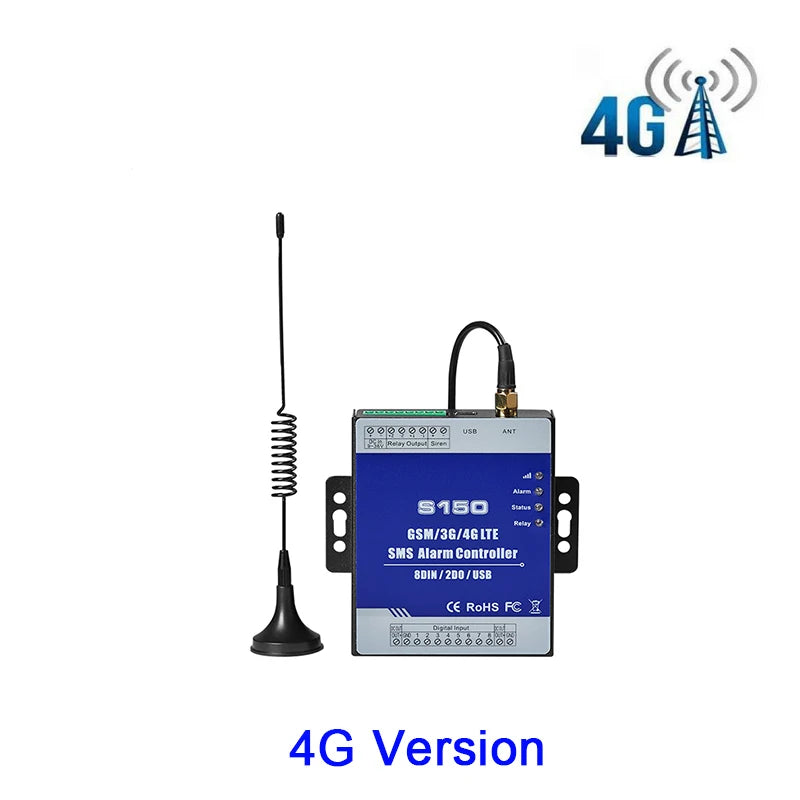

4G |
L-E |
GSM/EDGE:900,1800MHz WCDMA:B1,B5,B8 FDD-LTE:B1,B3,B5,B7,B8,B20 TDD-LTE:B38,B40,B41 |
L-AU |
GSM/EDGE:850,900,1800MHz WCDMA:B1,B2,B5,B8 FDD-LTE:B1,B3,B4,B5,B7,B8,B28 TDD-LTE:B40 |
|
L-A |
WCDMA:B2,B4,B5 FDD-LTE:B2,B4,B12 |
|
L-J |
WCDMA：B1,B3,B8,B18,B19,B26 FDD：B2,B4,B12 TDD: B41 |
|
SIM Interface |
Supporting 3V SIM Card |
|
External Antenna |
SMA Antenna interface, 50 Ohm |
|

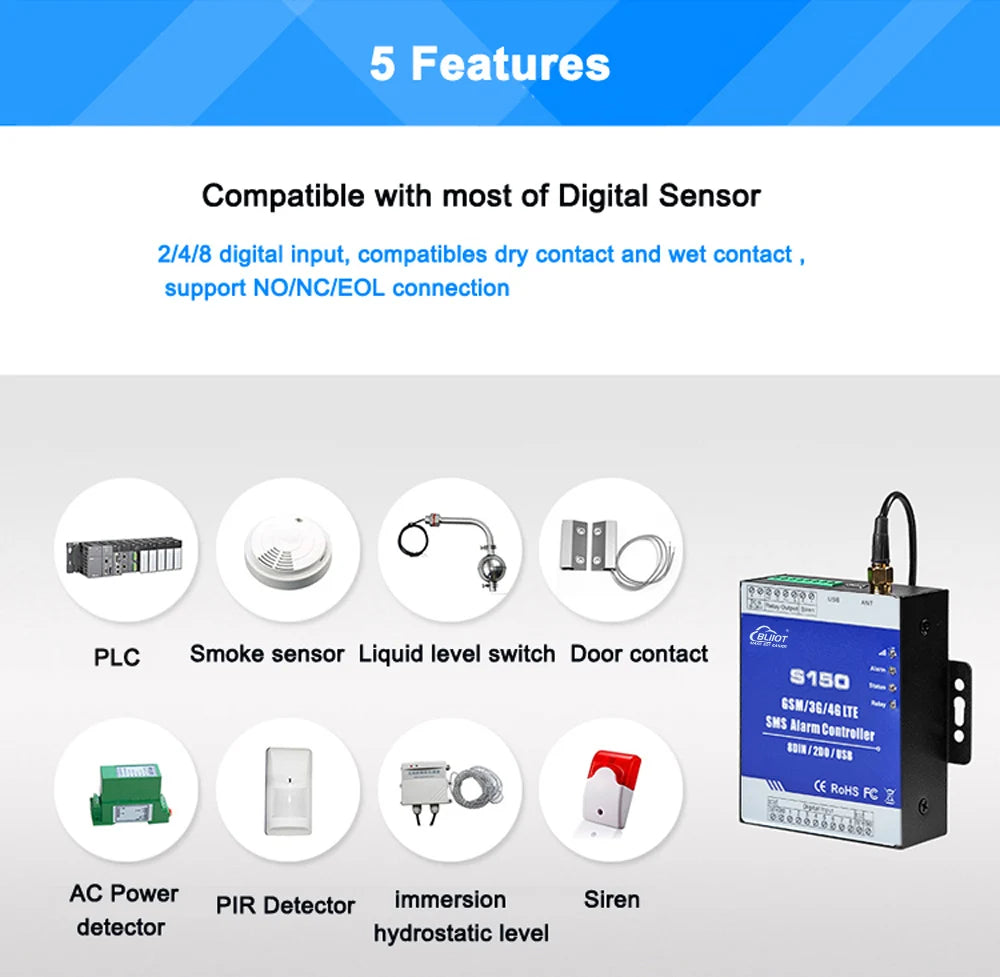

Digital Inputs |
2/8 channel, Dry contact, NC, NO, or EOL |
|

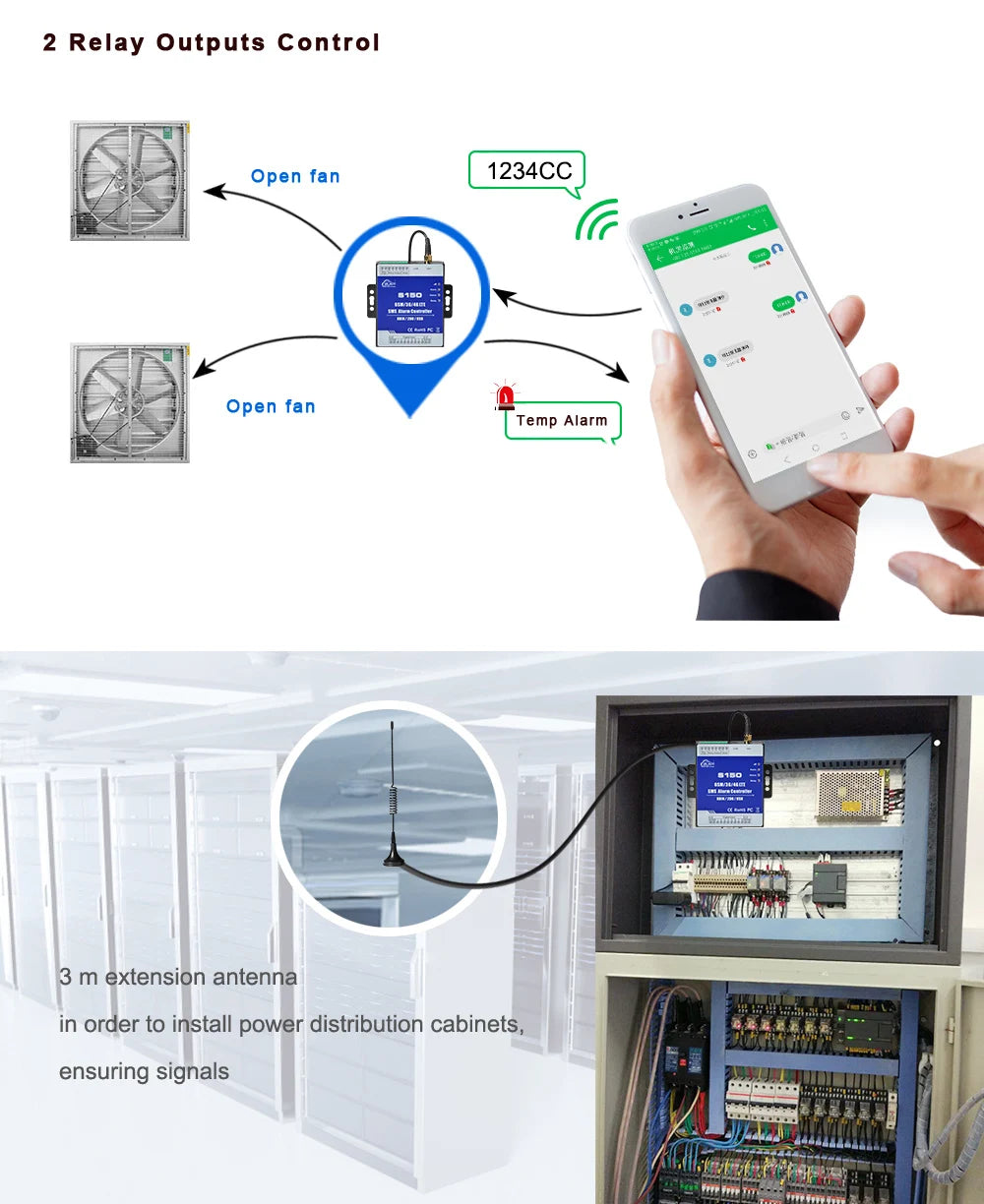

Relay Outputs |
2 Relay Outputs, 7A@125VAC; 5A@250VAC; 20A@14VDC |
|
Siren Output |
1 |
|
Backup Battery |
3.7V 900mAH |
|
Exterior Dimension |
70x88x30mm |
|
Installation |
35mm standard DIN rail(Optional); Wall mount (Default) |
|
