SPECIFICATIONS

GUVA-S12SD Light Sensor Electronic PCB Board 2.5V-5V Light Intensity Detection Sensor Board High Sensitivity for Arduino DIY Kit
Features:

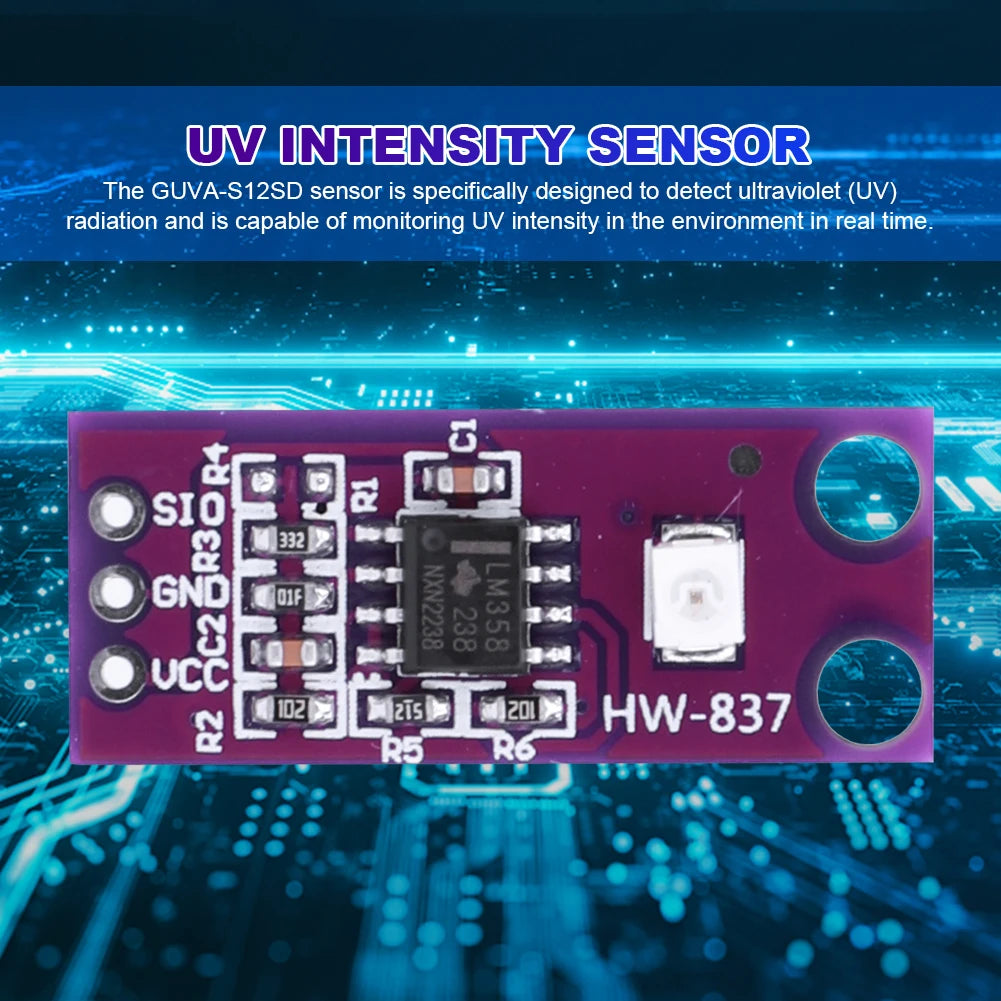

1. Real-time UV Radiation Detection: The GUVA-S12SD UV detection sensor module is specifically designed to detect ultraviolet (UV) radiation, providing real-time monitoring of the UV intensity in the environment.
2. High Sensitivity and Accuracy: With its exceptional sensitivity, this UV sunlight intensity sensor can quickly respond to even the slightest changes in UV radiation. It ensures high-precision measurements, delivering reliable and accurate UV intensity data.
3. Internal Filter: Equipped with an internal filter, the light solar ultraviolet sensor module effectively eliminates unwanted light interference, enhancing the accuracy of the measurements.
4. Rapid Response: The GUVA-S12SD solar ultraviolet intensity sensor rapidly responds to variations in UV intensity, instantly providing corresponding data for immediate analysis and action.
5. Compact Size: The UV spectral intensity sensor module's small dimensions make it easy to install and integrate into various applications, even those with limited space constraints. It is well-suited for a wide range of scenarios, including UV testing devices, UV watches, outdoor sports equipment, UV lamp monitoring, mobile phones, and more.

Specification:
Origin: Mainland China

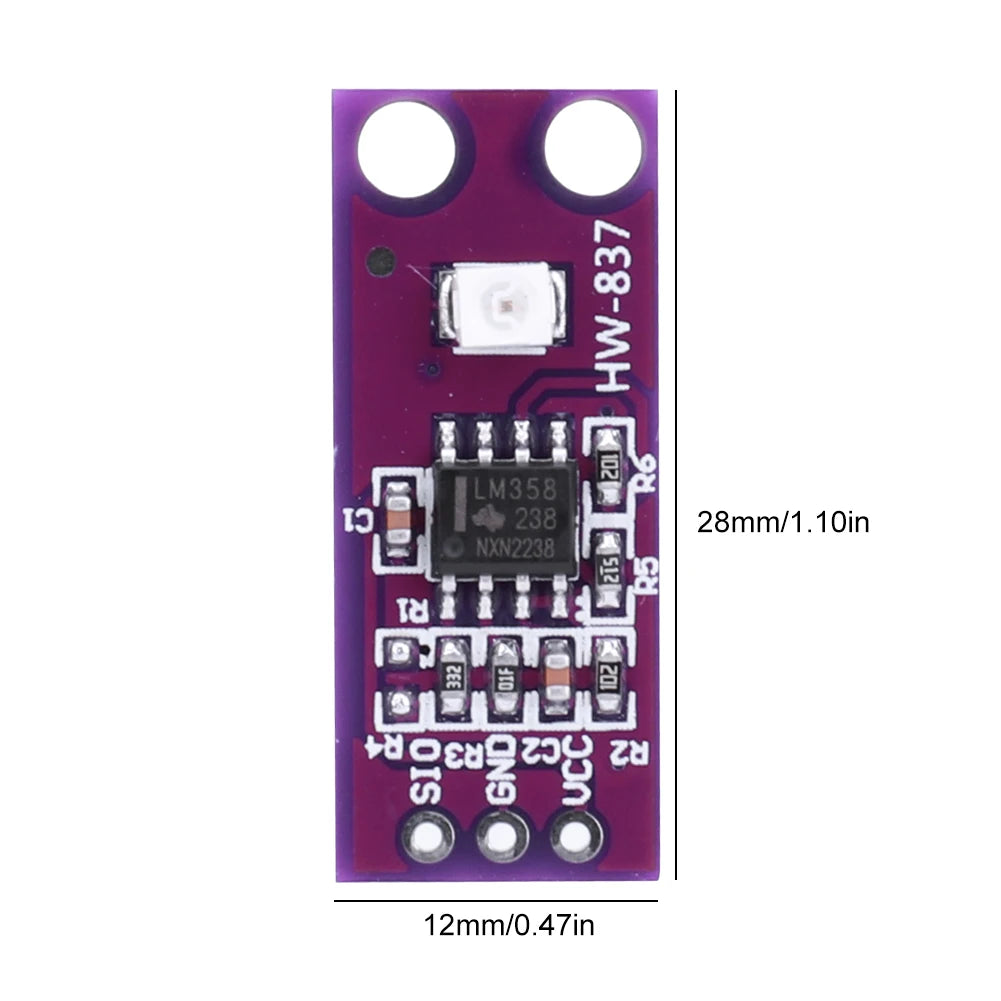

1. Size: 28*12*4mm/1.09*0.47*0.16in

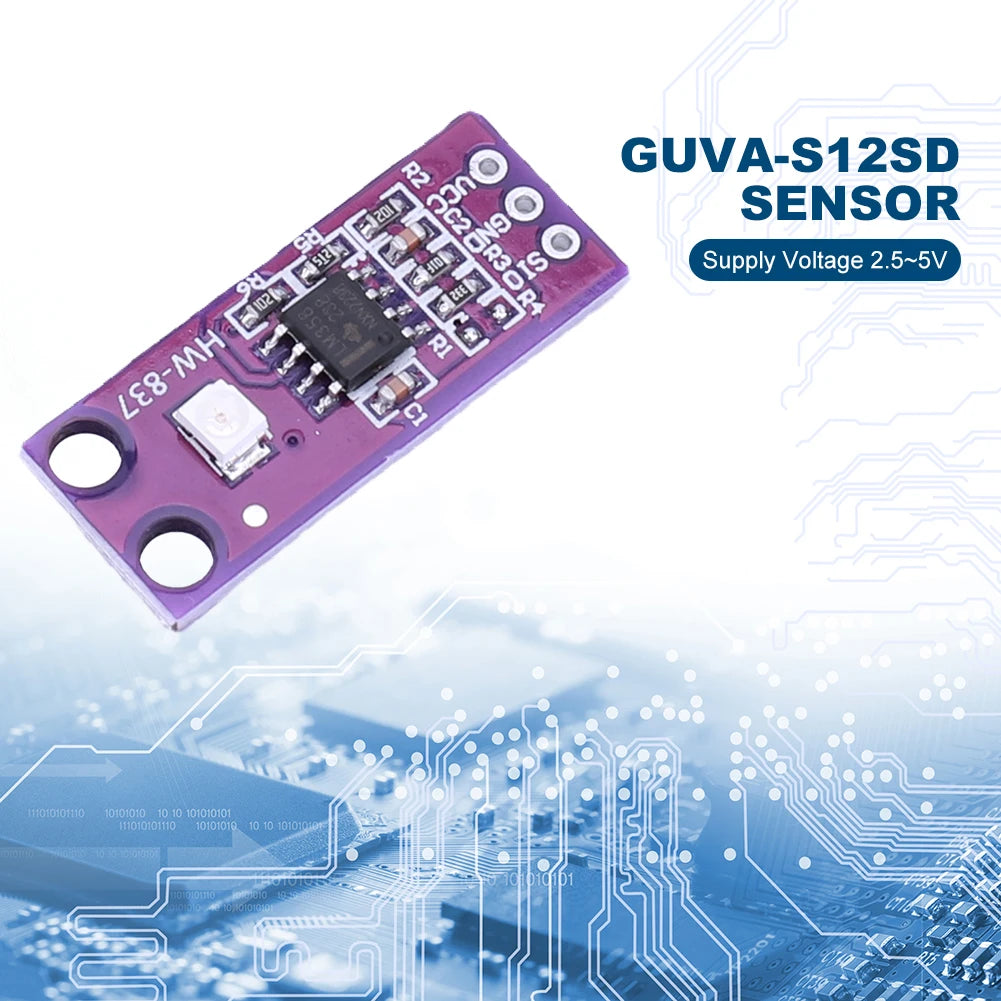

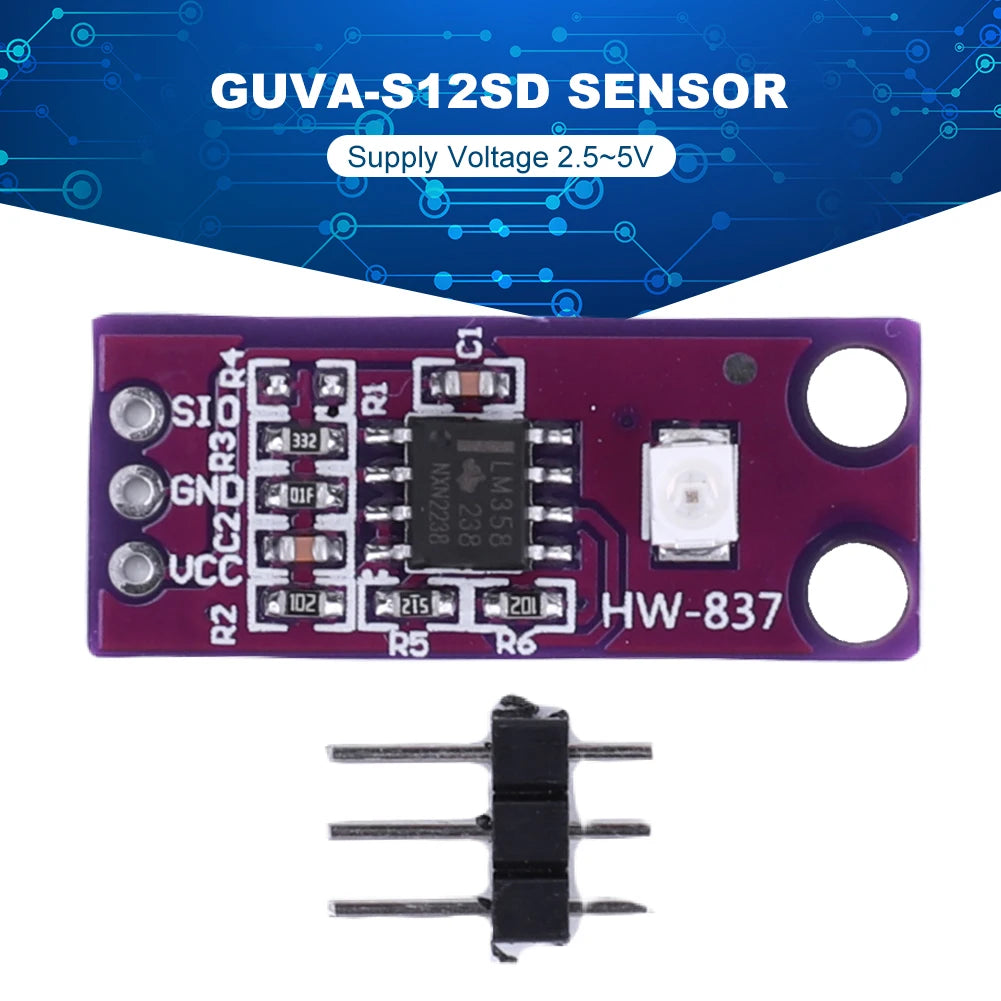

2. Low Power Consumption: Supply Voltage 2.5~5v, Working Current Is Microampere Level.
3. Good Linearity
4. High Sensitivity
5. High Stability
6. Wide Detection Range: 240nm-370nm
7. Large Angle: 130 Degrees
8. Schottky Type Photodiode For Photoelectric Mode
Typical Applications: UV testers, UV watches, outdoor sports equipment, UV lamp monitoring, cell phones, cell phones, etc. This product can be used especially in the field of mobile phone specifications. The linear current that directly corresponds to the UV index (UV INDE) is also available.

Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.
