GVDA Digital Clamp Meter Multimeter Auto Range True RMS NCV DC AC Voltage Inrush Current Temperature Tester Automatic Voltmeter

GVDA Digital Clamp Meter Multimeter Auto Range True RMS NCV DC AC Voltage Inrush Current Temperature Tester Automatic Voltmeter

$170.72

$170.72 $0.00

Description

SPECIFICATIONS

Battery Included: no

Brand Name: GVDA

Certification: CE,FCC

Choice: yes

DIY Supplies: Electrical

Dimensions: 199*81*32mm

Display Type: Digital Only

High-concerned chemical: none

Measuring Capacitance Range: 6nF,60nF,600uF,6uF,60uF,600uF;6mF,60mF

Measuring Current Range: 60A,600A

Measuring Resistance Range: 600Ω,6KΩ,60KΩ,600KΩ,6MΩ,60MΩ

Measuring Voltage Range: 600mV,6V,60V,600V

Model Number: GD166A GD166B GD168B

Operating Temperature: 0℃~40℃

Origin: Mainland China

Semi-finishedproduct: No

Weight: 0.45KG

GVDA Digital Clamp Meter Multimeter Auto Range True RMS NCV DC AC Voltage Inrush Current Temperature Tester Automatic Voltmeter Smart Multitester

A new generation of true RMS high performance intelligent digital clamp meters that combine a wide range of functions to make your work easier, more efficient and sager. It is capable of measuring AC/DC voltage, AC/DC current, frequency, duty, resistance, capacitance, temperature, diode, continuity, NCV, live wire detection and more.

Product Features

1) HD Colour LCD Display

2) Display: Maximum 6000 Counts display

3) Non-contact AC voltage measurement(NCV)

4) AC Inrush current measurement

5) MAX/MIN value measurement

6) Live wire detection

7) Auto power off

8) Low voltage display: low battery indication

9) Over range indication

10) DCA zero (only GD166B GD168B)

Product Details

1,DC voltage:600mV,6V,60V,600V

2,AC voltage:600mV,6V,60V,600V

3,AC current:60A,600A

4,DC current:60A,600A (only GD166B GD168B)

5,Resistance:600Ω,6KΩ,60KΩ,600KΩ,6MΩ,60MΩ

6,AC Inrush current: 60A,600A

7,Capacitance:6nF,60nF,600uF,6uF,60uF,600uF;6mF,60mF

8,Frequency:100Hz,1000Hz,10KHz,100KHz,1000KHz,10MHz

9,Duty:1-99%

10,Temperature:-40℃~1000℃ ,-40F~1832F

11,Temperature unit:℃/F

12,MAX.Voltage between terminals and earth ground: 600V

13,Display: 6000 counts

14,Over range indication: “OL”

15,Low battery indication: yes

16,Input polarity indication: display “-”

17,AC Inrush current measurement: yes

18,AC/DC mV measurement: yes

19,Continuity test: yes

20,Max/min measurement: yes

21,Smart (AUTO) measurement: yes

22,True RMS: yes

23,Diode measurement: yes

24,DCA zero: yes (only GD166B GD168B)

25,Live wire detection: yes

26,Non-contact AC voltage detection: yes

27,Backlight: yes

28,Flashlight: yes

29,Data hold:yes

30,Clamp opening size: 36mm

31,Power requirement: 3x1.5V AAA batteries(not include)

32,Package weight:440g

33,Product size:199*81*32mm

Package contents:

1pc Multimeter

1pair Pen cables

1pc Cloth bag

1pc Thermocouple probe

1pc Box

1pc Manual

GVDA New Professional AC/DC Clamp Meter

A new generation of true RMS high performance intelligent digital clamp meters that combine a wide range of functions to make your work easier, more efficient and sager. It is capable of measuring AC/DC voltage, AC/DC current, frequency, duty, resistance, capacitance, temperature, diode, continuity, NCV and more

Three models for your choice

GD166A is AC Clamp Meter, there is no DC current function.

GD166B GD168B are AC/DC Clamp Meters, both models can measure AC DC current.

Inrush current measurement

Select the inrush current measurement function, then press the trigger to open the clamp,clamp the conductor to be tested, slowly release the trigger until the clamp are completely closed,and determine whether the conductor is clamped in the center of the pliers.If the conductor is not in the center, additional errors will occur.

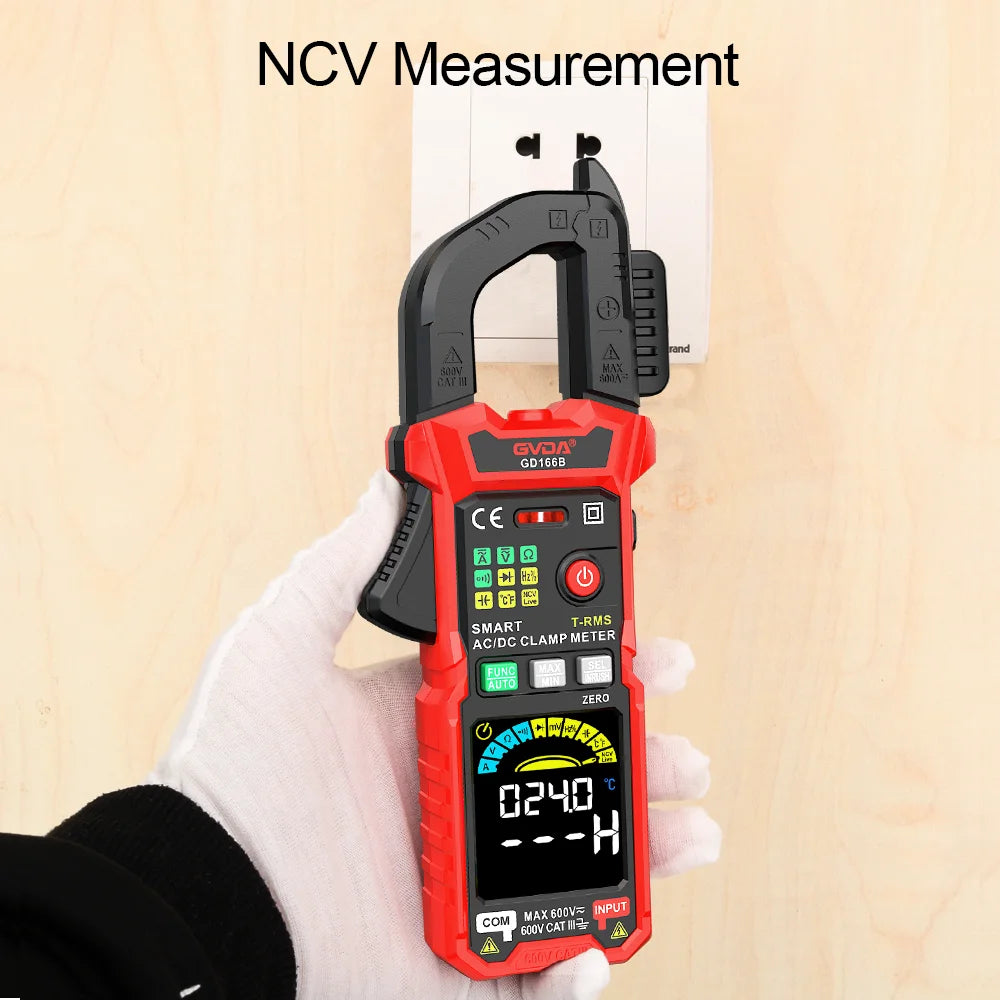

NCV measurement

When the weak electric field signal is induced, the "--L" symbol will be displayed, the beep will emit a slow beep sound, and the green LED indicator will light up.When the strong electric field signal is induced, the "--H" symbol will be displayed, the beep will emit a fast beep sound, and the red LED indicator will light up.

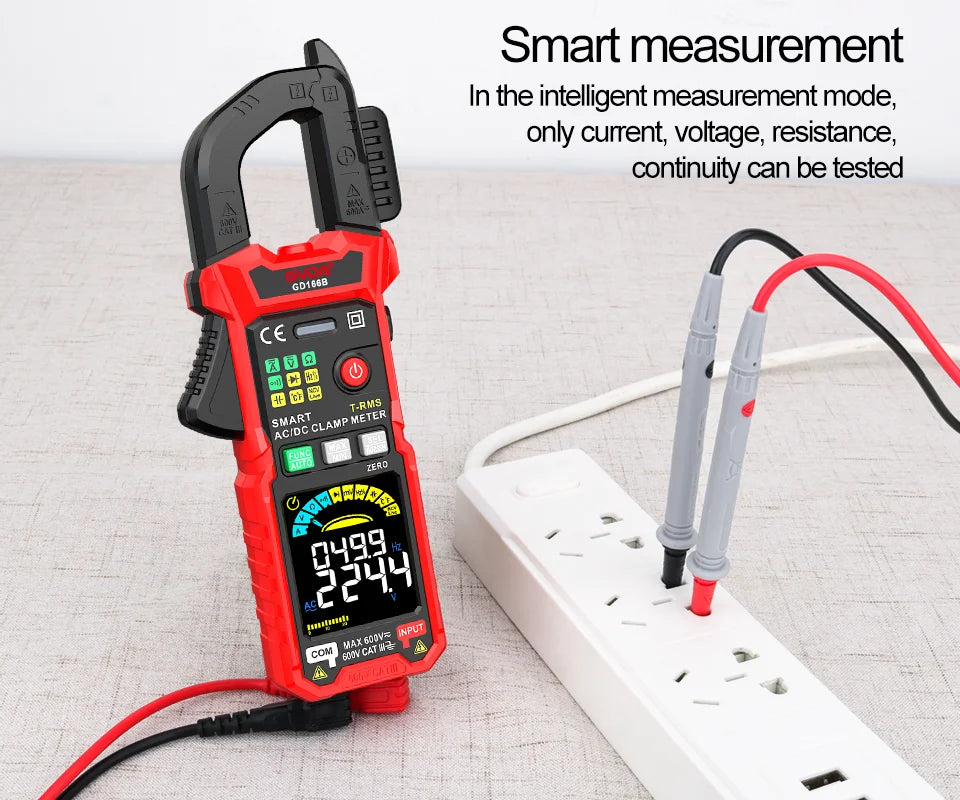

Smart measurement

The meter enters smart mode by default. It can measure voltage, current,resistance,continuity,and automatically identify the measurement signal. The current is measured with the clamp, and the other measurements are taken from the pen input.

Current measurement

When measuring AC current, you should only clamp the live line or the zero line, NOT 2 lines combined together.

Live wire detecting

When a low voltage is detected, "--L" is displayed, the beeper emits a low beeping tone and the green LED lights up.When a high voltage is detected, "--H" is displayed, the beeper emits a fast beeping tone and the red LED lights up.

Clamp opening size 36mm

Flashlight

Press the flashlight button and hold for more than 2 seconds to turn the flashlight on or off. It is convenient to be used in dark conditions

Place the test lead design

There is a pen rack in the clamp, if can place the other probe when you only use one probe when measuring.

HD backlight color display

6000 counts, automatically display the unit symbols according to the shift of the measurement function.

Temperature measurement

Measurement range is -40℃~1000℃ ,-40F~1832F. When measuring temperature,put the temperature probe into the object to be measured.
