SPECIFICATIONS

Accessory Type: Camera Module

Battery Included: no

Brand Name: PixPlore

Compatible With: Raspberrypi,Jetson,RK3588

High-concerned chemical: none

Origin: Mainland China

Typical Application Fields: Smart Cameras and Vision Hardware

Brief

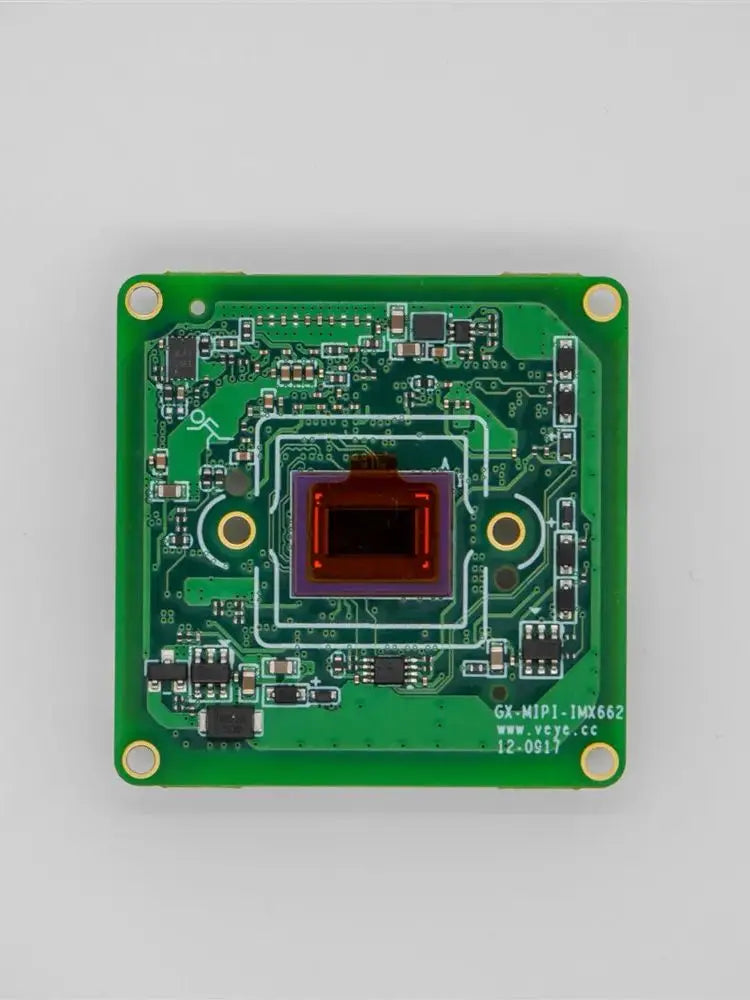

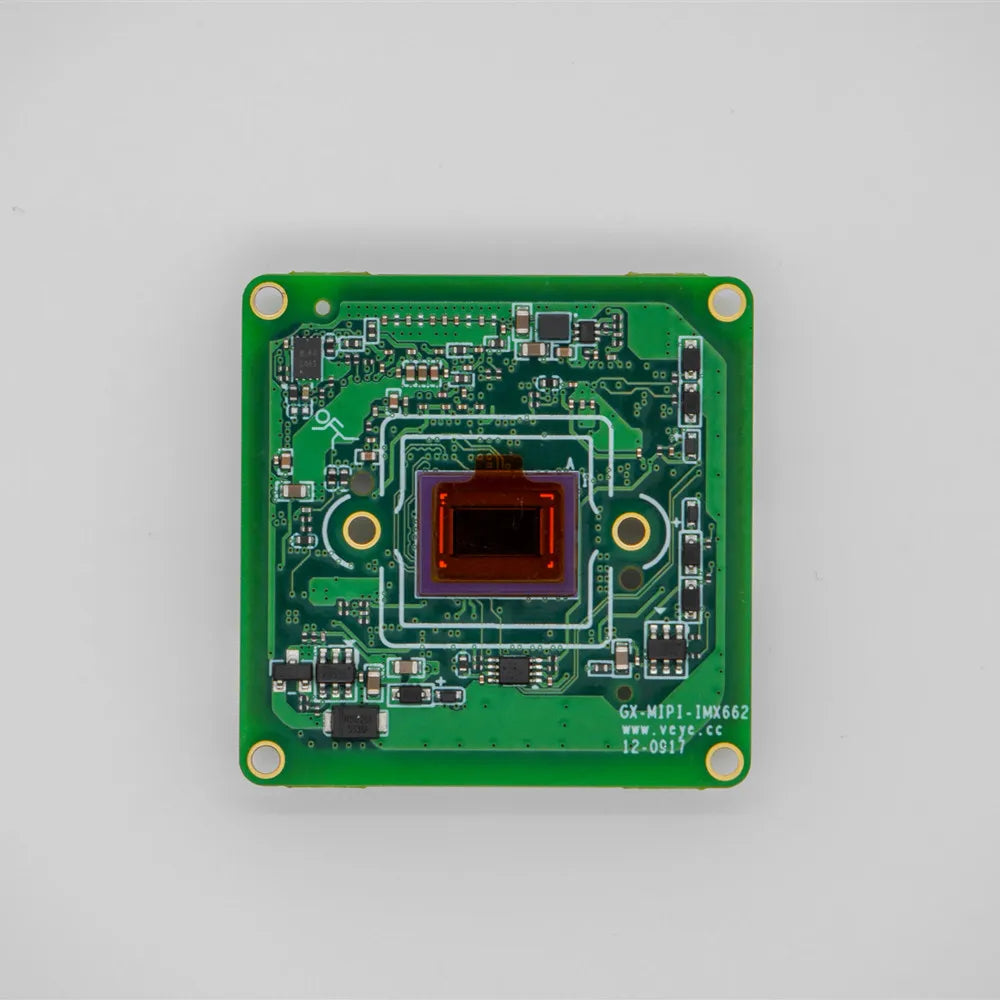

The GX-MIPI-IMX662 camera module is a new generation product from VEYE IMAGING, featuring Sony’s STARVIS 2 sensor technology.

Equipped with a high-performance built-in ISP, this module offers highly controllable image parameters, multiple operating modes, and a rich set of features, supporting video output up to 1080p@60 fps.

Its MIPI-CSI2 interface enables rapid integration into embedded (AI) systems, eliminating the need for complex ISP tuning.

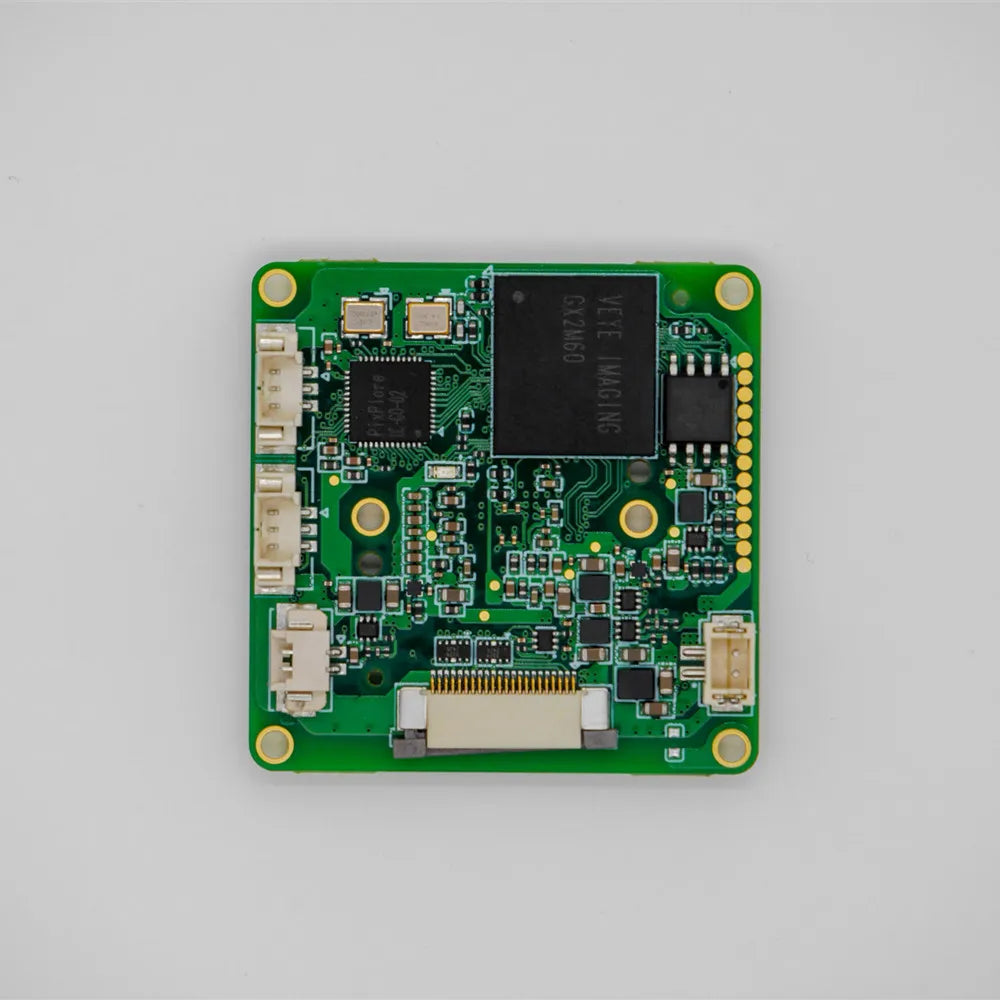

Designed as a compact single-board module (38 mm × 38 mm), it uses a 22-pin FPC connector with 0.5 mm pitch, allowing easy connection to popular embedded (AI) platforms such as Raspberry Pi, NVIDIA Jetson series, and Rockchip RK3588.

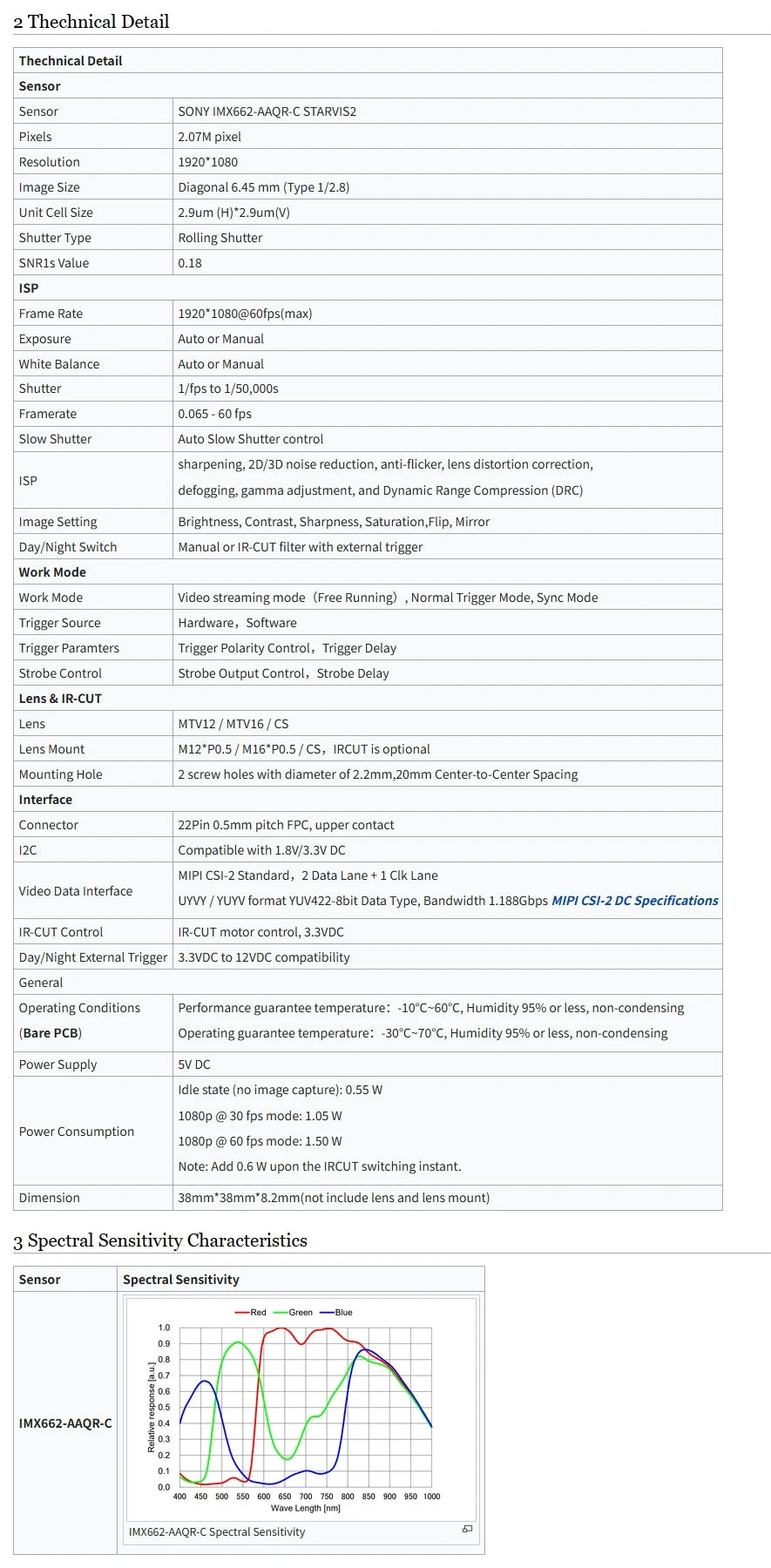

Thechnical Details

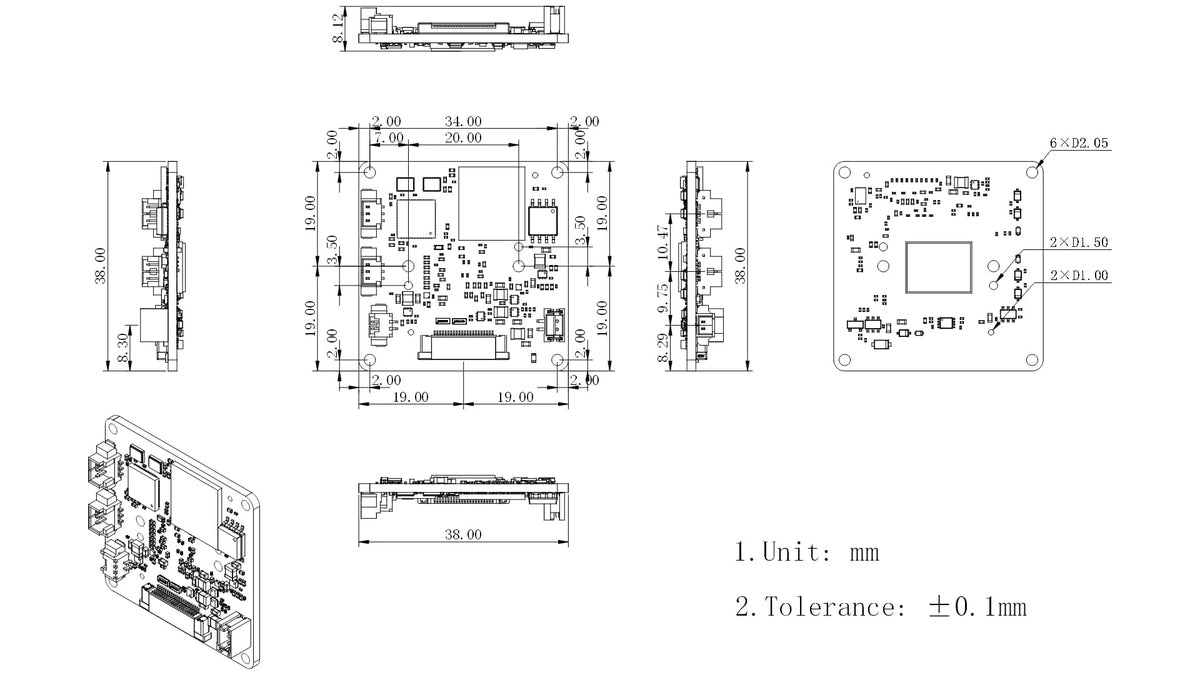

CAD drawing

Lens select

http://wiki.veye.cc/index.php/Lens_select

Important references links

+ wiki about GX-MIPI-IMX662
https://wiki.veye.cc/index.php/GX-MIPI-IMX662_Index

+ github
https://github.com/veyeimaging

+ website
www.veye.cc

+ Forum
http://forum.veye.cc

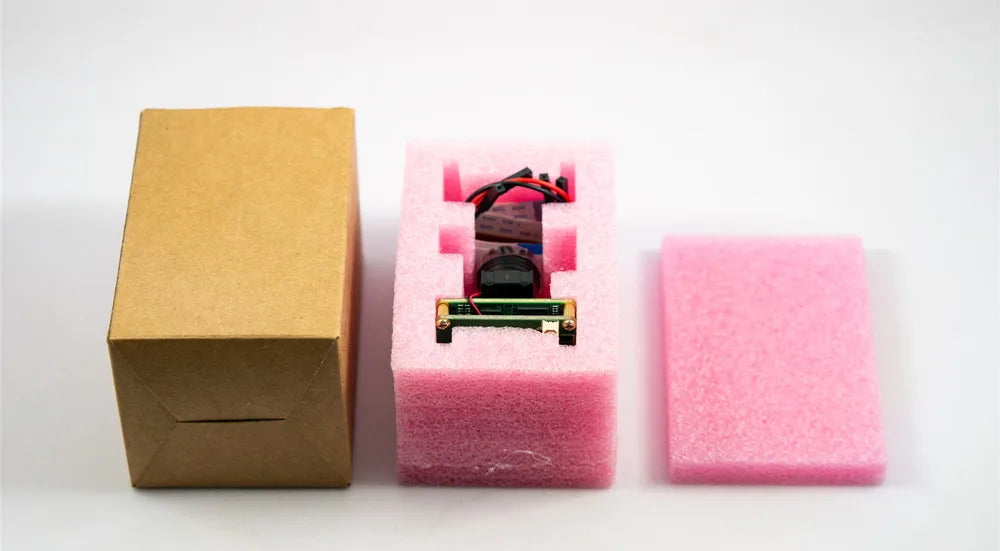

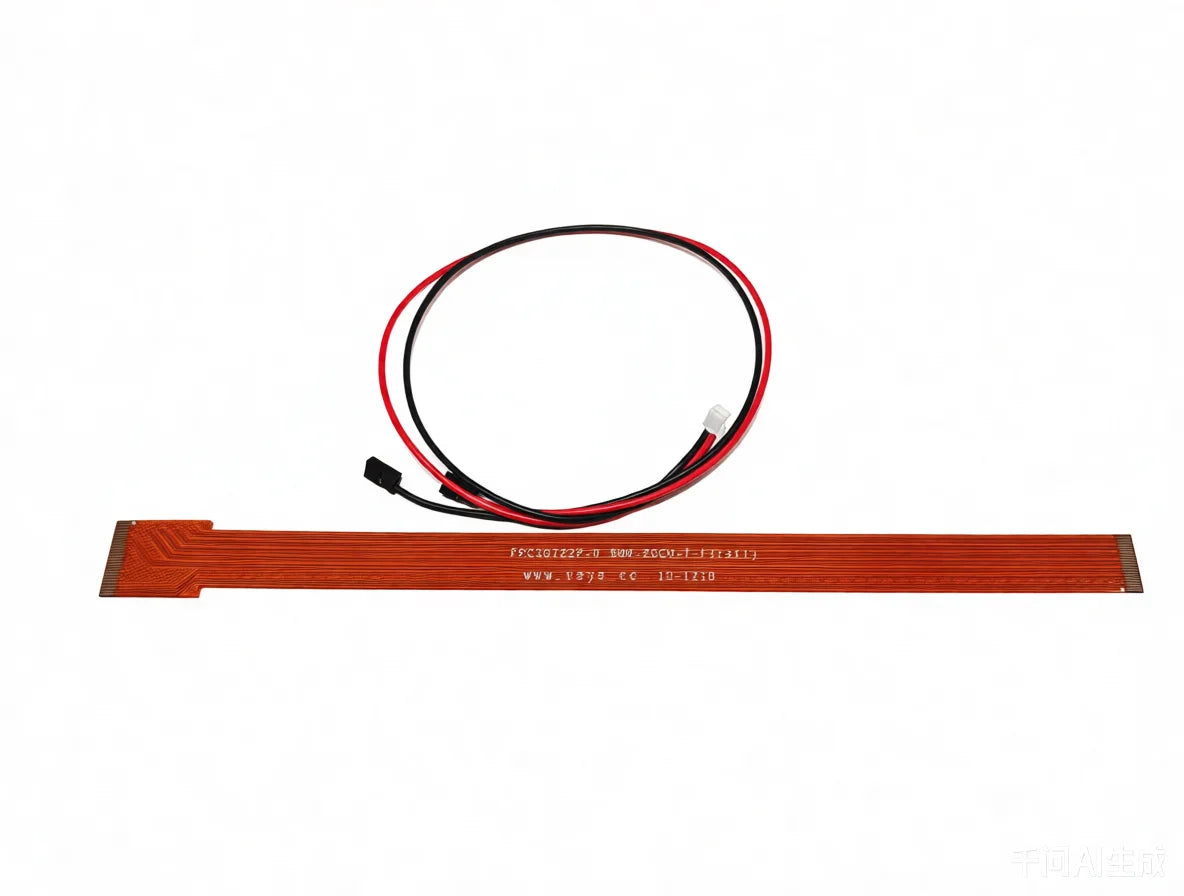

Packaging and accessories

FAQ

Q:Why does the tracking system show no update after I've received my tracking number?

A:Usually China Post will update the tracking information to www.17track.net after 8-10 days.

Q:Should I bear the shipping cost?

A:We will provide “free shipping” by China Post. Alternatively, you could also pay for express shipping, and your package will arrive within 1 week.

Q:Where can I check the tracking information for my package?

A:You can check your tracking information from www.17track.net. The website supports multiple-languages.

Q:How long will it take for my package to arrive?

A:You can refer to this detailed data-table. Please note that the statistical data is only for reference, the specific time is subject to dynamically changing conditions.

Q:What should we do when we encounter technical problems?

A:You can submit your questions directly to our forum, and our engineers will reply to you as soon as possible.
http://forum.veye.cc

Q:Where can I find ways to use the camera module?

A:For software usage or product details, please visit http://wiki.veye.cc/

Q:Do you support product customization?

A：Yes，please contact sales@veye.cc
