SPECIFICATIONS

Shell material: Zinc alloy

Horn material: copper plated nickel

GX12

Features:

• Made of soild material, more durable.

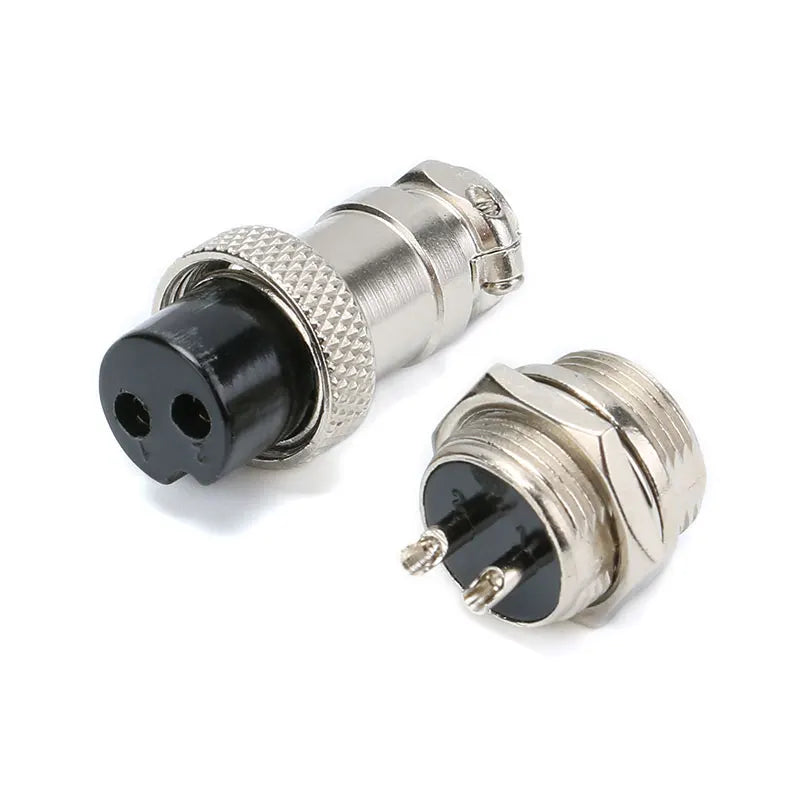

• One set which includes one male and one female Connector.

• Straight and unshielded type, P series circular connector

• Used widely in aviation, data acquisition systems, inclinometer, computer automation measurement and control systems,  audio/video, test and measurement, communications, etc.

Specifications:

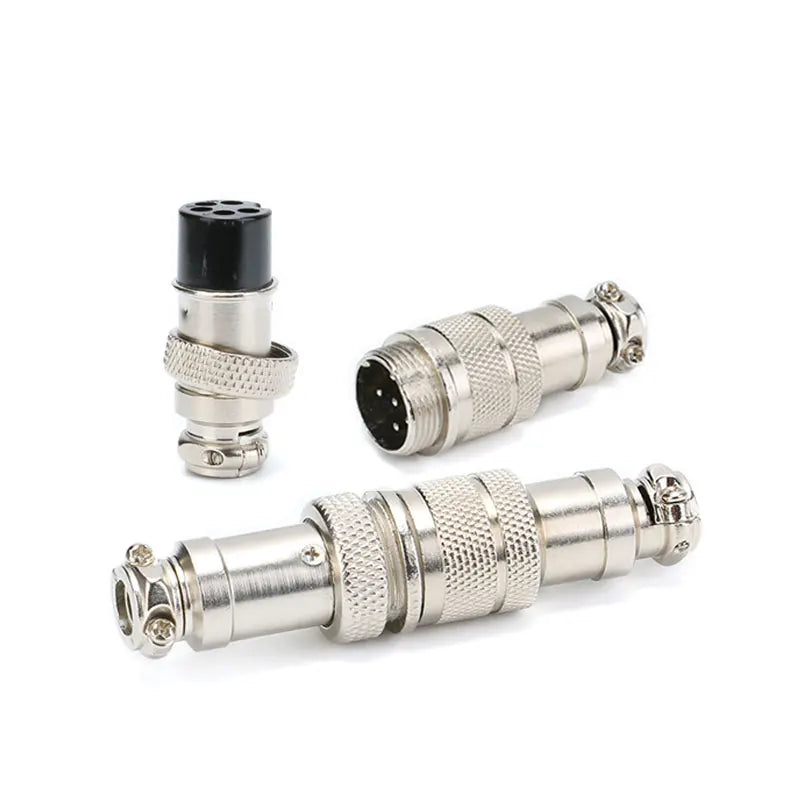

• Name: docking type aviation plug

• Model: GX12

• Specifications: 2/3/4/5/6 core

• Opening size: 12mm

• Vibration: frequency is 10 ~ 100 Hz,accelerated speed is 100 m/s2

• Impact: Frequency is 60 ~ 80 times/min, the acceleration is 250 m/s2

• Environment Temperature: -50~+70℃

• Relative Humidity: The temperature is + 40 ℃ could reach 98%

• Atmospheric Pressure: 4.4kpa

Package Includes:

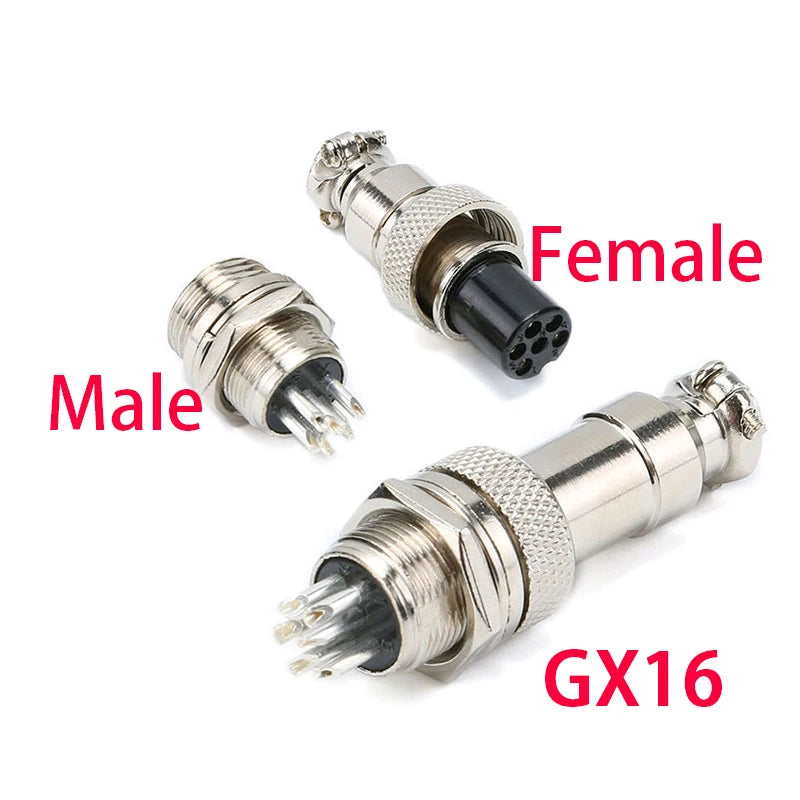

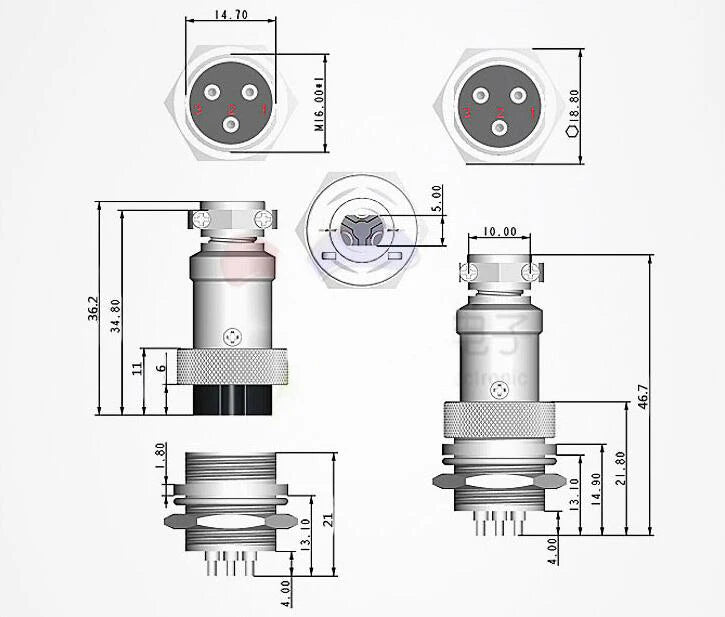

GX16

• Made of soild material, more durable.

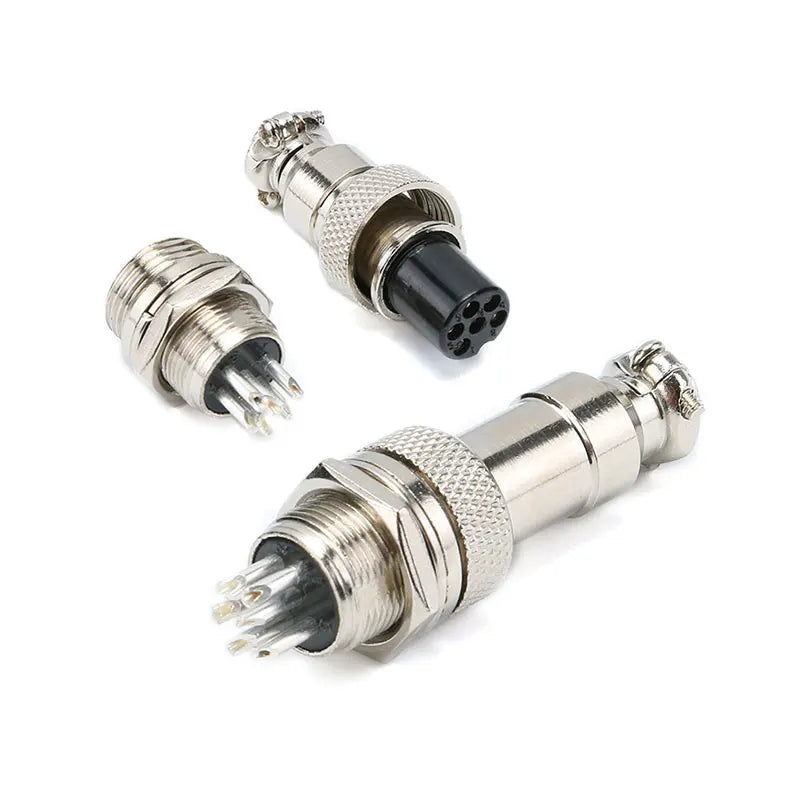

• One set which includes one male and one female Connector.

• Straight and unshielded type, P series circular connector

• Used widely in aviation, data acquisition systems, inclinometer, computer automation measurement and control systems,  audio/video, test and measurement, communications, etc.

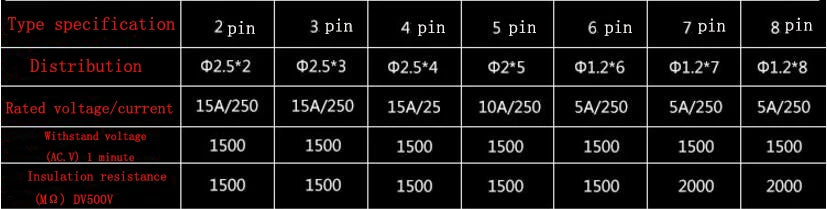

• Rated voltage:  2 pin 3 pin 4 pin is 400V, 5 pin 6 pin 7 pin 8 pin is 250V

• Rated current: 5A

• Contact resistance: The contact resistance of each contact pair is not greater than 0.005 oh

•  Environment Temperature: -50~+70℃.

• Relative Humidity: The temperature is + 40 ℃ could reach 98%.

• Insulation Resistance：Normal conditions no less than 1000 m Ω, Not less than 200 m Ω after the constant temperature test.

• Testing Voltage: (50 Hz, RMS) Normal conditions 1500V, After constant temperature test 1200V.

• Atmospheric Pressure: 4.4kpa.

• Vibration: frequency is 10 ~ 100 Hz,accelerated speed is 100 m/s2.

• Impact: Frequency is 60 ~ 80 times/min, the acceleration is 250 m/s2.

• Centrifugal: Acceleration is 250 m/s2.

• Type: 2/3/4/5/6/7/8 pin

• Material: Metal

• Color: silver
