Description

SPECIFICATIONS

Brand Name: DIVEDEER

Certification: RoHS

Does it include a Battery?: No

Does it include wireless functionality?: No

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

Environmental temperature: -50~+70 ° C

High-concerned chemical: none

Line length: 50cm~3M

Model Number: GX16

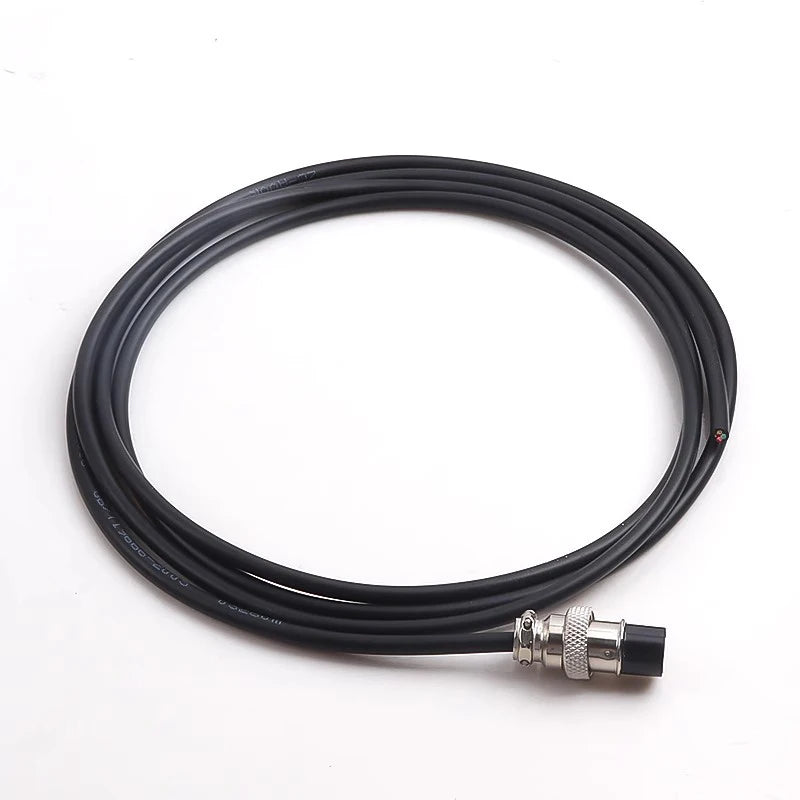

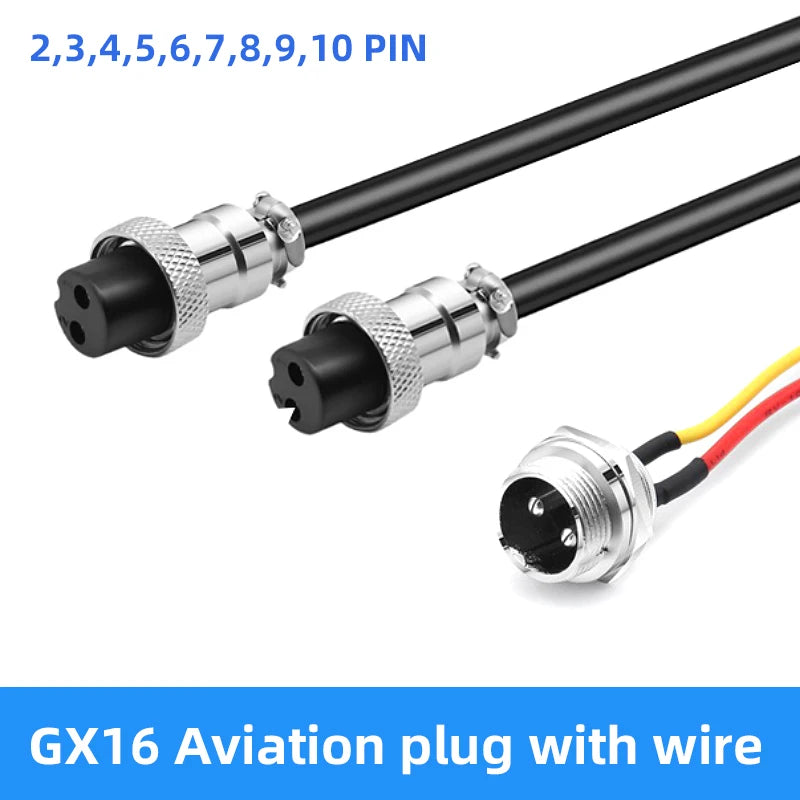

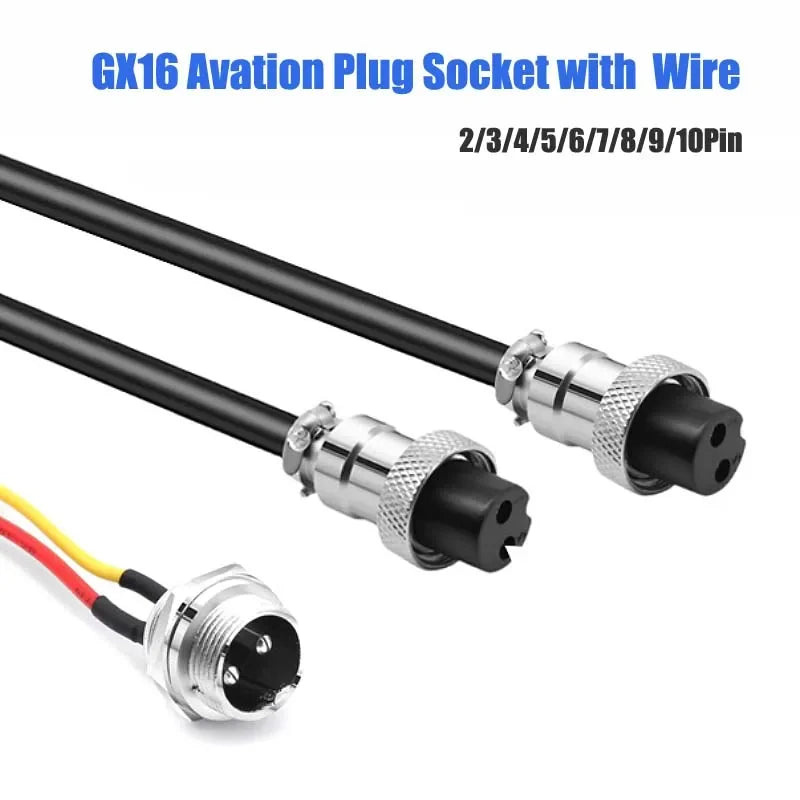

Name: GX16 Connector

Origin: Mainland China

Rated current: 7A-5A-4A

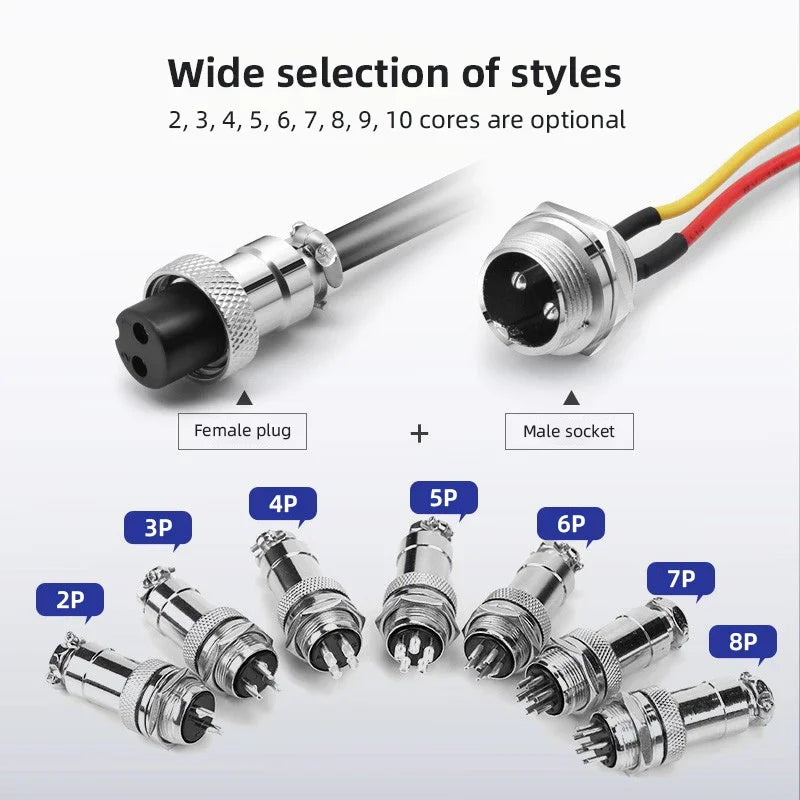

Rated voltage: 2/3/4/5Pin: 250V, 6/7/8/9/10Pin: 150V

Voltage: 220 V

Environmental conditions for use:
1. Environmental temperature: -50~+70 ° C
2. Relative humidity: up to 98% at a temperature of+40 ° C
3. Atmospheric pressure: up to 4,4KPA
4. Vibration: vibration frequency is 10-100HZ, acceleration reaches 100M/S25, impact: frequency is 60-80 times/min, acceleration reaches 250M/S2
6. Centrifuge: acceleration up to 250M/S2
Main technical characteristics:
1. Rated voltage: 2/3/4/5Pin: 250V, 6/7/8/9/10Pin: 150V,
2. Rated current: 7A-5A-4A
3. Contact resistance: The contact resistance of each contact pair shall not exceed 0.005Q
4. Insulation resistance: not less than 1000MQ under normal conditions, and not less than 20MQ after constant temperature test
5. Test voltage: (50HZ, effective value) Under normal conditions, 1200V for 2-core, 3-core, 4-core, and 1000V for 5-core, 7-core
6. After the constant temperature test, the voltage of 2 cores, 3 cores, 4 cores is 1200V, and that of 5 cores, 7 cores is 1000V7. The separation force is 1-3N for a single leg, and the total separation force is 1.5 times the sum of the upper limit of the single leg separation force
8. Temperature rise: At rated load, the temperature rise caused by contact should not exceed the ambient temperature of+50C
9. Service life: No harmful mechanical or performance damage to the plug socket should occur after 500 times of plugging and unplugging
