SPECIFICATIONS

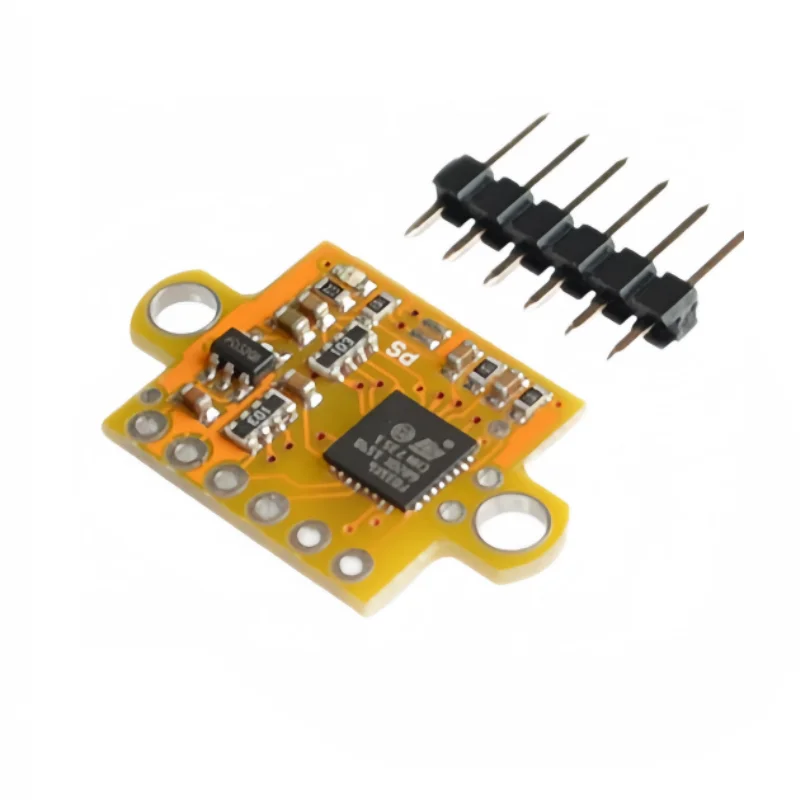

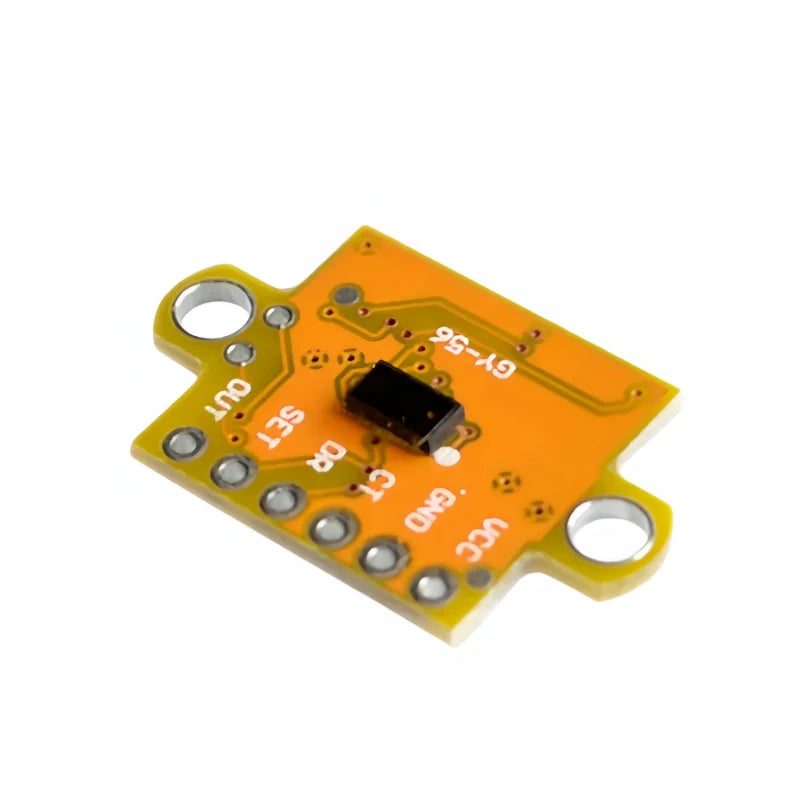

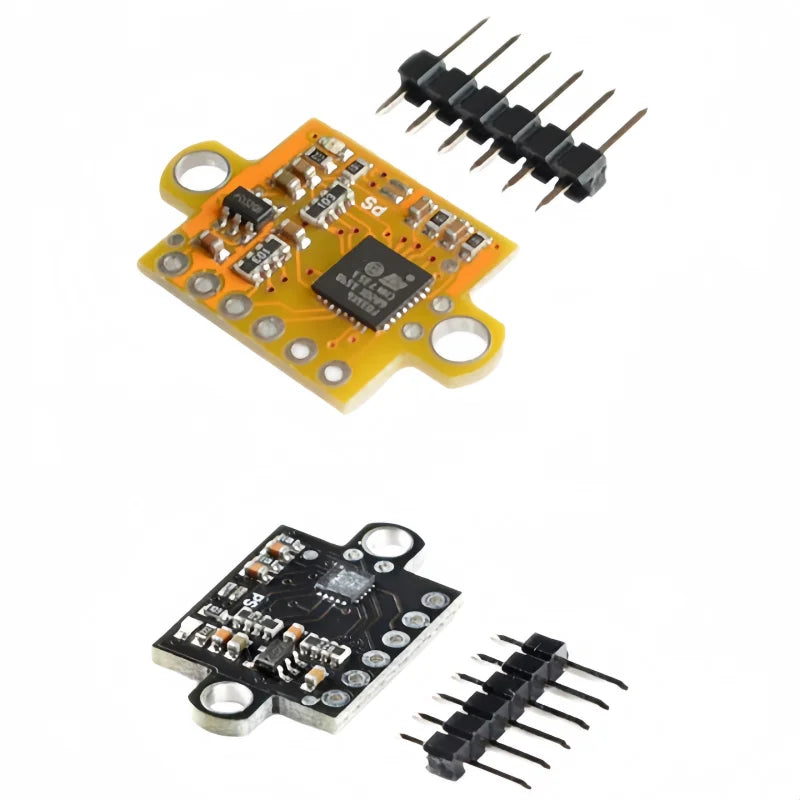

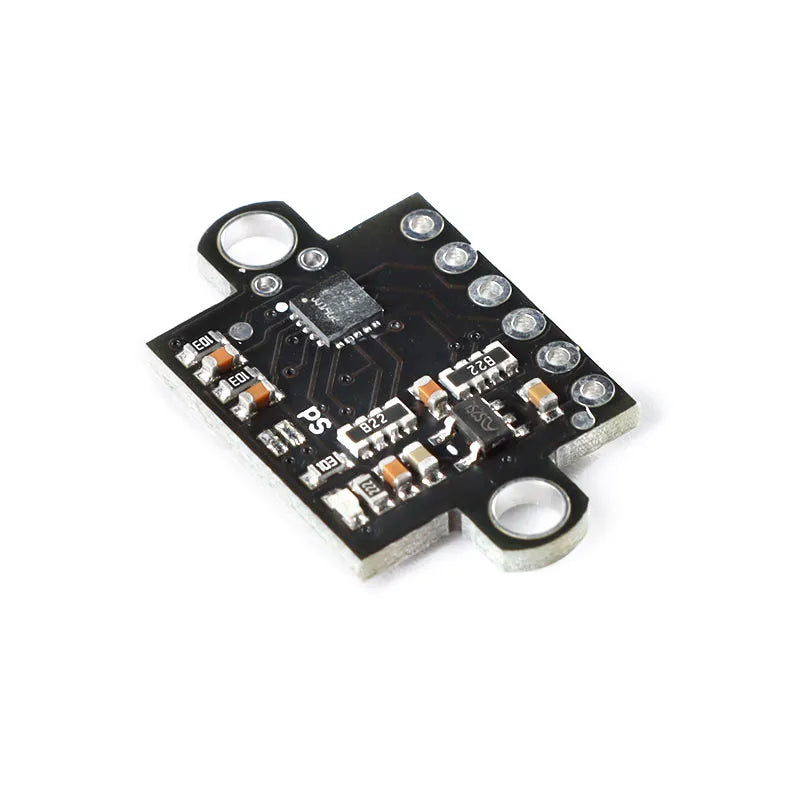

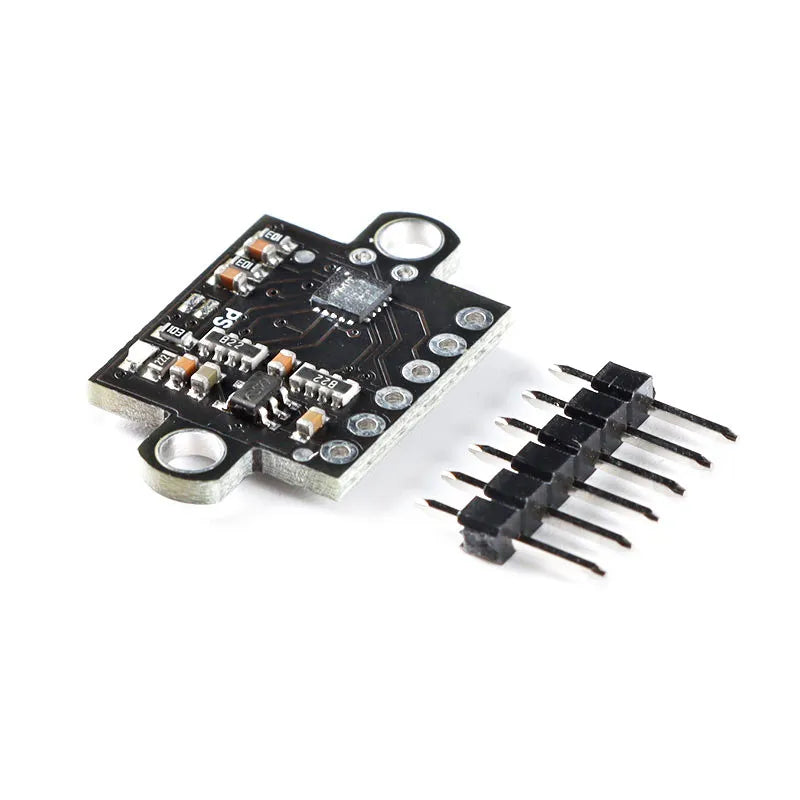

 GY-56 is a low-cost digital infrared distance measurement sensor module. It operates at a voltage range of 3-5V, has low power consumption, a small size, and is easy to install. Its working principle is as follows: an infrared LED emits light, which shines on the object being measured. The returned light is received by the MCU, and the MCU calculates the time difference to obtain the distance. The distance value is directly output. This module has two ways to read data, namely serial port UART (TTL level) + IC (2-wire) mode. The baud rate of the serial port is 9600bps or 115200bps, and it can be configured with two modes: continuous and inquiry output. The settings can be saved even when the power is off. Please provide the text that you would like translated.
Communication program for Arduino, 51, and STM32 microcontrollers. No schematic diagram or internal microcontroller source code is provided. The GY-56 can set upper and lower distance alarm values, and provide switch output. When an object within the set range is blocked, a high level output is directly generated. In IC mode, if necessary, the internal IC address can be set differently to enable multiple sensors to be directly connected to the same bus.
