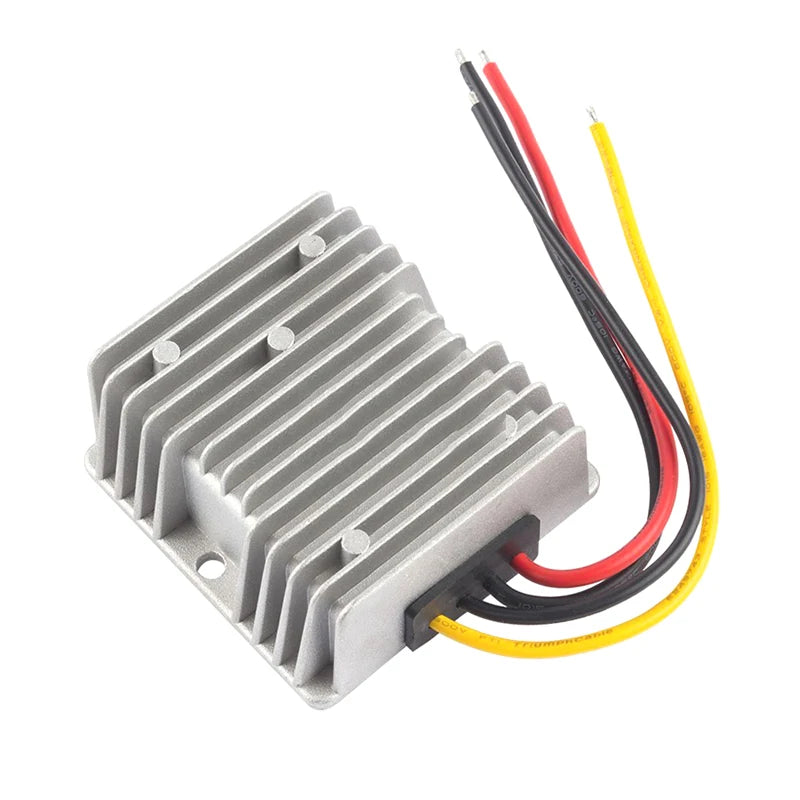

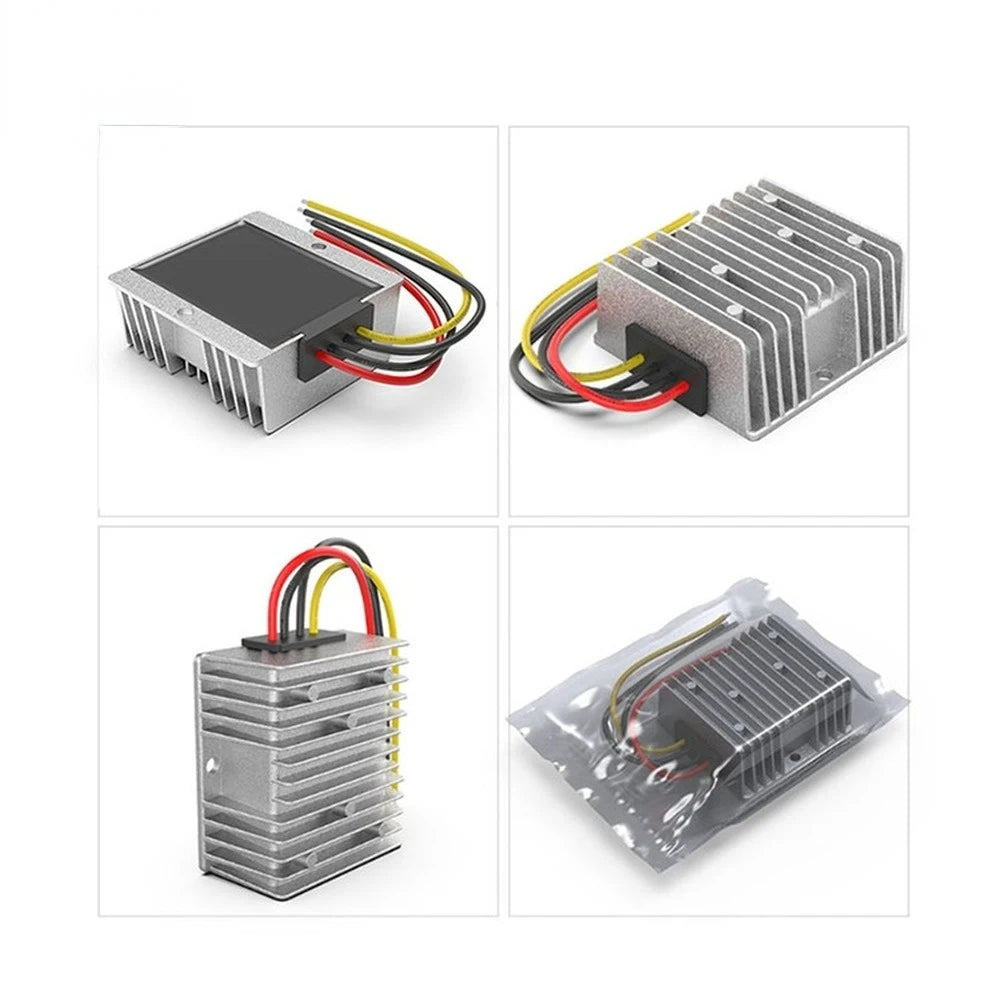

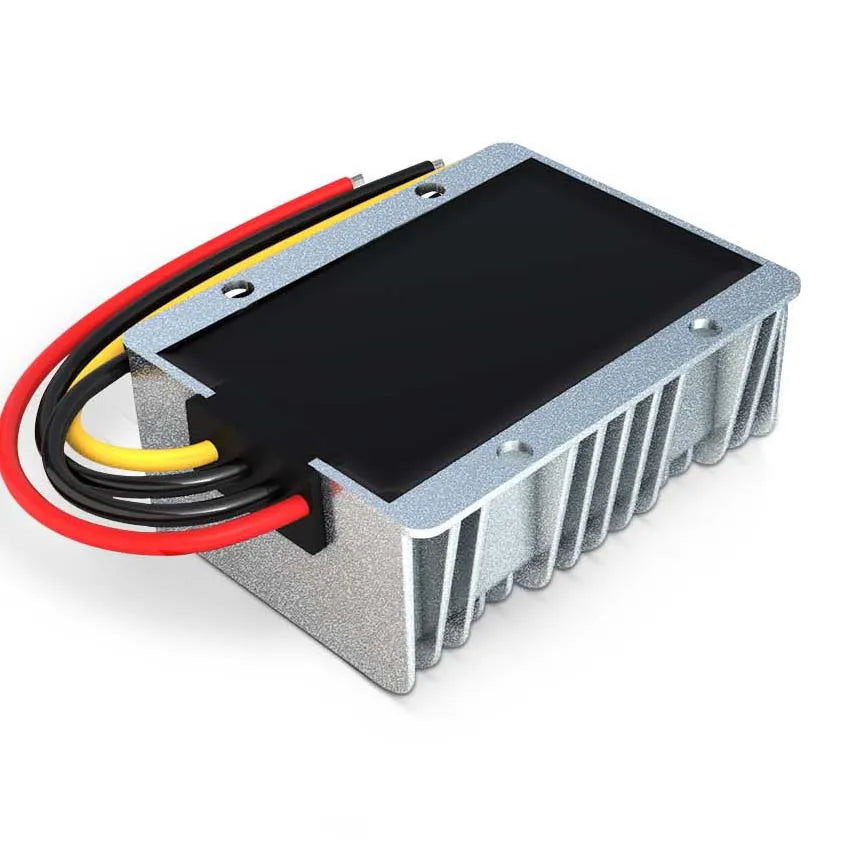

GYVRM DC DC 12v 24v to 5v Voltage Converter 1A 2A 3A 5A 10A 15A 20A 25A 30A 40A Step Up Down Buck 5v Voltage Reducer

12V24V TO 5V 1A / 12V24V(8-40V) / 5V|China Mainland

$19.80

Sale price $19.80 Regular price $0.00

Skip to product information

GYVRM DC DC 12v 24v to 5v Voltage Converter 1A 2A 3A 5A 10A 15A 20A 25A 30A 40A Step Up Down Buck 5v Voltage Reducer

GYVRM DC DC 12v 24v to 5v Voltage Converter 1A 2A 3A 5A 10A 15A 20A 25A 30A 40A Step Up Down Buck 5v Voltage Reducer

$19.80

Sale price $19.80 Regular price $0.00

Color 12V24V TO 5V 1A 12V24V TO 5V 3A 12V24V TO 5V 5A 12V24V TO 5V 10A 12V24V TO 5V 15A 12V24V TO 5V 2A 12V24V TO 5V 3A 1 12V24V TO 5V 5A 1 12V24V TO 5V 1A 1 12V24V TO 5V 20A 12V24V TO 5V 25A 12V24V TO 5V 30A 12V24V TO 5V 40A

Input Voltage12V24V(8-40V)

Output Voltage|Ships From5V|China Mainland

Description

SPECIFICATIONS

Brand Name: GYVRM

Certification: CE,FCC,RoHS

Choice: yes

High-concerned chemical: none

Model Number: GYVRM JXX0501-40

Origin: Mainland China

Output Current: 1A/2A/3A/5A/10A/15A/20A30A/40A

Output Frequency: 50HZ

Output Power: 5 - 200W

Output Type: SINGLE

Performance: Waterproof/Dustproof/Moistureproof/Shockproof

Protection: Over voltage protection/ over current protection/high temperature protection/short circuit protection

Size: 64*32*48mm/74*74*32mm/100*80*39mm

Type: DC/DC Converters

Waterproof Rating: IP68

Weight: 55g/280g/500g

is_customized: Yes

semi_Choice: yes

Product parameters

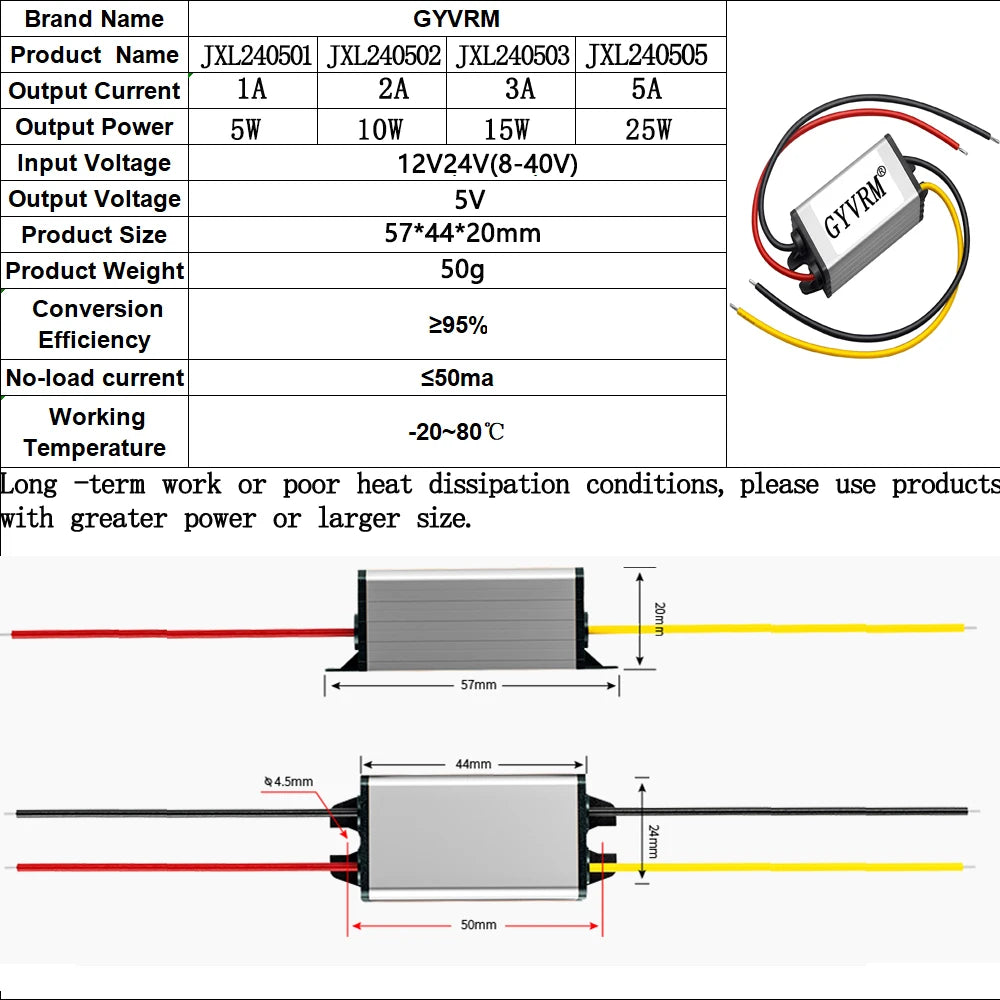

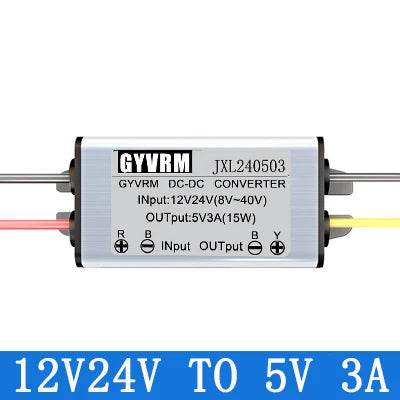

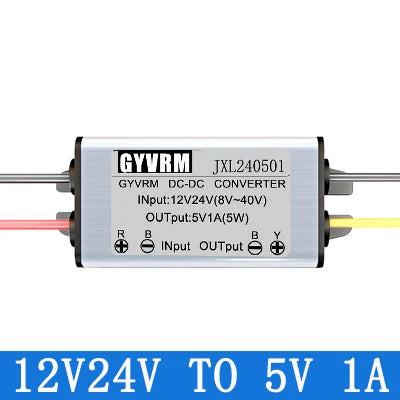

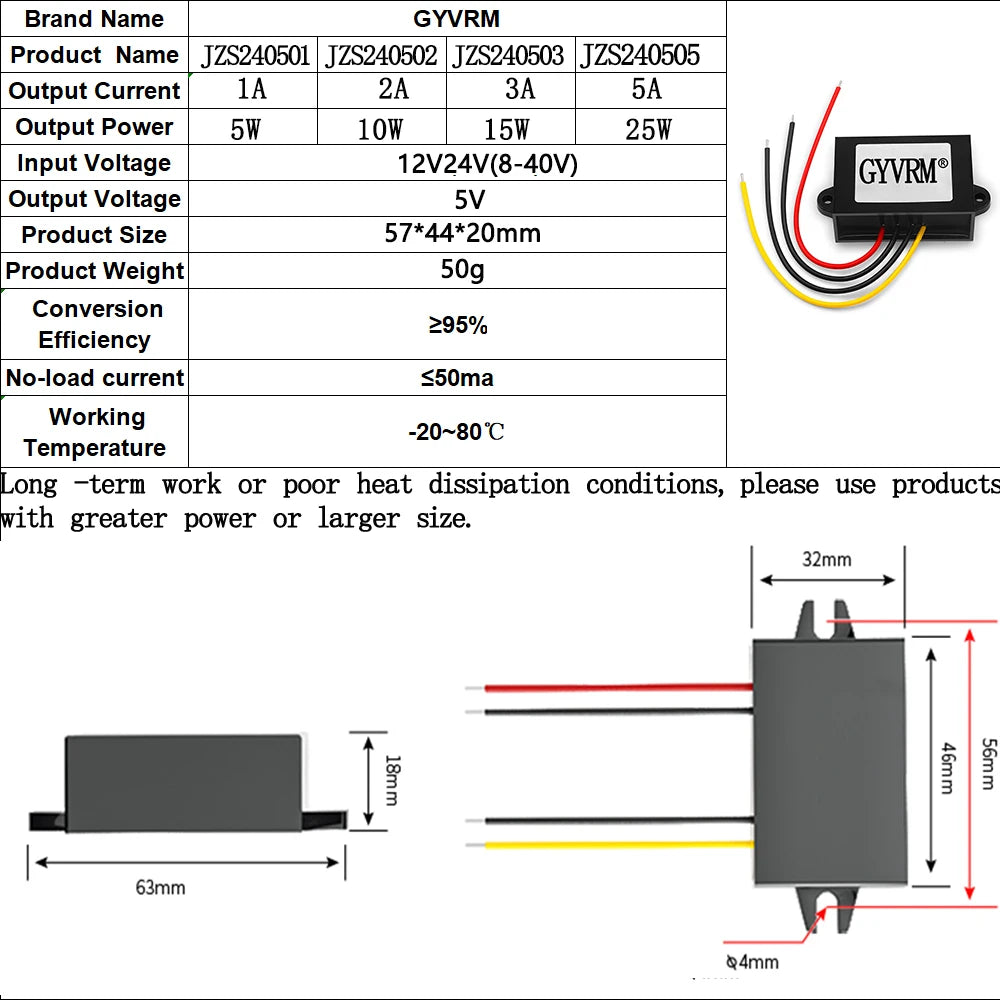

DC-DC 12V24V TO 5V 1-5A

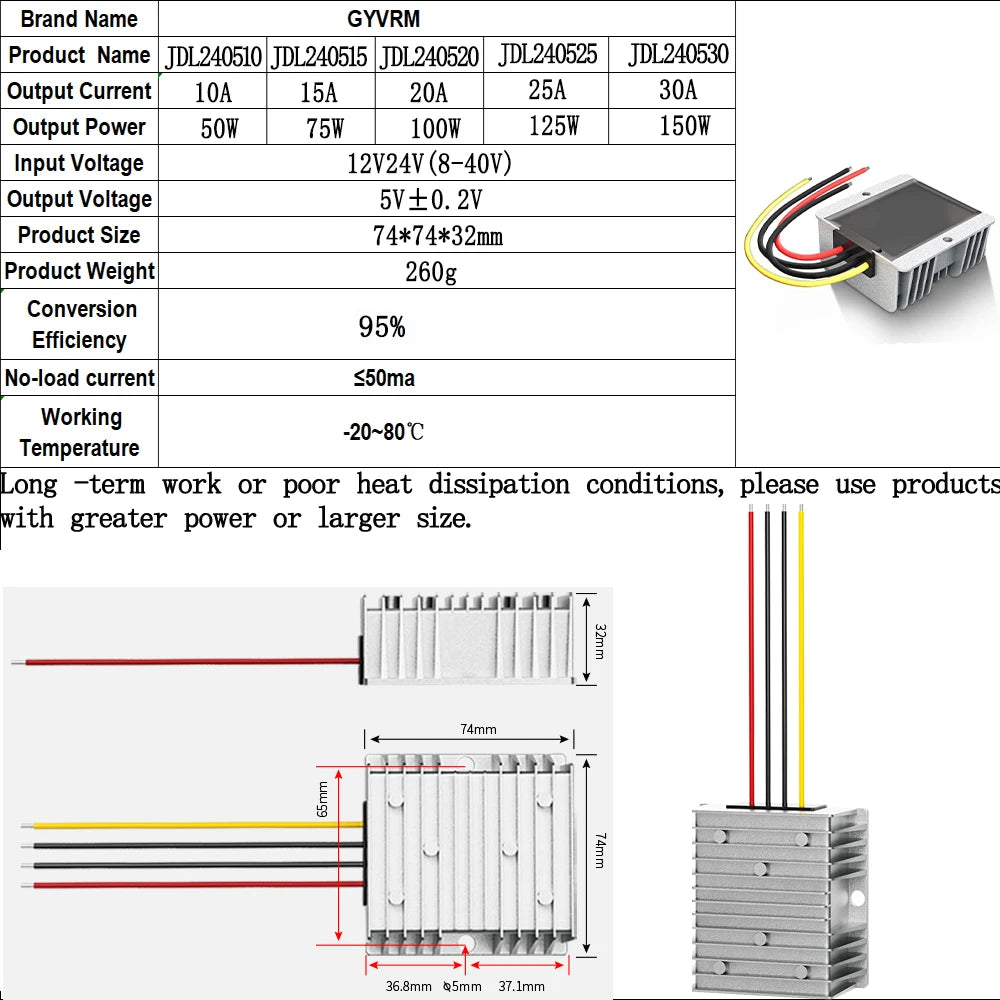

DC-DC 12V24V TO 5V 10-30A

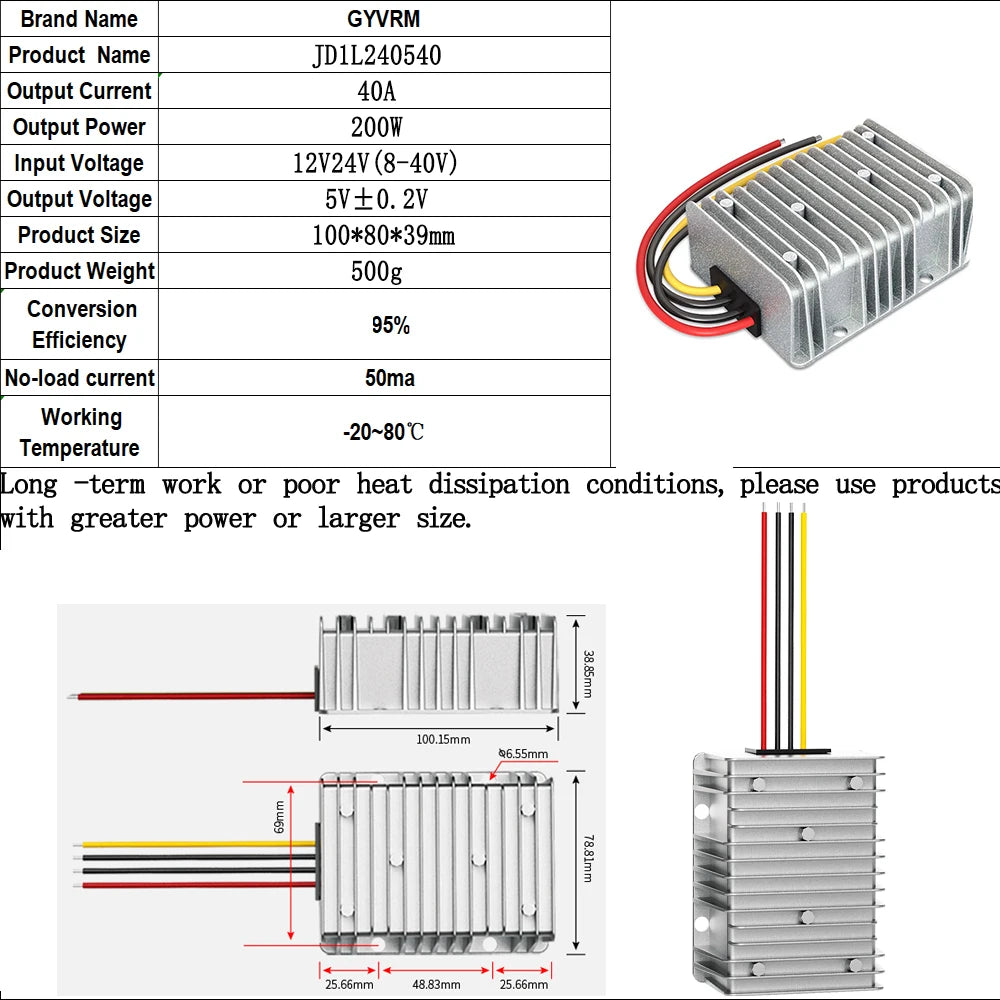

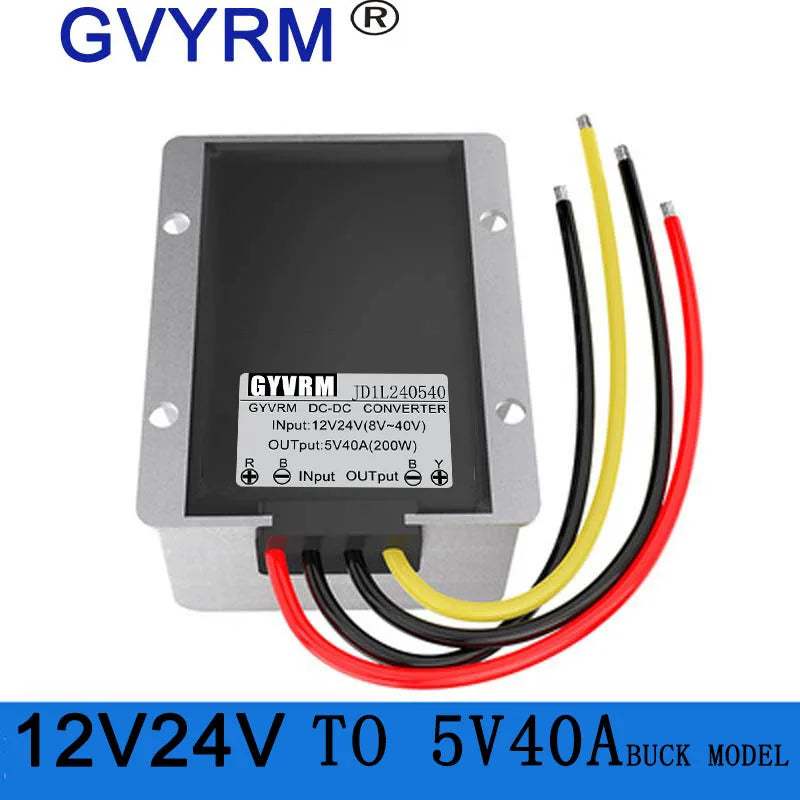

DC-DC 12V24V TO 5V 40A

Instructions

Applications

Wide range of applications: Industrial automation control. Research equipment, LED lighting, industrial control equipment, car equipment, power equipment, instrumentation equipment, medical equipment, refrigeration empty purifier,Electronic refrigerator, liquid crystal display, LED display, audiovisual product, security imported computer chassis, digital products and various instruments and other fields。

User's Manual

The 12V,24V battery voltage is converted to a 5V DC voltage.

Precautions (Uncertain installations, please contact our company before installation)

！！！Long-term use cannot be fully loaded, please reduce power or choose more powerful products, best 50% of maximum power.

1. Make sure that all the polarity is correct, and the anti-negative conversion converter (except for input tape reverse protection)

2. Make sure the cable is pure copper wire, the input and output cables cannot exceed 2 meters, and the output will be removed by more than 2 meters. The voltage will be reflected. If the line is extended, you need to increase the line diameter according to the corresponding multiple.

3. The cable needs to be connected to the thread, please refer to the wire diameter size and securely connected.

4. The input terminal is required to connect the fuse or air switch, and you need to select the corresponding fuse or switch] (except the input belt fuse)

5. Make sure the battery capacity is large enough to provide sufficient energy. If the input energy is not enough, the voltage will be reduced.

6. Make sure the installation environment is well ventilated, so as not to protect over temperature protection, limit current output

7. Cannot connect directly to solar panels or wind wind turbines

8. Non-charged models cannot be charged battery and lithium batteries

9. When connecting the input test with DC power supply, the input should not exceed the voltage range of the battery, and no overvoltage protection (can be customized).

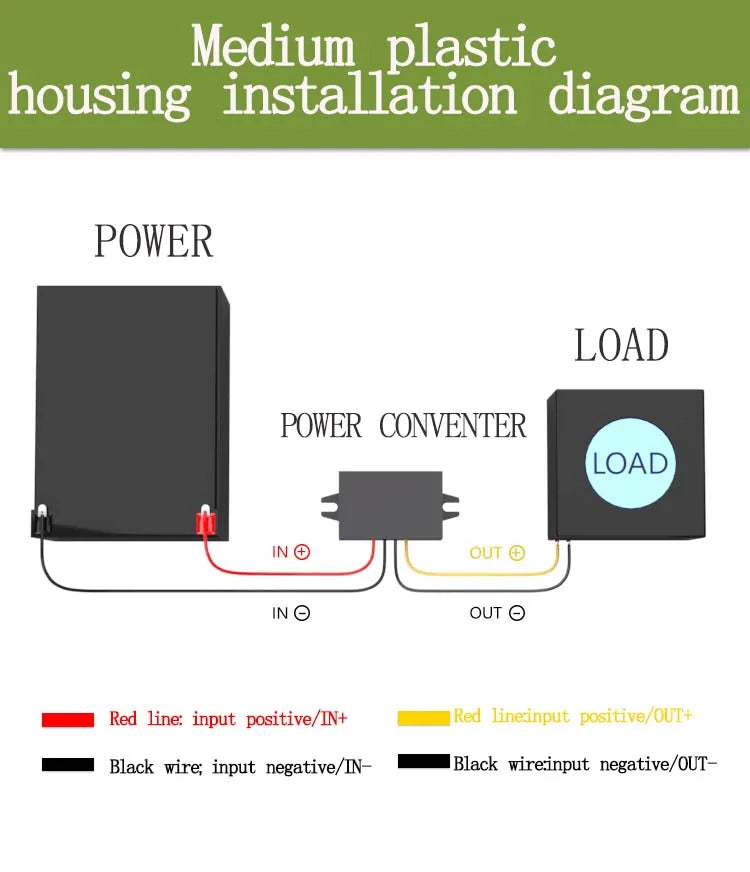

Installation step (four lines or four / five terminals)

1. Turn off all power supplies and load switches

2. Before the wiring, pay attention to all positive and negative poles

3. Connection (OUTPUT-) to load negative, connection (OUTPUT +) to load positive

4. Connect the fuse or air switch to (Input +) input the positive cable, then connect (Input +) to the battery positive, connect (Input-) to the battery negative electrode

5. Make sure all positive and negative connections are correct (do not reverse, reverse the burnback converter), turn on the power and load switch

(Note: If the ACC port is connected, connect the ACC to the ignition switch: If you do not need to use the ACC function, connect the ACC to the (Input +) battery "positive.)

troubleshooting

1. Output no voltage, please check if all lines are connected firm, the battery is enough, whether the fuse is burning.

2. Output the voltage, check if the load start current is too large, the ventilation is good, whether the outer casing is heated, whether the cable and the thread are selected and installed, whether it is less than 2 meters, and the input battery has sufficient energy.
