SPECIFICATIONS

Brand Name: Aideepen

Certification: NONE

Condition: New

Contact Load: Low Power

Dropship: Support

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

High-concerned chemical: none

Key Word: Relayc

Model Number: Time Relay

Origin: Mainland China

Power Source: DC

Protect Feature: Sealed

Theory: Time Relay

Type: AC220 Time Relay

Use: General Purpose

is_customized: Yes

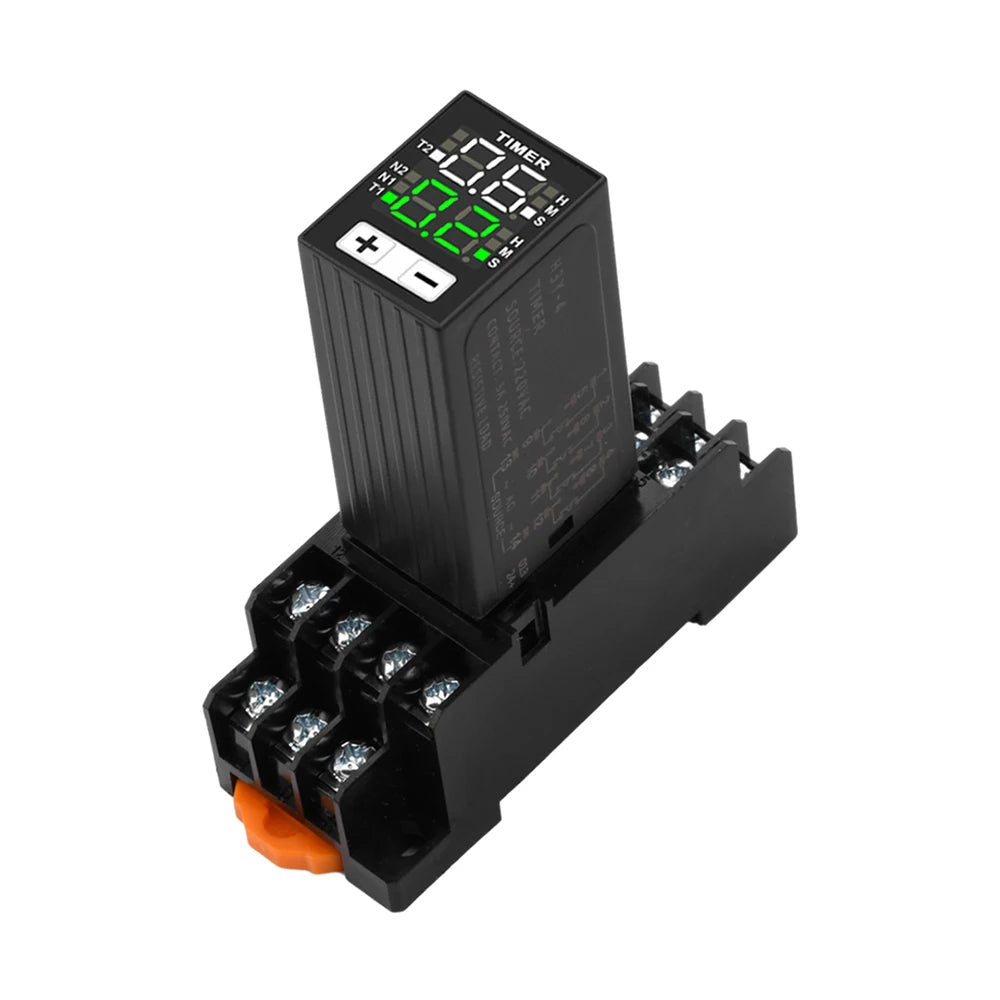

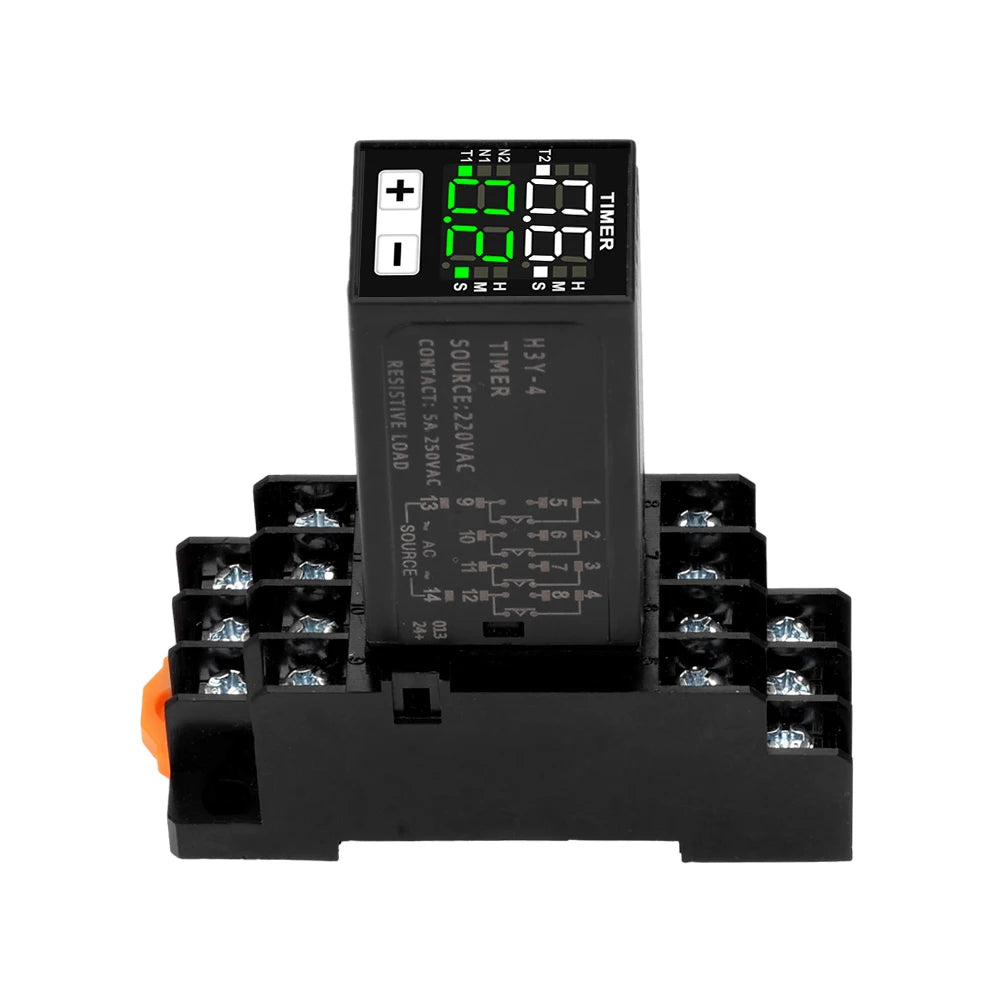

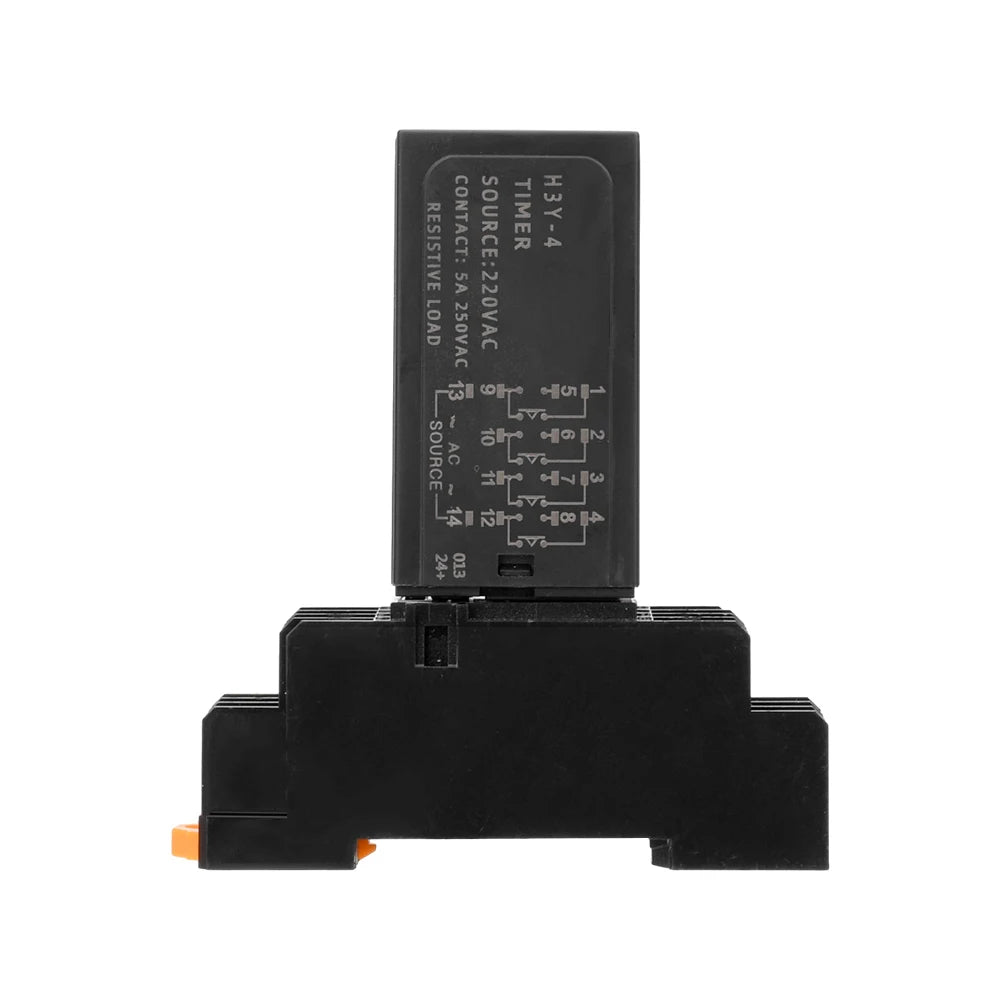

H3Y-4 DC12V DC24V AC220 Time Relay Cycle Time Control Delayer Digital Display With Base Power Supply

Features:

1. PC shell, fireproof and high temperature resistant

2. LED high-definition screen, digital display panel is more intuitive

3. Silver contacts, stable performance, anti-oxidation, high work efficiency

4. Large-capacity pins at the bottom, copper galvanized material, high melting point, strong anti-oxidation and corrosion resistance, good conductivity

5. There are 3 delay modes: N1 power-on delay mode, N2 delay release mode, N3 cycle delay mode

6. Widely used: suitable for automation equipment, electromechanical cabinets, electrical control, power protection and other fields

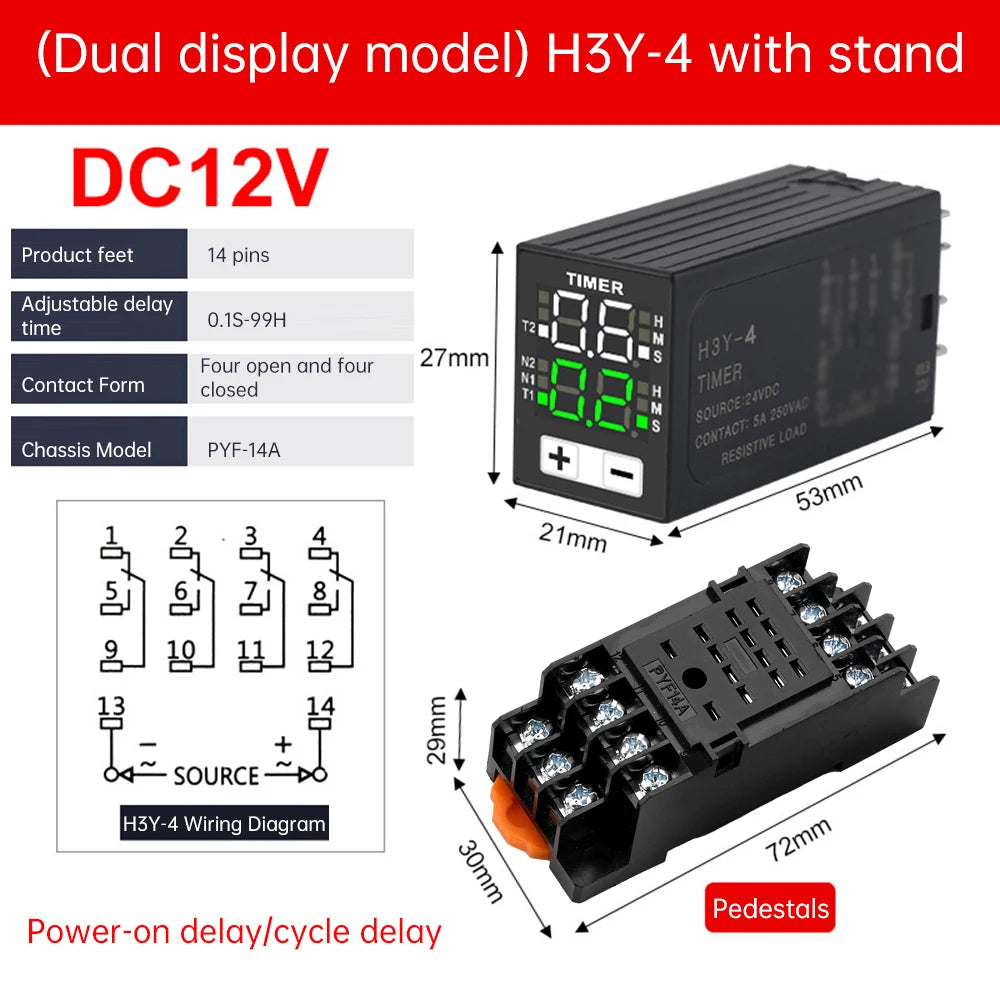

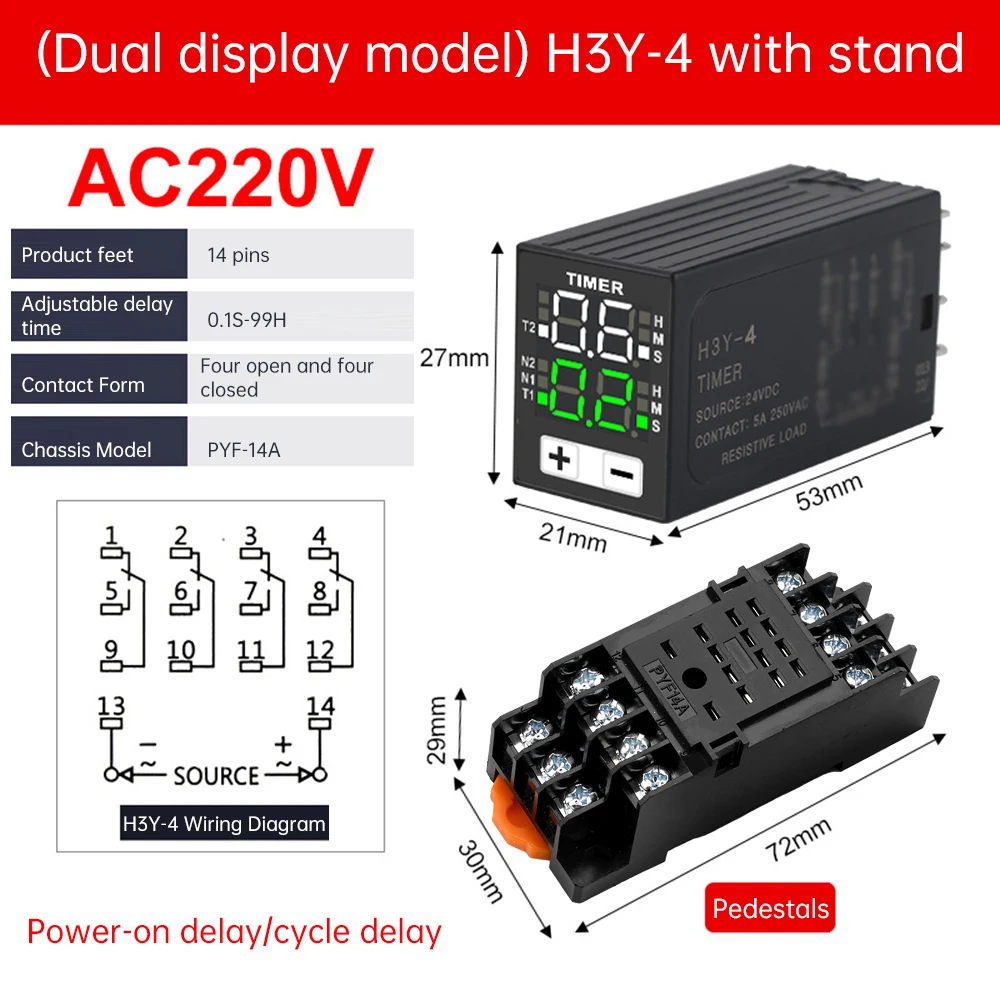

Product parameters

Product model: H3Y-4 (14 feet/four open and four closed with base)

Product name: time relay

Voltage: DC12V 24V 220V (optional)

Time range: 0.1S-99H

N1 mode power-on delay: four groups of delayed pull-in

N2 mode delayed release: four groups of power-on pull-in, four groups of delay disconnection

T1 T2 cycle mode: T1 T2 on and off can be set at different times

Ambient temperature: -25~75℃

Installation method: Match PYF-14A base device

Setting operation instructions

Mode description: N1 mode is power-on delay, N2 is delayed release, T1 and T2 are cycle delay

Working mode: Long press + and one key for more than 3 seconds, single-click one key to change the working mode

Time base setting: Long press + key for more than 3 seconds to enter, single-click + key to change time specification. Single-click one key to change T2 time specification in cycle mode

Value setting: Single-click + key to increase time, single-click one key to decrease time. Long press one key for more than 3 seconds in cycle mode to enter T2 value setting

Extended instructions: No operation for more than 8 seconds, save current settings and exit

Important note, if you need to use a set of instantaneous contacts to achieve circuit self-locking, please adjust the mode to N2, and then connect according to Figure 2, which is simpler and more reliable

Package list

Time relay*1

Base*1
