SPECIFICATIONS

Features:

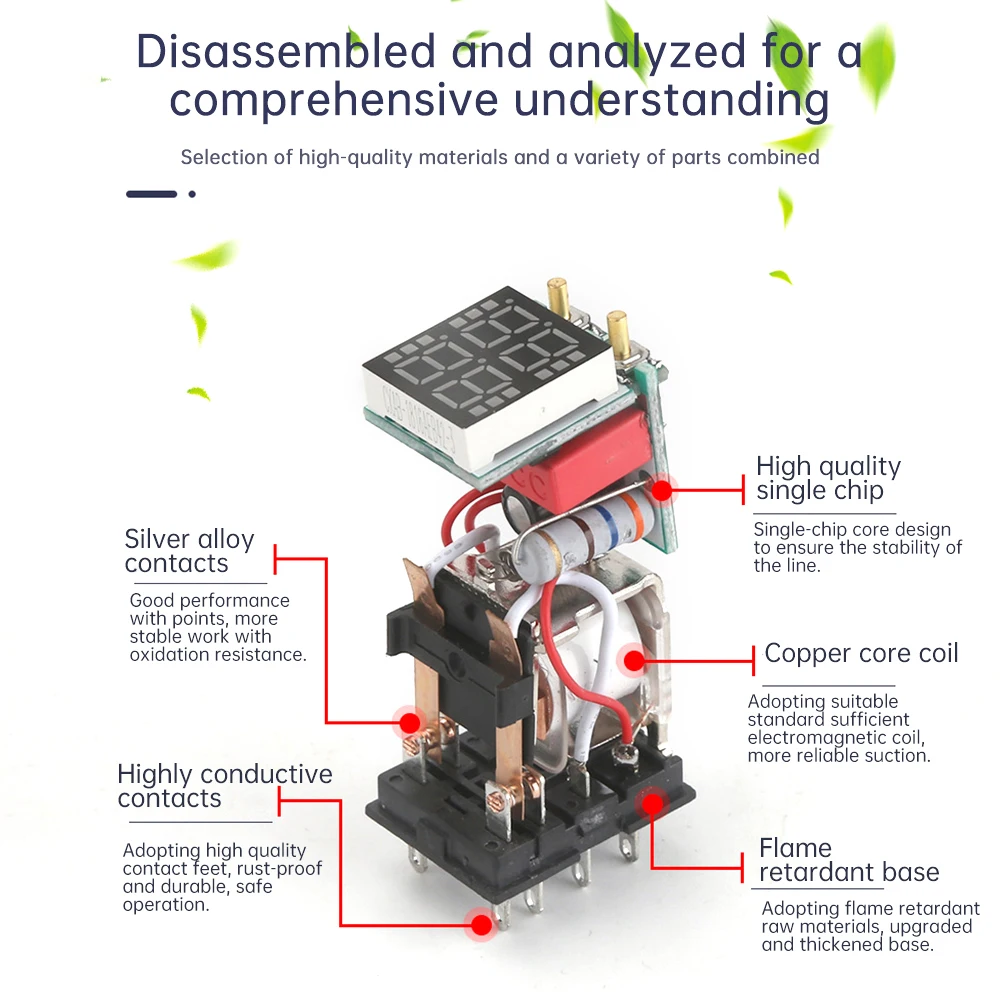

1.Pc casing, fire and high temperature resistant

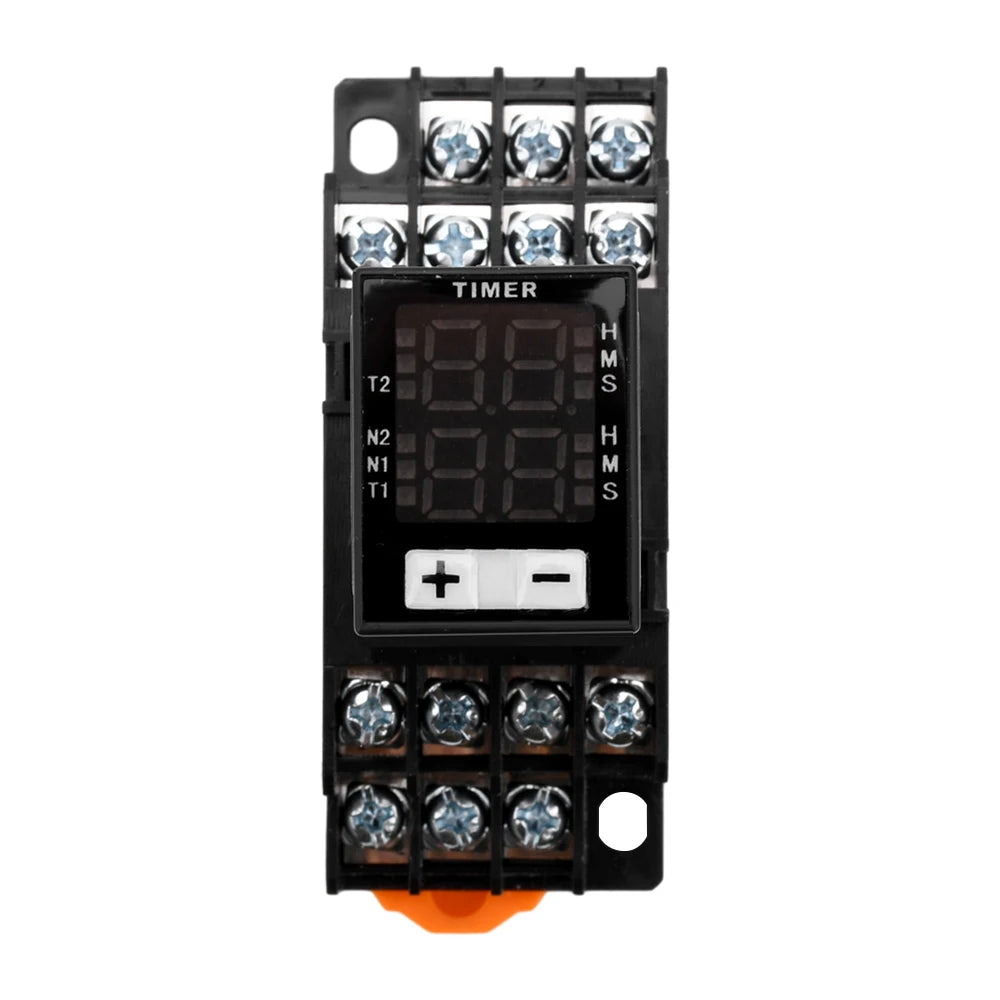

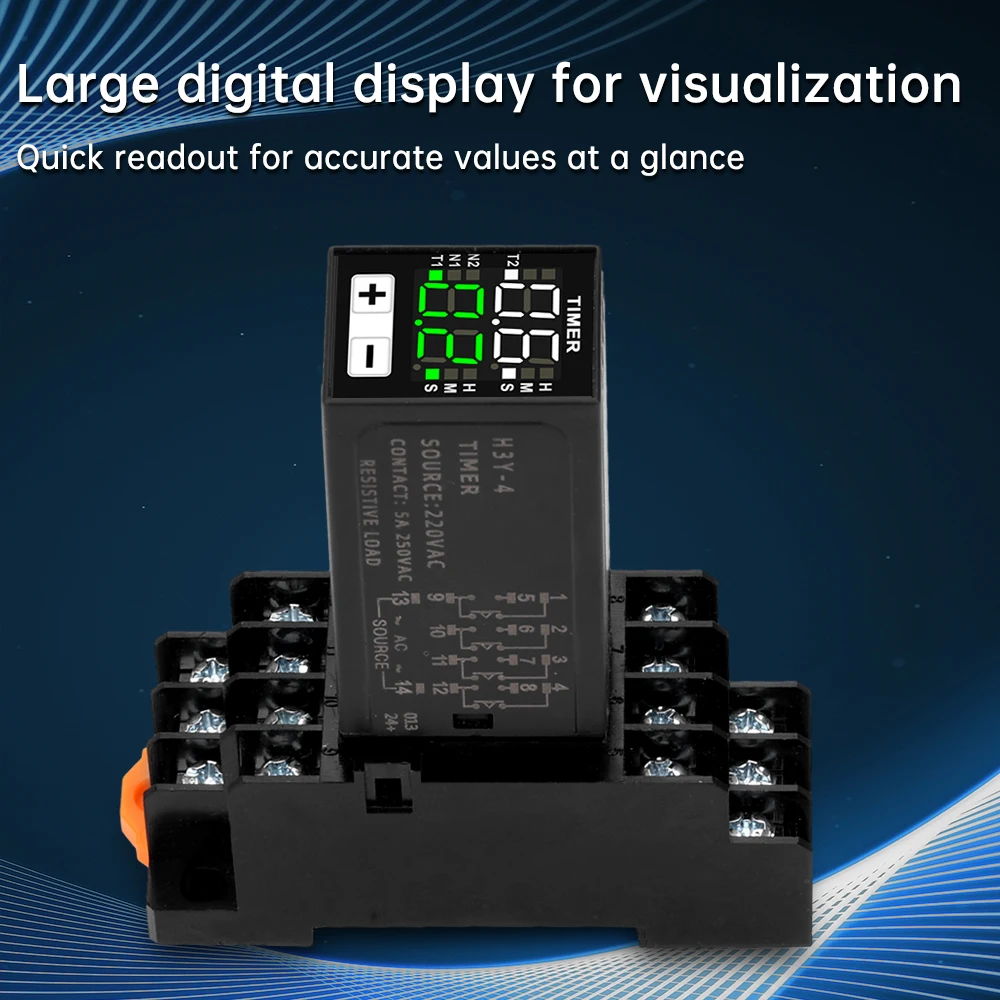

2.Led high-definition screen, more intuitive digital display panel
3.Silver contacts, stable performance, oxidation resistance, and high work efficiency

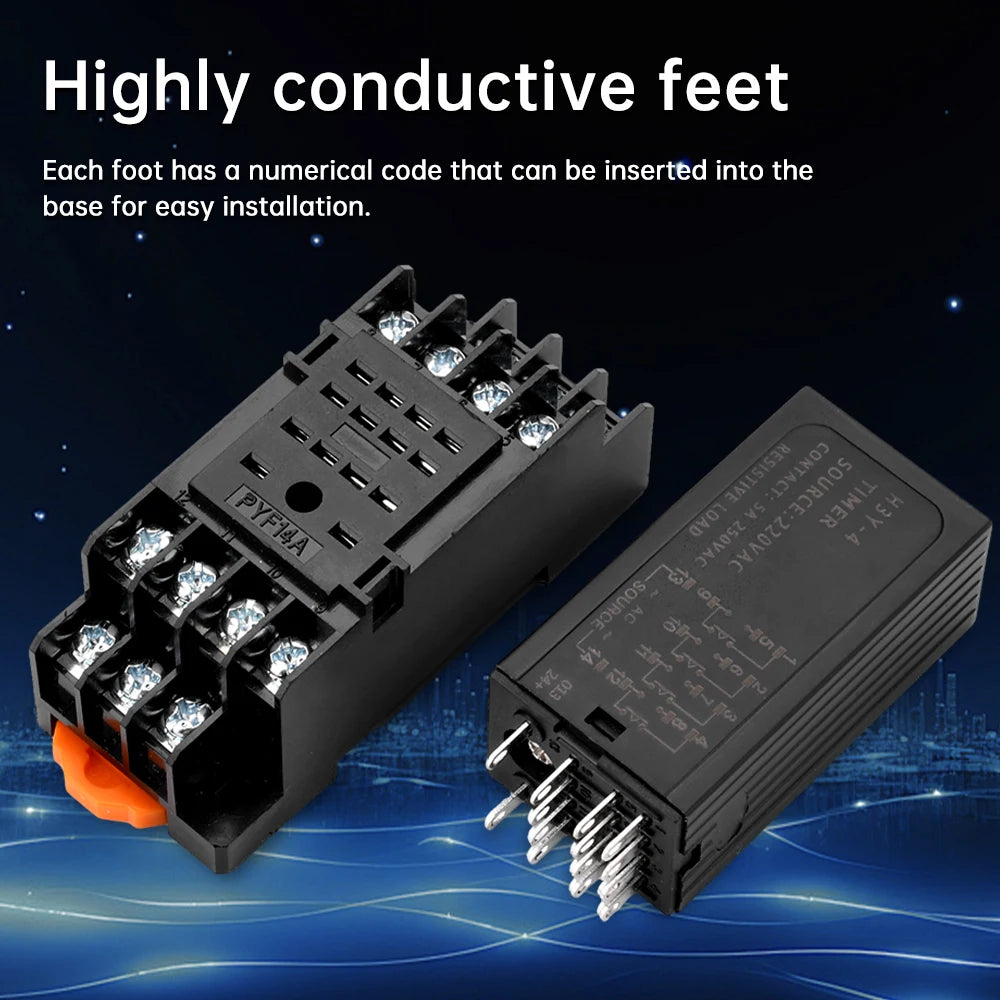

4.Large capacity pins at the bottom, made of copper galvanized material, with high melting point, strong oxidation and corrosion resistance, and good conductivity
5.There are three delay modes: N1 power-on delay mode, n2 delay release mode, and n3 cycle delay mode
6.Widely used: Suitable for automation equipment, electromechanical cabinets, electrical control, power protection and other fields

Parameters:

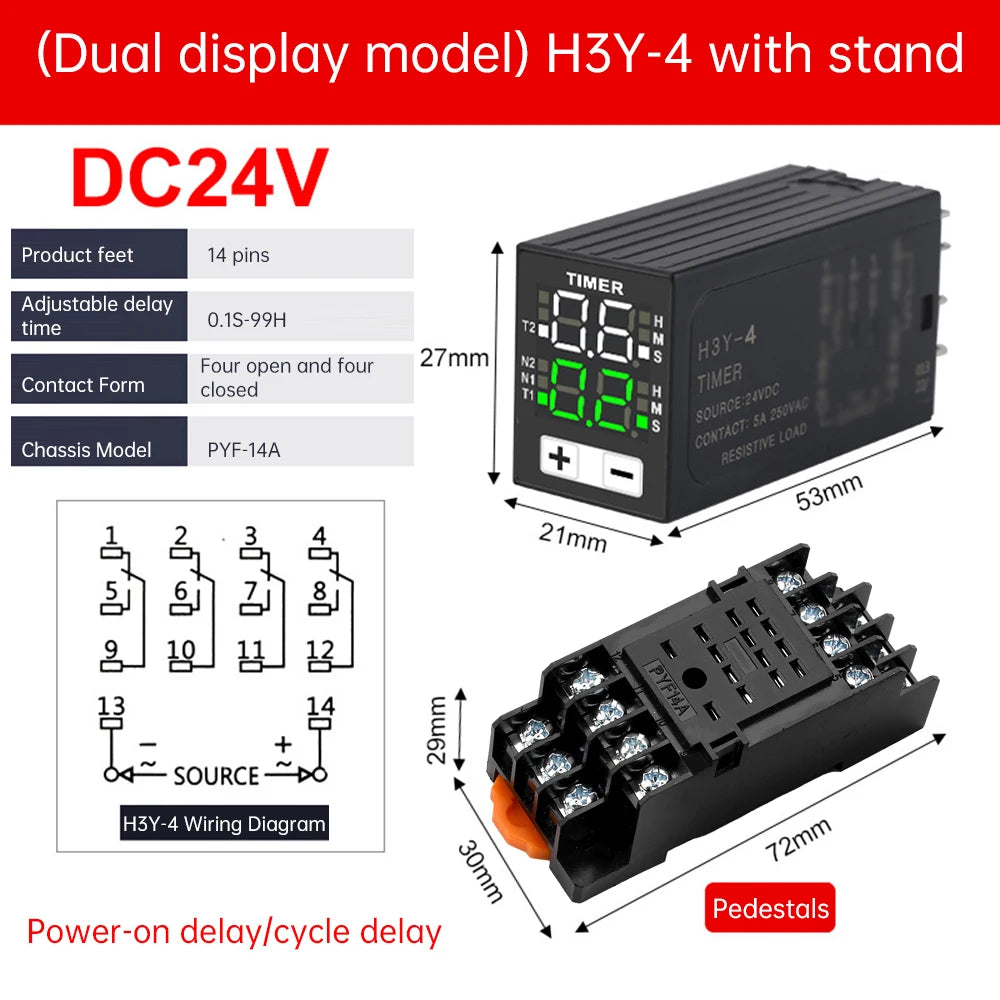

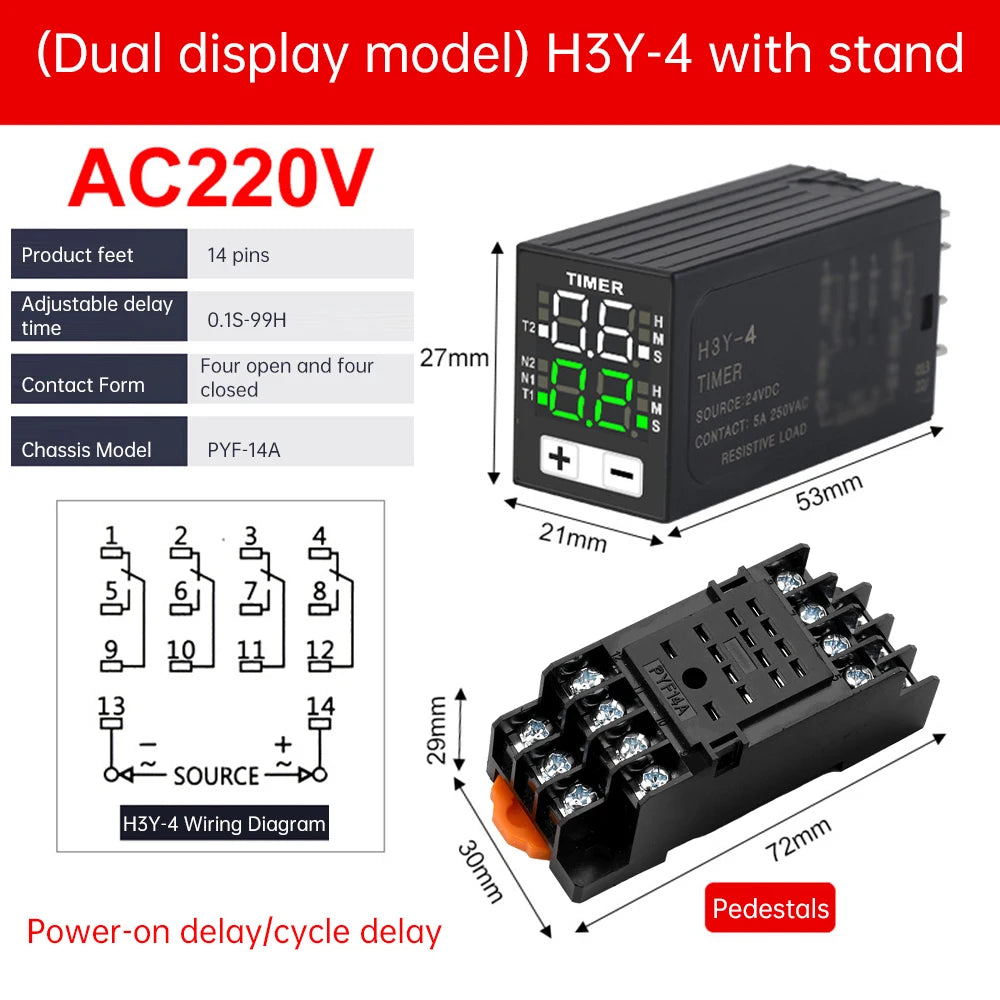

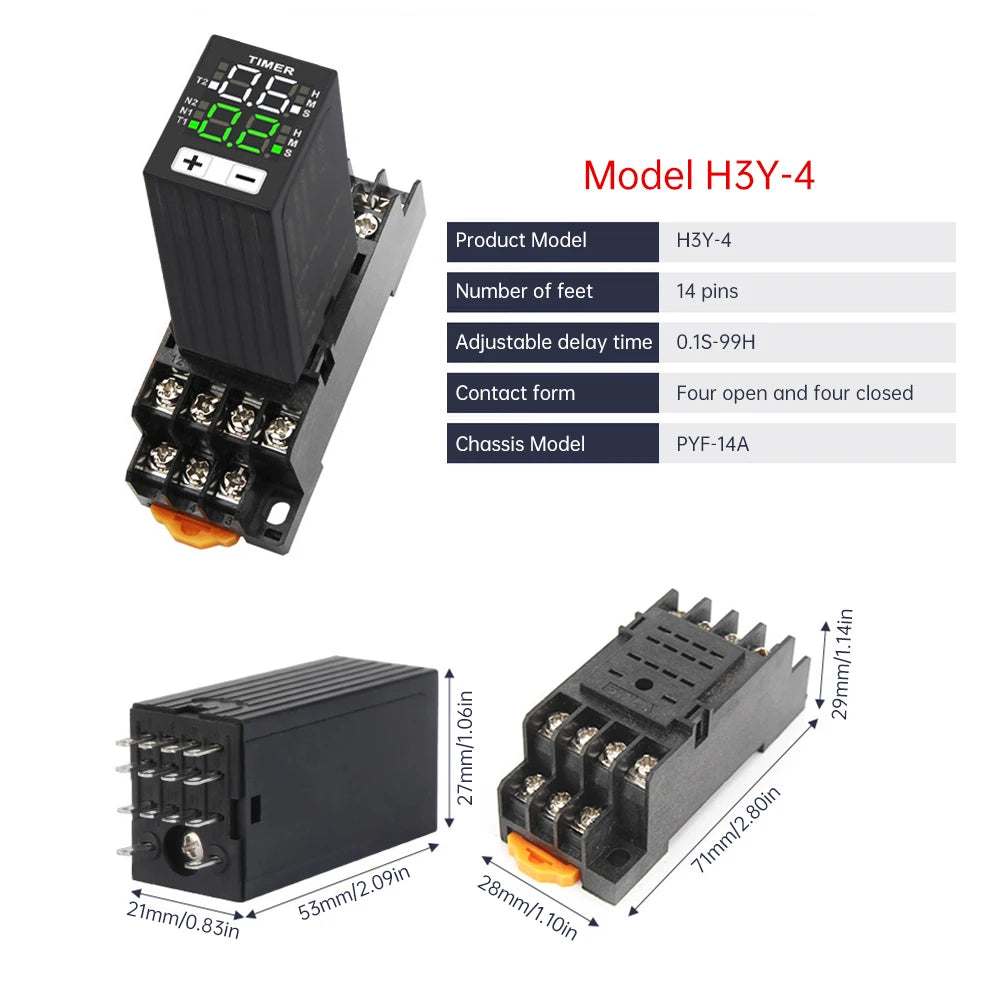

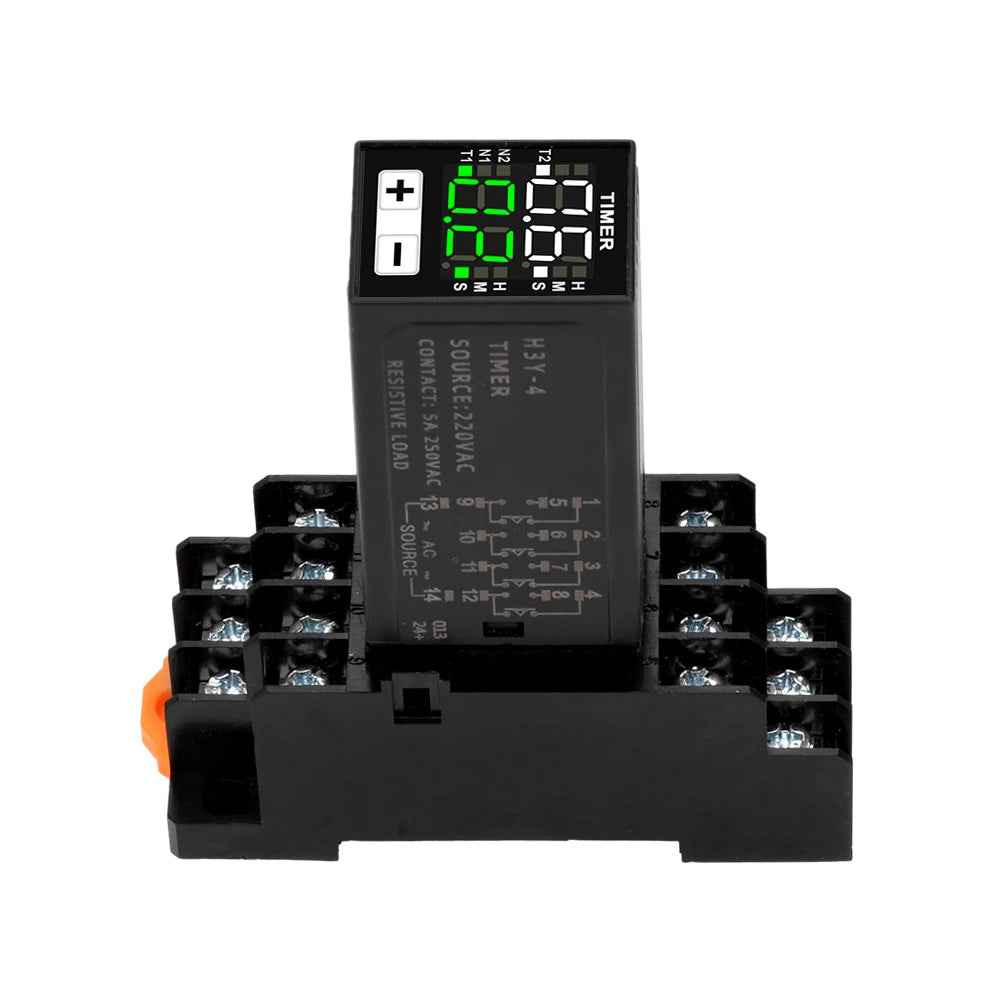

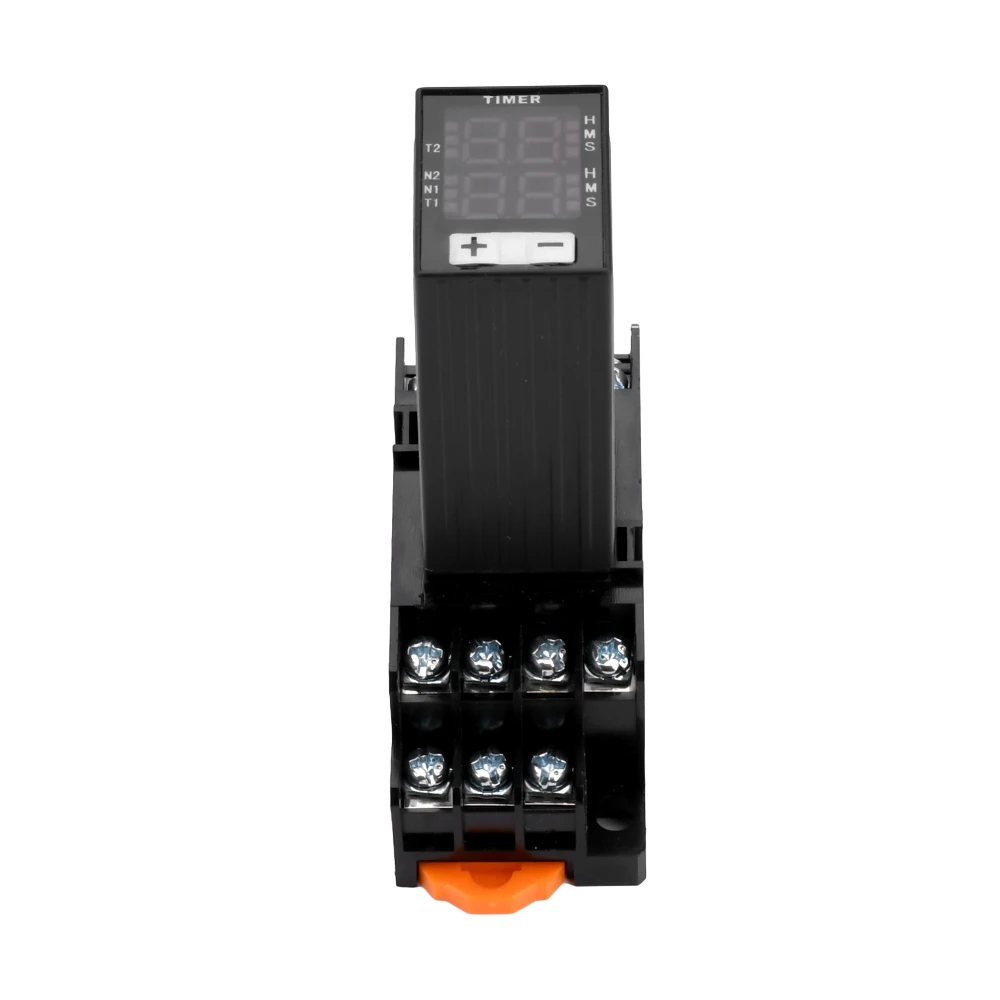

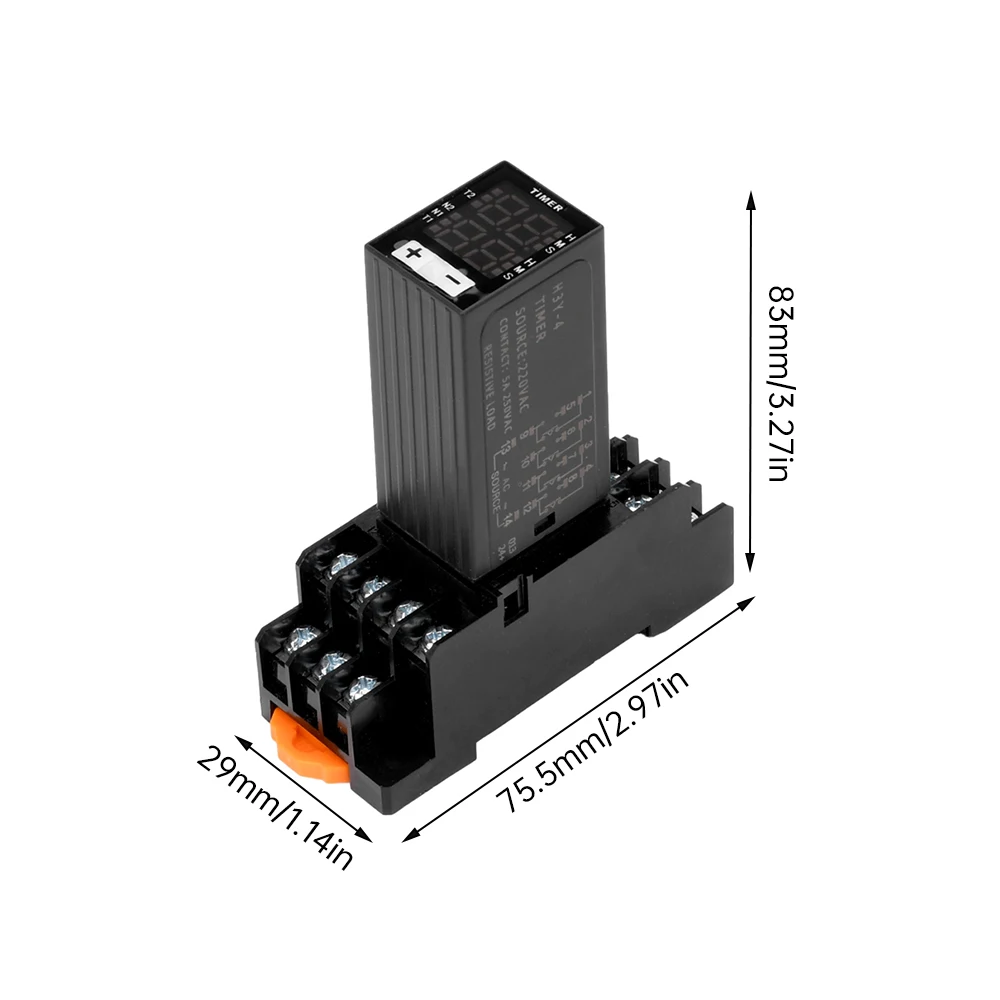

Product model: h3y-4 (14 pin/four open and four closed with base)
Product name: time relay
Voltage: dc12v 24v 220v (optional)
Time range: 0.1s-99h
N1 mode power on delay: four sets of delayed suction
N2 mode delayed release: four groups of suction and four groups of disconnection are delayed when powered on
T1 t2 cycle mode: t1 t2 on/off can be set for different times
Environmental temperature: -25~75℃
Installation method: matched with pyf-14a base device type

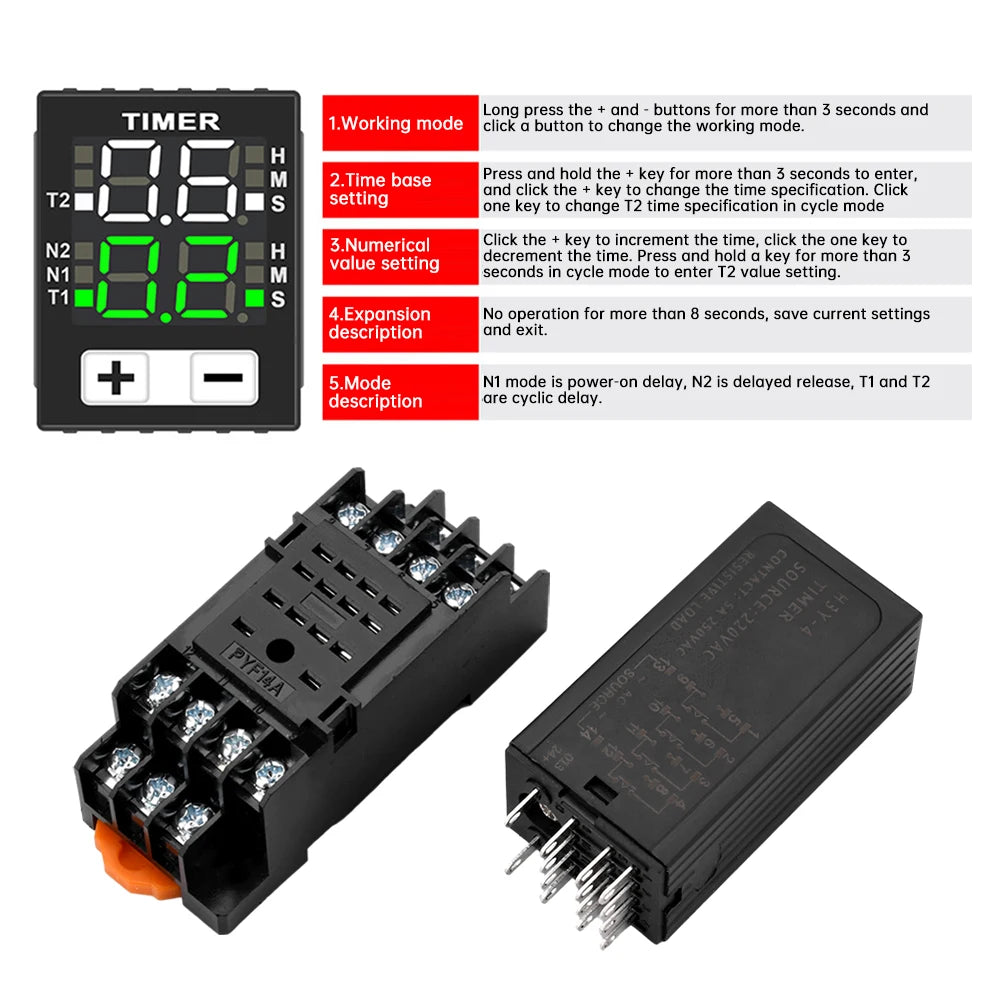

Set operation instructions
Mode description: n1 mode represents power on delay, n2 represents delayed release, t1 and t2 represent cyclic delay
Working mode: long press+and one click for more than 3 seconds, then click to change the working mode
Time base setting: press and hold the+key for more than 3 seconds to enter, click the+key to change the time specification. click one click to change t2 time specification in loop mode
Numerical setting: click the+key to increase the time, and click the one key to decrease the time. Press and hold one button for more than 3 seconds in cycle mode to enter t2 value setting
Extension explanation: no operation for more than 8 seconds, save current settings and exit

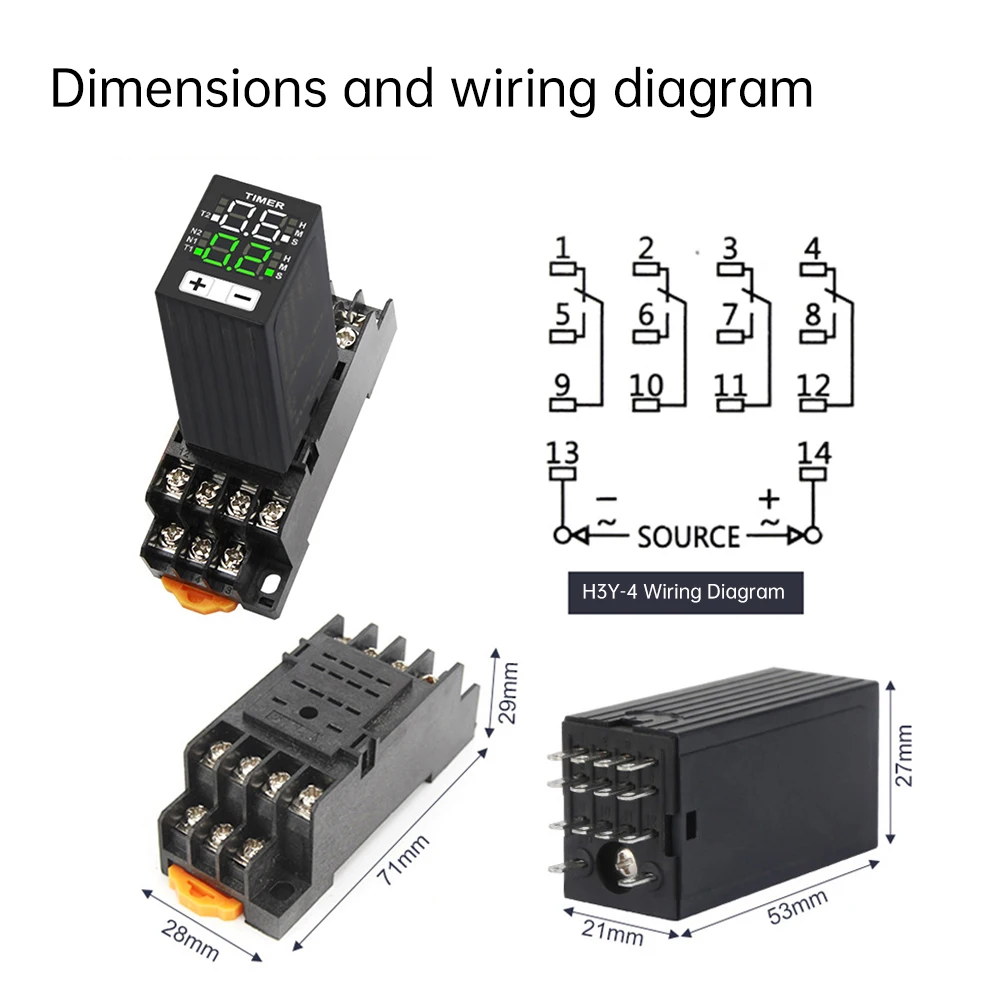

Important note: when using a set of instantaneous contacts to achieve circuit self-locking, please set the mode to n2 and then wire according to figure 2, which is simpler and more reliable

Package include:
Time relay*1
Base*1
