HAISEN QUECTEL LTE Cat 4 Module PCI Express® Mini Card EC25 EC25-EUX MINI PCIE EC25EUXGA-MINIPCIE EC25EUXGR-MINIPCIE

HAISEN QUECTEL LTE Cat 4 Module PCI Express® Mini Card EC25 EC25-EUX MINI PCIE EC25EUXGA-MINIPCIE EC25EUXGR-MINIPCIE

$316.00

$316.00 $0.00

Description

SPECIFICATIONS

Brand Name: NONE

Condition: New

High-concerned chemical: none

Origin: Mainland China

Type: Module

Quectel EC25 Mini PCIe

Quectel EC25 Mini PCIe is a series of LTE category 4 module adopting standard PCI Express®Mini Card form factor (Mini PCIe). It is optimized specially for M2M and IoT applications, and delivers 150 Mbps downlink and 50 Mbps uplink data rates.

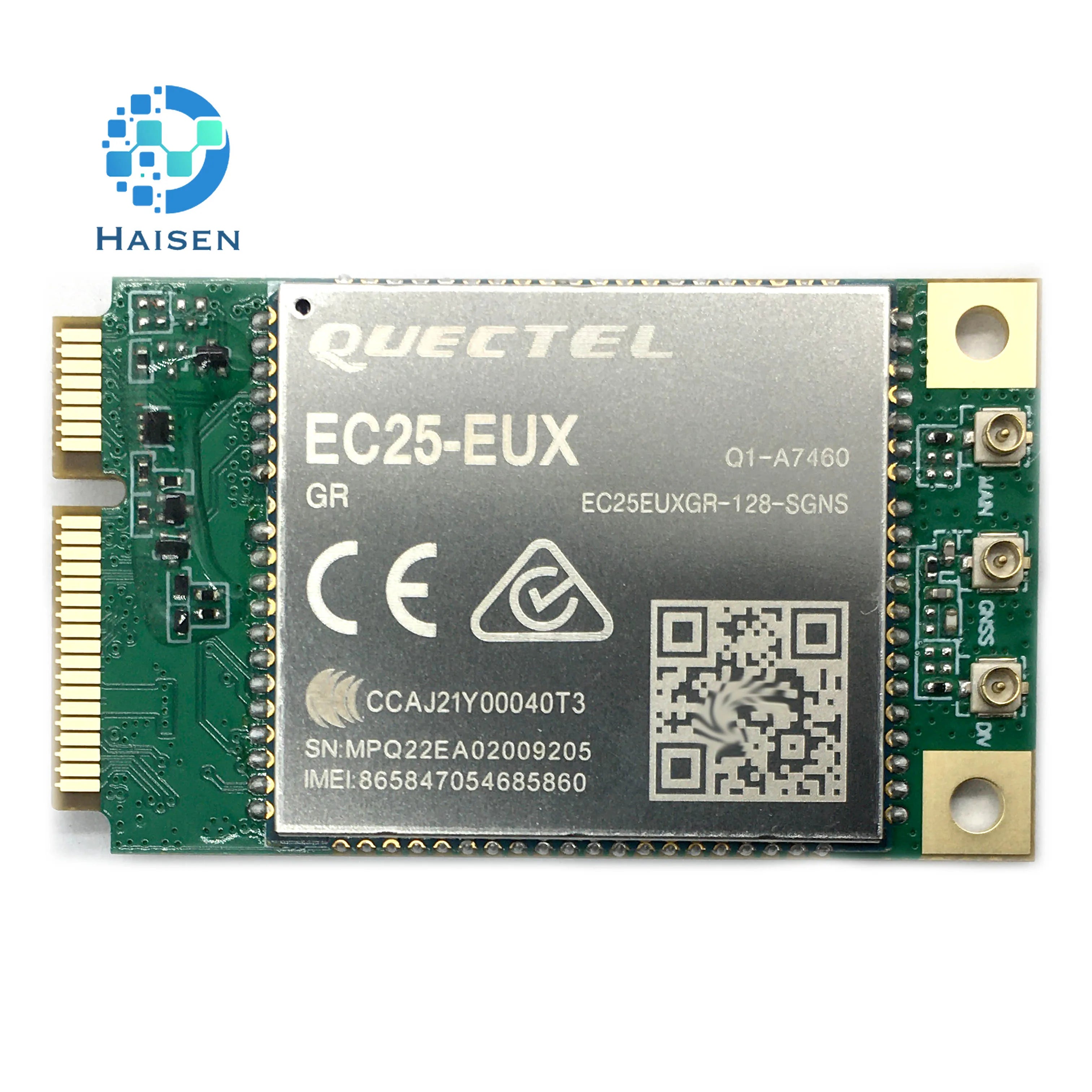

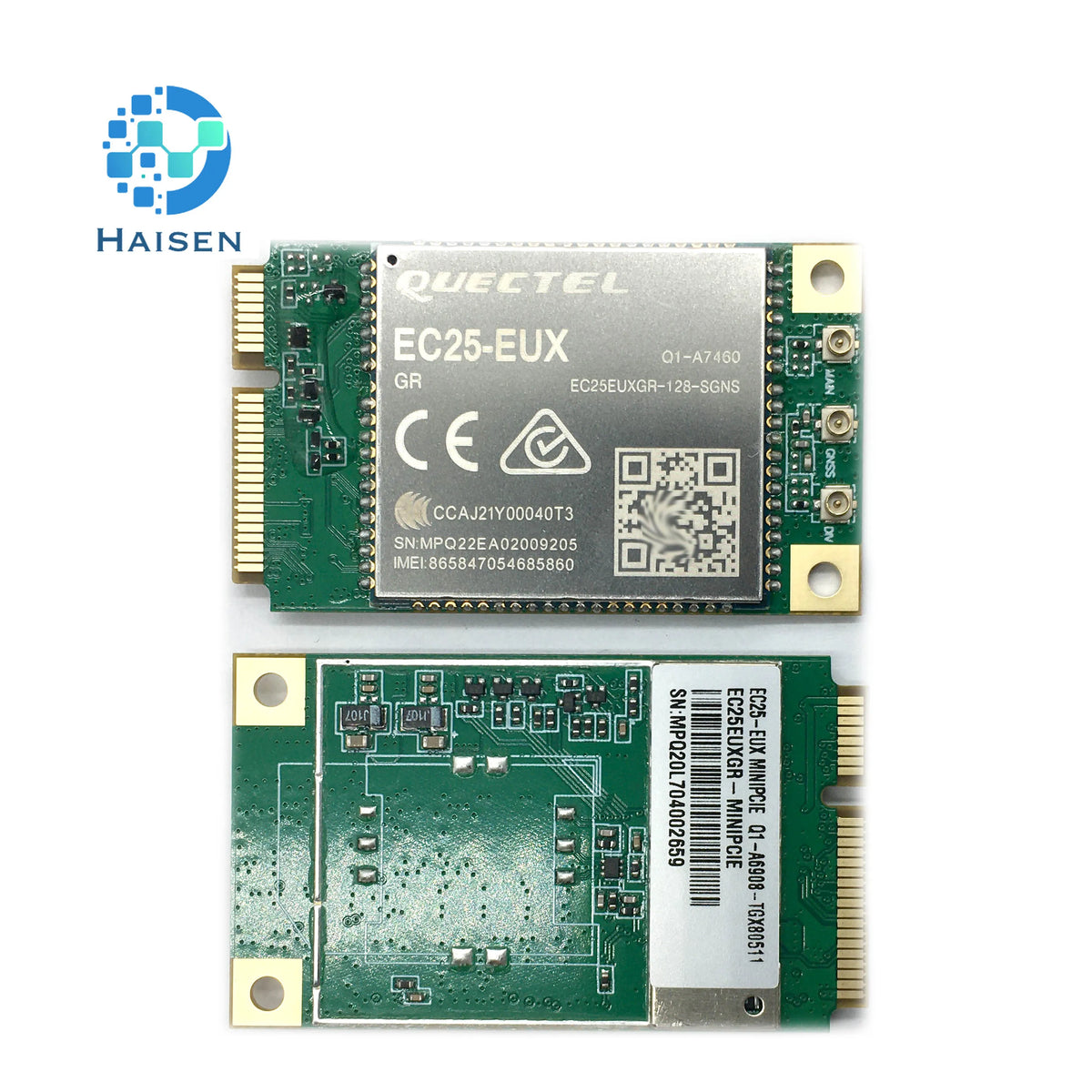

EC25-EUX MINIPCIE

EC25 series Mini PCIe contains 12 variants: EC25-E Mini PCIe, EC25-EU Mini PCIe, EC25-EUX Mini PCIe, EC25-J Mini PCIe, EC25-A Mini PCIe, EC25-V Mini PCIe, EC25-AF Mini PCIe, EC25-AFX Mini PCIe, EC25-AFXD Mini PCIe(Data-only), EC25-MX Mini PCIe, EC25-AU Mini PCIe and EC25-AUX Mini PCIe. This makes it backward-compatible with existing EDGE and GSM/GPRS networks, ensuring that it can be connected even in remote areas devoid of 4G or 3G coverage.

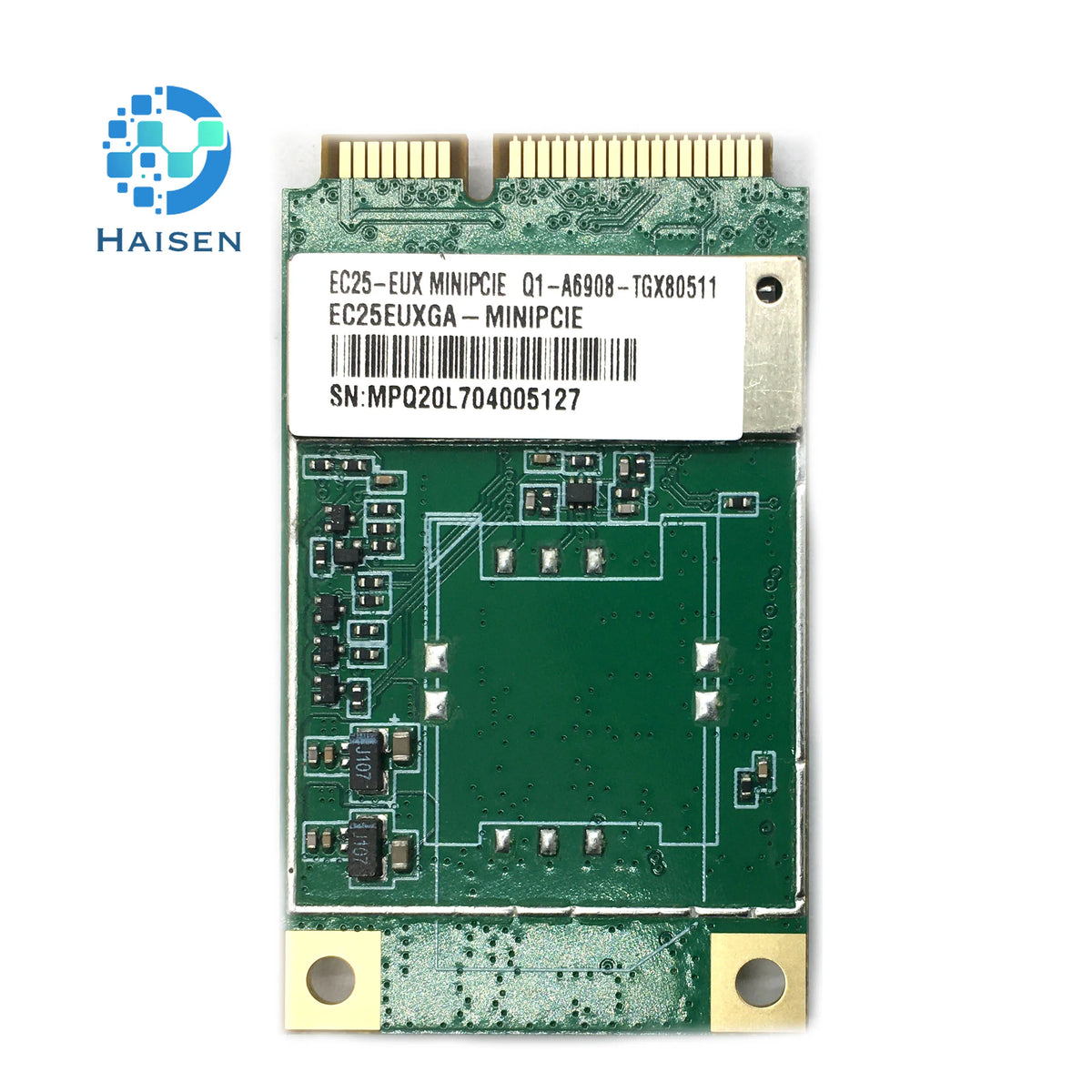

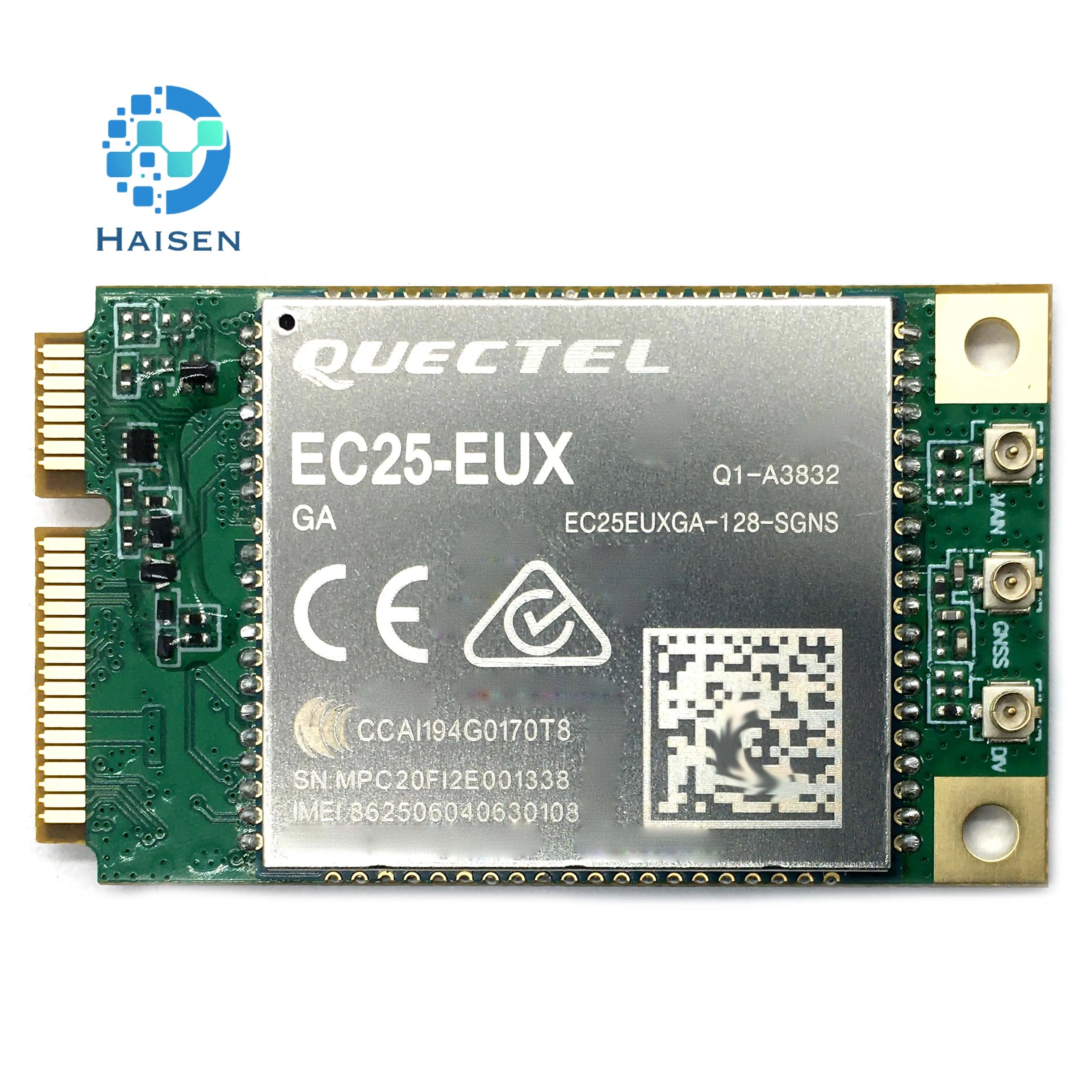

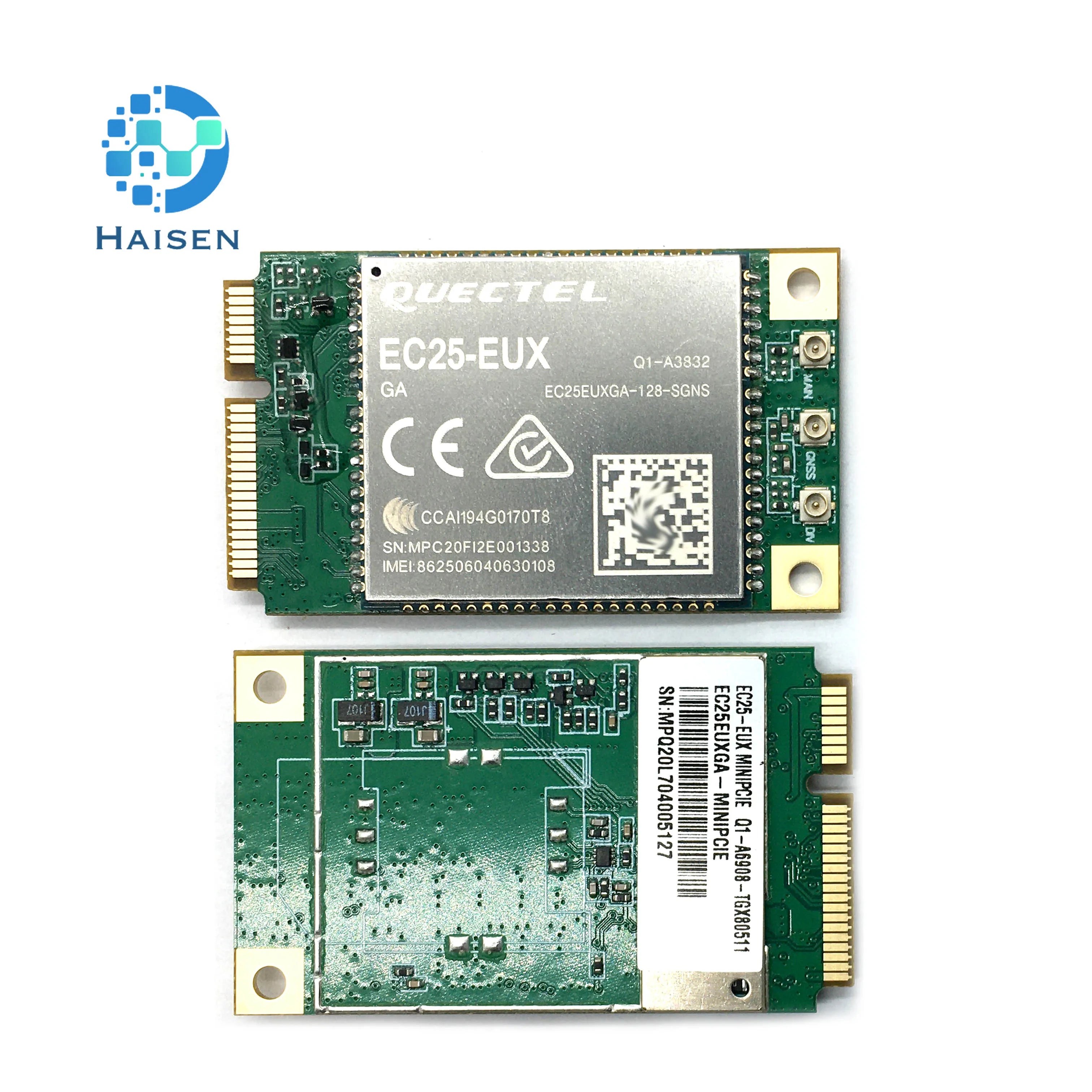

EC25EUXGA-MINIPCIE

EC25 series Mini PCIe supports Qualcomm® IZat™ location technology Gen8C Lite (GPS, GLONASS, BeiDou/Compass, Galileo and QZSS). The integrated GNSS greatly simplifies product design, and provides quicker, more accurate and more dependable positioning.

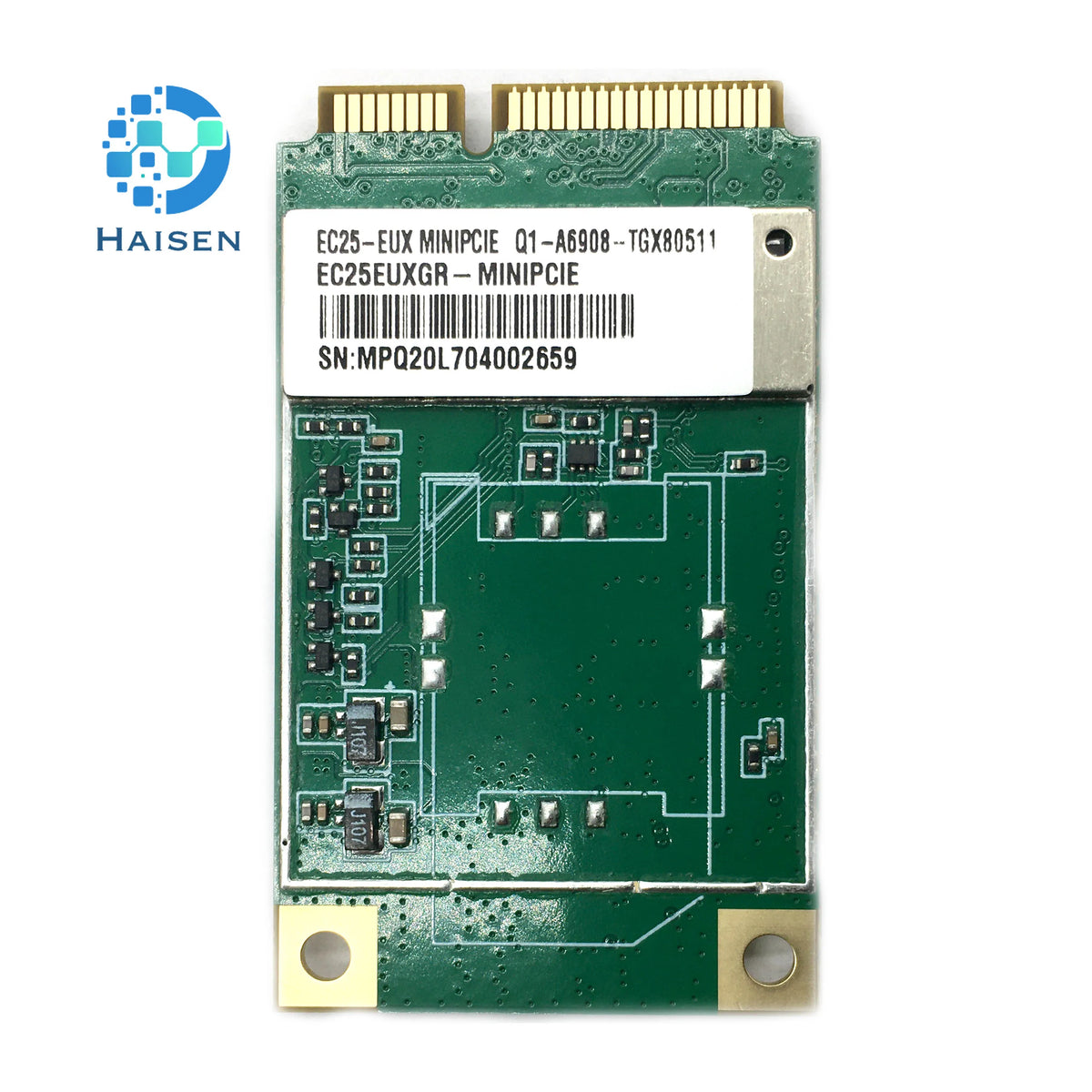

EC25EUXGR-MINIPCIE

A rich set of Internet protocols, industry-standard interfaces and abundant functionalities (USB serial drivers for Windows 7/8/8.1/10, Linux, Android) extend the applicability of the module to a wide range of M2M applications such as industrial router, industrial PDA, rugged tablet PC, video surveillance and digital signage.

Key Benefits

● LTE category 4 module optimized for broadband IoT applications
● Worldwide LTE, UMTS/HSPA(+) and GSM/GPRS/EDGE coverage
● Standard PCI Express®Mini Card form factor (Mini PCIe) ideal for manufacturers to easily integrate wireless connectivity into their devices
● MIMO technology meets demands for data rate and link reliability in modem wireless communication systems
● Multi-constellation GNSS receiver available for applications requiring fast and accurate fixes in any environment

EC25-AFX Mini PCle

Frequency EC25-AFX Mini PCle
LTE-FDD B2/B4/B5/B12/B13/B14/B66/B71
LTE-TDD -
WCDMA B2/B4/B5
GSM/EDGE -
Embedded GNSS Optional
Region North America FirstNet
Certification
Carrier:
Verizon*/ AT&T*/ T-Mobile*/
U.S. Cellular*/ Rogers*/ Bell"/Telus*
Regulatory:
FCC/ IC/ GCF/ PTCRBOthers:
WHQL

EC25-J Mini PCle

Frequency EC25-J Mini PCle
LTE-FDD B1/B3/B8/B18/B19/B26
LTE-TDD B41
WCDMA B1/B6/B8/B19
GSM/EDGE -
Embedded GNSS Optional
Region Japan
Certification
Carrier:NTT DOCOMO/SoftBank/ KDDIRegulatory:JATE/ TELEC
Others:
WHQL

EC25-AU Mini PCle

Frequency EC25-MX Mini PCle
LTE-FDD B1/B2DB3/B4/B5/B7/B8/B28
LTE-TDD B40
WCDMA B1/B2/B5/B8
GSM/EDGE Quad-band
Embedded GNSS Optional
Region Latin America.Australia, NewZeland, Taiwan (China)
Certification
Carrier:
Telstra"
Regulatory:
GCFI FCC/ Anatel/ NCC/
RCM
Others:
WHQL

EC25-MX Mini PCle

Frequency EC25-MX Mini PCle
LTE-FDD B2/B4/B5/B7/B28/B66
LTE-TDD -
WCDMA B2/B4/B5
GSM/EDGE -
Embedded GNSS N
Region Mexico
Certification
Regulatory:FCCIIFETEL
Others:
WHQL

EC25-AF Mini PCle

Frequency EC25-V MiniPCle
LTE-FDD B2/B4/B5/B12/B13/B1
LTE-TDD -
WCDMA B2/B4/B5
GSM/EDGE -
Embedded GNSS Optional
Region North America FirstNe
Certification
Carrier:
Verizon/ AT&T/ T-MobRogers/ Telus/ Bel"Regulatory:
GCFI FCC/ PTCRB/I
Others:WHQL

EC25-V MiniPCle

Frequency EC25-V MiniPCle
LTE-FDD B4/B13
LTE-TDD -
WCDMA -
GSM/EDGE -
Embedded GNSS Optional
Region Verizon
Certification
Carrier:
Verizon
Regulatory:GCFI FCCOthers:WHQL

EC25-A MiniPCle

Frequency EC25-A MiniPCle
LTE-FDD B2/B4/B12
LTE-TDD -
WCDMA B2/B4/B5
GSM/EDGE -
Embedded GNSS Optional
Region North America
Certification
Carrier:AT&T/T-Mobile/Rogers/Telus
RegulatoryFCC/IC/PTCRBOthers:WHQL

EC25-EUX Mini PCle

Frequency EC25-EUX Mini PCle
LTE-FDD B1/B3/B7/B8/B20/B28A
LTE-TDD B38/B40/B41
WCDMA B1/B8
GSM/EDGE B3/B8
Embedded GNSS Optional
Region EMEA
Certification
Regulatory:
GCF/ CE/ RCM/ NCC
Others:
WHQL

EC25-EC Mini PCle

Frequency EC25-EC Mini PCle
LTE-FDD B1/B3/B7/B8/B20/B28A
LTE-TDD -
WCDMA B1/B8
GSM/EDGE B3/B8
Embedded GNSS N
Region EMEA, KoreaThailand, India
Certification Carrier:
Deutsche TelekomRegulatory:GCFI CE/ RCM
Others:
WHQL

EC25-EU Mini PCle

Frequency EC25-EU Mini PCle
LTE-FDD B1/B3/B7/B8/B20/B28A
LTE-TDD B38/B40/B41
WCDMA B1/B8
GSM/EDGE B3/B8
Embedded GNSS Optional
Region EMEA, KoreaThailand, India
Certification Carrier:
Deutsche Telekom
Regulatory:
GCFI CE/ NCCI RCMOthers:
WHQL

EC25-E Mini PCle

Frequency EC25-E Mini PCle
LTE-FDD B1/B3/B5/B7/B8/B20
LTE-TDD B38/B40/B41
WCDMA B1/B5/B8
GSM/EDGE B3/B8
Embedded GNSS Optional
Region EMEA, KoreaThailand, India
Certification Carrier:
Vodafone/Deutsche Telekom/SKT/ Telefonica/T-Mobile*/ KT*/LGU+
Regulatory:GCFI CEI KCI NCCIRCM FACI NBTC/ICASA
Others:
WHQL

EC25-AUX Mini PCle

Frequency EC25-AUX Mini PCle
LTE-FDD B1/B2D/B3/B4/B5/B7/B8/B28
LTE-TDD B40
WCDMA B1/B2/B5/B8/B4
GSM/EDGE Quad-band
Embedded GNSS Optional
Region Latin America/ Australia/ NewZealand/ Taiwan
Certification
Regulatory:
Anatel*/ NCC/ RCM
Others:
WHQL
