Description

SPECIFICATIONS

Brand Name: NONE

Condition: New

High-concerned chemical: none

Origin: Mainland China

Type: Module

EG25GGB-MINIPCIE

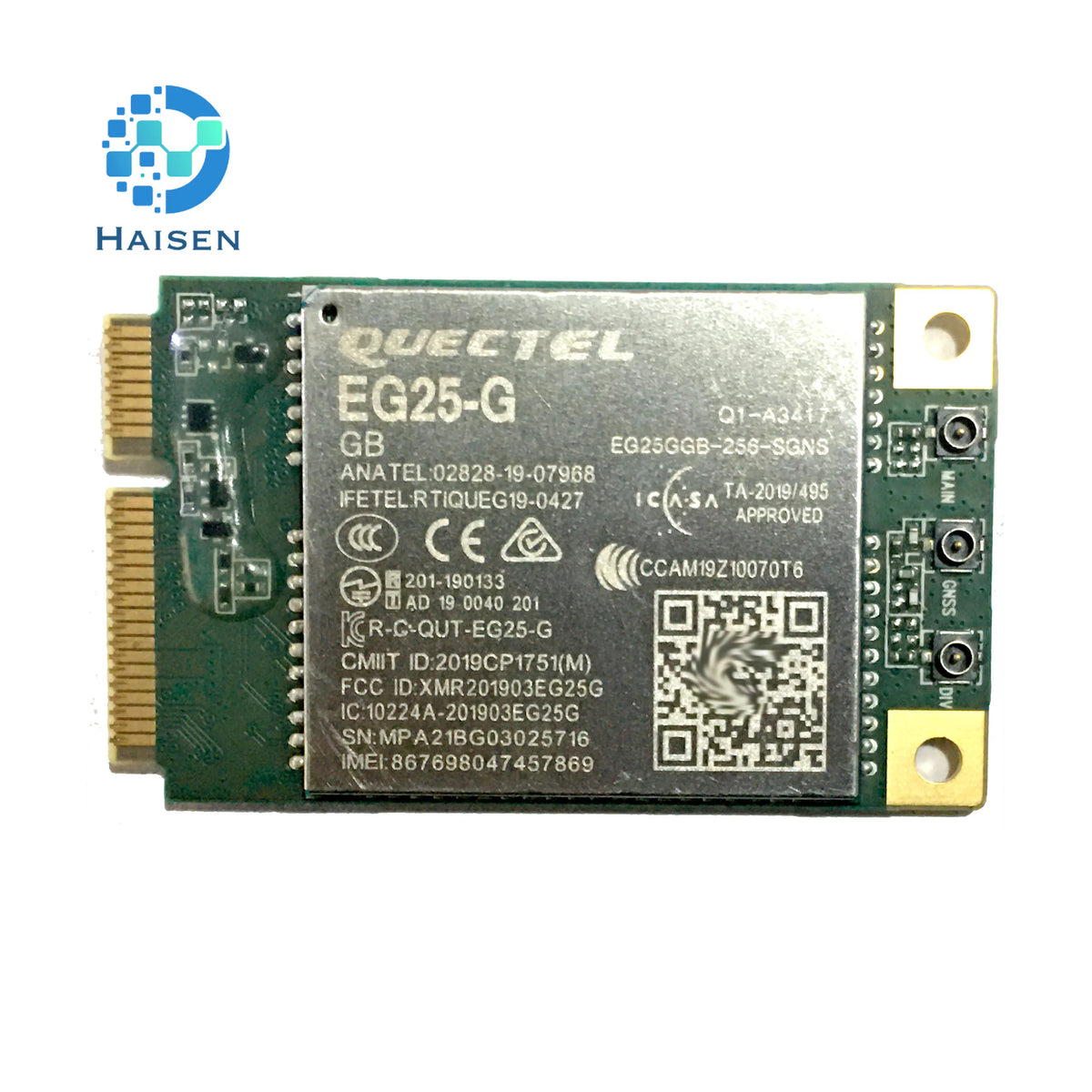

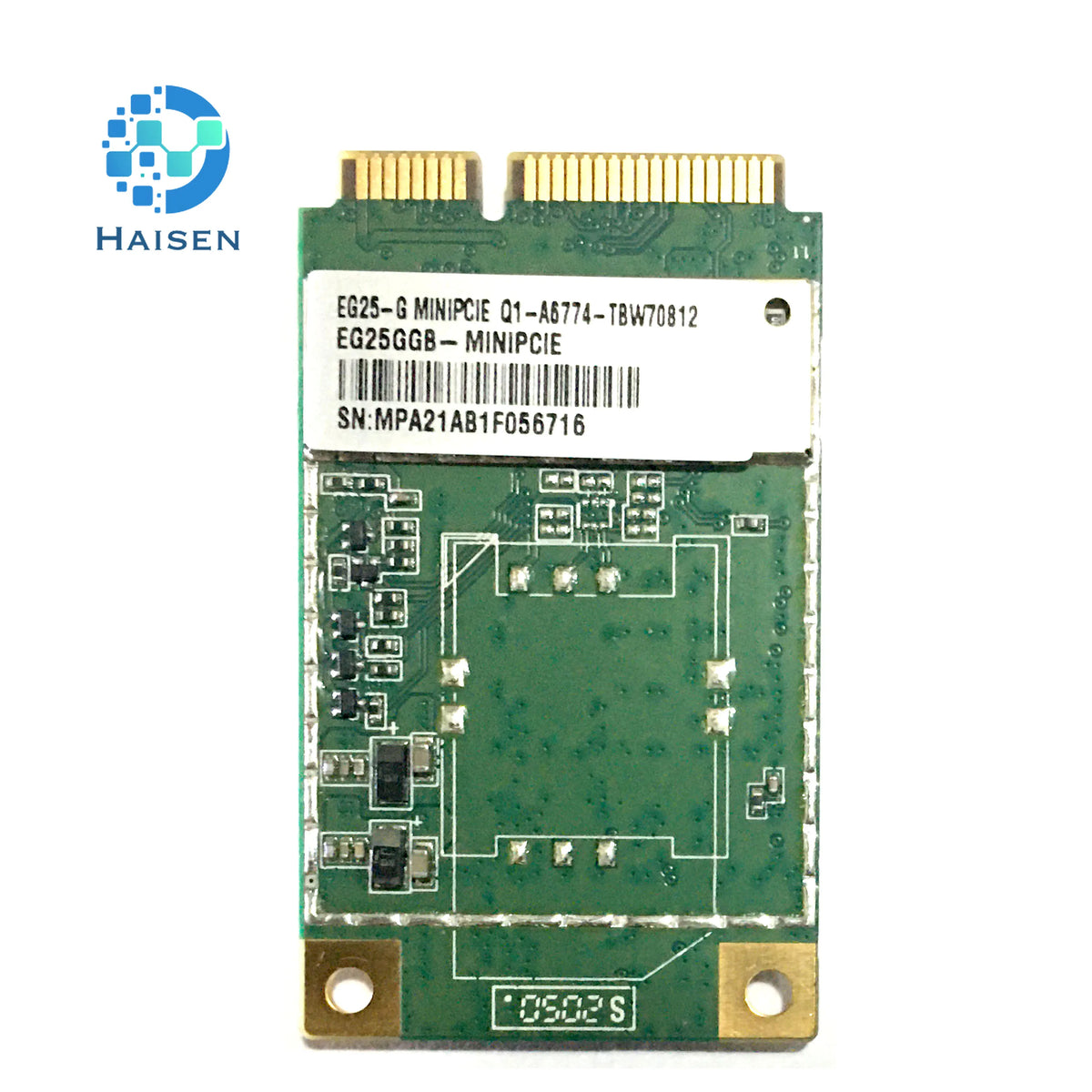

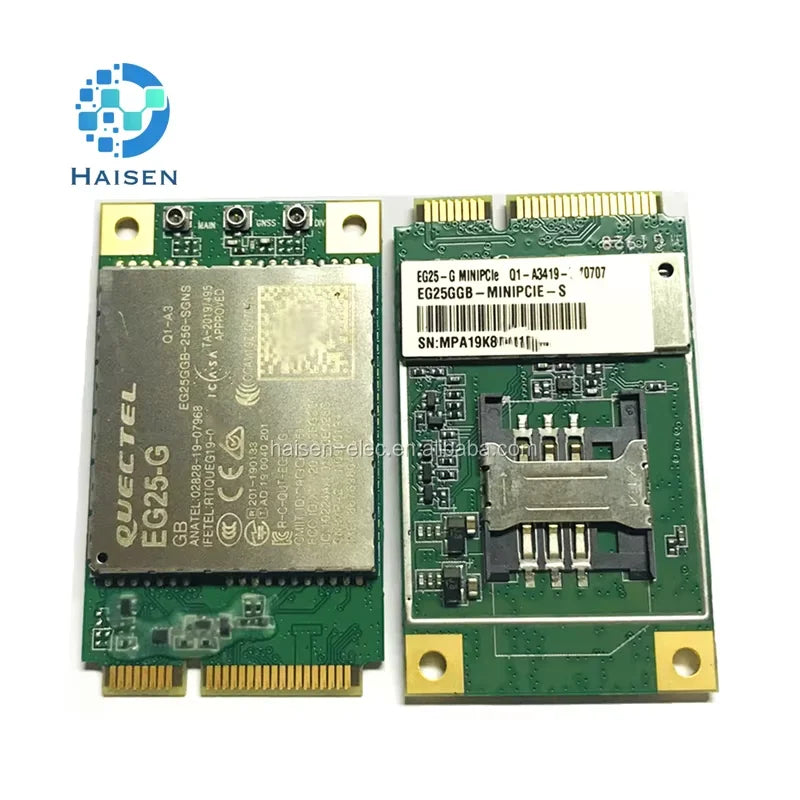

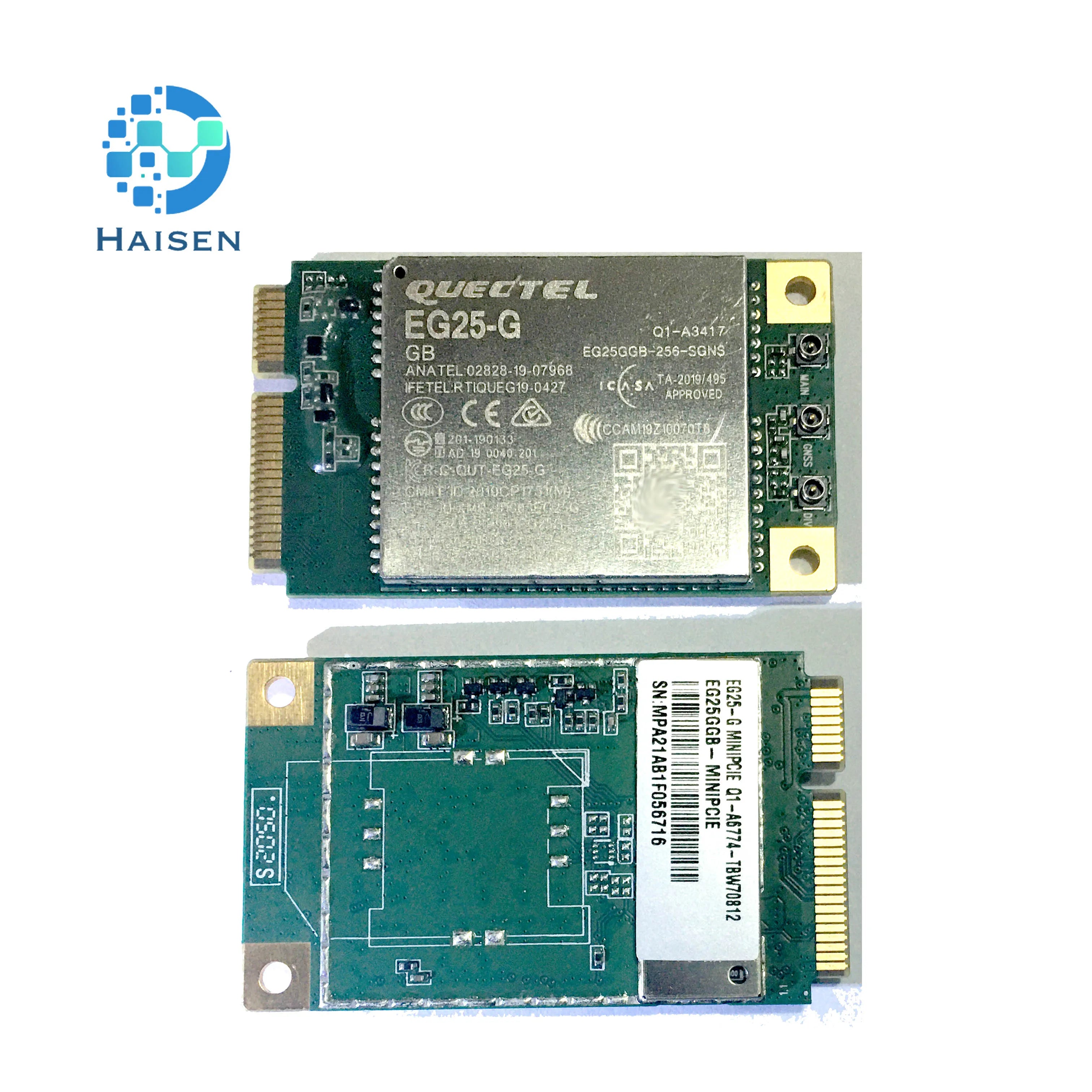

The EG25-G Mini PCIe is an LTE category 4 module in a standard PCI Express® Mini Card form factor measuring 51.0mm x 30.0mm x 4.9mm, which meets the 3GPP Release 11 standard.

EG25-G MINIPCIE

Delivering maximum downlink rates of 150Mbps and uplink rates of 50Mbps under LTE, the EG25-G Mini PCIe supports a range of applications that require fast and reliable transmission of large amounts of data, and backward compatibility with existing EDGE and GSM/GPRS networks ensures connection even in remote areas without 3G or 4G coverage. In addition multiple-input multiple-output (MIMO) technology meets demands for data rate and link reliability.

Key Features

Worldwide LTE, UMTS/HSPA+ and GSM/GPRS/EDGE coverage

Supports MIMO

Supports DFOTA and DTMF

Multi-constellation GNSS receiver available

USB 2.0 high-speed interface

EG25-G Mini PCle

LTE FDD: 81/B2/B3/B4/85/87/88/B12/B13/B18819/820/825/826/828
LTE TDD: B38/839/B40/B41
WCDMA: B1/B2/B4/B5/B6/B8/B19
GSM: B2/B3/B5/88

Data

LTE:
LTE FDD: Max 150Mbps (DL)/Max 50Mbps (UL)LTE TDD: Max 130Mbps (DLVMax 30Mbps (uL)

UMTS:
DC-HSDPA: Max 42Mbps(DL)HSUPA: Max 5.76Mbps (UL)WCDMA: Max 384Kbps (DL)/Max 384Kbps (UL

GSM:
EDGE: Max 296Kbps(DLMax 236.8Kbps(UL)GPRS: Max 107Kbps (DL)Max 85.6Kbps (UL)

Voice

Speech Codec Modes:
HR/FR/EFR/AMR/AMR-WB

Echo Arithmetic:
Echo Cancellation/Noise Suppression

Audio:
Digital Audio and VoLTE (Voice over LTE)(Optional)

Interfaces

USBx 1: USB 2.0 with High Speed up to 480Mbps
PCM x 1: Digital Audio through PCM (Optional)(U)SIM x 1: 1.8V/3.0V (U)SIM InterfaceUARTx 1: Main
UART LED_WWAN# for Network Status Indication
W_DISABLE# for Disabling RF Function
PERST# for Module Resetting

Enhanced Features

eCall*
DTMF*
(U)SIM Card Detection
(U)SIM Card Connector (Optional)@Support MIMO in DL Direction

DFOTA*
Delta Firmware Upgrade Over-The-Air

GNS5
GPS/GLONASS/BeiDou/Galileo/Qzss (Optional)

Electrical Characteristics

Output Power:
Class 3 (23dBmt2dB) for LTE FDD bandsClass 3 (23dBmt2dB) for LTE TDD bandsClass 3 (24dBm+1/-3dB) for WCDMA bandsClass E2(27dBm+3dB) for GSM850 8-PSKClass E2(27dBm+3dB) for EGSM900 8-PSKClass E2(26dBm+3dB) for DCS1800 8-PSKClass E2(26dBm+3dB) for PCS1900 8-PSKClass4 (33dBm+2dB) for GSM850Class4 (33dBmt2dB) for EGSM900Class1 (30dBm2dB) for DCS1800Class 1 (30dBmt2dB) for PC51900

Consumption:
3.6mA @Sleep, Typ.
35mA @ldle

Sensitivity:
LTE B1: -99.5(10M)
LTE B2: -99.9dBm (10M)
LTE B3: -99.7dBm(10M)
LTE B4:-99.7dBm (10M)
LTE 85: -99.9dBm (10M)
LTE B7: -99.2dBm (10M)
LTE 88: -99.8dBm (10M)
LTE B12:-99.8dBm(10M)
LTE B13:-99.5dBm(10M)
LTE B18:-100dBm(10M)
LTE B19:-99.9dBm(10M)
LTE B20:-99.8dBm(10M)
LTE B25:-100dBm(10M)
LTE B26:-99.5dBm(10M)
LTE B28:-99.6dBm(10M)
LTE B38:-99dBm (10M)
LTE B39:-99.5dBm(10M)
LTE B40:-99.2dBm(10M)
LTE B41:-99dBm(10M)
WCDMA B1:-1092dBm
WCDMA B2:-110dBm
WCDMA B4:-109.7dBm
WCDMA B5:-110.4dBm
WCDMA B6:-110.5dBm
WCDMA B8:-110.5dBm
WCDMA B19:-110.1dBm
G5M850:-108dBm
GSM900:-108dBm
DC5:-107.5dBm
PC5:-107.5dBm

Software Features

USB Serial Driver:
Windows 7/8/8.1/10, Windows CE 5.0/6.0/7.0*Linux 2.6/3.x/4.1~4.14Android4.x/5x/6x/7.x/8.x/9.x

RIL Driver:
Android 4.x/5x/6x/7x/8.x/9.x

NDIS Driver:
Windows7/8/8.1/10

ECM Driver*:
Linux 2.6/3.x/4.1~4.14

Gobinet Driver:
Linux 2.6/3.x/4.1~4.14

QMIWWAN Driver:
3.x (3.4 or later)4.1~4.14

Protocols:
TCP/UDP/PPP/FTP/HTTP/NTP/PING/QMI/NITZ/SMTP/CMUX*/HTTPS*/MMS/FTPS*/SMTPS*/SSL*/FILE*

General Features

Temperature Range:-40*C ~+80C
Dimensions: 51.0mm x 30.0mm x 4.9mm
Weight: Approx. 9.8g
Mini PCle Package
Supply Voltage: 3.0V~3.6V, 3.3V Typ.
3GPP E-UTRA Release 11
Bandwidth:1.4/3/5/10/15/20MHz
3GPP T527.007 and Enhanced AT Commands

Approvals

Carrier
Verizon*/AT&T*/T-Mobile*/Sprint(North America)

Regulatory:
GCF*(Global)
CE(Europe)
FCC*/PTCRB*(North America)
IC*(Canada)
Anatel*(Brazil)
IFETEL*(Mexico)
SRRC/CCC/NAL*(China)
KC*(South Korea)
NCC* (Taiwan)J
ATE/TELEC(Japan)
RCM*(Australia)
FAC* (Russia)
NBTC* (Thailand)
ICASA* (South Africa)

Others:
RoHS Compliant
WHQL
