SPECIFICATIONS

Accuracy: 0.5% F.S

Brand Name: TAIYEDQ

Certification: NONE

Display Type: Display Type

Does it include a Battery?: No

Does it include wireless functionality?: No

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

High-concerned chemical: none

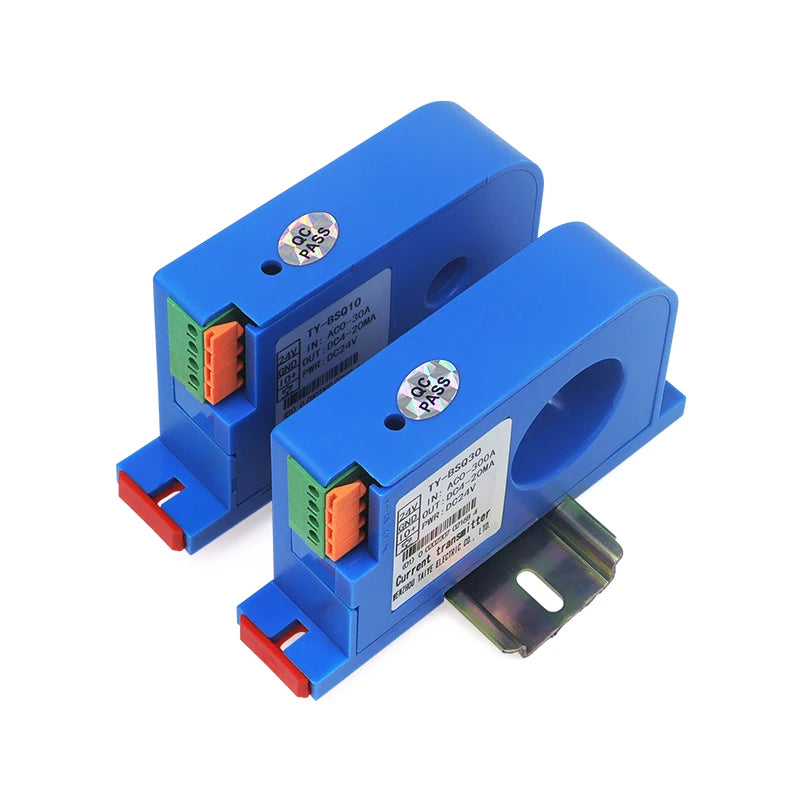

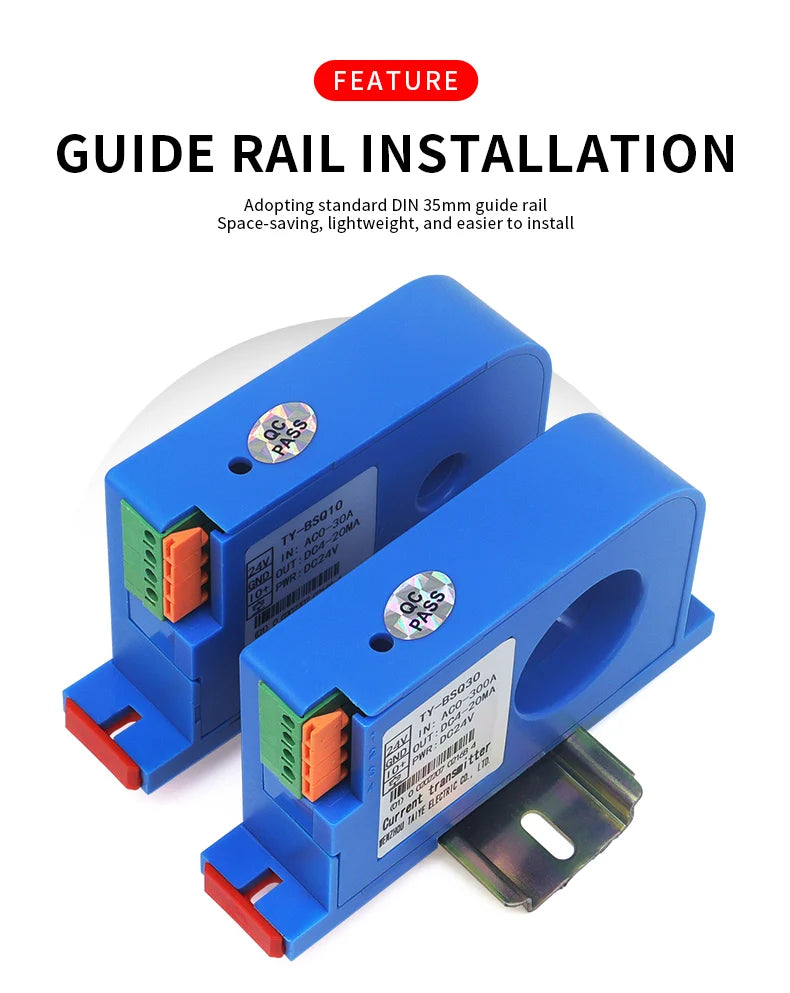

Installation: 35mm DIN rail

Model Number: TY-BSQ10-22-30

Origin: Mainland China

Phase: SINGLE

Supply Voltage: 24VDC

Use: Current

is_customized: Yes

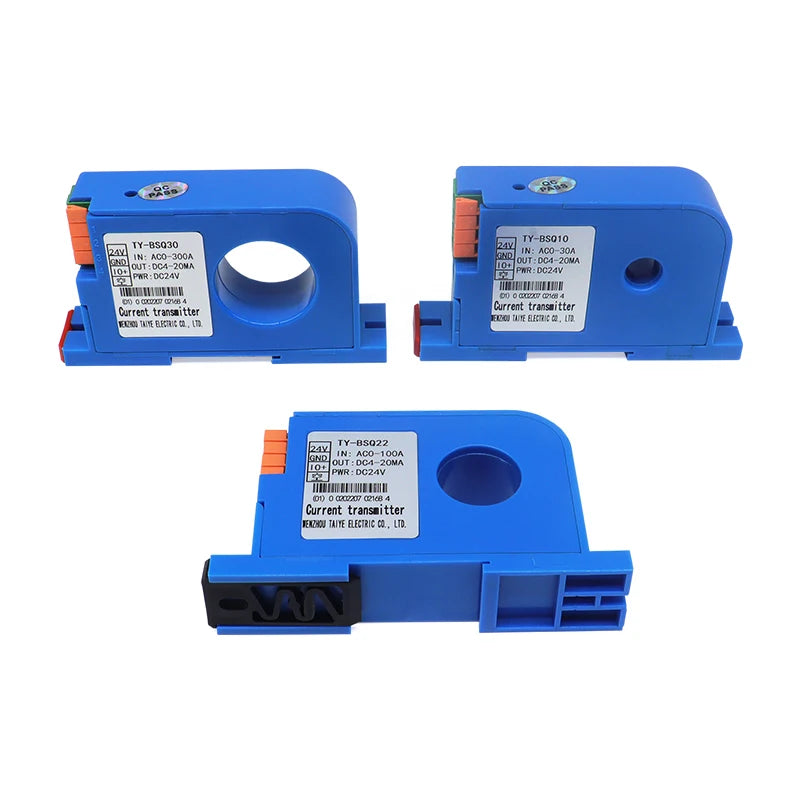

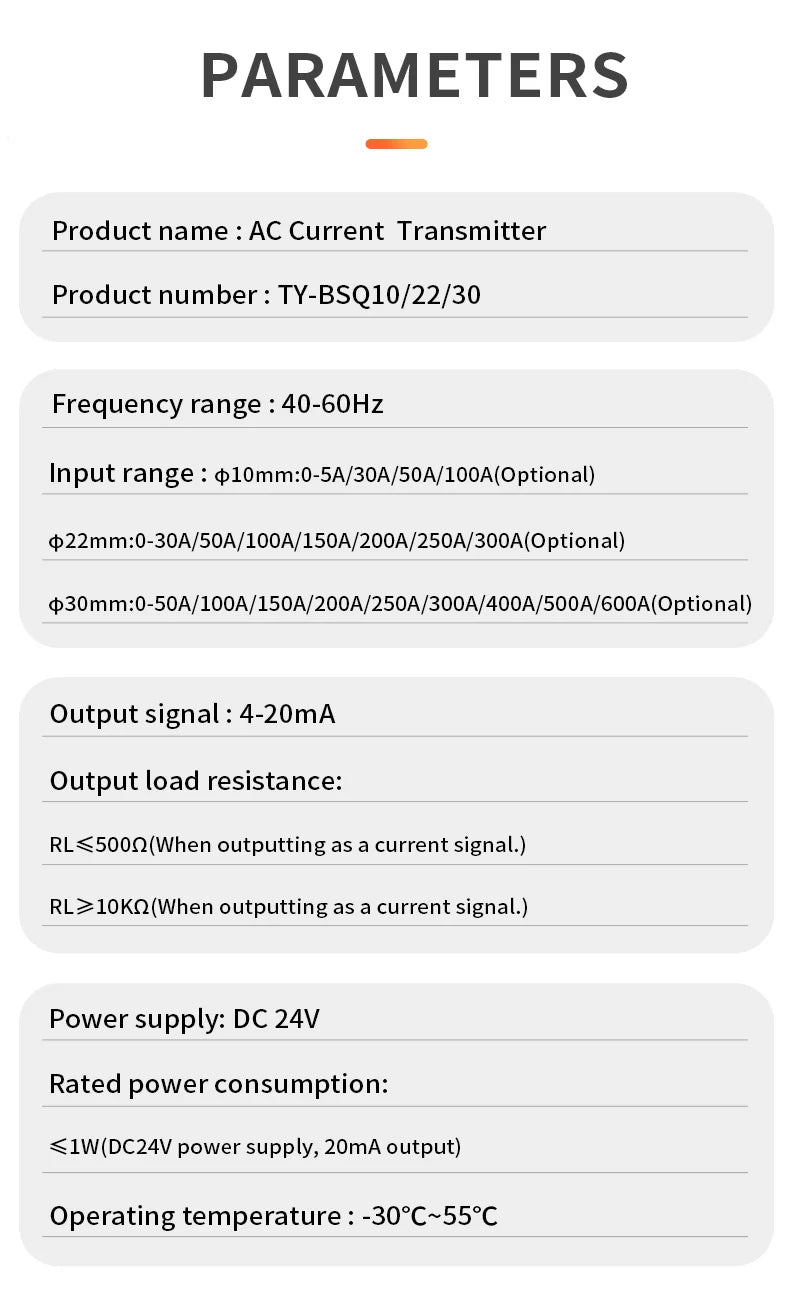

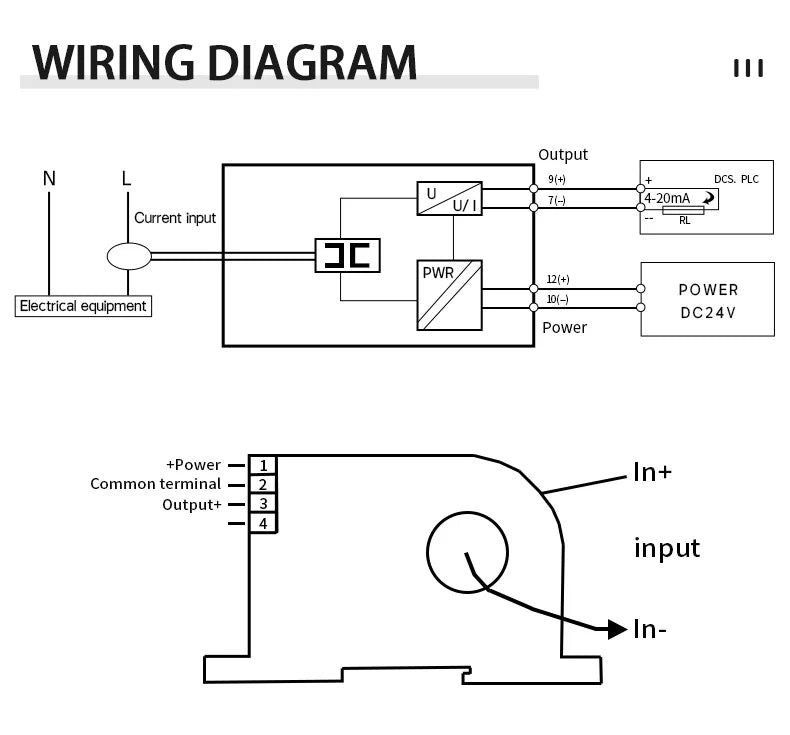

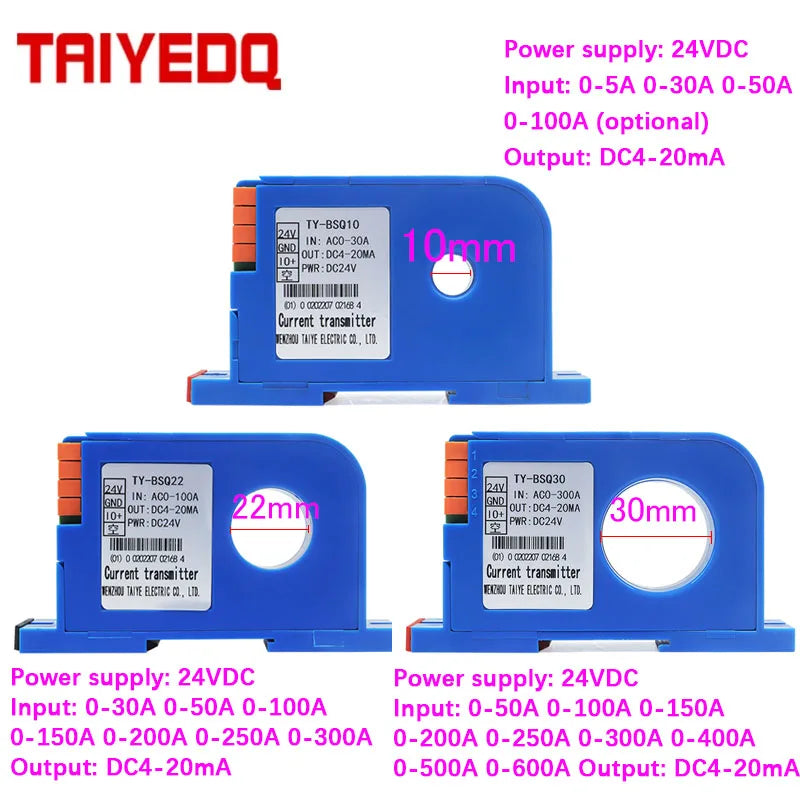

Input end:

10φ Input: 0-5A 0-30A 0-50A 0-100A (optional)

22φ Input: 0-30A 0-50A 0-100A 0-150A 0-200A 0-250A 0-300A

30φ 0-50A 0-100A 0-150A 0-200A 0-250A 0-300A 0-400A0-500A 0-600A

Frequency range: 40~60Hz

Output end:

Output signal: 4~20mA;

Output load resistance: RL ≤ 500Q (when outputting as a current signal)

RL>10KQ (when outputting as a voltage signal)

Basic parameters:

Power supply: DC24V/220V, AC220V

Power consumption:<1W (DC24V power supply, 20mA output)

Overload: Current/Voltage: 2 times continuous, 30 times instantaneous

Basic accuracy: 0.5% F.S

Temperature drift: 0.005% F.S./° C (-20 ° C~+55 ° C)

Response time: ≤ 400ms (0~90%) (TYP)

Insulation strength: 1500VAC/1min (between input, output, and power supply)

Working temperature range: -30~+55 ℃ ℃

Package Included

You choose
