SPECIFICATIONS

Brand Name: TZT

High-concerned chemical: none

Model: USB Packet Viewer

Origin: Mainland China

Type: Control Systems

HAMGEEK NEW USB Packet Viewer 32MB USB Protocol Analyzer Tool Supports High Speed Full Speed Low Speed for USB Communication

Description:

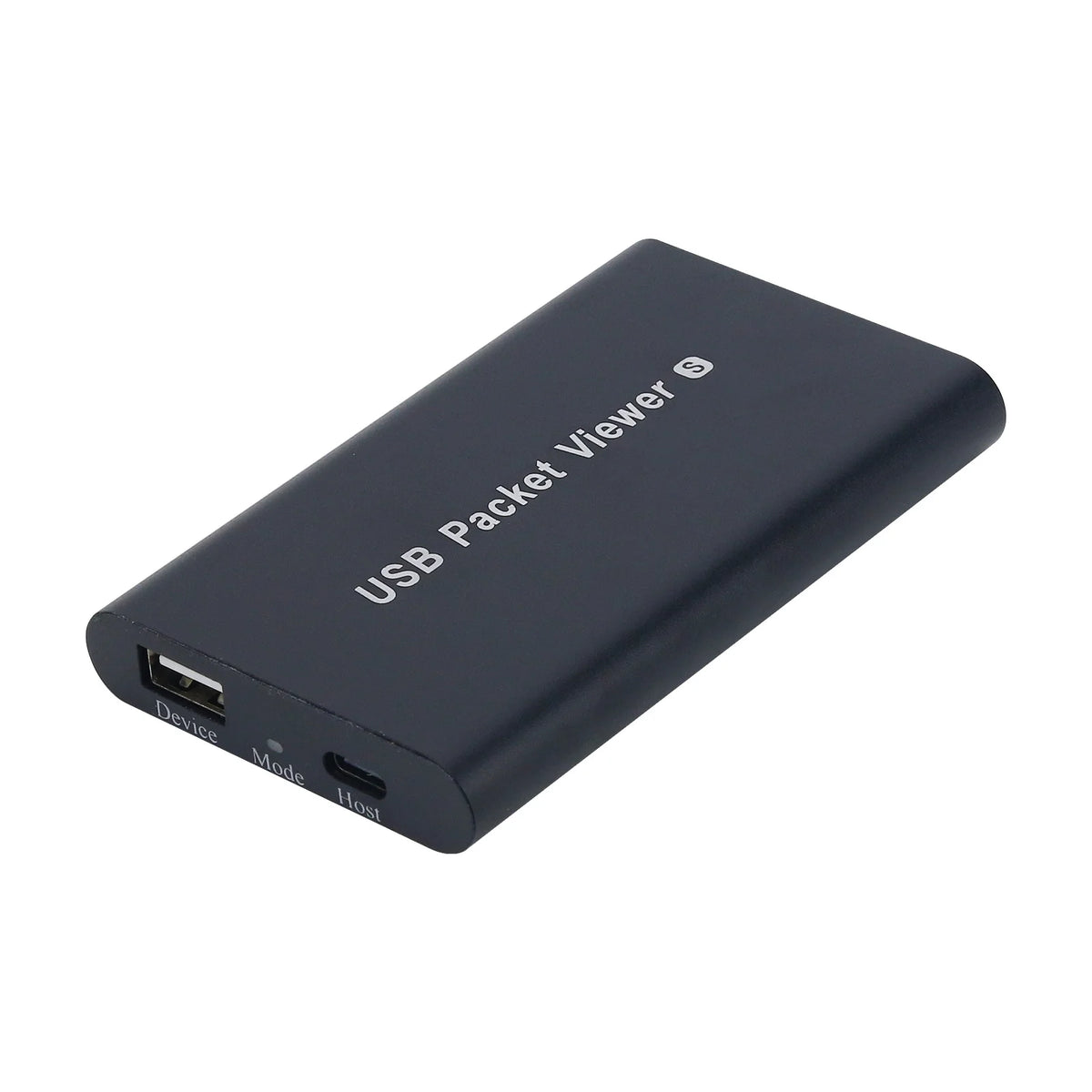

USB Packet Viewer is a portable USB protocol analyzer. It can be used to collect the underlying packets of USB communication as well as bus events.

Features:

- It supports low speed, full speed and high speed

- Automatic detection of communication rate

- 32MB hardware cache depth

- The USB protocol analyzer supports real-time protocol analysis and hardware packet filtering

- Multiple protocols can be analyzed. Currently, it supports HID, MSC, Audio, Video, HUB, CDC and FTDI devices

- Open source protocol analysis. Decoding function supports secondary development (see code https://github.com/UsbPacketViewer/parser)

- It supports a variety of file formats and file parsing supports secondary development

Specifications:

- Dimensions: 101 x 61 x 13mm/4 x 2.4 x 0.5"

- Weight: 70g/0.2lb

- Power supply: USB 5V

- Operating current: 250mA

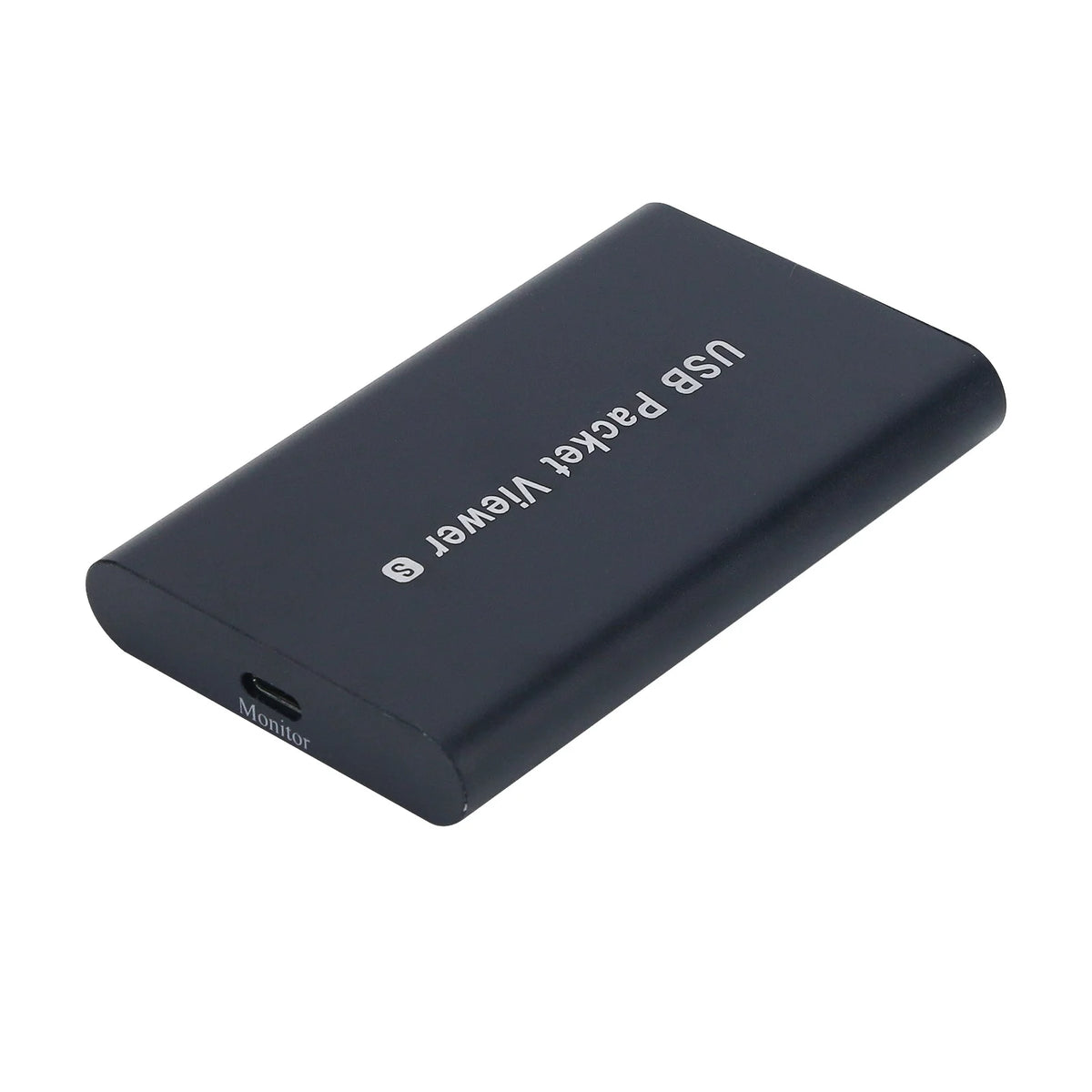

- Monitoring and socket port: Type-C female

- Host interface: Type-C female

- Device interface: USB-A female

Package Included:

- 1 x USB Protocol Analyzer

- 1 x Long USB Type-C Data Cable

- 1 x Short USB Type-C Data Cable

Driver Installation:

http://www.usbpacketviewer.com/downloads/usbpv_driver.zip

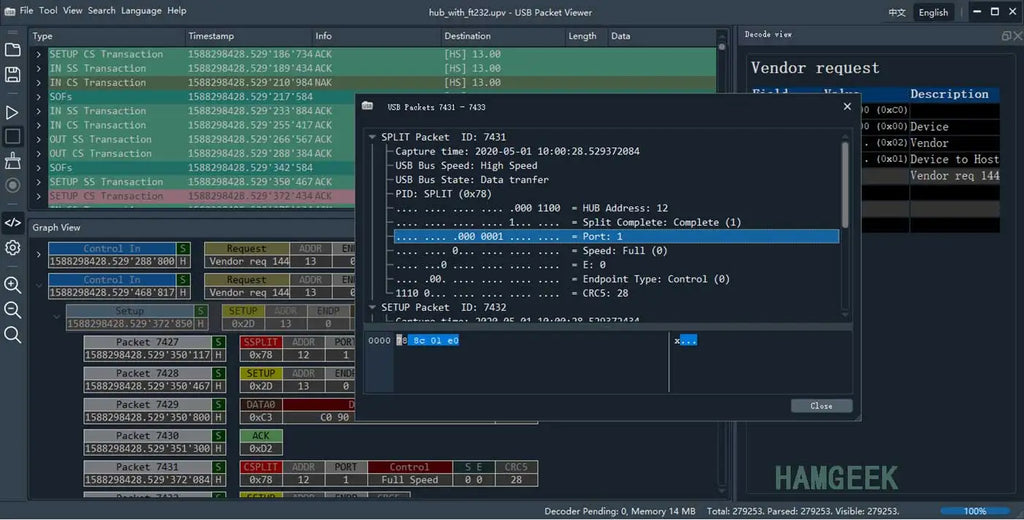

Download Protocol Analysis Software:

http://www.usbpacketviewer.com/downloads/usbpv.zip
