Hantek 1008C Automotive Oscilloscope with Passive Attenuator HT201 HT25 Auto PC Storage USB 8 Channels Programmable Generator

Hantek 1008C Automotive Oscilloscope with Passive Attenuator HT201 HT25 Auto PC Storage USB 8 Channels Programmable Generator

$480.28

$480.28 $0.00

Color 1008C(wiht 2HT201) 1008A 1008C kit 1 1008C 1008C CC650 HT201X2 1008C CC65 HT201X2 1008C kit 2

Ships FromChina Mainland

Description

SPECIFICATIONS

Band Width: 1GHz-1.9GHz

Battery Included: no

Brand Name: Hantek

Certification: CE

Cursor measurement: Horizontal vertical tracking, automatic measurement mode

DIY Supplies: Electrical

Digital Channels: 8

Display Resolution: 640*480 Pixels

Display Size: None

Frequency Range: 0-250KHz

Function: More than 80 auto diagnostic functions

HANTEK Model: 1008C

High-concerned chemical: none

IS Battery Demountable: No

Input sensitivity: 10mV/div to 5V/div

Max Waveform Capture Rate: 30,000wfm/s

Maximum input: 400V (DC AC Peak)

Model Number: Hantek 1008C HT25 HT201

Origin: Mainland China

Real Time Sampling Rate: 2.4MSa/S

Record Length: 4k

Semi-finishedproduct: No

Signal generator function: simulate crankshaft and camshaft signals

Test results: Print or screenshot save

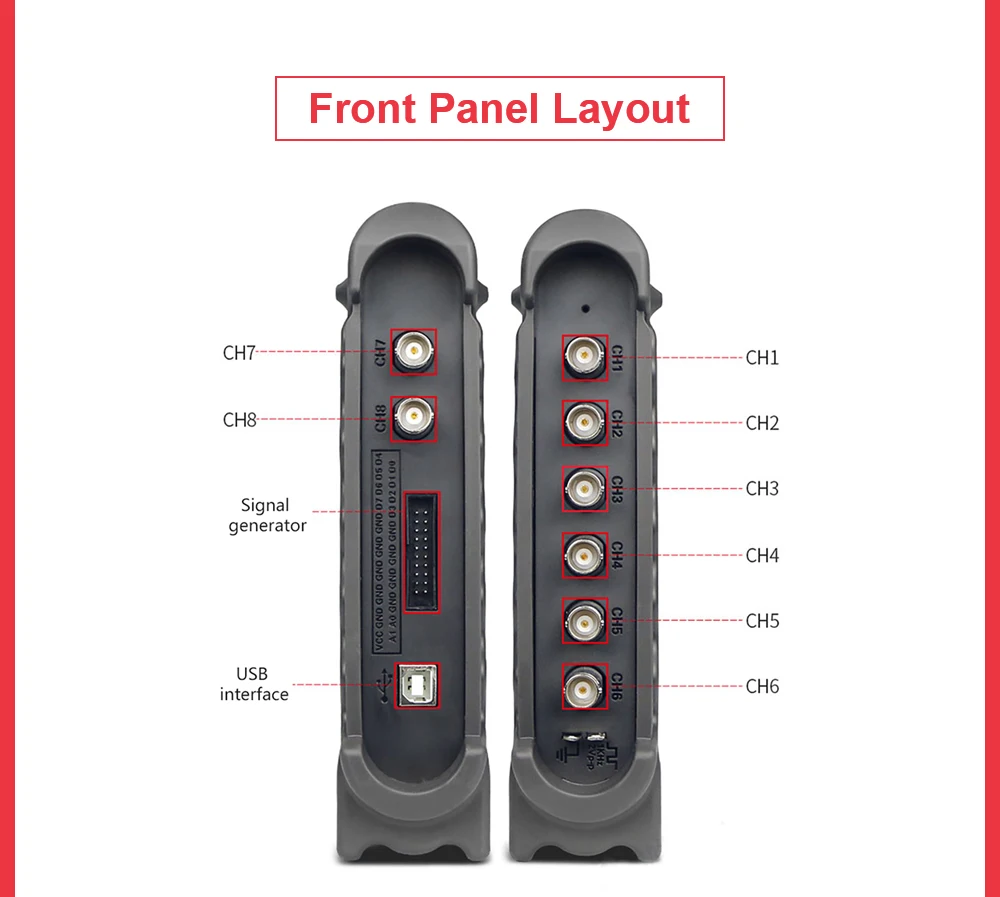

Trigger source: CH1, CH2,CH3,CH4, CH5, CH6,CH7,CH8

X axis input: CH1

Y axis input: CH2

application 1: Car diagnostic instrument

application 2: Universal oscilloscope

application 3: Signal generator

input resistance: 1MΩ

oscilloscope VERSION: CAR OSCILLOSCOPE

oscilloscope type: USB OSCILLOSCOPE

working support system: Win XP/7/8/10

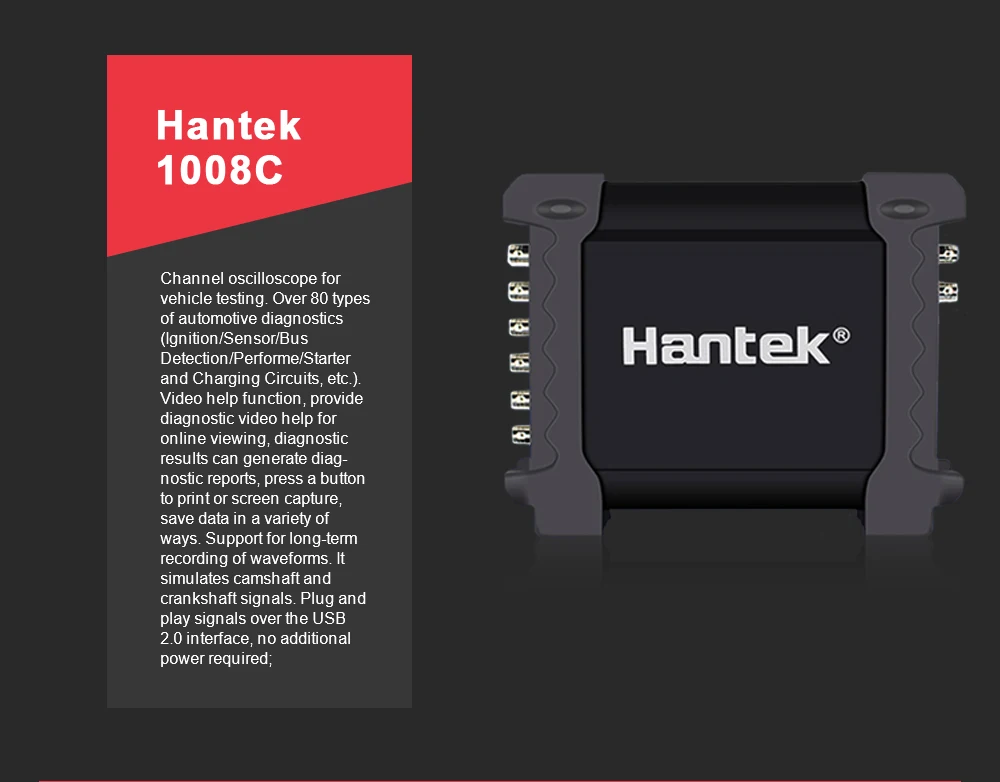

From Factory Directly ! Hantek 1008C 8CH USB Oscilloscope Professional Automotive Diagnostic Oscilloscope

Cost-effective Hantek PC USB 8CH Automotive Diagnostic Oscilloscope/DAQ/Programmable Generator: Highly efficient and cost -effective;
8 channels oscilloscope for vehicle testing;
Auto Ignition Probe;
2.4MSa/s real time sampling rate, 12bit vertical resolution;
spectrum analysis function;
10mV/div to 5V/div input sensitivity;
DAQ card function;
8 channels programmable generator which can analog signals of crankshaft, camshaft, etc.

Features:

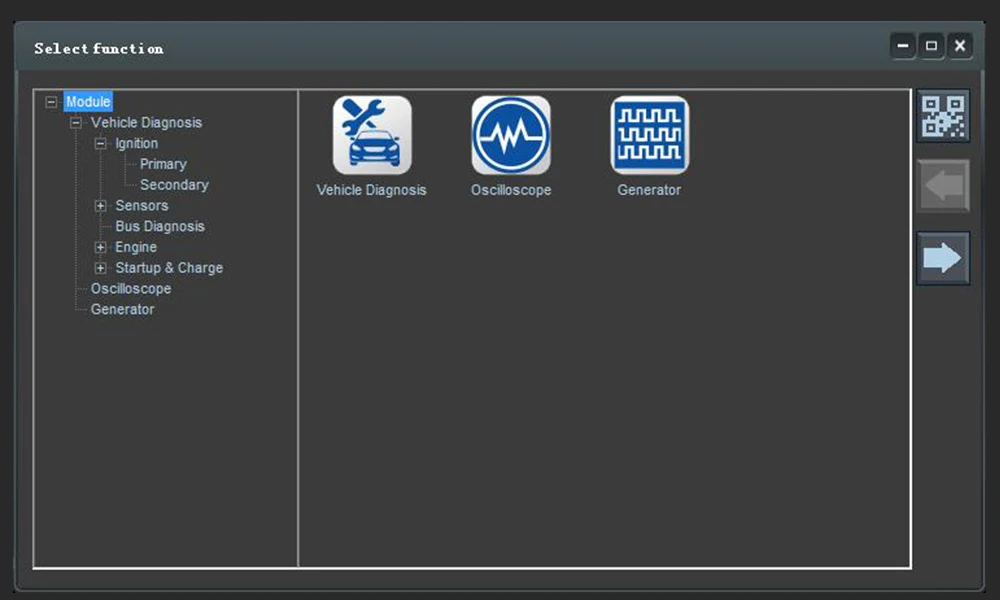

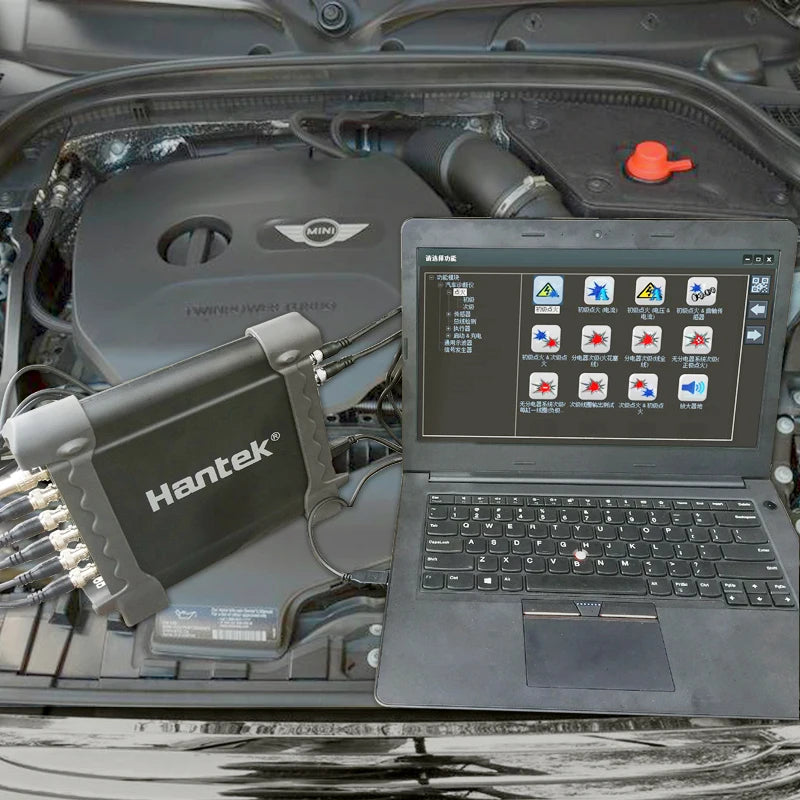

(1) Vehicle Testing
First Diagnosis: Intake manifold vacuum & ignition, Petrol fumes adjusting valve vacuum & ignition, Idle exhaust ignition, Starting exhaust ignition

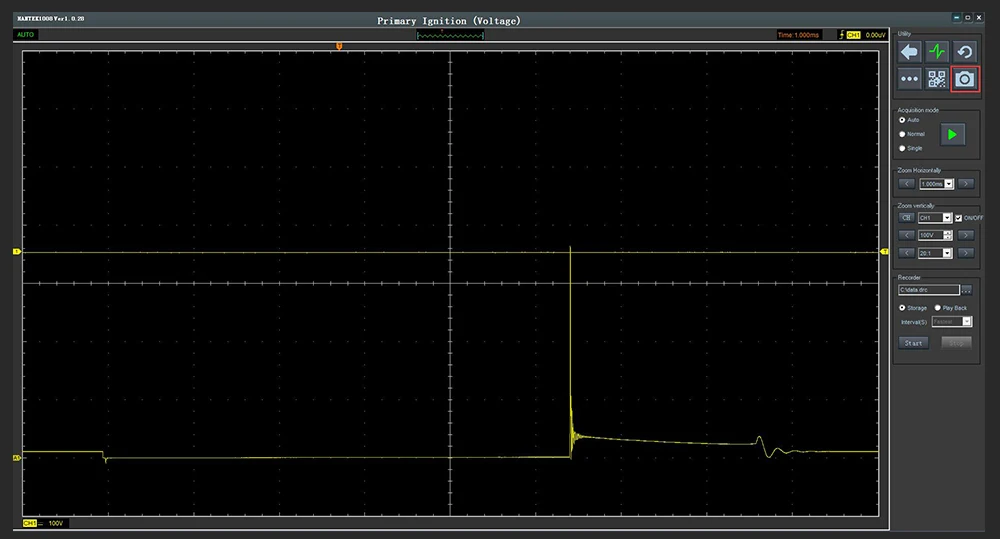

Ignition: primary and secondary
Sensor: Air Flow Meter, Camshaft, Crankshaft, Distributor, Lambda sensor, Throttle position
Bus Diagnosis: CAN bus data examine, CAN bus signal integrity, CAN bus LH long time acquisition, LIN bus
Performer: Petrol/Diesel
Starter and charging circuits
(2) Oscilloscope
8 channels oscilloscope, 2.4MSa/s real time sampling rate
12 bits vertical resolution, spectrum analysis function
(3) Programmable Generator
8 channels programmable generator
Can analog signals of crankshaft, camshaft etc.
(4) Others
USB 2.0 interface plug and play, and no need extra power supply;
More than 20 types of automatic testing function, a similar interface with benchtop oscilloscope, easy to use;

Pls note: the device language just with English Germany and chinese .

Software support: Windows NT, Window 2000, Windows XP, VISTA, Windows 7/8/10,32 BIT and 64 BIT.

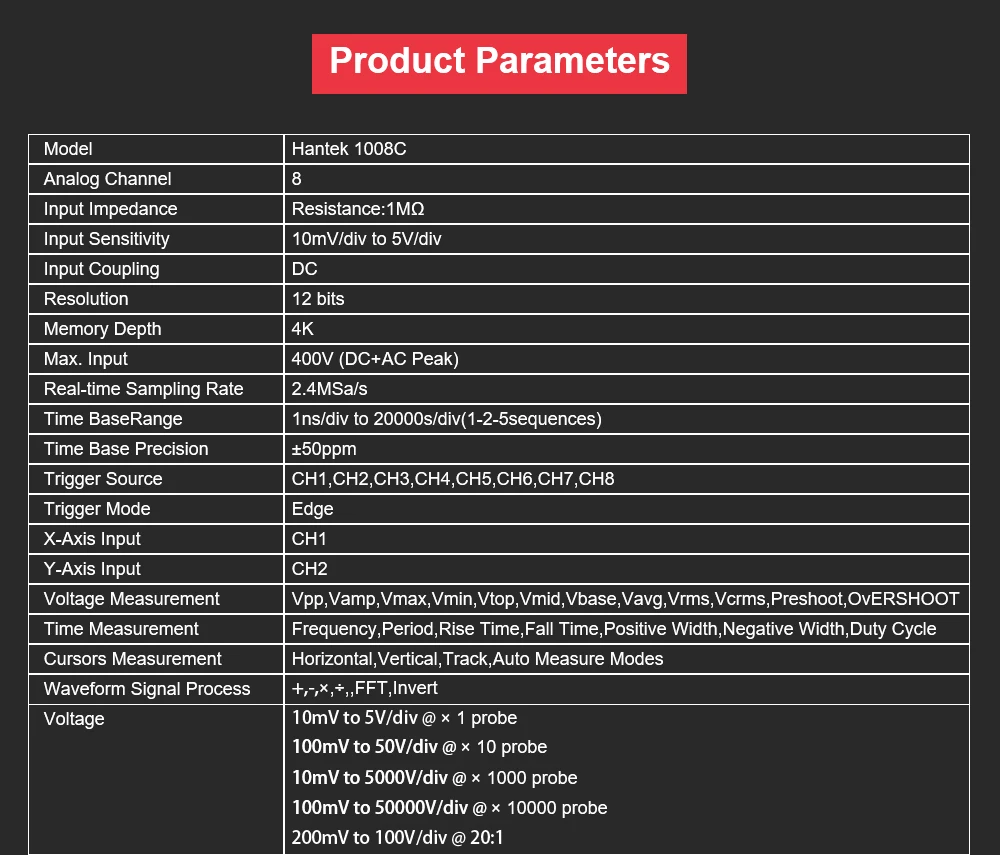

Model		Hantek1008C
Oscilloscope Mode
Vertical	Analog Channel	8
	Input Impedance	Resistance: 1MÎ©
	Input Sensitivity	10mV/div to 5V/div
	Input Coupling	DC
	Resolution	12 bits
Horizontal	Memory Depth	4K
	Max. Input	400V (DC+AC Peak)
	Real-Time Sampling Rate	2.4MSa/s
	Time Base Range	1ns/div to 20000s/div(1-2-5 sequences)
	Time Base Precision	±50ppm
Trigger	Source	CH1, CH2,CH3,CH4, CH5, CH6,CH7,CH8
Trigger	Mode	Edge
X-Y Mode	X-Axis Input	CH1
X-Y Mode	Y-Axis Input	CH2
Cursors and Measurement	Voltage Measurement	Vpp, Vamp, Vmax, Vmin, Vtop, Vmid, Vbase,Vavg, Vrms, Vcrms, Preshoot, Overshoot
	Time Measurement	Frequency, Period, Rise Time, Fall Time, Positive Width, Negative Width, Duty Cycle
	Cursors Measurement	Horizontal ,Vertical, Track, Auto Measure Modes
Waveform Signal Process		+,- , x,÷, FFT, Invert
Voltage Range		10mV to 5V/div @ x 1 probe
		100mV to 50V/div @ x 10 probe
		10V to 5000V/div @ x 1000 probe
		100V to 50000V/div @ x 10000 probe
		200mV to 100V/div @ 20:1

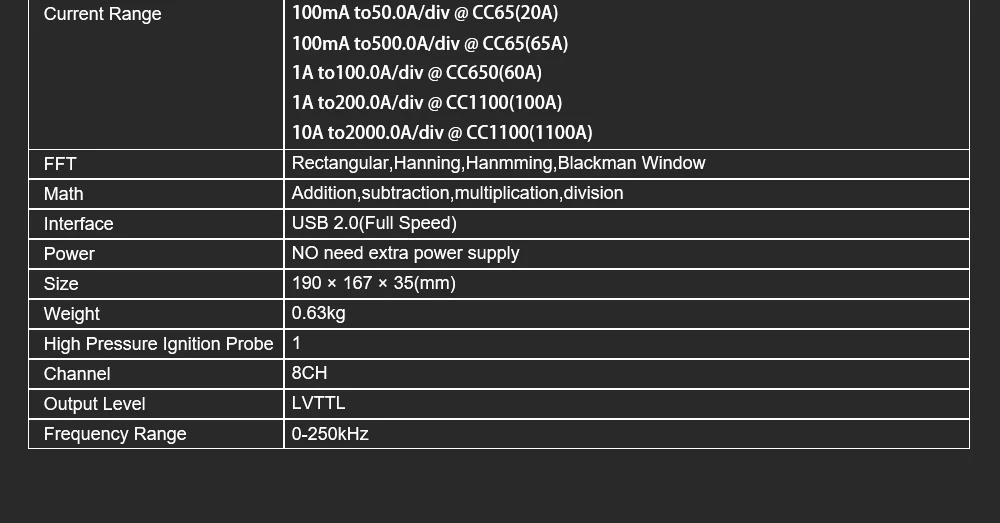

Current Range		100mA to 50.0A/div @ CC65(20A)
		1000mA to 500.0A/div @ CC65(65A)
		1A to 100.0A/div @ CC650(60A)
		10A to 1000.0A/div @ CC650(650A)
		1A to 200.0A/div @CC1100(100A)
		10A to 2000.0A/div @CC1100(1100A)
Cursor		Time/frequency difference, voltage difference
FFT		Rectangular, Hanning, Hamming, Blackman Window
Math		Addition, subtraction, multiplication, division
Programmable Generator
Channel		8
Output Level		LVTTL
Frequency Range		0-250kHz
Interface		USB 2.0
Power		No need extra power supply
Measurement	Size	185 x 150 x 27 (mm)
Measurement	Weight	0.35KG

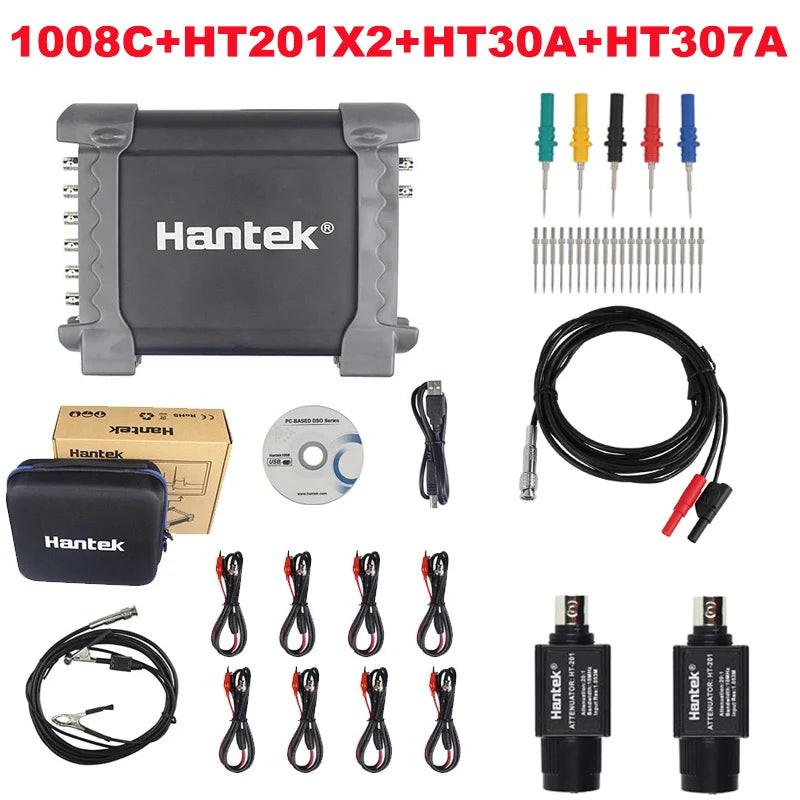

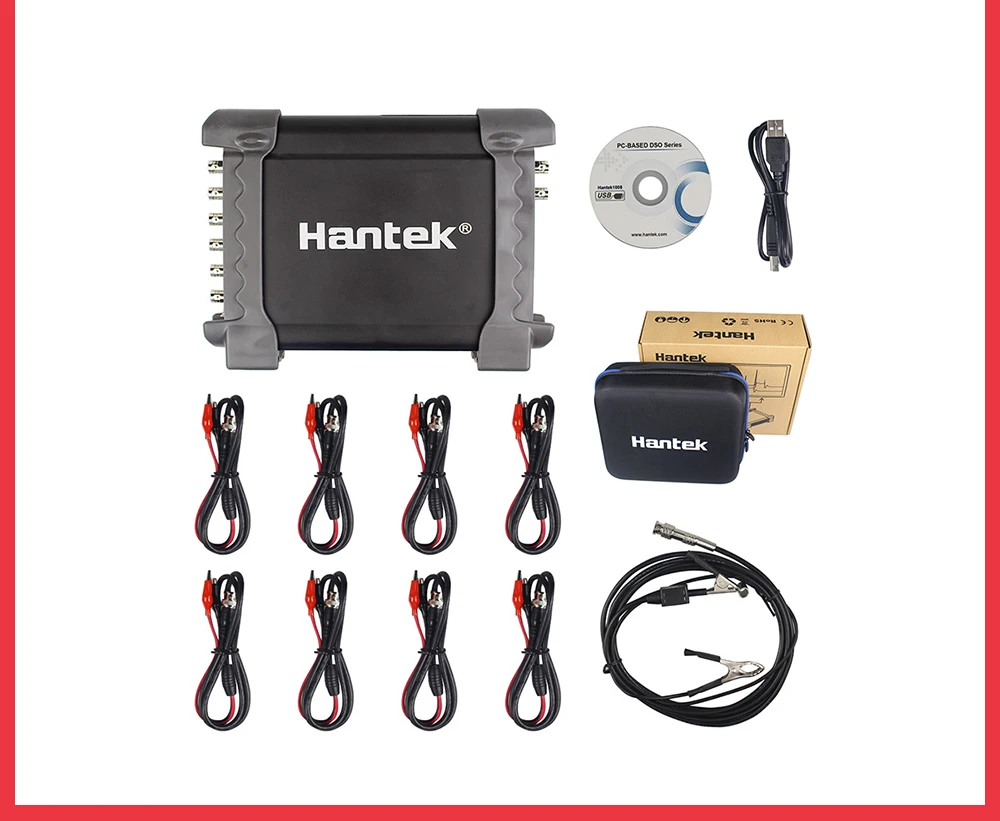

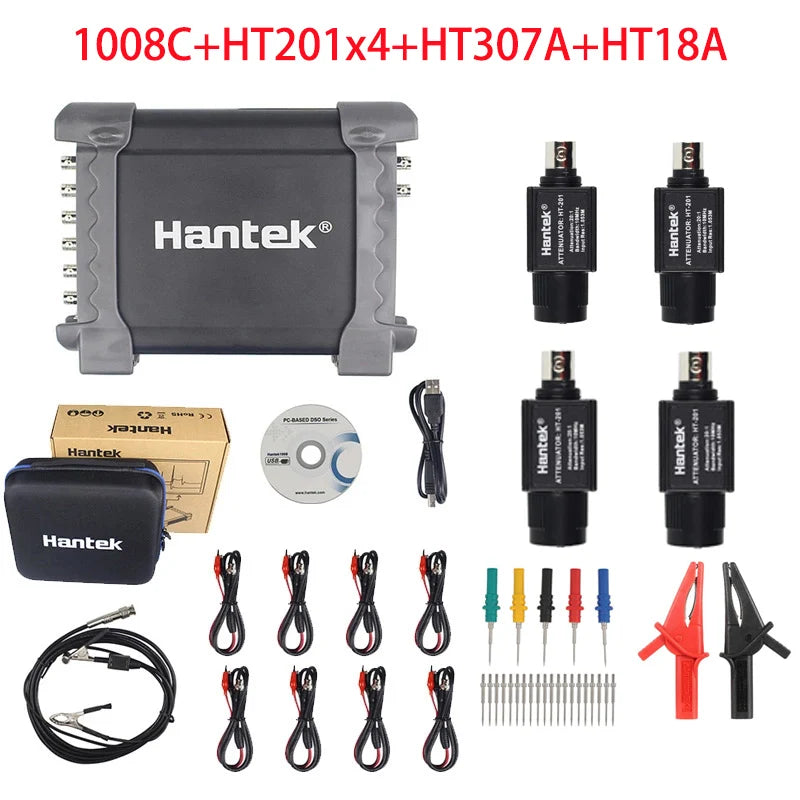

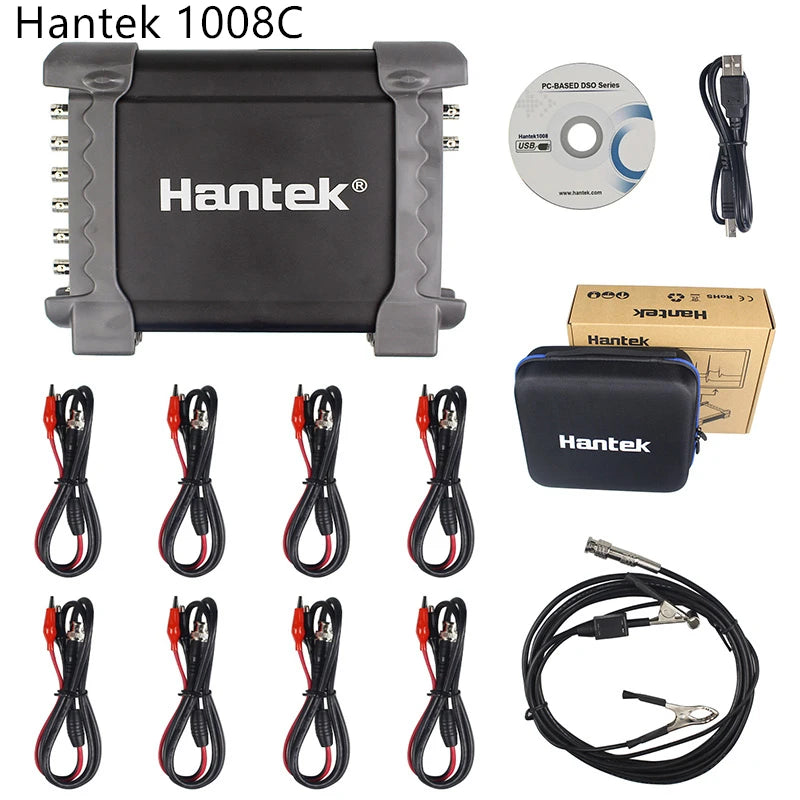

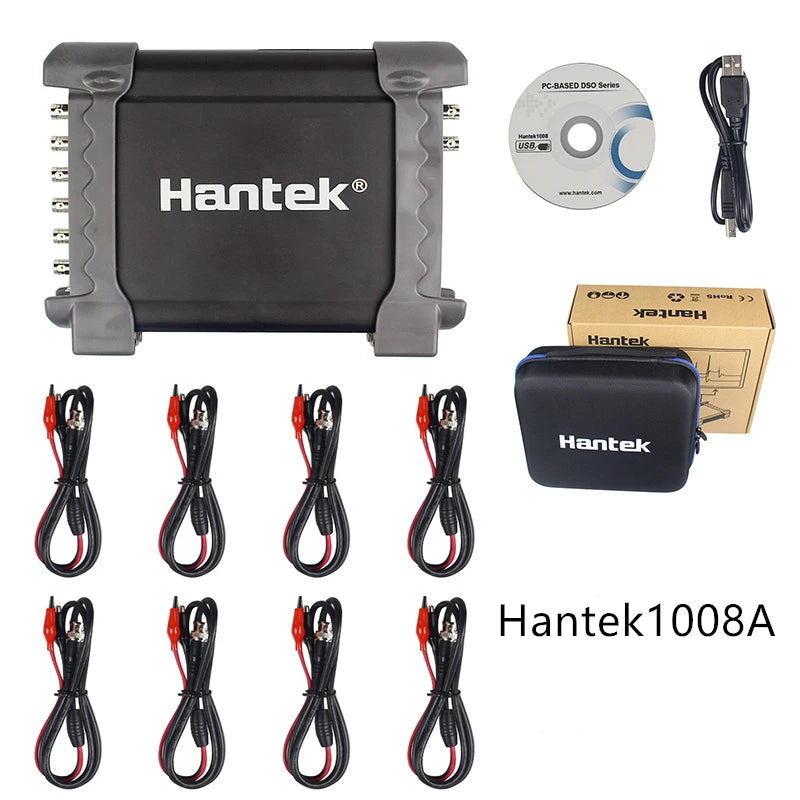

Package Content:

1 x DAQ oscilloscope

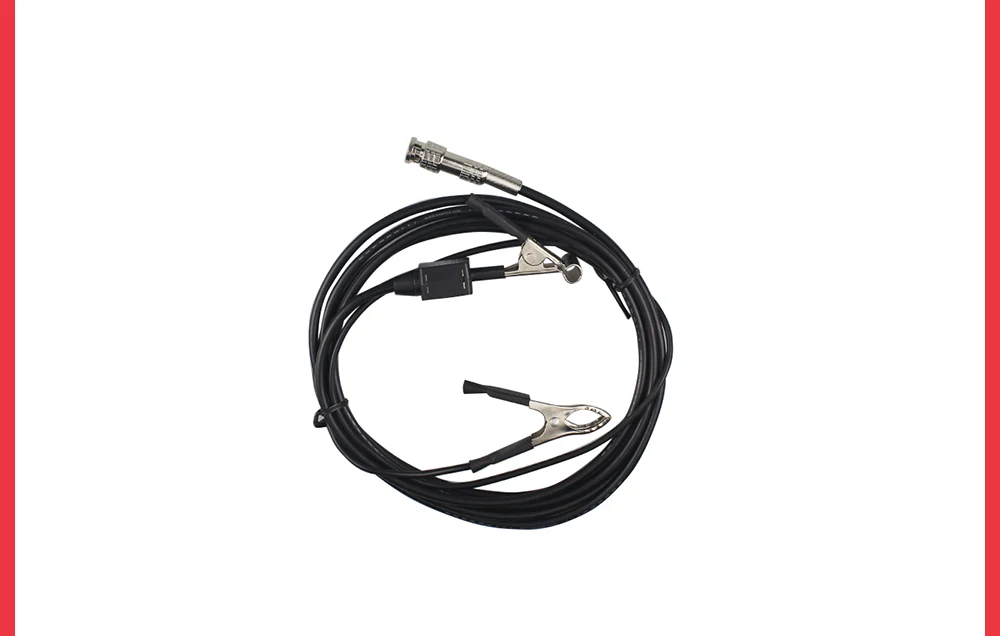

1 x Auto-probe（not included in 1008A）

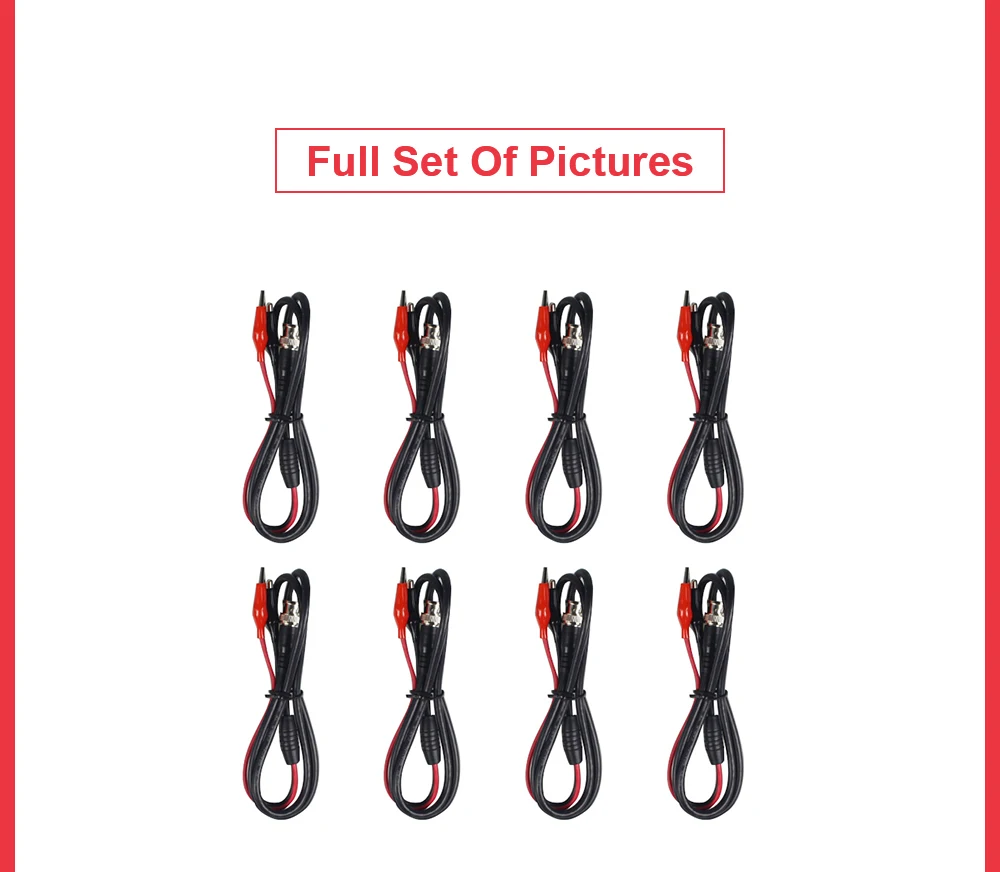

4 x Crocodile probes/cable

4 x BNC Connectors

1 x USB Cable

1 x CD (driver etc.)
