Hantek 100MHZ Oscilloscope HT8050/HT8100 High Voltage Differential Probe Isolation Probe LED Indicator Accessory Tools
HT8050(50MHZ) / US
$560.56
Sale price
$560.56
Regular price
$0.00
Skip to product information
Hantek 100MHZ Oscilloscope HT8050/HT8100 High Voltage Differential Probe Isolation Probe LED Indicator Accessory Tools
$560.56
Sale price
$560.56
Regular price
$0.00
Description
SPECIFICATIONS
Band Width: 60-99MHz(60-99MHz)
Battery Included: no
Brand Name: Hantek
Certification: CE,FCC,UL
DIY Supplies: Electrical
Digital Channels: 2
Display Resolution: 640*480 Pixels(640*480 Pixels)
Display Size: None
HANTEK Model: HT8050/8100
High-concerned chemical: none
IS Battery Demountable: No
Model Number: HT8050/8100
Origin: Mainland China
Real Time Sampling Rate: 1GSa/S(1GSa/S)
Record Length: 4K
Semi-finishedproduct: No

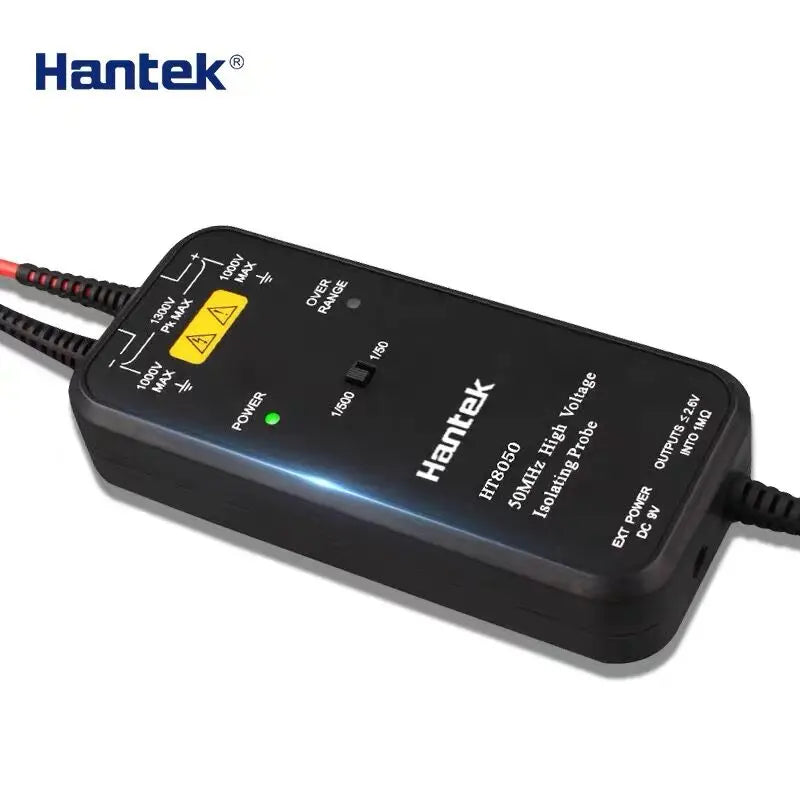

The HT8050/HT8100 oscilloscope high-voltage differential probe has stability, reliability and accuracy.
Feature:

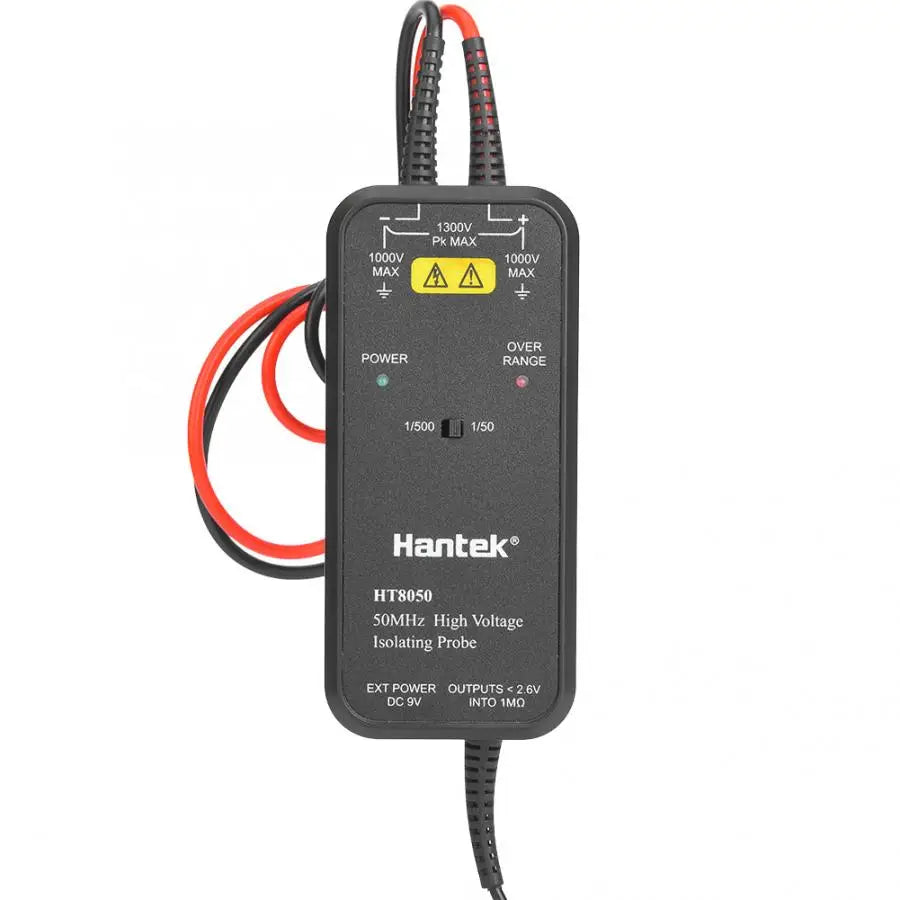

1. The high-voltage isolation probe has an over-range alarm function and is indicated by a red LED for easier use.

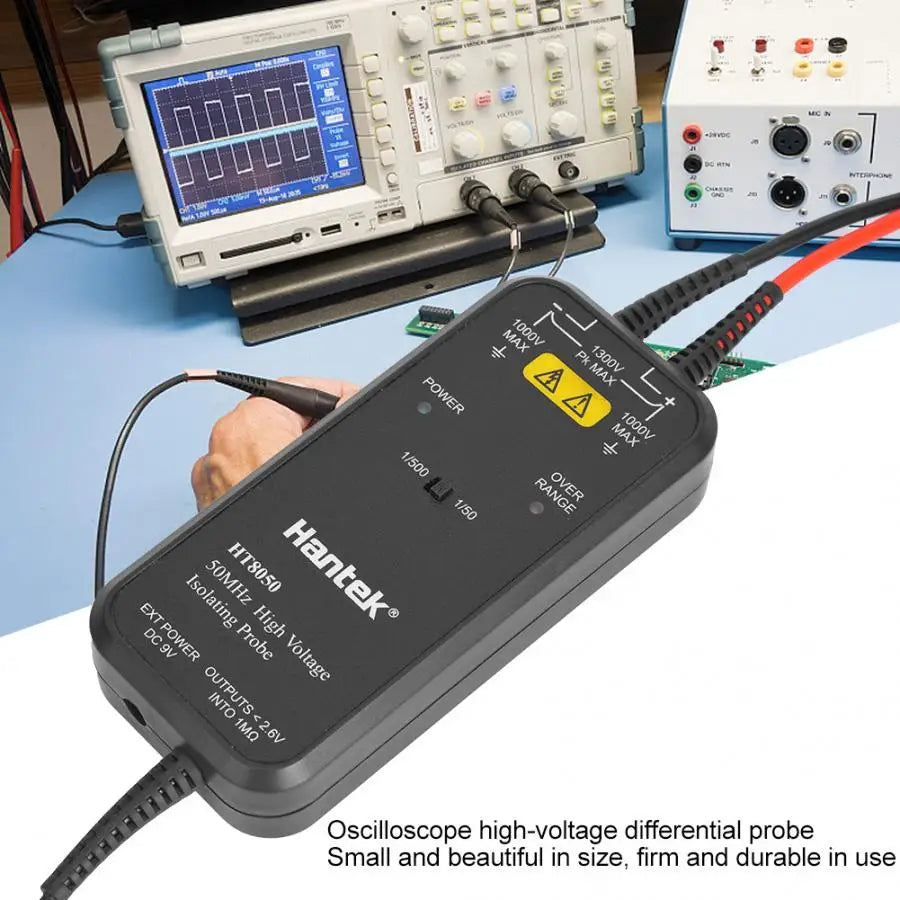

2. The high-voltage isolation probe is small in size, beautiful in shape, firm in structure, durable in use.

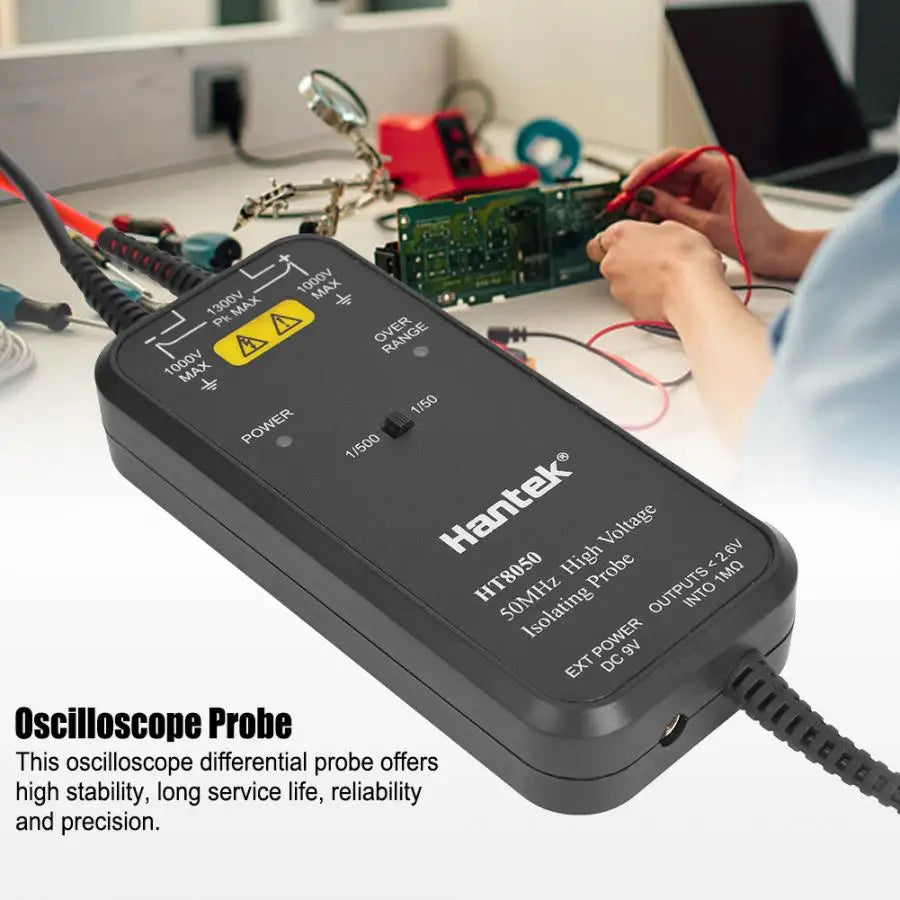

3. This oscilloscope differential probe offers high stability, long service life, reliability and precision.
4. The high-voltage isolation probe uses a differential input mode and is primarily used in locations where high-voltage floating measurements are required.
5. With 1/50 and 1/500 attenuation, the differential mode measurement range is 130V (DC+peakAC) and 1300V (DC+peakAC).
Specification
Condition: 100% Brand New
Item Type: Oscilloscope Probe
Material: ABS

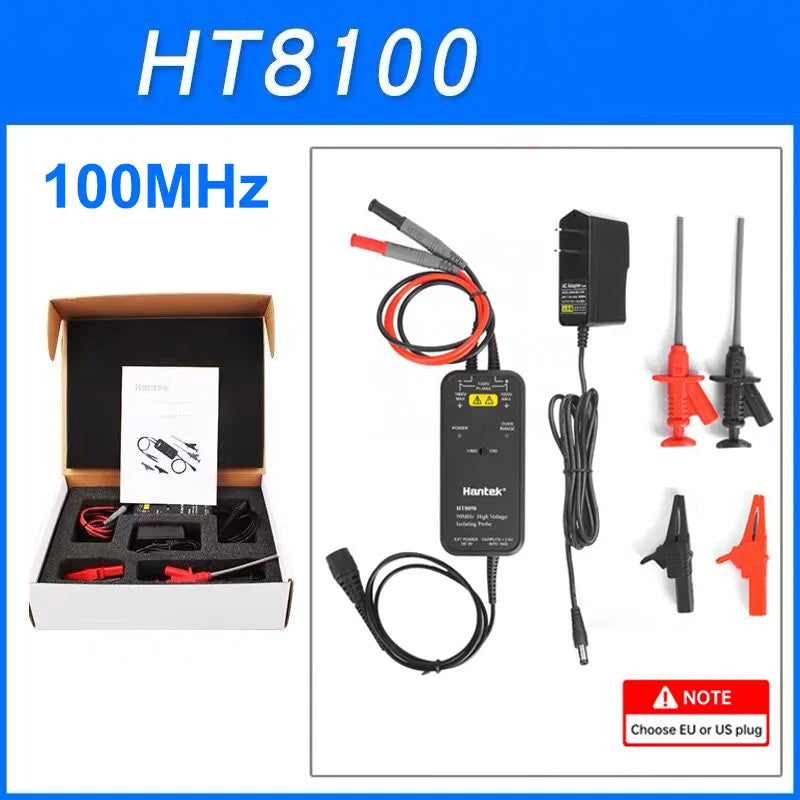

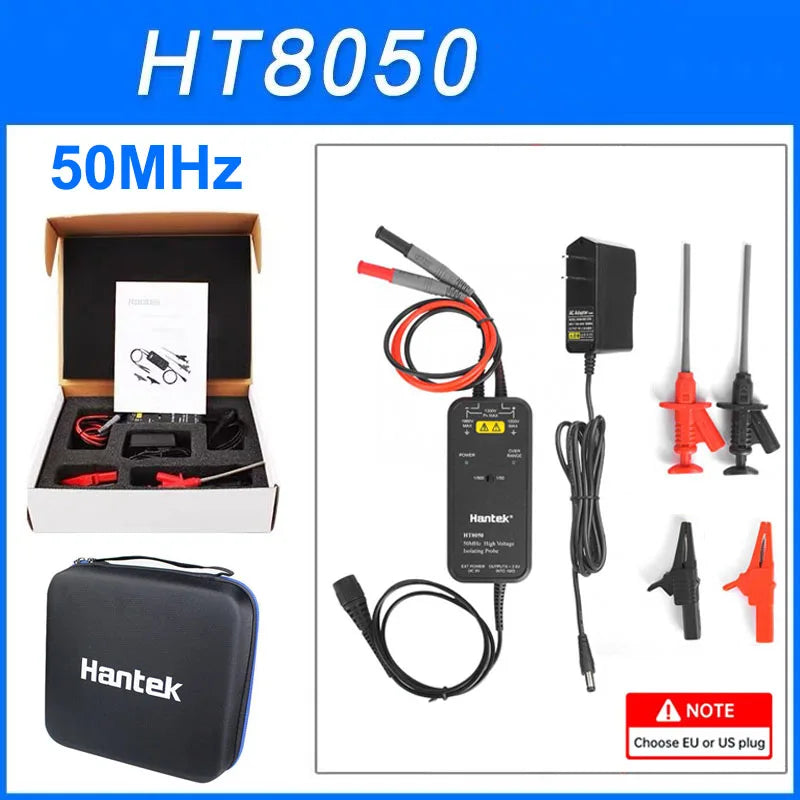

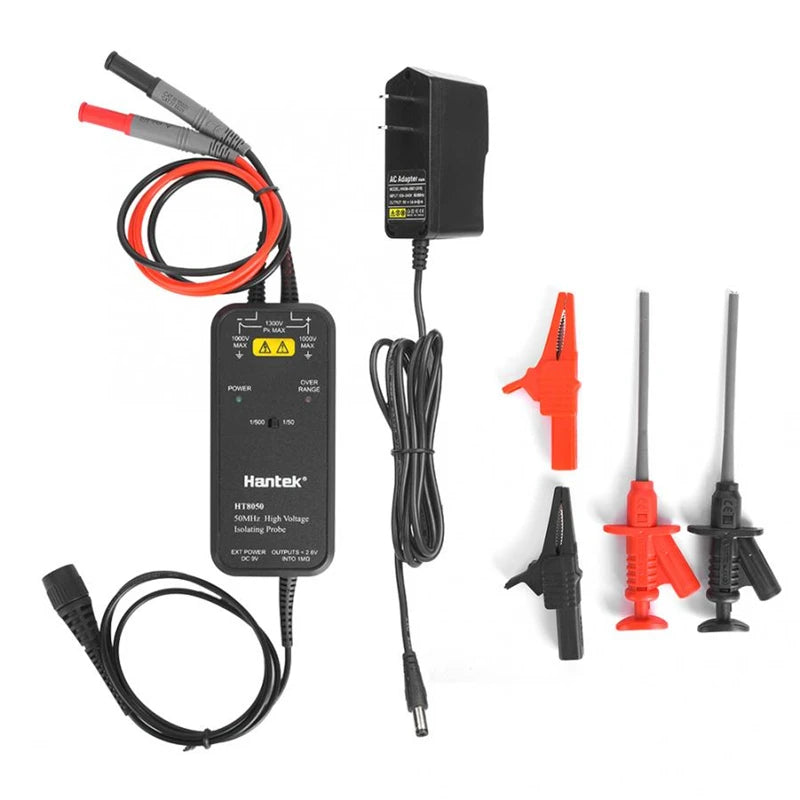

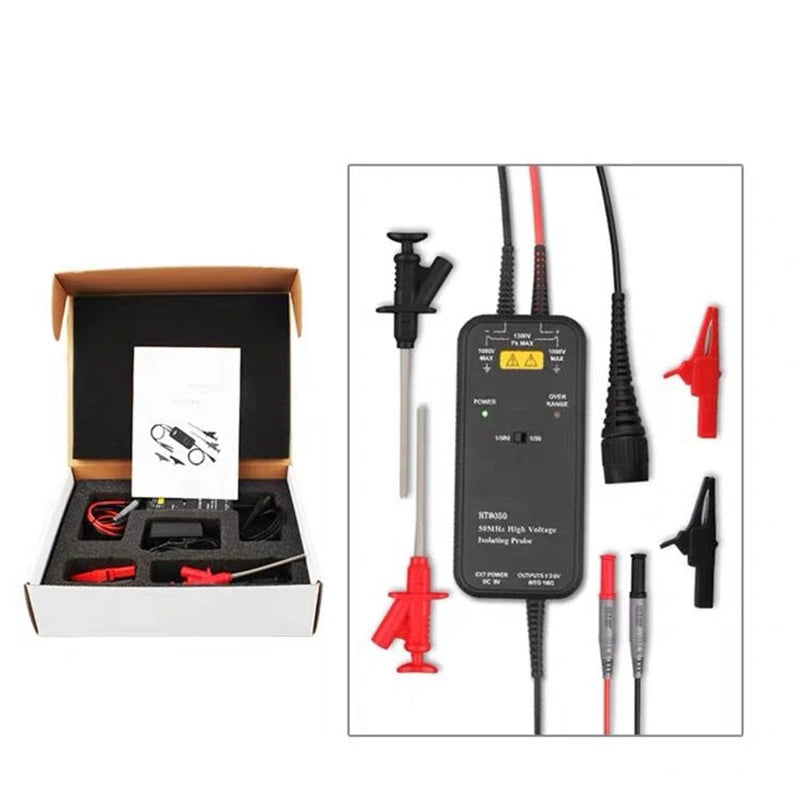

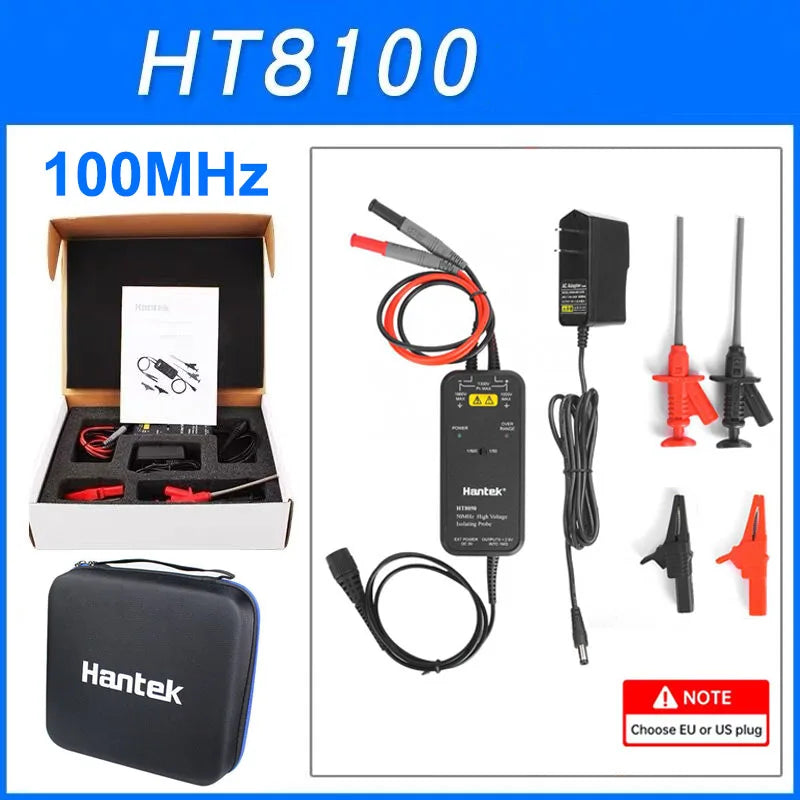

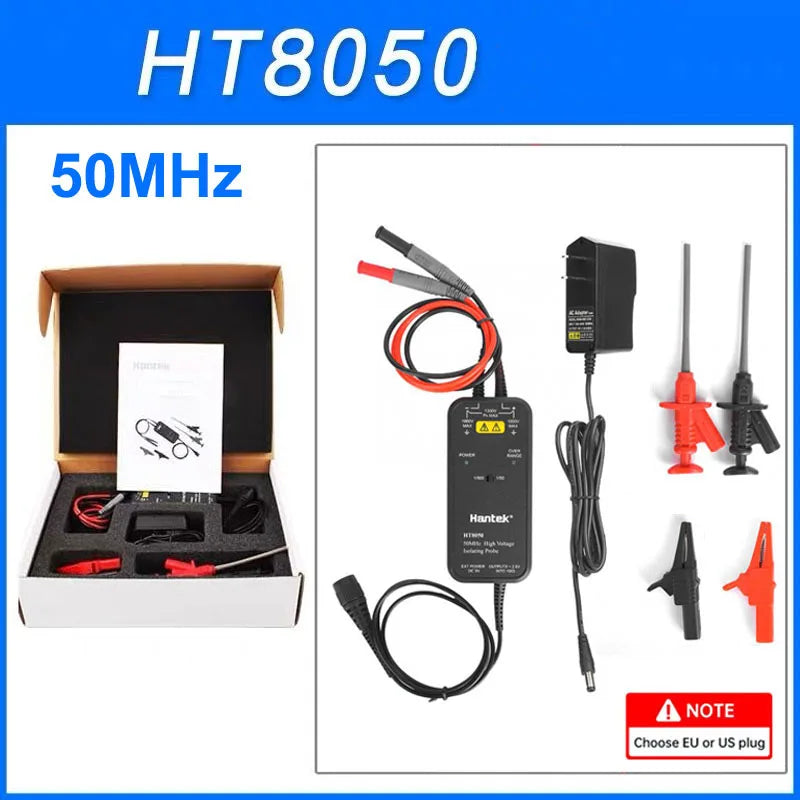

Package List:
1 x Probe
2 x Clip
2 x Probe Hook
1 x Adapter
1 x English User Manual
Specification:

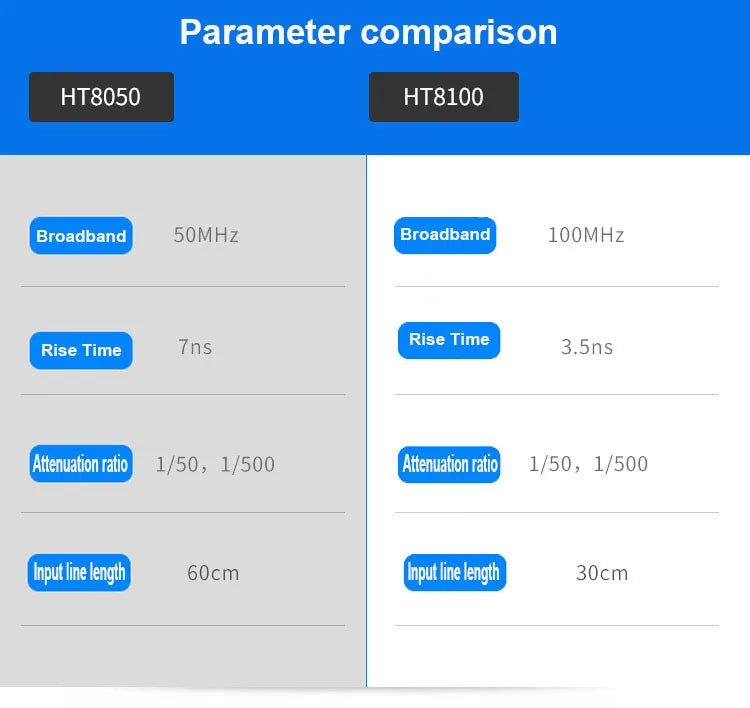

Electrical Performance | ||
Model Number |
HT8050 |
HT8100 |
Bandwidth(-3dB) |
50MHz |
100MHz |
Rise time |
7ns |
3.5ns |
Accuracy |
±2% |
|
Attenuation Ratio |
1/50,1/500 |
|
Imput Impedance |
Single-ended to ground:4MΩ |
|
Imput Capacitance |
Single-ended to ground:7pF |
|
Maximum Difference Measurement Voltage |
1/50:130V(DC+peakAC) |
|
Maximum Common Mode Input Voltage |
1000Vrms,CATII |
|
Noise |
1/50:≤1.5mVrms |
|
Linearity |
±1% |
|
Delay Time |
20ns±1ns |
|
CMRR |
DC:≥80dB |
|
Over Range Warning |
1/50:140V±4V(DC+peakAC) |
|
Power Adapter |
DC9V,1000mA |
|
Power Adapter |
AC100-240V,50-60Hz |
|
Machinery Specification | ||
Length of Input Cable |
About 60cm |
About 30cm |
Length of Output Cable |
About 90cm |
|
Gator Clip |
About 85*40*13(mm) |
|
Finger Pin |
About 160*45*13(mm) |
|

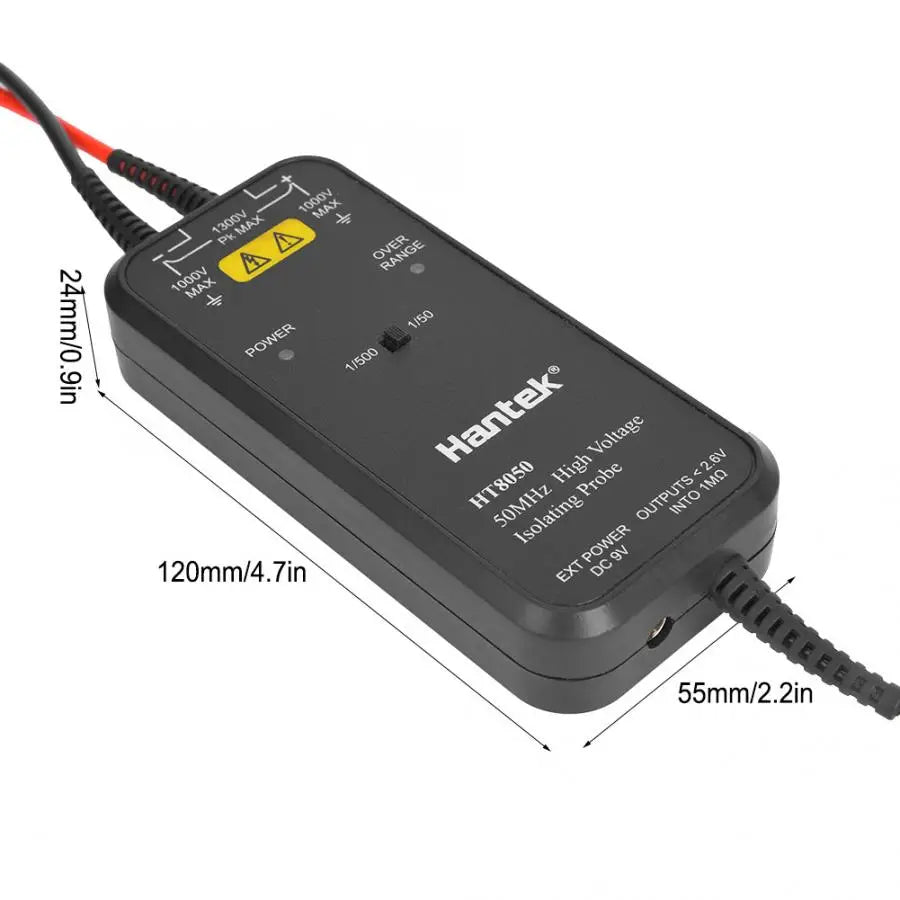

Probe Body |
120*55*24(mm) |
|
Weight |
160g |
|
Environmental Characteristics | ||
Working Temperature |
0-40℃ |
|
Storage Temperature |
-10-45℃ |
|
Working Humidity |
85%RH |
|
Storage Humidity |
90%RH |
|
Working Altitude |
3000m |
|
Storage Altitude |
12000m |
|
