Hantek 6074BE 6074BC 6074BD 6254BD 6254BE HT201 Digital Storage Oscilloscopes PC USB Portable 4 Channels 70MHz Bandwidths WIN10

Hantek 6074BE 6074BC 6074BD 6254BD 6254BE HT201 Digital Storage Oscilloscopes PC USB Portable 4 Channels 70MHz Bandwidths WIN10

$938.20

$938.20 $0.00

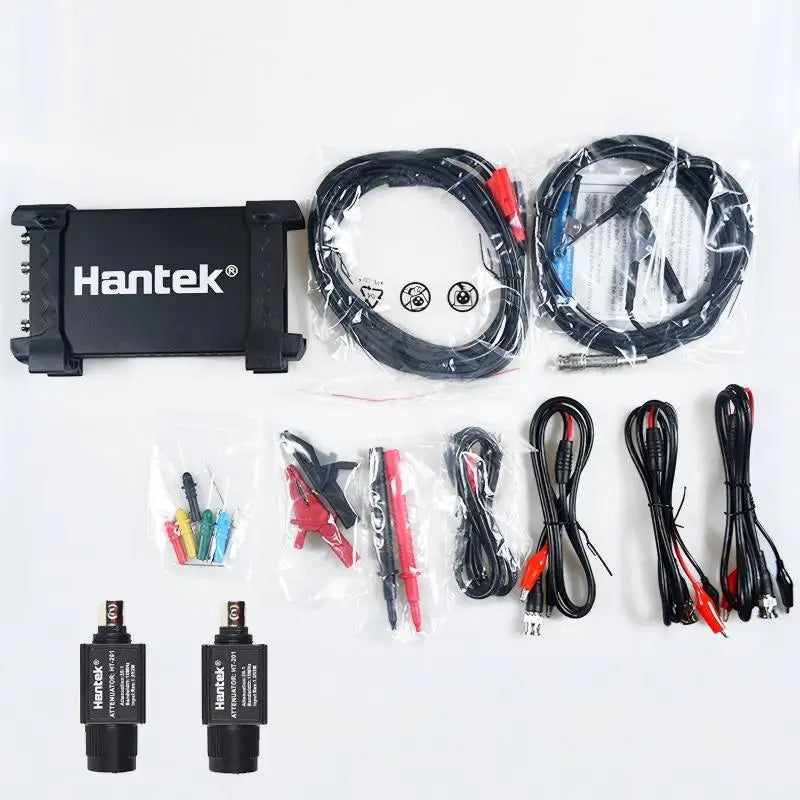

Color 6254BE 6254BE 2HT201 BAG 6254BD 6254BE with HT201X2 6074BC 6074BE 6074BE with HT201X2 6074BD 6074BE 2HT201 BAG

Ships FromChina Mainland

Description

SPECIFICATIONS

Band Width: 60-99MHz

Battery Included: no

Brand Name: Hantek

Certification: CE

DIY Supplies: Electrical

Digital Channels: 4

Display Resolution: 640*480 Pixels

Display Size: None

Feature 1: oscilloscop kit

Feature 2: digital oscilloscope portable

Feature 3: oscilloscop usb

Feature 4: sonda osciloscopio

Feature 5: oscilloscope test leads

Feature 6: Handheld Portable Osciloscopio

HANTEK Model: 6074BE

High-concerned chemical: none

IS Battery Demountable: No

Max Waveform Capture Rate: 30,000wfm/s

Model Number: Hantek 6074BE/6074BC/6074BD/6254BD/6254BE

Origin: Mainland China

Real Time Sampling Rate: 1GSa/S

Record Length: 16k

Semi-finishedproduct: No

Software support: Windows11, indows10, Windows 8, Windows 7

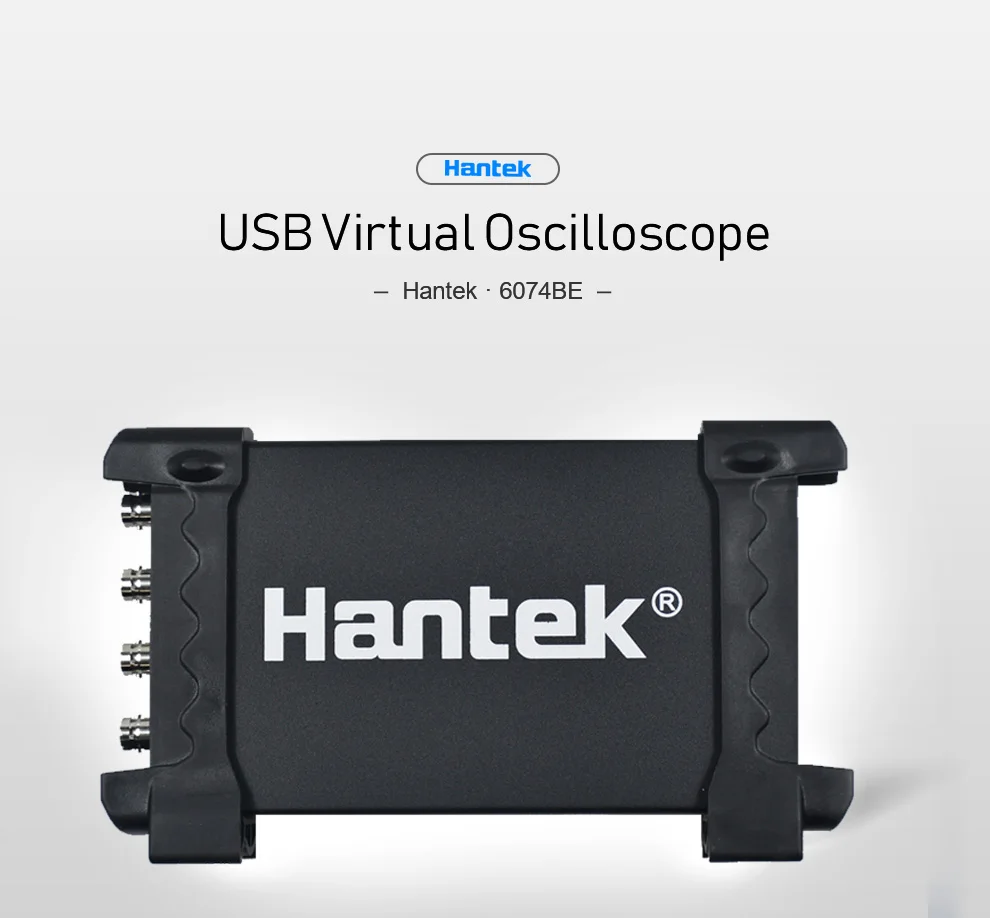

Hantek 6074BE 6074BC 6074BD 6254BD 6254BE USB Digital storage oscilloscopes, portable oscilloscopes 4 channels 70MHz bandwidth automotive oscilloscope

Hantek6074 Series：

Standard equipped over 80 types of automotive measurement function (Ignition Action/The Sensor/Bus Diagnosis/Performer/Startup&Charge); USB 2.0 interface plug and play, and no need extra power supply; Support tablet PC; Support WIN11/WIN10/ WIN8/WIN7 etc. Free software upgrading constantly, higher cost performance; Support USBXI, easy to operate. 4 isolated channels oscilloscope, 1GSa/s real time sampling rate, 2mV-10V/DIV high input sensitivity and large input range, 70MHz high bandwidth, small size, easy for carrying. Dynamic cursor tracking, waveform record and replay function.
Feature

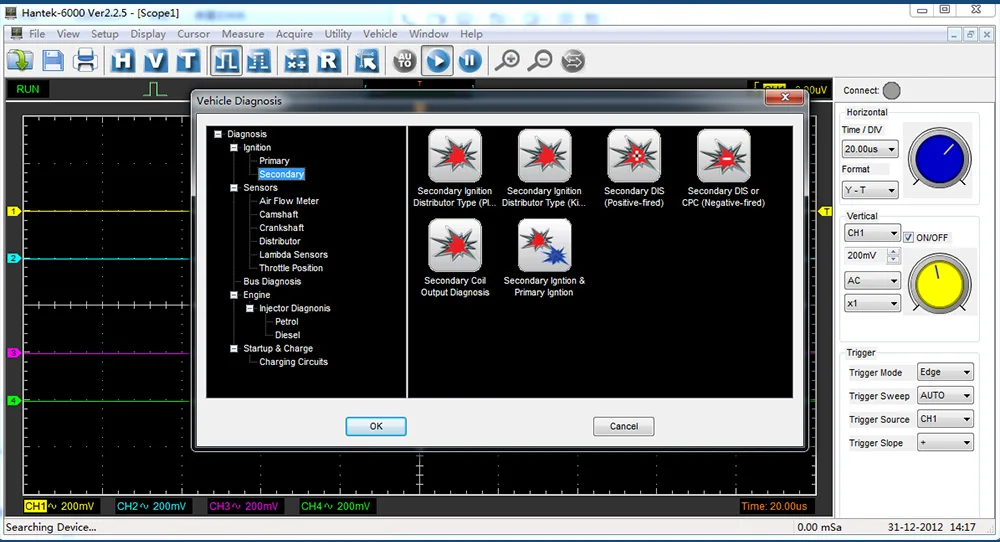

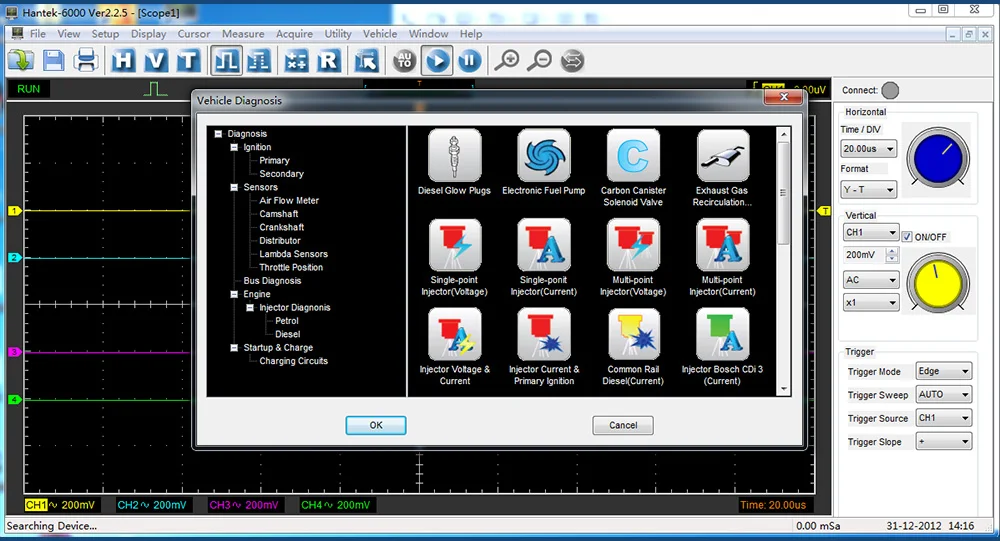

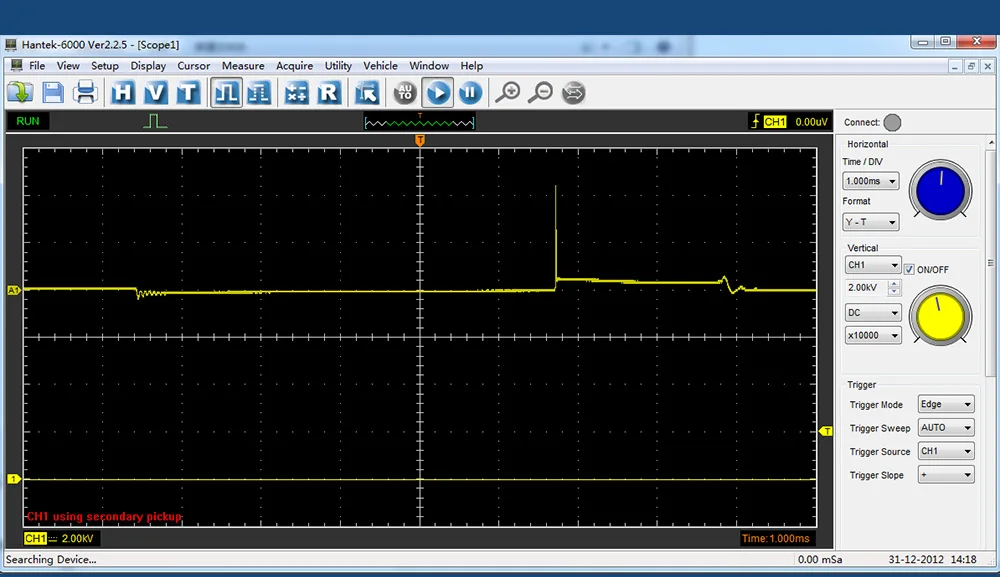

Standard equipped over 80 types of automotive measurement function;First Diagnosis: Intake manifold vacuum ignition,Petrol fumes adjusting valve vacuum ignition,Idle exhaust ignition, Starting exhaust ignition;Ignition: primary and secondary;Sensor:Air Flow Meter, Camshaft, Crankshaft, Distributor, Lambda sensor, Throttle position;Bus Diagnosis:CAN bus data examine, CAN bus signal integrity, CAN bus LH long time acquisition, LIN bus;Performer: Petrol/Diesel
Fit for the portable computers, table PC, and suitable for wild mobile use and business trip use. Support WIN10/ WIN8/WIN7 etc.
USB 2.0 interface plug and play, and no need extra power supply;
Great function, More than 20 kinds of automatic measurement function, PASS/FAIL Check function. Resourceful trigger function, dynamic cursor tracking, waveform record and replay function.
Good mechanical design with small size which is easy for carrying. The outer case is made by the same material with iPad - Anodised aluminium. It has great heat resistance and abrasive resistance with beautiful appearance. The hardness of aluminium alloy surface is greatly improved.
4 isolated channels oscilloscope, 1GSa/s real time sampling rate, 2mV-10V/DIV high input sensitivity and large input range, 70MHz high bandwidth,
The waveform data could be output to EXCEL,BMP,JPG.
Waveform averaging, afterglow,lightness control, reverse, add, subtract, multiply, divide, X-Y display.
FFT spectrum analyzer
One computer could connect with multiple oscilloscopes, expand the channel number easily.
Provide secondary development library DLL; Provide Labview\VB\VC\QT developing example

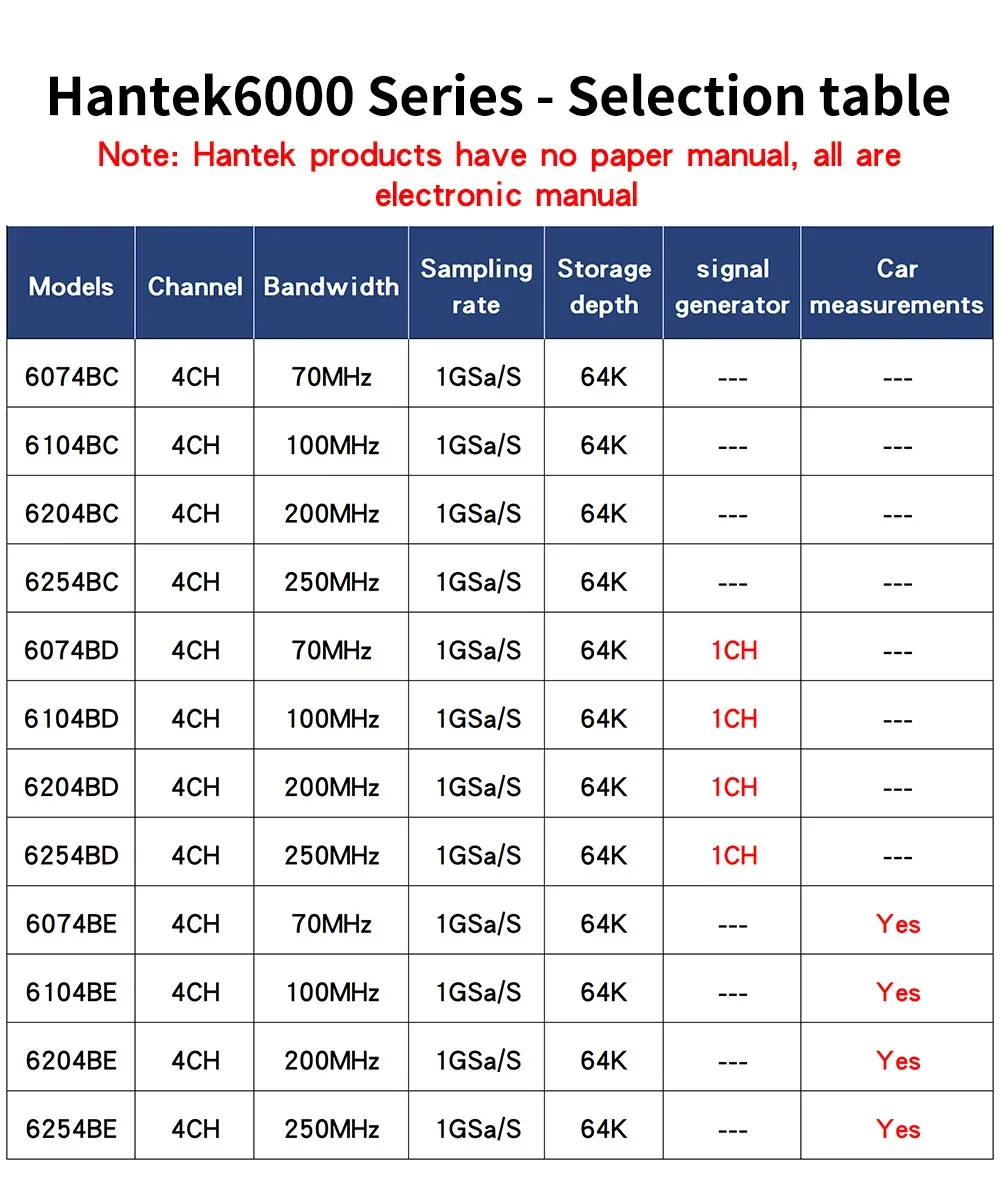

The difference is The 6074BC does not have a car test option function, and other functions are the same as the 6074BE.

As the appearance of the product is upgraded, the color may be slightly different, but it will not affect the use.

Model	Hantek6074BE
Bandwidth	70MHz
Channel	4 CH

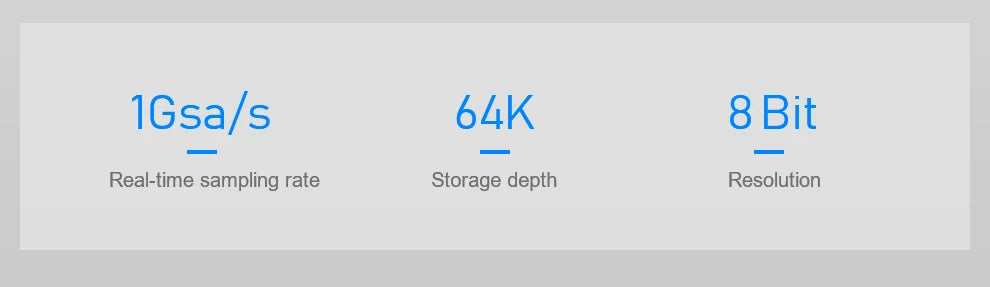

Real-time Sampling Rate	1GSa/s
Memory Depth	64K
Time BasePrecision	±50ppm
Time Base Range	2ns/div-1000s/div (1-2-4 sequences)
Input Impedance	1MΩ 25pF
Input Sensitivity	2mV/div~10V/div
Vertical Resolution	8Bit
Vertical Displacement Range	2mV ~ 10V/div @ x1 probe; 20mV ~ 100V/div @ x10 probe; 200mV ~ 1000V/div @ x100 probe; 2V ~ 10000V/div @ x1000 probe
DC Gain Accuracy	±3%
Bandwidth	20MHz
Trigger Mode	Edge, Pulse, Video, Alternative
Trigger Source	CH1, CH2, CH3,CH4
Waveform Signal Process	+,-,x,÷,FFT, Invert
Cursors Measurement	Cross, Trace, Horizontal, Vertical

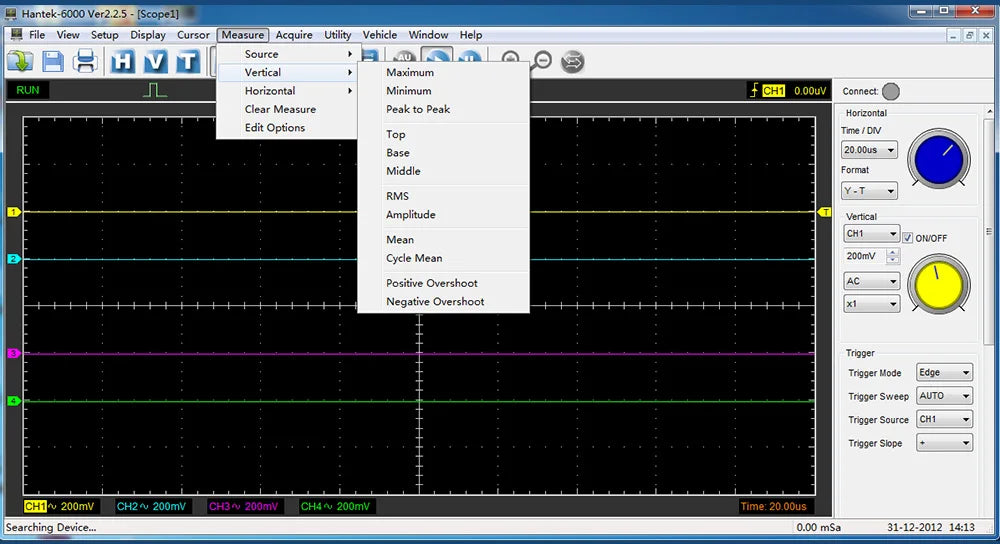

Auto MeasurementAuto Measurement	Vpp, Vamp, Vmax, Vmin, Vtop, Vmid, Vbase, Vavg, Vrms, Vcrms, Preshoot, Overshoot, Frequency, Period, Rise Time, Fall Time, Positive Width, Negative Width, Duty Cycle
VolumeVolumeVolumeVolumeVolumeVolumeVolumeVolume	175mm * 105mm * 25mm175mm * 105mm * 25mm175mm * 105mm * 25mm175mm * 105mm * 25mm

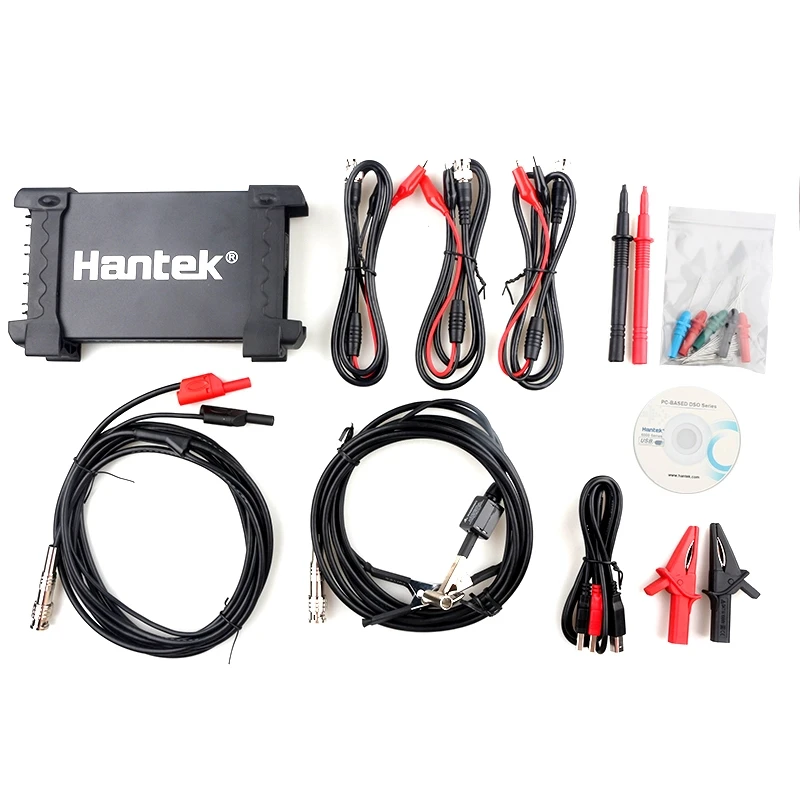

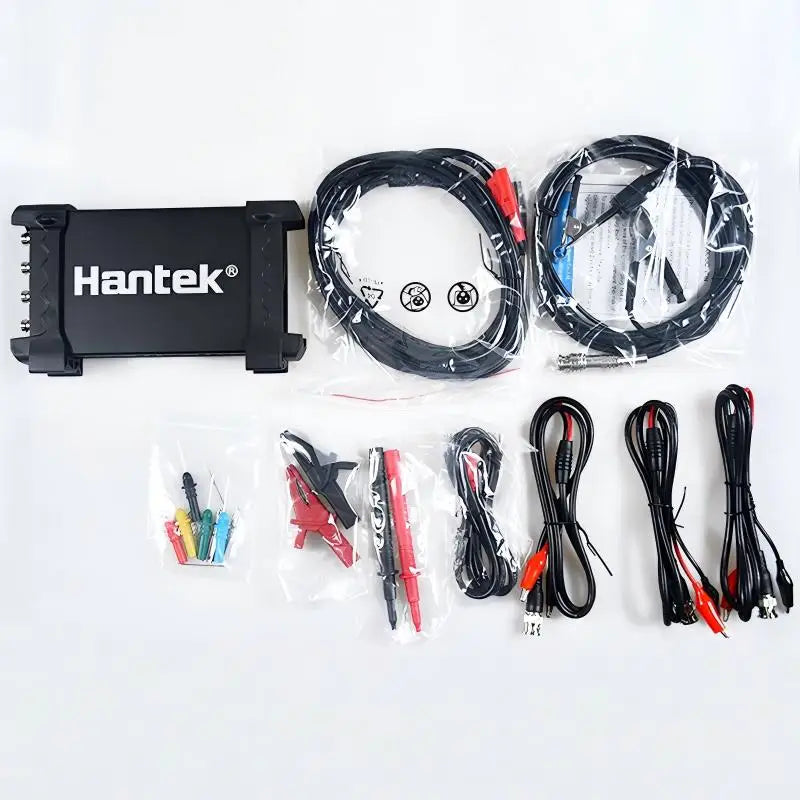

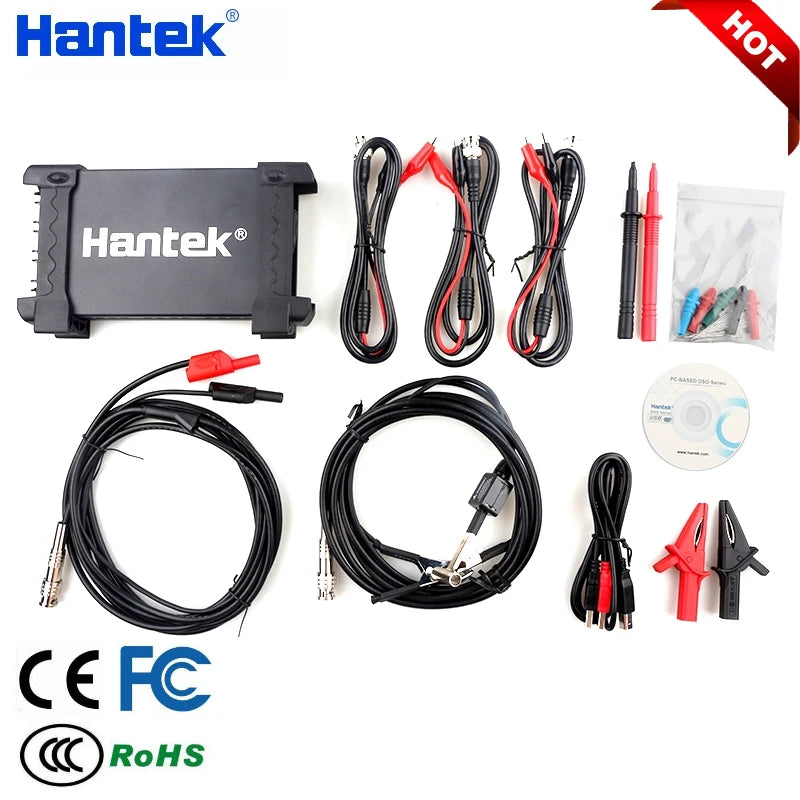

package includ	6074BE* 1pcs HT3071,HT191,HT18A1,HT30A1,gator clip lines3,HT251,USB,CD,Manual

Model	Hantek6074BC
Bandwidth	70MHz
Channel	4 CH
Real-time Sampling Rate	1GSa/s
Memory Depth	64K
Time BasePrecision	±50ppm
Time Base Range	2ns/div-1000s/div (1-2-4 sequences)
Input Impedance	1MΩ 25pF
Input Sensitivity	2mV/div~10V/div
Vertical Resolution	8Bit
Vertical Displacement Range	2mV ~ 10V/div @ x1 probe; 20mV ~ 100V/div @ x10 probe 200mV ~ 1000V/div @ x100 probe; 2V ~ 10000V/div @ x1000 probe
DC Gain Accuracy	±3%
Bandwidth limit	20MHz
Trigger Mode	Edge, Pulse, Video, Alternative
Trigger Source	CH1, CH2, CH3,CH4
Waveform Signal Process	+,-,x,÷,FFT, Invert
Cursors Measurement	Cross, Trace, Horizontal, Vertical
Auto Measurement	Vpp, Vamp, Vmax, Vmin, Vtop, Vmid, Vbase, Vavg, Vrms, Vcrms, Preshoot, Overshoot, Frequency, Period, Rise Time, Fall Time, Positive Width, Negative Width, Duty Cycle

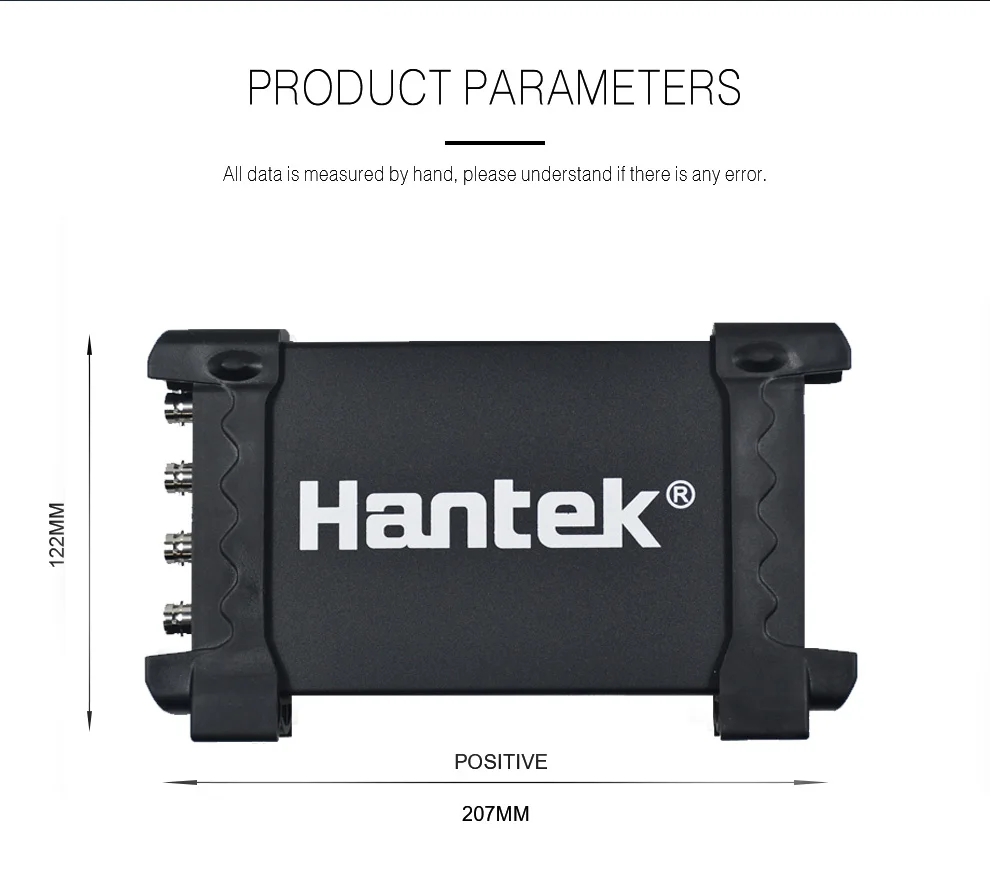

Volume	175mm * 105mm * 25mm
Weight	0.9KG

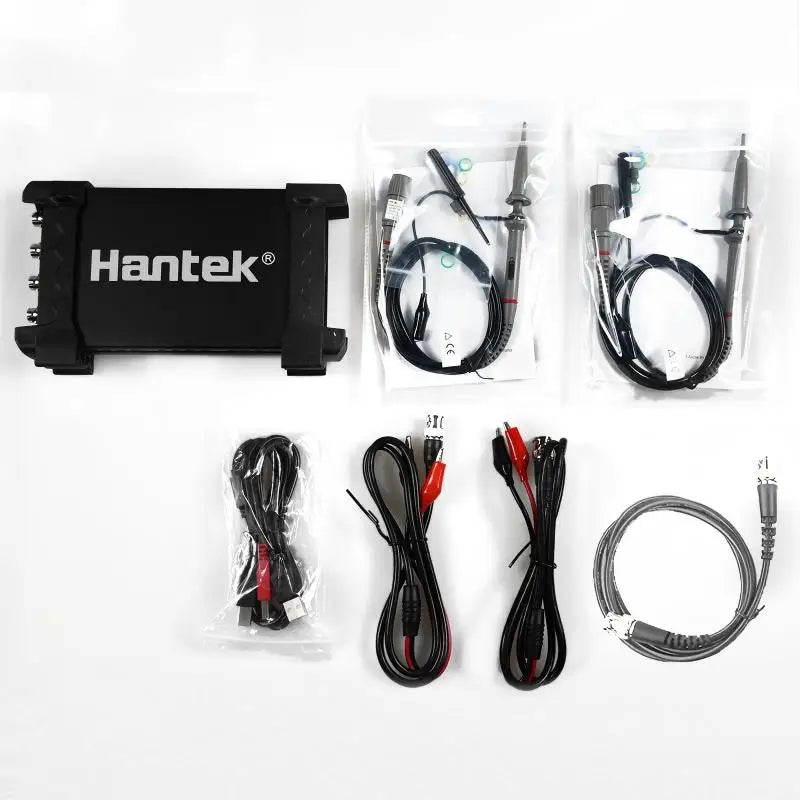

package includ	1 x 6074bc usb oscilloscope; 2 x oscilloscope probe;(Note:Just 2pcs probes in the package,if you want to buy more,please contact with us directly!!!) 2 x BNC - clip cable; 1 x usb cable; 1 x CD (driver / manual... inside)

Model	Hantek6074BD
Bandwidth	70MHz
Channel	4 CH
Real-time Sampling Rate	1GSa/s
Memory Depth	64K
Time BasePrecision	±50ppm
Time Base Range	2ns/div-1000s/div (1-2-4 sequences)
Input Impedance	1MΩ 25pF
Input Sensitivity	2mV/div~10V/div
Vertical Resolution	8Bit
Vertical Displacement Range	2mV ~ 10V/div @ x1 probe; 20mV ~ 100V/div @ x10 probe; 200mV ~ 1000V/div @ x100 probe; 2V ~ 10000V/div @ x1000 probe
DC Gain Accuracy	±3%
Bandwidth	20MHz
Trigger Mode	Edge, Pulse, Video, Alternative
Trigger Source	CH1, CH2, CH3,CH4
Waveform Signal Process	+,-,x,÷,FFT, Invert
Cursors Measurement	Cross, Trace, Horizontal, Vertical
Auto Measurement	Vpp, Vamp, Vmax, Vmin, Vtop, Vmid, Vbase, Vavg, Vrms, Vcrms, Preshoot, Overshoot, Frequency, Period, Rise Time, Fall Time, Positive Width, Negative Width, Duty Cycle
Volume	175mm * 105mm * 25mm
Weight	0.9KG
Accessory	2 passive probes, 2 gator clip lines
