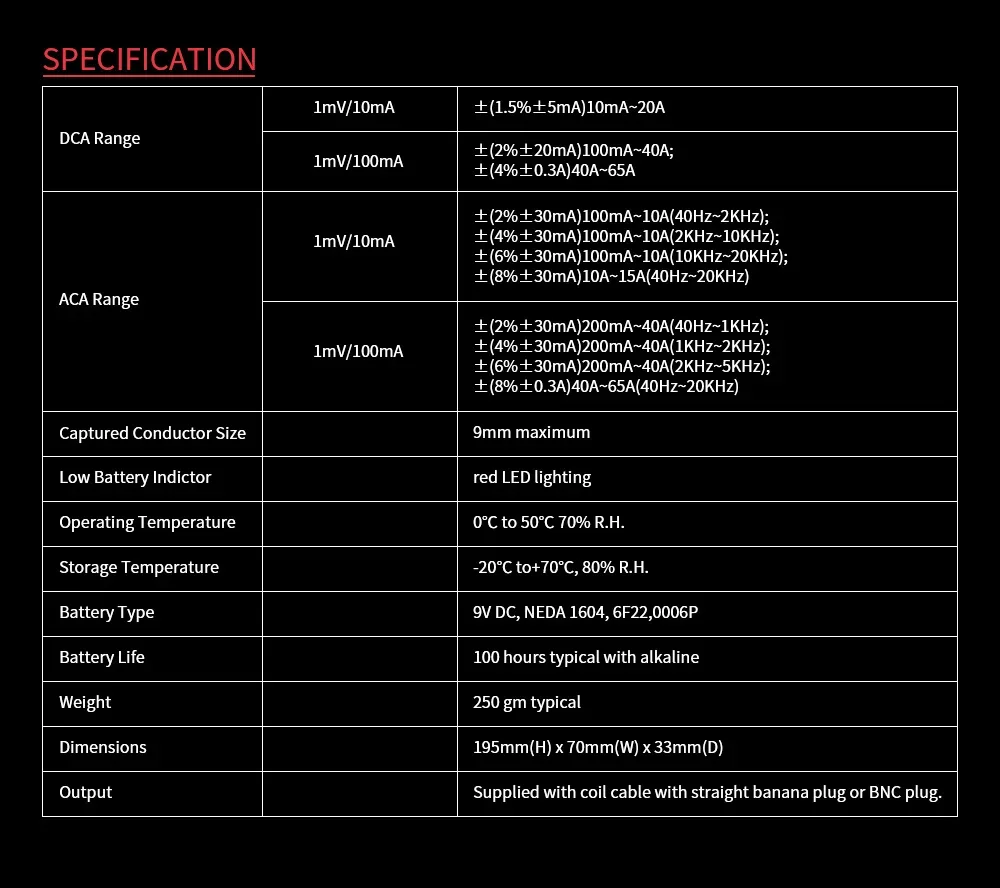

SPECIFICATIONS

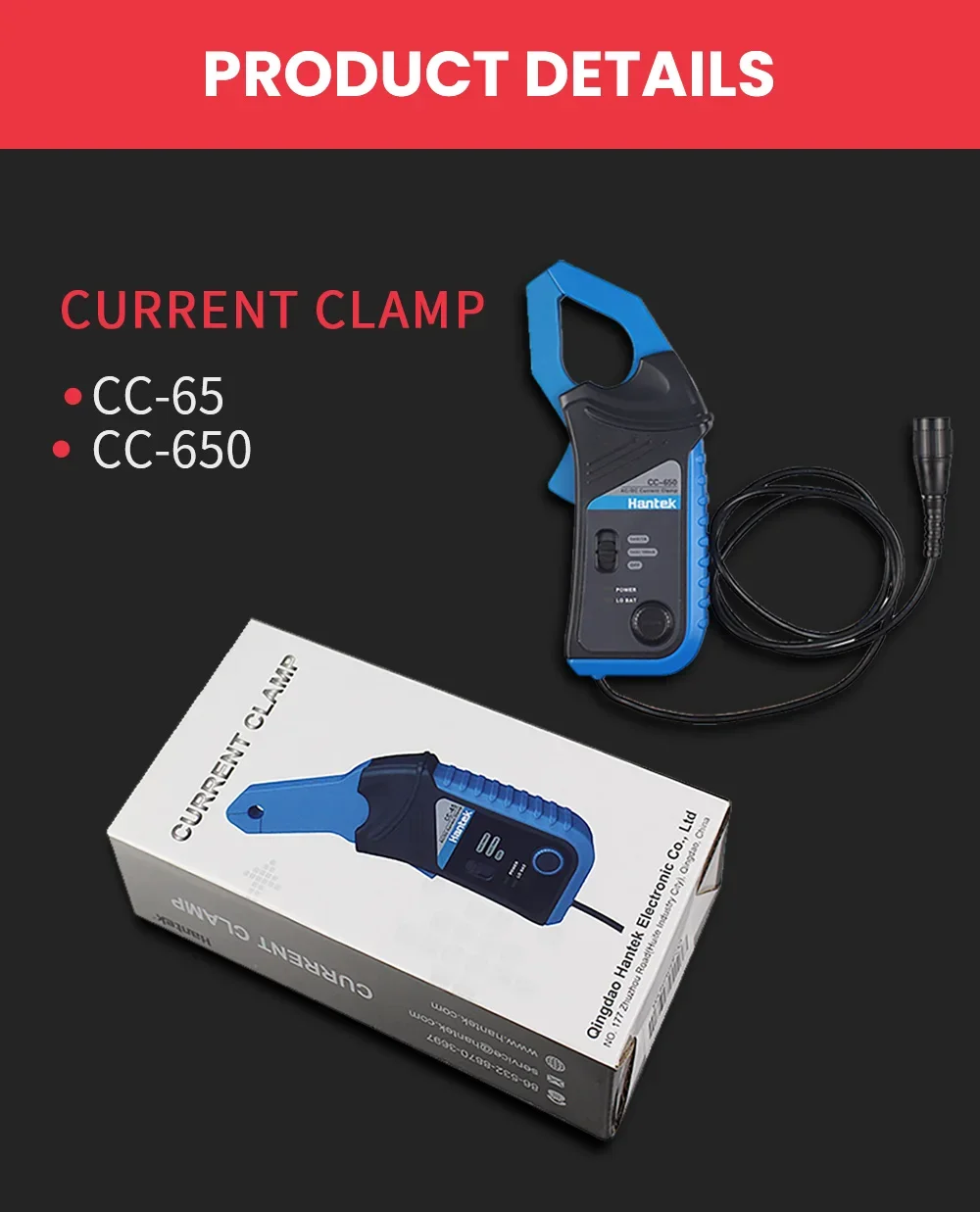

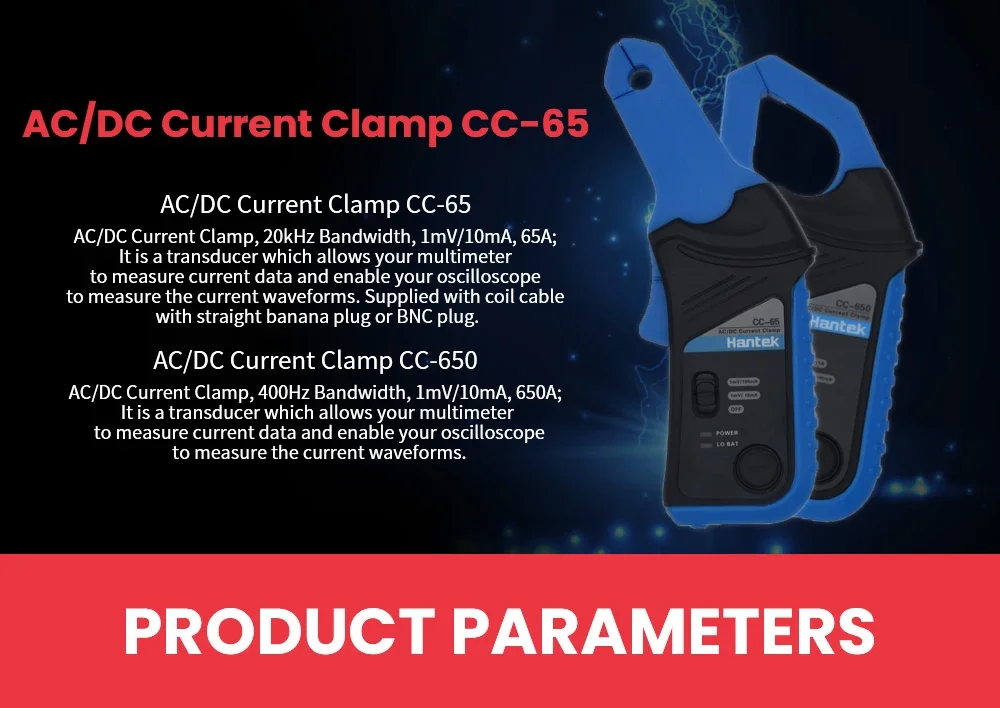

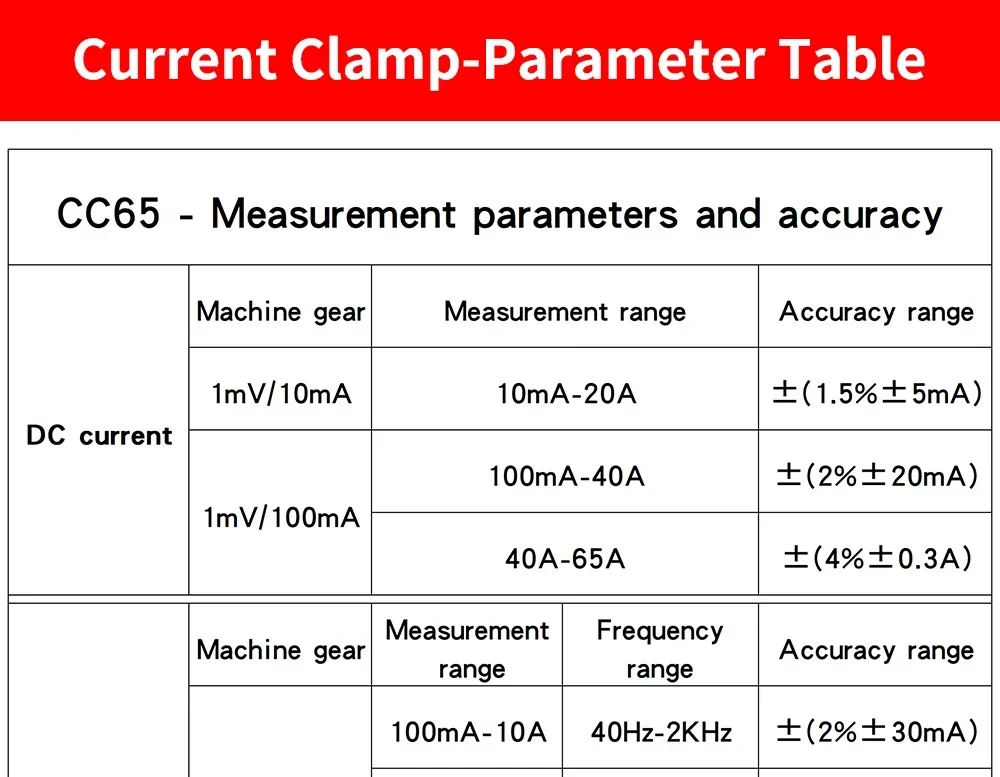

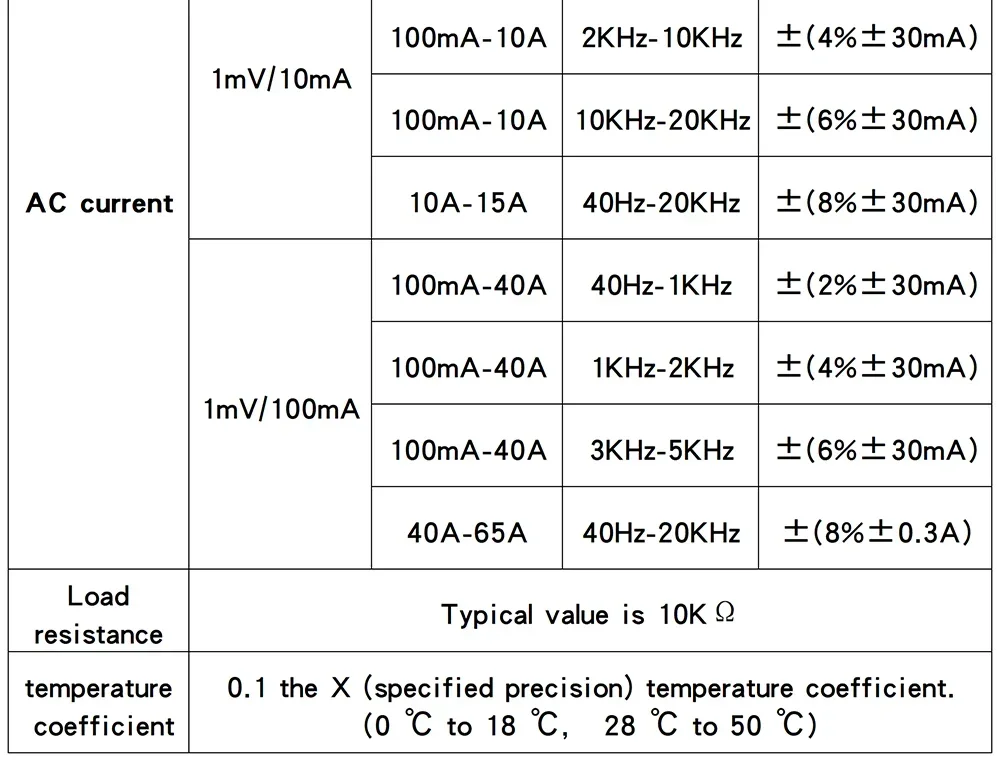

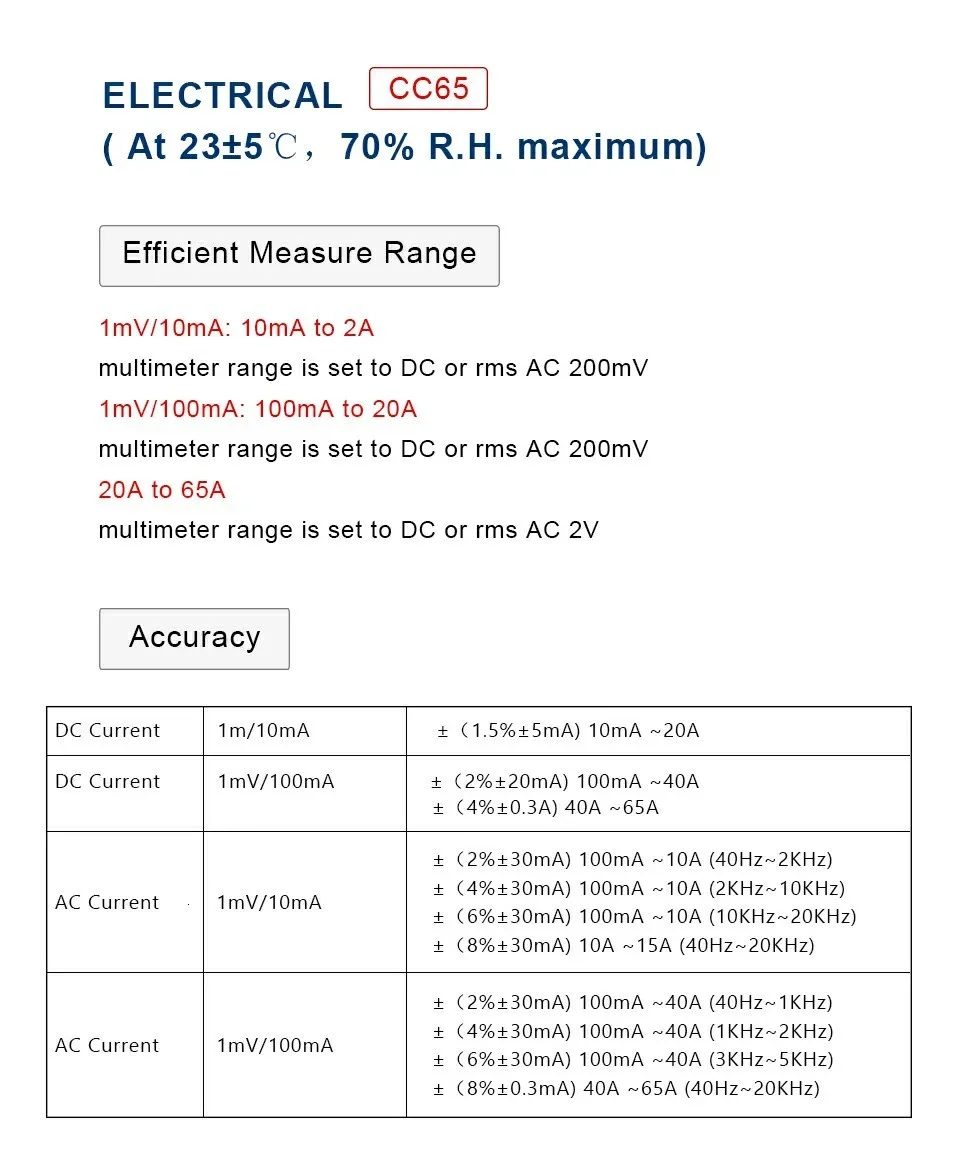

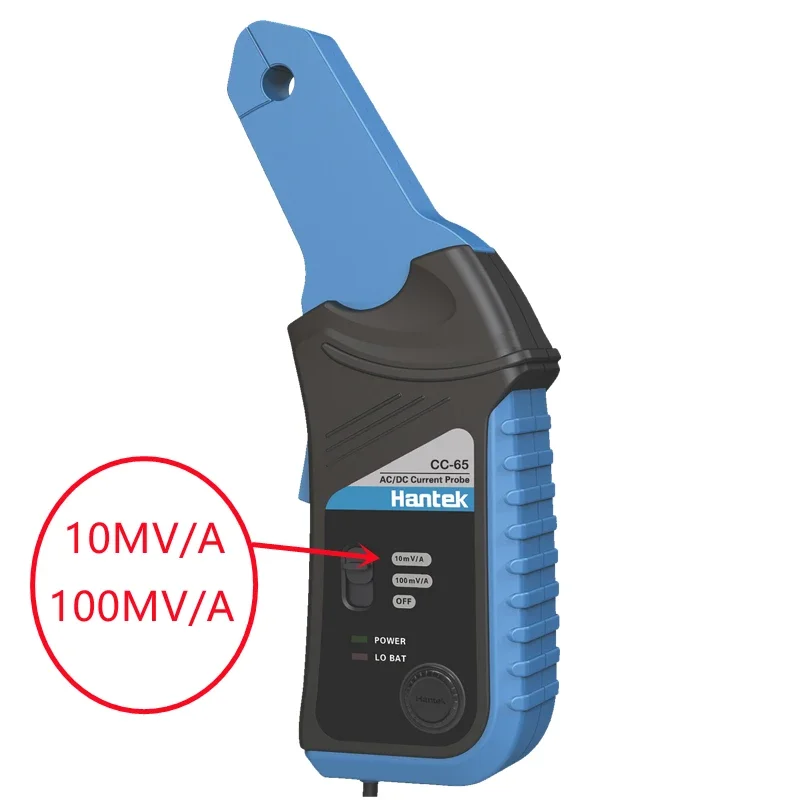

AC/DC Current Clamp CC-65

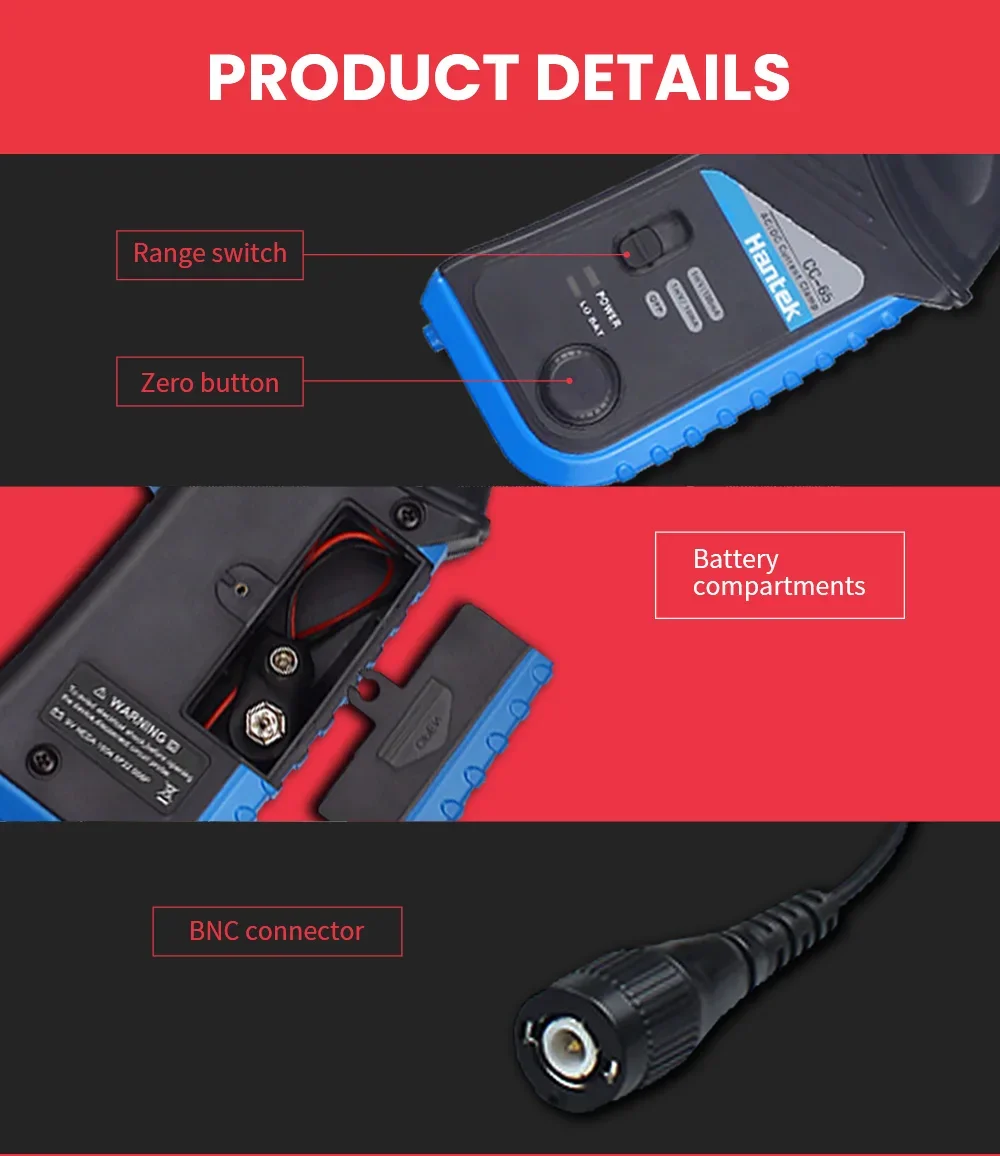

AC/DC Current Clamp, 20kHz Bandwidth, 1mV/10mA, 65A; It is a transducer which allows your multimeter to measure current data and enable your oscilloscope to measure the current waveforms.Supplied with coil cable with straight banana plug or BNC plug.

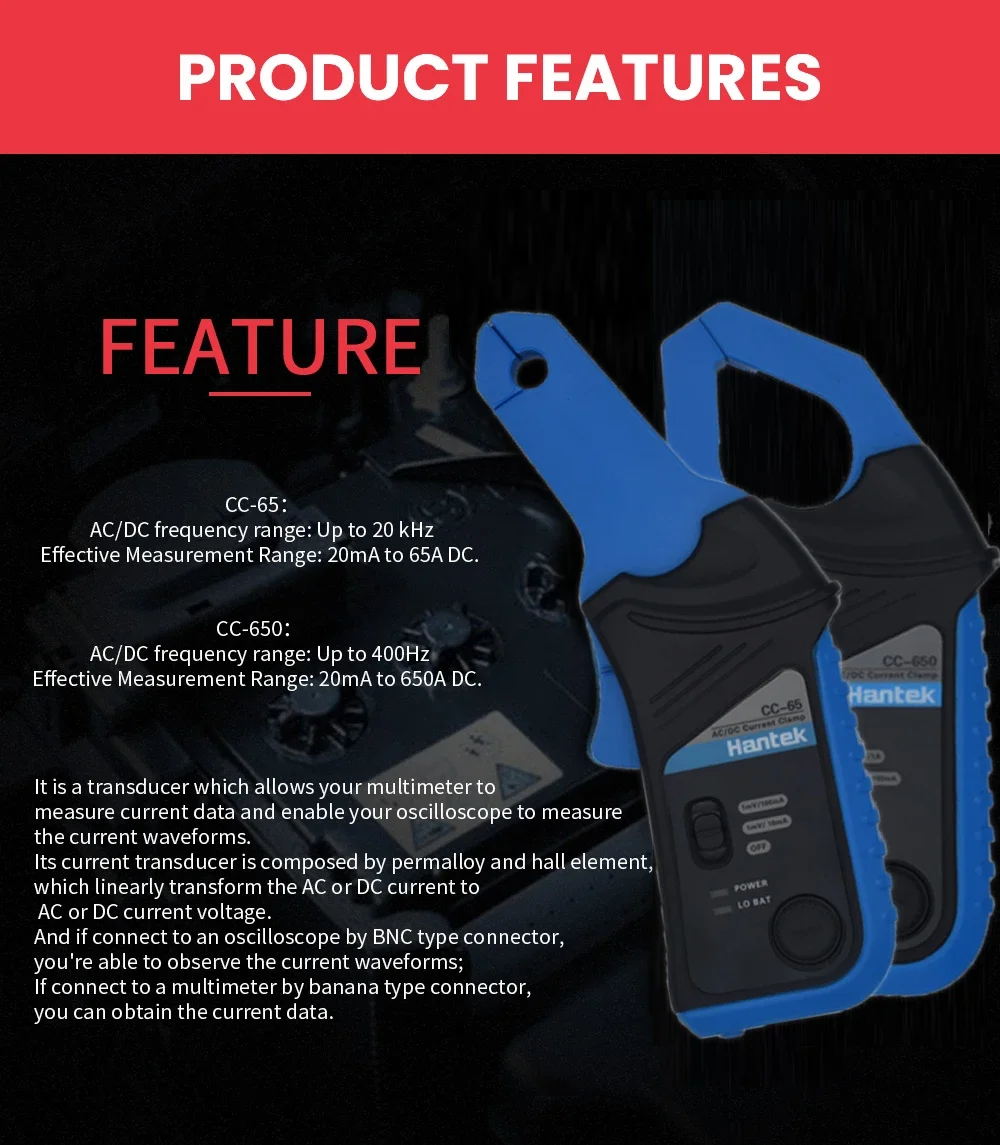

Feature
AC/DC frequency range: Up to 20 kHz
Effective Measurement Range: 20mA to 65A DC
It is a transducer which allows your multimeter to measure current data and enable your oscilloscope to measure the current waveforms.

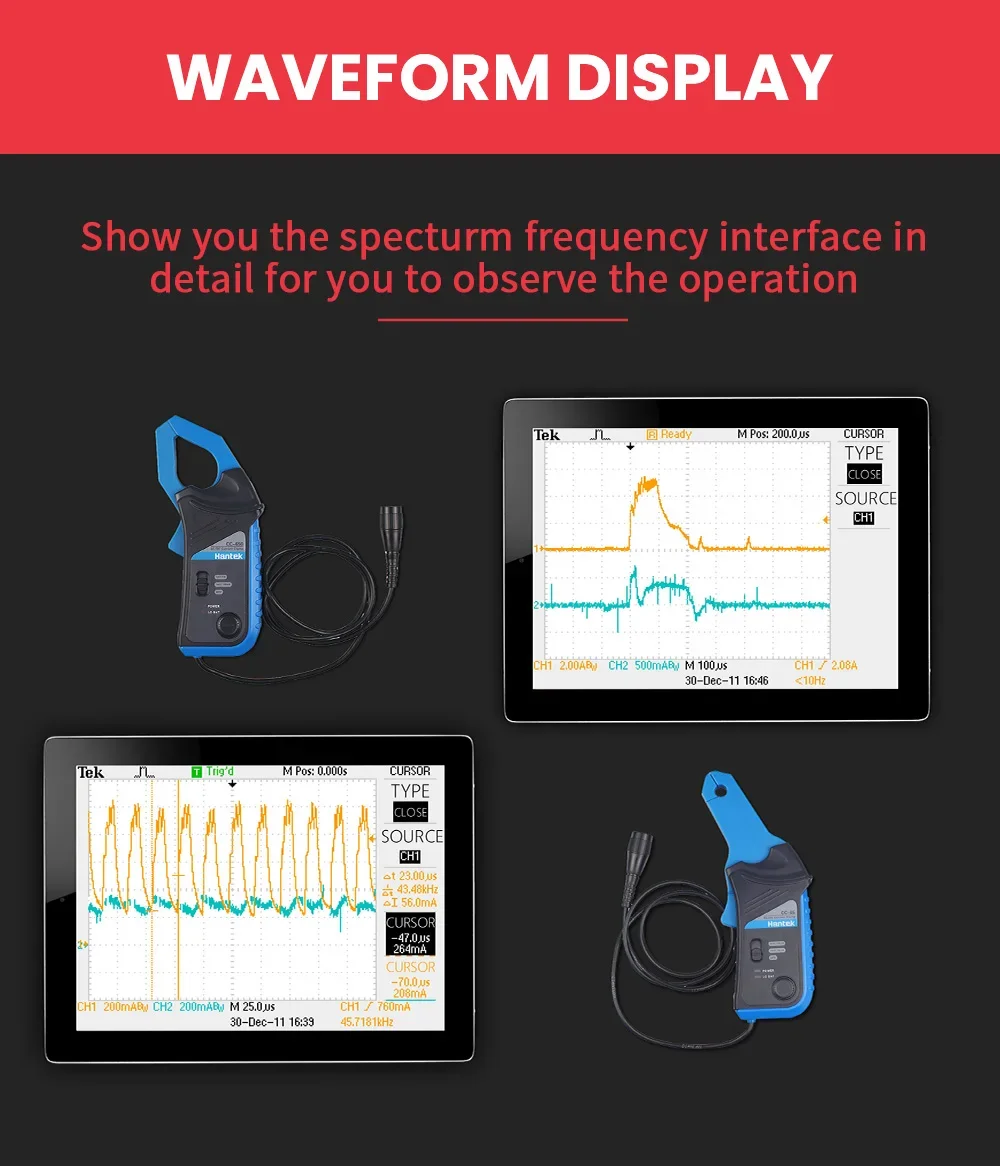

Its current transducer is composed by permalloy and hall element, which linearly transform the AC or DC current to AC or DC current voltage.And if connect to an oscilloscope by BNC type connector, you're able to observe the current waveforms; If connect to a multimeter by banana type connector, you can obtain the current data.

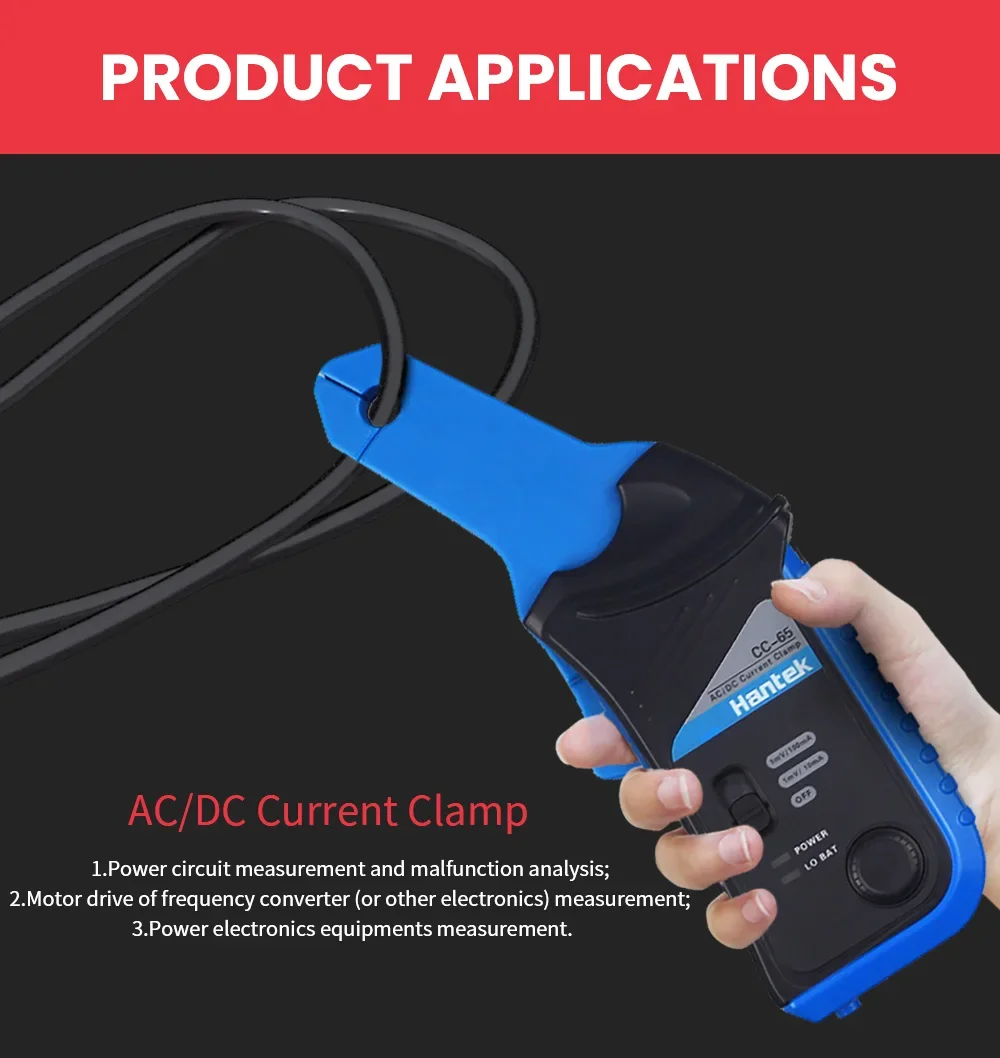

Application
Power circuit measurement and malfunction analysis;
Motor drive of frequency converter (or other electronics) measurement;
Power electronics equipments measurement.

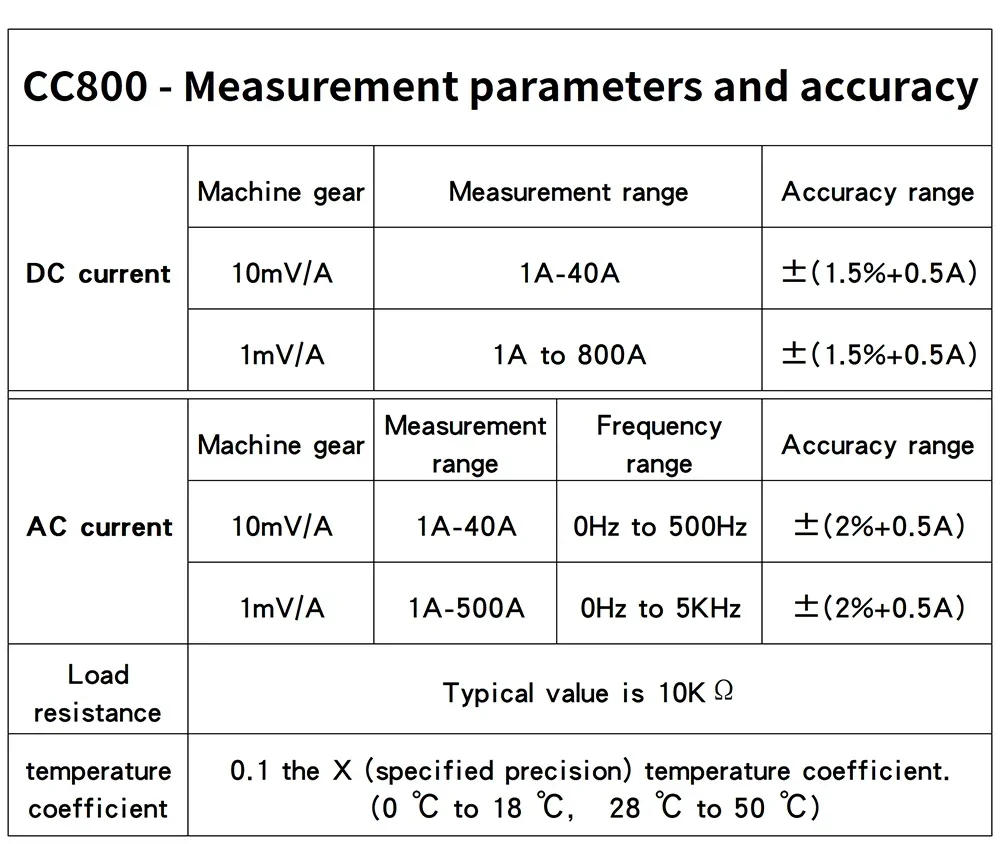

AC/DC Current Clamp CC-800

characteristic:

Communication 0-5KHz, 1A -500A

DC 1A -800A

Can be used with an oscilloscope to view current waveforms, and can be used with a multimeter to view current data.A current sensor composed of Pomo alloy and Hall element, which linearly converts DC or AC current into DC or AC voltage, can be connected to an oscilloscope through a BNC connector to observe the current waveform;It can also be connected to a multimeter through a banana connector to obtain current data.

Application:

Power circuit measurement and fault analysis

Measurement of motor drives such as frequency converters

Measurement of power electronic devices
