SPECIFICATIONS

Average waveform, times: 4, 8, 16, 32, 64, 128

Band Width: 100-349MHz

Battery Included: no

Brand Name: Hantek

Certification: CE

DIY Supplies: Electrical

Digital Channels: 2

Display Resolution: 800*480 Pixels

Display Size: 7 Inches & Above

High resolution: Up to 12bit

High-concerned chemical: none

Input coupling: DC, AC, GND

Max Waveform Capture Rate: 30,000wfm/s

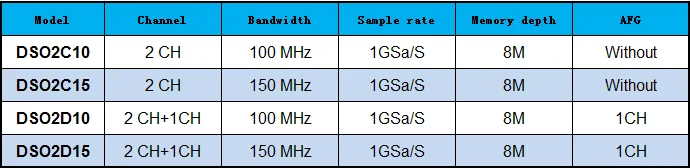

Model Number: 2c10/2d10/2c15/2d15

Origin: Mainland China

Real Time Sampling Rate: 1GSa/S

Semi-finishedproduct: No

Waveform generator: 1CH (Only 2D15/2D10)

modname=ckeditor

Hantek Digital Portable Oscilloscope DSO2C10 2C15 2D10 2D15 USB 2 Channels 100Mhz/150Mhz Storage Osciloscopio Multimeter Tester

DSO2000 Series
Cost-effective economy oscilloscope, 150MHz Bandwidth, 1GSa/s, 8M memory depth; with 1CH 25MHz waveform generator, support arbitrary waveform output; 14 kinds of trigger modes, standard with 5 kinds of serial protocol triggers and decodes; 32 kinds of auto measurements with statistics; 3-digit digital voltage meter and 6-digit hardware frequency indicator functions; 2 sets of DVM; Abundant SCPI remote command control.

Features:

1) 2 channels , both are respectively controlled by independent knobes.
2) 100 MHZ, 150MHZ analog channel bandwidth.
3) 1 GSa/s real-time sample rate.
4) 8M memory depth .
5) Vertical range 2mV/div ~ 10V/div .
6) Built-in 1 CH 5MHz waveform generator. (ONLY DSO2D10,DSO2D15)
7) Vertical resolution : 8bit .
8) Trigger: Edge, Pulse width, Video, Slope, Overtime, Window, Pattern, Interval, Delay, UART, LIN, CAN, SPI, IIC.
9) CAN decode and protocol analysis: RS232/UART、I2C、SPI、CAN、LIN.
10) Can save as multiple data formats, such as setting, waveform, referance waveform, CSV, picture.
11) 5 bits digital voltage meter and 6 bits hardware frequency indicator function.
12) 32 kinds of auto measurements with statistics, real-time statistics of maxmum, minimum, standrad deviation and etc.
13) 2 sets of digital voltmeter.
14) Support threshold testing, free measurements within the screen.
15) Abundant SCPI remote command control.
16) Many external interface: USB Host/Device.
