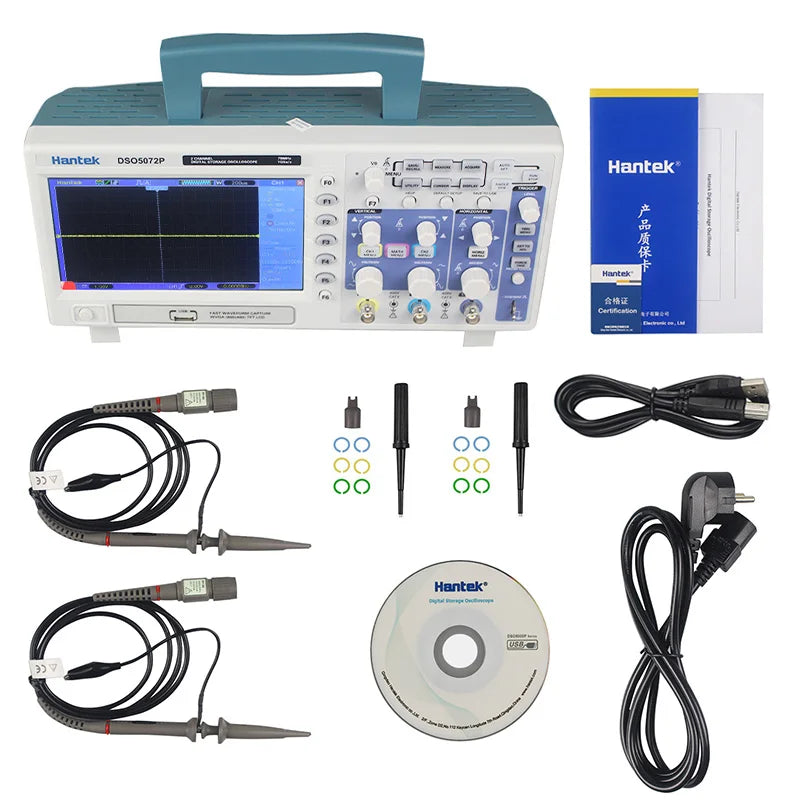

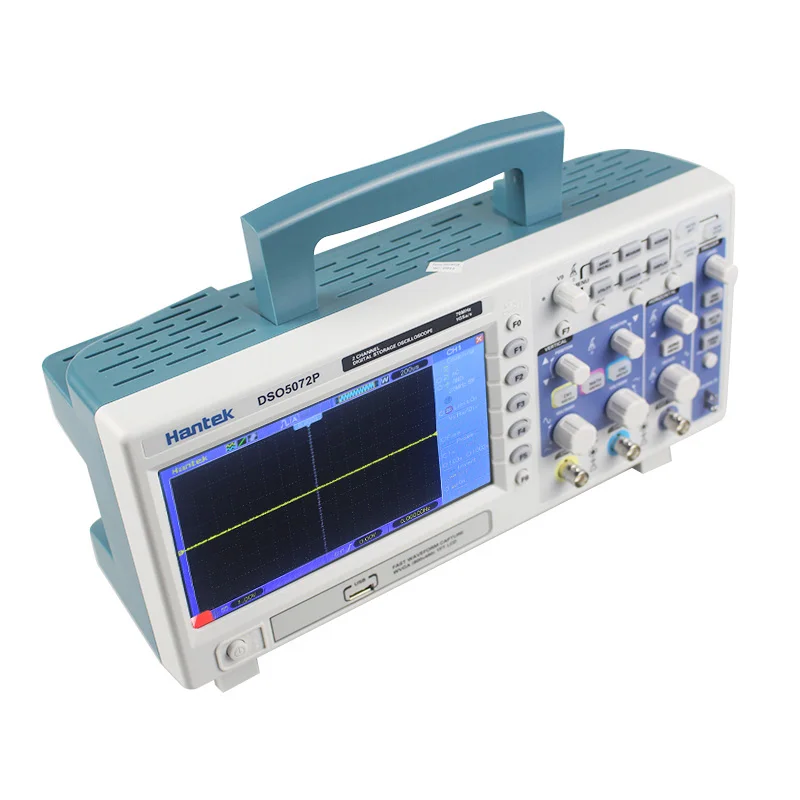

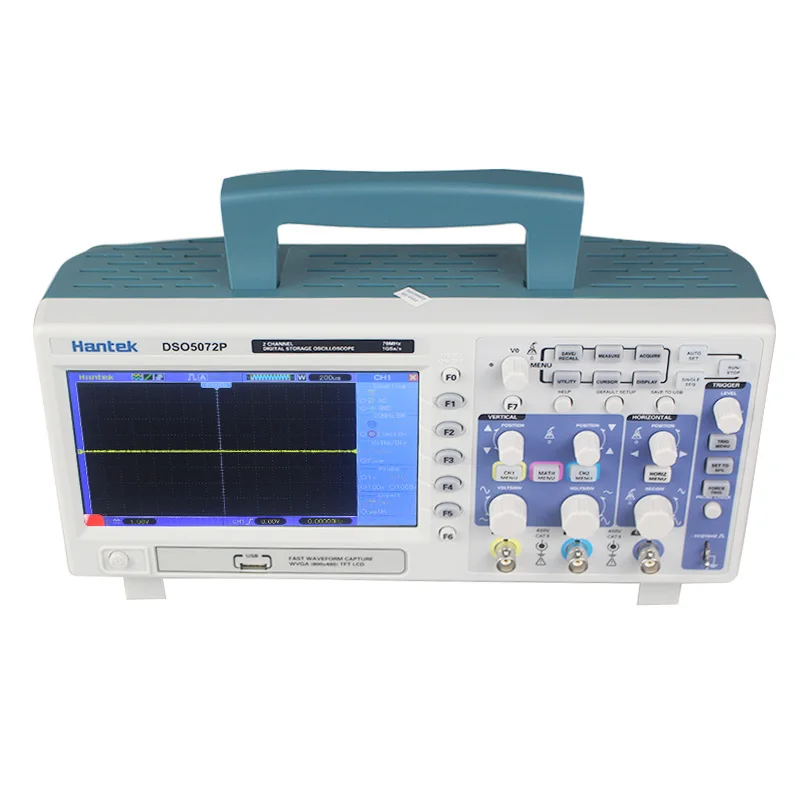

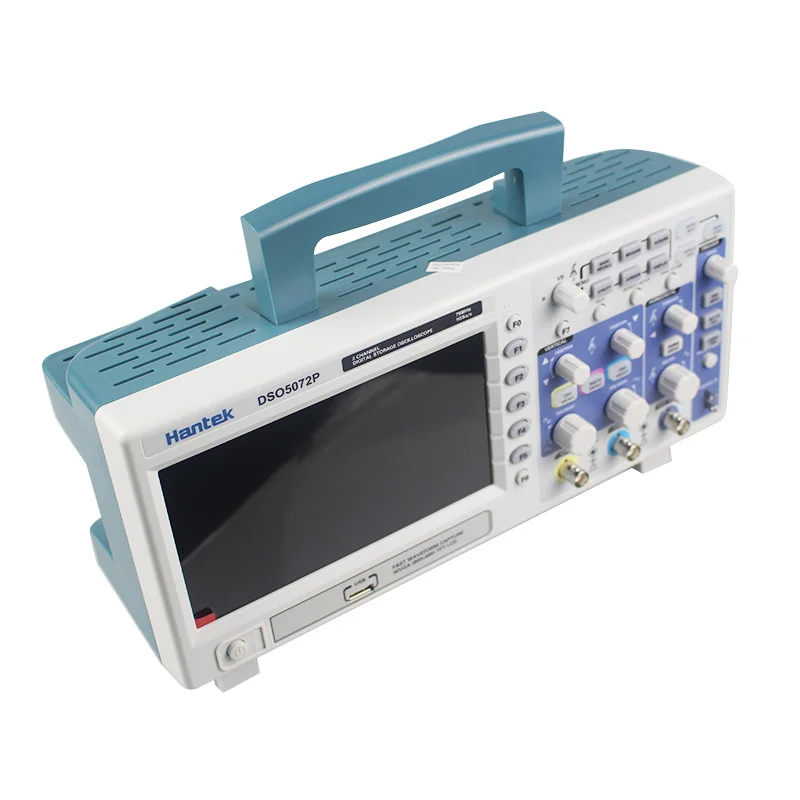

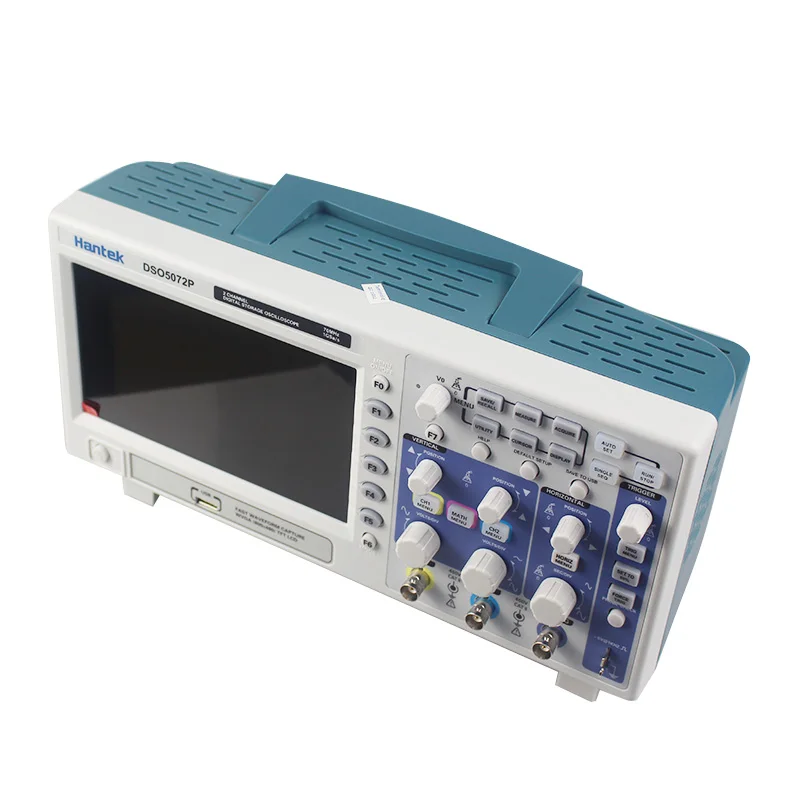

Hantek DSO5202P DSO5102P DSO5072P Digital Storage Oscilloscope 2-Channel 70MHz-200MHz Bandwidth 1GSa/S 40K TFT USB Storage

Hantek DSO5202P DSO5102P DSO5072P Digital Storage Oscilloscope 2-Channel 70MHz-200MHz Bandwidth 1GSa/S 40K TFT USB Storage

$1,386.00

$1,386.00 $0.00

Description

SPECIFICATIONS

Band Width: 100-349MHz

Battery Included: no

Brand Name: Hantek

Certification: CE

DIY Supplies: Electrical

Digital Channels: 2

Display Resolution: 640*480 Pixels

Display Size: 7 Inches & Above

HANTEK Model: DSO5202P

High-concerned chemical: none

IS Battery Demountable: No

Max Waveform Capture Rate: 30,000wfm/s

Model Number: DSO5072P DSO5202P DSO5102P

Origin: Mainland China

Real Time Sampling Rate: 1GSa/S

Record Length: 40K

Semi-finishedproduct: No

Hantek DSO5072P DSO5102P DSO5202P Digital Oscilloscope 200MHz 2Channels 1GS/s 7'' TFT LCD 800x480 Record Le

Features:

200M bandwidths

1GSa/s Real Time sample rate
Large (7.0-inch) color display,WVGA(800x480)

Record length up to 24K
Trigger mode: edge/pulse width/line selectable video/slop/overtime etc.
USB host and device connectivity, standard
Multiple automatic measurements
Four math functions, including FFTs standard

Provides software for PC real-time analysis

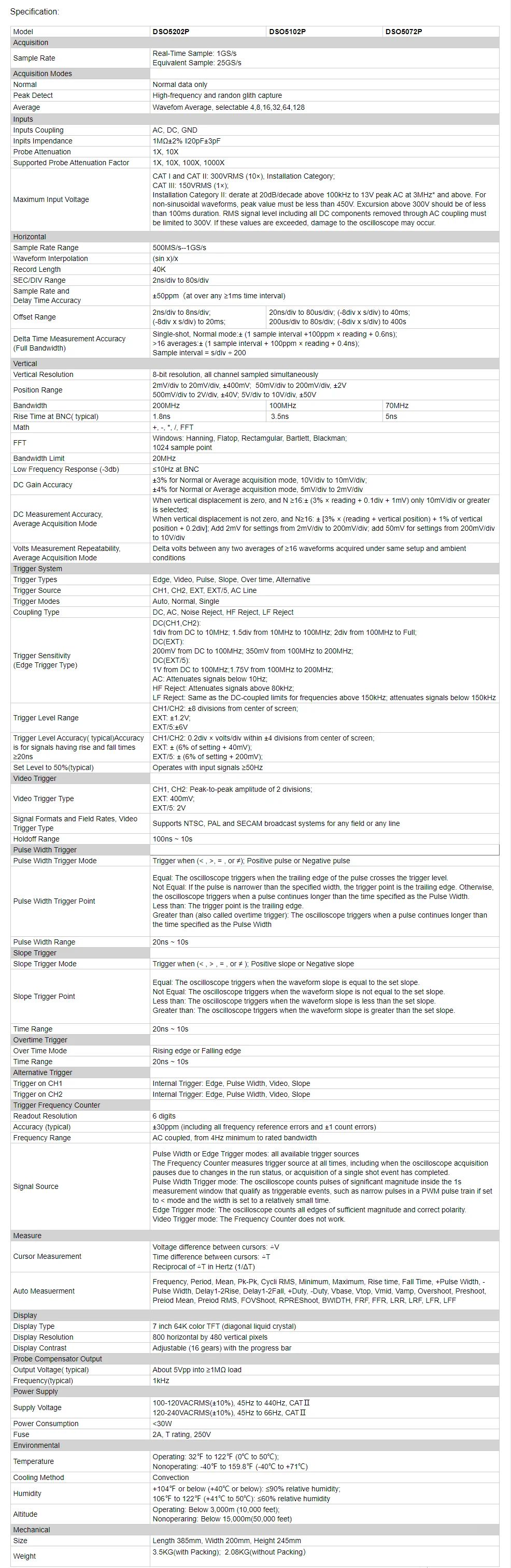

Model	DSO5202P	DSO5102P	DSO5072P
Bandwidth	200MHz	100MHz	70MHz
Channel	2
Real-Time Sample	1GSa/s
Equivalent Sample	25GSa/s
Memory Depth	40K
Rise Time	1.7ns	3.5ns	5ns
Time Base Accuracy	50ppm
Time Base Range	2ns/div-40s/div	4ns/div-40s/div
Input Impendance	1M
VOLTS/DIV Range	2mV/div-5V/div
A/D Converter	8 bit
Position Range	50V(5V/div), 40V(2V/div-500mV/div), 2V(200mV/div-50mV/div), 400mV(20mV/div-2mV/div)
DC Gain AccuracyDC Gain AccuracyDC Gain AccuracyDC Gain Accuracy	3% for Normal or Average acquisition mode, 5V/div to 10mV/div;3% for Normal or Average acquisition mode, 5V/div to 10mV/div; 4% for Normal or Average acquisition mode, 5mV/div to 2mV/div
Bandwidth LimitBandwidth LimitBandwidth LimitBandwidth Limit	20MHz
Trigger Types	Edge, Video, Pulse, Slope, Over time, Alternative
Trigger Source	CH1, CH2, EXT, EXT/5, AC Line
Math	+,-,x,÷,FFT
Cursor Measurement	Voltage difference between cursors: V; Time difference between cursors: T; Reciprocal of T in Hertz (1/T);
Auto Measuerment	Frequency, Period, Mean, Pk-Pk, Cycli RMS, Minimum, Maximum, Rise time, Fall Time, +Pulse Width, -Pulse Width, Delay1-2Rise, Delay1-2Fall, +Duty, -Duty, Vbase, Vtop, Vmid, Vamp, Overshoot, Preshoot, Preiod Mean, Preiod RMS, FOVShoot, RPREShoot, BWIDTH, FRF
Display	7" TFT 16K Color LCD, 800*480 dots
Size	313mm x 108mm x 142mm
Weight	2.08KG

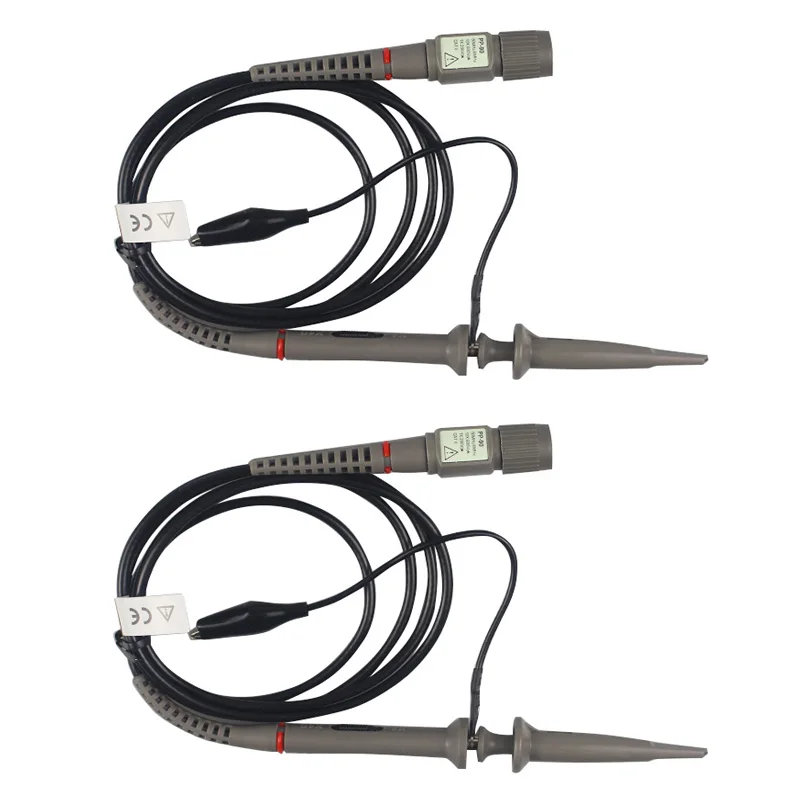

Standard Probe	PP200x2	PP150X2	PP80X2
