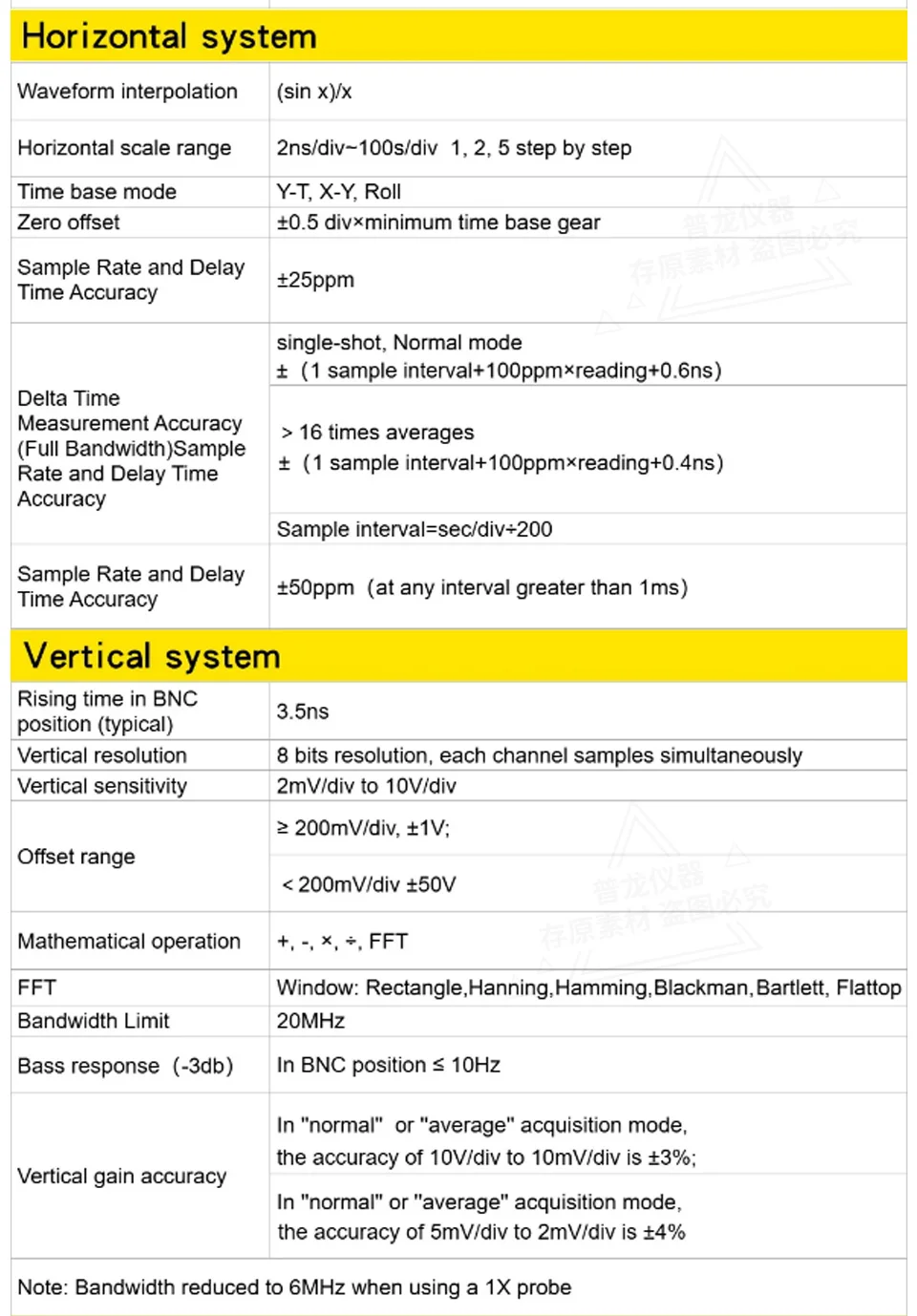

SPECIFICATIONS

Hantek official website:
https://hantek.com/

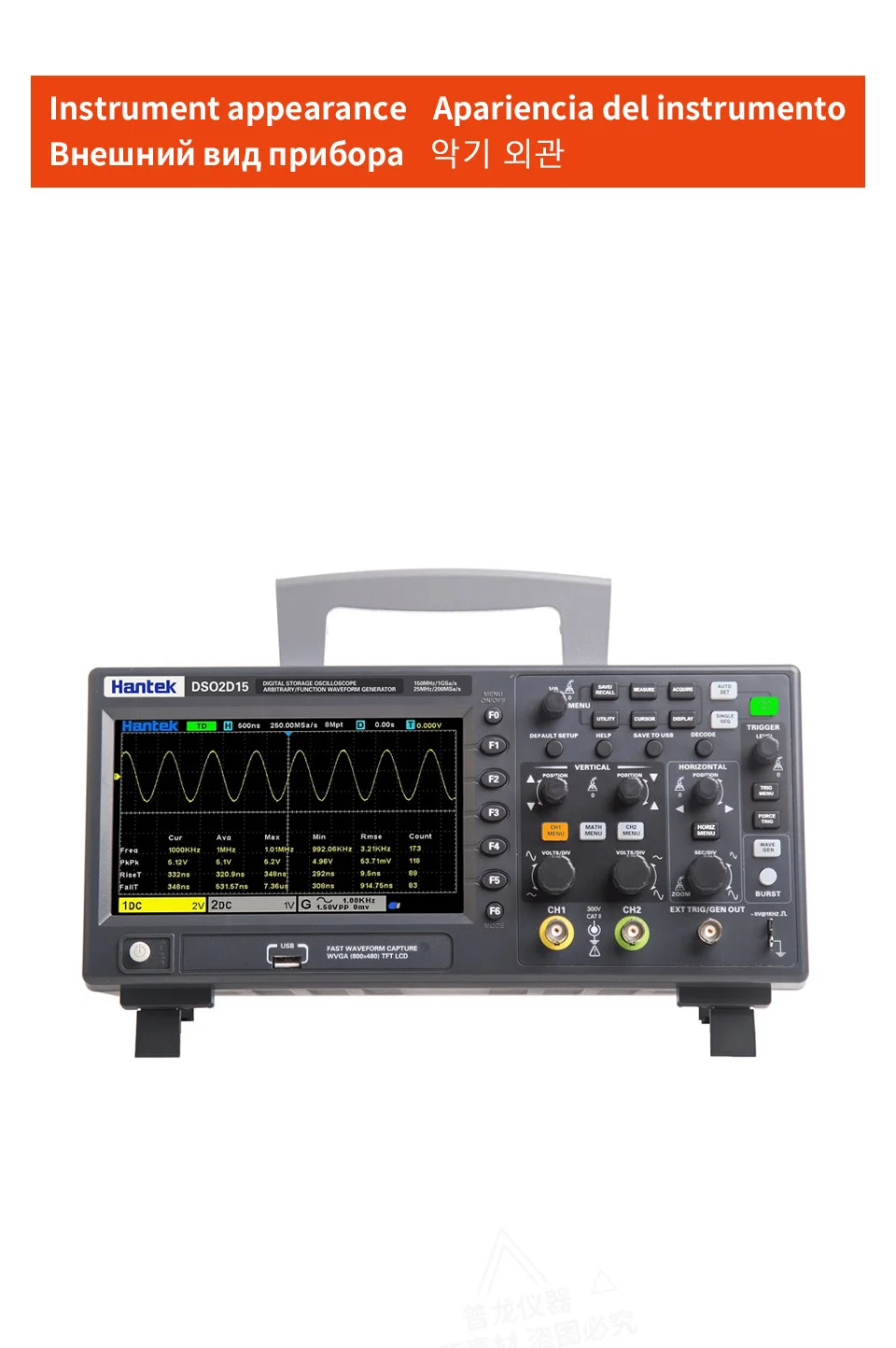

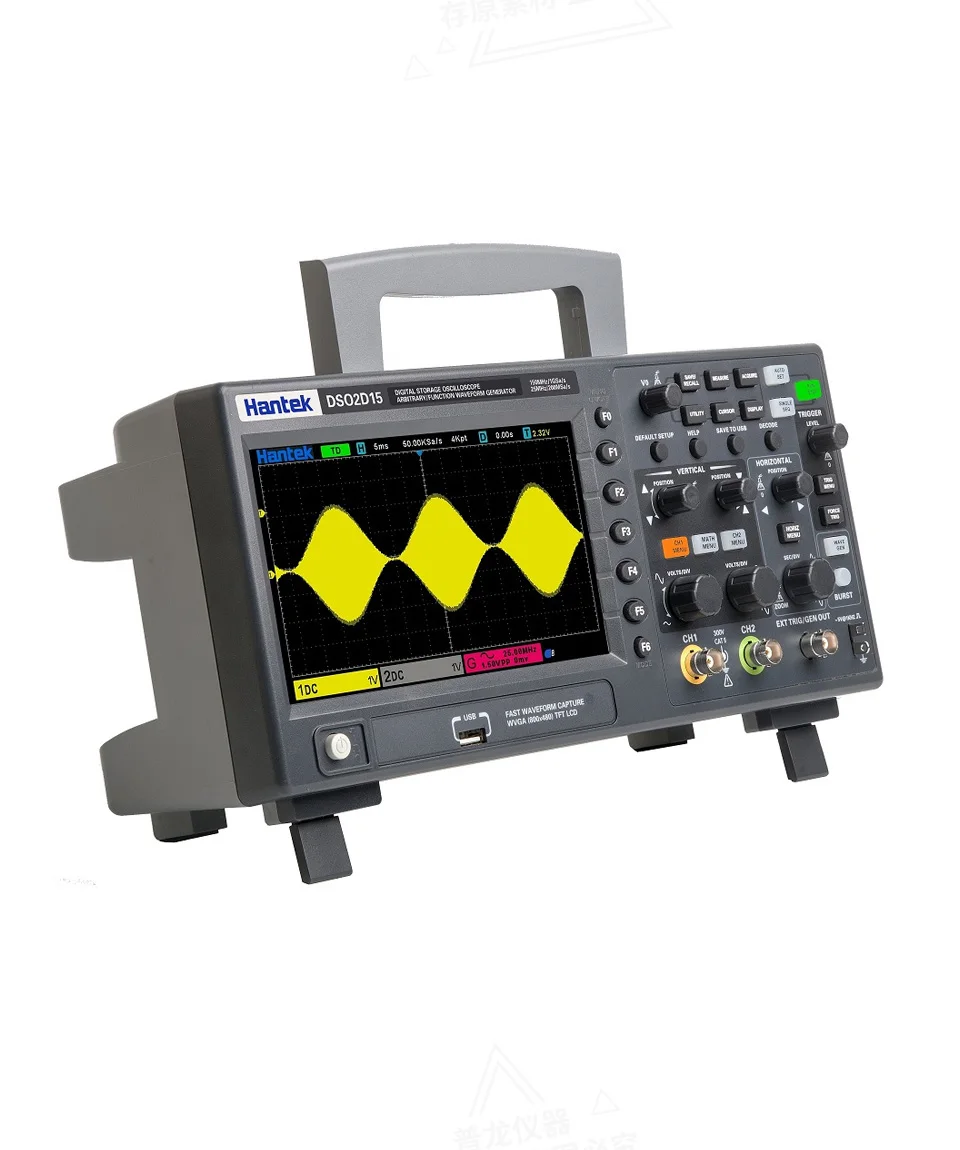

DSO2000 Series

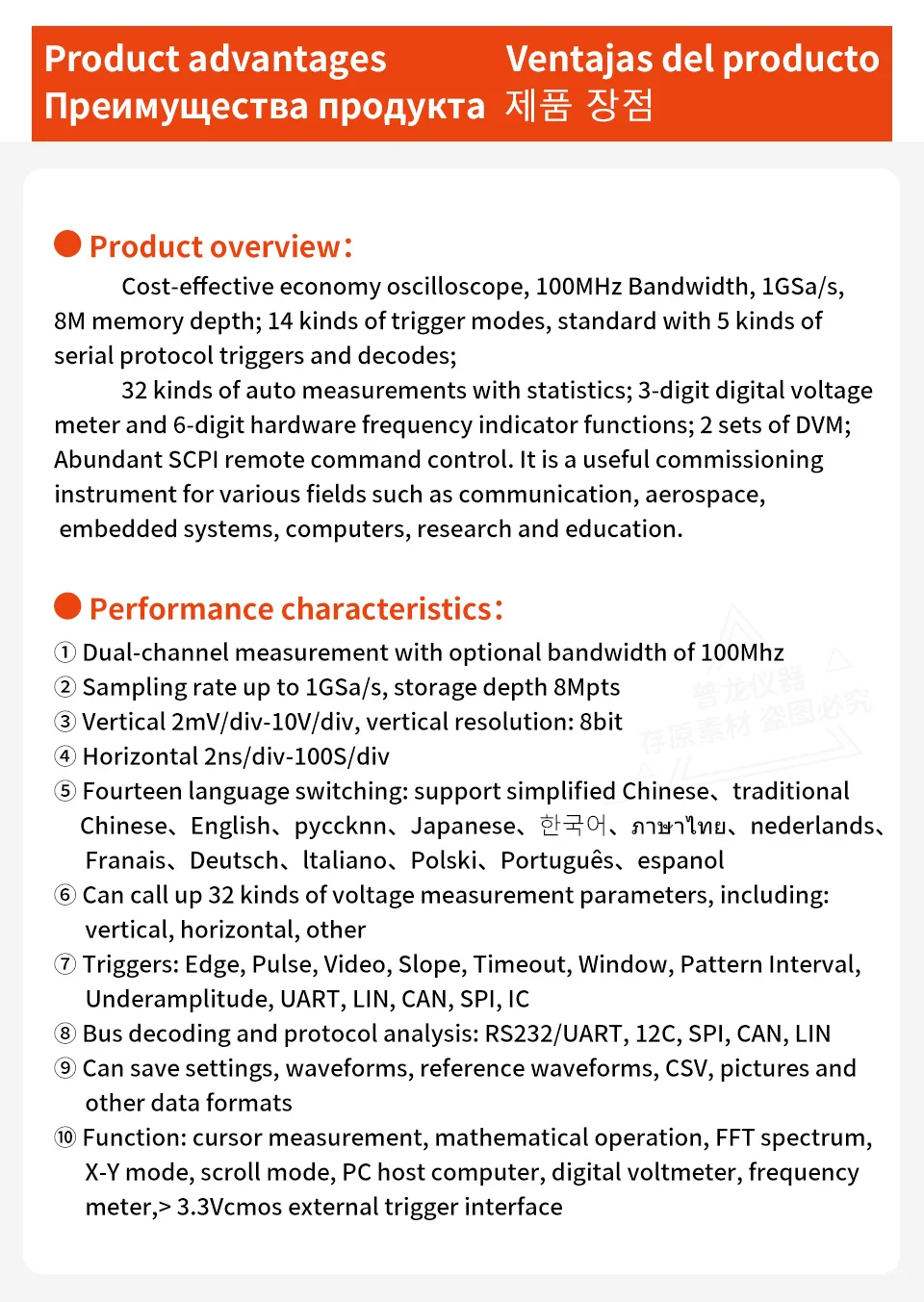

Cost-effective economy oscilloscope, 150MHz Bandwidth, 1GSa/s, 8M memory depth; with 1CH 25MHz waveform generator, support arbitrary waveform output; 14 kinds of trigger modes, standard with 5 kinds of serial protocol triggers and decodes; 32 kinds of auto measurements with statistics; 3-digit digital voltage meter and 6-digit hardware frequency indicator functions; 2 sets of DVM; Abundant SCPI remote command control. It is a useful commissioning instrument for various fields such as communication, aerospace, embedded systems, computers, research and education.
Feature:
1.2 channels which are respectively controlled by independent knobs
2.100 MHZ and 150MHZ analog channel bandwidth
3.Sampling rate up to 1 GSa/s
4.8M memory depth
5.Vertical range 2mV/div ~ 10V/div
6.Built-in 1 CH 25MHz waveform generator (DSO2D10, DSO2D15)
7.Vertical resolution: 8bit

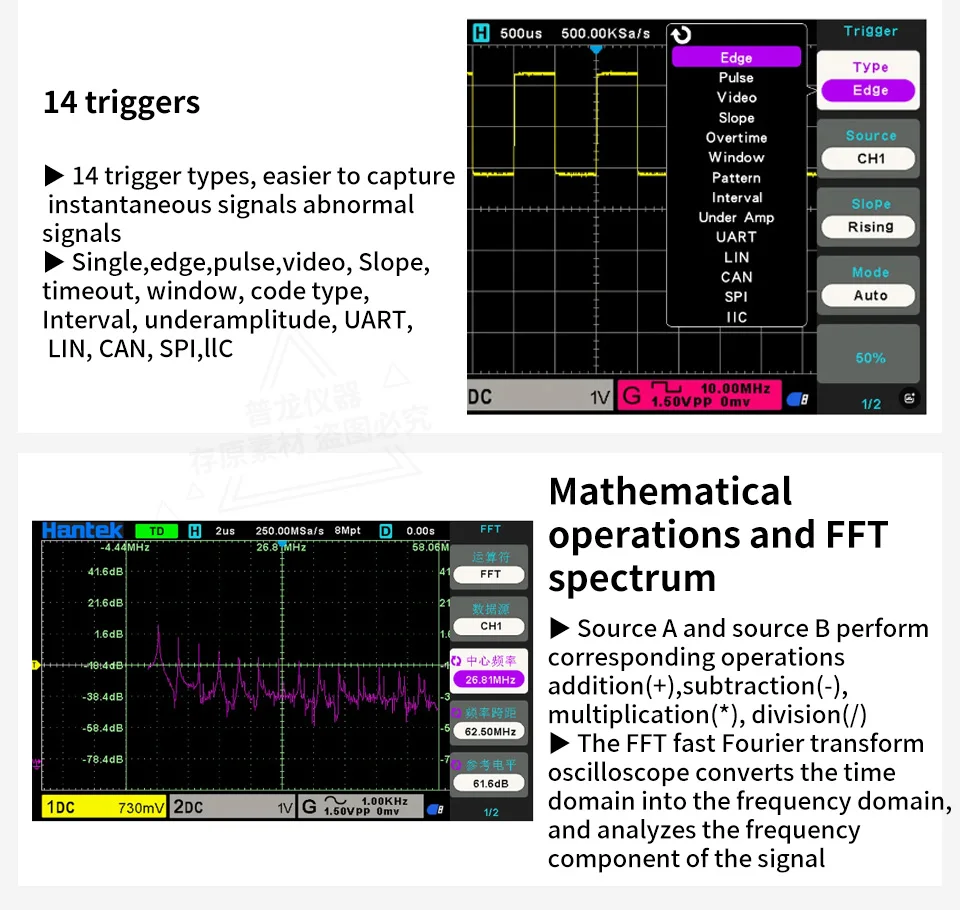

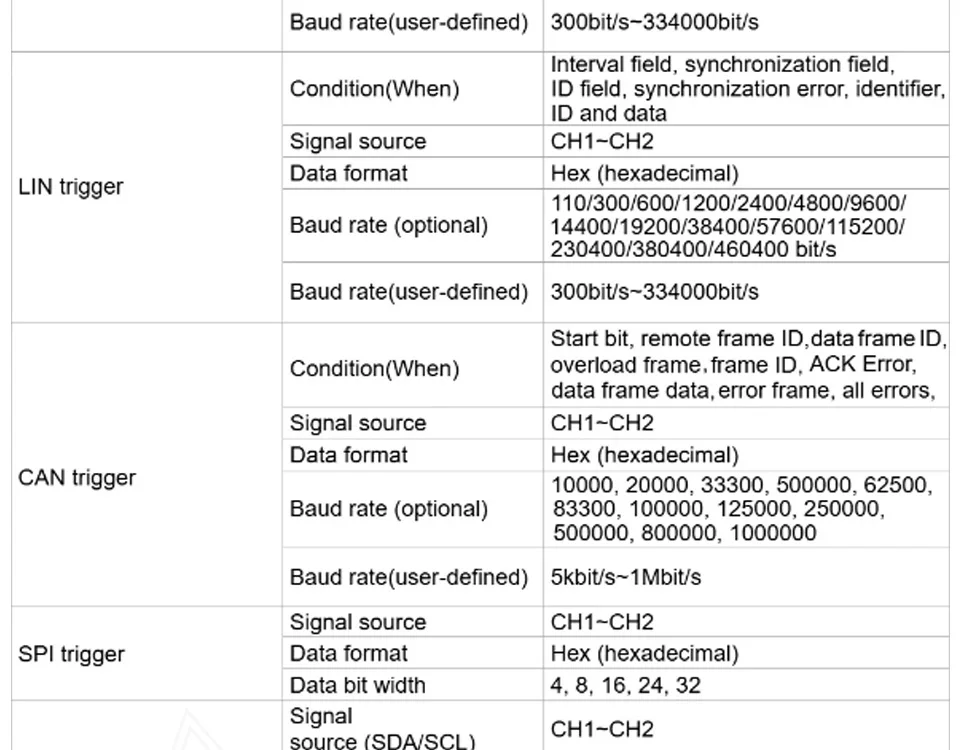

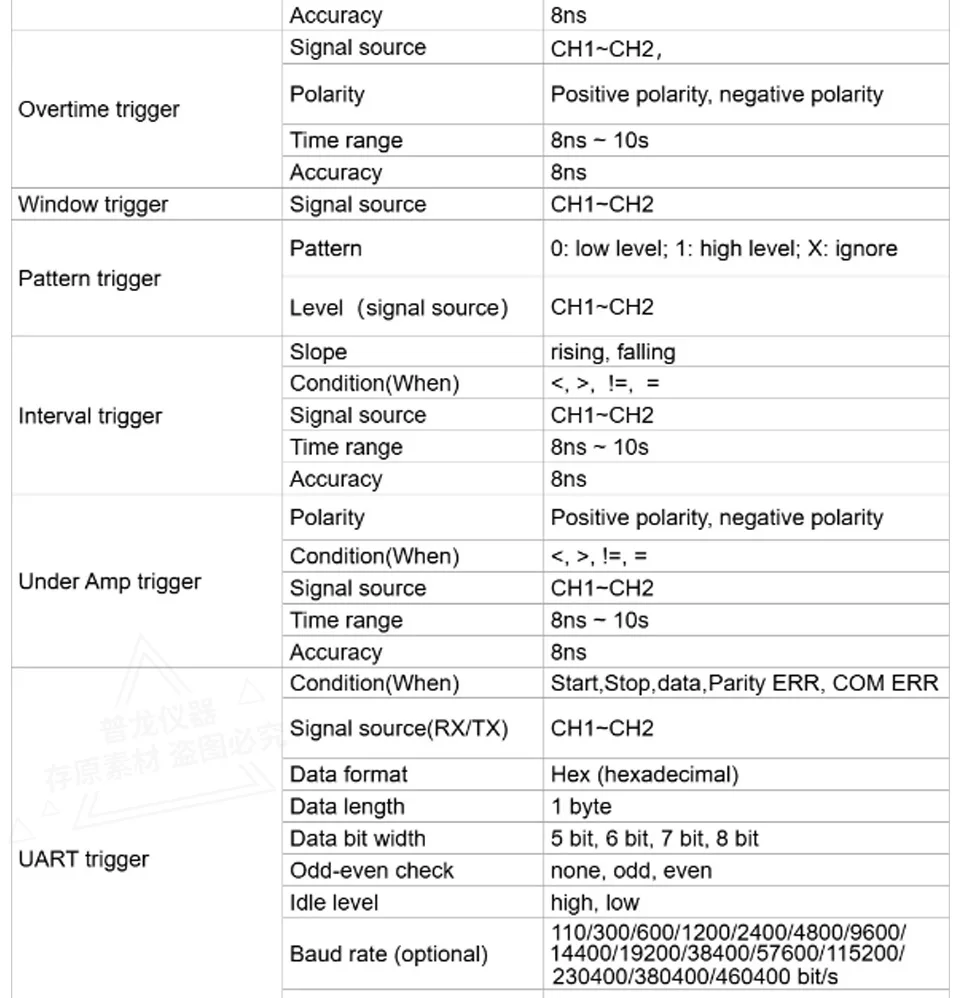

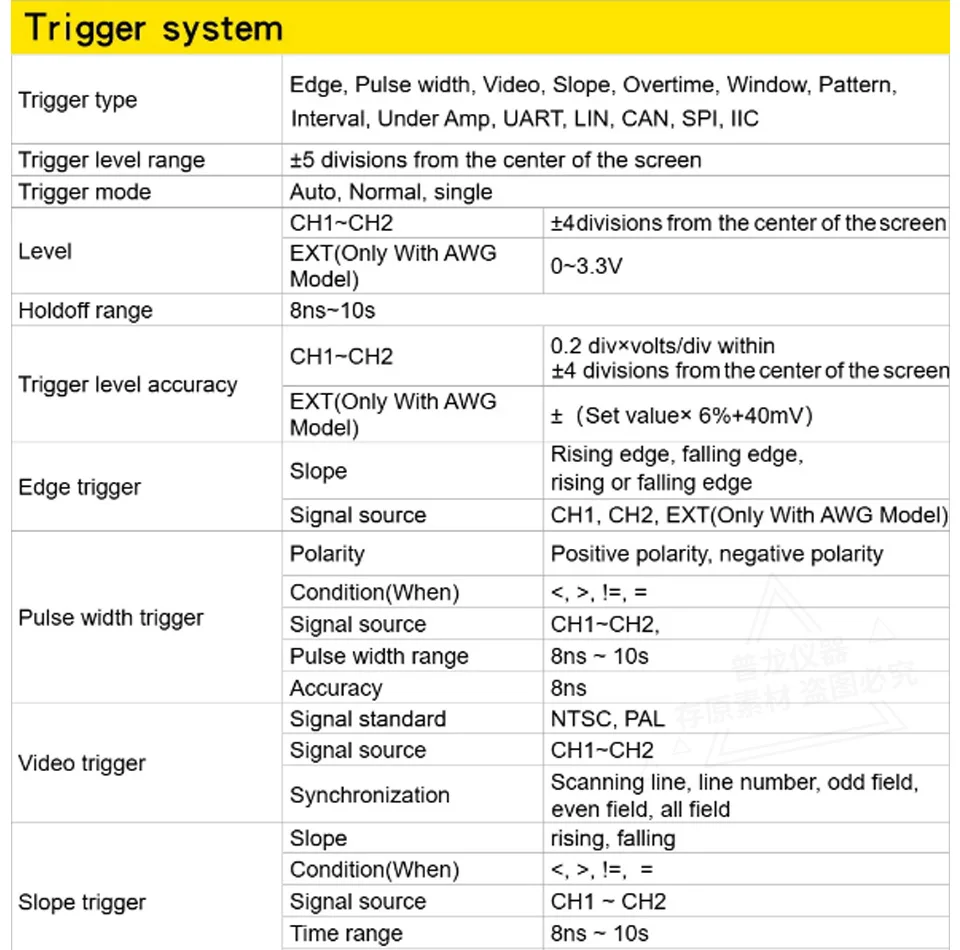

8.Trigger: Edge, Pulse, Video, Slope, Overtime, Window, Pattern, Interval, Under Amp, UART, LIN, CAN, SPI, IIC
9.BUS decode and protocol analysis: RS232/UART, I2C, SPI, CAN, LIN
10.Can save multiple data formats, such as settings, waveforms, reference waveforms, CSV, pictures

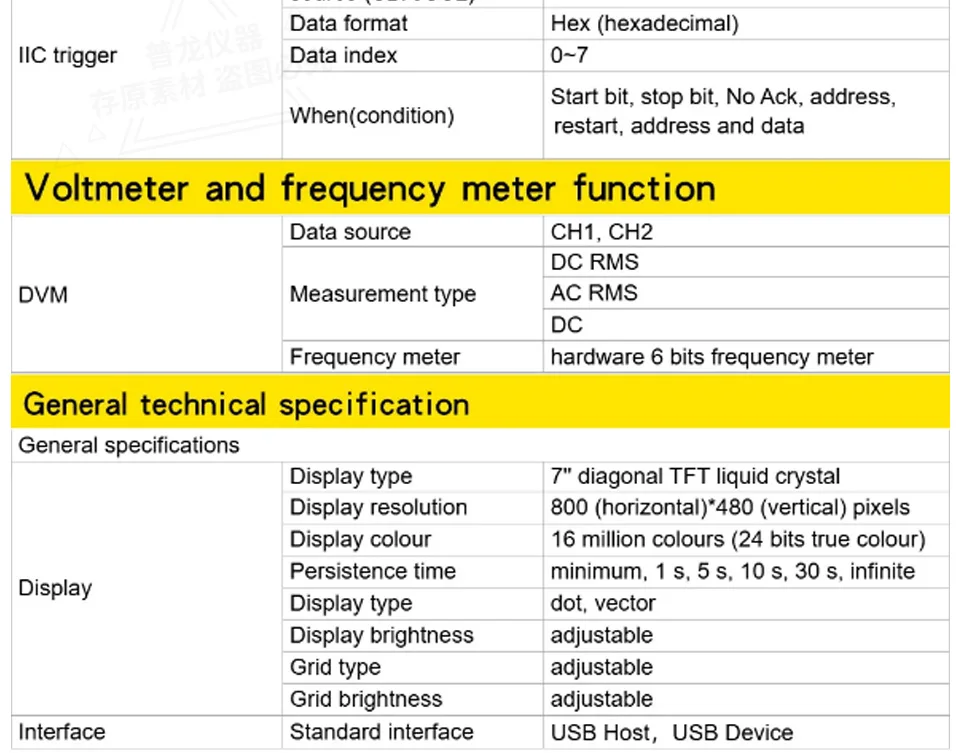

11.A 3-digit digital voltage meter and a 6-digit hardware frequency indicator

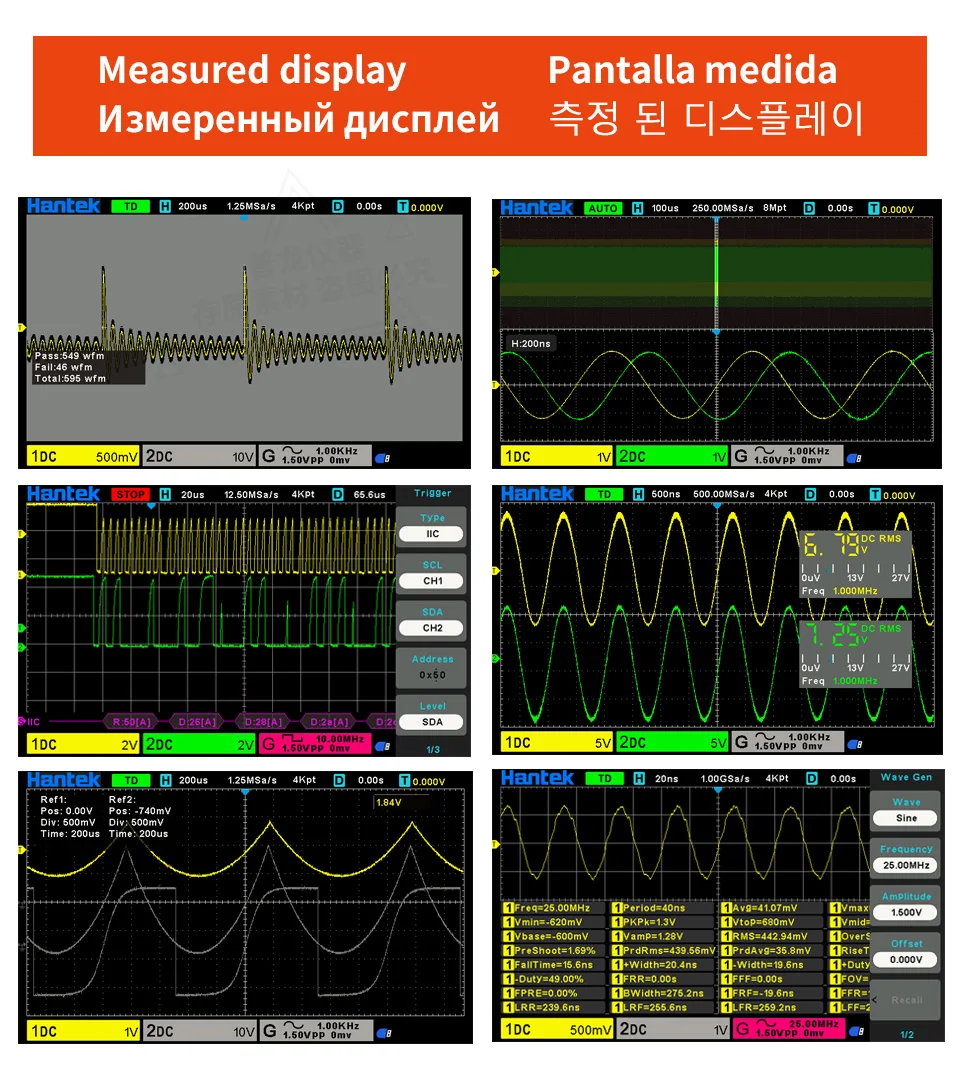

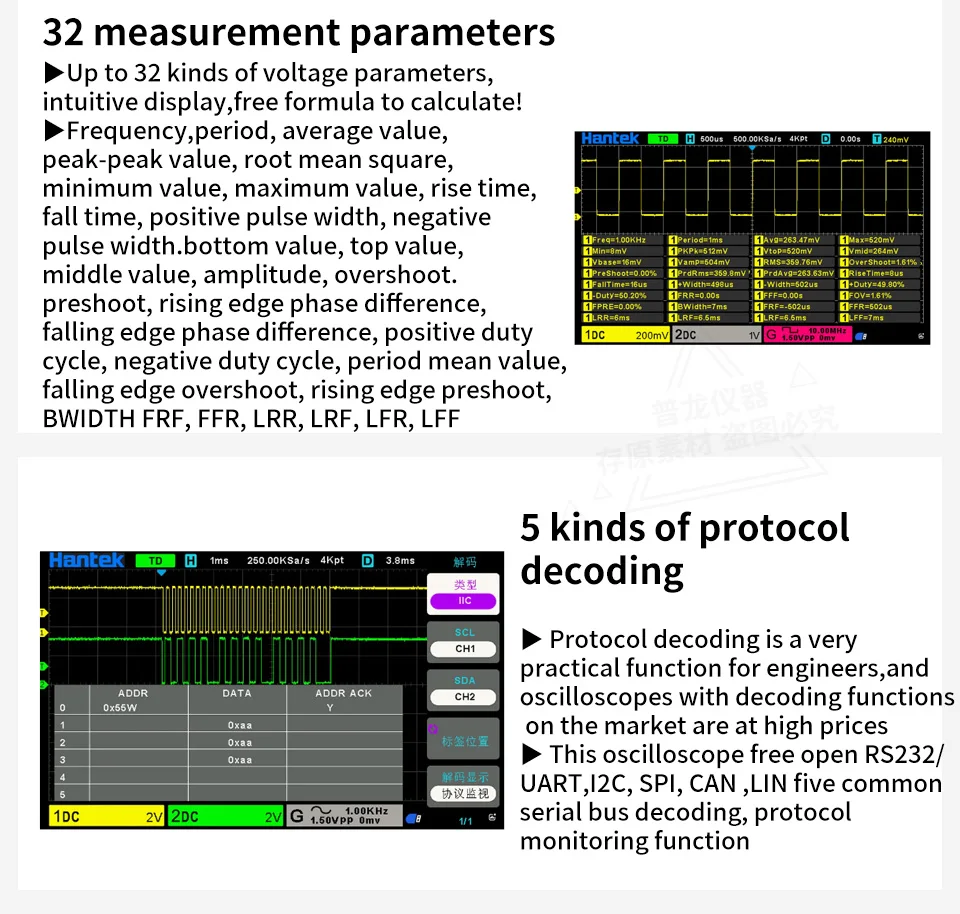

12.32 kinds of auto measurements with statistics, real-time statistics of maximum, minimum, standard deviation and etc.
13.2 sets of digital voltmeters
14.Support threshold testing, free measurements within the screen
15.Abundant SCPI remote command control
16.USB Host/Device.

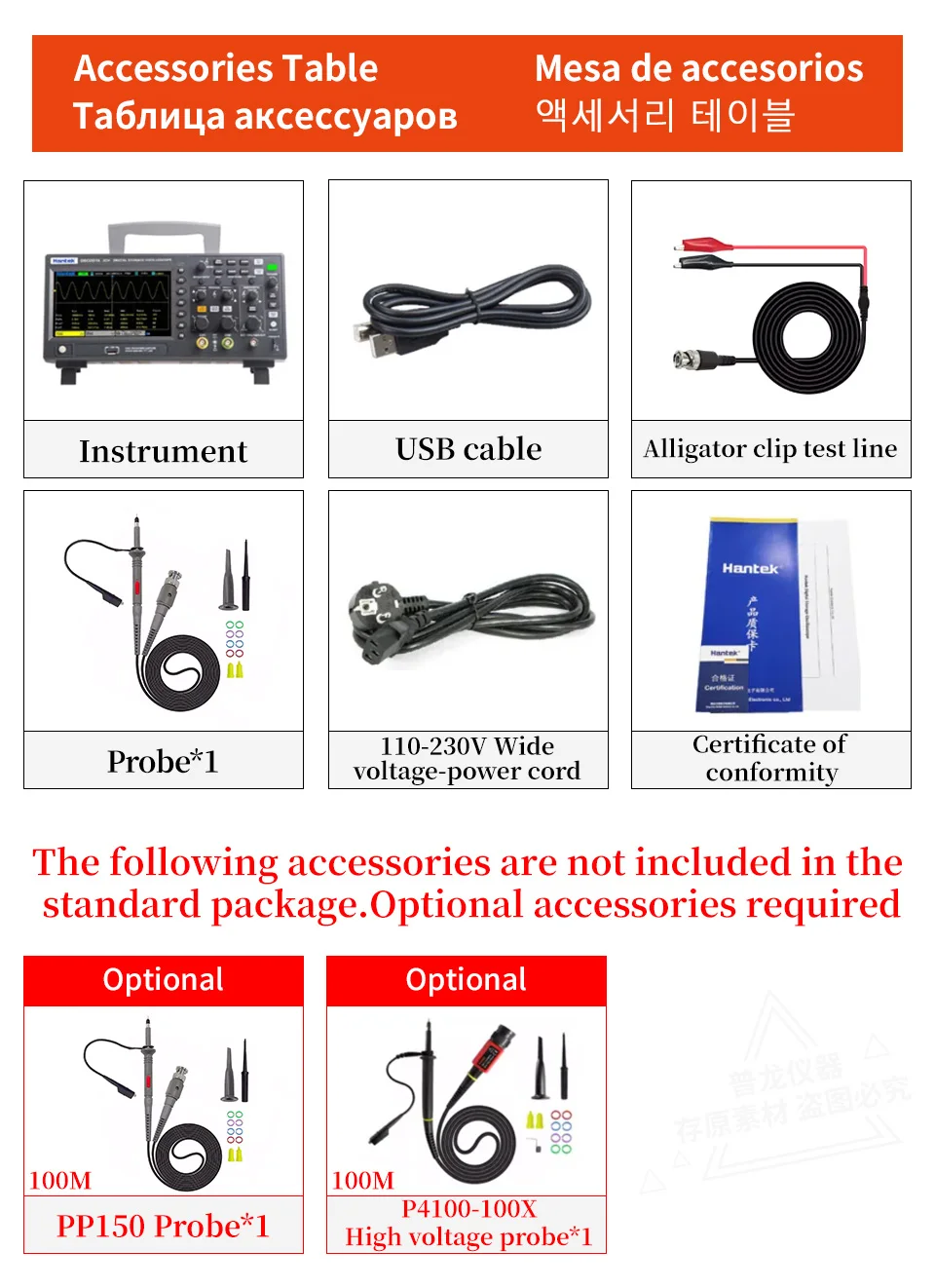

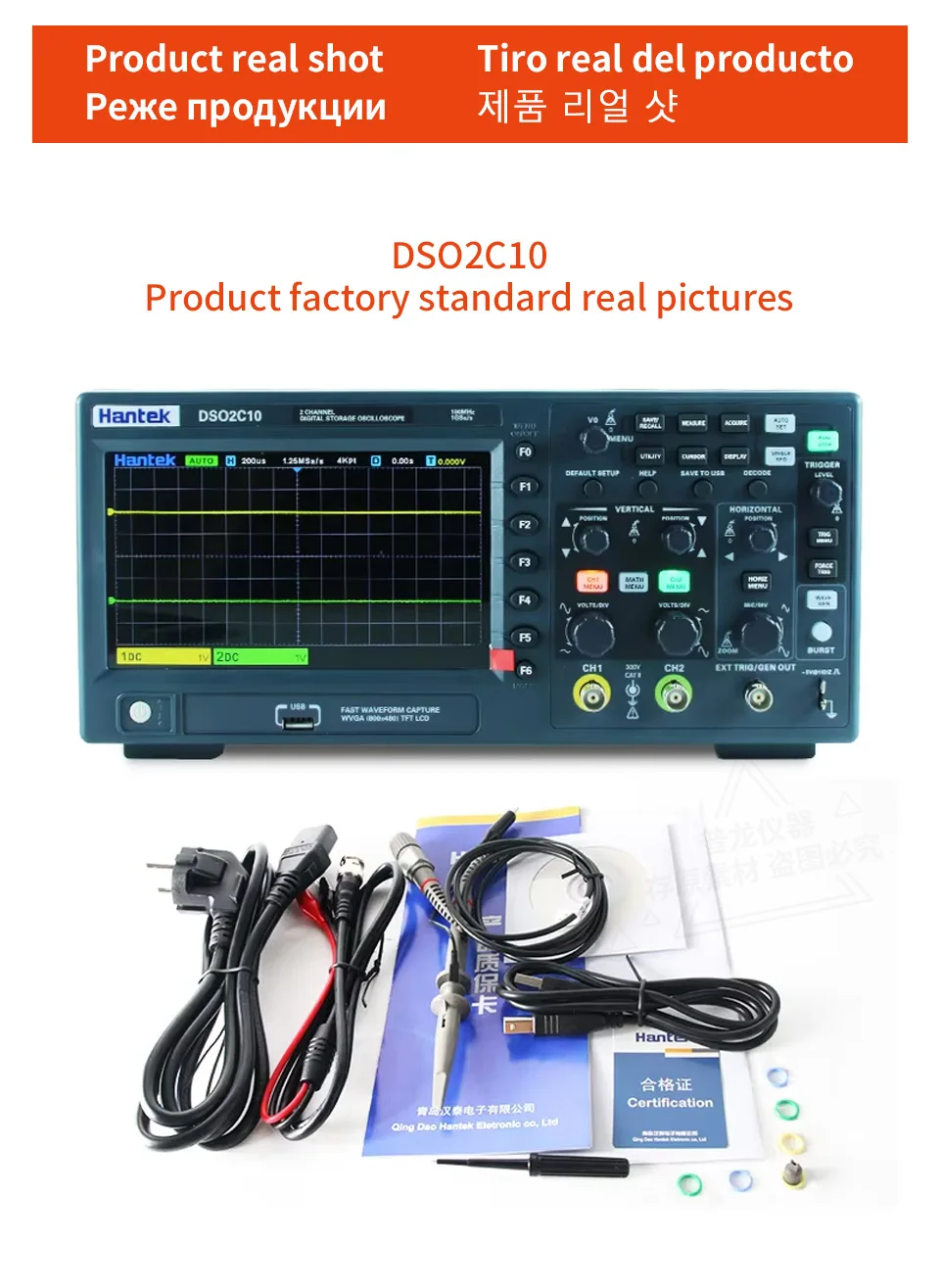

DSO2C10 Standard configuration:
Oscilloscope host*1
USB computer communication line*1
Probe*1
Signal output line*1
110-230V wide voltage-power line*1
Certificate*1
