Hantek Oscilloscopes CC65 CC650 CC800 AC/DC Current Clamp Meter 20KHz 400Hz Bandwidth 1mV/10mA 65A/650A with BNC Plug

Hantek Oscilloscopes CC65 CC650 CC800 AC/DC Current Clamp Meter 20KHz 400Hz Bandwidth 1mV/10mA 65A/650A with BNC Plug

$384.56

$384.56 $0.00

Color CC-800 with BAG CC-650 with BAG CC-65 with BAG CC65 CC650 CC800

Ships FromChina Mainland

Description

SPECIFICATIONS

Band Width: Less than 60MHz

Battery Included: no

Brand Name: Hantek

Certification: CE

DIY Supplies: Electrical

Digital Channels: 2

Display Resolution: 640*480 Pixels

Display Size: None

HANTEK Model: CC65

High-concerned chemical: none

IS Battery Demountable: Yes

Max Waveform Capture Rate: 30,000wfm/s

Model Number: CC65 CC650 CC800

Origin: Mainland China

Real Time Sampling Rate: 1GSa/S

Record Length: 4K

Semi-finishedproduct: No

Hantek oscilloscope AC/DC Current Clamp probe CC-65 CC-650 CC-800 20KHz/400Hz Bandwidth 1mV/10mA 65A/650A with BNC plu

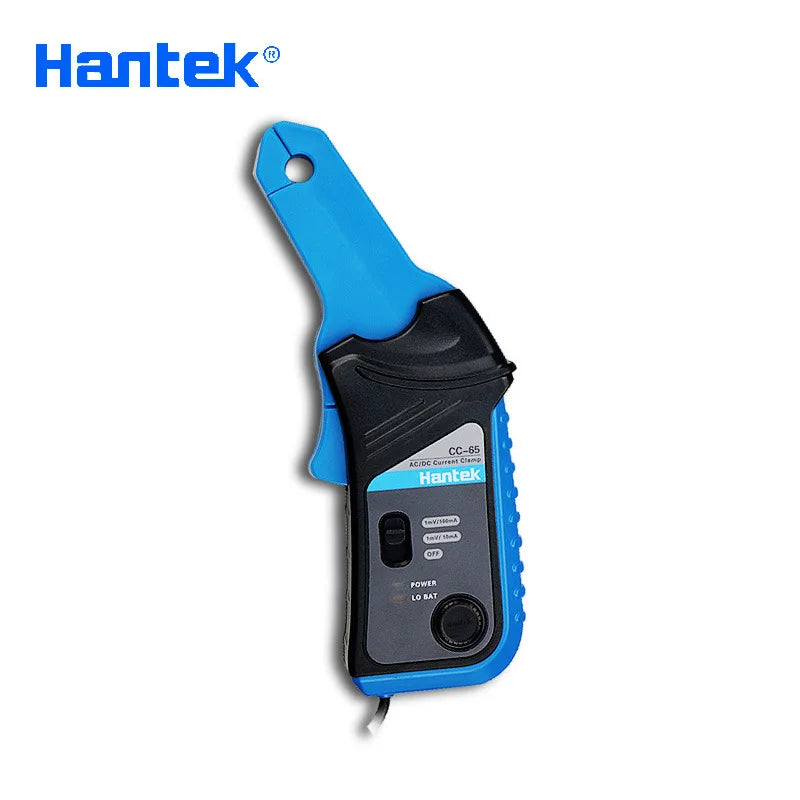

AC/DC Current Clamp CC-65:

AC/DC Current Clamp, 20kHz Bandwidth, 1mV/10mA, 65A; It is a transducer which allows your multimeter to measure current data and enable your oscilloscope to measure the current waveforms. Supplied with coil cable with straight banana plug or BNC plug.

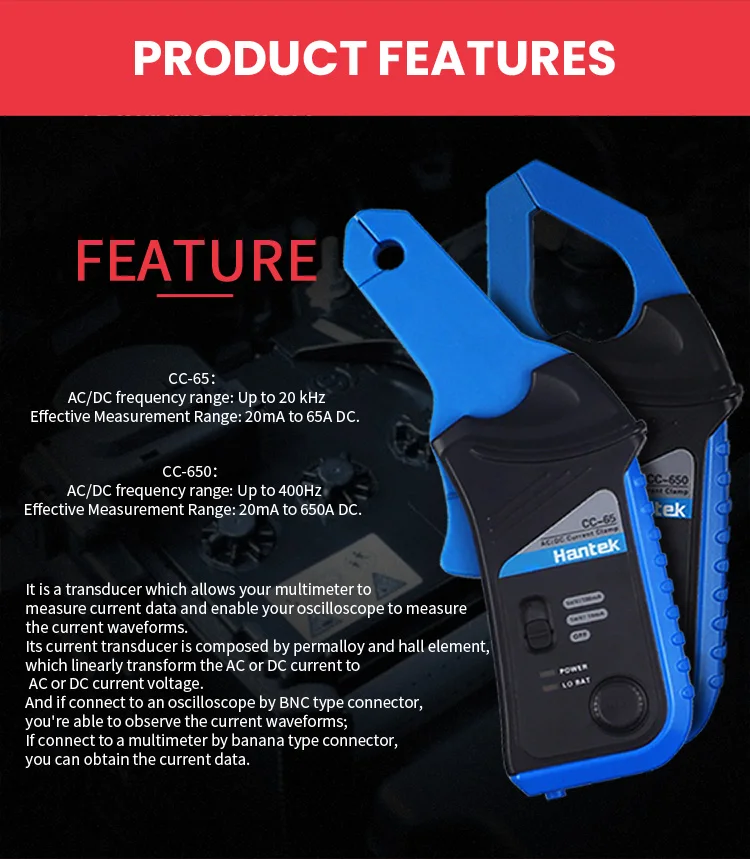

Feature:

AC/DC frequency range: Up to 20 kHz
Effective Measurement Range: 20mA to 65A DC
It is a transducer which allows your multimeter to measure current data and enable your oscilloscope to measure the current waveforms.

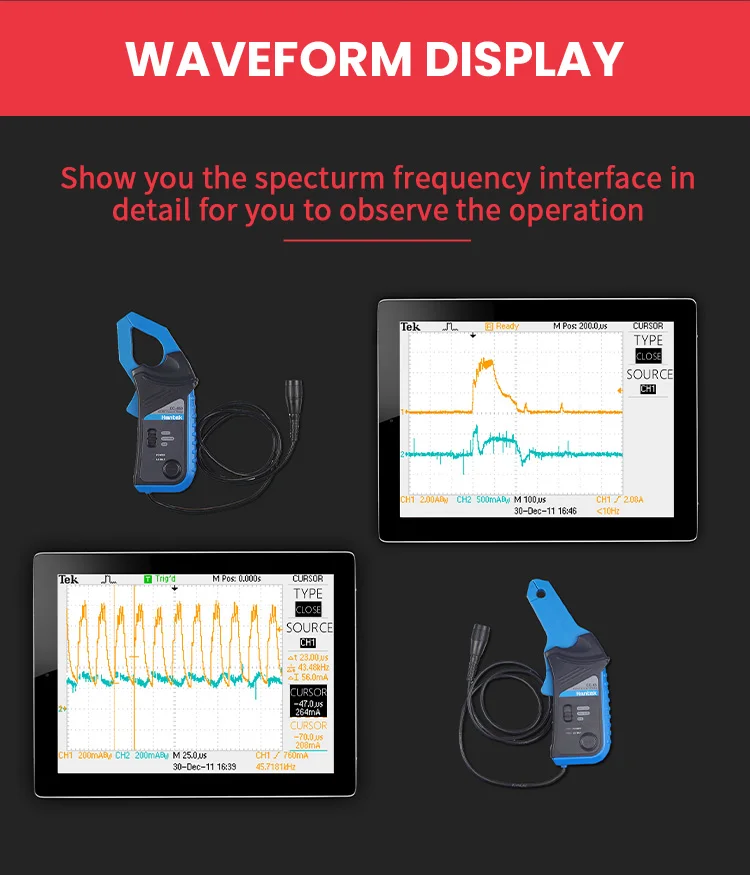

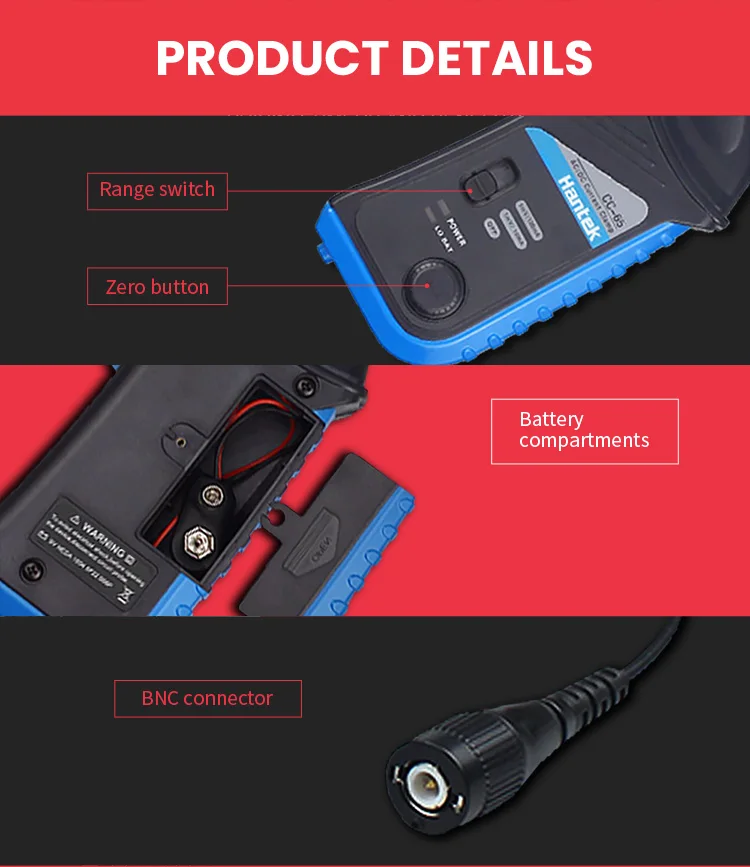

Its current transducer is composed by permalloy and hall element, which linearly transform the AC or DC current to AC or DC current voltage. And if connect to an oscilloscope by BNC type connector, you're able to observe the current waveforms; If connect to a multimeter by banana type connector, you can obtain the current data.

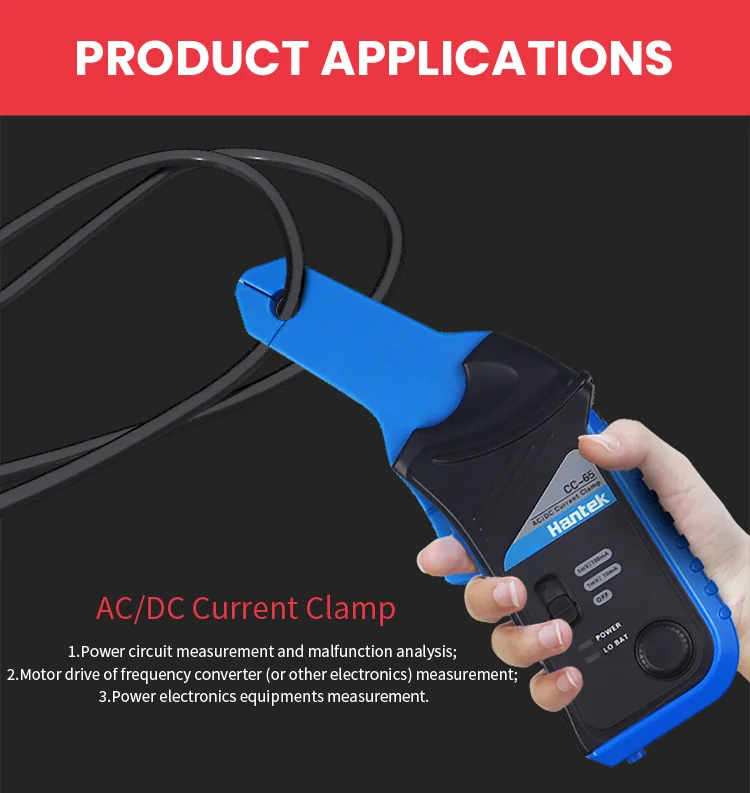

Application:

Power circuit measurement and malfunction analysis;
Motor drive of frequency converter (or other electronics) measurement;
Power electronics equipments measurement.

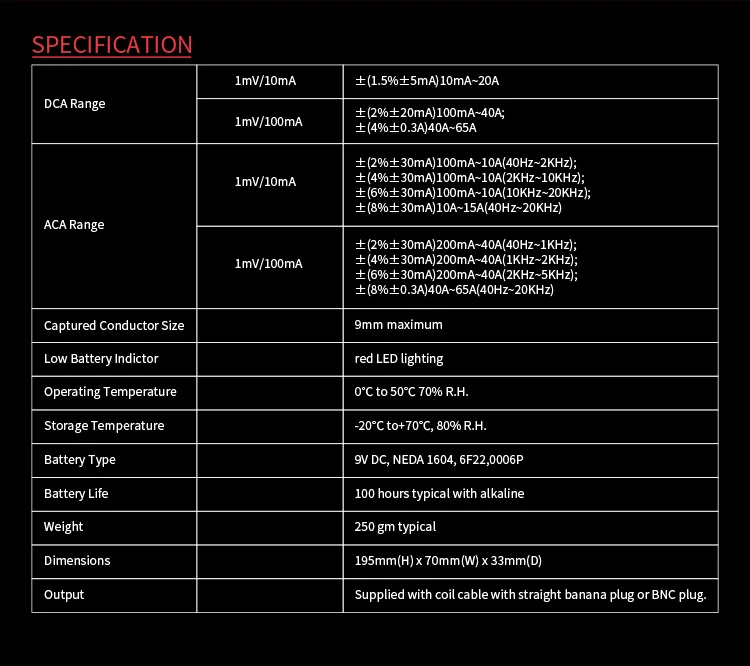

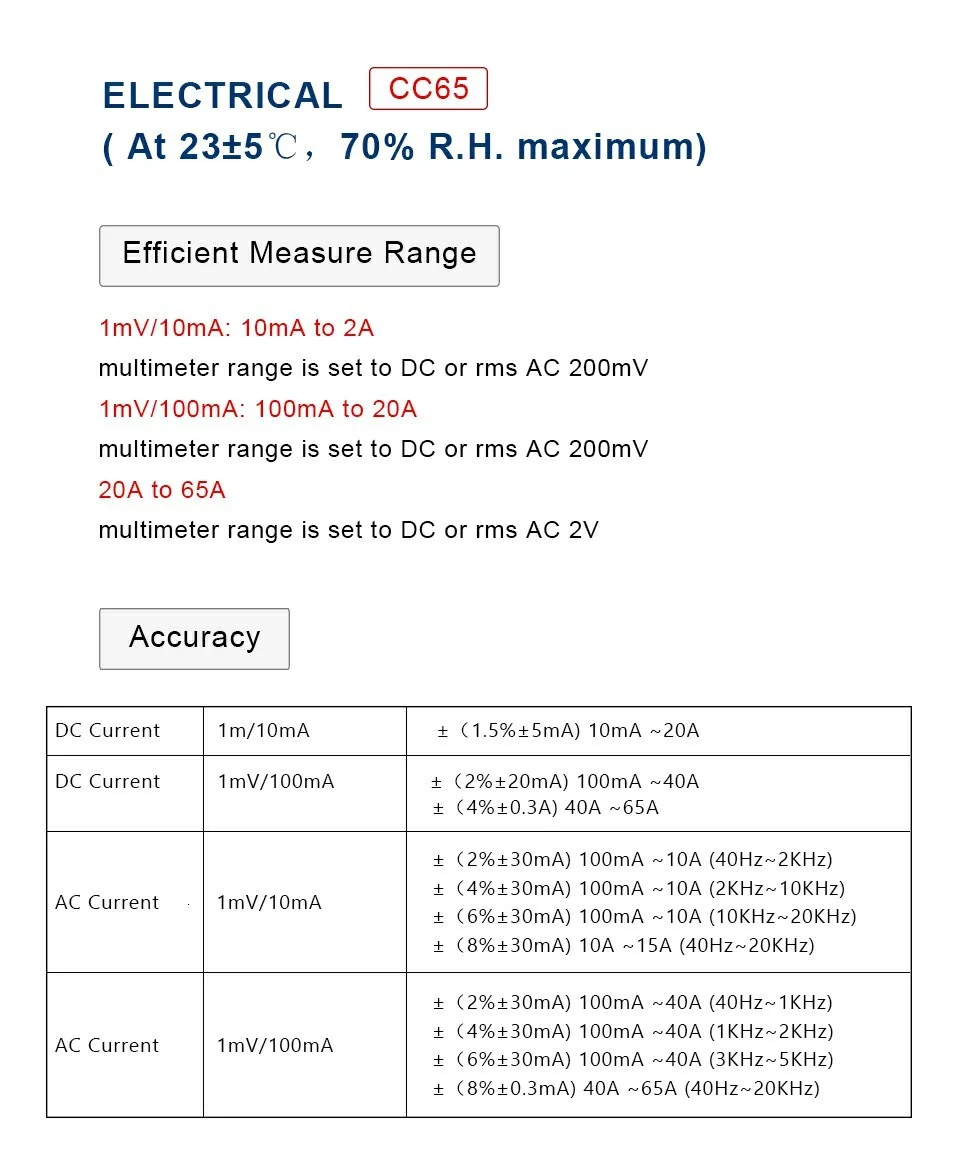

Specification
DCARange	1mV/10mA	±(1.5%±5mA)10mA~20A
	1mV/100mA	±(2%±20mA)100mA~40A;
	1mV/100mA	±(4%±0.3A)40A~65A
ACARange	1mV/10mA	±(2%±30mA)100mA~10A(40Hz~2KHz);
		±(4%±30mA)100mA~10A(2KHz~10KHz);
		±(6%±30mA)100mA~10A(10KHz~20KHz);
		±(8%±30mA)10A~15A(40Hz~20KHz)
	1mV/100mA	±(2%±30mA)200mA~40A(40Hz~1KHz);
		±(4%±30mA)200mA~40A(1KHz~2KHz);
		±(6%±30mA)200mA~40A(2KHz~5KHz);
		±(8%±0.3A)40A~65A(40Hz~20KHz)
CapturedConductorSize		9mmmaximum
LowBatteryIndictor		redLEDlighting
OperatingTemperature		0°to50°70%R.H.
StorageTemperature		-20°to+70°,80%R.H.
BatteryType		9VDC,NEDA1604,6F22,0006P
BatteryLife		100hourstypicalwithalkaline
Weight		250gmtypical
Dimensions		195mm(H)x70mm(W)x33mm(D)
Output		SuppliedwithcoilcablewithstraightbananaplugorBNCplug.

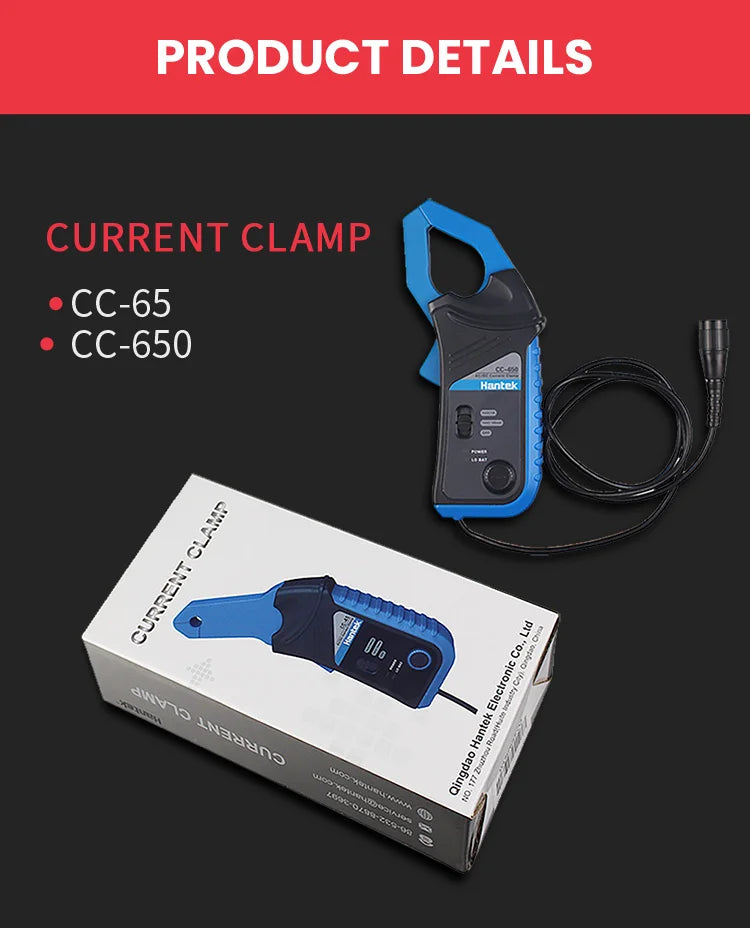

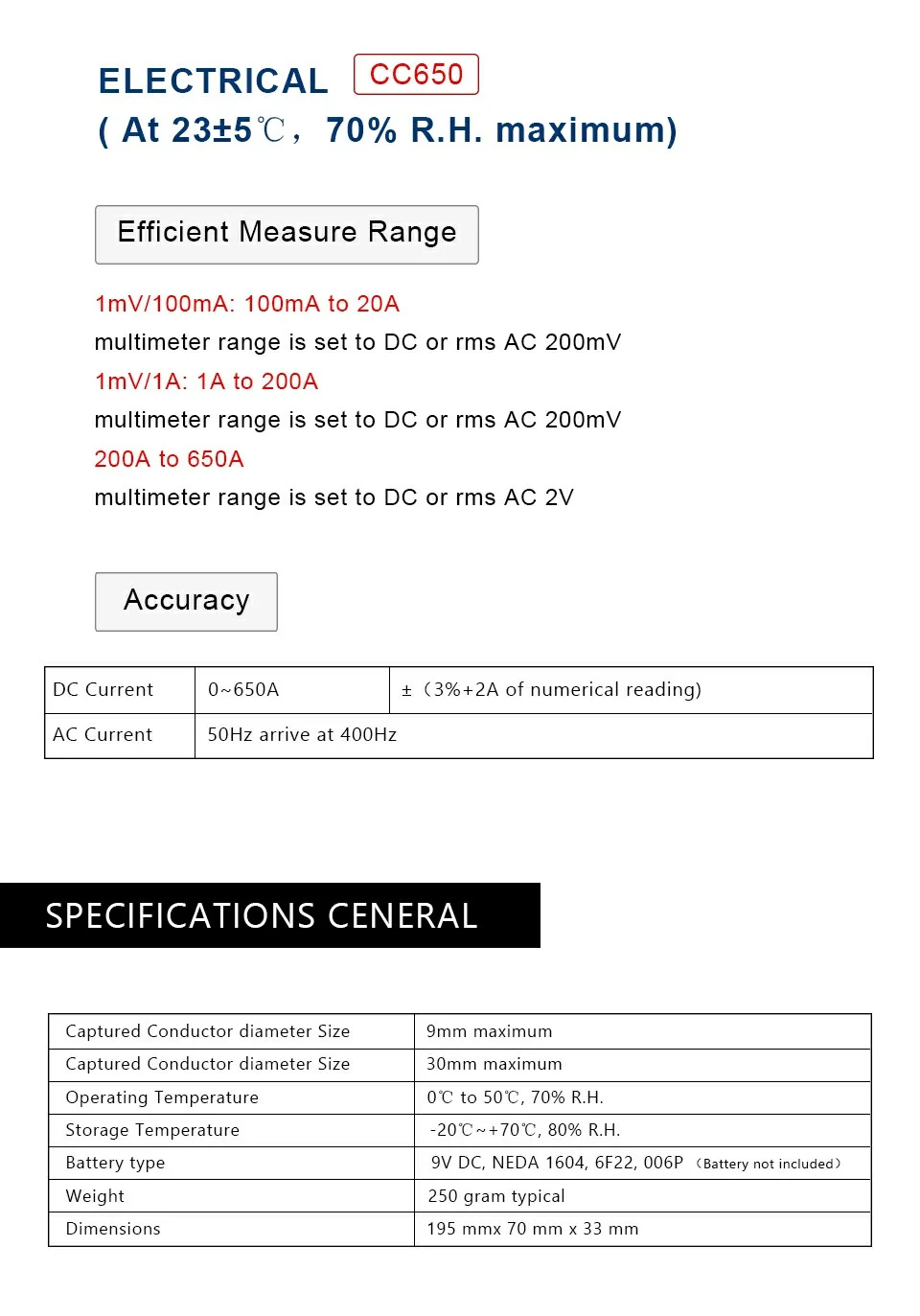

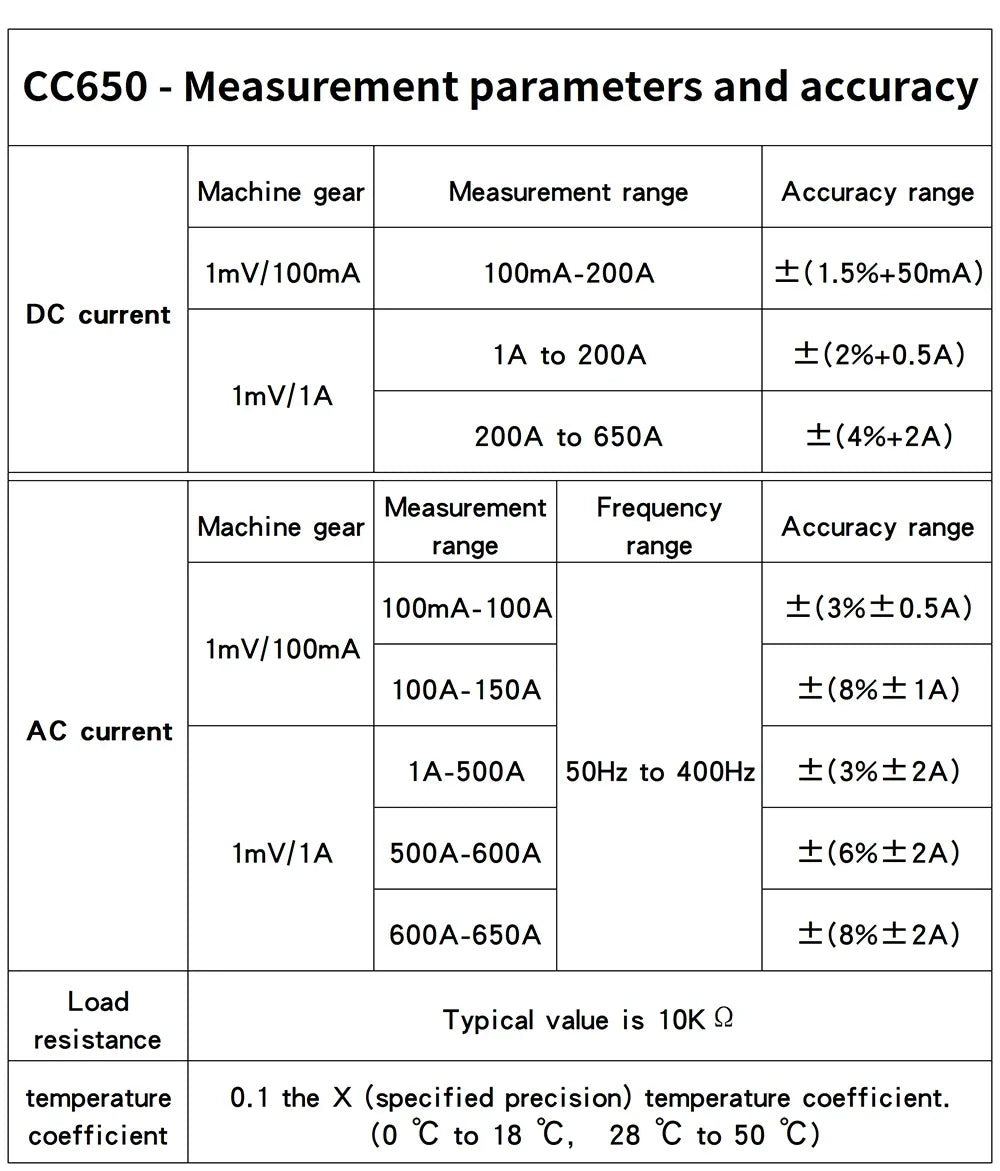

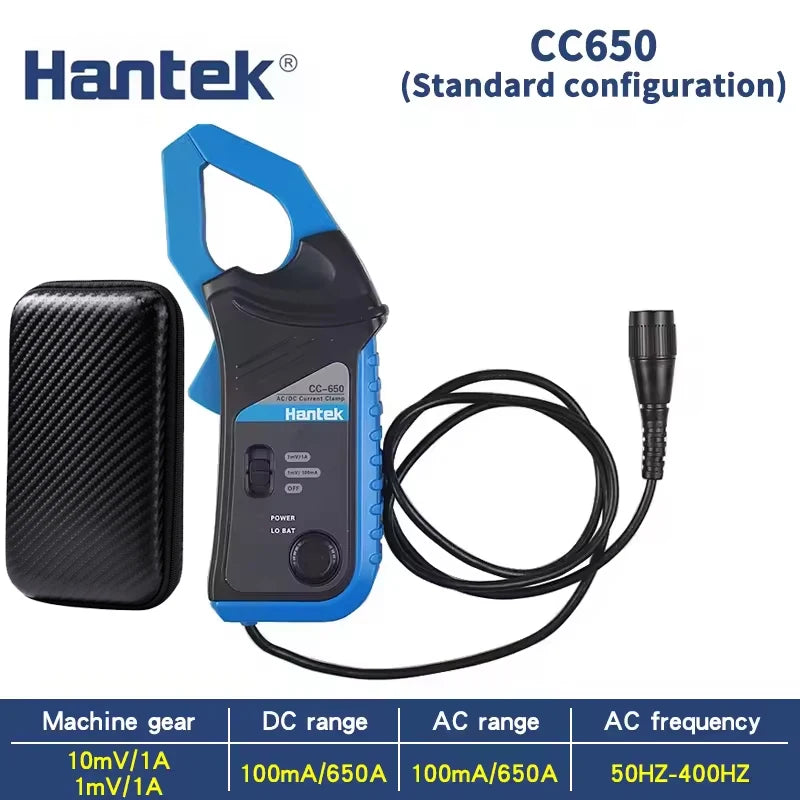

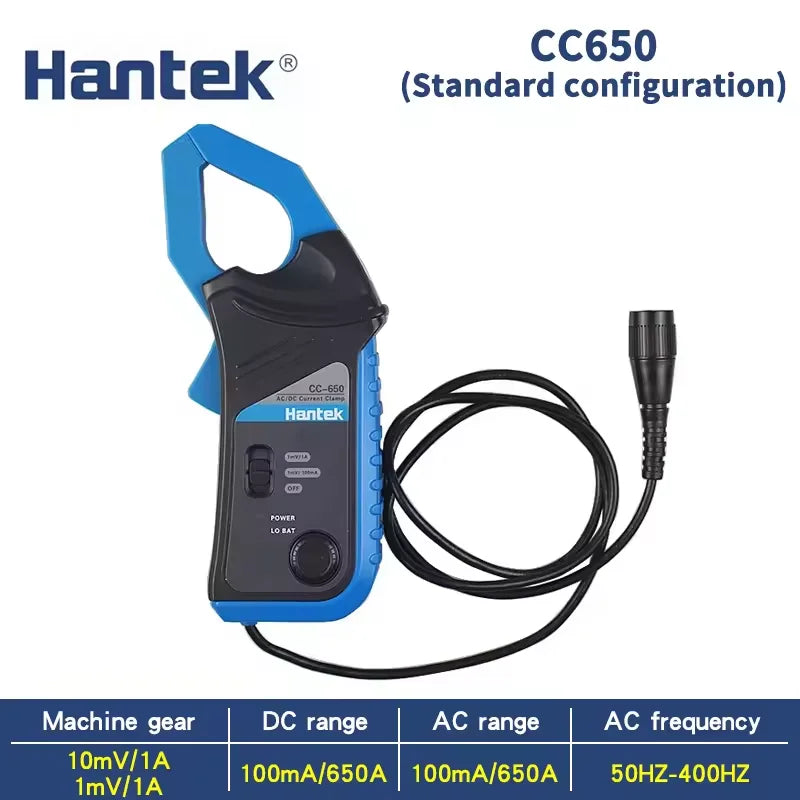

AC/DC Current Clamp CC-650:

AC/DC Current Clamp, 400Hz Bandwidth, 1mV/10mA, 650A; It is a transducer which allows your multimeter to measure current data and enable your oscilloscope to measure the current waveforms.

Feature:

AC/DC frequency range: Up to 400Hz
Effective Measurement Range: 20mA to 650A DC
It is a transducer which allows your multimeter to measure current data and enable your oscilloscope to measure the current waveforms.
Its current transducer is composed by permalloy and hall element, which linearly transform the AC or DC current to AC or DC current voltage. And if connect to an oscilloscope by BNC type connector, you're able to observe the current waveforms; If connect to a multimeter by banana type connector, you can obtain the current data.

Application:

Power circuit measurement and malfunction analysis;
Motor drive of frequency converter (or other electronics) measurement;
Power electronics equipments measurement.

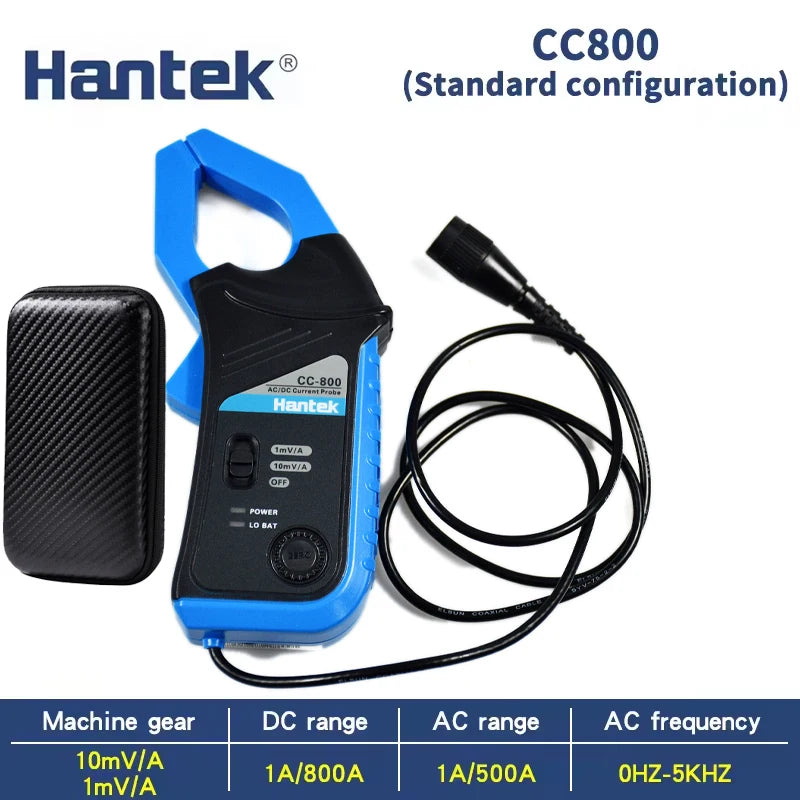

AC/DC Current Clamp CC-800:

Communication 0-5KHz, 1A -500A

DC 1A -800A

Can be used with an oscilloscope to view current waveforms, and can be used with a multimeter to view current data. A current sensor composed of Pomo alloy and Hall element, which linearly converts DC or AC current into DC or AC voltage, can be connected to an oscilloscope through a BNC connector to observe the current waveform; It can also be connected to a multimeter through a banana connector to obtain current data.

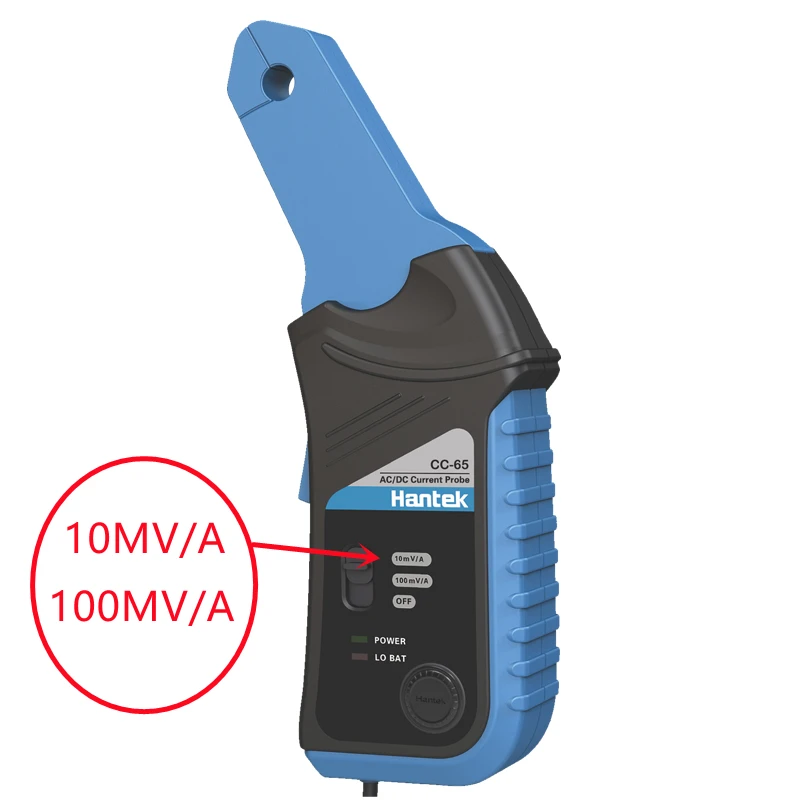

The factory has upgraded the appearance of CC65. The current product images are shown in the following figure, but the labels have changed. Other measurement data and results are the same as the old model。10mV/A=10mV/1000mA=1mV/100mA
