Hantek P4100 T3100 P6100 High Voltage Oscilloscope Scope Probe x100 100MHZ Oscilloscopi Probe Universal Oscilloscope Multimeter

Hantek P4100 T3100 P6100 High Voltage Oscilloscope Scope Probe x100 100MHZ Oscilloscopi Probe Universal Oscilloscope Multimeter

$89.48

$89.48 $0.00

Color 2PCS P6100 1PCS P6100 Adapter T3100 P4100

Description

SPECIFICATIONS

Brand Name: NONE,Hantek

Certification: CE,CE

High-concerned chemical: none,None

Origin: Mainland China,Mainland China

Oscilloscope Parts u0026 Accessories Typ: Oscilloscope Probe & Accessories

Oscilloscope Parts u0026 Accessories Type: Oscilloscope Probe & Accessories

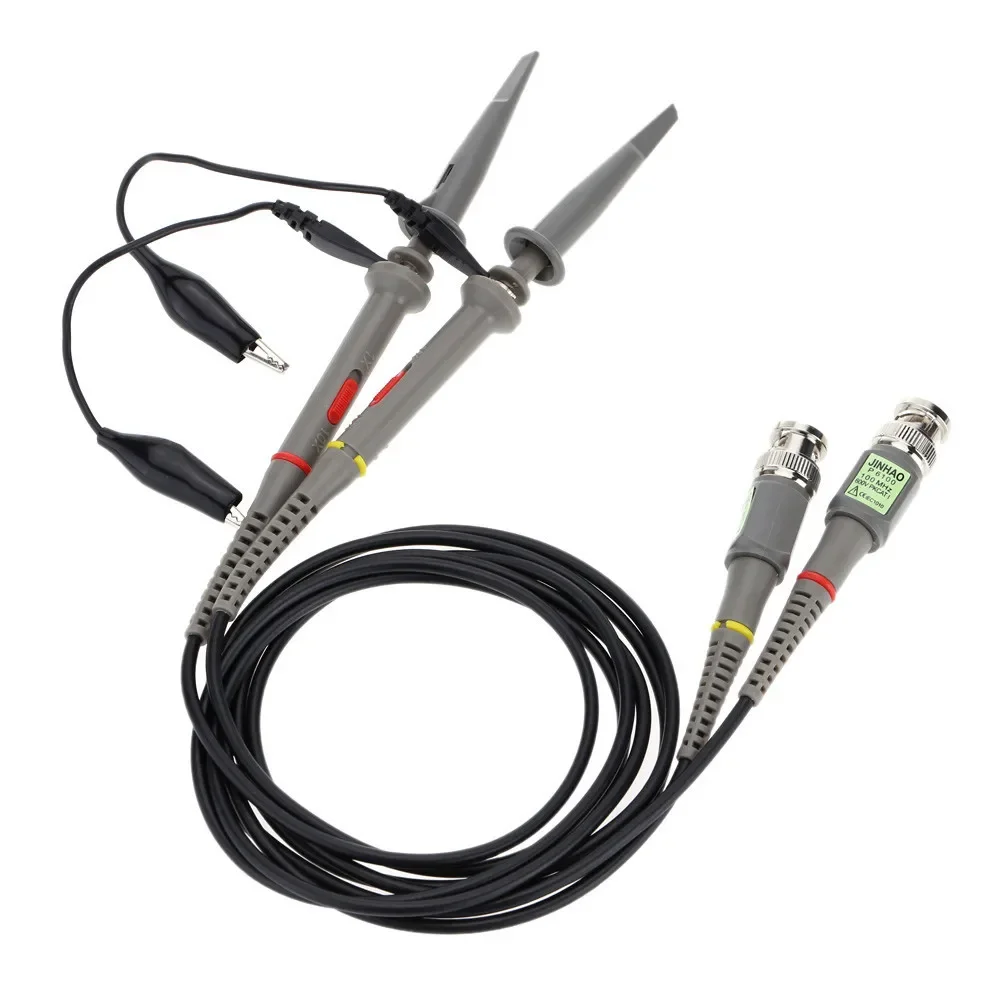

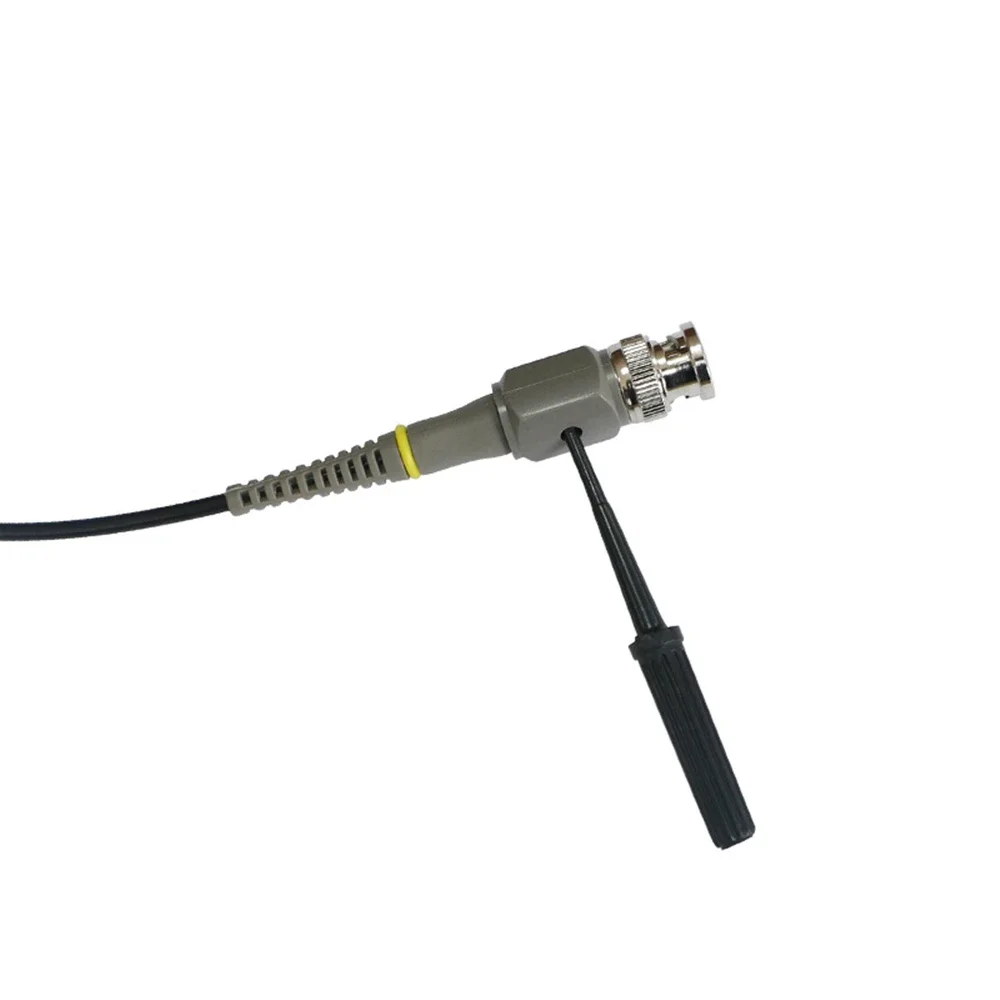

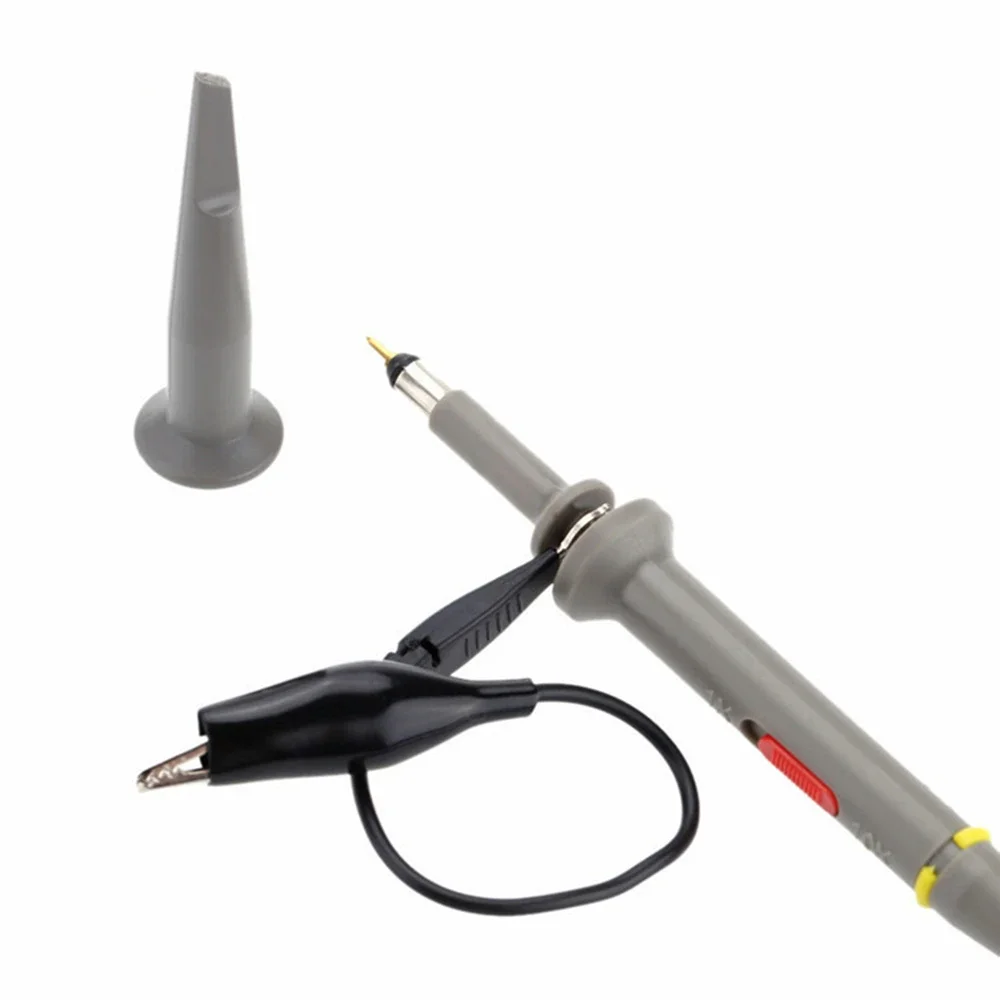

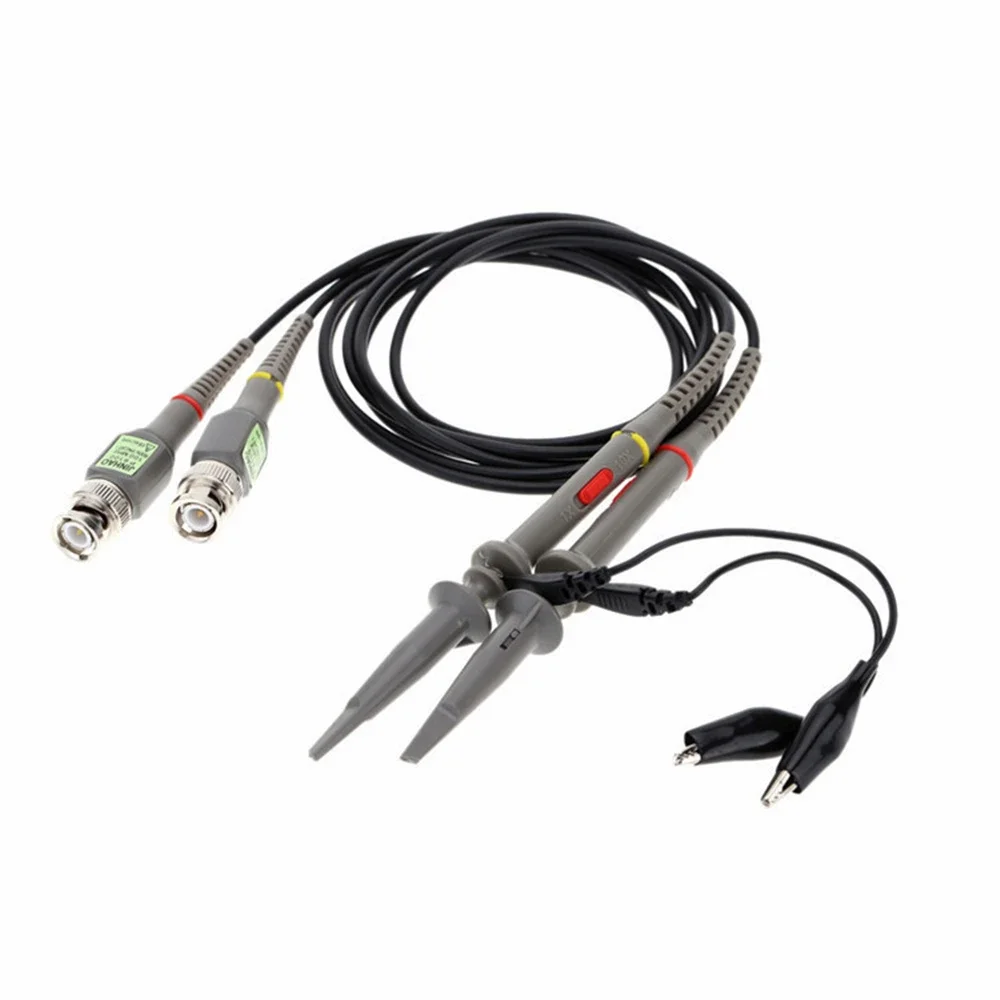

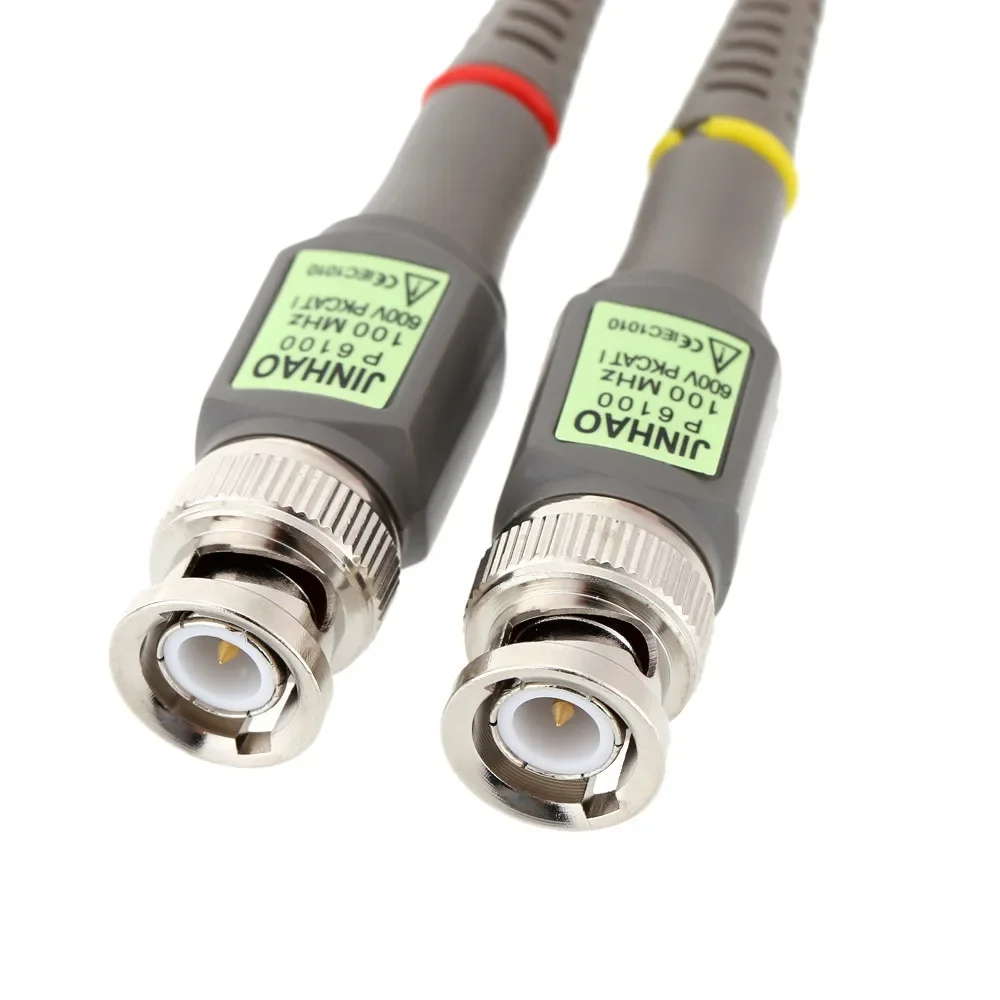

P6100.:

1PCS P6100 Oscilloscope Probe

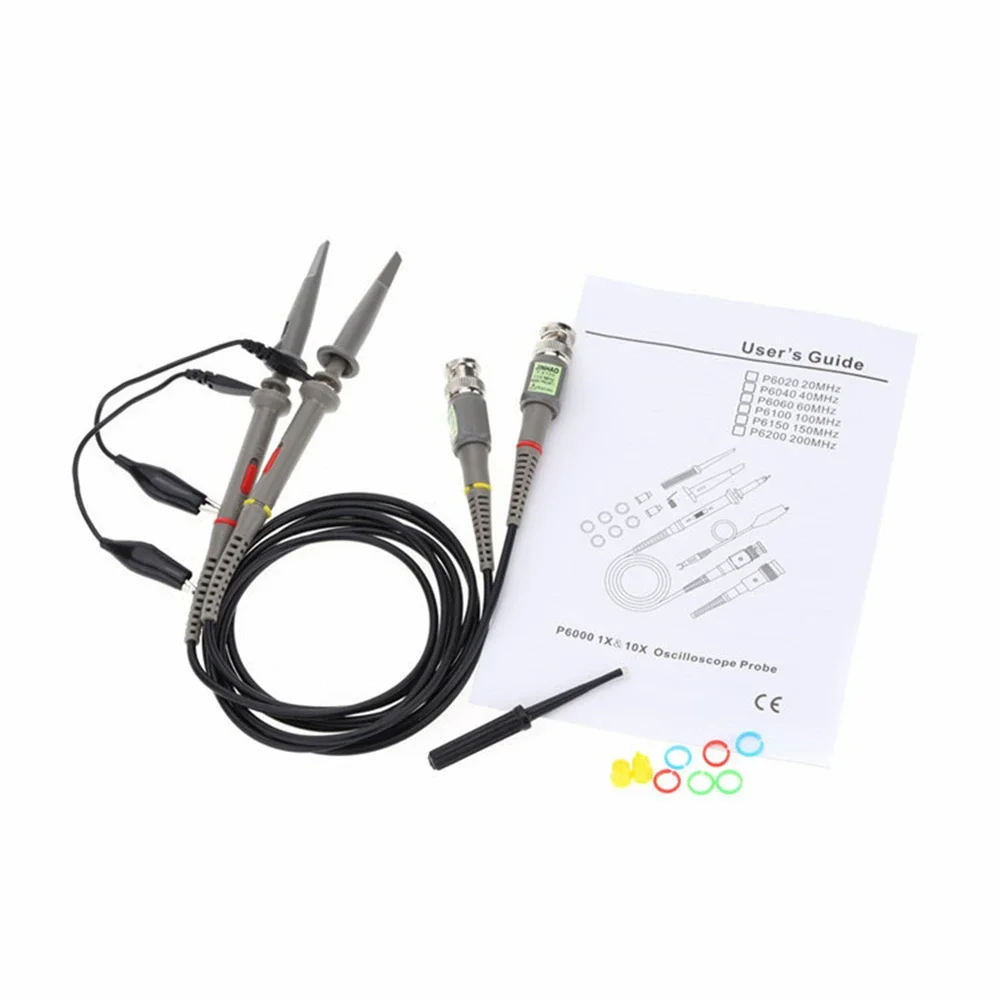

2PCS P6100 Oscilloscope probe with accessories （ one set ）
Model: P6100
Bandwidth: DC-6MHz DC-100MHz (actually 80 MHz)
Attenuation Ration: 1: 10
Input Resistance: 1 M: 10 M
Input Capacity: 1X: 85pF-120pF 10X: 18.5pF-22.5pF
Compensation range: 10pF-30pF
Rise Time: Less than 3.5ns
Operating voltage: 1X: Less than 200vDC + AC Peak 10X: Less than 600vDC + AC Peak
Cable length: 120 cm
Temperature opertation: -10 Celsius ~ + 50 Celsius
Nonoperating: -20 Celsius ~ +75 Celsius
Humidity:5% (relative humidity)
Cable length: 120 cm
Net weight: 80g

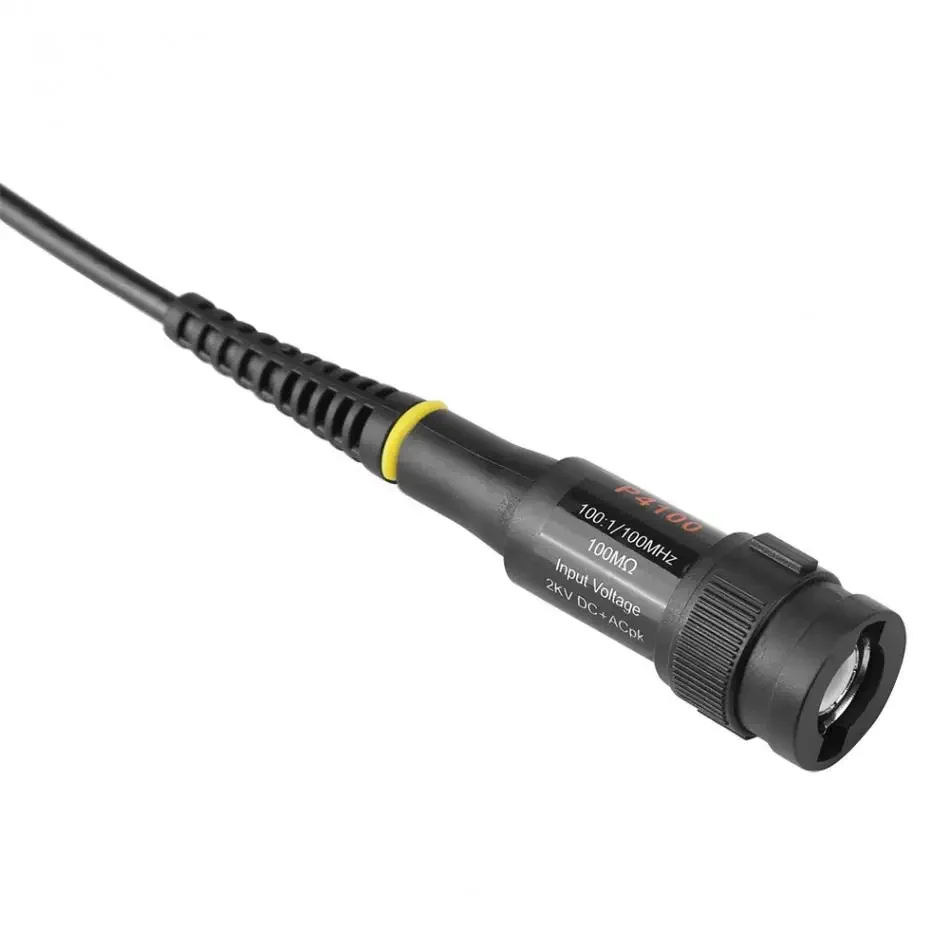

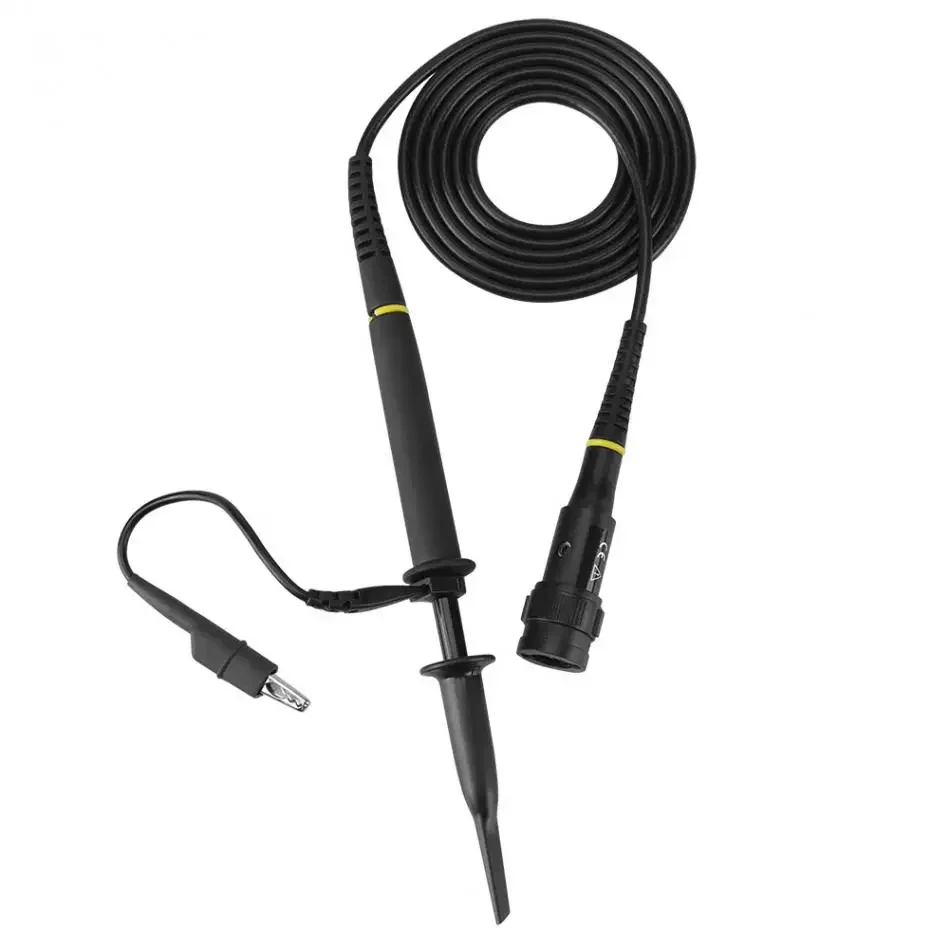

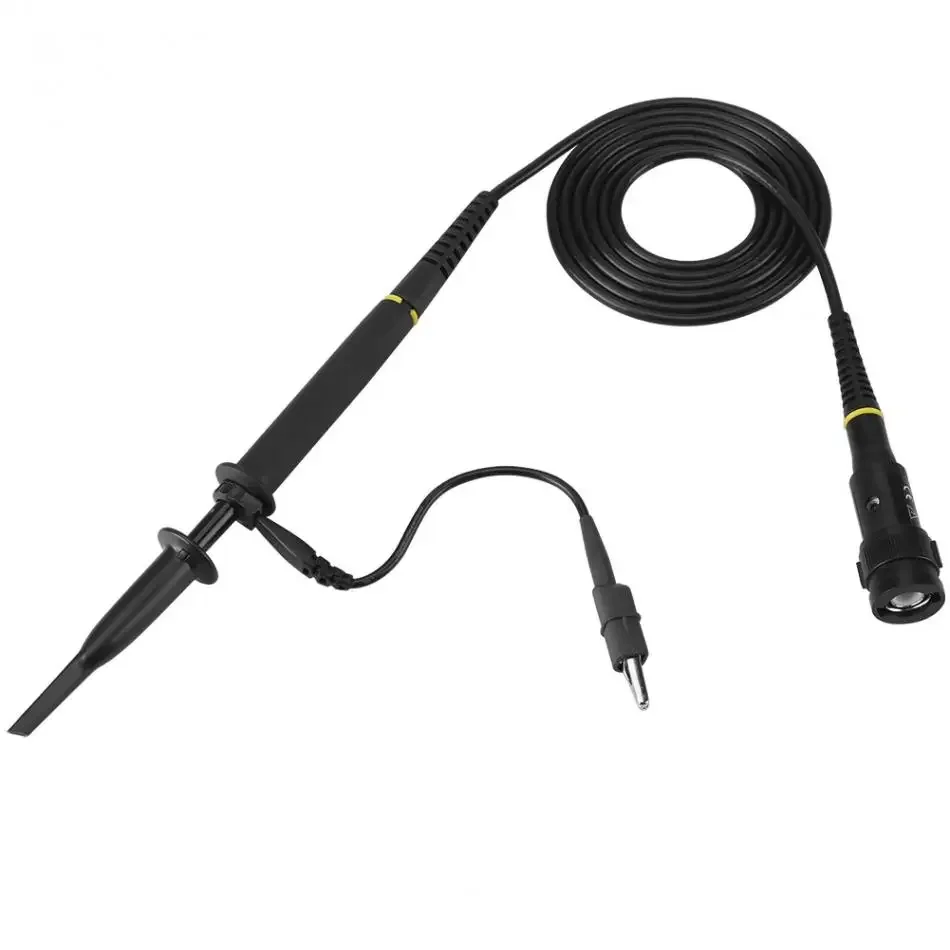

P4100:

Universal 100:1 High Voltage Probe
Probe for Oscilloscopes
Input resistance of 100 megohms
Input capacitance of 6 pF
Compensation range : 10 pF - 35 pF
Bandwidth: 100 MHz
Rise Time: 3.5ns
Maximum operating voltage : 1000V DC + ACPP
colour:black
Material:ABS
size:Cable length : 1.1 m

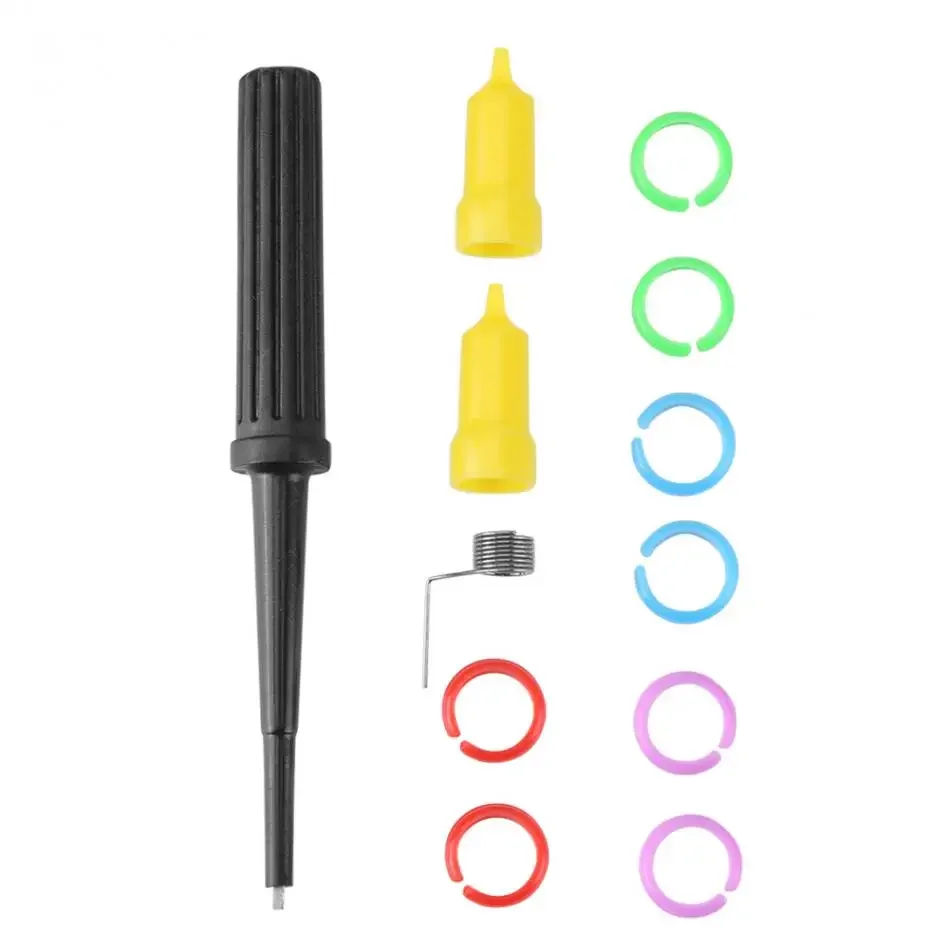

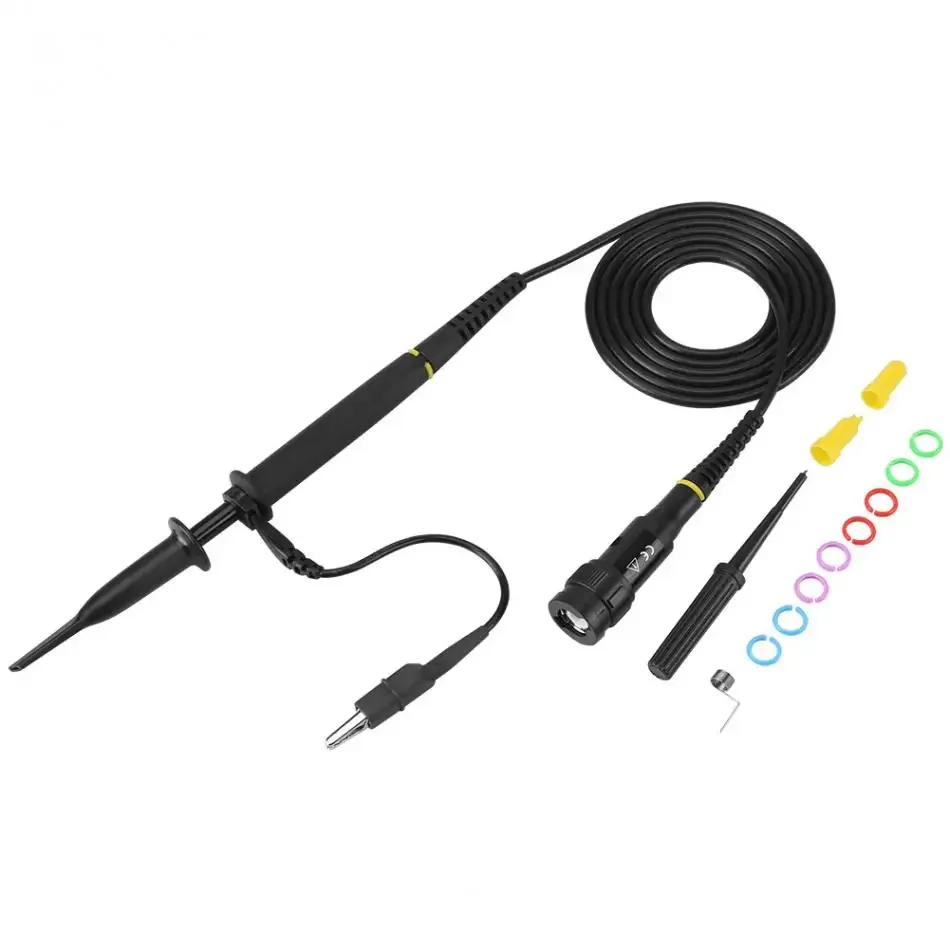

Package Contents:
1* screwdriver
8* marked multi-color ribbon
2 * Tip positioning sleeve
1* spring
1* User Manual

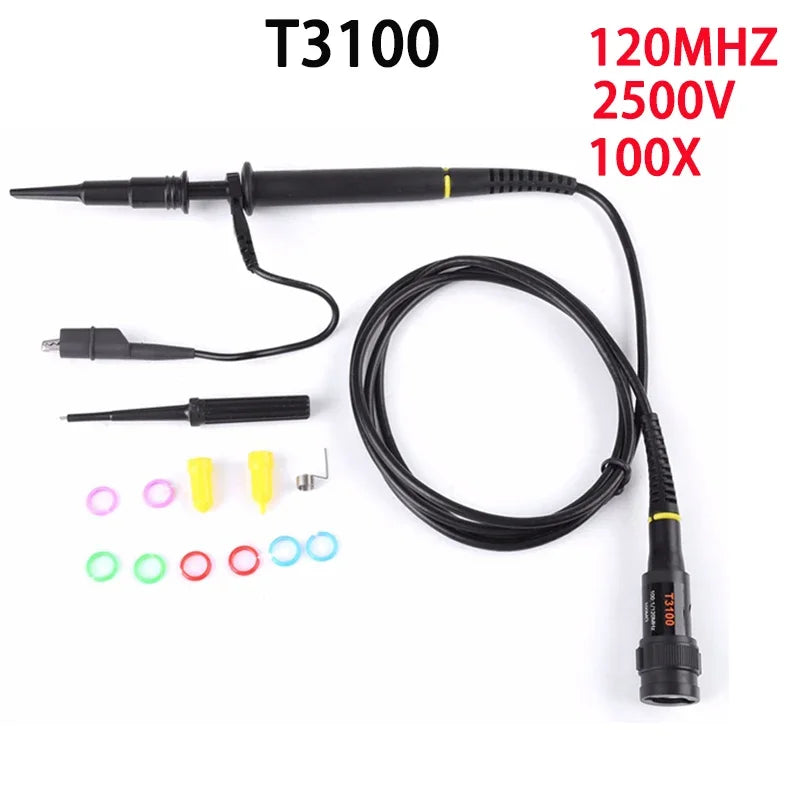

T3100:

Model: T3100
Attenuation: 1: 100
Input Resistance: 100MΩ
Input Capacitance: X100: 14.5pF~17.5pF
Compensation Range: 15pF~35pF
System Bandwidth: DC~120MHz
Maximum Working Input Voltage: X100:<2000VDC+Peak AC
Net Weight:<65g
Cable Length: 120cm
Temperature Operating Non operating: -10--+50 -20-+75
Humidity: ≤85% (Relative Humidity)

Only the above package content, other products are not included.
