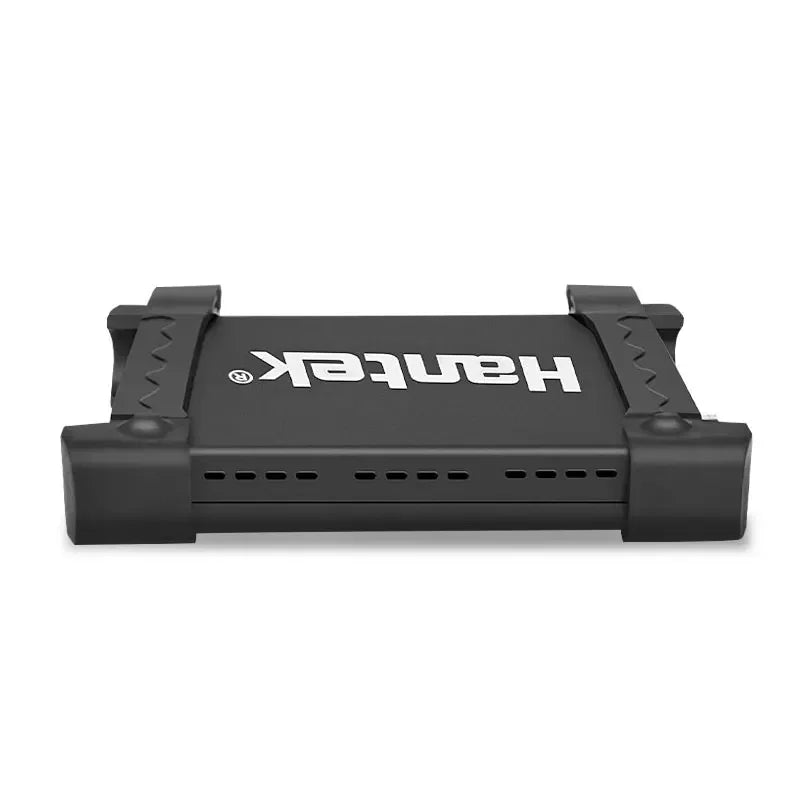

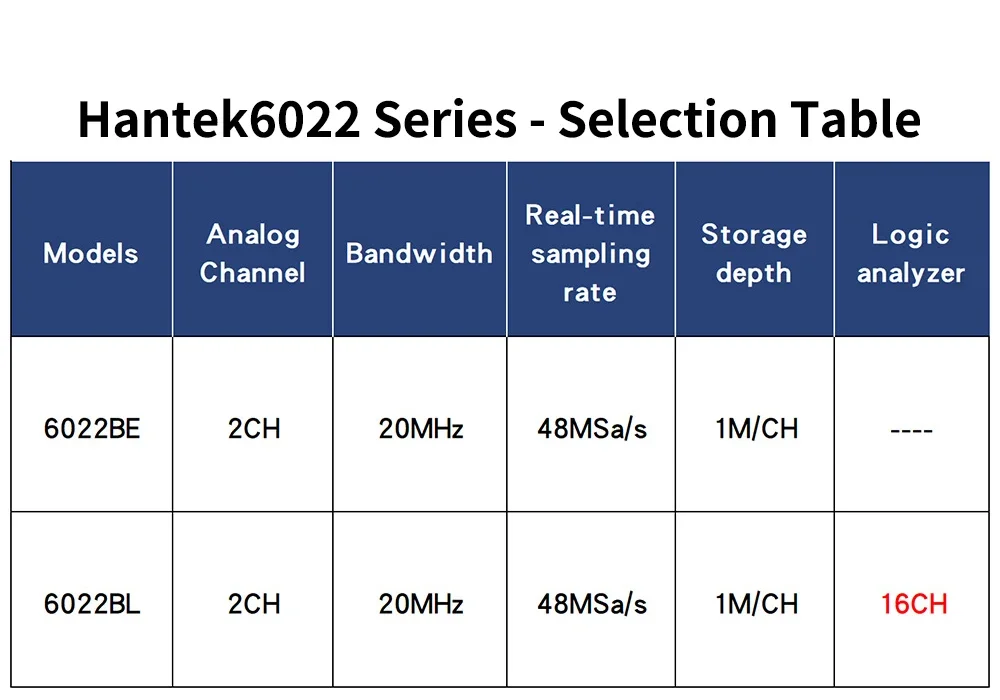

Hantek Portable PC USB Digital Oscilloscope 2-Channels 6022BE 20MHz 48MSa/s 6022BL + 16-Channels Logic Analyzer

Hantek Portable PC USB Digital Oscilloscope 2-Channels 6022BE 20MHz 48MSa/s 6022BL + 16-Channels Logic Analyzer

$349.32

$349.32 $0.00

Description

SPECIFICATIONS

Band Width: 20MHZ

Battery Included: no

Brand Name: Hantek

Certification: CE

Choice: yes

DIY Supplies: Electrical

Digital Channels: 2

Display Size: None

High-concerned chemical: none

Model Number: 6022BE/6022BL

Origin: Mainland China

Real Time Sampling Rate: 48MSa/s

Record Length: 10K-1M/CH

Semi-finishedproduct: No

semi_Choice: yes

Hantek official website：
https://hantek.com/

Hantek6002BE Series Product Information：
https://hantek.com/products/detail/31

Hantek6022BE Software：
https://www.hantek.com/Product/Hantek6000/HT6022_Software.zip

Hantek6022BE SDK：
https://www.hantek.com/Product/Hantek6000/HT6022_SDK.zip

Hantek6022BE Manual：
https://hantek.com/Products/SoftwareDL?id=41372

Hantek6022BE Driver：
https://hantek.com/Products/SoftwareDL?id=43690

Hantek6022BE Driver-Win11：
https://hantek.com/Products/SoftwareDL?id=45924

Hantek6002BE Series：
Bandwidth: 20MHz-200MHz; Sample Rate: 250MSa/s;Excellent industrial design-the same anodised aluminium casing as iPad, which is not only beautiful and tasteful but also greatly enhanced the hardness of aluminum alloy surface, and has good heat resistance and strong wearability.Standard USBXI (TM) interface, easyly inserts into USBXI (TM) housing to make up a combination instrument.

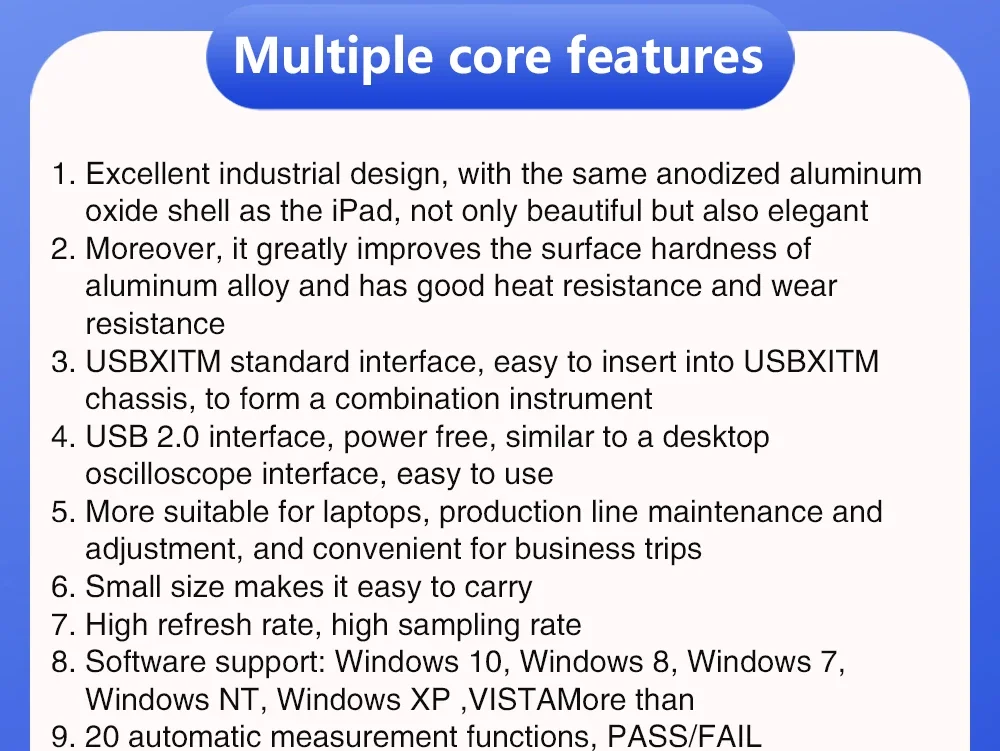

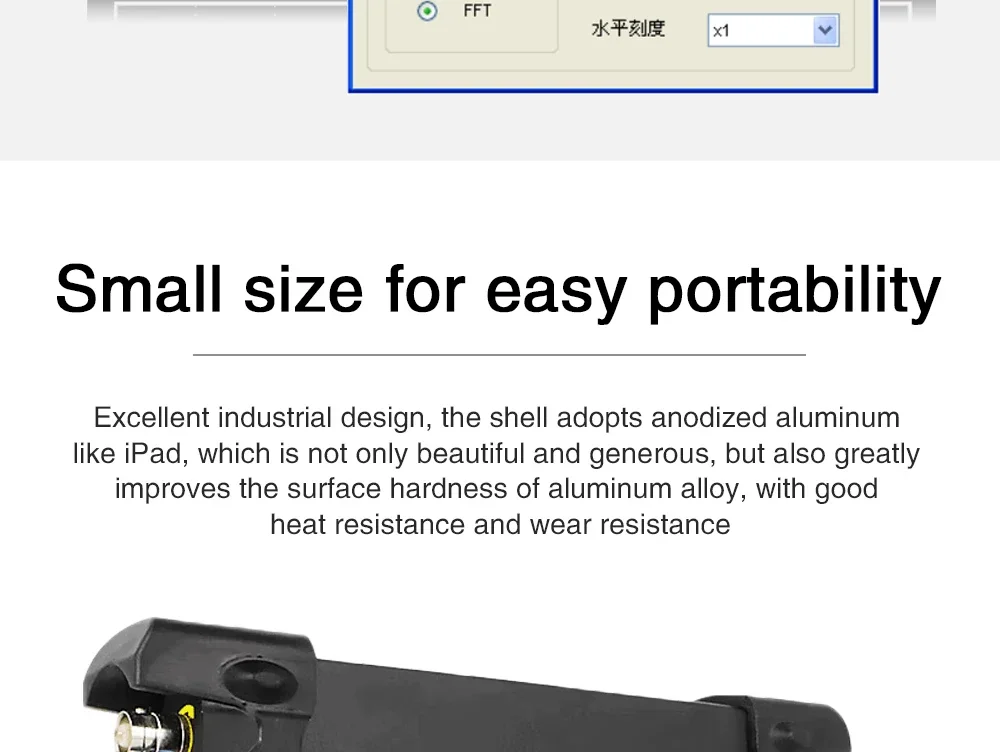

1.Excellent industrial design-the same anodised aluminium casingg as iPad, which is not only beautiful and tasteful but also greaty enhanced the hardness of aluminum alloy surface, and has goood heat resistance and strong wearability.

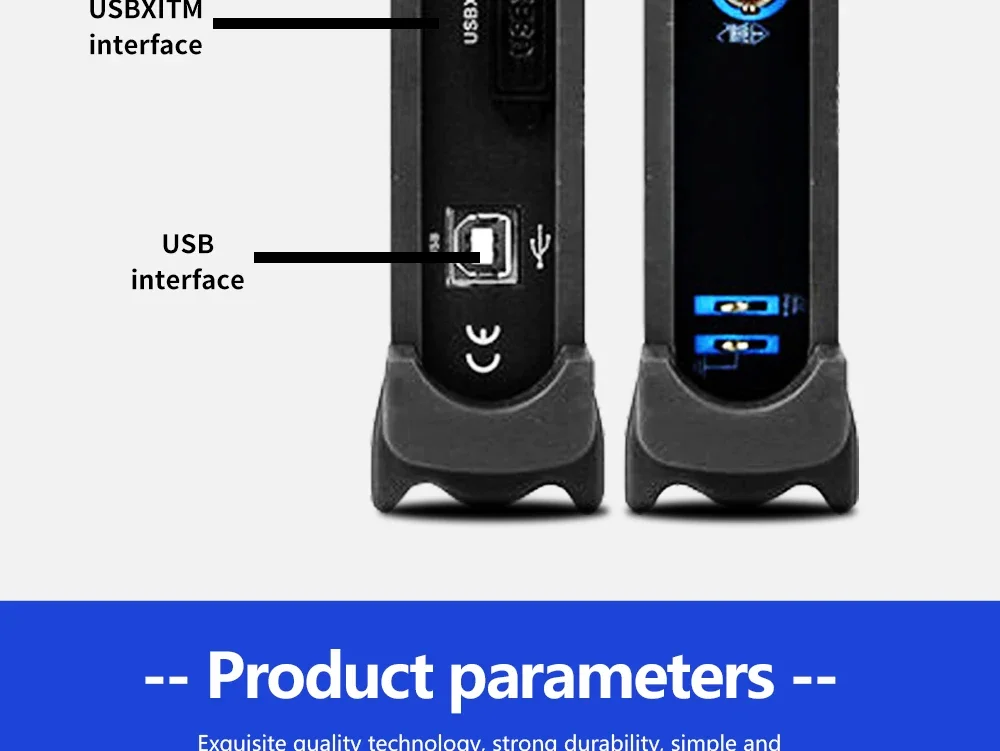

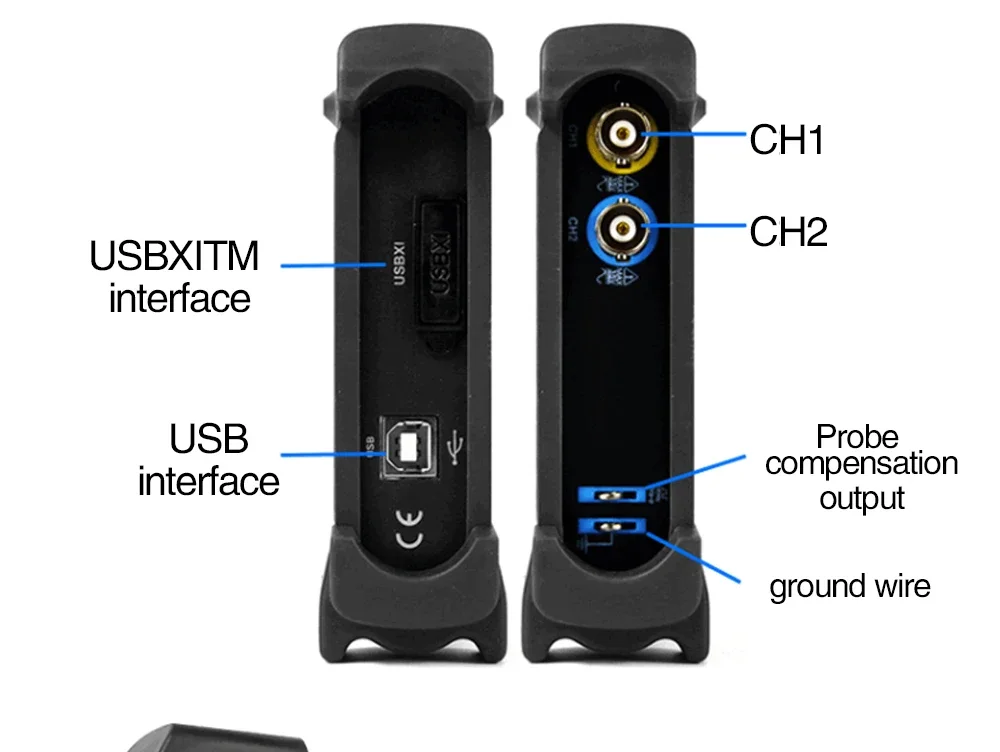

2.Standard USBXITM interface, easily inserts into USBXITM housing to make up a combination instrument.

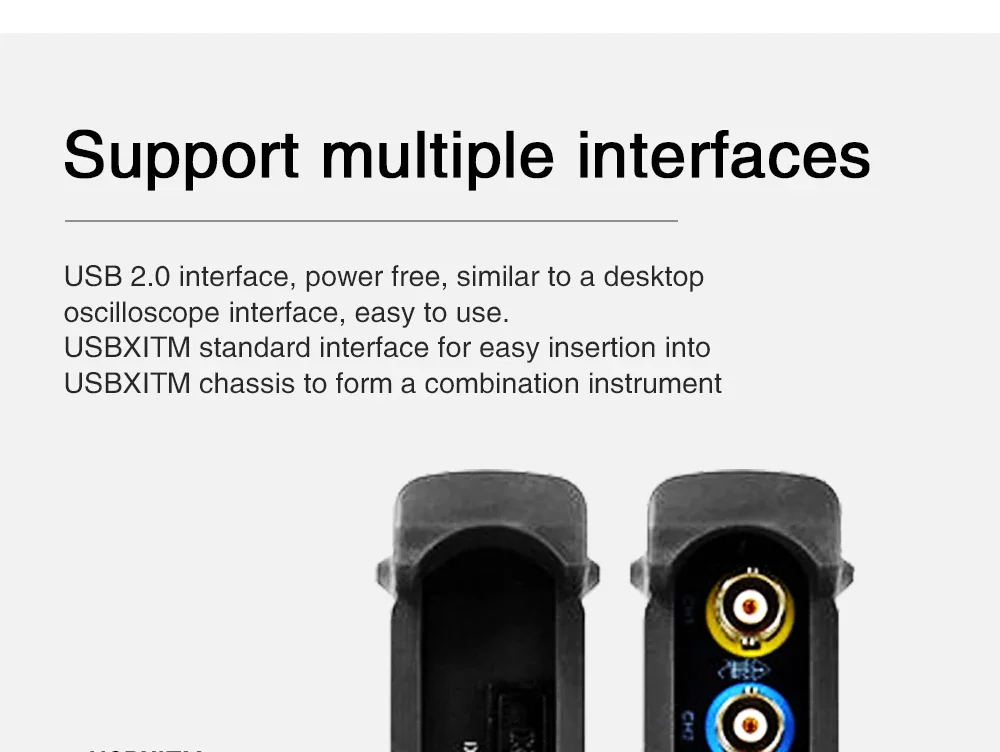

3.USB2.0 interface, no external power source required, easy to use.
4.Be suitable for notebook computer, product line maintenance, be usedeasily on business.
5.Dimensions (mm):205(L) x120(W) x35(H), be carried easily.
6.High performance, 250MS/s real-time sampling, 20MHz-80MHz bandwidth

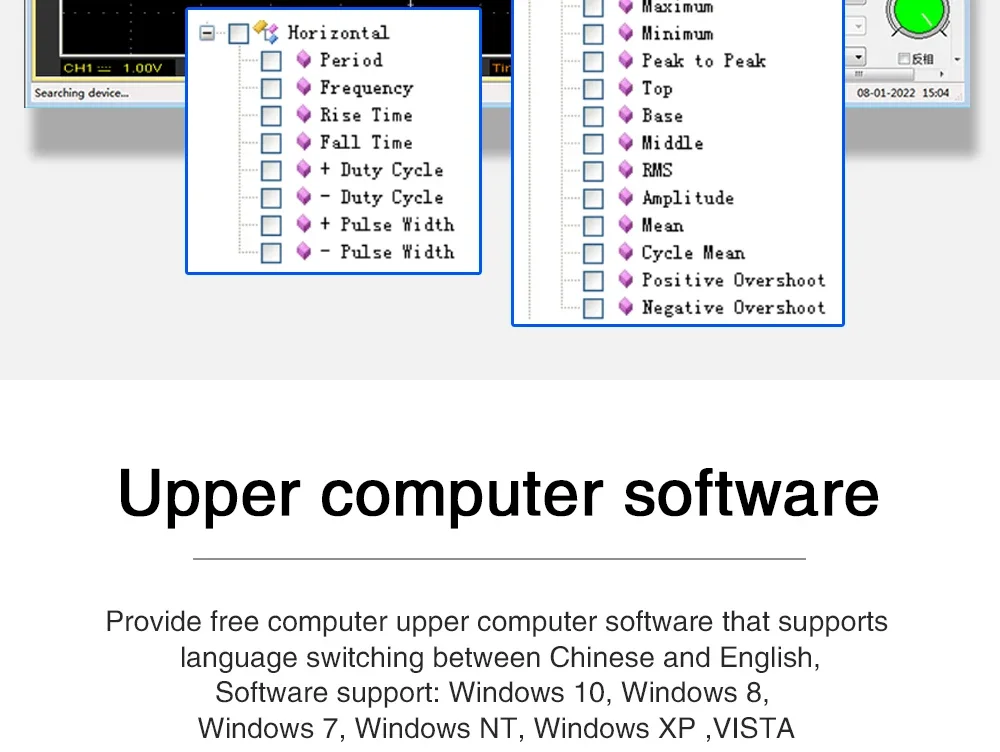

7.Operating System: Windows 10, Windows 8, Windows 7, Windows NT, W/indows XP, VISTA

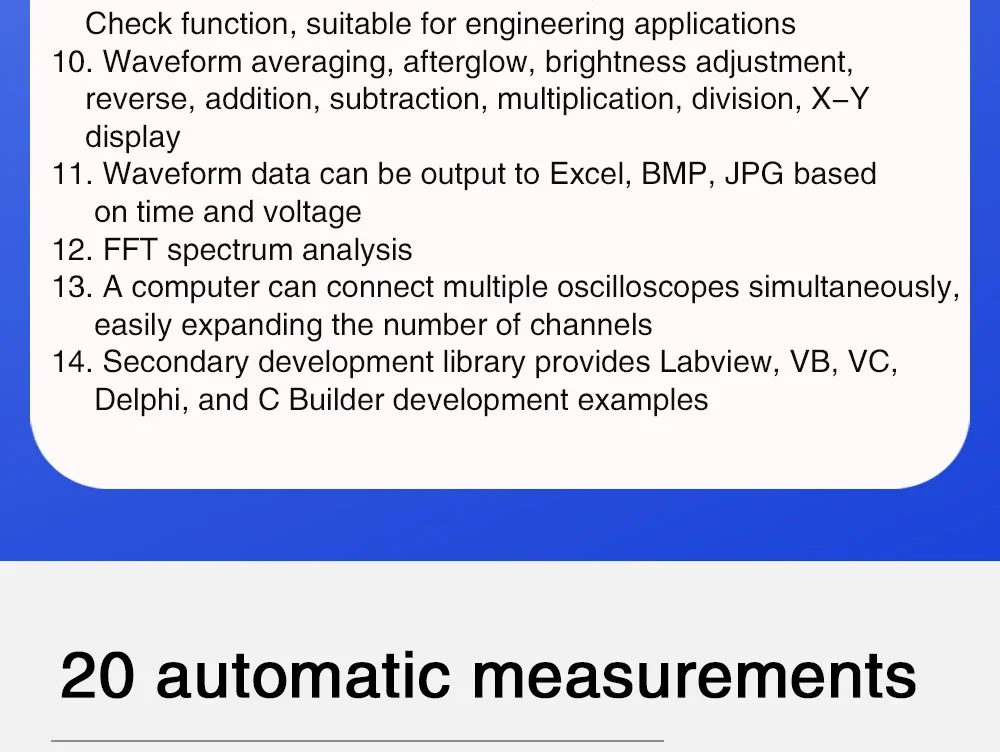

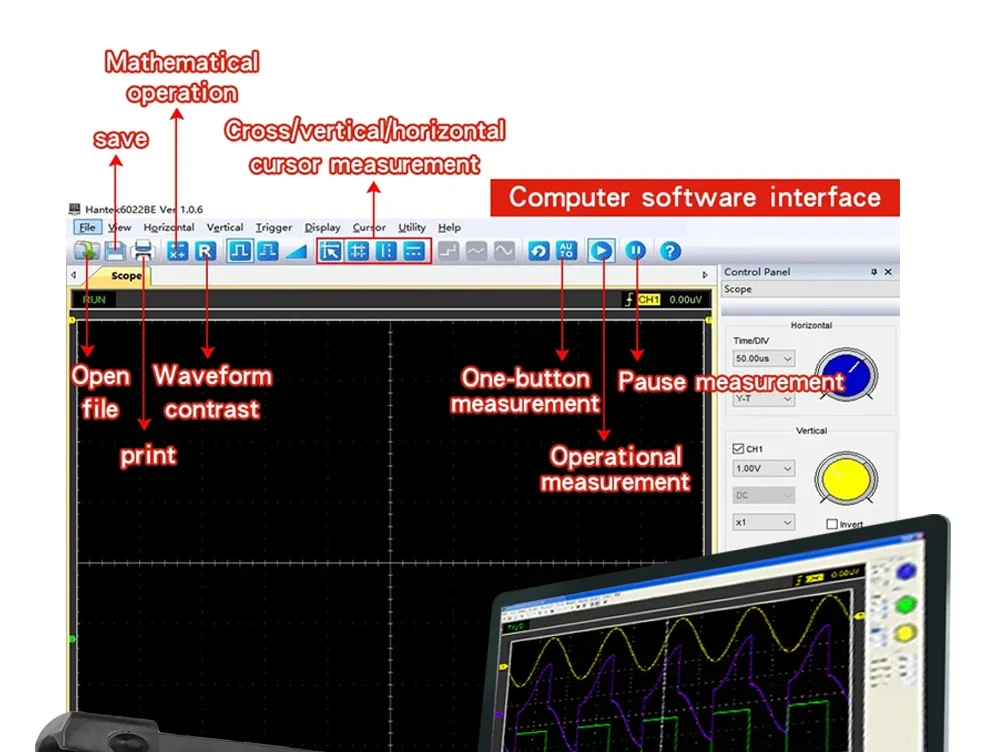

8.23 measurement functions, PASS/FAIL Check, be suitablefor technical application.

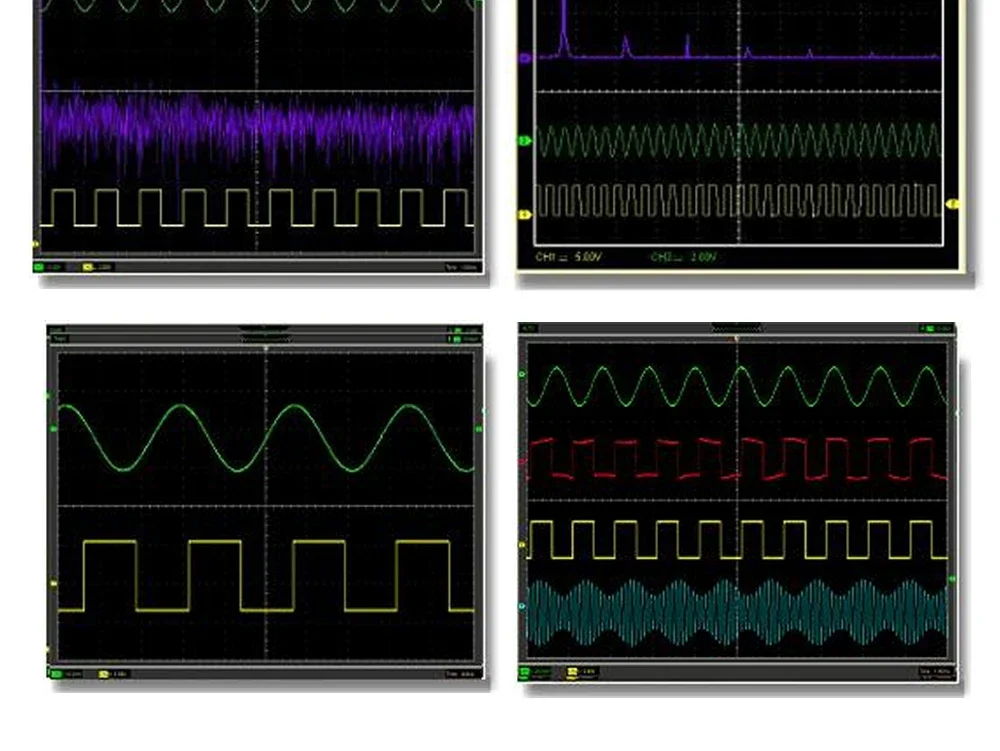

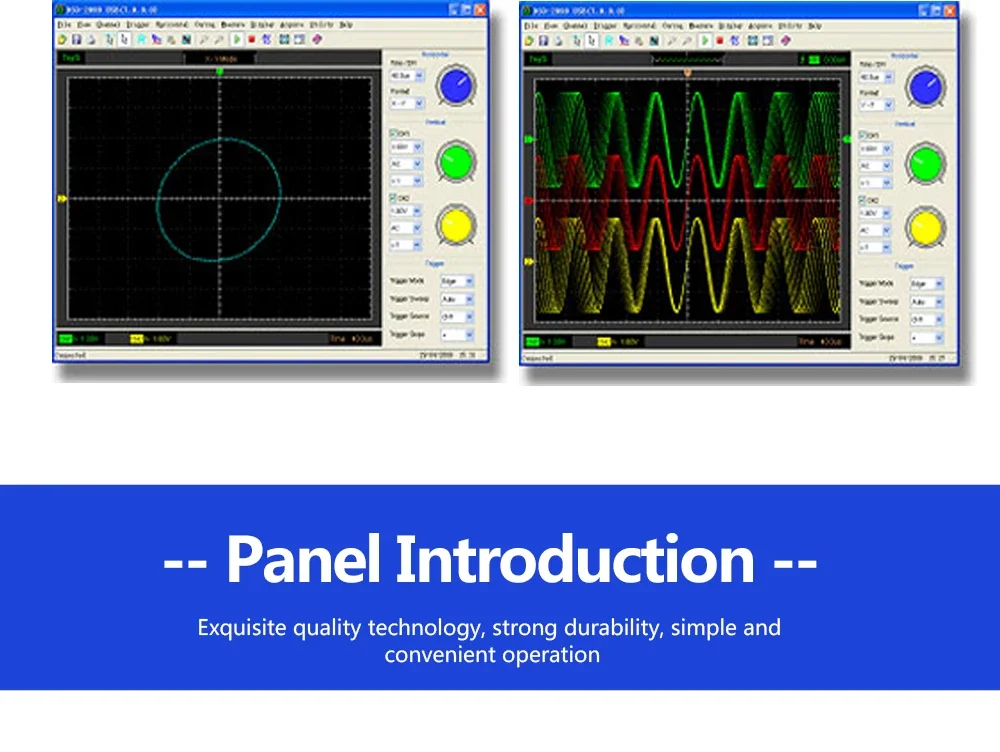

9.Waveform average, persistence, intensity, invert, addition, subtraction, multiplication, division, X-Y plot
10.Save waveform in the following: text file, jpg/bmp graphic file,MS excel/word file.
11.FFT
12.One computer can connect many DSO, extend channel easily.
13.Labview\VB\VC Second Design instance.

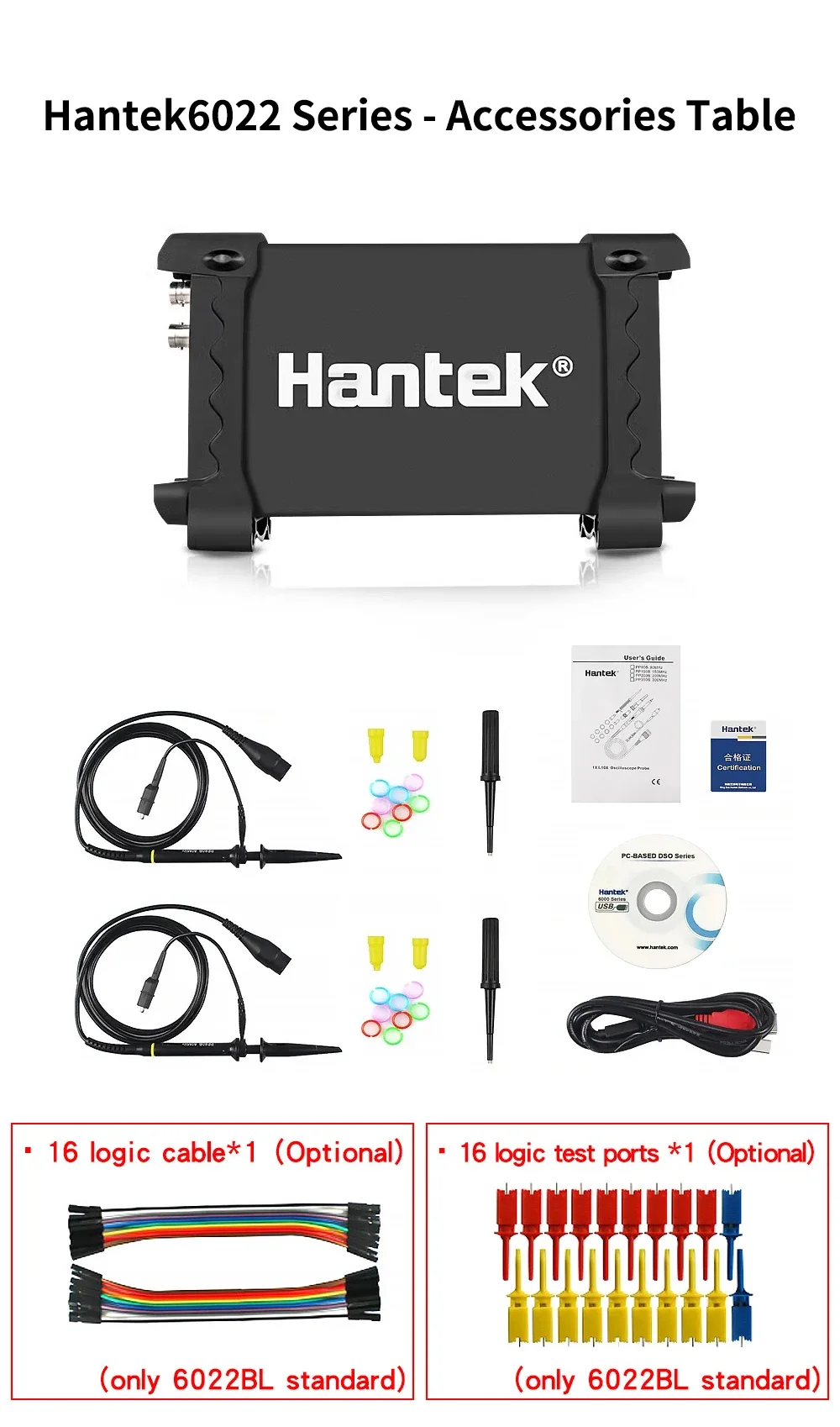

6022BE Product accessories:
host *1
Probe *2
USB computer communication line *1
Certificate *1

Parameters：

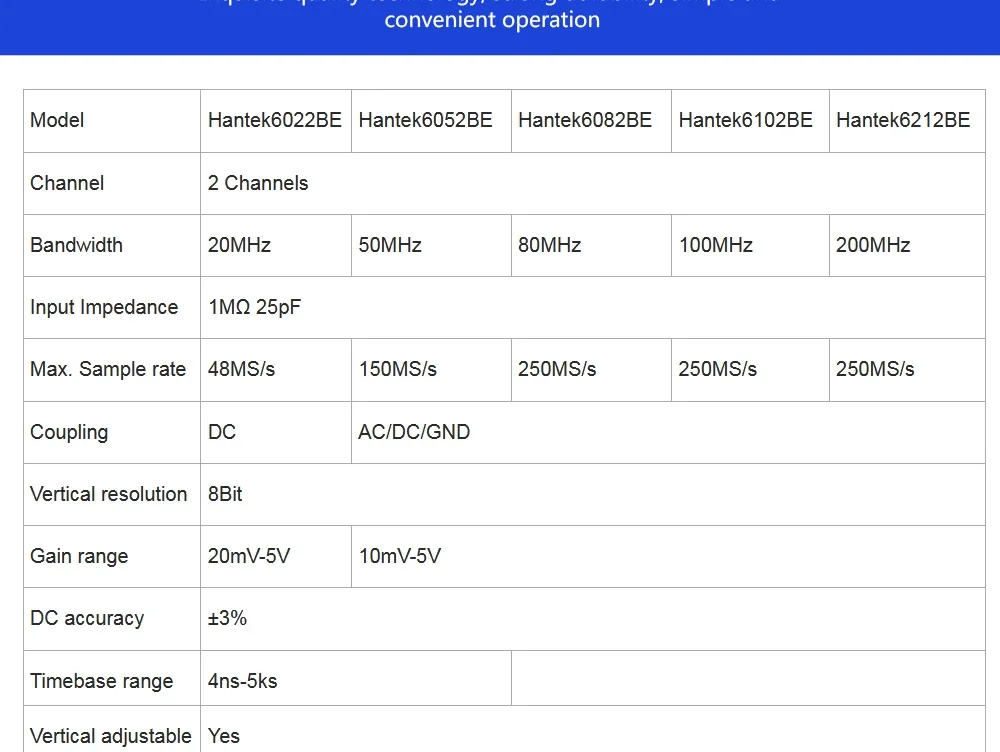

Model	Hantek6022BE	Hantek6052BE	Hantek6082BE	Hantek6102BE	Hantek6212BE
Channel	2 Channels
Bandwidth	20MHz	50MHz	80MHz	100MHz	200MHz
Input Impedance	1MΩ 25pF
Max. Sample rate	48MS/s	150MS/s	250MS/s	250MS/s	250MS/s
Coupling	DC	AC/DC/GND
Vertical resolution	8Bit
Gain range	20mV-5V	10mV-5V
DC accuracy	±3%
Timebase range	4ns-5ks
Vertical adjustable	Yes

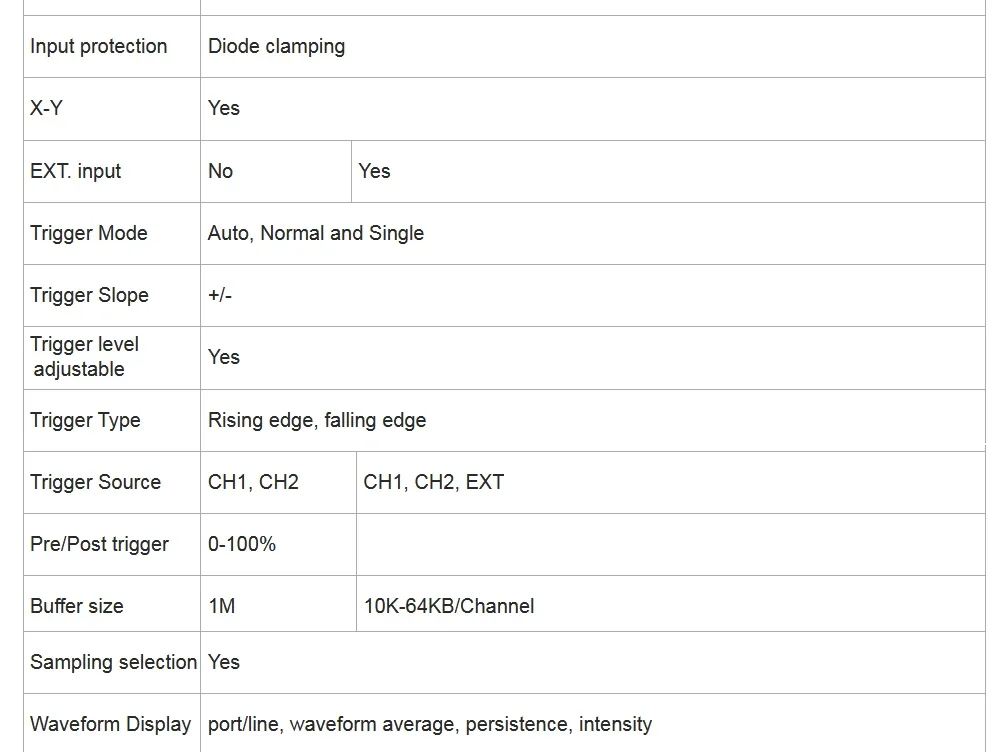

Input protection	Diode clamping
X-Y	Yes
EXT. input	No	Yes
Trigger Mode	Auto, Normal and Single
Trigger Slope	+/-
Trigger level adjustable	Yes
Trigger Type	Rising edge, falling edge
Trigger Source	CH1, CH2	CH1, CH2, EXT
Pre/Post trigger	0-100%
Buffer size	1M	10K-64KB/Channel
Sampling selection	Yes
Waveform Display	port/line, waveform average, persistence, intensity
Network	Open/Close

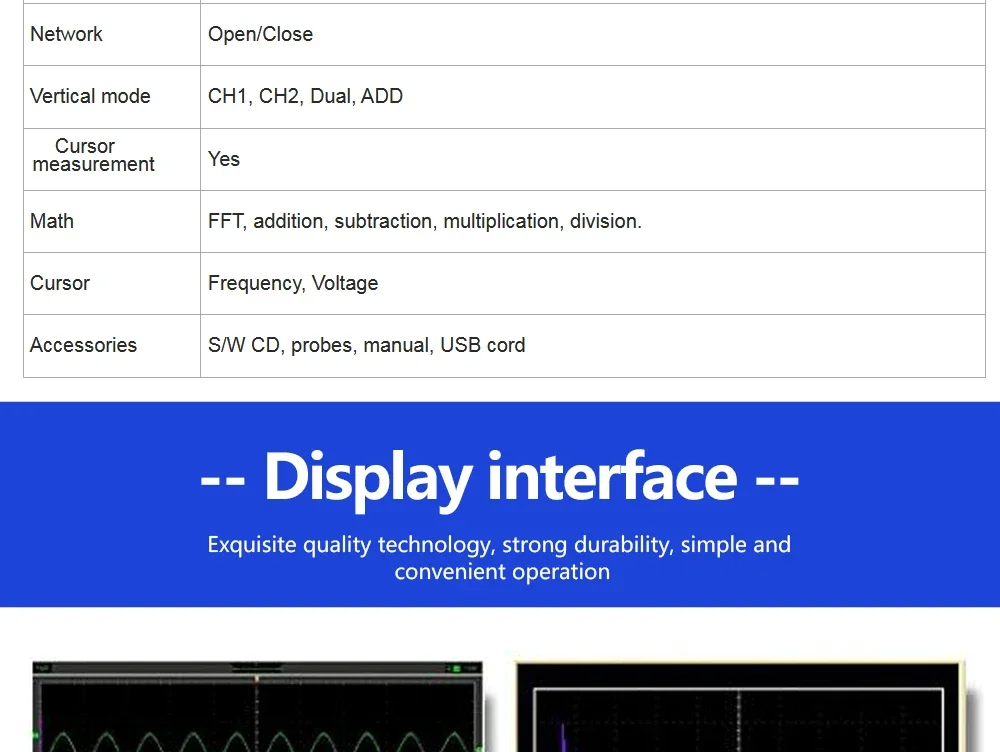

Vertical mode	CH1, CH2, Dual, ADD
Cursor measurement	Yes

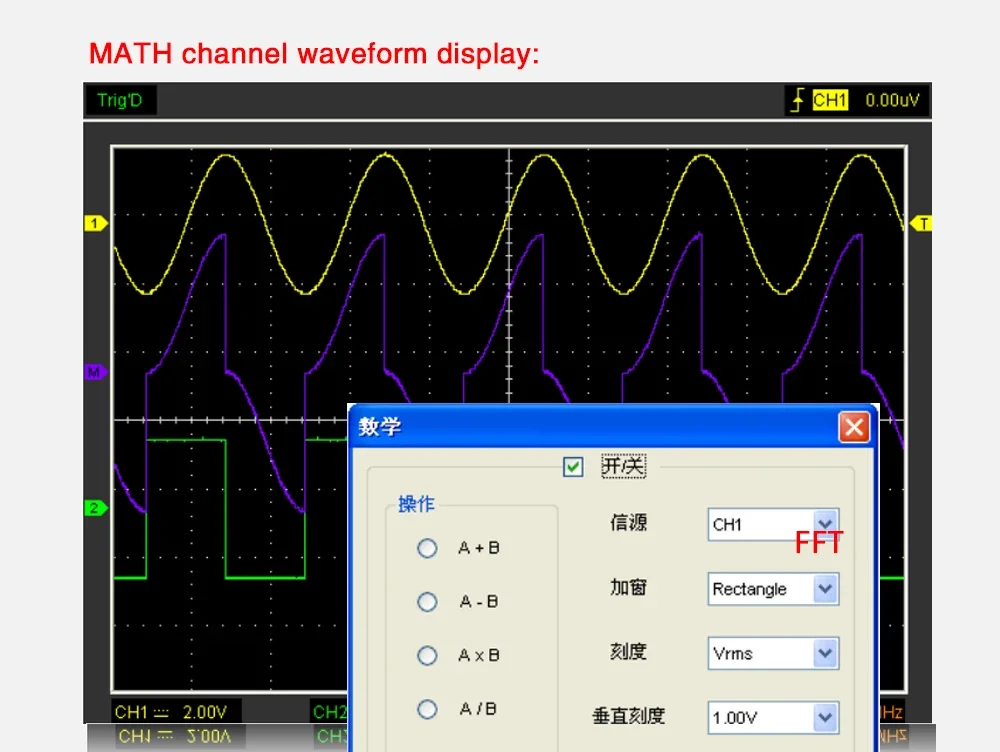

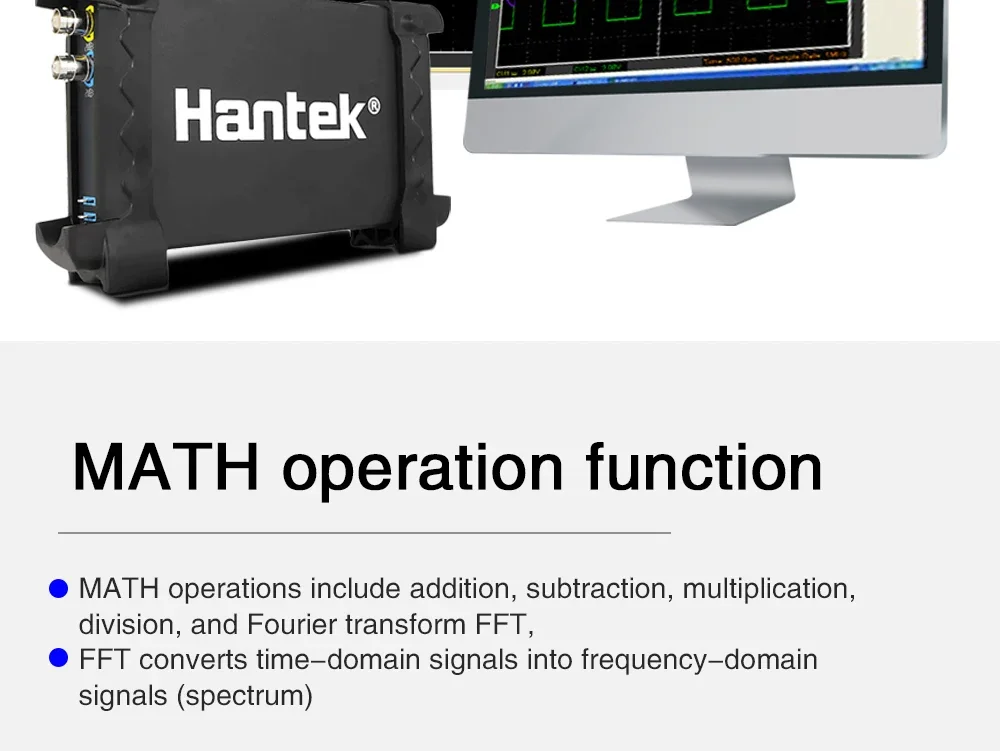

Math	FFT, addition, subtraction, multiplication, division.
Cursor	Frequency, Voltage
Accessories	S/W CD, probes, manual, USB cord

Hantek6022BL Series Product Information：
https://hantek.com/products/detail/153

Hantek6022BL Driver：
https://hantek.com/Products/SoftwareDL?id=43695

HT6022BL Software：
https://www.hantek.com/Product/Hantek6000/HT6022BL_Software.zip

HT6022BL SDK：
https://www.hantek.com/Product/Hantek6000/HT6022BL_SDK.zip

HT6022BL Manual：
https://www.hantek.com/Product/Hantek6000/HT6022BL_Manual.pdf

Hantek6022BL Driver-Win11：
https://hantek.com/Products/SoftwareDL?id=45859

Hantek6022BL：
20MHz Bandwidth; 48MSa/s Sample Rate; 16 Channels Logic Analyzer; Excellent industrial design-the same anodised aluminium casing as iPad, which is not only beautiful and tasteful but also greatly enhanced the hardness of aluminum alloy surface, and has good heat resistance and strong wearability. Standard USBXI (TM) interface, easyly inserts into USBXI (TM) housing to make up a combination instrument.
1.Excellent industrial design-the same anodised aluminiurm casing as iPad, which is not only beautiful and tastefuI but also greatly enhanced the hardness of aluminum alloy surface, and has good heat resistance and strong wearability.
2.Standard USBXITM interface, easily inserts into USBXITM housing to makeup a combination instrument.
3.USB2.0 interface, no external power source required, easy to use.
4.Be suitable for notebook computer, product line maintenance, bee used easily on business
5.Dimensions (mm):205(L) x120(W) x35(H), be carried easily.
6.High performance, 48MS/s real-time sampling, 20MHz bandwidth

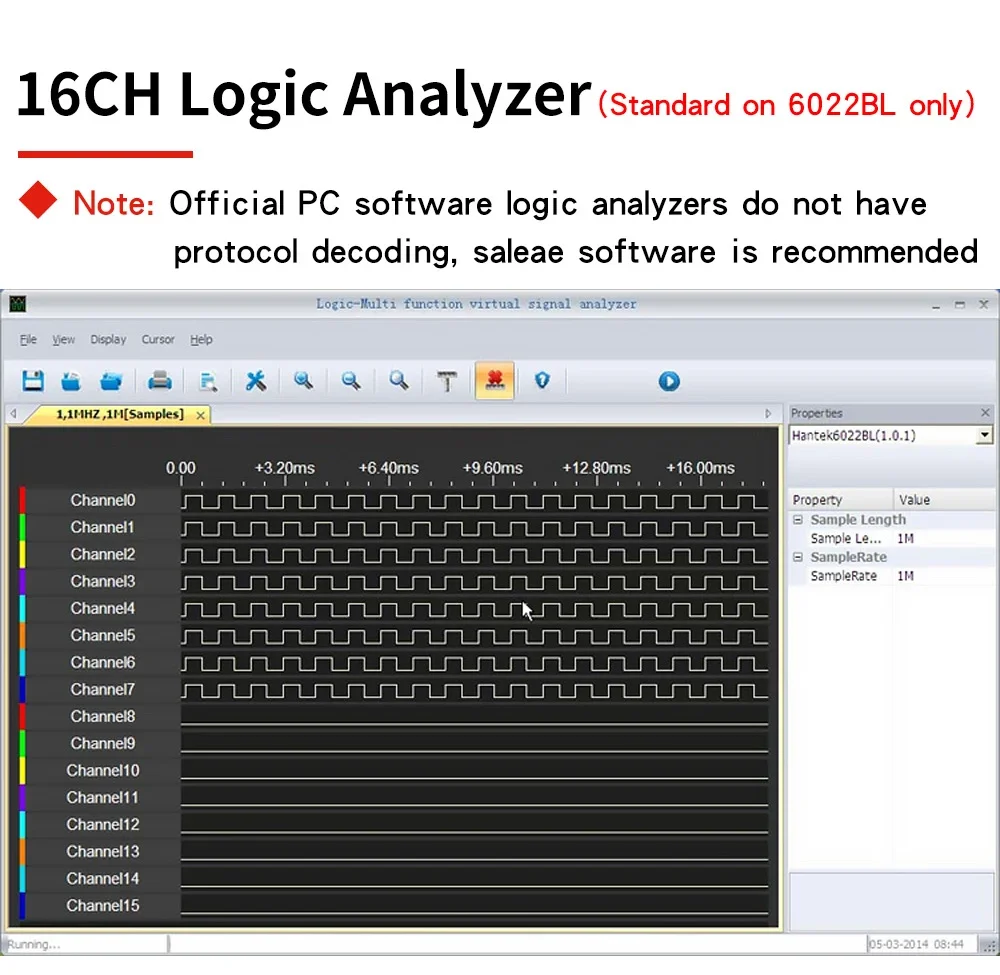

7.16Channels Logic Analyzer, 10MHz Bandwidth;
8.Operating System: Windows 7, Windows 8, Windows 10.
9.20 measurement functions.
10.intensity, invert, addition, subtraction, multiplication, division, X-Y plot
11.Save waveform in the following: text file, jpg/bmp graphic file, MS excel/vord file
12.FFT
13.One computer can connect many DSO, extend channel easily.
14.Labview\VB\VC Second Design instance.

6022BL Product accessories:
host *1
Probe *2
USB computer communication line *1
16 logic cable* 1
16 logic test ports *1
Certificate *1

Parameters：

Model	Hantek6022BL
Oscilloscope Features
Bandwidth	20MHz
Channel	2(Digital)+16(Logic)
Sample Rate	48MSa/s
Memory Depth	1M
Rise Time	17.5ns
Time Base Precision	±50ppm
Time Base Range	1ns/div-5000s/div (Step by1-2-5)
Input Impendence	1MΩ 25pF
Input Sensitivity	20mV/div～5V/div
Vertical Resolution	8Bit
Vertical Position Range	20mV ~ 5V/div @ x1 probe; 200mV ~ 50V/div @ x10 probe; 2V ~ 500V/div @ x100 probe; 20V ~ 5KV/div @ x1000 probe
DC Accuracy	±3%
Trigger Type	Edge
Trigger Source	CH1, CH2
Math	+,-,x,÷,FFT, Invert
Cursor Measurement	Cross, Horizontal, Vertical

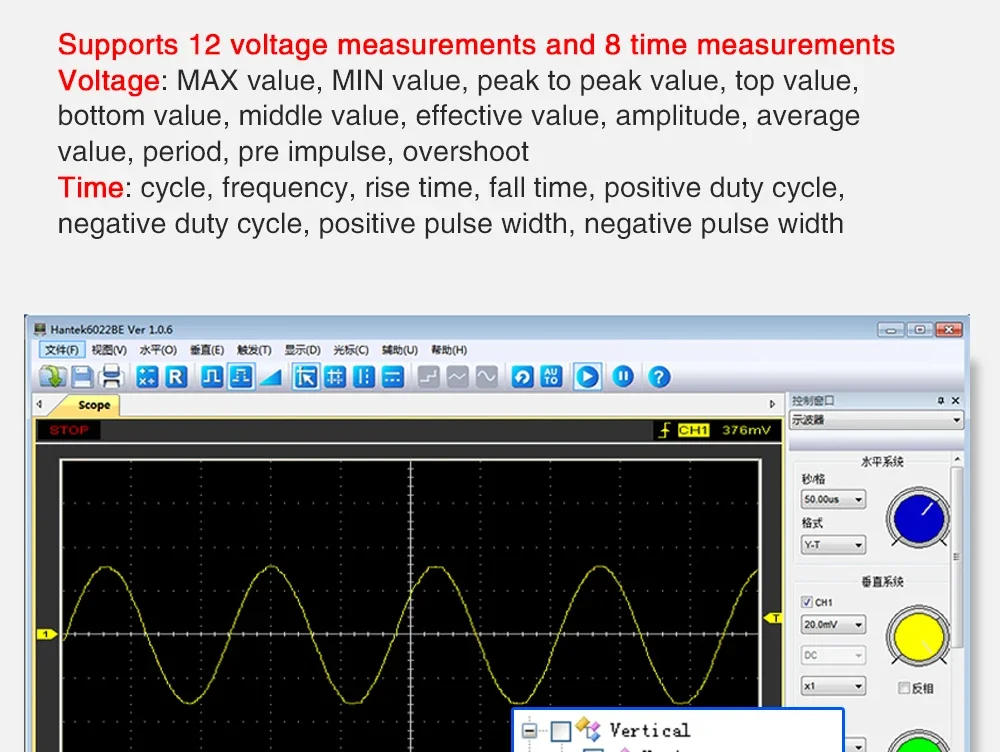

Auto Measurement	Vpp, Vamp, Vmax, Vmin, Vtop, Vmid, Vbase, Mean, Vrms, Vcrms, Preshoot, Overshoot, Frequency, Period, Rise Time, Fall Time, Positive Width, Negative Width, +Duty Cycle,-Duty Cycle
Logic Analyzer Features
Channel	16
Max. Impendance	1MΩ(C=7.5pF)
Max. Voltage	0V~5.5V
Max. Sample	48M
Bandwidth	10MHz
Compatible Input	TTL, LVTTL, CMOS
Memory Depth	1M/CH
General Features
Power	USB Port

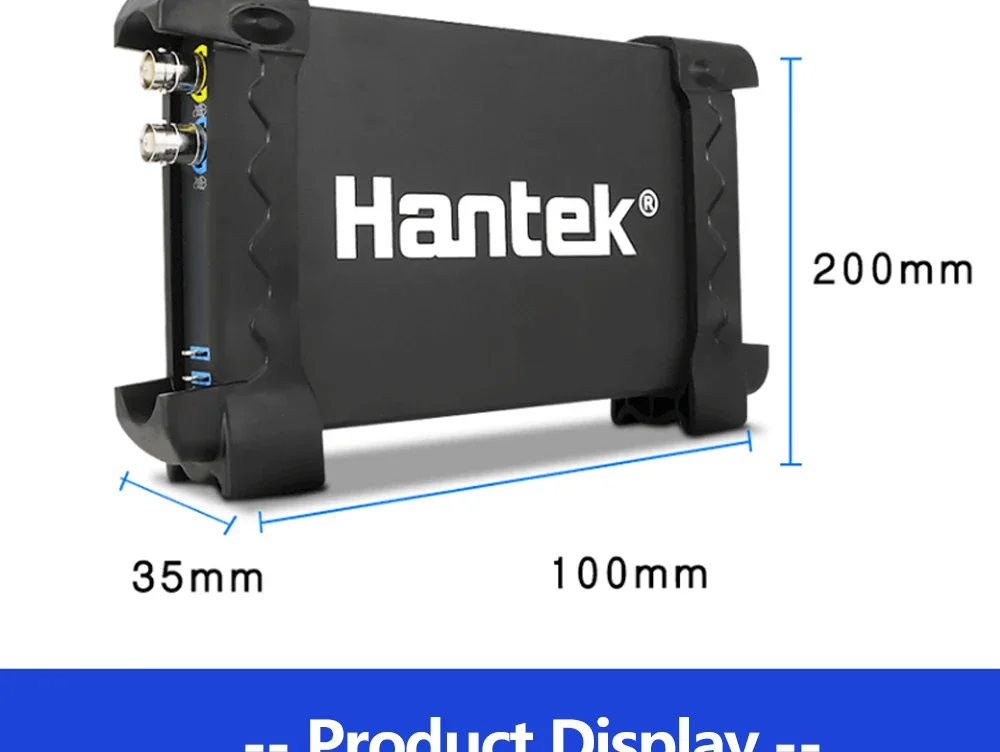

Demensions	200mm x100mm x 35mm
Weight	0.3KG
Standard Probe	2 x PP80B
