Hantek PP80-150-200-250-300 High Voltage Probe 60MHz-300MHz Kit Attenuation 10:1 Suitable For 1008c 6074be Various Oscilloscopes

Hantek PP80-150-200-250-300 High Voltage Probe 60MHz-300MHz Kit Attenuation 10:1 Suitable For 1008c 6074be Various Oscilloscopes

$79.12

$79.12 $0.00

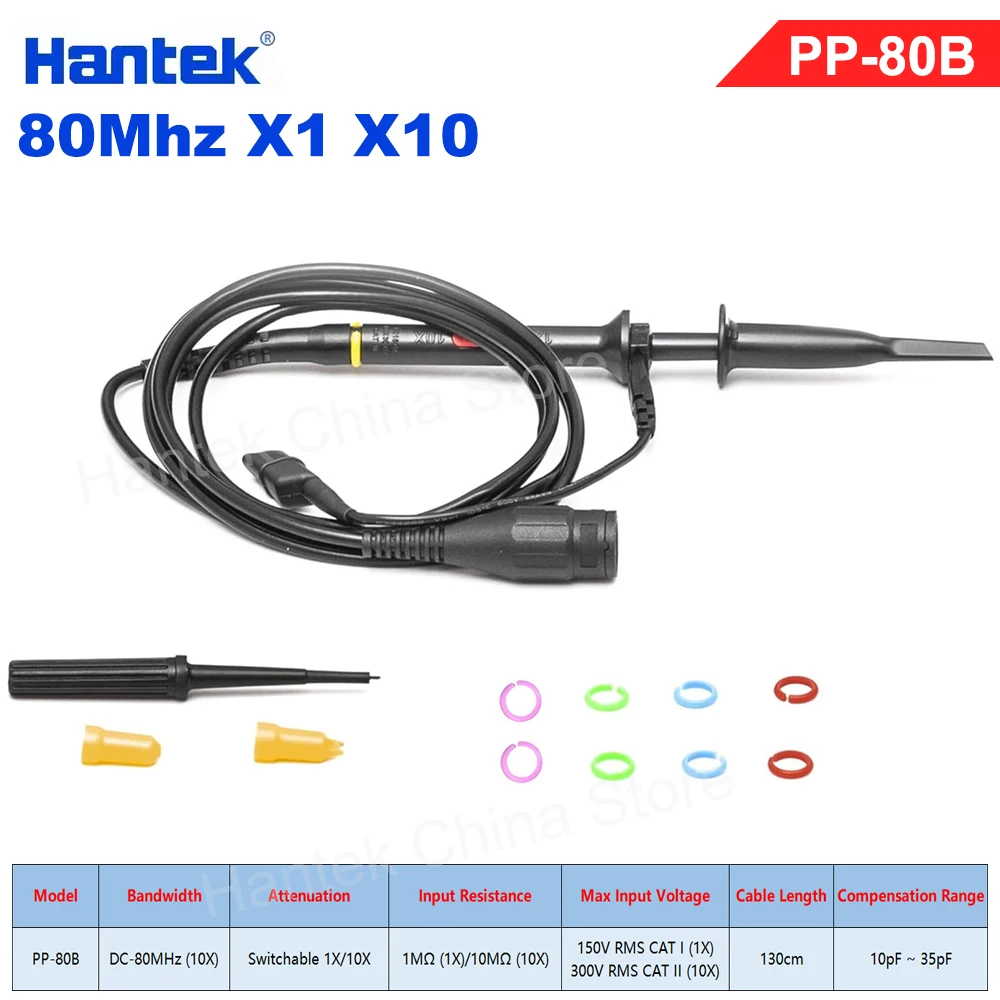

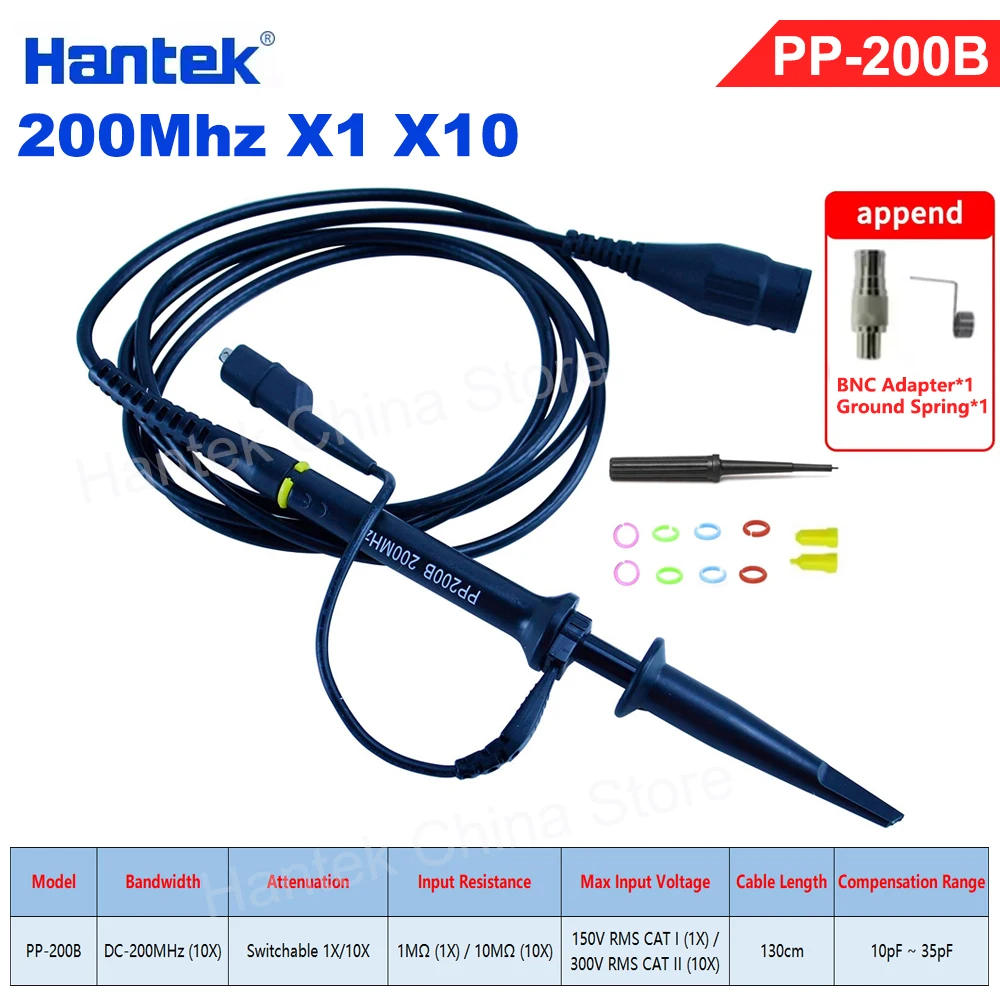

Color PP-300(300MHZ) PP-200B(200MHZ) PP-150B(150MHZ) PP-250(250MHZ) PP-150(100MHZ) PP-80B(80MHZ) PP-80(60MHZ) PP-200(200MHZ)

Description

SPECIFICATIONS

Band Width: 60-300MHz

Battery Included: no

Brand Name: Hantek

Certification: CE

DIY Supplies: Electrical

Digital Channels: 1

Display Resolution: 128*64 Pixels

Display Size: None

HANTEK Model: PP-80 150 200 250 300

High-concerned chemical: none

IS Battery Demountable: No

Max Waveform Capture Rate: 30,000wfm/s

Model Number: PP-80 PP-150 PP-150B PP-200 PP-200B PP-250

Origin: Mainland China

Real Time Sampling Rate: 1GSa/S

Record Length: None

Semi-finishedproduct: No

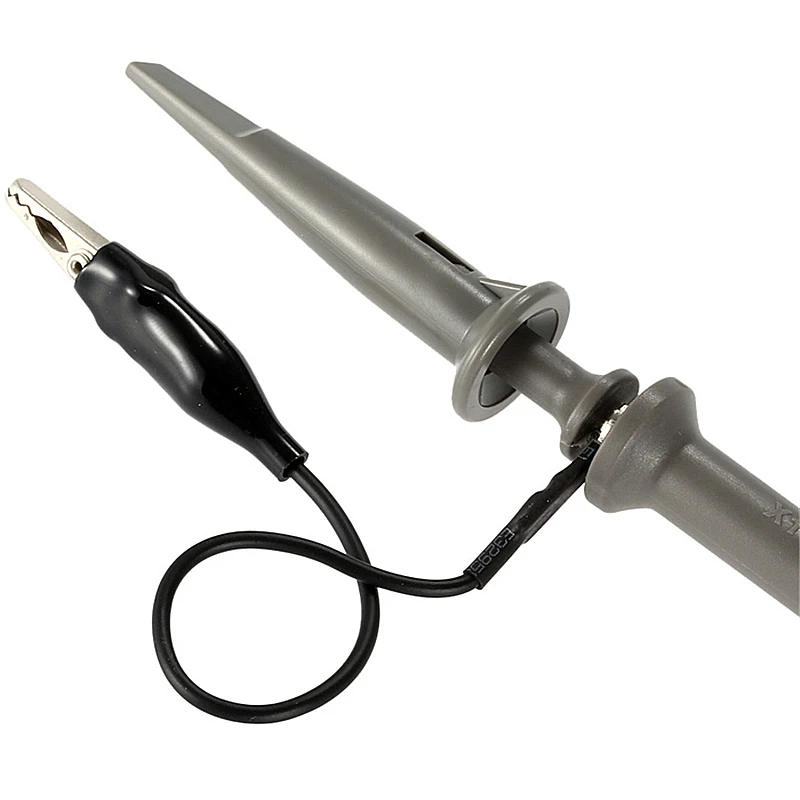

Hantek PP-80-150-200-250-300 High Voltage Probe

Features:

High quality and reliable.
Attenuation ratio: 1× and 10× adjustable.

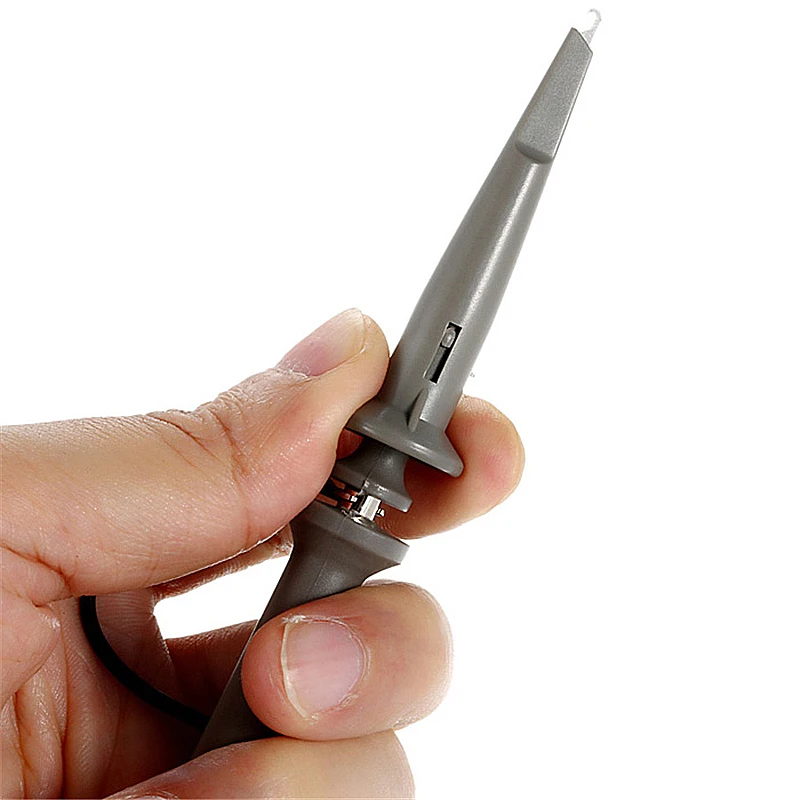

Portable design according with ergonomics.
Integral injection molding makes the usage more flexible and the oscilloscope able to adapt more testing situations.
Safety standards: it has passed the CE Attestation of European Community.
Application Fields:
Compatible with domestic and international digital and analog oscilloscopes in relevant frequency.
Measurement in intermediate and low frequency signals.

Specifications:

Color: Black + Grey

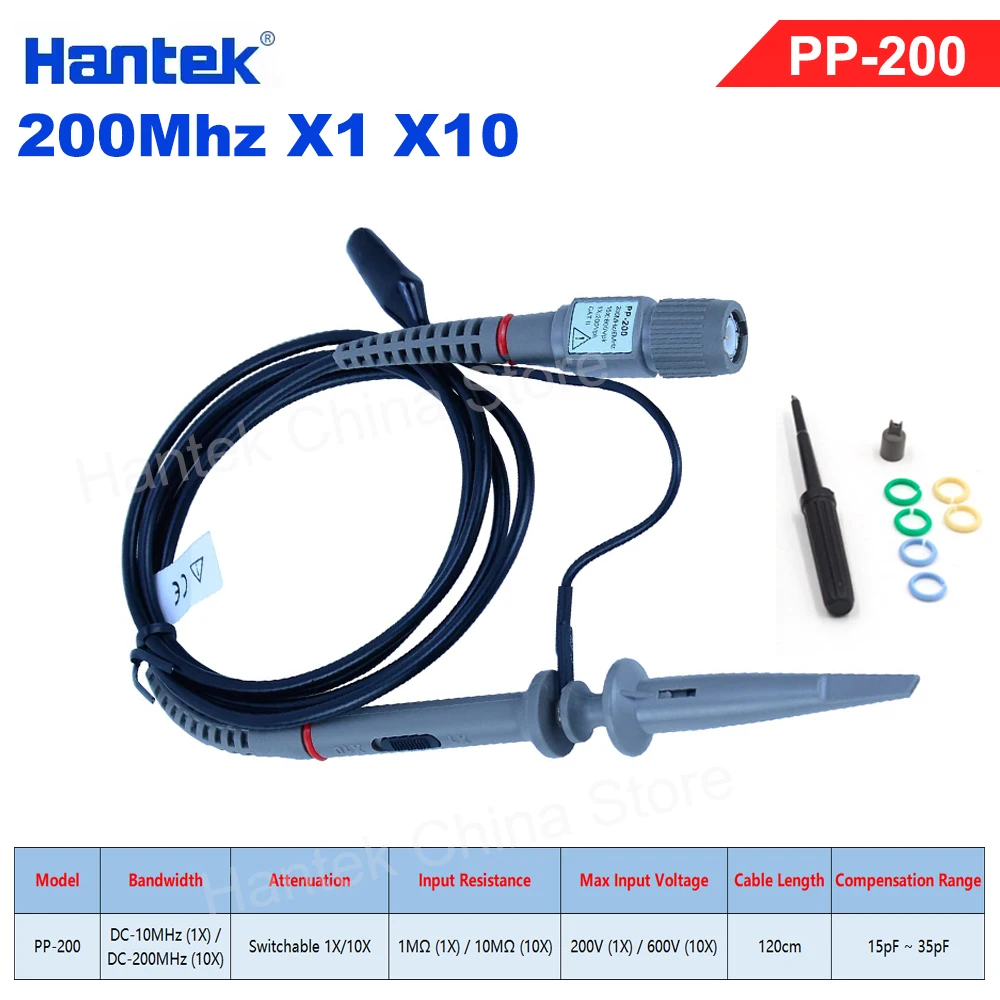

Type: PP-80 / PP-150/PP-200/PP-250
Attenuation: x1 x10
Input Resistance: 1MΩ: 10MΩ
Input Capacitance: x1: 85pF-115pF
x10: 18.5pF-22.5pF
Compensation Range: 15pF ~ 35pF
System Bandwidth: x1: DC-5MHz
x10: DC-100MHz
Input Voltage: x1: <200V DC +Peak AC
x10: <600V DC +Peak AC
Operating Temperature: -10 degrees~ +50degrees / 14Fahrenheit~ 122Fahrenheit
Non Operating Temperature:-20degrees~ +75degrees/ -4Fahrenheit ~ 167Fahrenheit
Humidity: ≤85% (Relative Humidity)
Cable Length: 120cm / 47.2in
Item Size: Approx. 17 * 2 * 2cm / 6.7 * 0.8 * 0.8in (ONLY Probe)
Item Weight: Approx. 49.1g / 1.7oz
