Description
SPECIFICATIONS
Brand Name: NONE
High-concerned chemical: none
Origin: Mainland China

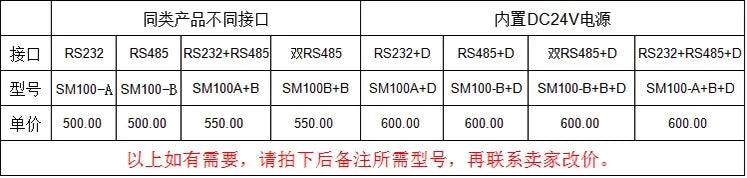

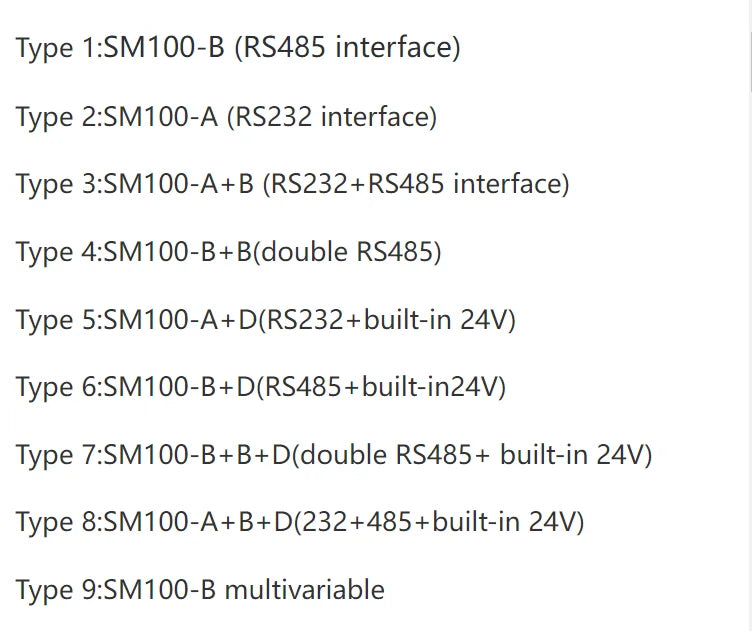

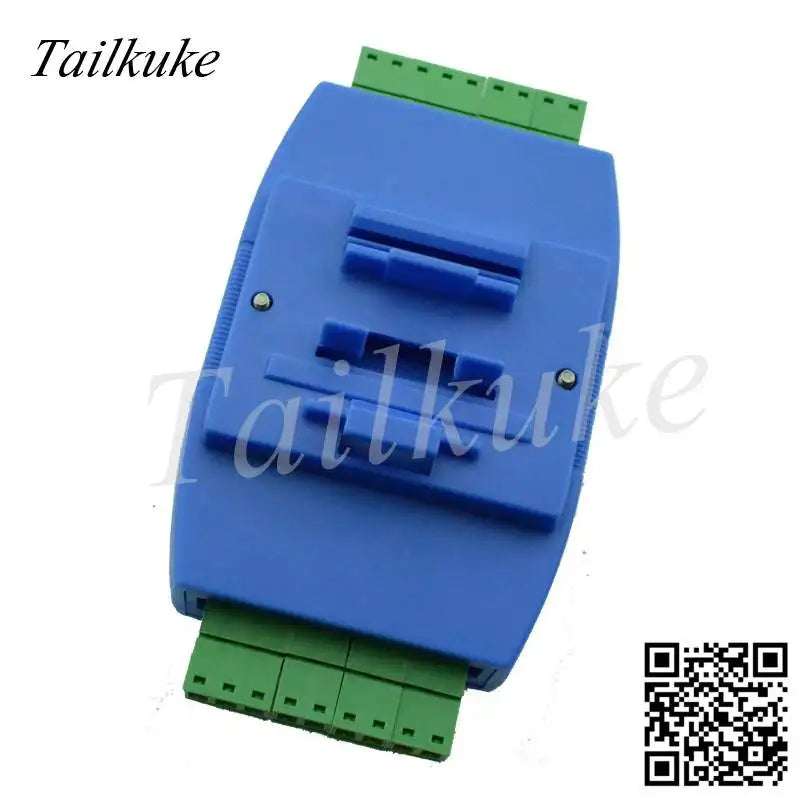

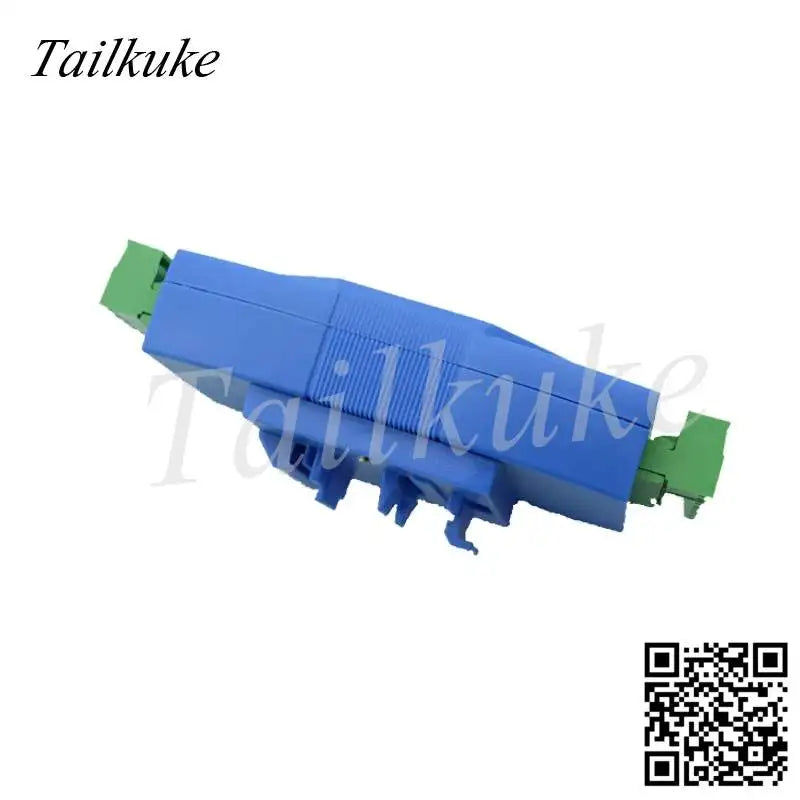

SM100-B RS485 port: SM100-B (RS485 interface)
SM100-A RS232 port: SM100-A (RS232 interface)
Type 3:SM100-A+B (RS232+RS485 interface)
Type 4:SM100-B+B(double RS485)
Type 5:SM100-A+D(RS232+built-in 24V)
Type 6:SM100-B+D(RS485+built-in24V)
Type 7:SM100-B+B+D(double RS485+ built-in 24V)
Type 8:SM100-A+B+D(232+485+built-in 24V)
SM100 Series HART intelligent converter is developed by using ARM microprocessor, HART protocol modulation and demodulation chip and combining a lot of practical experience. Designed according to the requirements of industrial products, with high reliability and stability. The intelligent converter is equipped with standard RS232 interface and RS485 interface, which can transmit data transparently with intelligent instrument with HART protocol or read data using MODBUS_RTU protocol to ensure real-time transmission of data. The HART protocol USES the Bell202 frequency shift keying (FSK) standard to overlay modulated digital signals on top of the 4-20mA, allowing bidirectional data communication without interfering with the 4-20mA analogue signal. SM100 series intelligent converter is an intelligent converter for bidirectional modulation and demodulation of digital and analog signals.
Product features
1. Equipped with standard RS232 and RS485 communication interfaces, parameters can be configured, communication baud rate and parity bit can be changed, which has nothing to do with the 1200 communication speed on HART bus, so as to improve the running speed of the whole system.
2. Industrial common module shell is adopted for easy installation and debugging.
3. Equipped with special configuration software, the SM100 series intelligent converter can communicate data with HART protocol intelligent instrument and configure intelligent converter parameters
4. Support for the standard MODBUS_RTU protocol.
5. Support simultaneous connection of multiple HART protocol intelligent instruments.
6. Supports a variety of special HART protocol intelligent instruments, and can customize the HART instrument to read special HART protocol instructions.
Technical parameters of SM100 series products
1. Power supply: DC12 -- 24V: The ripple of the power supply shall not be greater than 200mV, and the current shall be provided with 100mA.
2. Physical size: length 134mm * width 71mm * height 43mm.
3. Operating temperature: -20℃ -- 80℃.
4. Relative humidity: 10%-80%.
5. Product weight: 0.25Kg

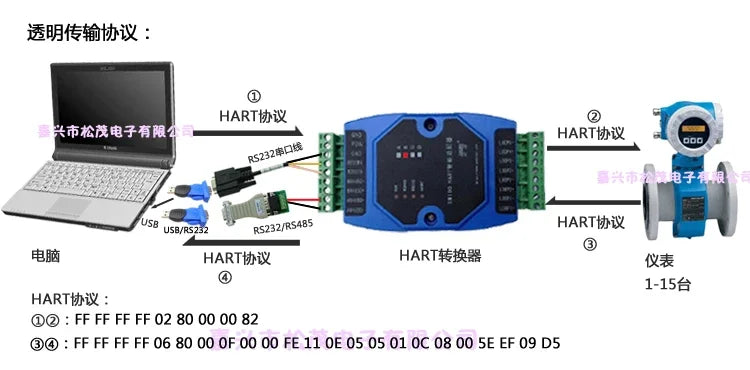

The difference between transparent protocol and MODBus-RTU

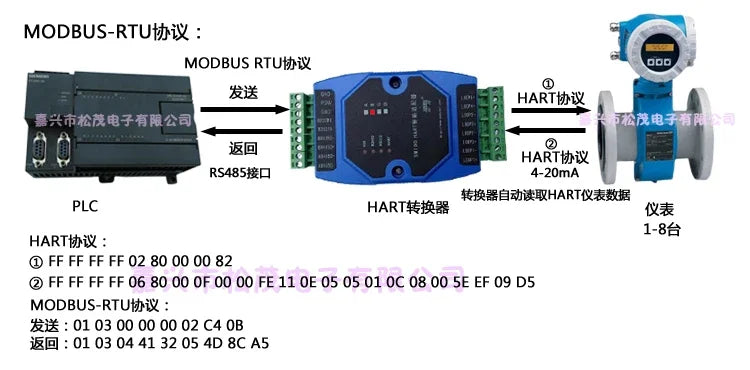

Hart-modbus converter is applied in data acquisition of MODBUS-RTU

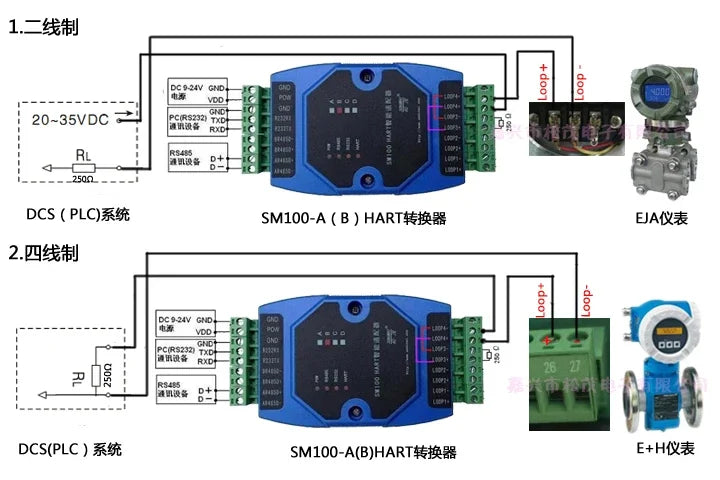

Application of Hart-Modbus converter in DCS(PLC) control system

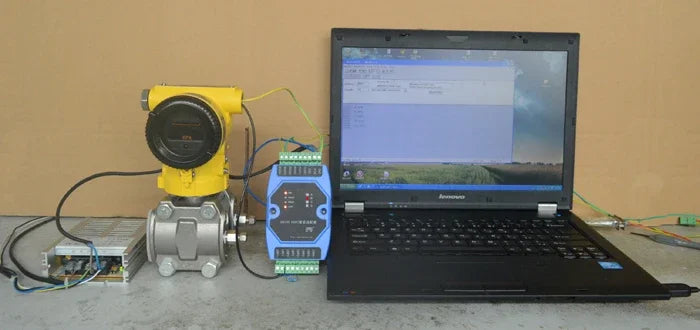

Actual field test application diagram
SM100-A(B) HART converter can communicate instruments (all field tests passed)

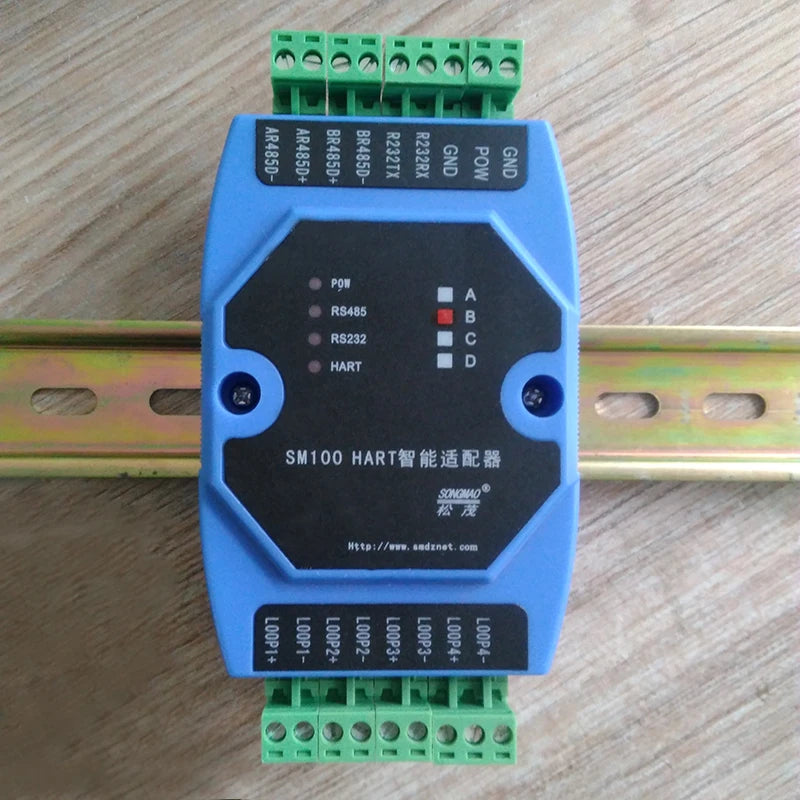

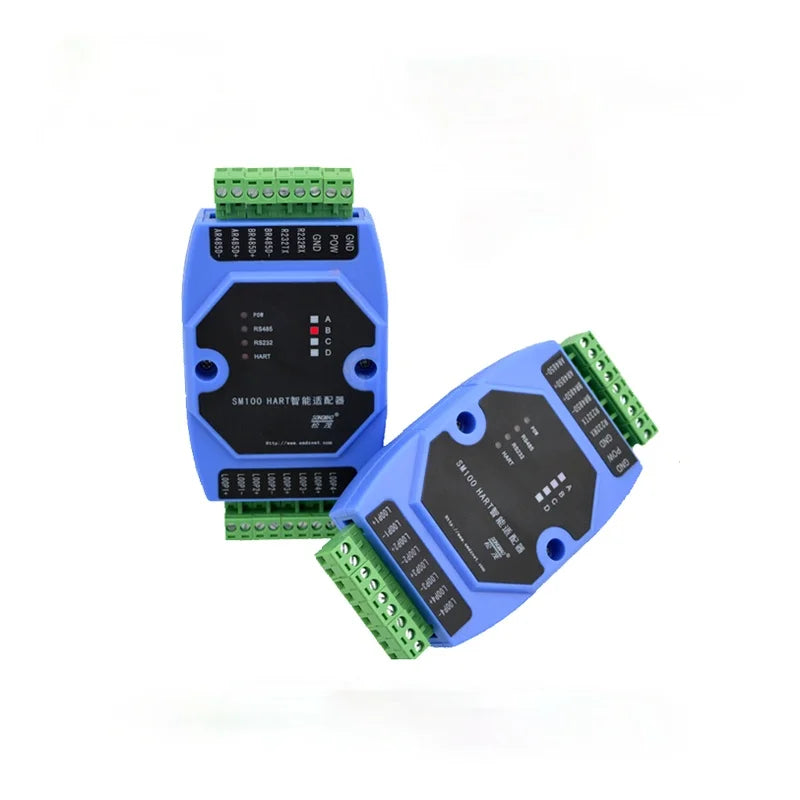

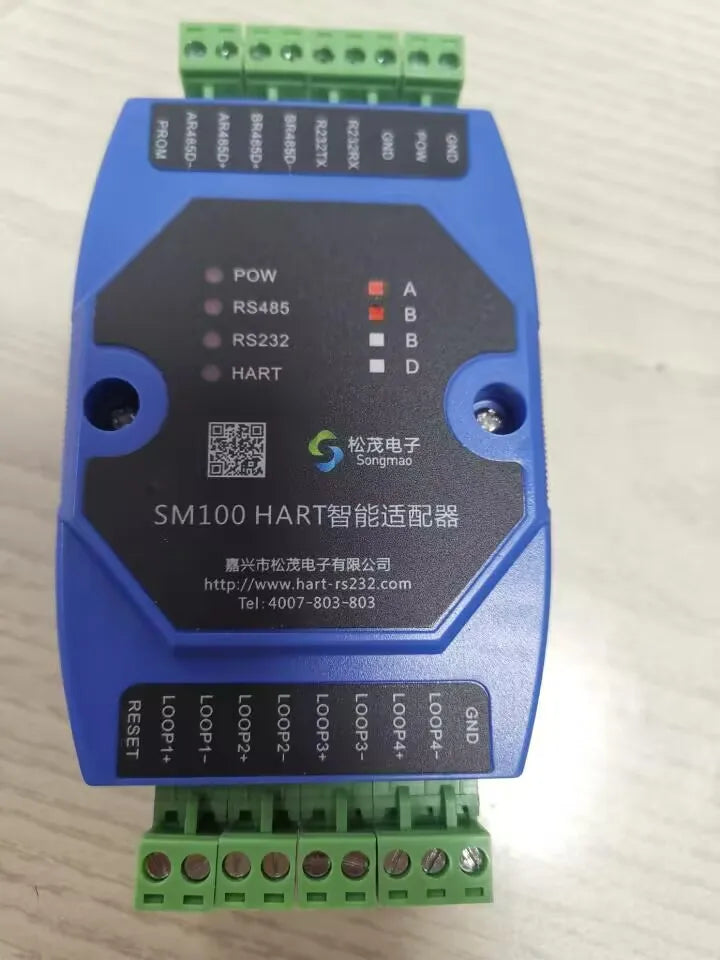

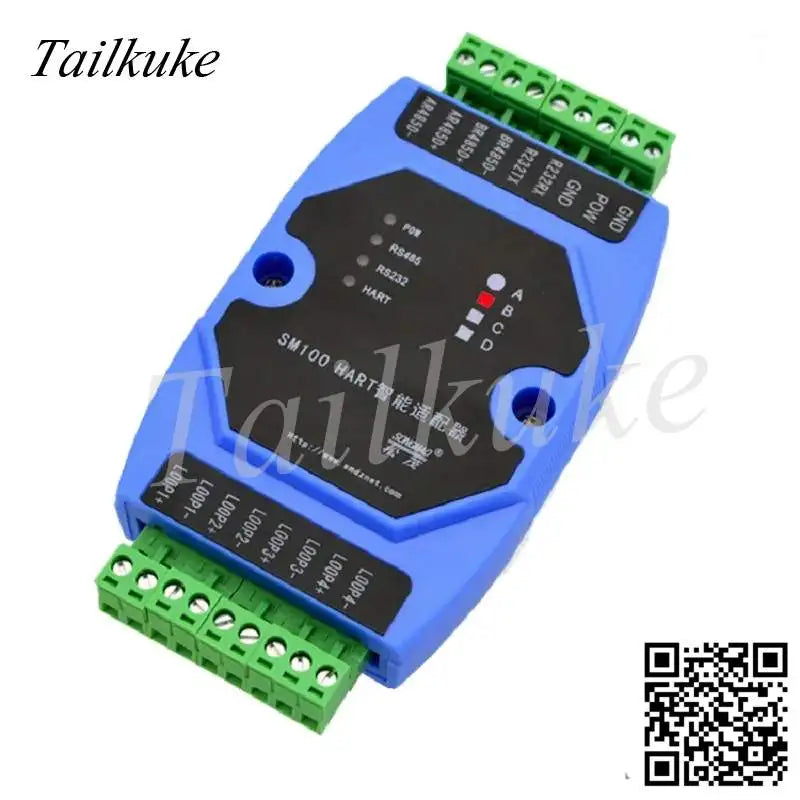

SM100 series intelligent converter external interface and indicator light function
1. Detailed explanation of external wiring terminals and indicator lights (as shown in the figure)
● Power interface terminal: POW(power positive) GND(power negative).
● ARS485 interface A Terminal: ARS485D+ ARS485D-.
● BRS485 interface B terminal: standby.
● RS232 Communication interface terminal: RS232TX RS232RX.
● HART instrument interface terminal: four groups of HART instrument communication interfaces (Loop1-loop4).
2. Indicator light instructions
● POW power indicator light: always on after power on.
● RS485 communication indicator light: flashes when RS485A serial port data exchange occurs.
● RS232 communication indicator light: flashes when RS232 serial port data exchange.
● HART communication indicator light: flashes when data exchange between HART converter and HART instrument.
SM100 series intelligent converter and HART protocol intelligent instrument wiring

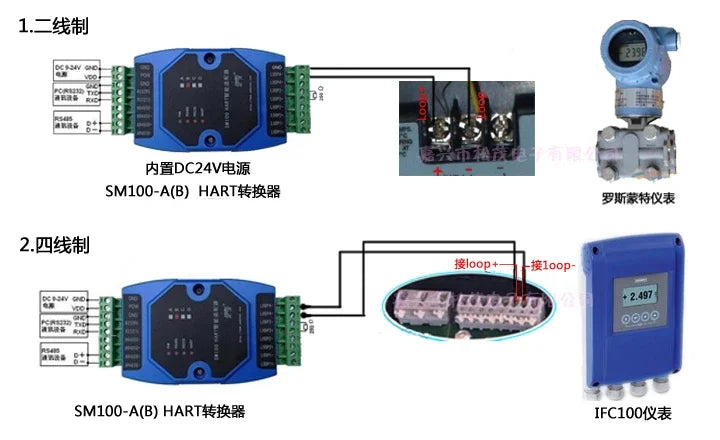

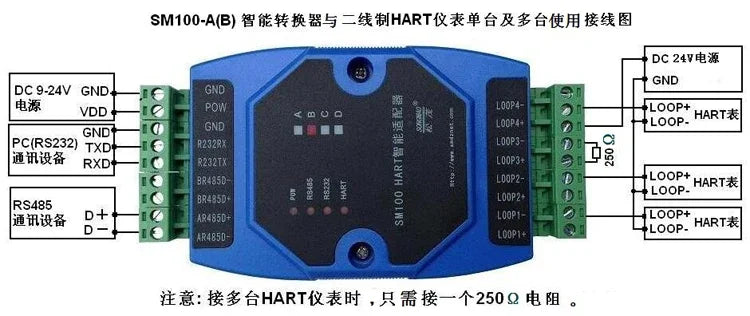

1. Wiring diagram of HART protocol intelligent instrument with two wires

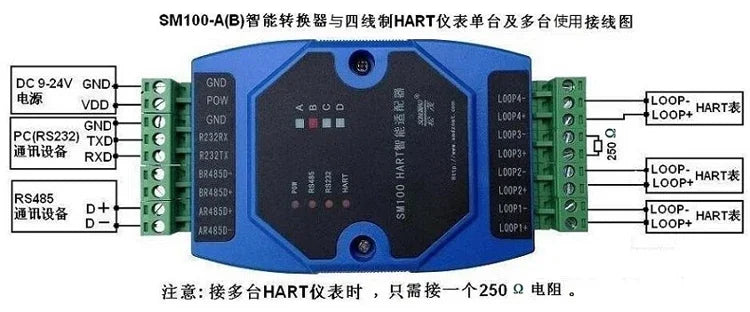

2. Wiring diagram of HART protocol intelligent instrument with four-wire system

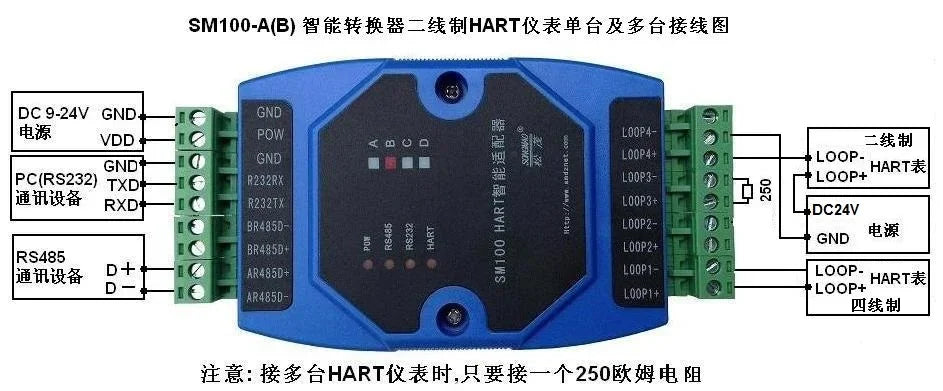

3.HART converter and two-wire and four-wire HART protocol intelligent instrument use wiring diagram simultaneously

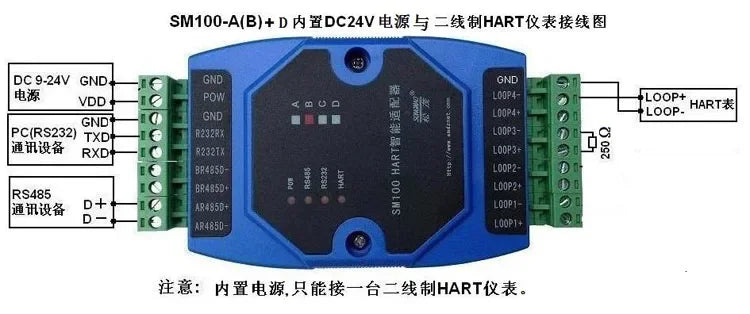

4. Wiring diagram of intelligent instrument between DC24V and two-wire HART protocol built in HART converter
5. Differences between two-wire HART instrument and four-wire HART Instrument
● The power line of the four-wire HART instrument is separated from the 4-20mA input and output lines for separate power supply.
● The power line of the two-wire HART instrument is Shared with the 4-20mA input and output lines
Details of SM100 series configuration software

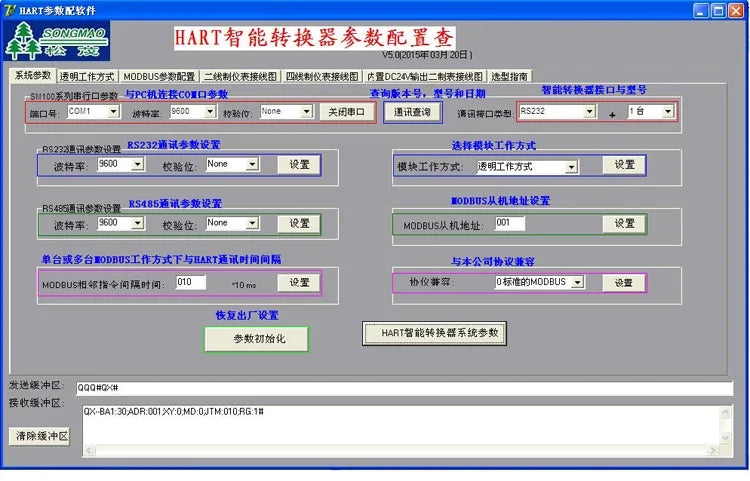

1. System parameter interface function introduction

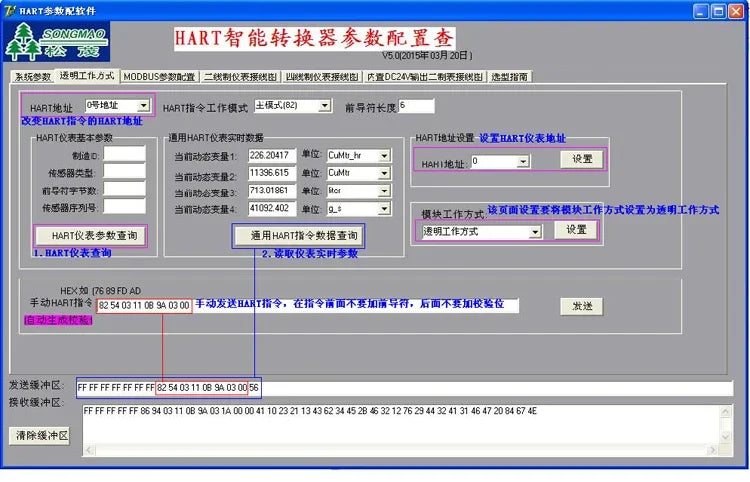

2. Transparent transmission interface function introduction

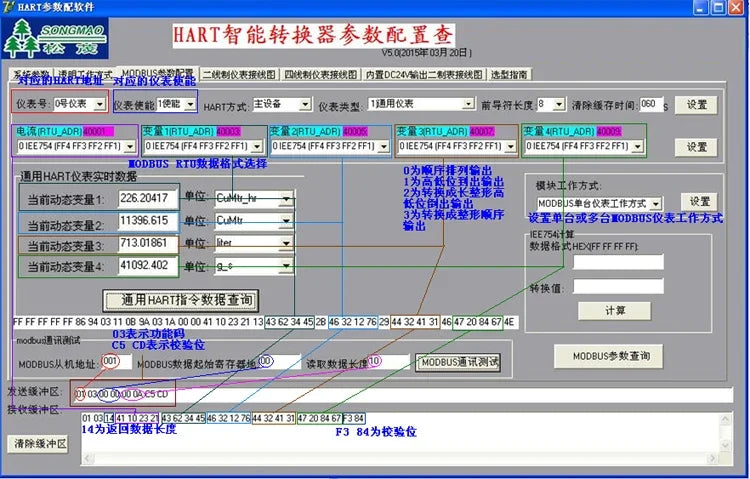

3. Introduction of interface functions of General HART Agreement

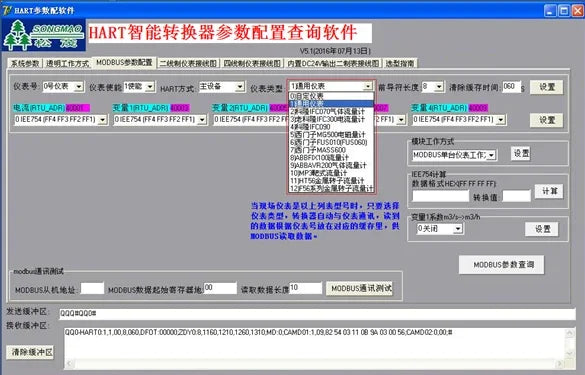

4. Introduction of interface functions of special HART coordinator

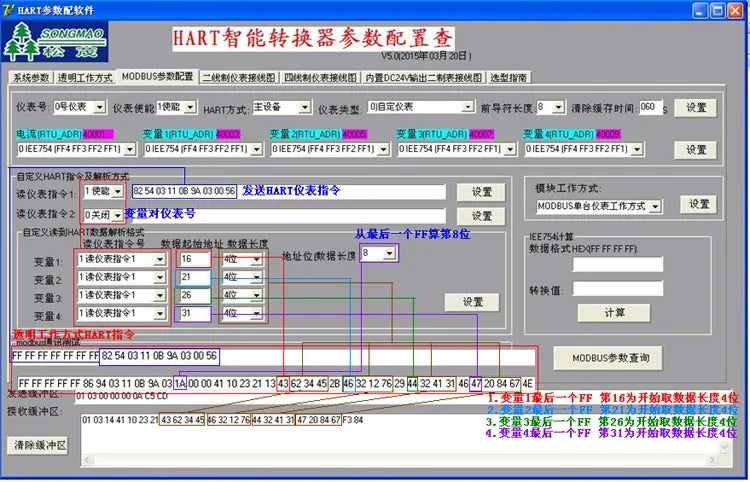

5. Introduce the interface functions of HART Agreement

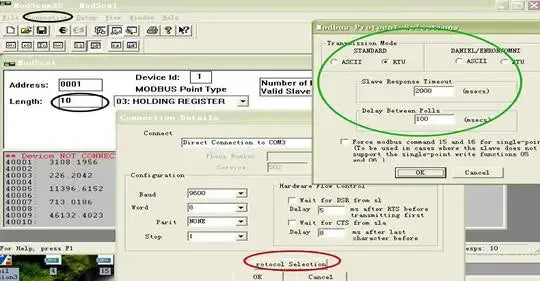

6. Read data with ModScan32 test software

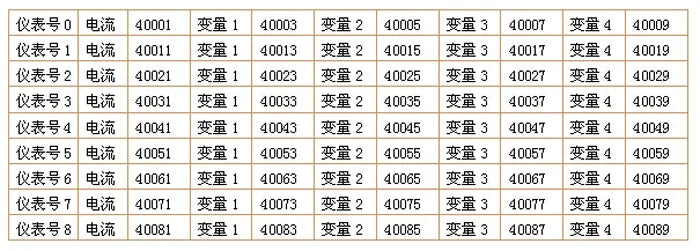

Data register address
