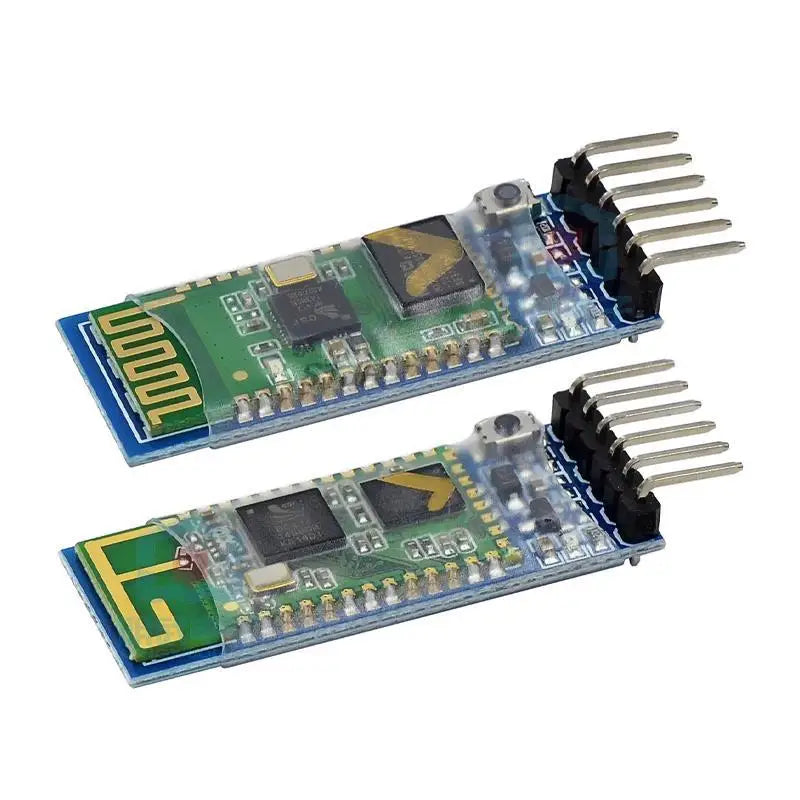

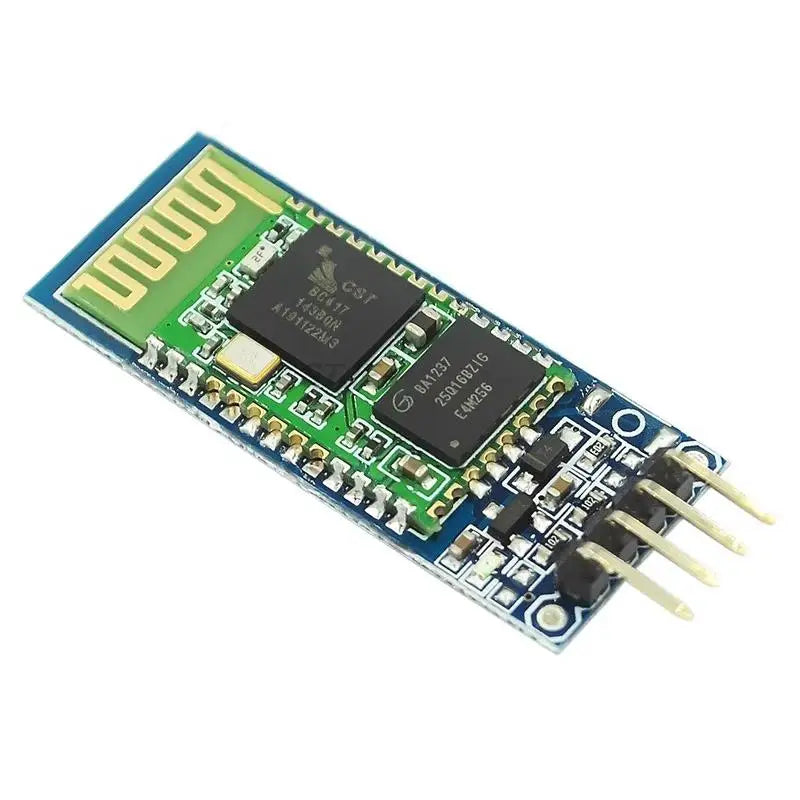

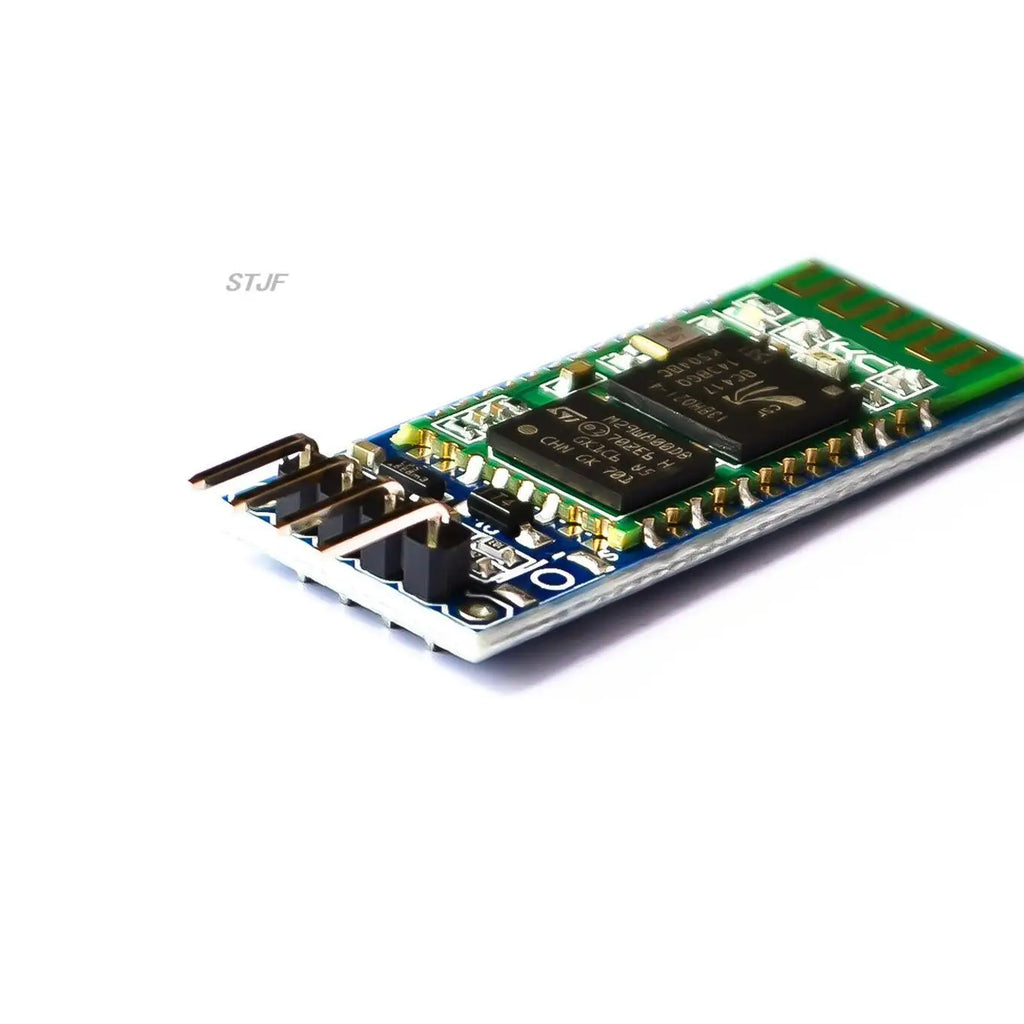

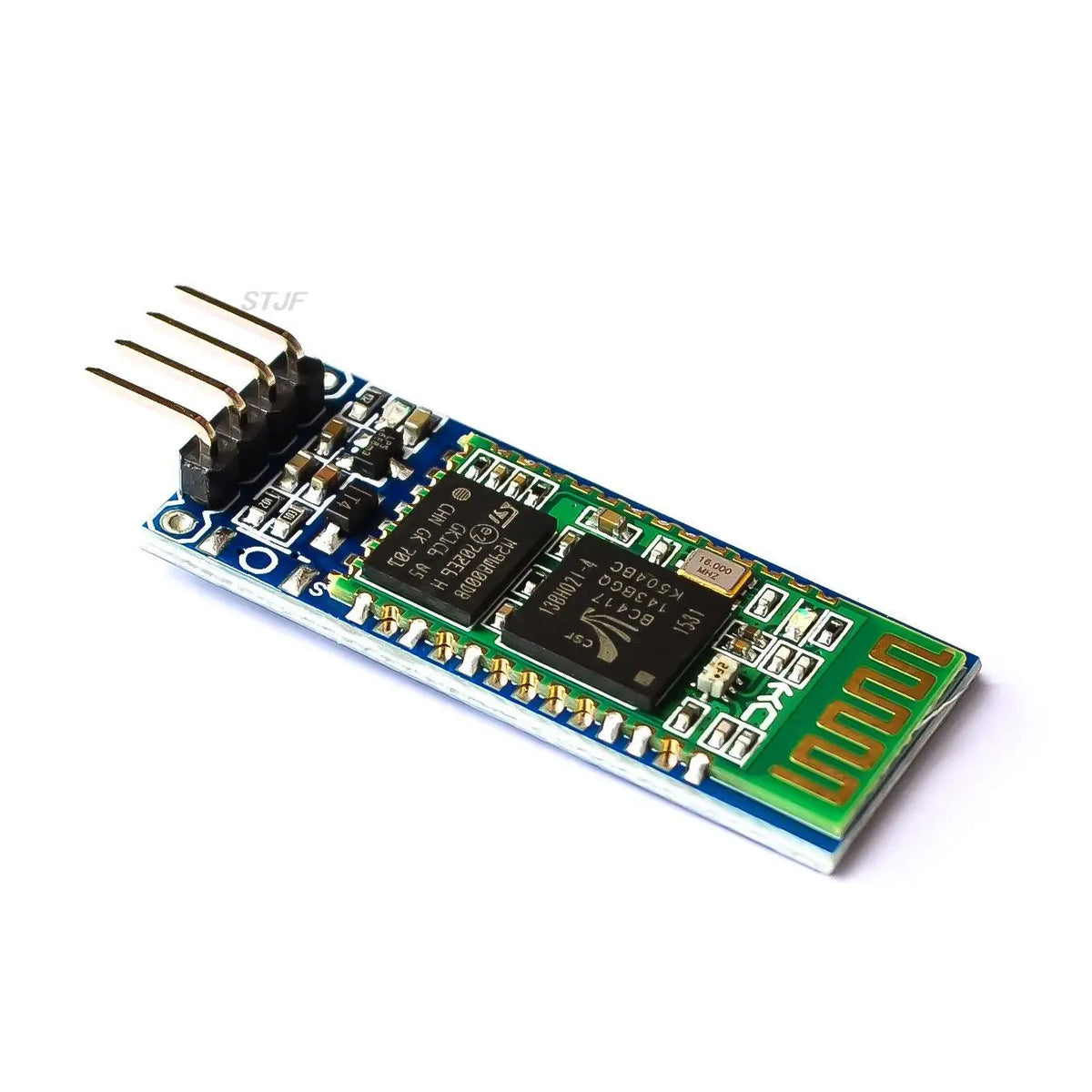

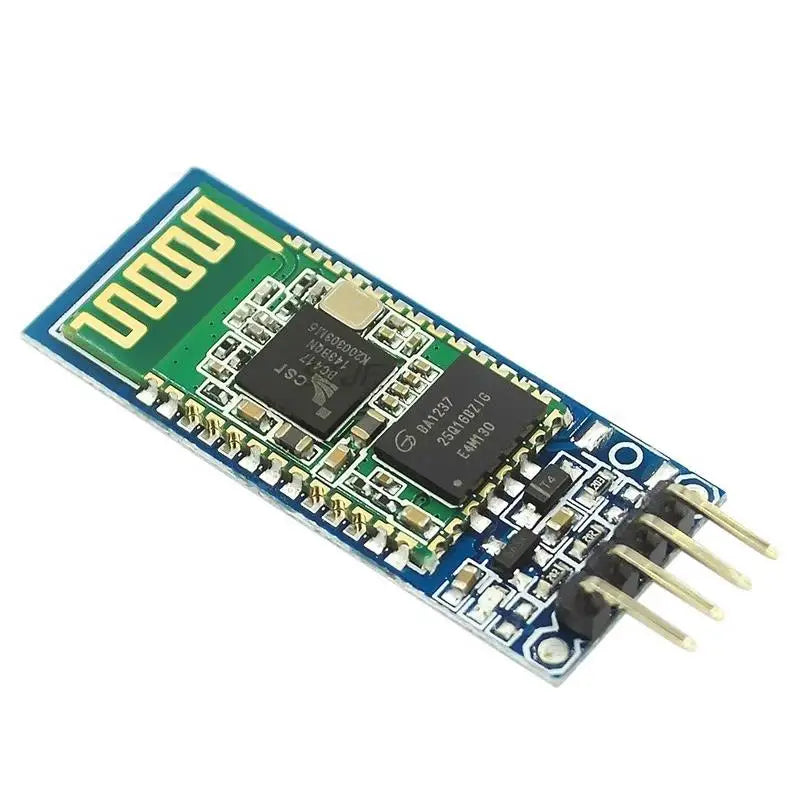

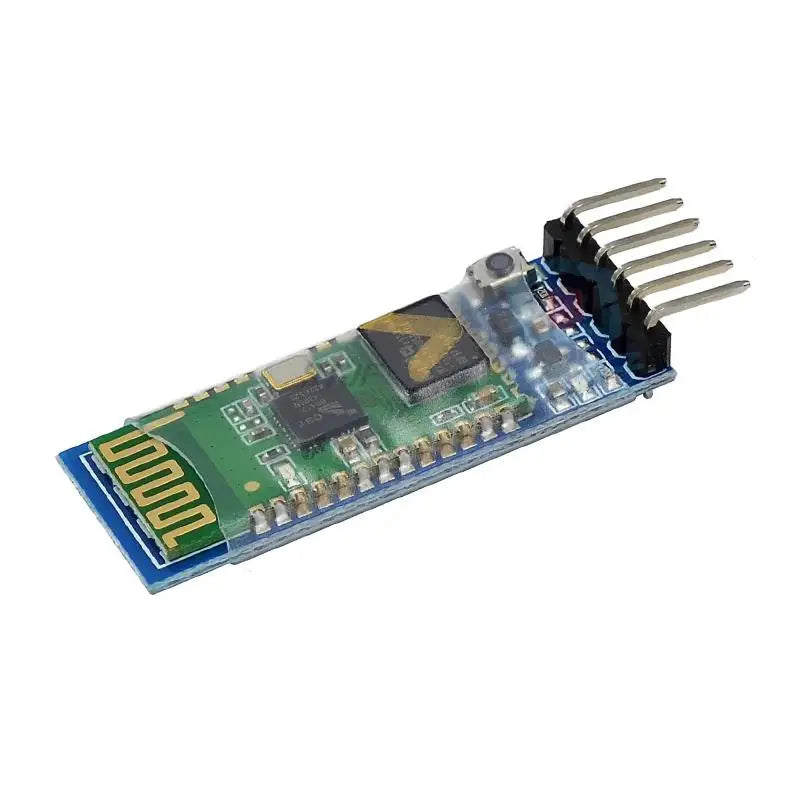

HC-06 HC-05 Bluetooth serial pass-through module wireless serial communication from machine Wireless HC06 Bluetooth Module

HC-06 HC-05 Bluetooth serial pass-through module wireless serial communication from machine Wireless HC06 Bluetooth Module

$26.00

$26.00 $0.00

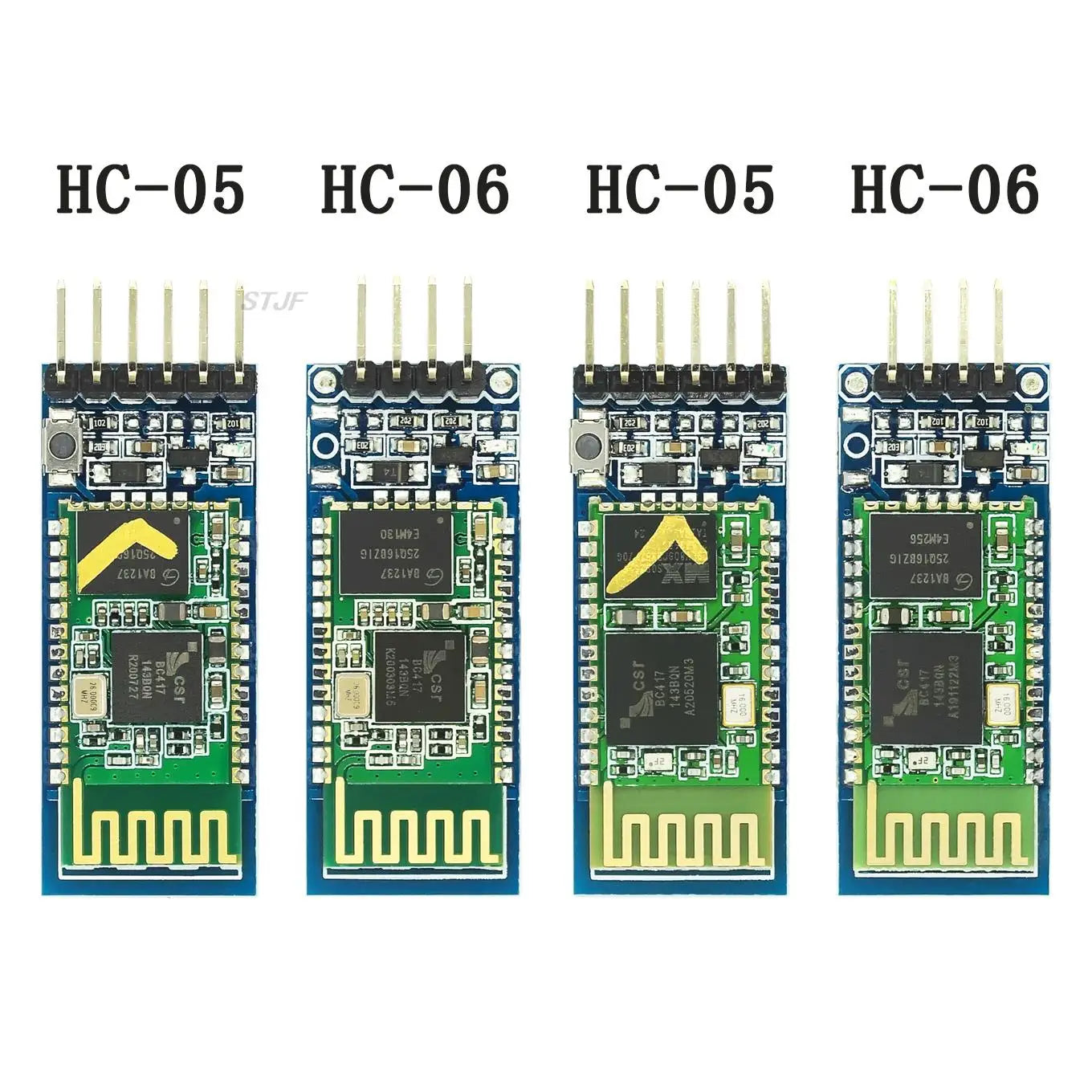

Color HC05Official version HC05 Compatible HC06Official version HC06 Compatible

Description

SPECIFICATIONS

Application: Computer

Brand Name: STJF

Choice: yes

Condition: New

Dissipation Power: ...

Functions: Electronic Module

High-concerned chemical: none

Operating Temperature: -40℃~+80℃

Origin: Mainland China

Package: DIY Module

Range of application: Switch And Sensor For Arduino STM

Supply Voltage: 3.6~6V

Type: Module

semi_Choice: yes

Allows your device to both send or receive the TTL data via Bluetooth technology without connecting a serial cable to your computer.

Works with any USB Bluetooth adapters.
Default Baud Rate: 9600,8,1,n.
Built in antenna.
Coverage up to 30ft.
Bluetooth version: V2.0+EDR
Operating voltage: 3.3V
Default Baud Rate: 9600,8,1,n.
Signal coverage: 30ft
Item size: 4.3 * 1.6 * 0.7cm
Item weight: 3g
Package size: 9 * 3 * 1cm
Package weight: 8g

Commercial Series: Bluetooth module board Series
With LED indicator light, use 150mA and 3.3V regulation chip.

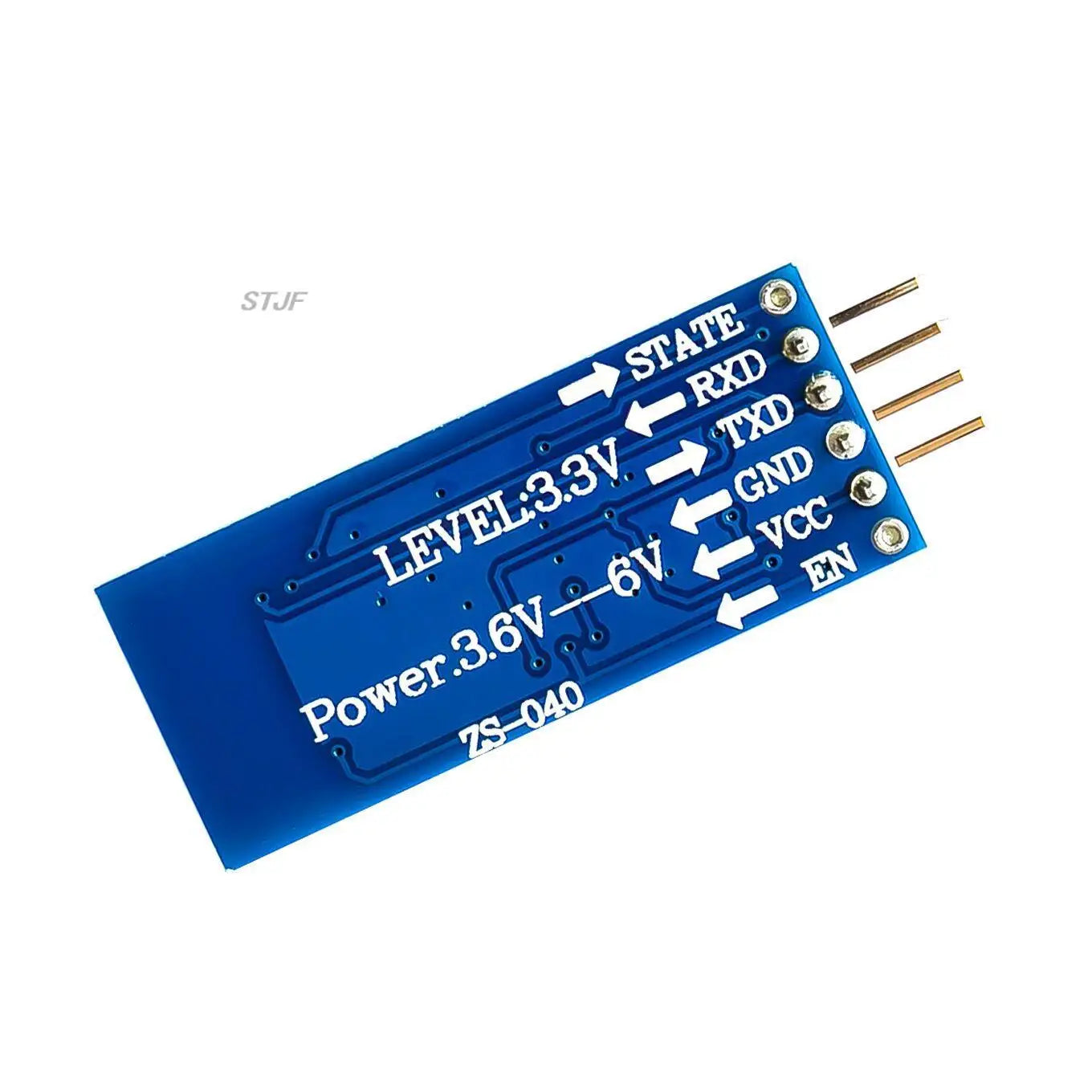

With VCC.GND.TXD.RXD foot for the Bluetooth

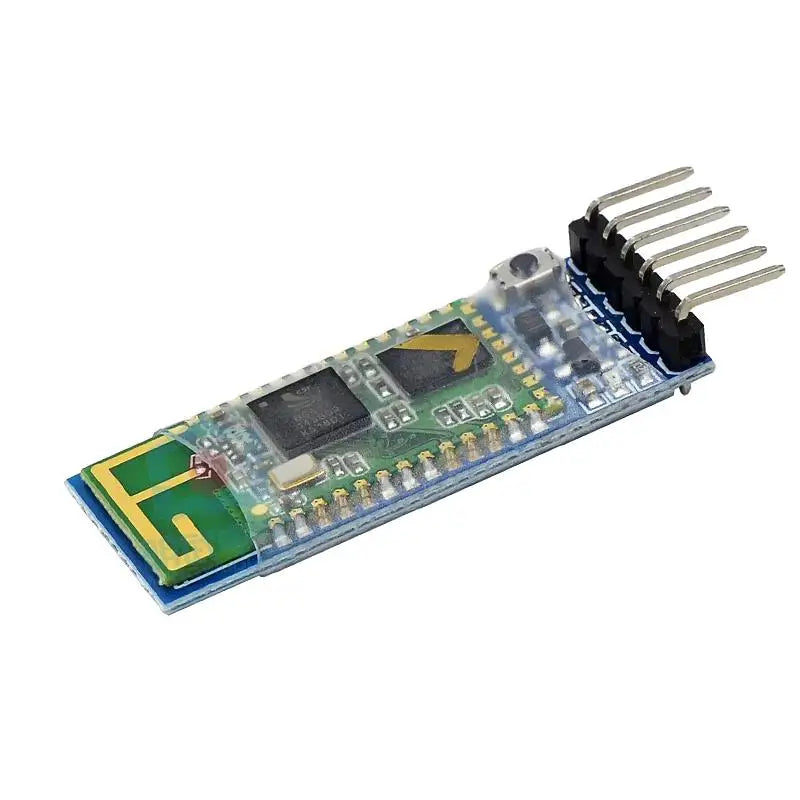

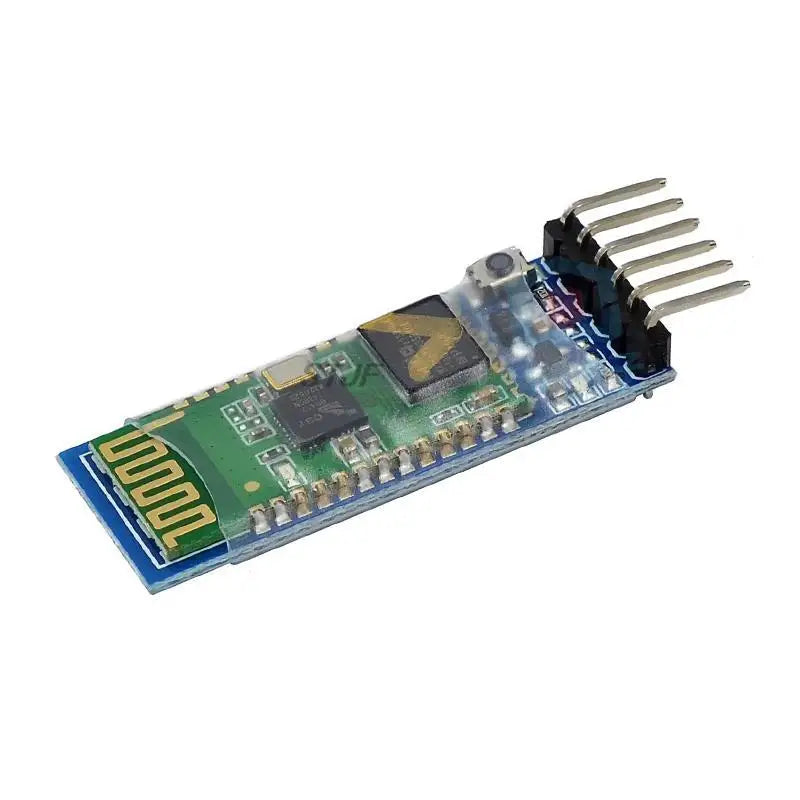

With "Re-seach" button(ON/OFF/WAKE foot for it , external MCU outinput "High level" can control module to re-seach)
Compatible with bluetooth master module".slave module"or master-slave(whole) module.
Input voltage: 3.3~6V
Size: 1.55cm*3.98cm

Note:

input power supply 3.3~6V, Prohibit more than 7V

No "Automatically prevent power supply peversing func", so please correctly connect power supply
We advise to install "Bluetooth master module"
The "State" is output foot for LED status, when bluetooth "Unconnected", output "Pulse" ; when bluetooth "connected", output "High level", we can determine the states from "MCU"
If only the board , No any "Bluetooth Function "
