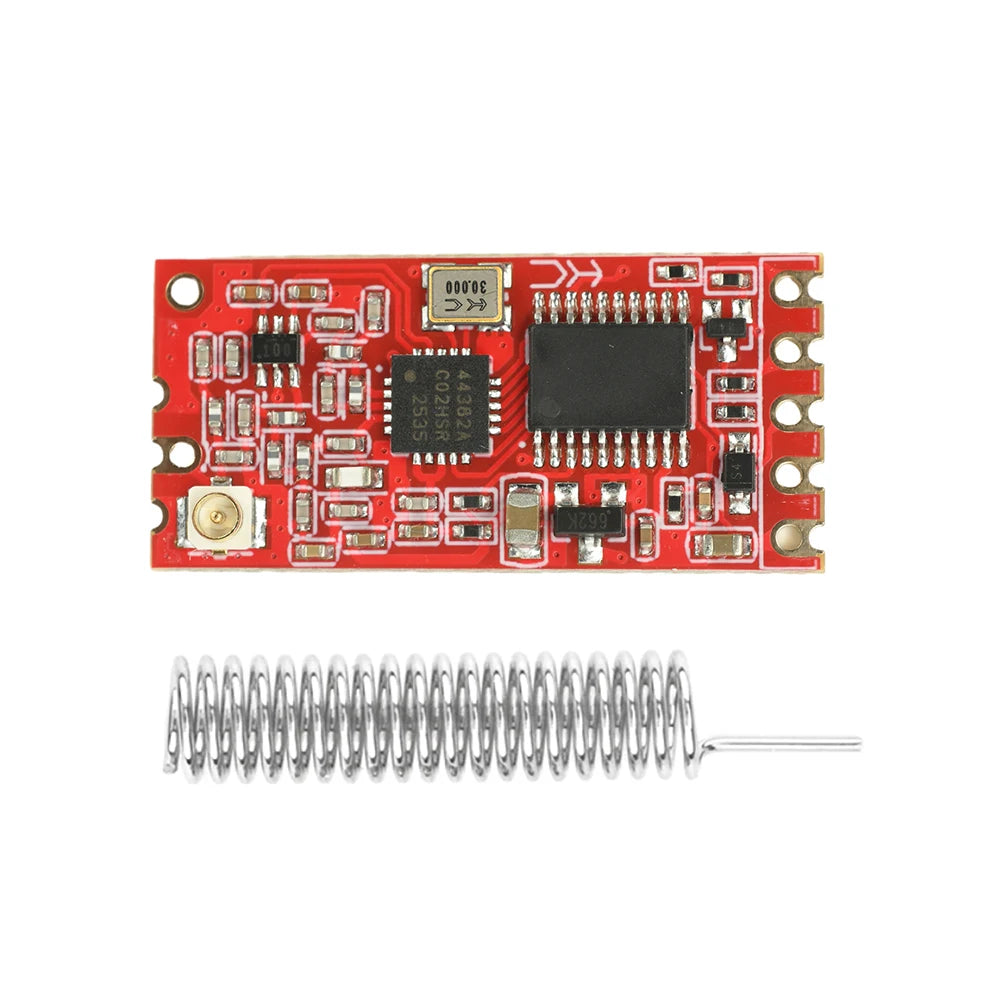

HC-12 V4.0 SI4438 Wireless Microcontroller Serial Bluetooth Module Data Transmission Module with Antenna

Features:

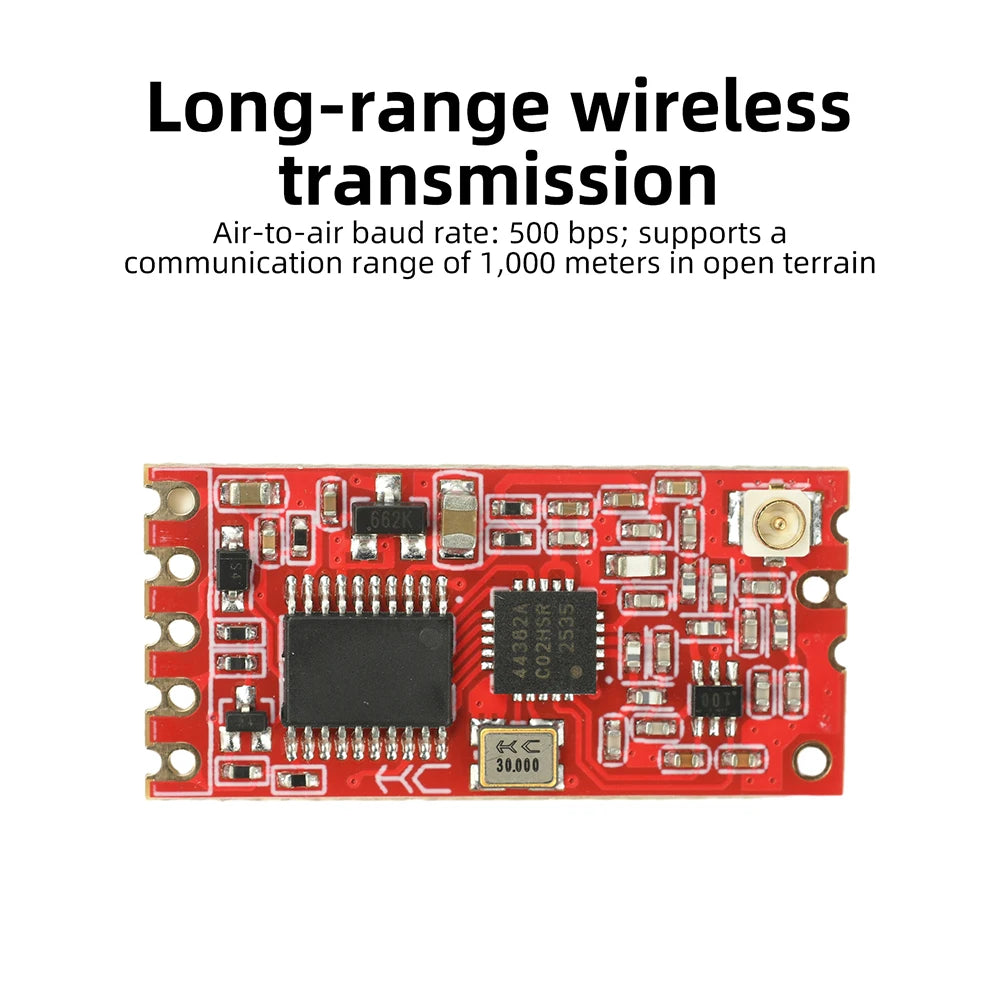

1. Long-range wireless transmission, 500bps air baud rate, supports a communication distance of 1000 meters in open areas.

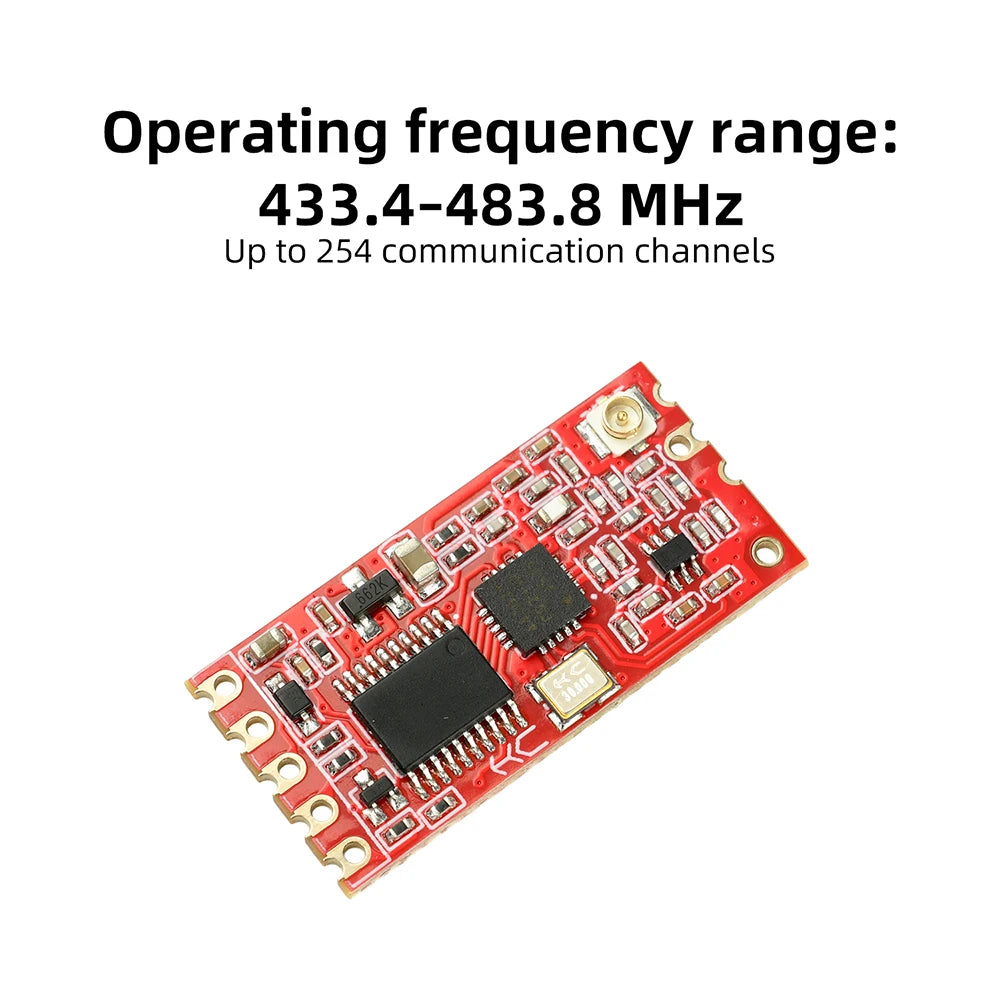

2. Operating frequency range 433.4—483.8MHz, up to 254 communication channels.

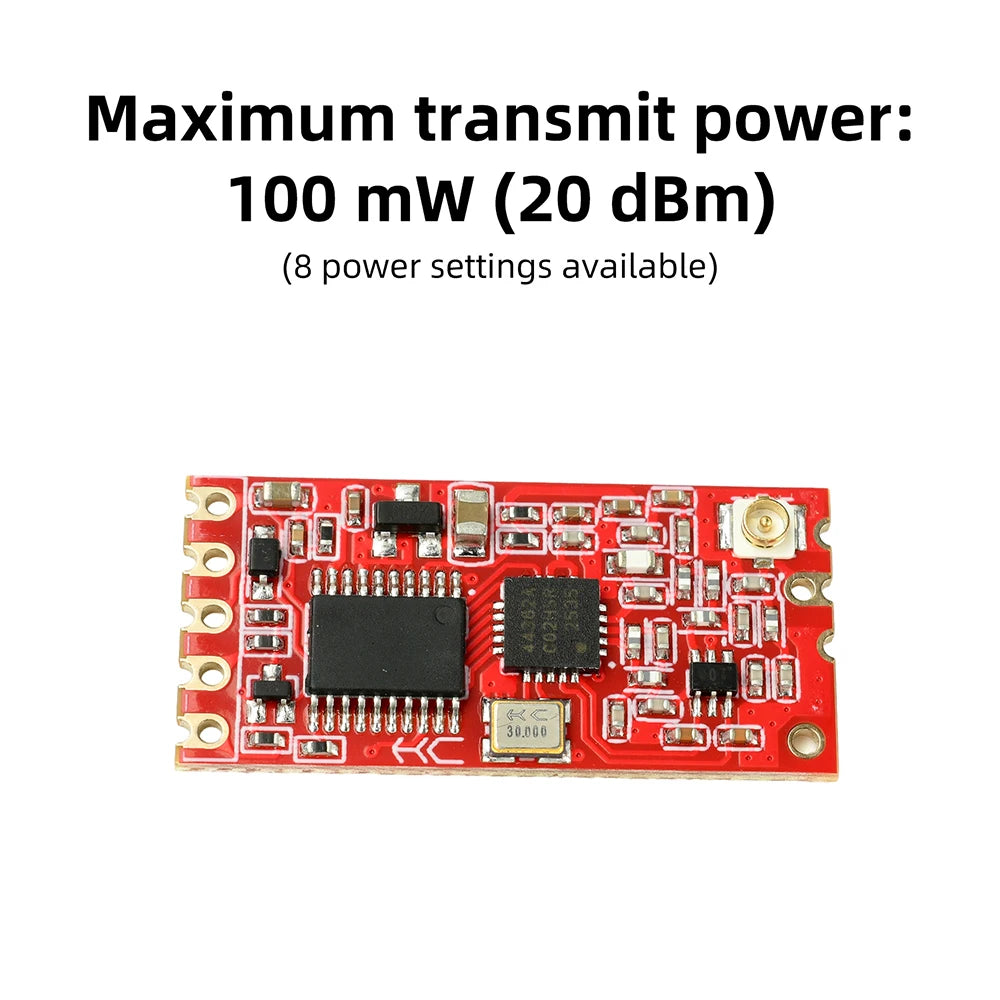

3. Maximum 100mW (20dBm) transmit power (8 power levels adjustable).

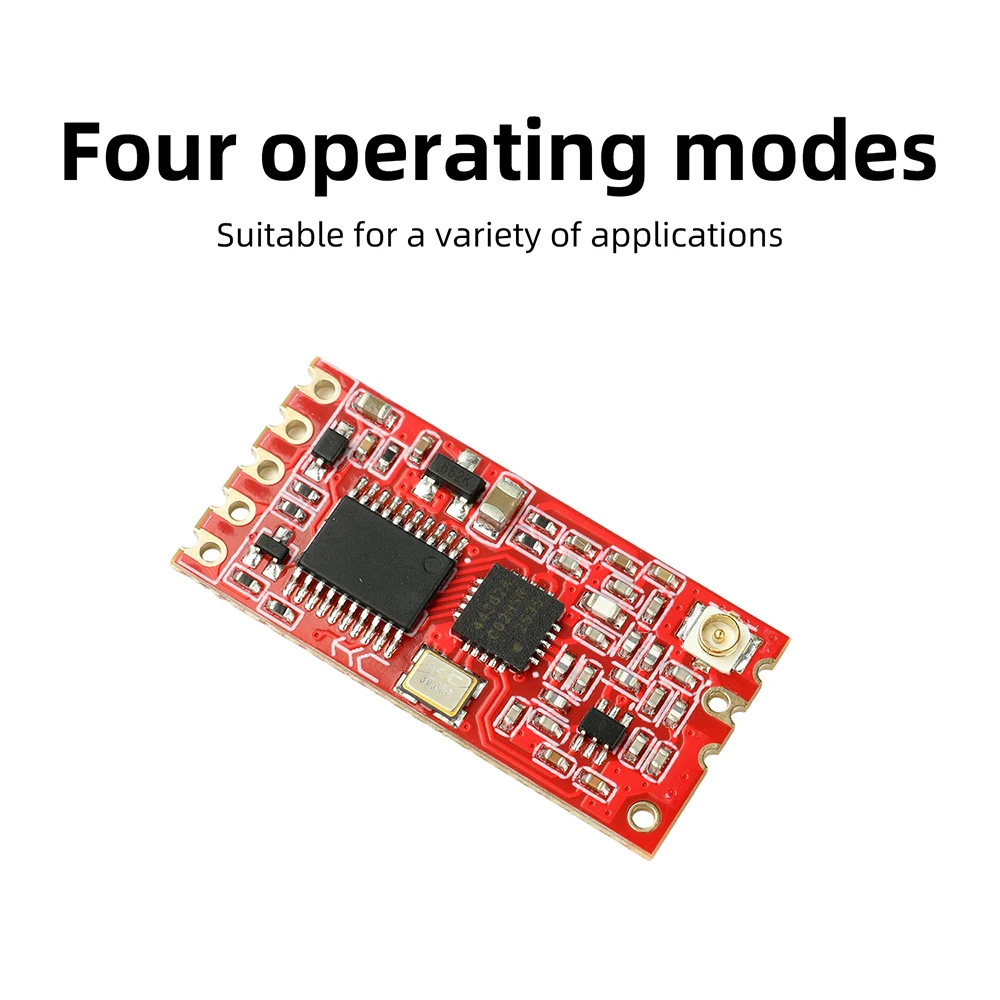

4. Four operating modes to adapt to different applications.

5. Built-in MCU for communication with external devices via serial port.

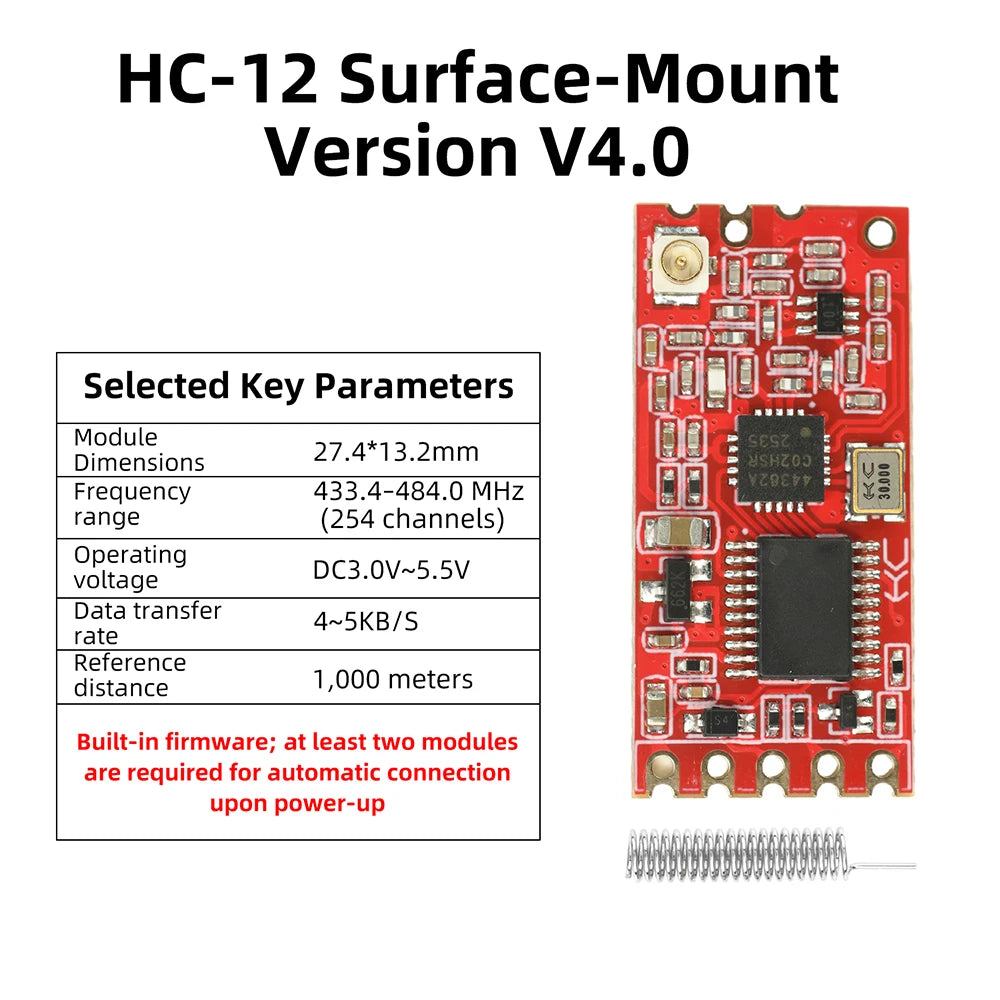

Product Introduction: The HC-12 wireless serial communication module is a new generation of multi-channel embedded wireless data transmission module. The wireless operating frequency band is 433.4—483.8MHz, with multiple channels configurable in 400KHz increments, totaling 127 channels. In default mode, the module's maximum transmit power is 100mW (20dBm), 5000bps air baud rate, receive sensitivity -116dBm, and a communication distance of 1000 meters in open areas.

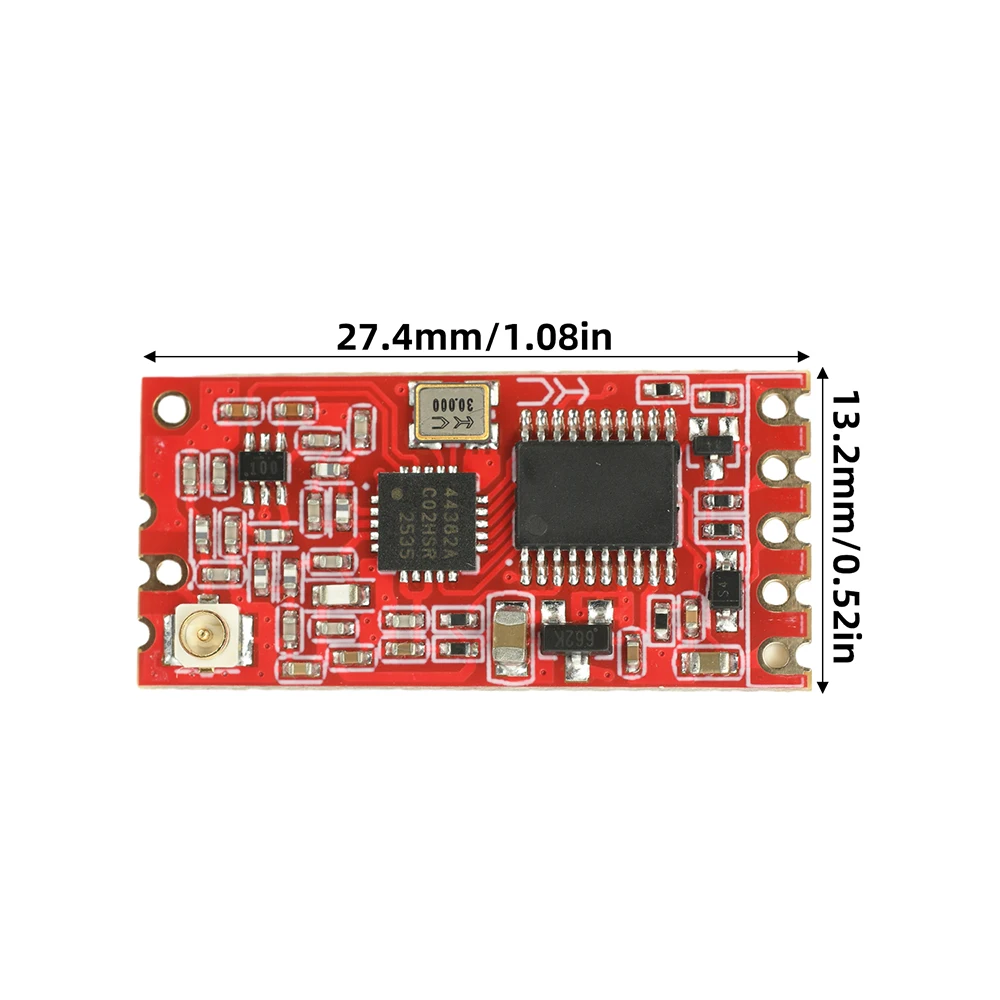

The module uses a stamp-hole packaging method, allowing for surface mount soldering. Measuring 27.4mm × 13.2mm (excluding the spring antenna), it is easily embedded into application systems. The module features a PCB antenna mount ANT1, allowing users to connect an external antenna via coaxial cable, depending on the selected communication channel, for either the 433MHz band (suitable for 433.4MHz-450MHz) or the 470MHz band (suitable for 450MHz-483.8MHz). An internal antenna soldering hole ANT2 facilitates soldering of the spring antenna. Users can select one antenna type according to their requirements.

The module contains an internal MCU, eliminating the need for additional programming. Various pass-through modes allow users to simply transmit and receive serial data, making it convenient to use. The module employs multiple serial port pass-through modes, selectable via AT commands according to user requirements.

The average operating current in idle state for the four modes FU1, FU2, FU3, and FU4 are 3.3mA, 85μA, 16.5mA, and 16.5mA respectively, with a maximum operating current of approximately 120mA (in full-power transmission mode).

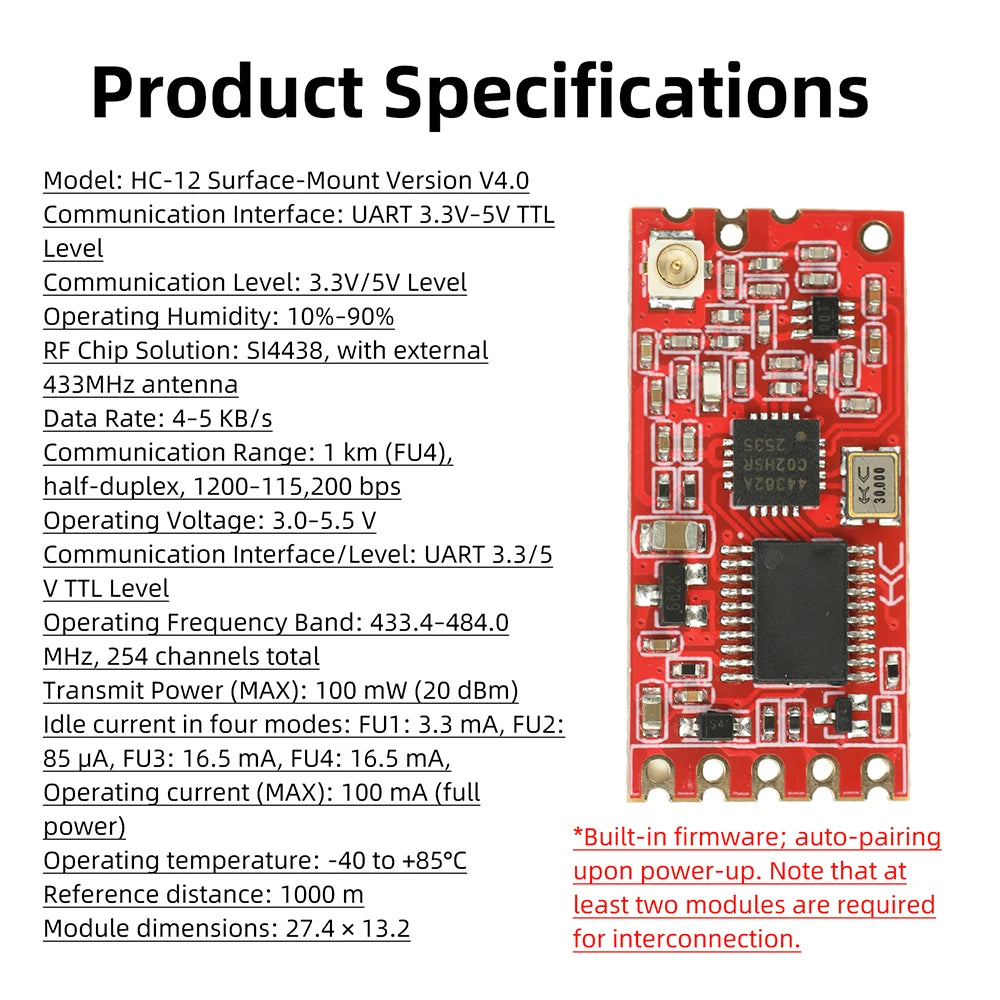

Product Specifications:

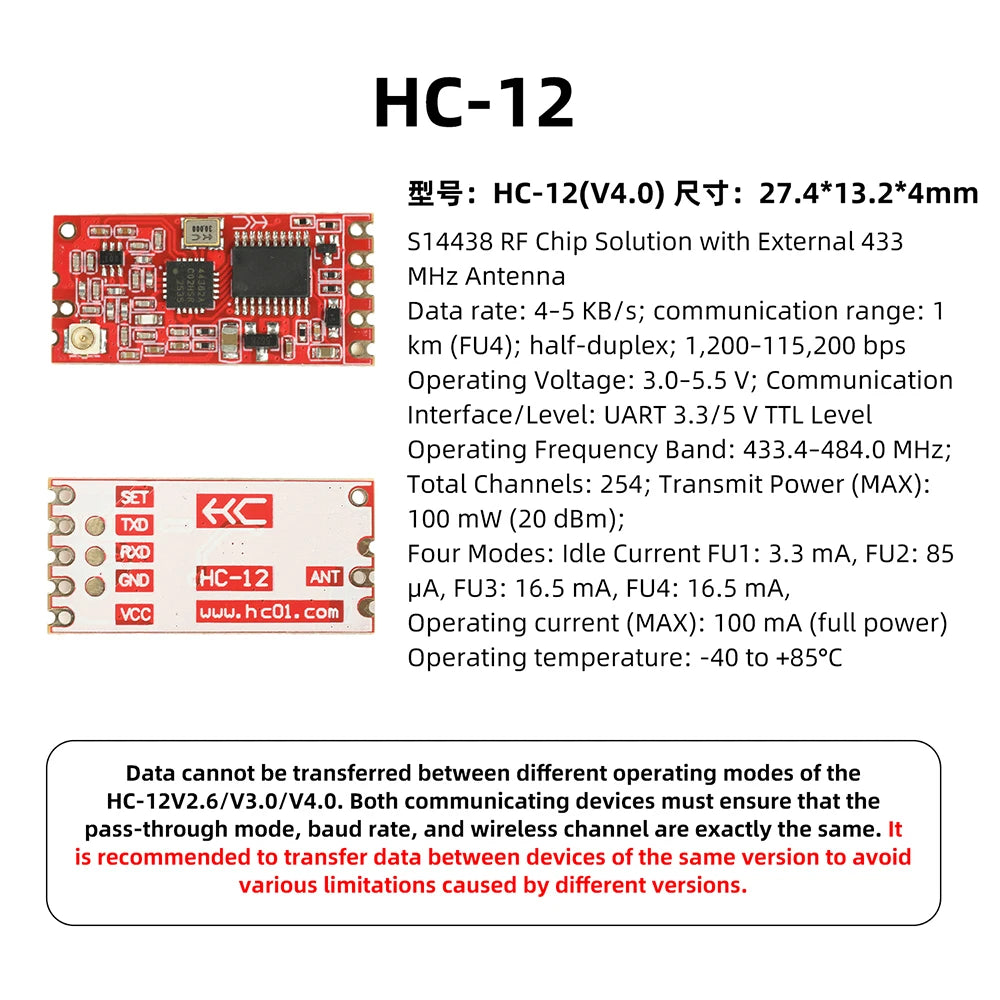

Model: HC-12 SMD V4.0

Communication Interface: UART 3.3V~5V TTL level

Communication Level: 3.3V/5V level

Operating Humidity: 10%~90%

RF Chip Solution: SI4438, external 433MHz antenna

Transmission Rate: 4~5KB/s

Communication Distance: 1km/FU4, half-duplex, 1200~115200bp

Operating Voltage: 3.0~5.5V

Communication Interface/Level: UART 3.3/5V TTL level; Operating frequency band: 433.4~484.0MHz; Total 254 channels; Transmit power (MAX): 100mW (20dBm); Idle current in four modes: FU1: 3.3mA, FU2: 85μA, FU3: 16.5mA, FU4: 16.5mA; Operating current (MAX): 100mA (full power); Operating temperature: -40~+85℃; Reference distance: 1000m; Module size: 27.4×13.2mm; Built-in firmware, self-connecting upon power-on; note that at least two modules are required for interconnection.

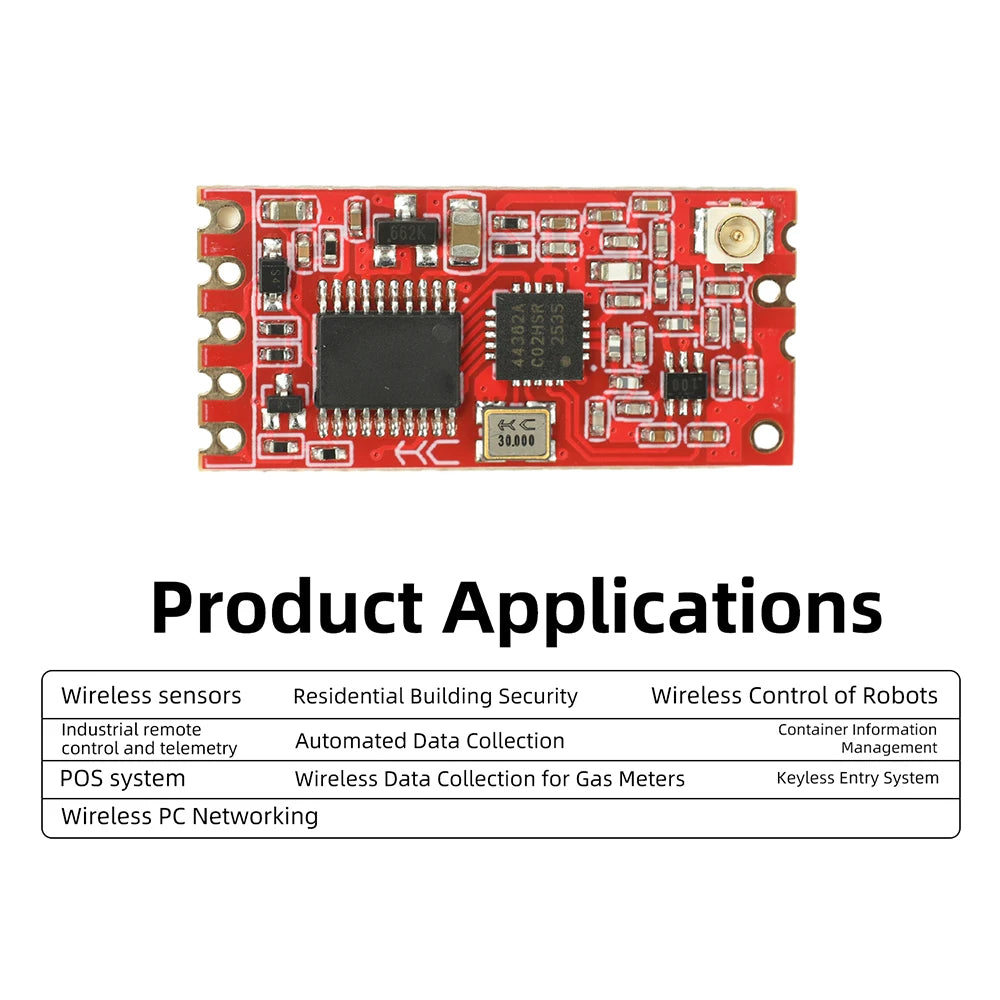

Product Applications: Wireless sensors; Community building security; Wireless robot control; Industrial remote control/telemetry; Automated data acquisition; Container information management; POS system; Wireless gas meter data acquisition; Keyless vehicle entry system; PC wireless networking

Product List:

1X Module; 1X Spring Antenna
