SPECIFICATIONS

Brand Name: NONE

Choice: yes

High-concerned chemical: none

Origin: Mainland China

Type: Biosensor

is_customized: Yes

semi_Choice: yes

Description:

Condition:100% brand new with good quality

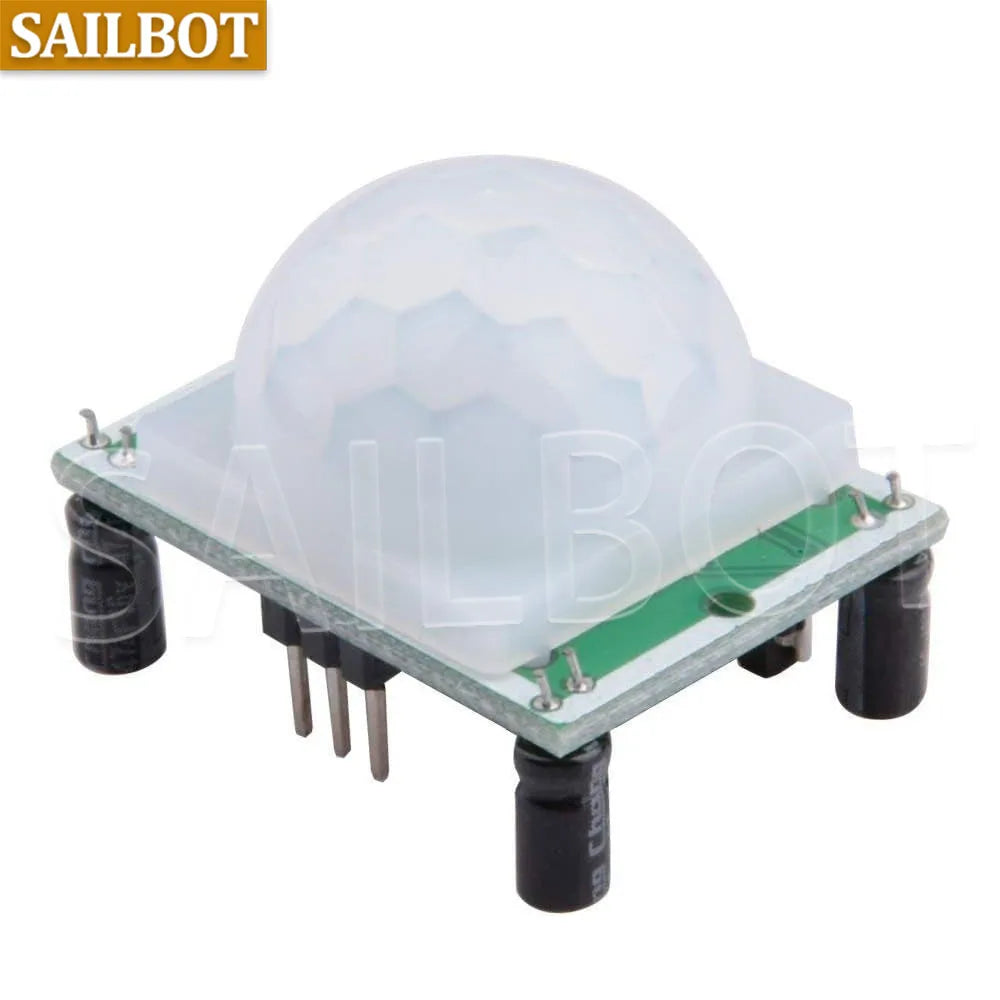

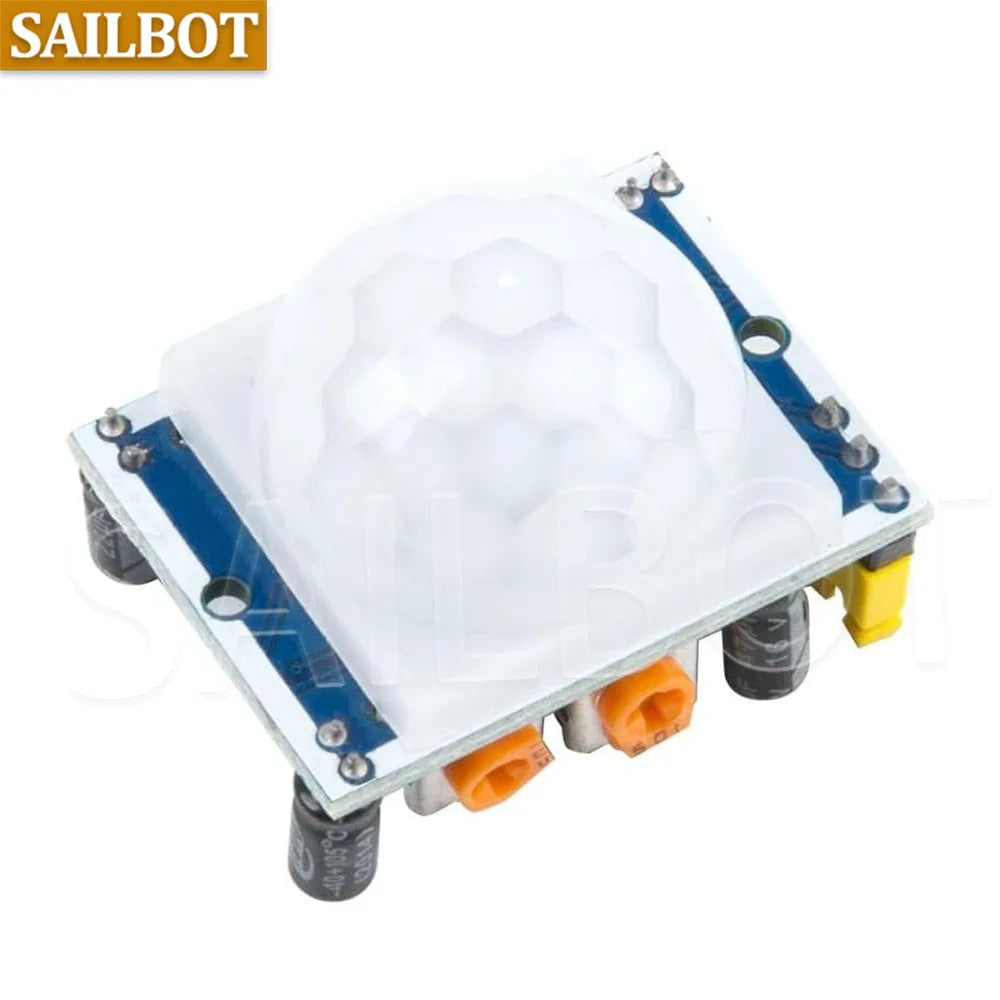

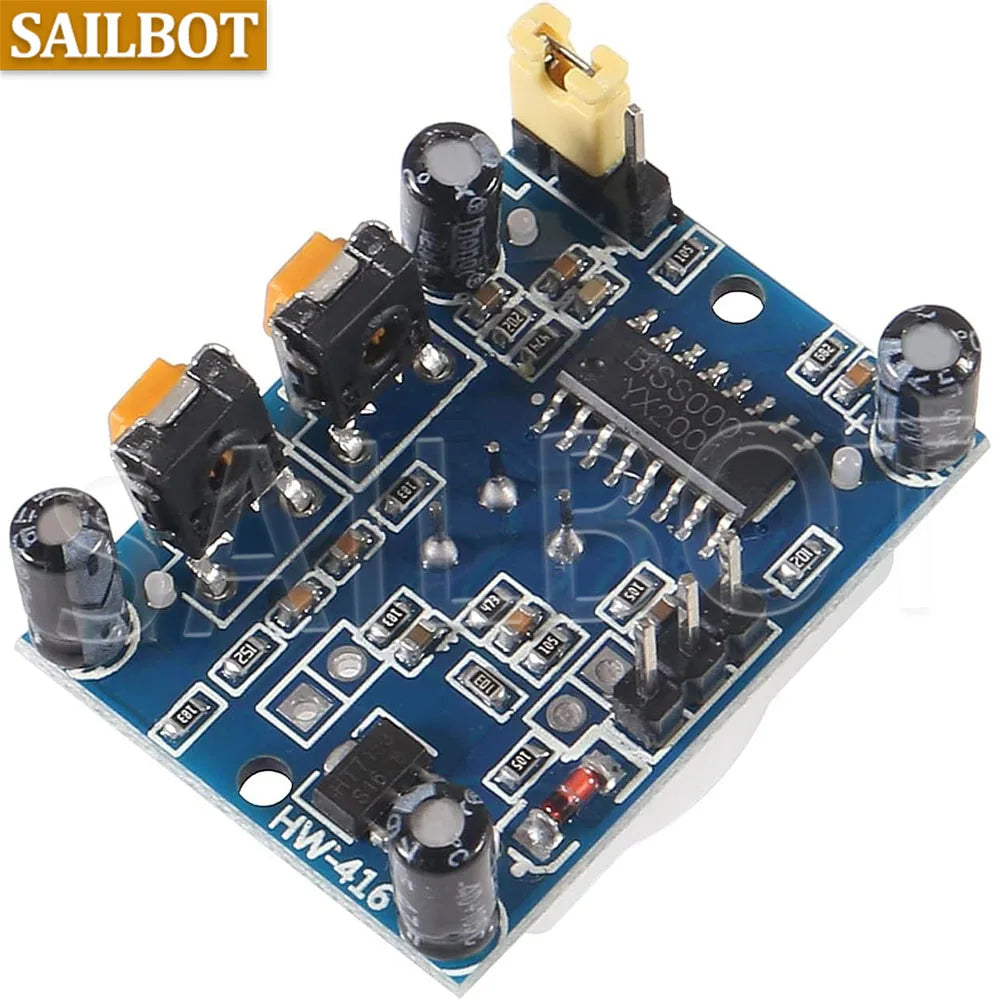

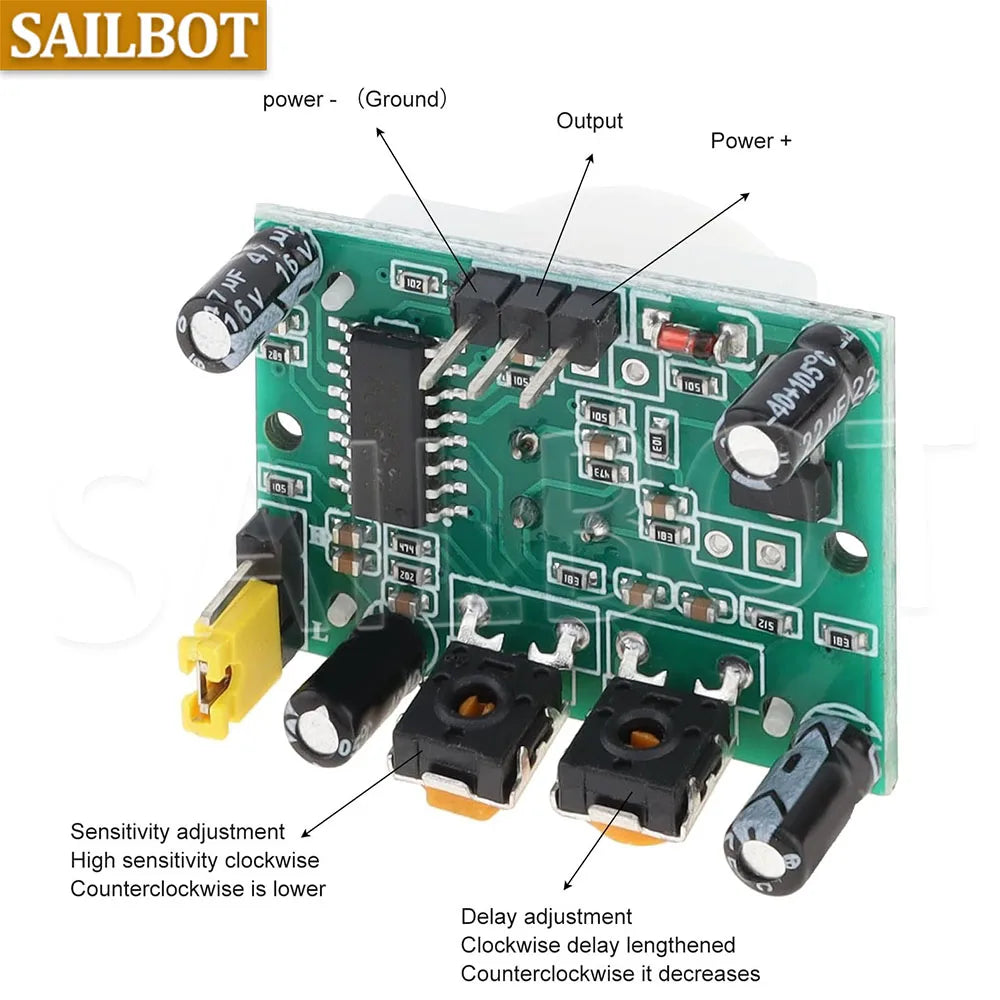

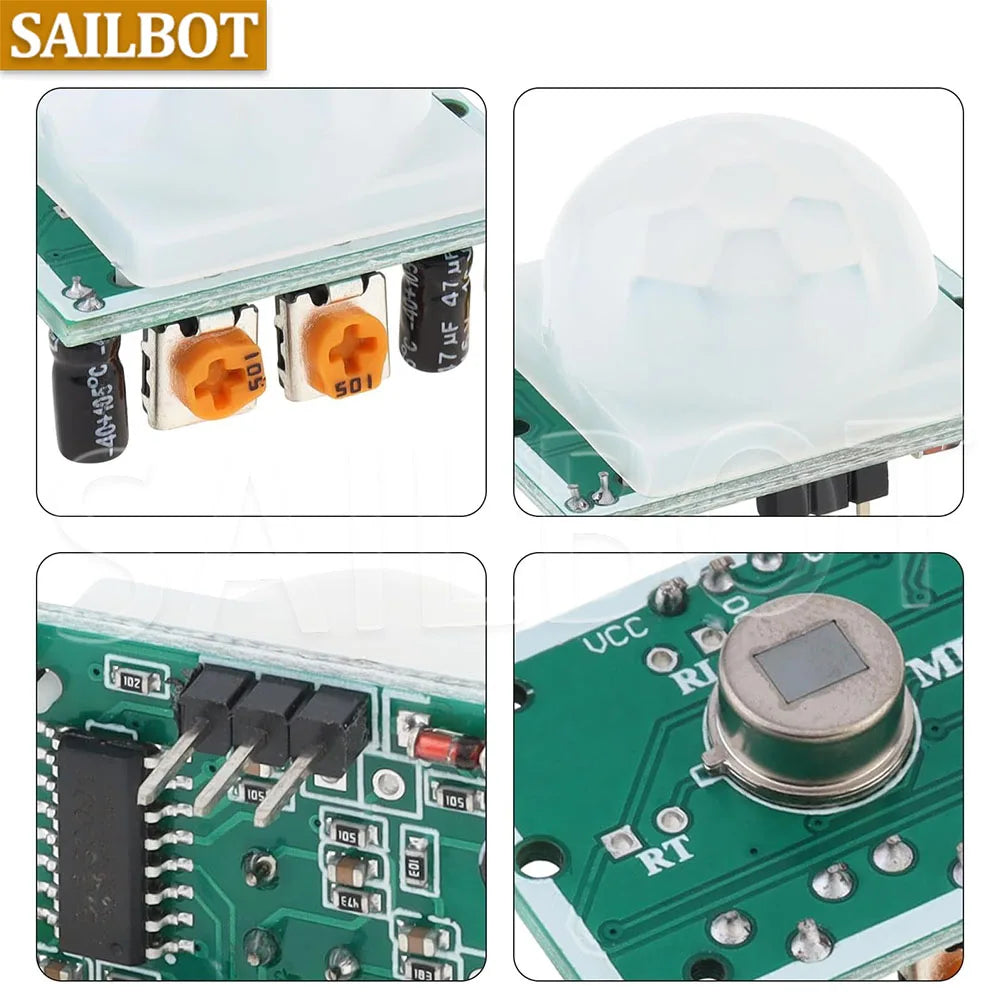

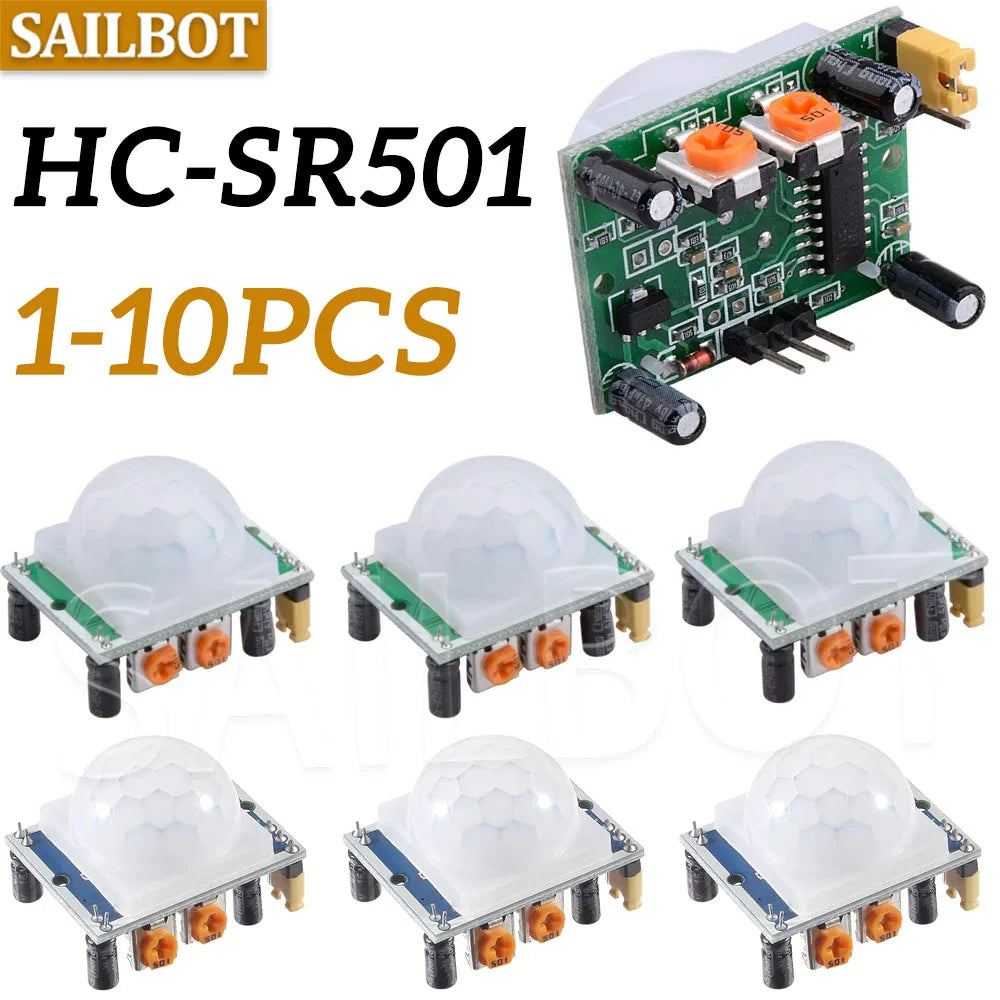

Product Type: HC--SR501 Body Sensor Module

Operating voltage range: DC 4.5-20V

Quiescent Current: <50uA Trigger: L can not be repeated trigger/H can be repeated trigger(Default repeated trigger)

Delay time: 0.3-200S(adjustable) the range is (0.xx second to tens of second)

Block time: 2.5S(default)Can be made a range(0.xx to tens of seconds

Board Dimensions: 32mm*24mm

Angle Sensor: <100 ° cone angle Lens size

sensor:Diameter:23mm(Default)

Applications:

Security Products

Human body sensors toys

Human body sensor lighting industrial automation and control, etc

Use:It can automatically and quickly open various types of incandescent, fluorescent lamps, buzzer, automatic doors, electric fans, automatic washing machine and dryer Machines and other devices, is a hightech products. Especially suitable for enterprises, hotels, shopping malls, warehouses and family aisles, corridors and other sensitive Sense of region, or for the security zone automatic lighting, lighting and alarm systems
