SPECIFICATIONS

Brand Name: JHOPASS

Data Transmission: no

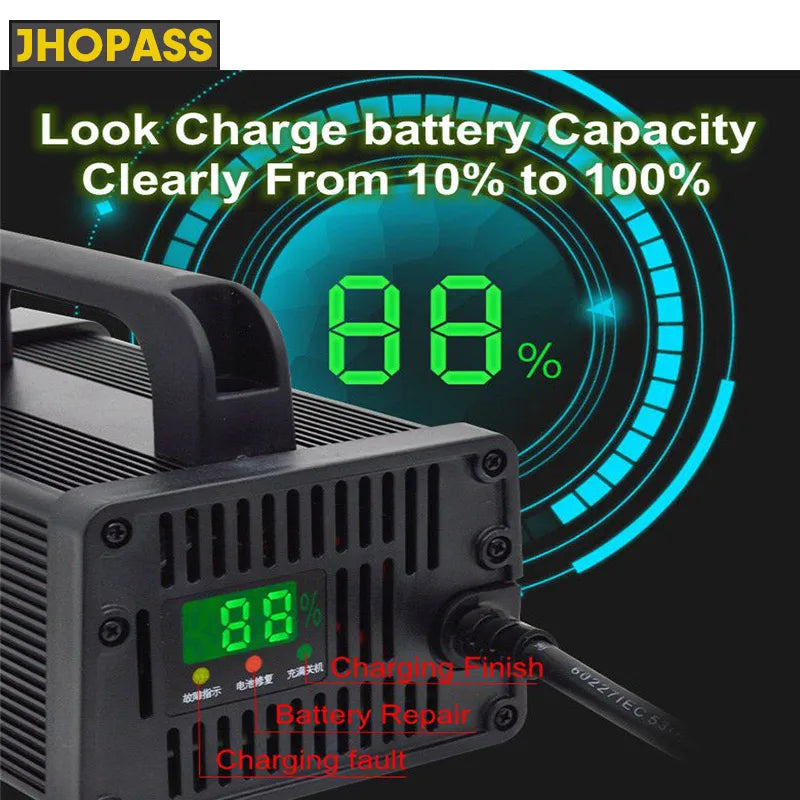

Display screen: Yes

High-concerned chemical: none

Intelligent Charge: Yes

Model Number: CC54.6V

Origin: Mainland China

Output Power: 500-735（include735）

Power Source: AC&DC

Quick charge: Yes

Type: Electric

Voltage range: High voltage (50-1000V DC, 75-1000V AC)

Features

AC input: 110V or 220V AC, 50Hz/60Hz

DC output voltage: 48V/60V/72V customized as your need

Note: 5A charger normally is no power indicator.

Weight:about 1.1kg/1.3kg/1.6kg/1.9kg

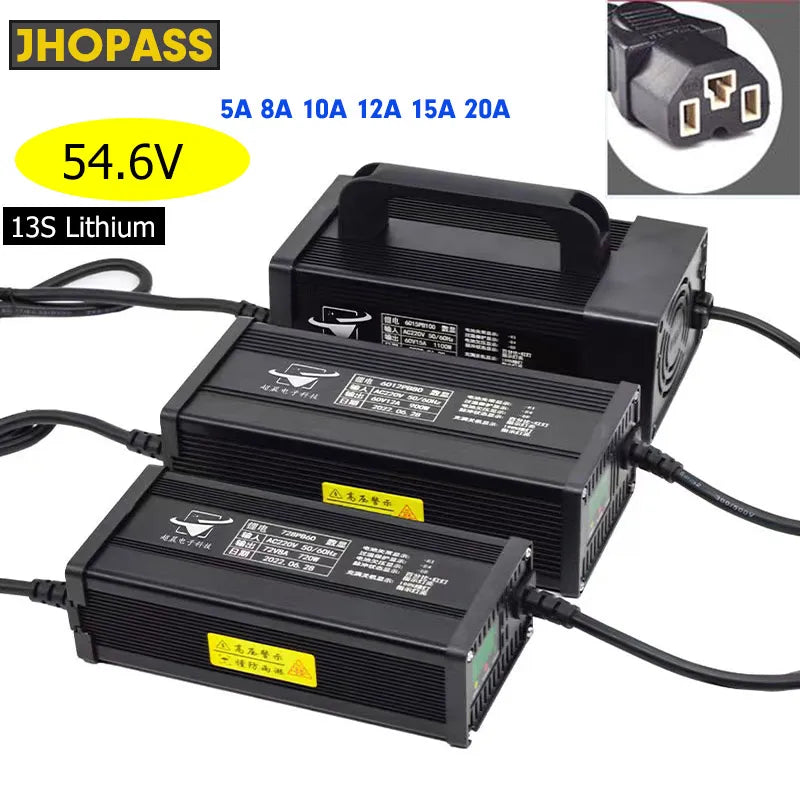

5A Size:L18*W9*H6cm 1.1kg 300W

8A Size:L19*W9*H6cm 1.3kg 400W

10A 12A Size:L21*W10*H7cm 1.6kg 600W

15A 20A Size:L22*W13*H8cm 1.9kg 1100W

Efficiency: >93%

Charger Power:400W--1100W

Output current :5A 8A 10A 12A 15A 20A

Color: Black

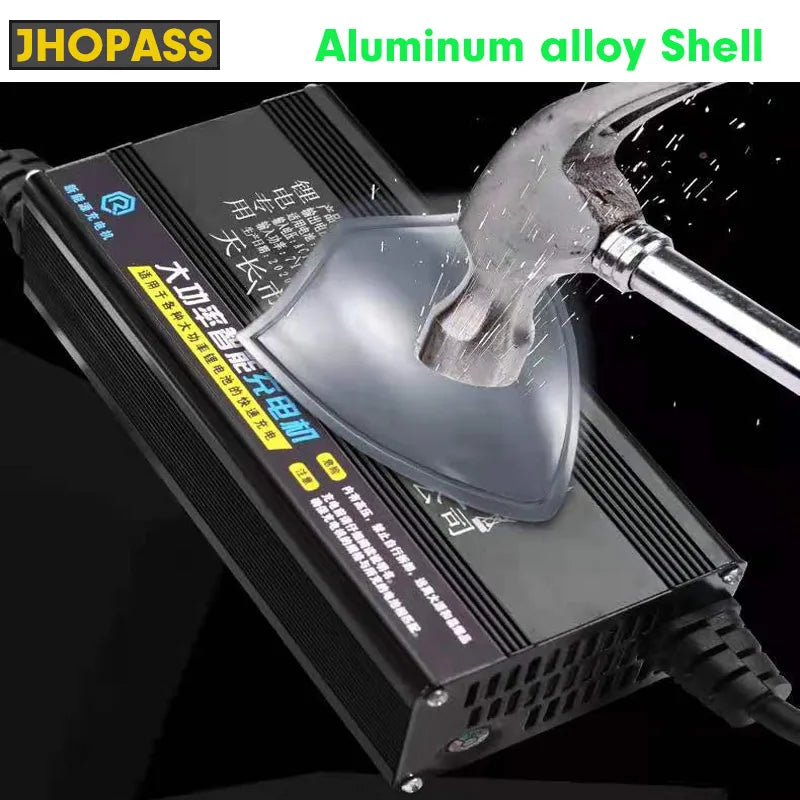

Material: Solid Aluminum case.

Use for : 30Ah--200Ah Li ion/lifepo4/LTO battery

Charging Mode:3 Stages, CC, CV, Trickle

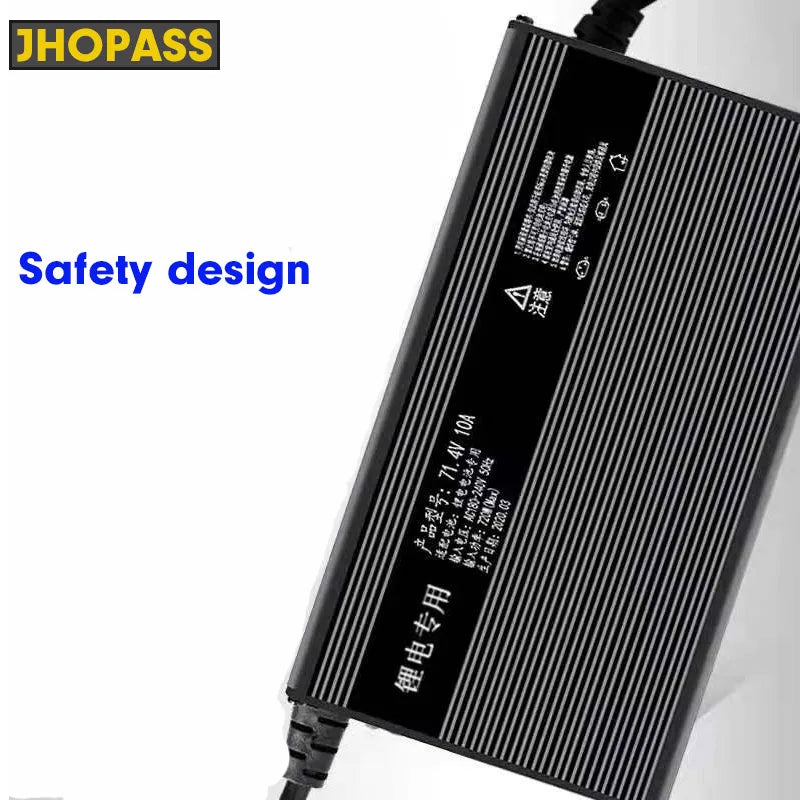

Protect Characteristic

1.Short-circuit protection

2.Over-current protection

3.Over-voltage protection

4.Reverse Polarity Protection

5.Over-temperature protection

Work Conditions:

Ambient temperature: -5 - 40℃

RH: 5 - 95%

Max. altitude: 10000 meter

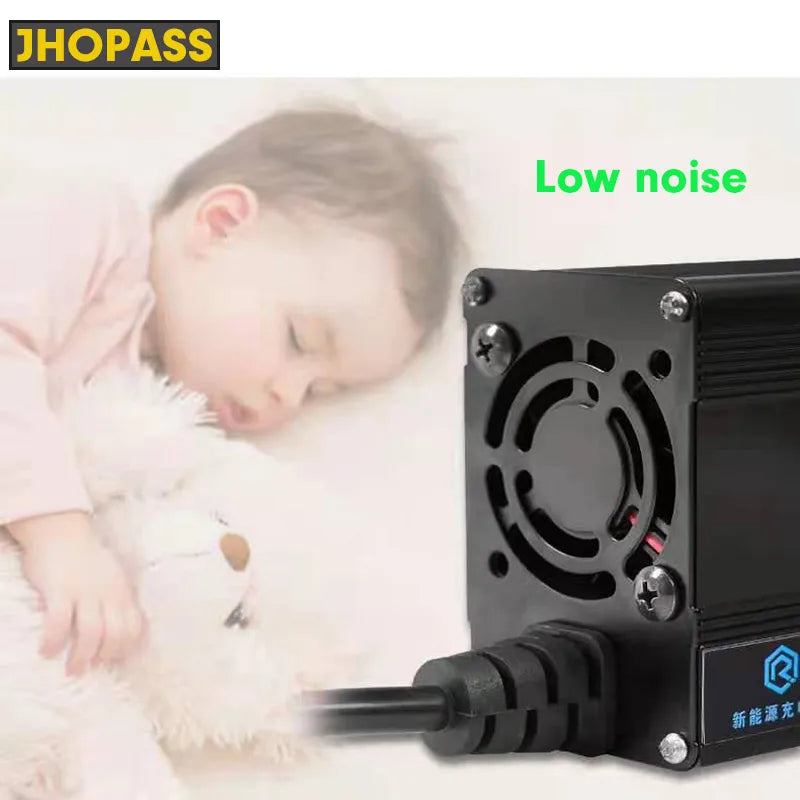

Cooling: chargers use of forced air cooling system. Under dustless and ventilated conditions, the full load temperature rise not exceeding 40℃.

Storage conditions

Ambient temperature: -40 - 70℃

RH: 0 - 95%

Max. altitude: 20000 meters.
