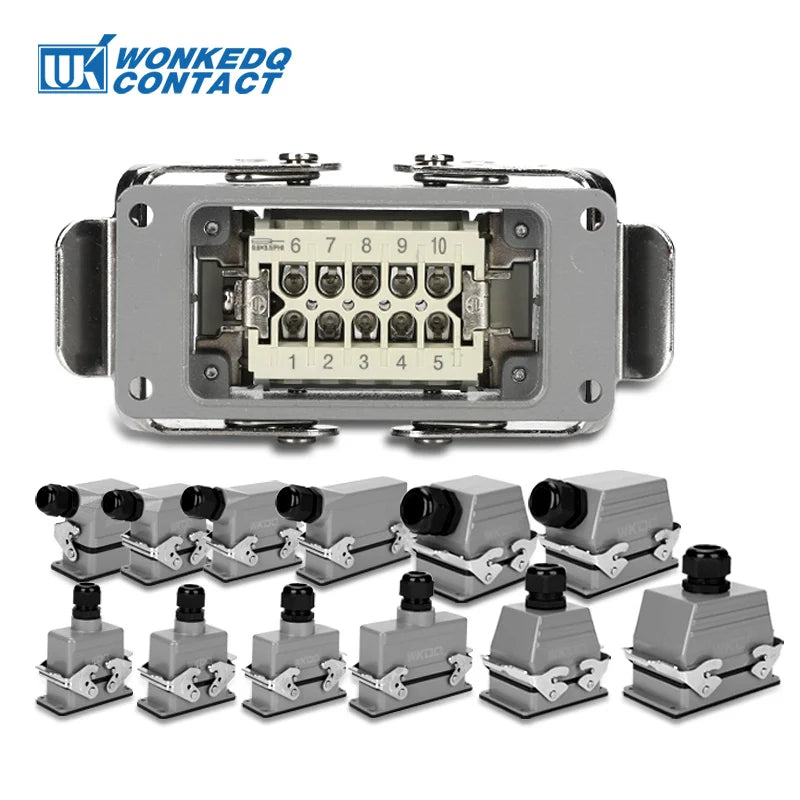

HDC HE Heavy Duty Connector 6/10/16/24/32/48 Core Pin Top/Side Outlet Aviation Plug Rectangular Waterproof Electrical Wiring
48 Core Side Entry
$239.12
Sale price
$239.12
Regular price
$0.00
Skip to product information
HDC HE Heavy Duty Connector 6/10/16/24/32/48 Core Pin Top/Side Outlet Aviation Plug Rectangular Waterproof Electrical Wiring
$239.12
Sale price
$239.12
Regular price
$0.00
Description
SPECIFICATIONS
Brand Name: WONKEDQ
Certification: CE,RoHS
Connecting pin material: copper
Connection: screw connection
Current: 16A
Does it include a Battery?: No
Does it include wireless functionality?: No
EU LVD Voltage: High voltage: Above 50Vac or 75Vdc
Features: top line and side outlet
High-concerned chemical: none
Model: HDC-HE-6/10/16/24/32/48
Model Number: WHE HDC-HE
Origin: Mainland China

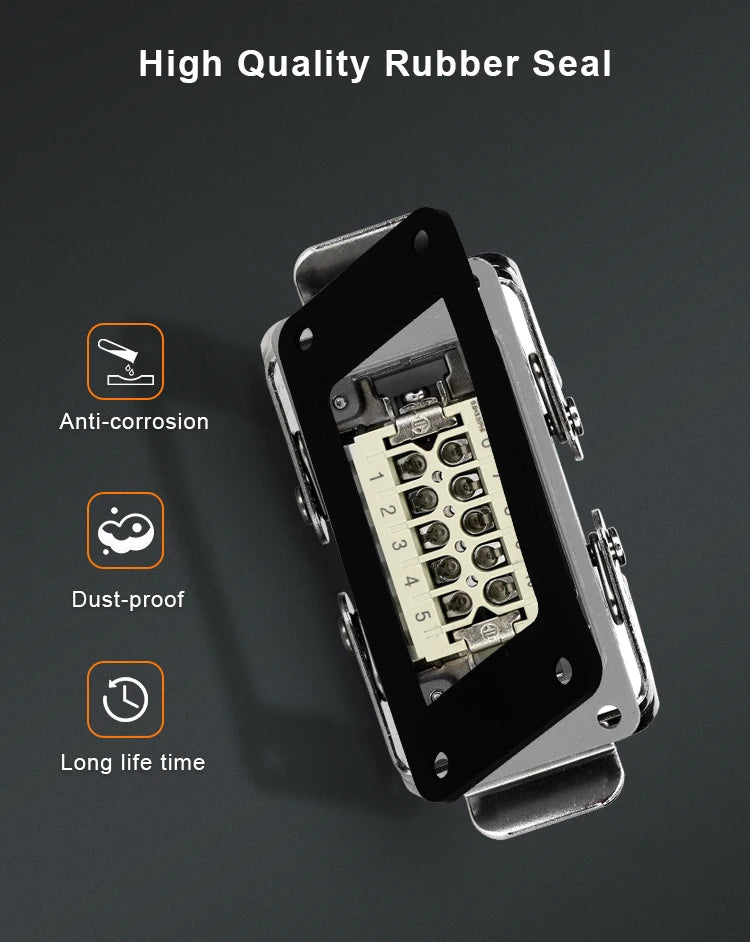

Original seal: nitrile rubber
Outer surface: high temperature powder coating
Shell material: Die cast aluminium alloy
Surface treatment: silver plating
Voltage: 415 V,500V
DESCRIPTION
Heavy Duty Power Connectors are ideal for industrial applications with harsh requirements. It can help provide a solution to the wide range of needs in industrial connectors in mechanical and plant engineering. Working together with cable entry connector, convenient to use to provide a easy use and safeguard to the machinery equipment when transportation, installation, maintain or repairing.

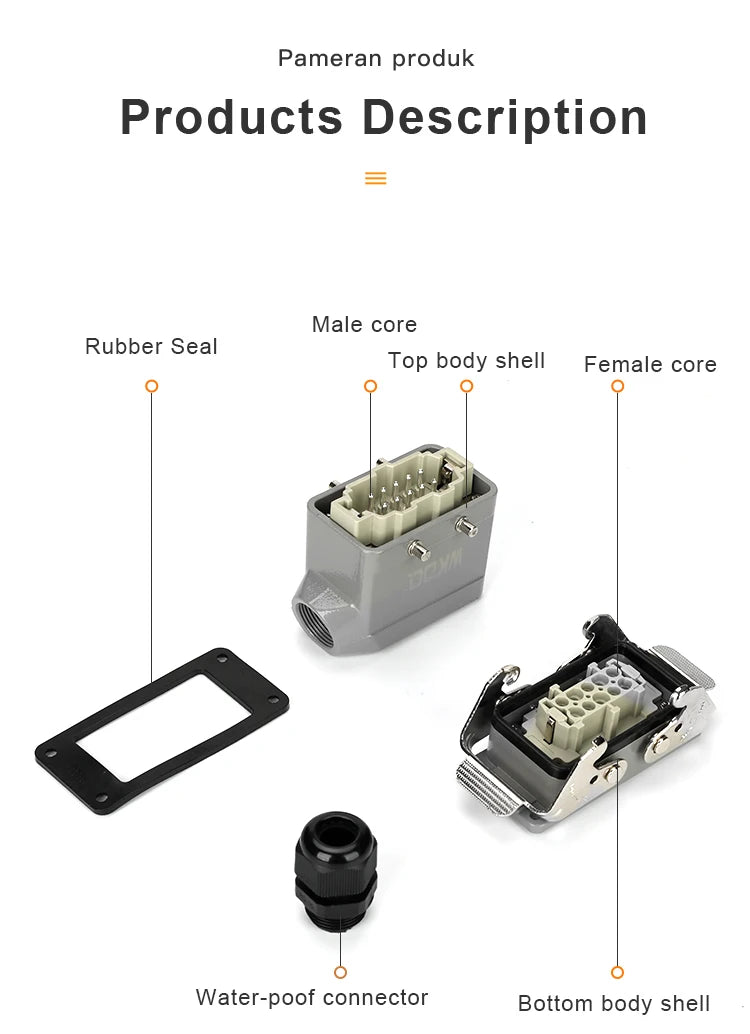

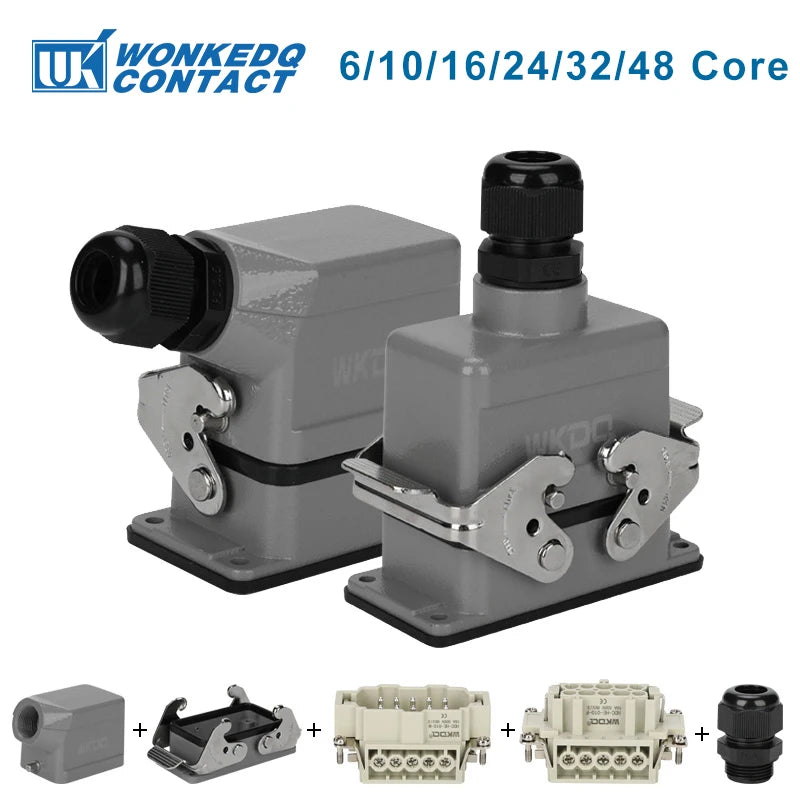

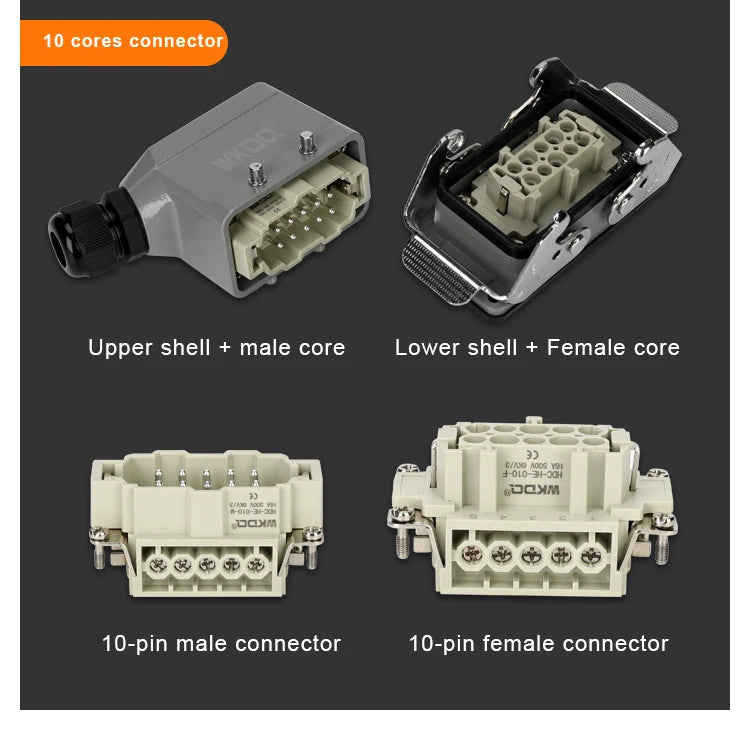

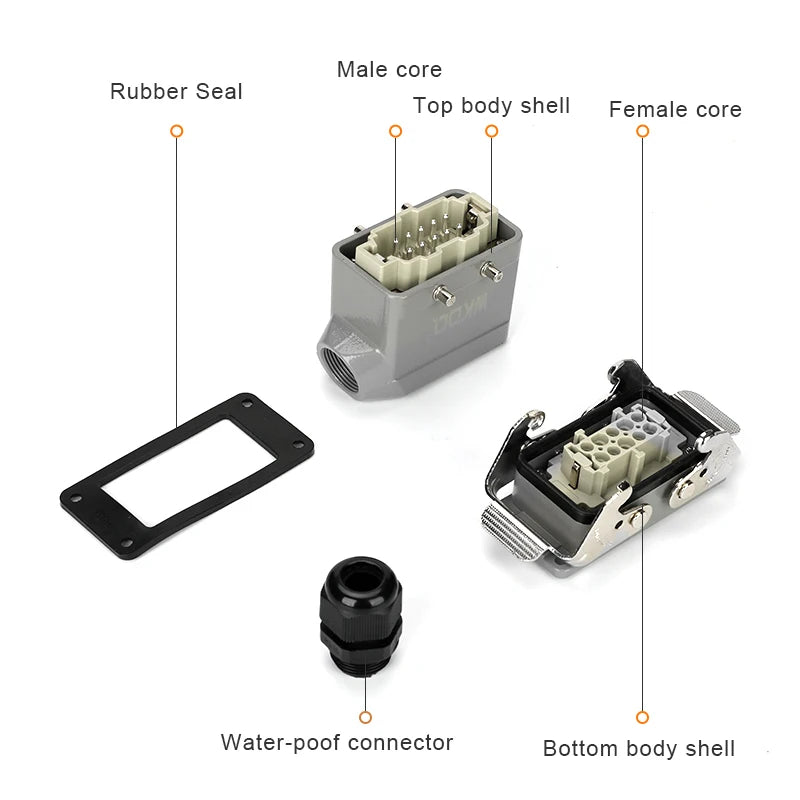

Each Heavy Duty Power Connector includes male and female inserts, screw terminated contacts, side or top entry hood, bulkhead mounted housing, and cable gland.
Wiring possible with screw terminal, crimp terminal (order contacts separately) or cage-clamp terminal.

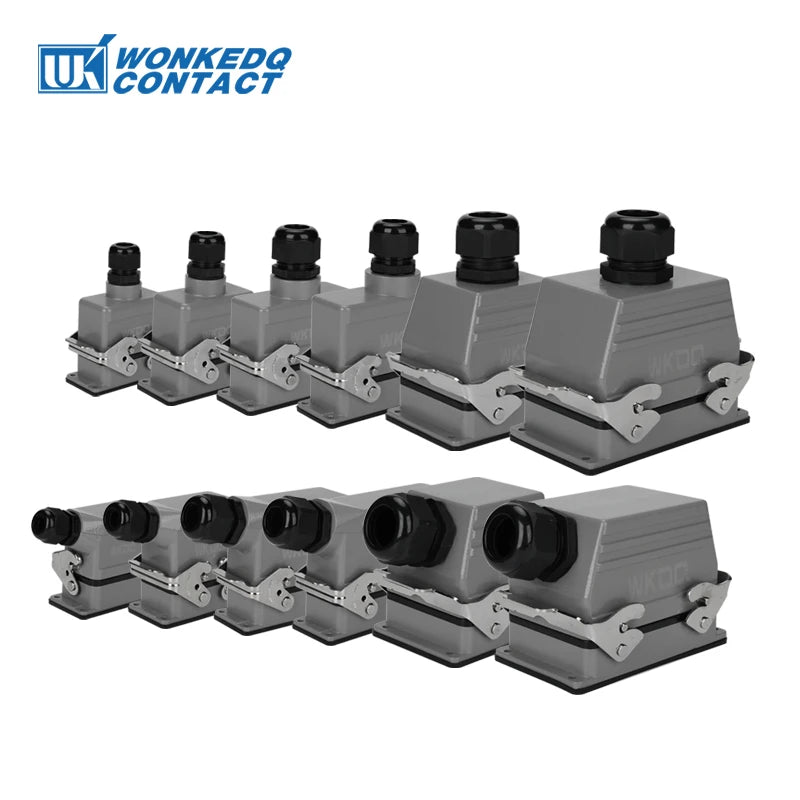

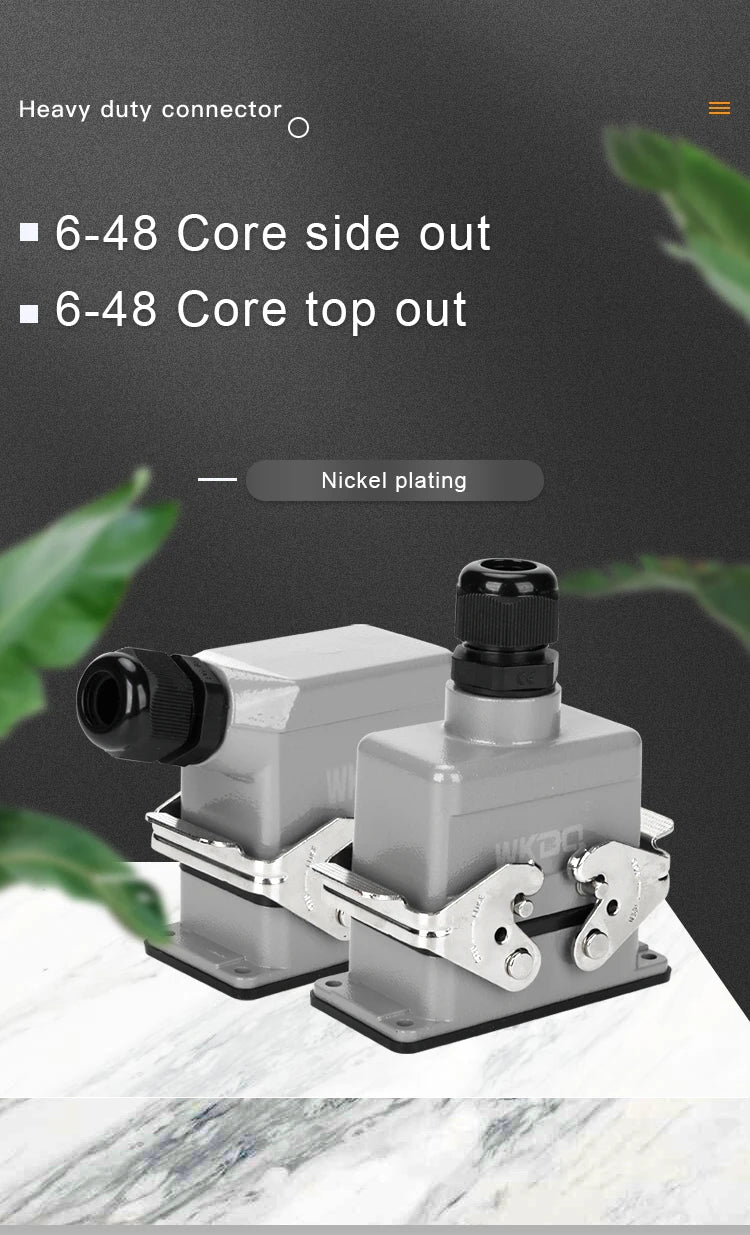

Available in side or top cable entry.

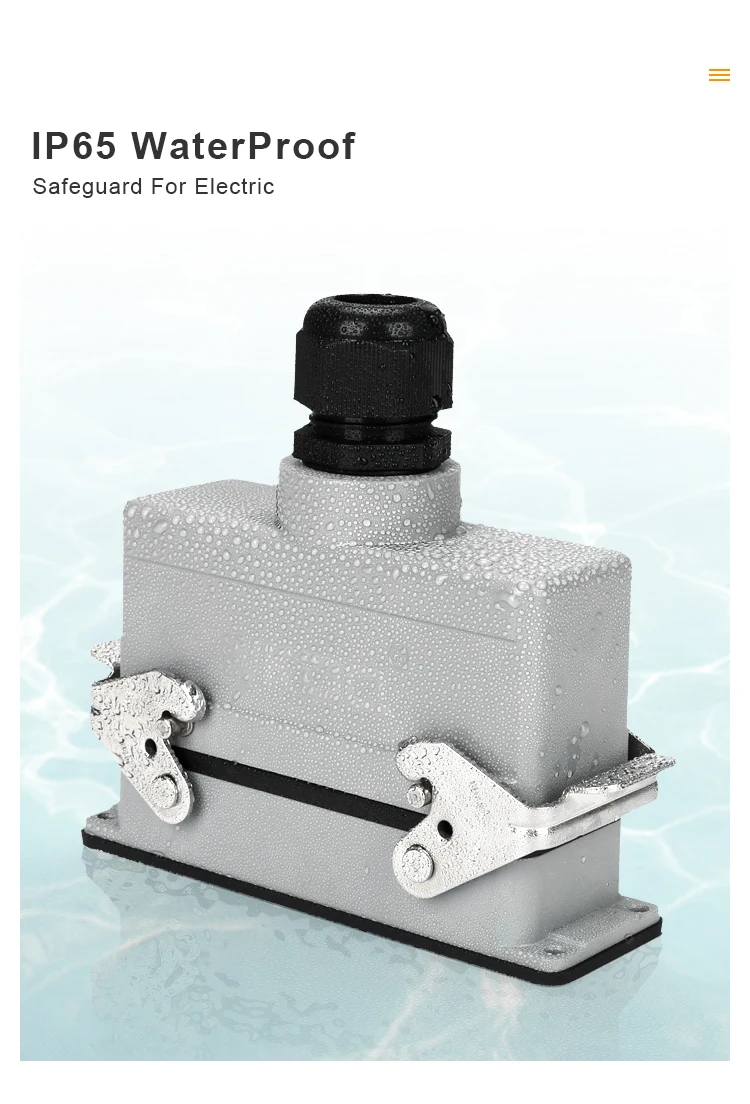

Bulkhead mounting housings with water-proof performance.
Cable gland provide entry protection.
No special tools required (Field Termination), high number of cycles, low actuation force, Robust/Durable heavy duty protection.

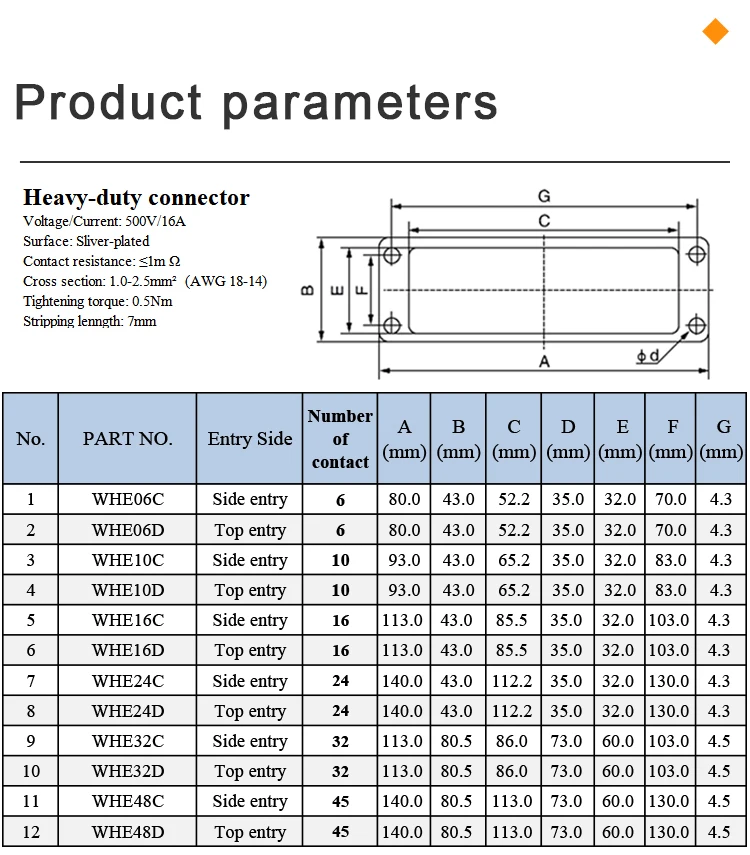

TECHNICAL PARAMETERS
No. |
PART NO. |
Entry Side |
Number of contact |
A |
B |
C (mm) |
D (mm) |
E (mm) |
F (mm) |
G (mm) |
Heavy-duty connector |
|
|||||||||
1 |

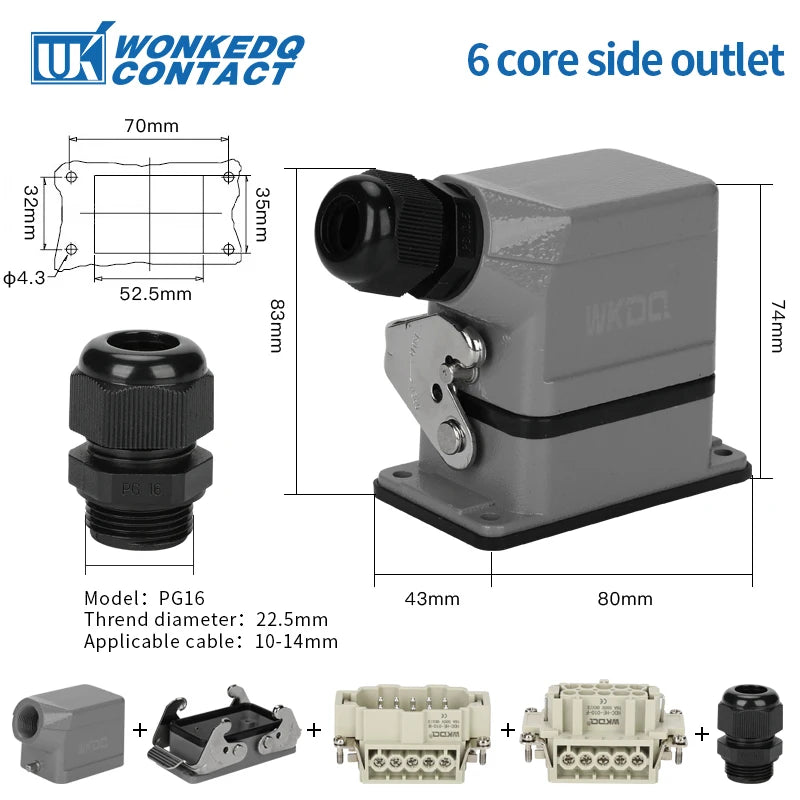

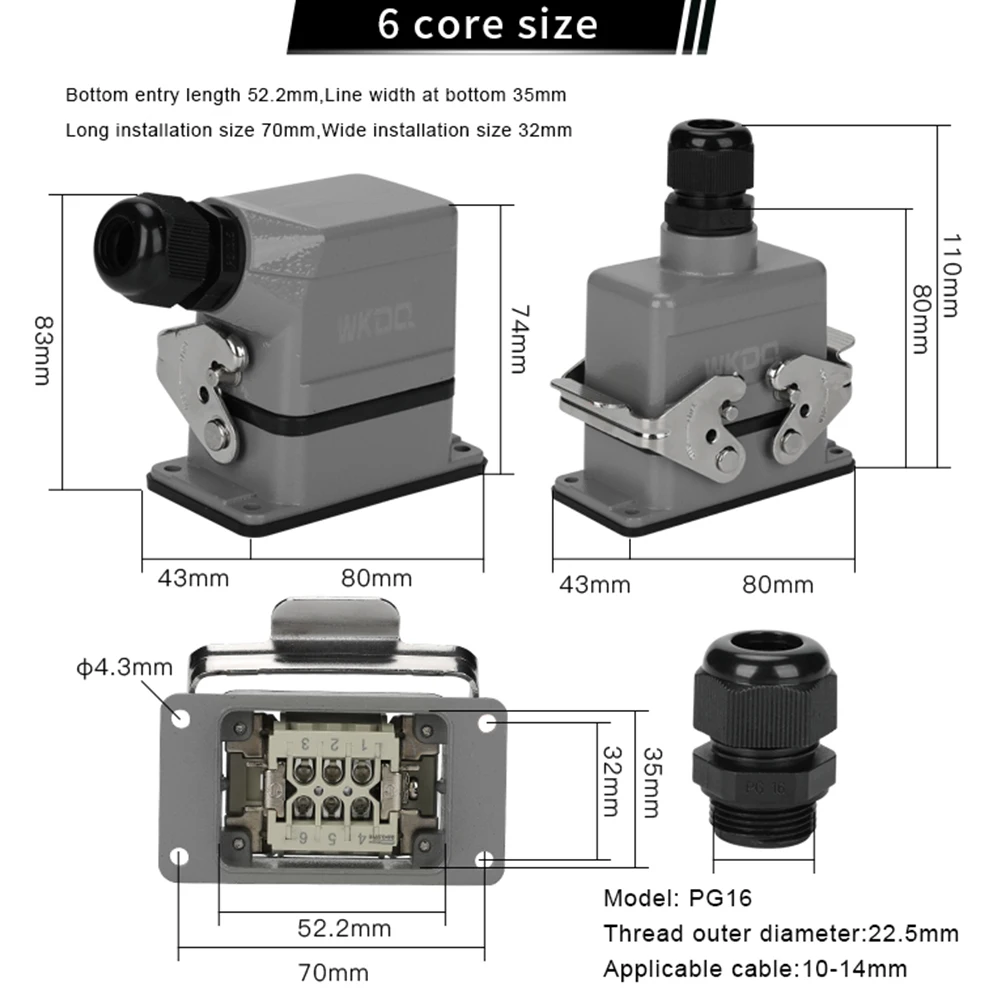

WHE06C |
Side entry |
6 |
80.0 |
43.0 |
52.2 |
35.0 |
32.0 |
70.0 |
4.3 |

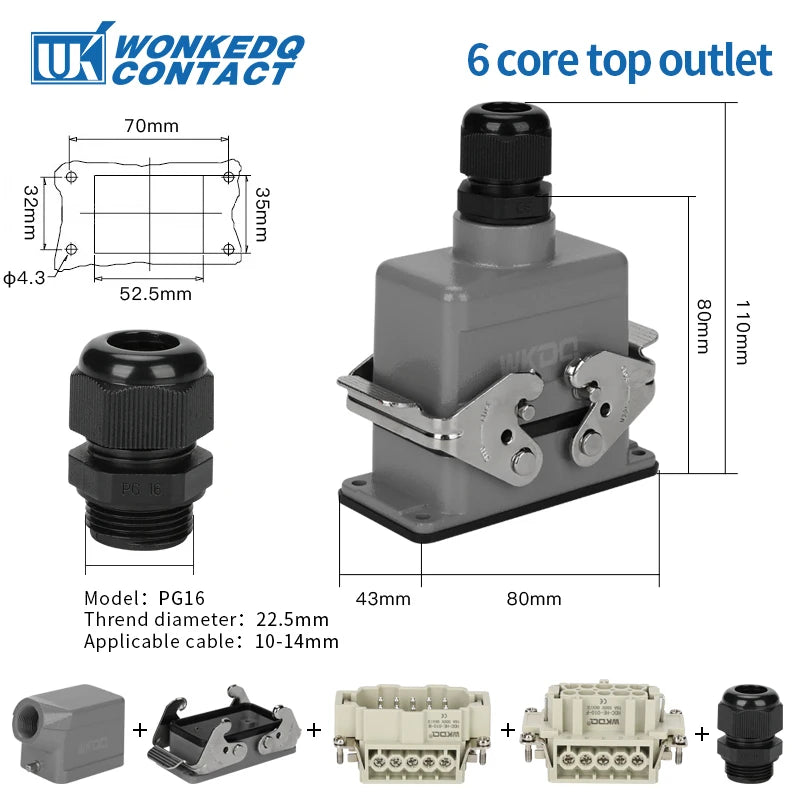

2 |
WHE06D |
Top entry |
6 |
80.0 |
43.0 |
52.2 |
35.0 |
32.0 |
70.0 |
4.3 |

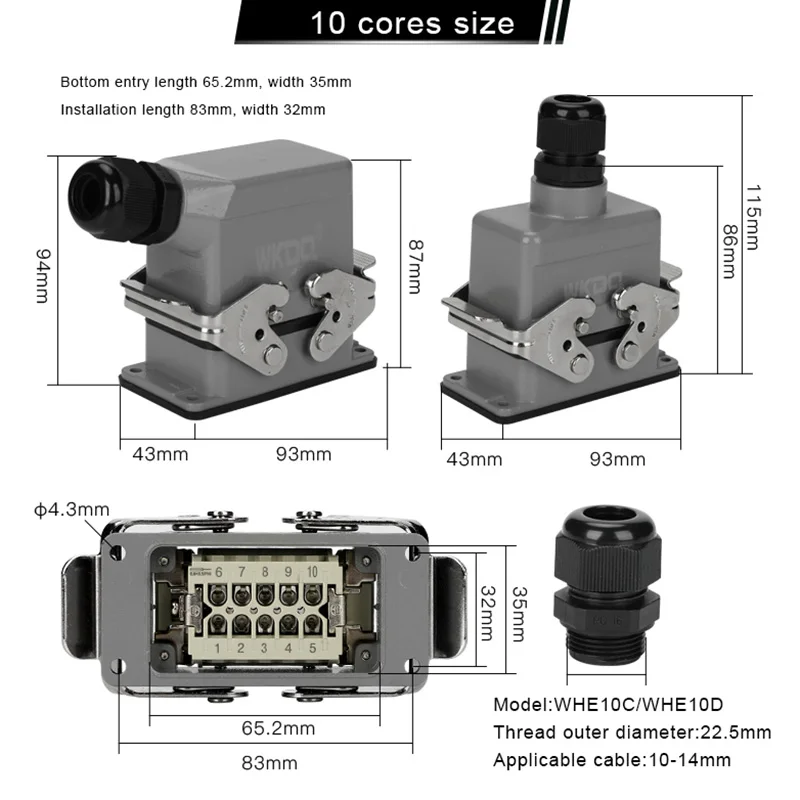

3 |

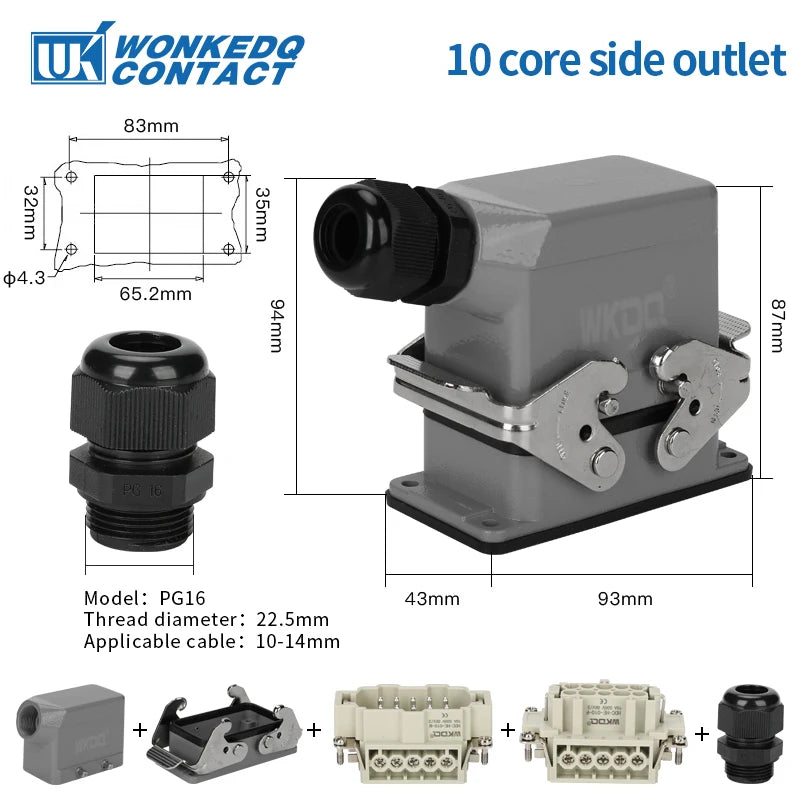

WHE10C |
Side entry |
10 |
93.0 |
43.0 |
65.2 |
35.0 |
32.0 |
83.0 |
4.3 |
4 |

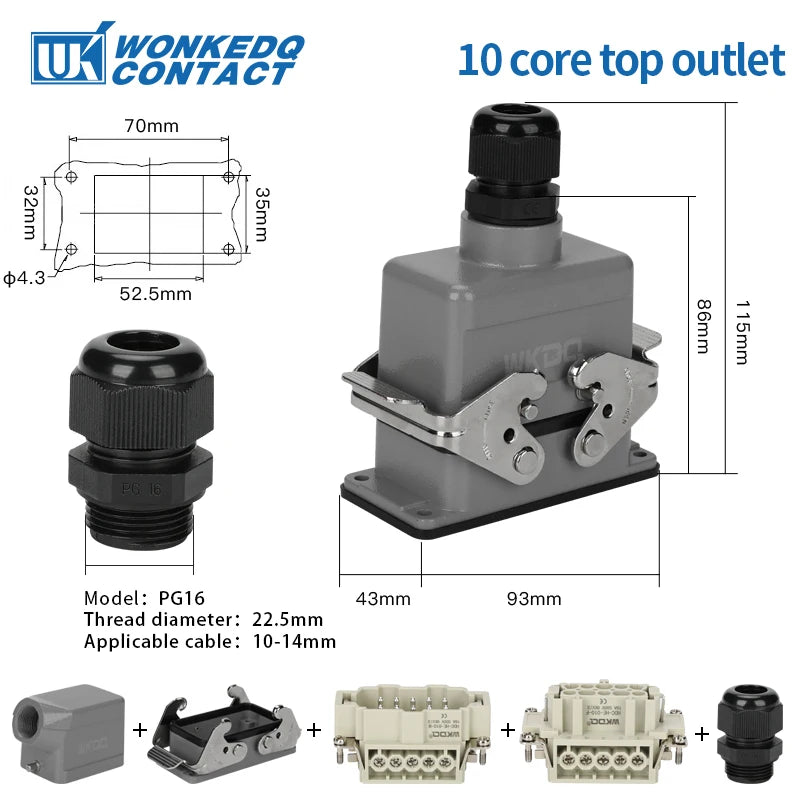

WHE10D |
Top entry |
10 |
93.0 |
43.0 |
65.2 |
35.0 |
32.0 |
83.0 |
4.3 |
5 |

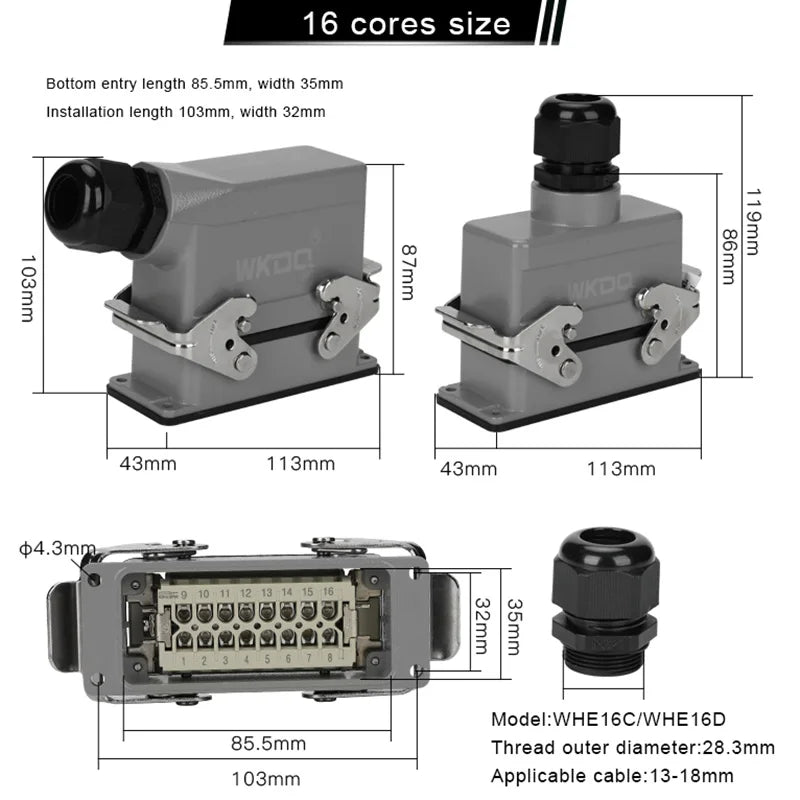

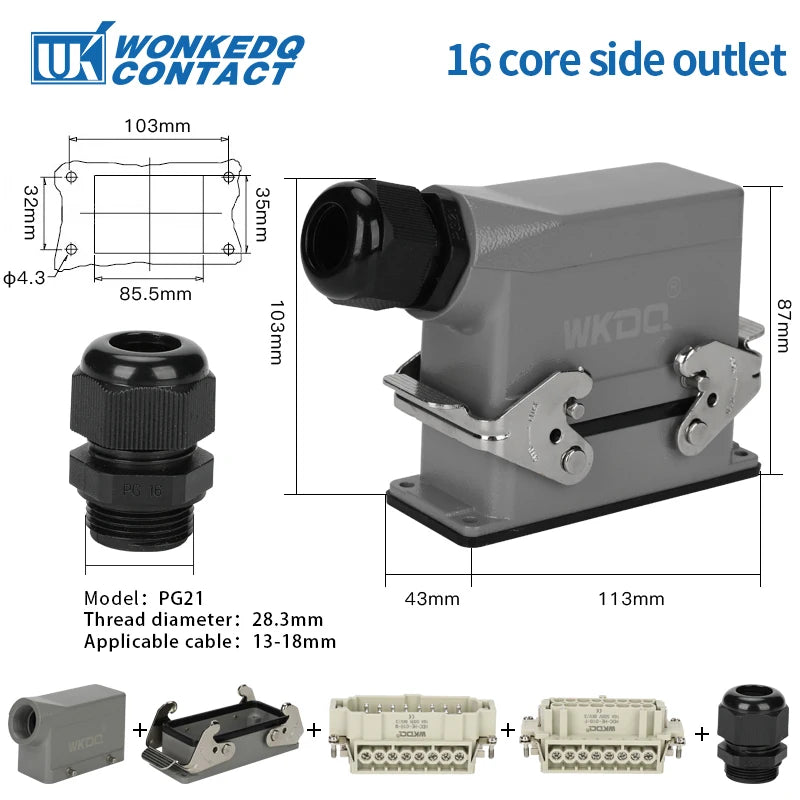

WHE16C |
Side entry |
16 |
113.0 |
43.0 |
85.5 |
35.0 |
32.0 |
103.0 |
4.3 |
6 |

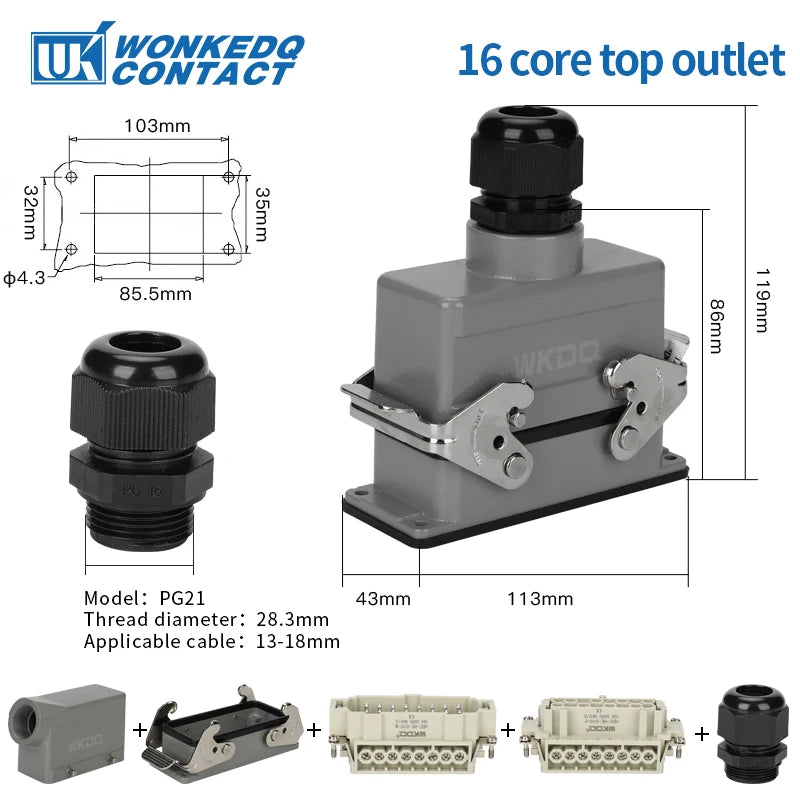

WHE16D |
Top entry |
16 |
113.0 |
43.0 |
85.5 |
35.0 |
32.0 |
103.0 |
4.3 |
7 |

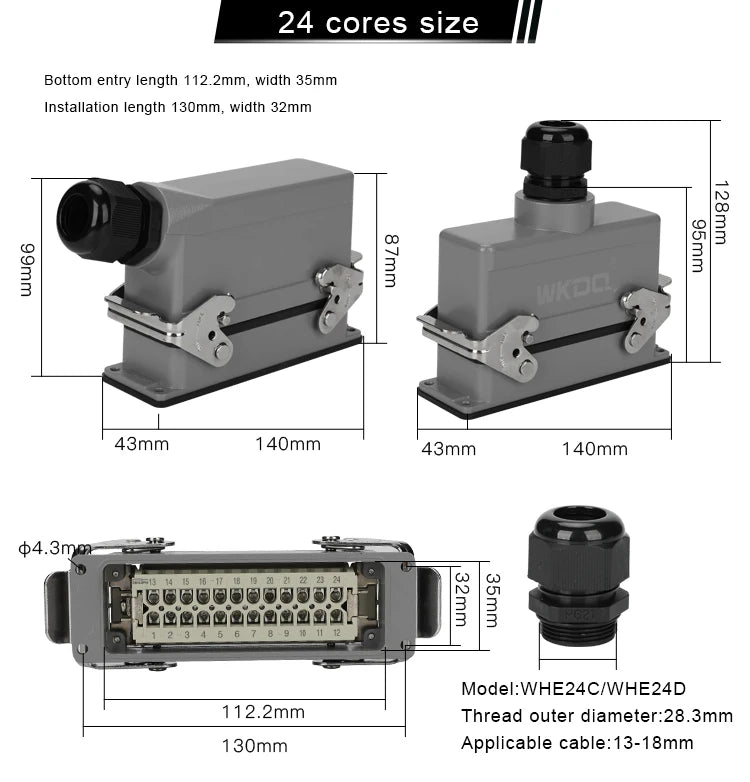

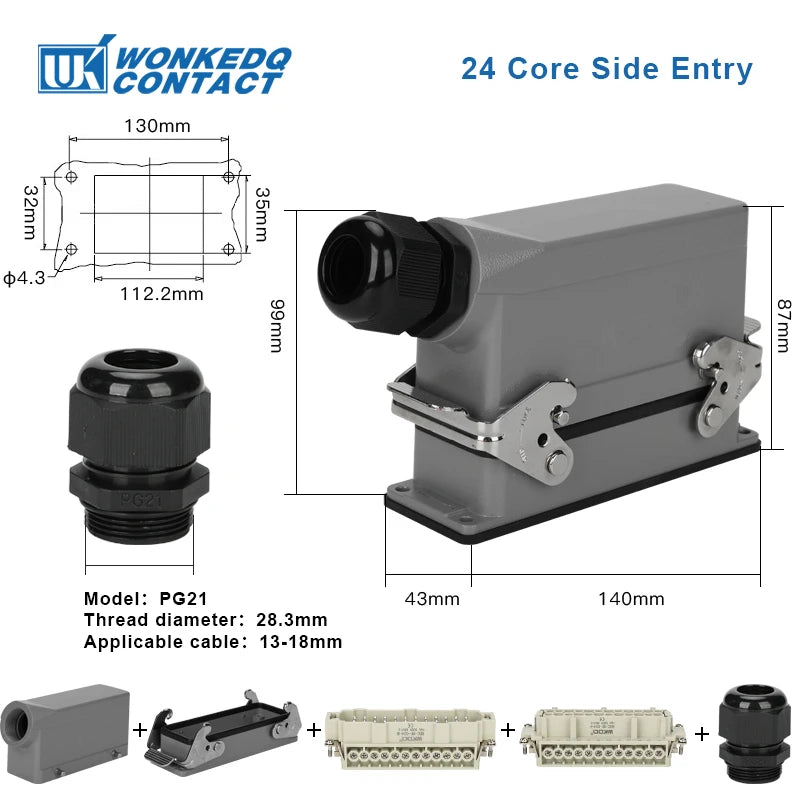

WHE24C |
Side entry |
24 |
140.0 |
43.0 |
112.2 |
35.0 |
32.0 |
130.0 |
4.3 |

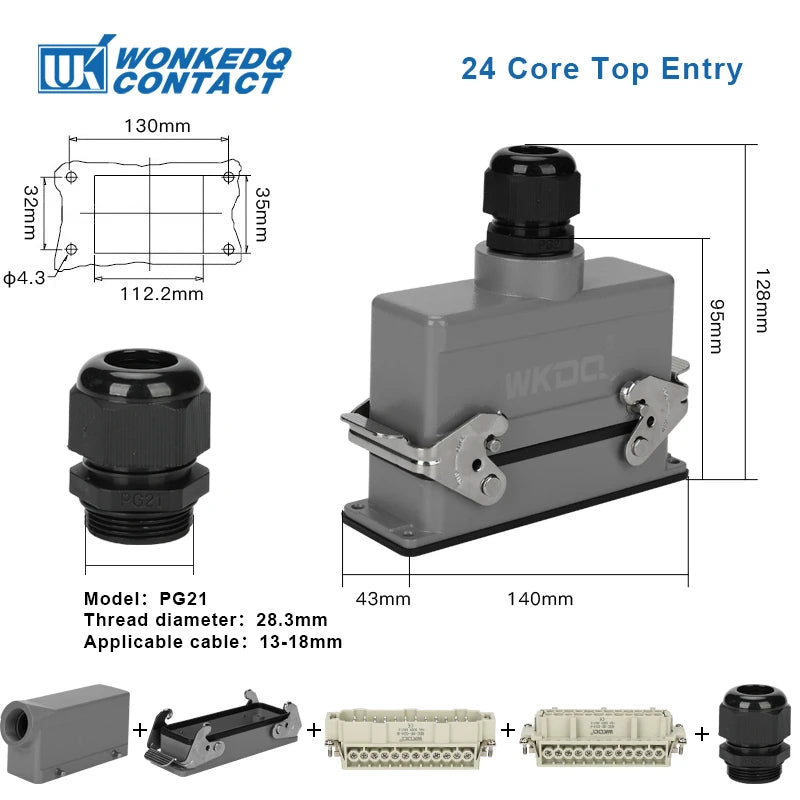

8 |
WHE24D |
Top entry |
24 |
140.0 |
43.0 |
112.2 |
35.0 |
32.0 |
130.0 |
4.3 |
9 |

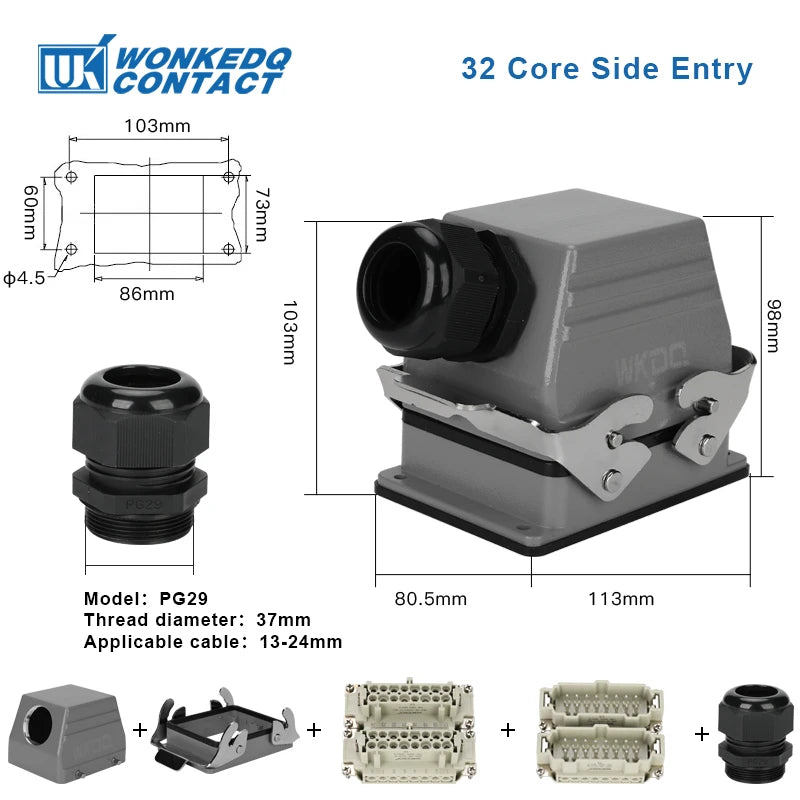

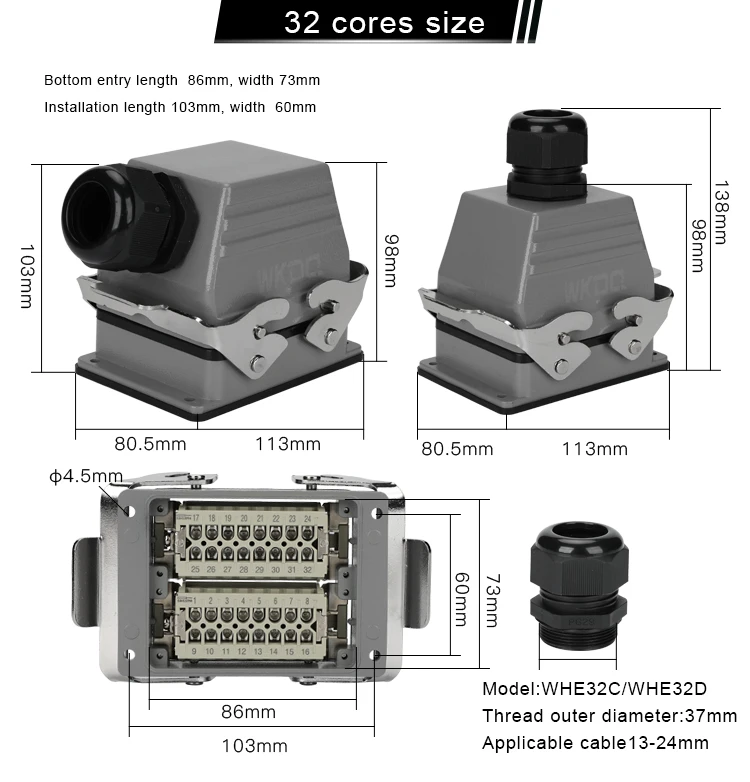

WHE32C |
Side entry |
32 |
113.0 |
80.5 |
86.0 |
73.0 |
60.0 |
103.0 |
4.5 |
10 |

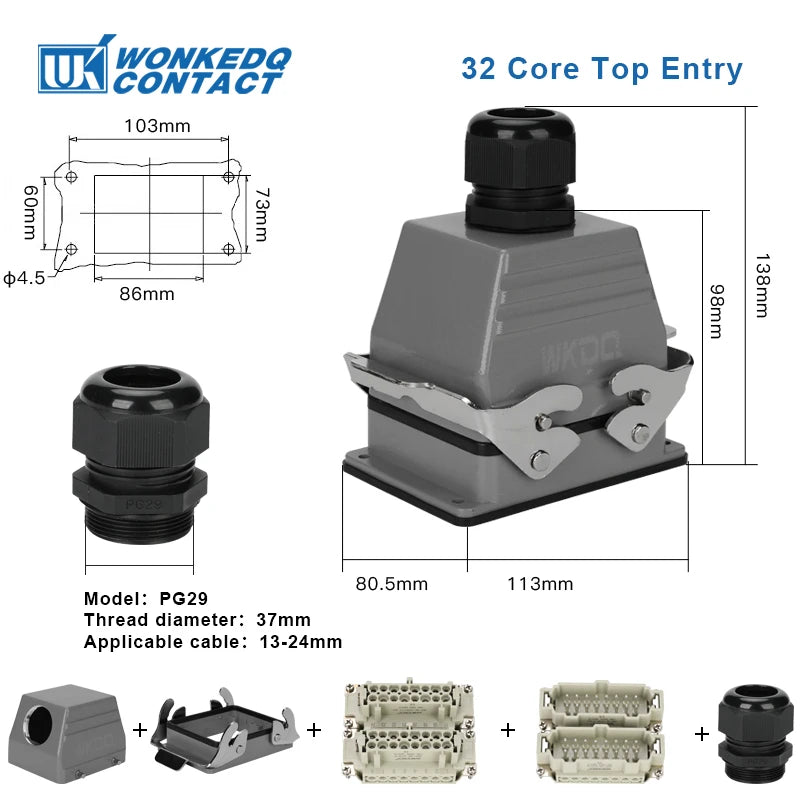

WHE32D |
Top entry |
32 |
113.0 |
80.5 |
86.0 |
73.0 |
60.0 |
103.0 |
4.5 |

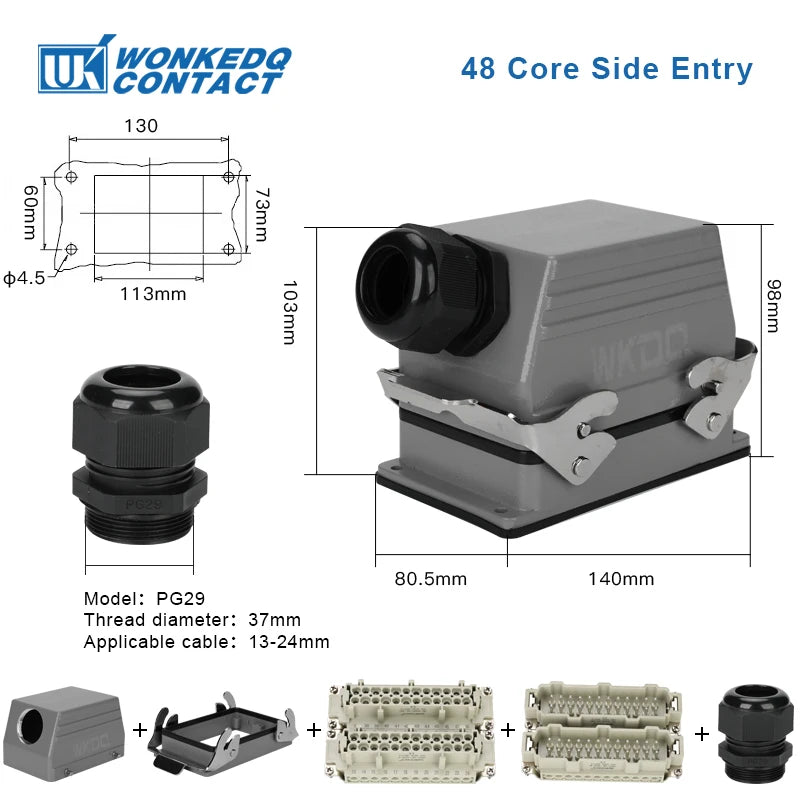

11 |

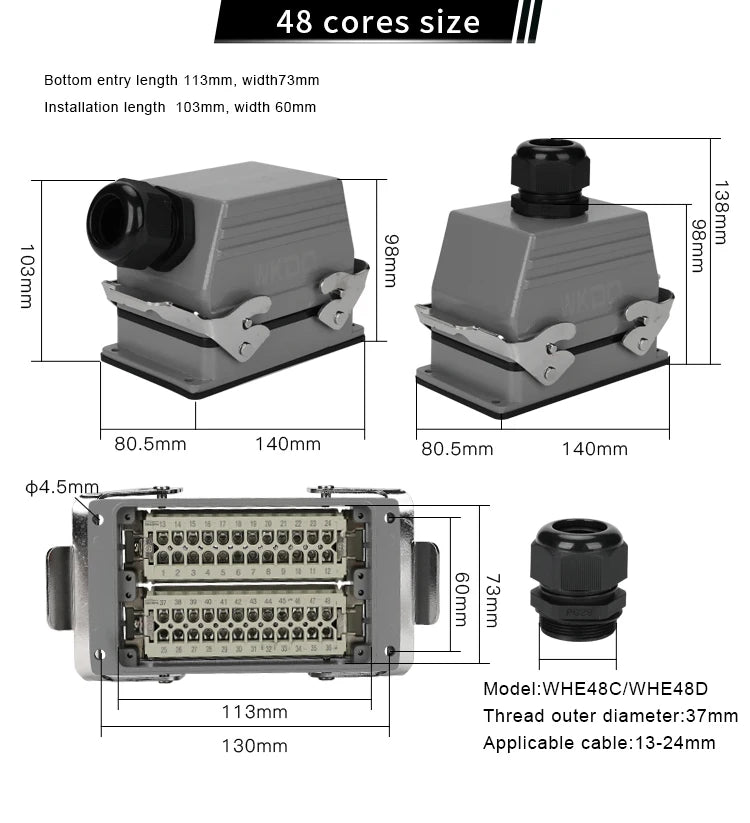

WHE48C |
Side entry |
48 |
140.0 |
80.5 |
113.0 |
73.0 |
60.0 |
130.0 |
4.5 |
12 |

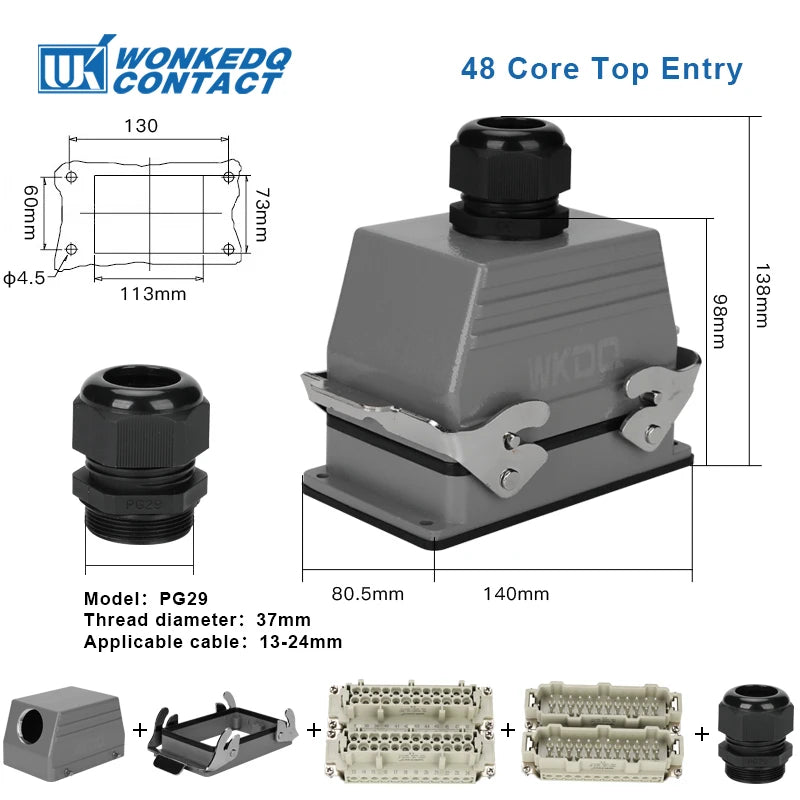

WHE48D |
Top entry |
48 |
140.0 |
80.5 |
113.0 |
73.0 |
60.0 |
130.0 |
4.5 |
