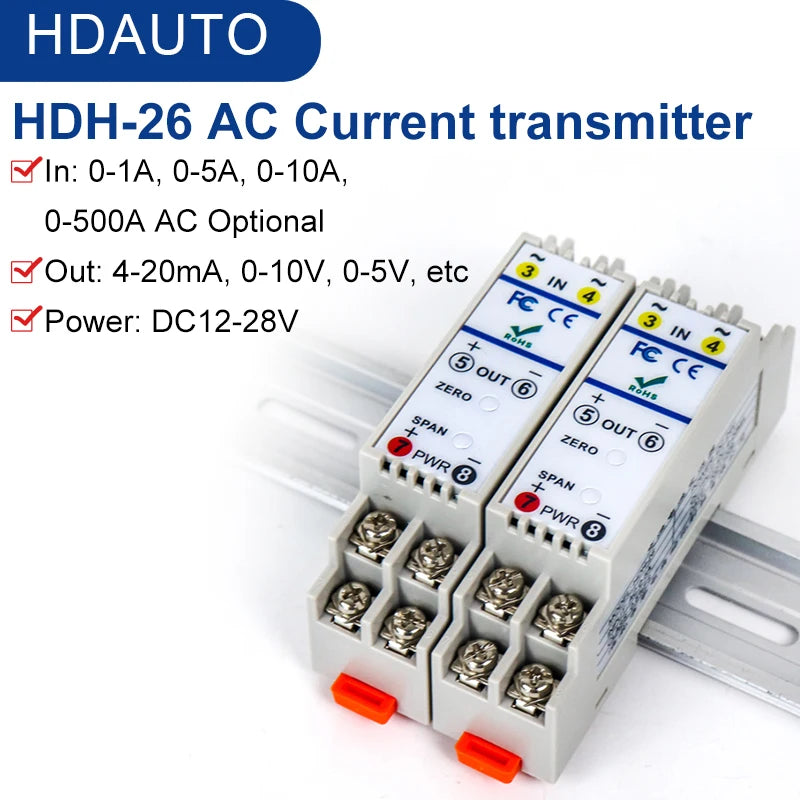

HDH-26 AC Current Transmitter 0-1A 0-5A 0-10A Input 4-20mA 0-5v 0-10V Output DC24V Power AC Current Transducer Sensor
12V DC power / 0-10V output / Others contact us
$141.62
Sale price
$141.62
Regular price
$0.00
Skip to product information
HDH-26 AC Current Transmitter 0-1A 0-5A 0-10A Input 4-20mA 0-5v 0-10V Output DC24V Power AC Current Transducer Sensor
$141.62
Sale price
$141.62
Regular price
$0.00
Description
SPECIFICATIONS
Accuracy Class: ≤0.1%F.S.
Battery Included: no
Brand Name: NoEnName_Null
Certification: CE,FCC,RoHS
DIY Supplies: Electrical
Dimensions: 25.4x47x108 mm
Display Type: Analog Only
High-concerned chemical: none
Model Number: HDH-26
Operating Temperature: -20-+55
Origin: Mainland China
Semi-finishedproduct: No
Supply Voltage: 24vdc
Note:
1. Power supply we can do 12vdc too. If you need 12vdc power, please remark when order. If no remark, we will produce as 24vdc. Please kindly note.
2. There is limited option we can post on the platform. If you need other parameters, feel free to contact us.
This apparatus transmits the AC current signal （From motor or AC current transformer etc.）to isolated current or voltage signal such as 4-20mADC、0-10VDC, and the input, output, and power supply are galvanically isolated from each other.
It can be used together with modular instrumentation and DCS, PLC and other systems, to offer signal isolation, signal conversion, signal processing and other functions to field instrument, thereby enhancing the immunity of automatic control system in the industrial production process, and ensuring system stability and reliability.
Compared with other similar products, this apparatus has the advantages of small volume, fast response time, low power loss and quite well temperature characteristics.

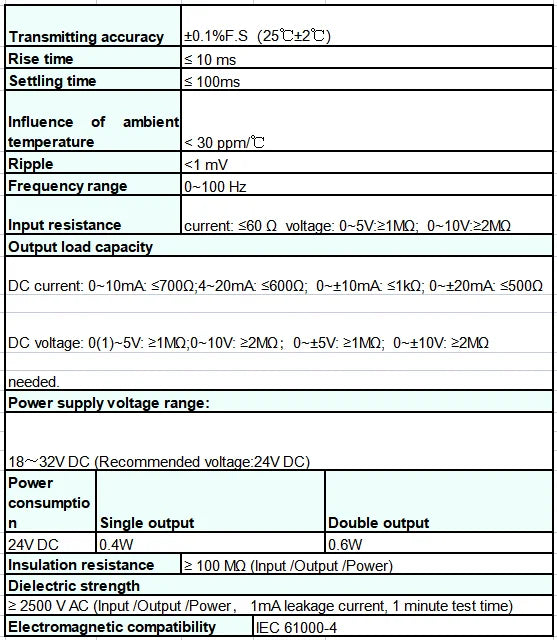

Mainly technical parameters:
Model indication:
Product Model Table | ||||
HDH-26 |
X |
X |
X |
Description |
Channel configuration |
1 |
1 in 1 out |
||
Input Signal |
A |
0-1A |
||
B |
0-5A |
|||
C |
0-10A |
|||
D |
customized |
|||
Output Signal |
1 |
4-20mA |
||
2 |
0-20mA |
|||
5 |
0-5V |
|||
7 |
0-10V |
|||
Note: The customer needs to determine the input and output signals when ordering, and can be customized if there are special needs. | ||||
Selection example：
HDH-26-XXX
Eg：HDH-26-1B1 1 in 1 out，input 0-5A、output 4-20mA.，24VDCpower supply

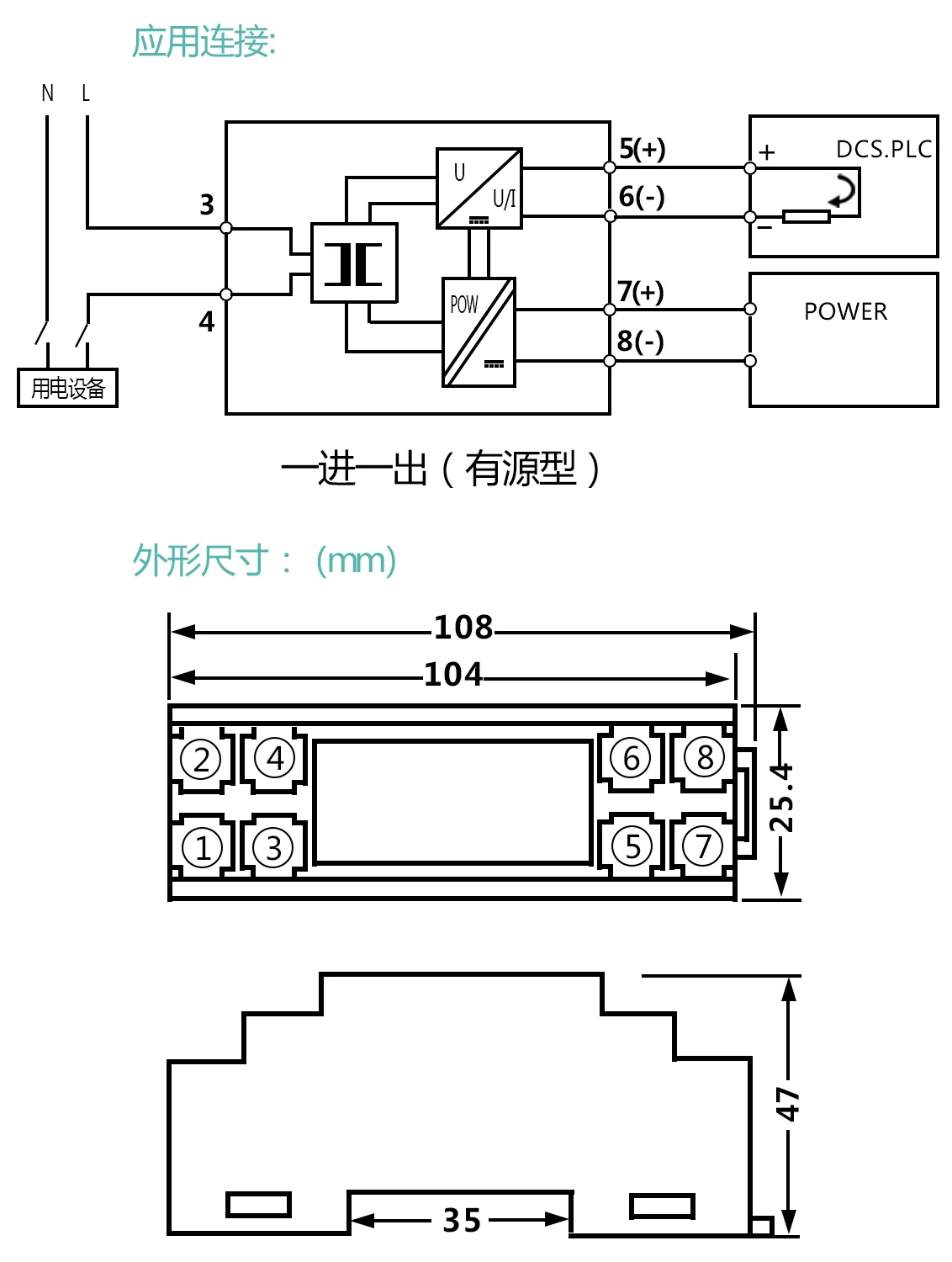

Size and wire connection:
