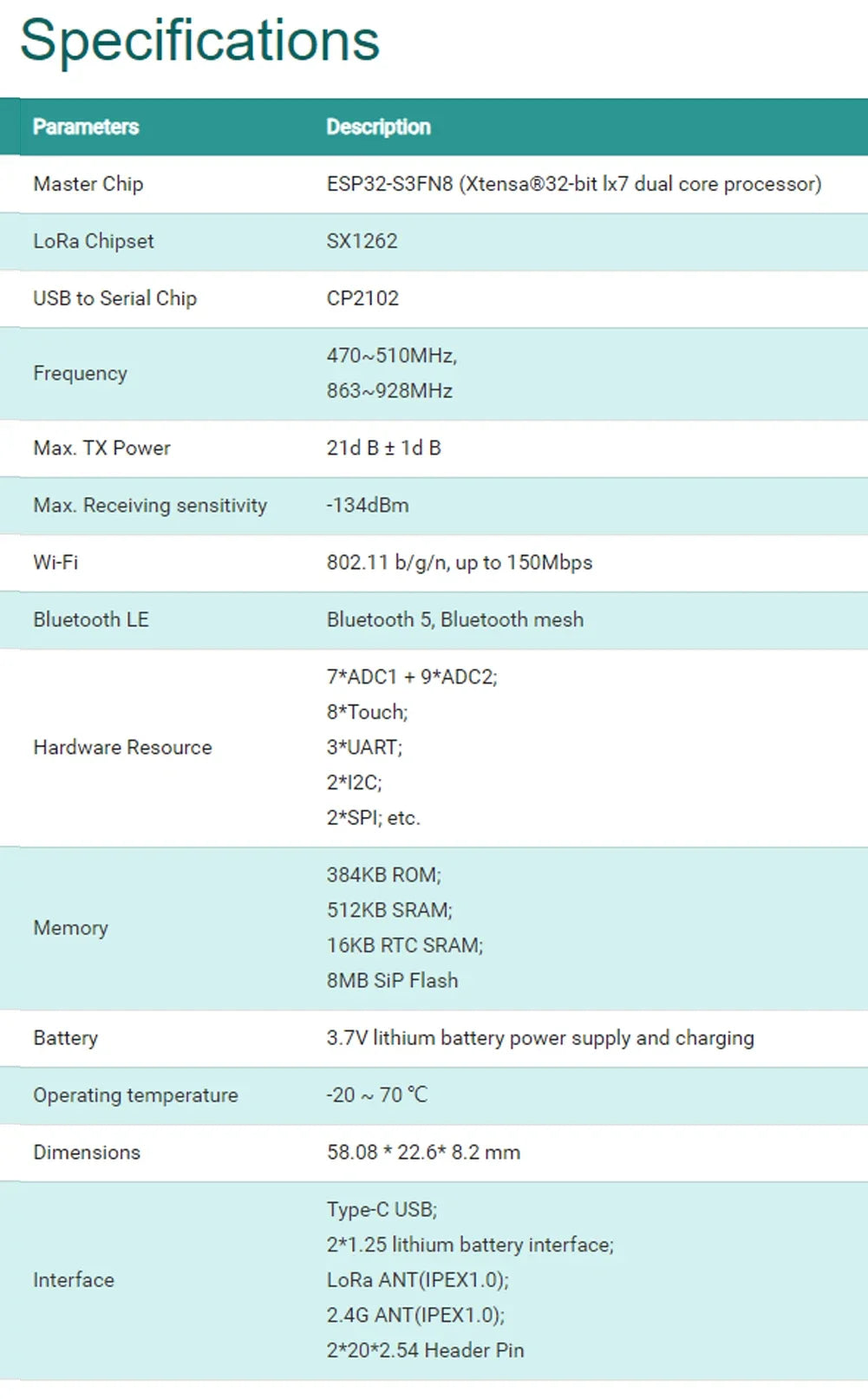

SPECIFICATIONS

Battery: 3.7V lithium battery power supply and charging

BluetoothLE: Bluetooth5, Bluetooth-mesh

Brand Name: NONE

Compatible Audio & Video Equipment Style: Amplifier

Electronic: no

Frequency: 470-510MHz, 863-928MHz

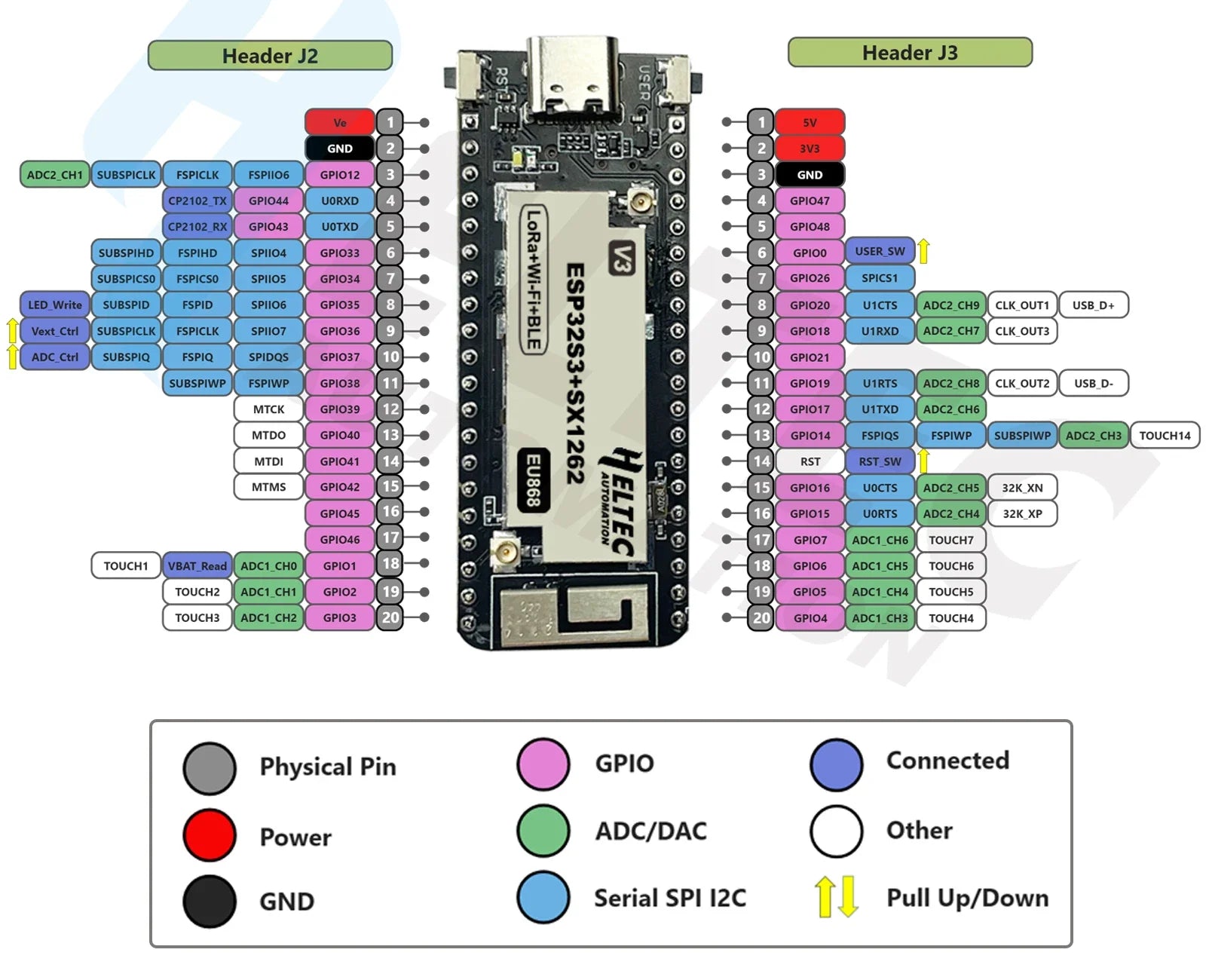

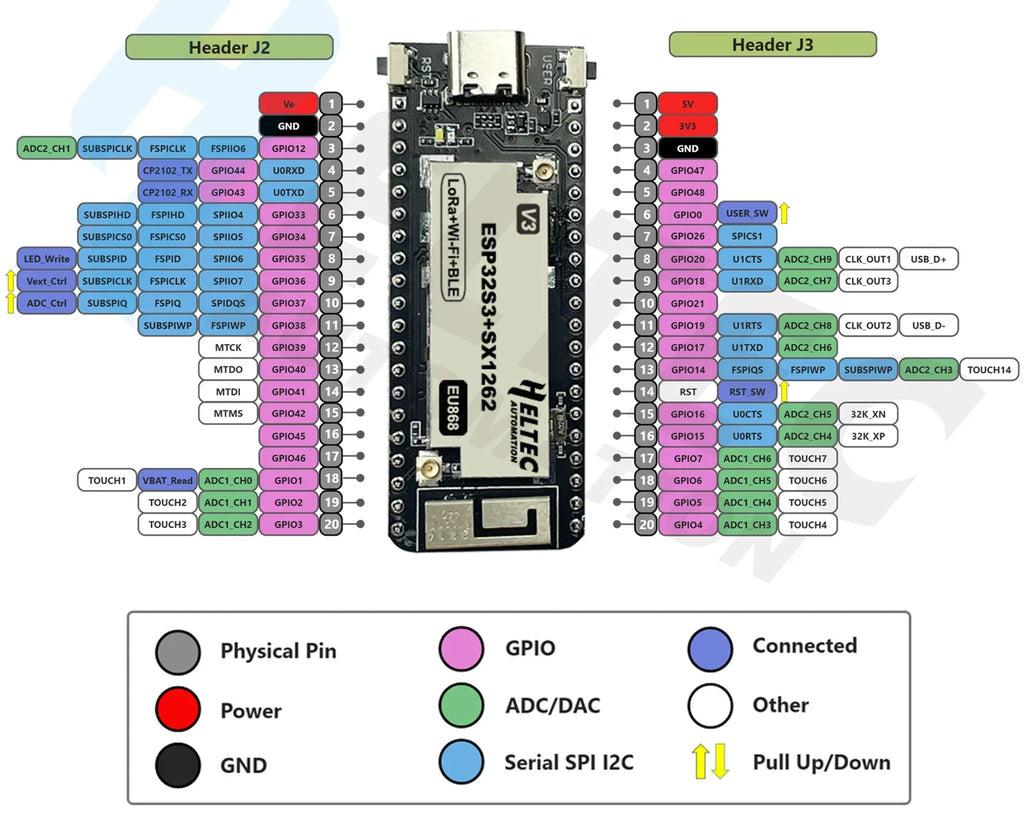

Hardware Resource: 7*ADC1 + 9*ADC2; 8*Touch; 3*UART; 2*I2C; 2*SPI; etc.

High-concerned chemical: none

LoRa Chipset: SX1262

Master Chip: ESP32-S3FN8

Max. Receiving sensitivity: -134dBm

Max. TX Power: 21d B ± 1d B

Memory: 384KB ROM; 512KB SRAM; 16KB RTC SRAM; 8MB SiP Flash

Model Number: HT0002

Operating temperature: -20 - 70 ℃

Origin: Mainland China

Type: Bluetooth,WIFI

USB to Serial Chip: CP2102

Wi-Fi: 802.11 b/g/n, up to 150Mbps

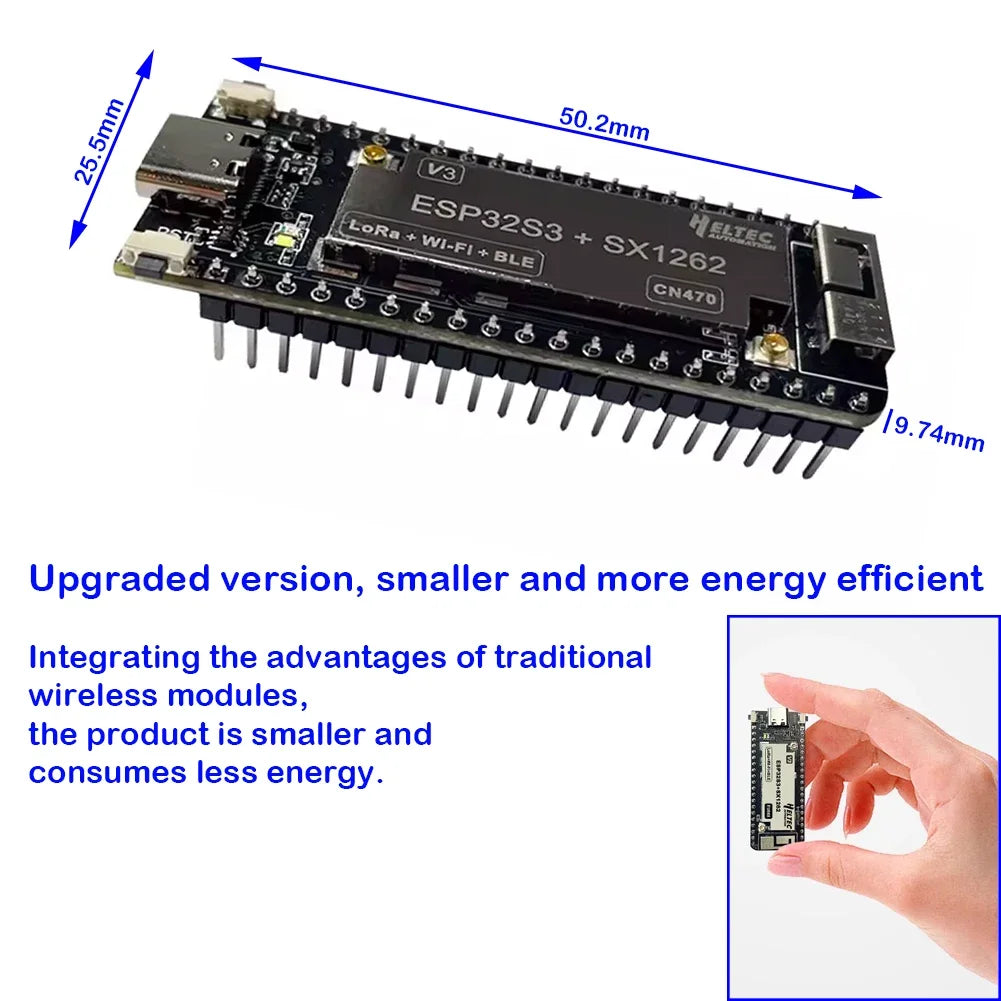

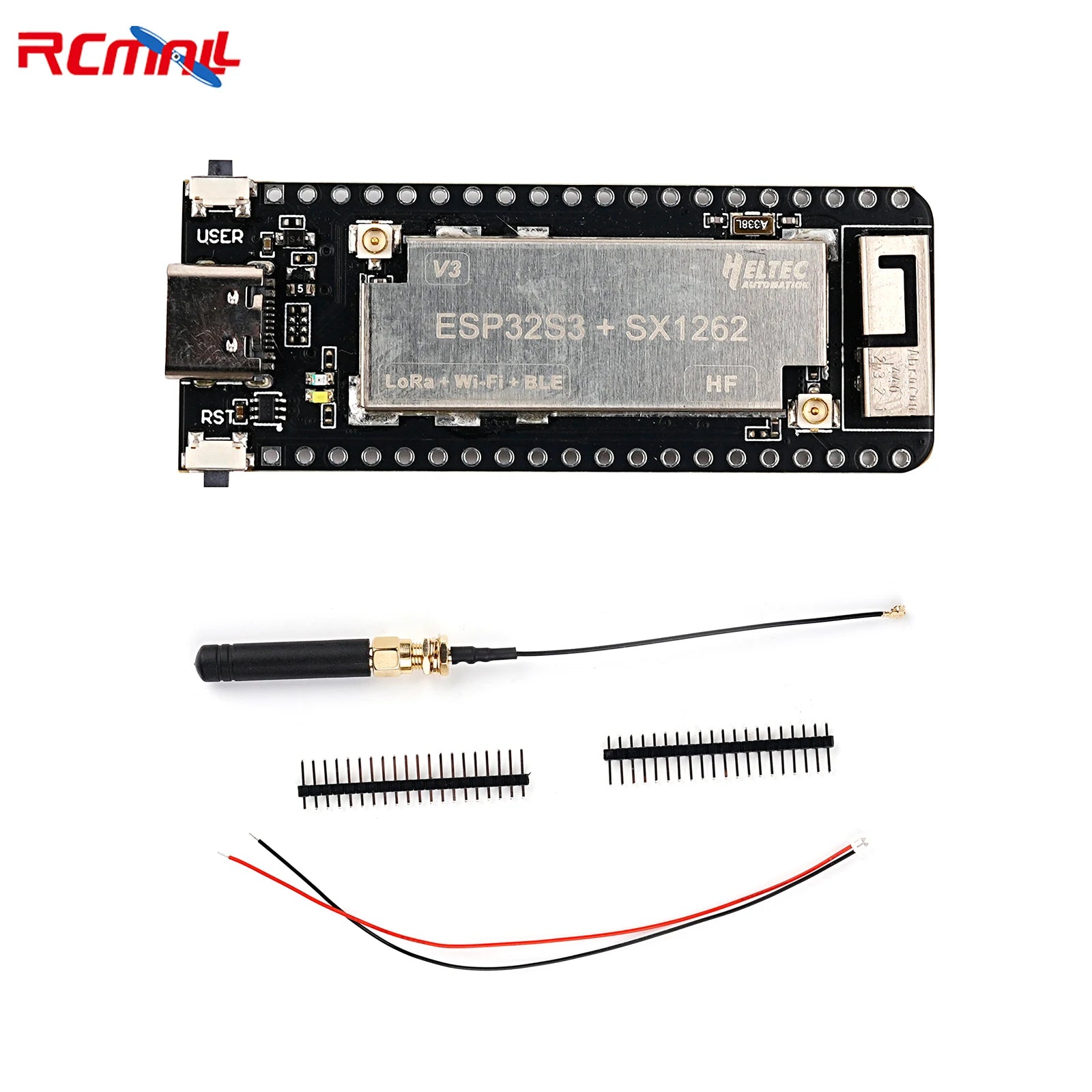

Heltec LoRa ESP32 Wireless Stick Lite(V3) ESP32-S3 SX1262 Wi-Fi+BT Development Board 433MHz 868MHz 915MHz LoRa Kit for Arduino Meshtastic IoT LoRaWAN

Summary:

HTIT-WSL is a development board for Wi-Fi, Blue-tooth and LoRa. Because some customers do not need OLED screen when using WiFi Lora32, we launched this product.

The HTIT-WSL is composed up of an MCU (ESP32-S3FN8) and Semtech-LoRa Transceivers (SX1262), perfectly support Arduino®. Users can easily carry out secondary development and application.

Main Features:

- Microprocessor: ESP32-S3FN8 (Xtensa® 32-bit LX7 dual core processor, five stage pipeline rack Structure, main frequency up to 240MHz).

- SX1262 LoRa node chip.

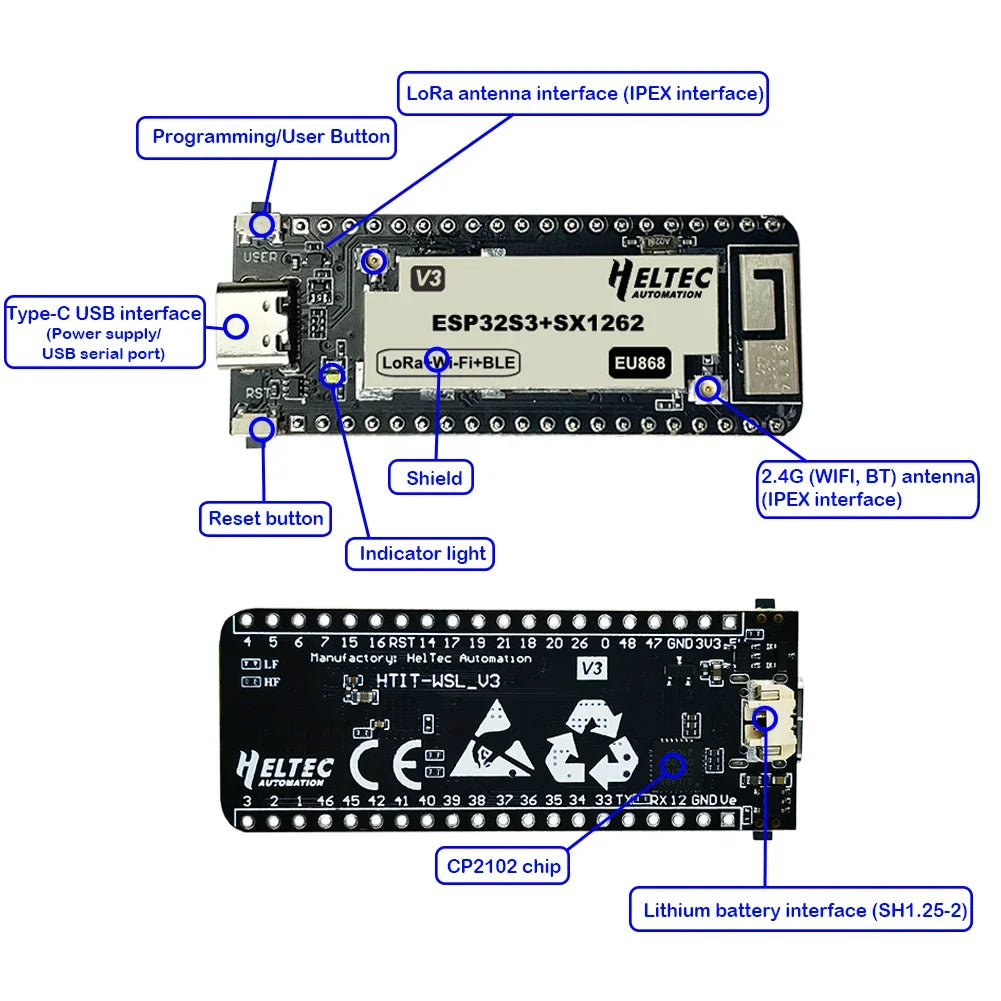

- Type-C USB interface with a complete voltage regulator, ESD protection, short circuit protection, RF shielding, and other protection

- Onboard SH1.25-2 battery interface, integrated lithium battery management system (charge and discharge management, overcharge protection, battery power detection, USB / battery power automatic switching).

- Integrated WiFi, LoRa, Blue-tooth three network connections, onboard Wi-Fi, Blue-tooth dedicated 2.4GHz metal spring antenna, reserved I-PX (U.FL) interface for LoRa

- Integrated CP2102 USB to serial port chip, convenient for program downloading, debugging information printing.

- Support the Arduino development environment;

- Support meshtastic;

- With good RF circuit design and basic low-power design (sleep current ≤800uA), it is convenient for IoT application vendors to quickly verify solutions and deploy applications;
