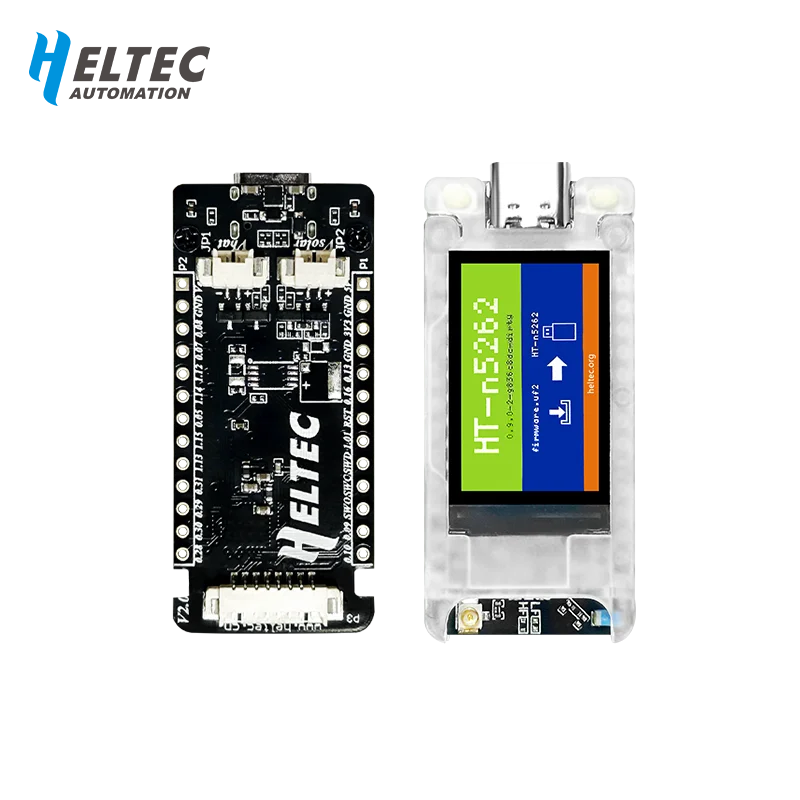

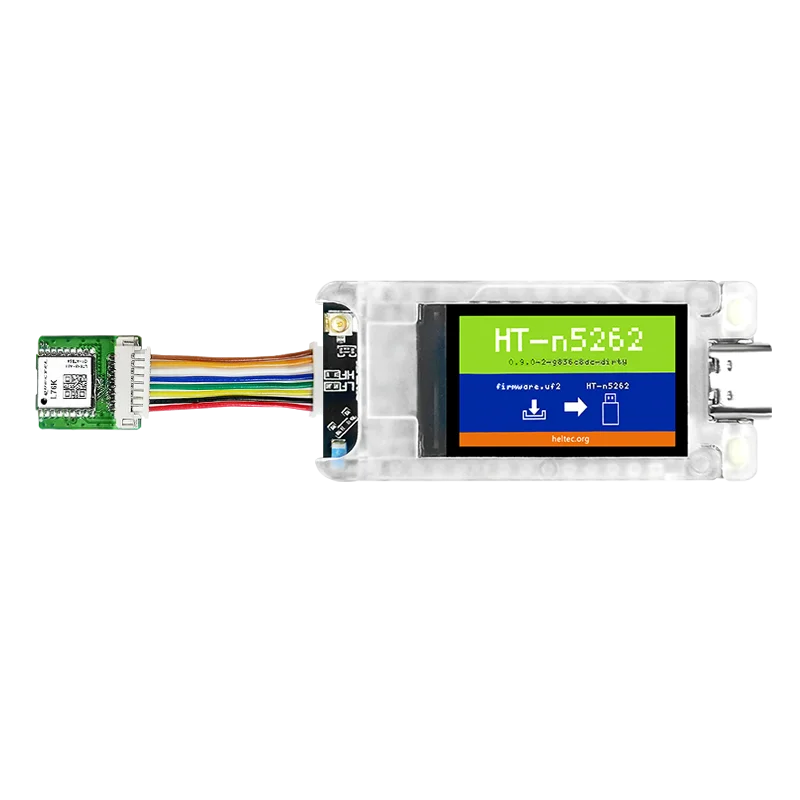

Heltec Mesh Node T114 Rev 2.0

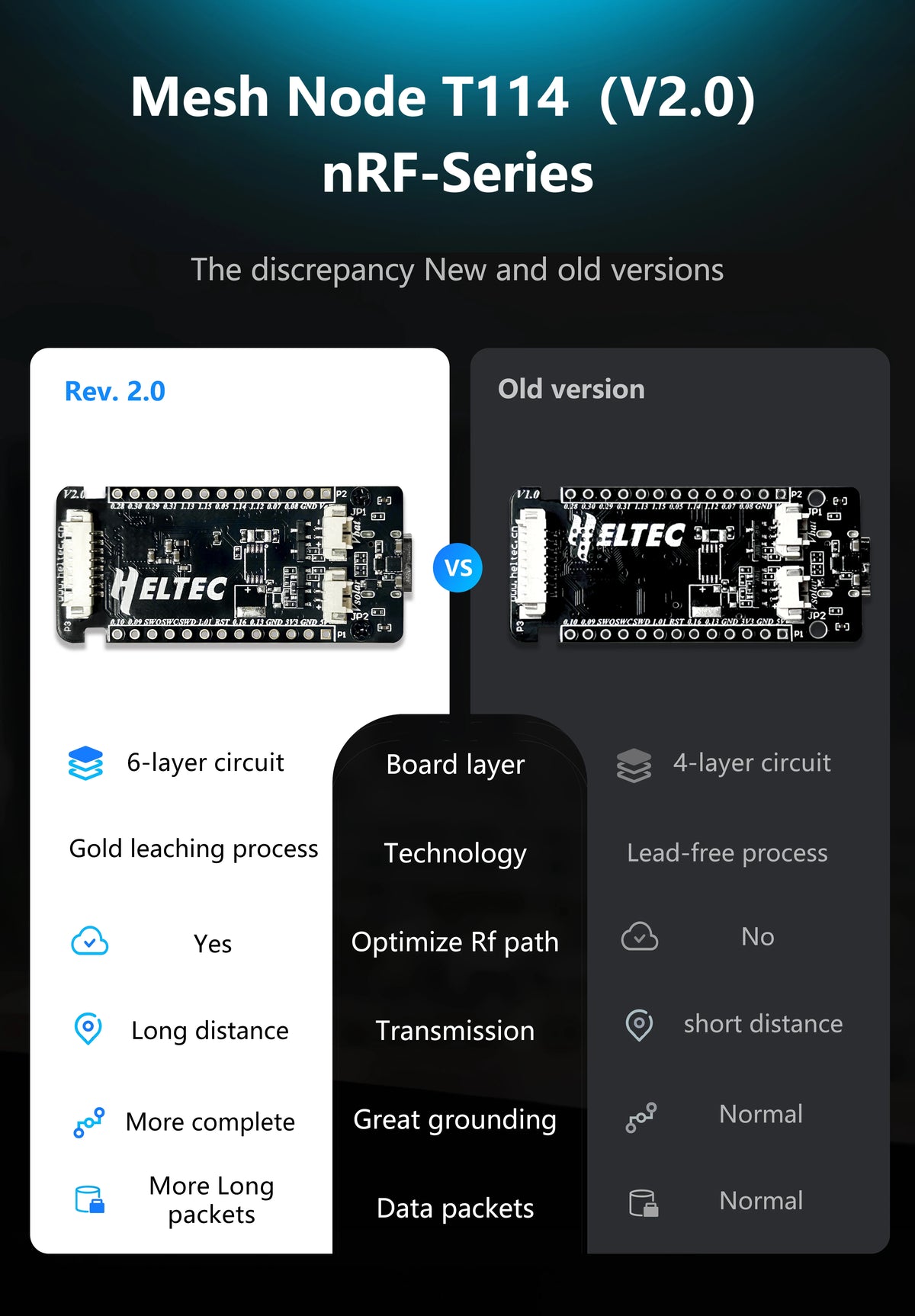

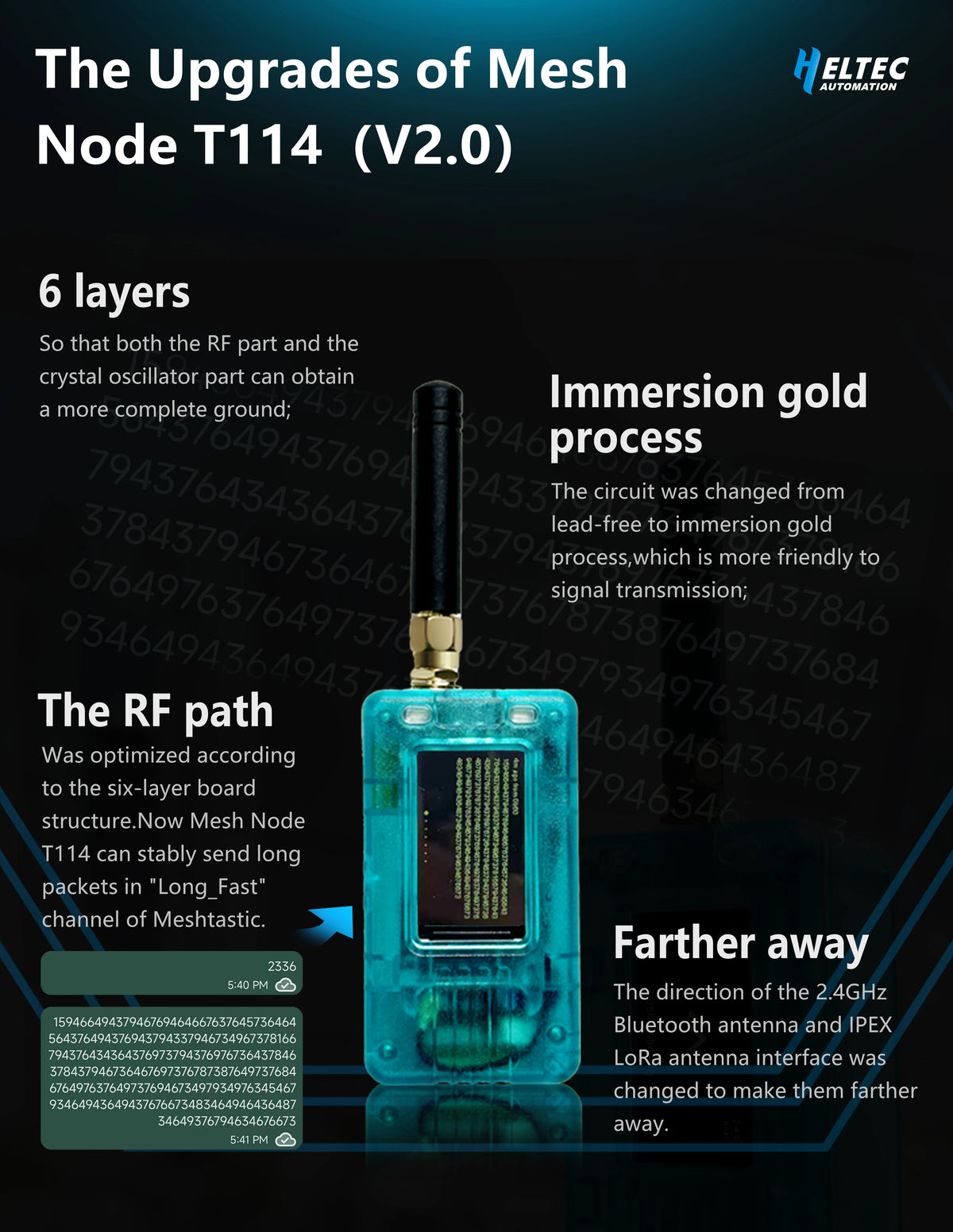

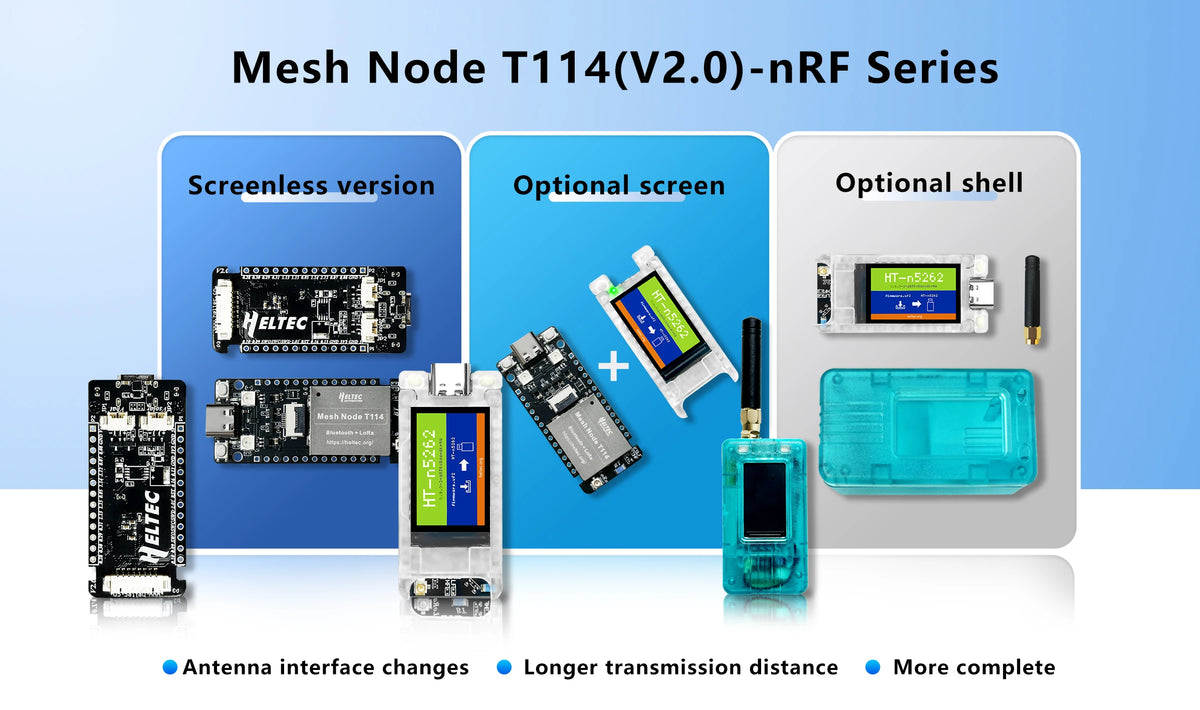

Mesh Node T114 has been upgraded to V2.0 version with the following changes made

1.The circuit board was changed from 4 layers to 6 layers so the RF part and the crystal oscillator part can obtain a more complete ground.
2.The circuit was changed from lead-free to immersion gold process, which is more friendly to signal transmission.
3.The position of some components was adjusted.
4.The RF path was optimized according to the six-layer board structure.
5.The direction of the 2.4GHz Bluetooth antenna and IPEX LoRa antenna interface was changed to make them farther away.
6.The data transmission can sent long data packets with meshtastic.

Introduction and Operation Video of T114 Rev2.0 Development Board

  • Operation Video

Why do we need Maker series products?

Low Power Characteristcs

Summary


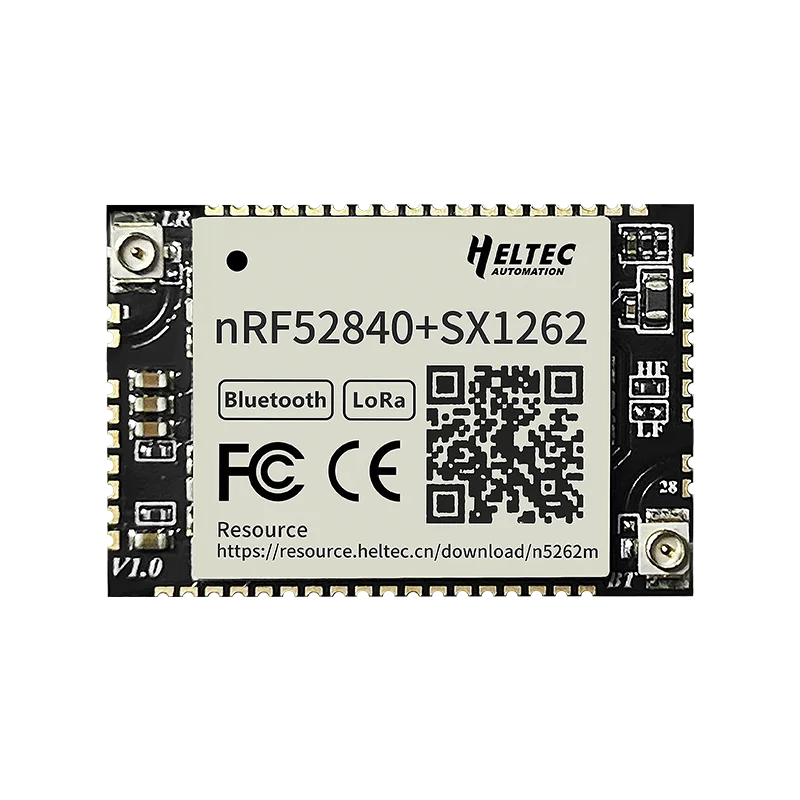

Mesh Node T114 is a Low Power Consumption development board based on nRF52840 and SX1262, supports LoRa and Bluetooth 5.0, which integrated various power interfaces (5V USB, lithium battery and solar panel) , optional 1.14 inch TFT display and GPS module as accessories, and has powerful long-distance communication capabilities, scalability, and low power design. With Heltec nRF52 development environment and libraries. You can use it for LoRa or LoRaWAN development work, and also use it to run some open source projects, such as Meshtastic.

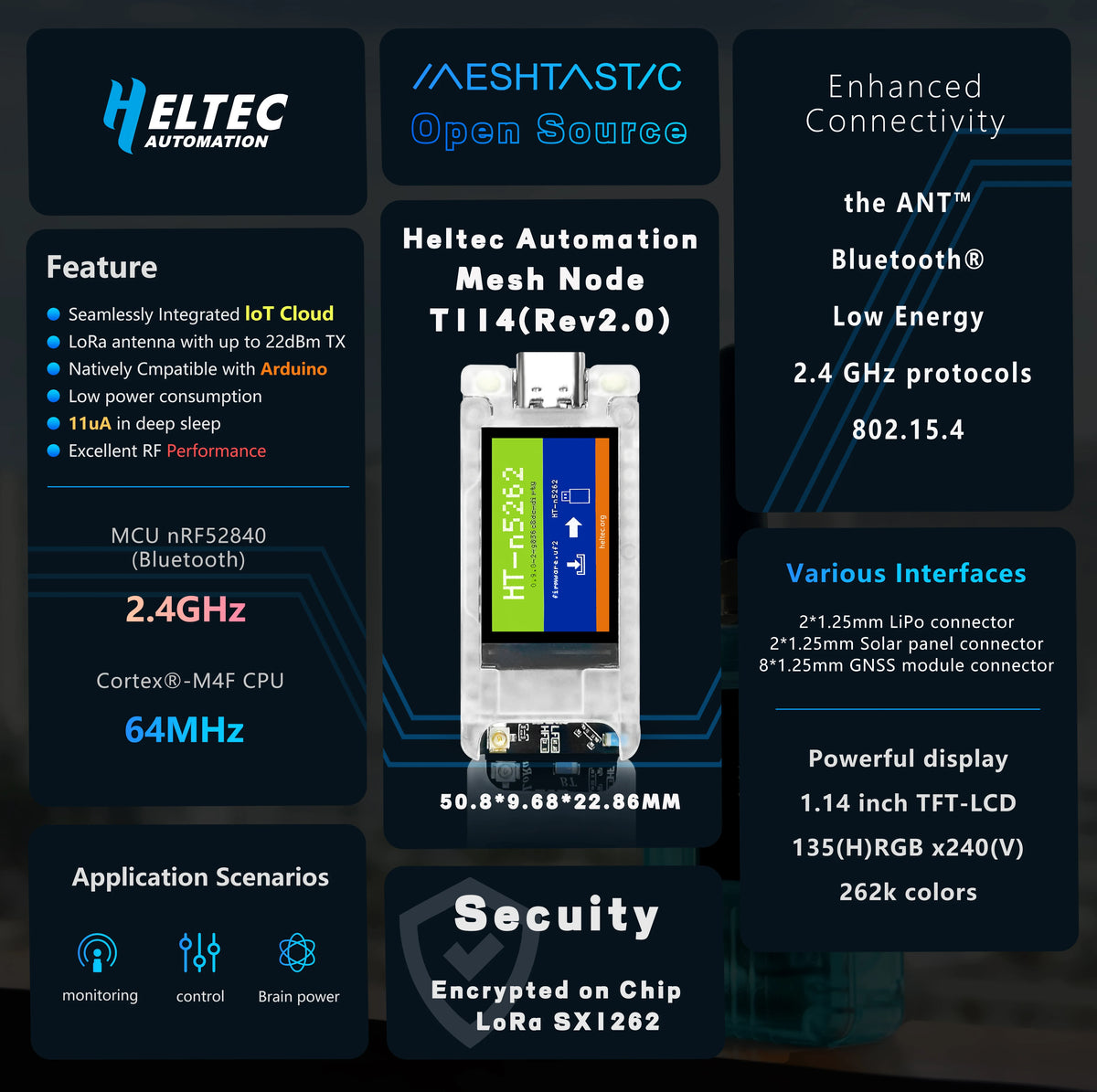

Main Features

  • MCU nRF52840 (Bluetooth),  LoRa chipset SX1262.

  • Powerful display function (optional), onboard 1.14 inch TFT-LCD display contains 135(H)RGB x240(V) dots and can display up to 262k colors.

  • Low power consumption, 11 uA in deep sleep.

  • Powerful display function, onboard 1.9-inch TFT-LCD display contains 170 (RGB)X320 dots and can display up to 262k colors.

  • Operation condition: -20 ~ 70℃, 90%RH(No condensing).

  • Type-C USB interface with a complete voltage regulator, ESD protection, short circuit protection, RF shielding, and other protection measures.

  • Compatible with Arduino, we provide development frameworks and libraries.

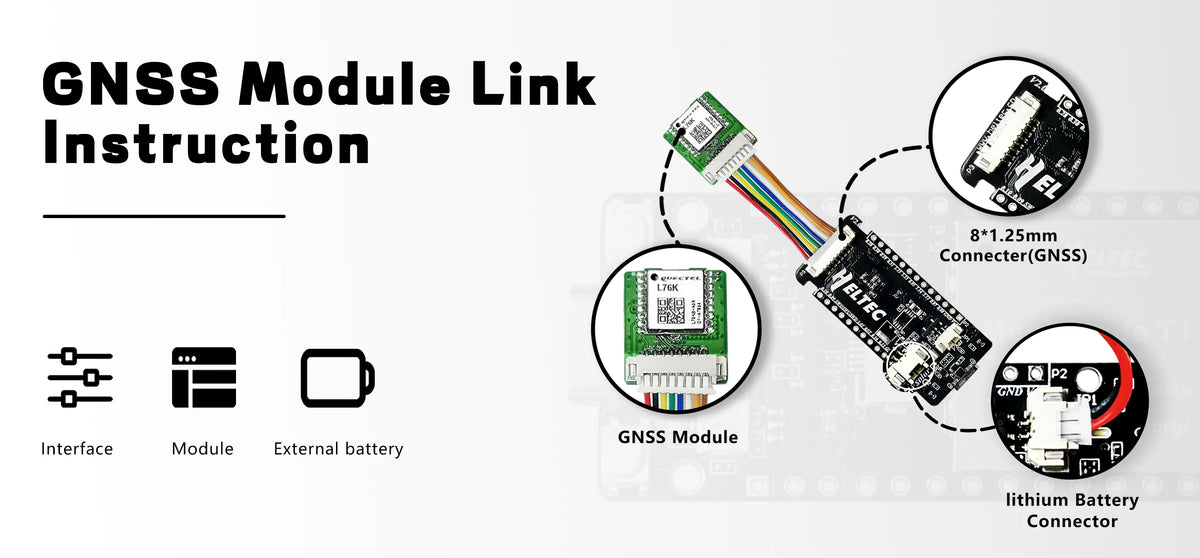

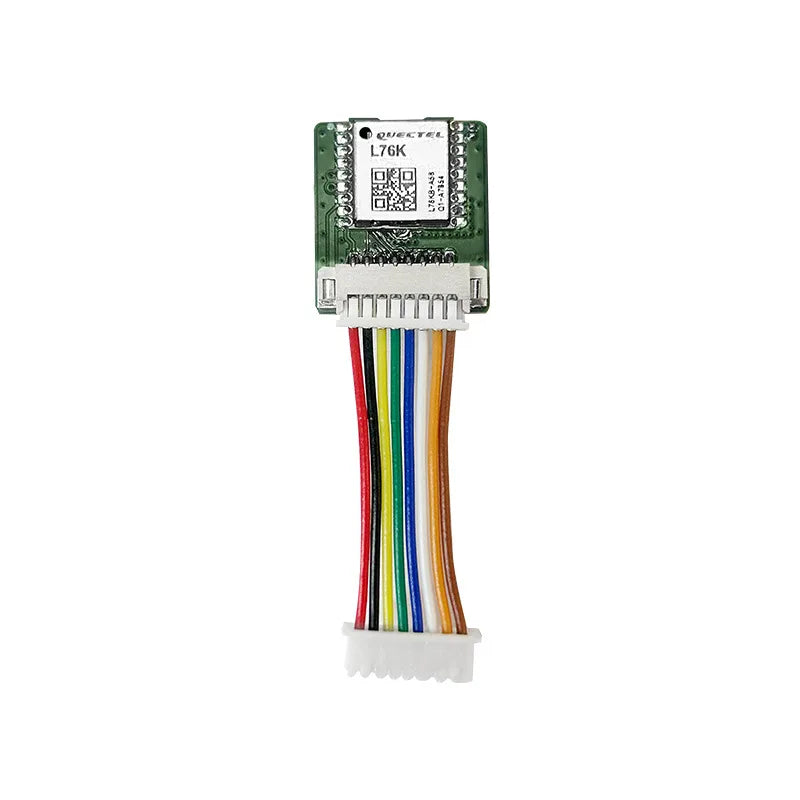

  • Various Interfaces: 1.25*2P LiPo connector, 1.25*2P Solar panel connector, 1.25*8P GNSS module connector, which greatly increase the extensibility of the board.

Docs & Resource

·[Docs] — User Manual

·[Resource] —Heltec nRF52 framework and Lib

·[Attachment] —SnapEmu IoT Platform

·[Attachment] — Schematic diagram

·[Attachment] — Datasheet

·[Attachment] — TFT-LCD Datasheet

·[Resource] — Related Resources

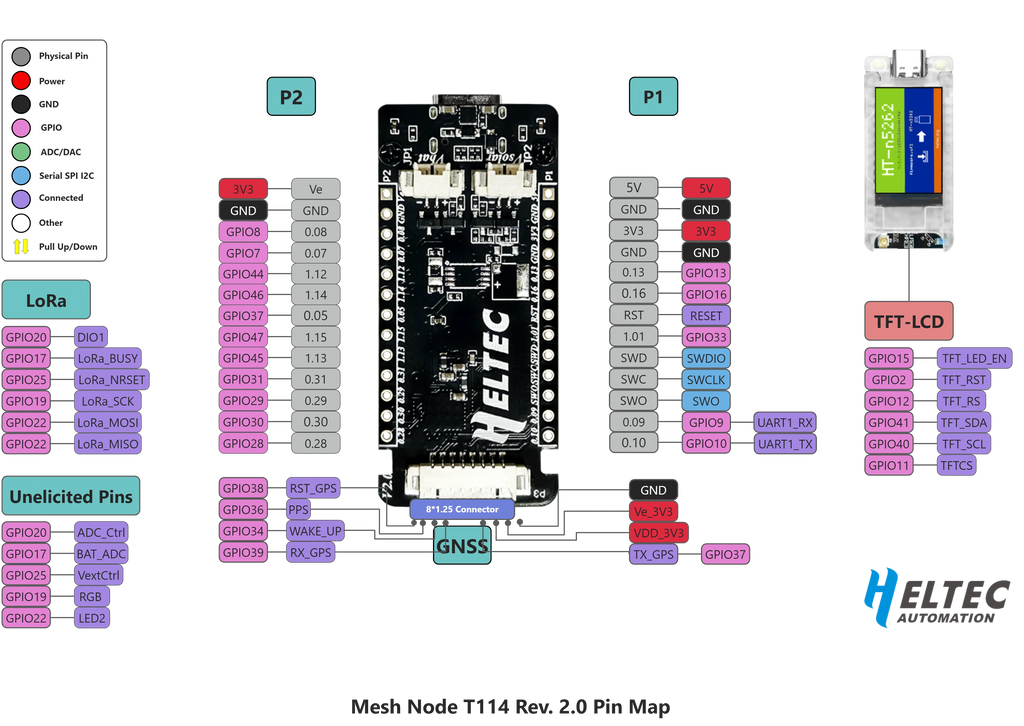

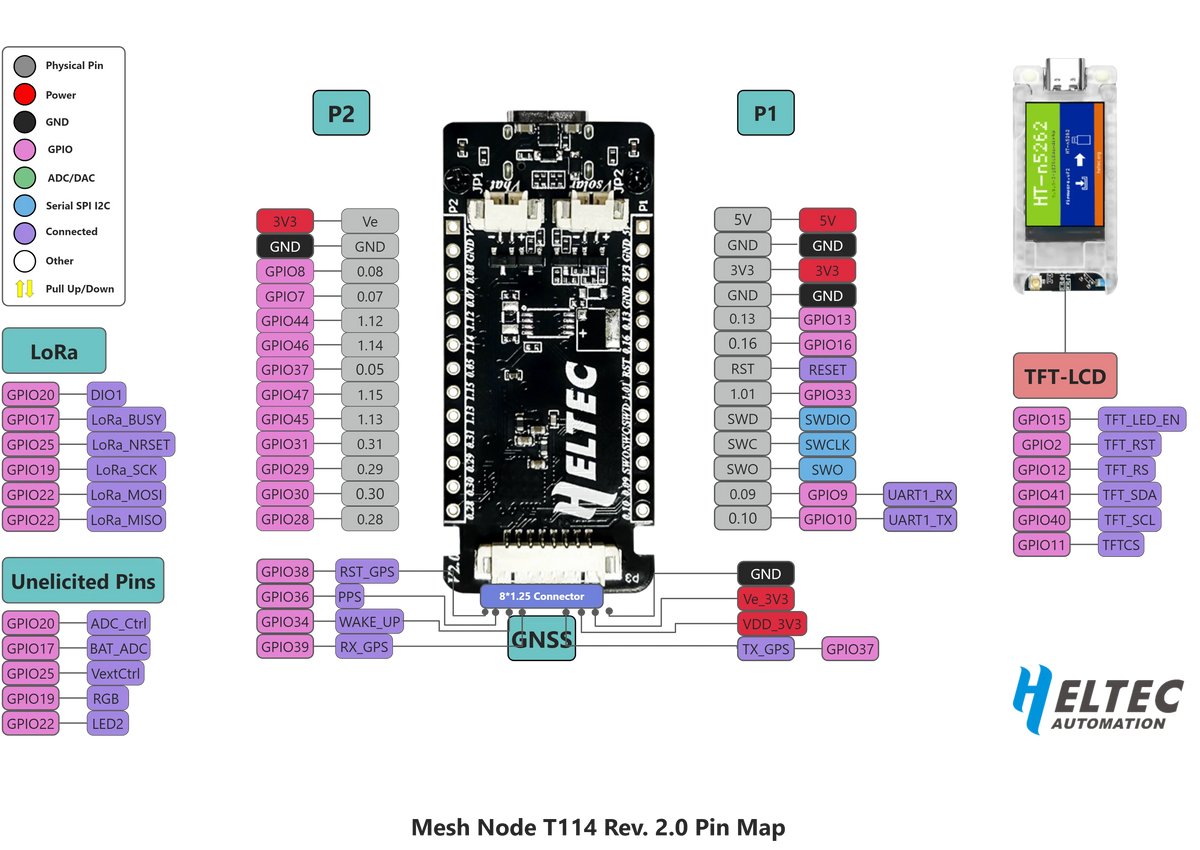

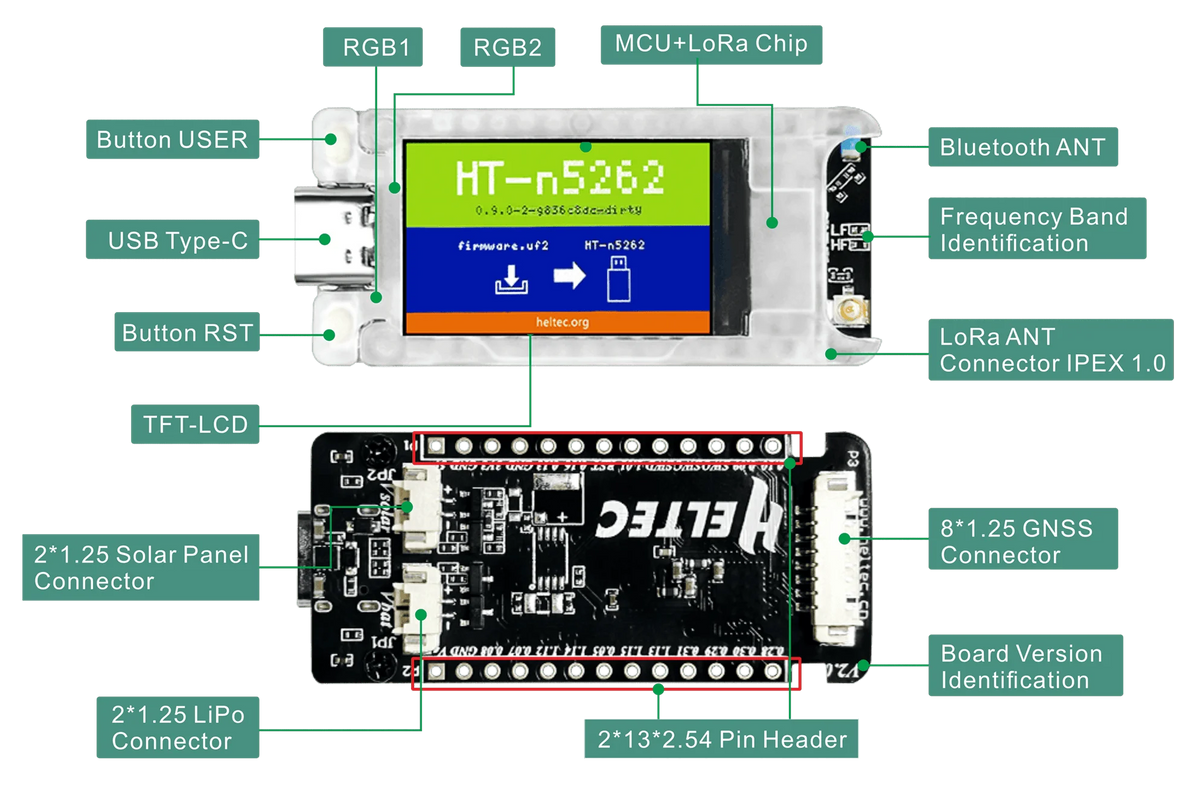

Pin Map

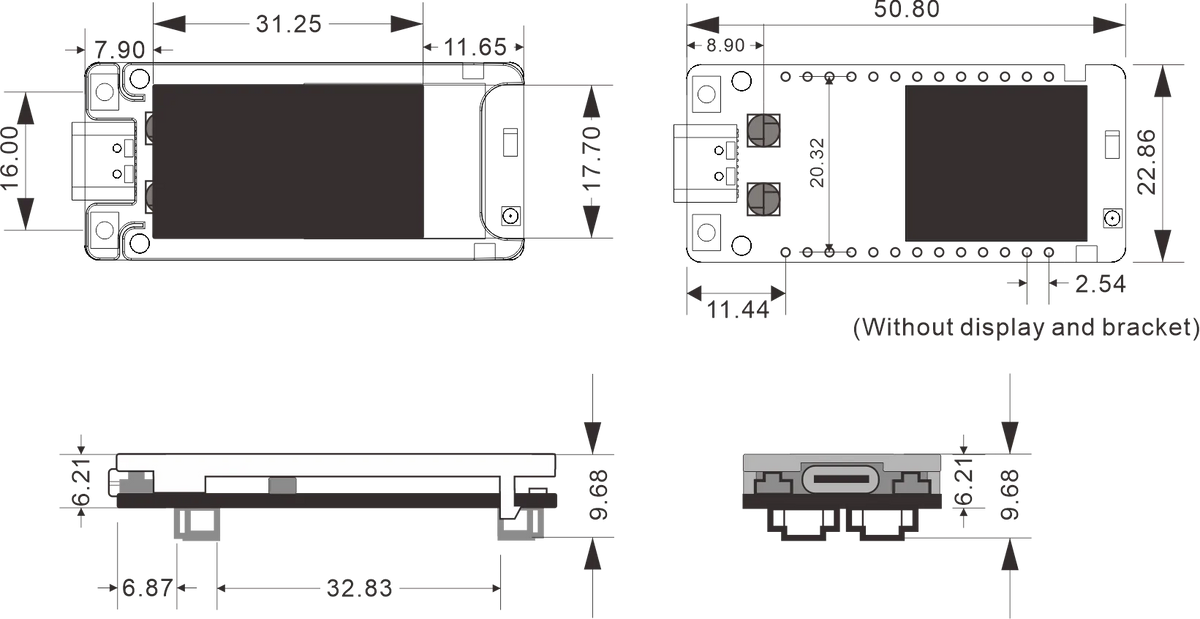

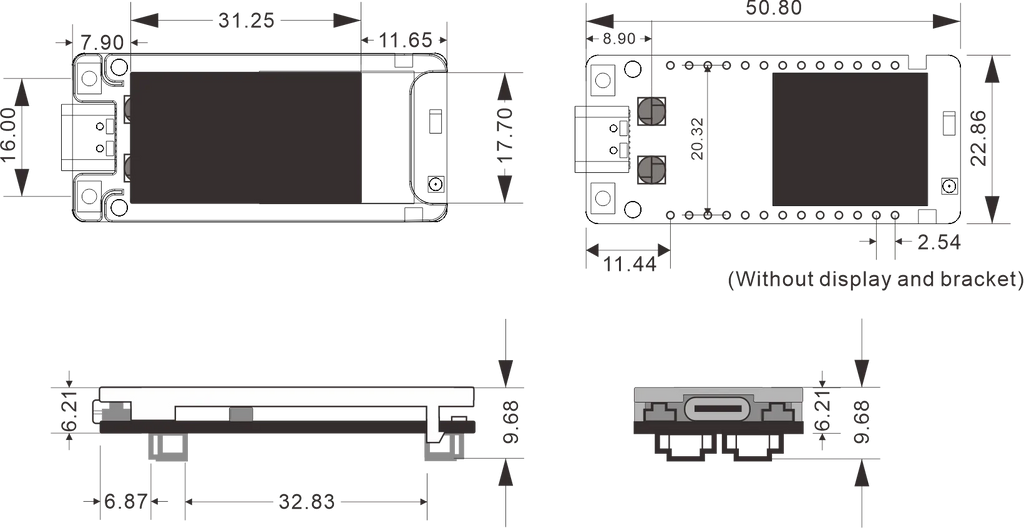

Dimension

Specifications


Parameters

Description

MCU

nRF52840

LoRa Node Chip

SX1262

Frequency

863~870MHz;
902~928MHZ.

Max. TX Power

21±1dBm

Max. Receiving sensitivity

-135dBm@SF12 BW=125KHz

Bluetooth

Bluetooth LE: Bluetooth 5, Bluetooth mesh

Hardware Resource

USB 2.0, 4 * SPI, 2 * TWI, 2 * UART, 4 * PWM, QPSI, 12S, PDM, QDEC Etc.

Memory

1M ROM
256KB SRAM

Interface

Type-C USB
2*1.25 lithium battery connector
2*1.25 solar panel connector
LoRa ANT (IPEX1.0)
8*1.25 GPS module connector
2*13*2.54 Header Pin

Battery

3~4.2V battery power supply and charge.

Operating Temperature

-20 ~ 70 ℃

Dimensions

50.80*22.86mm

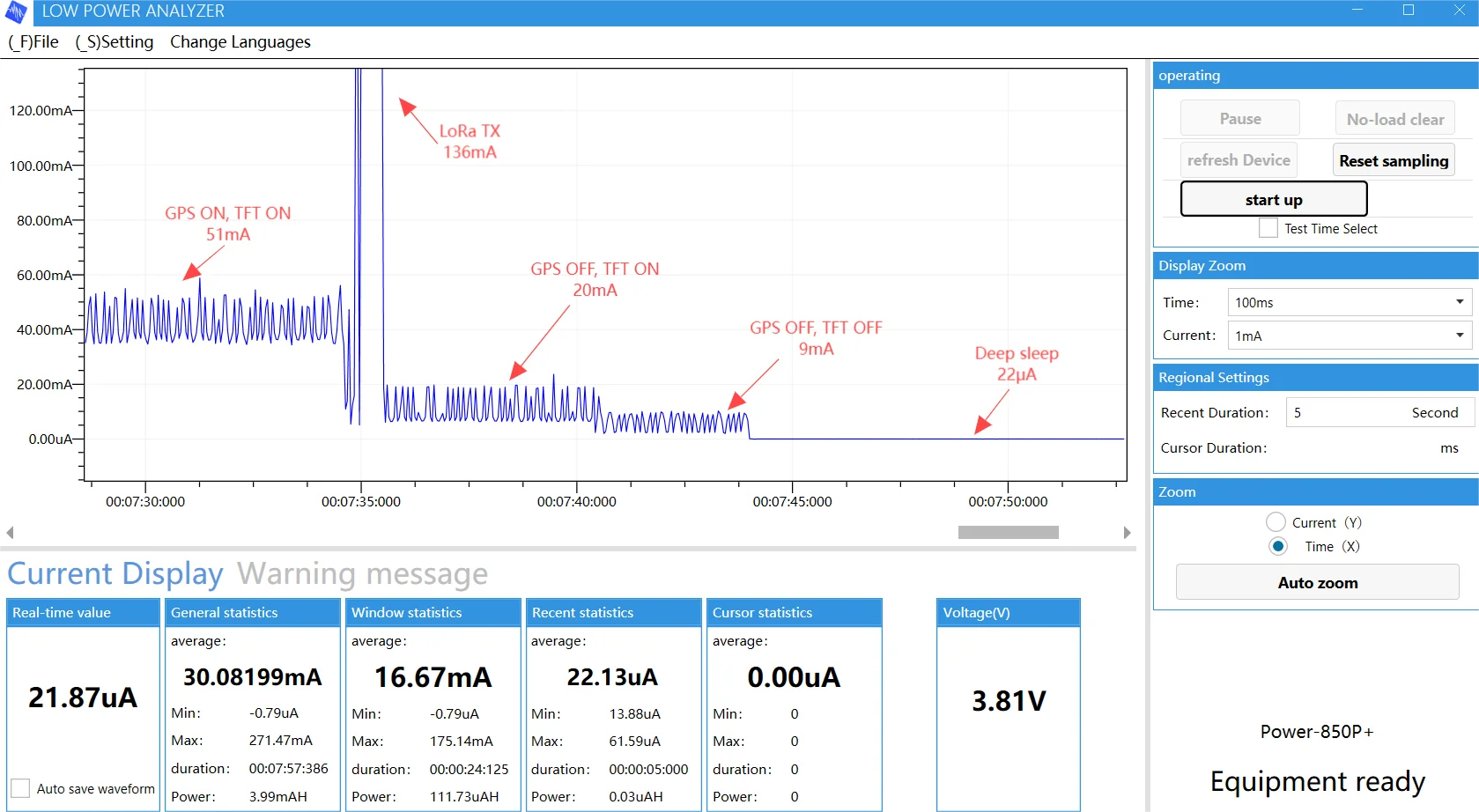

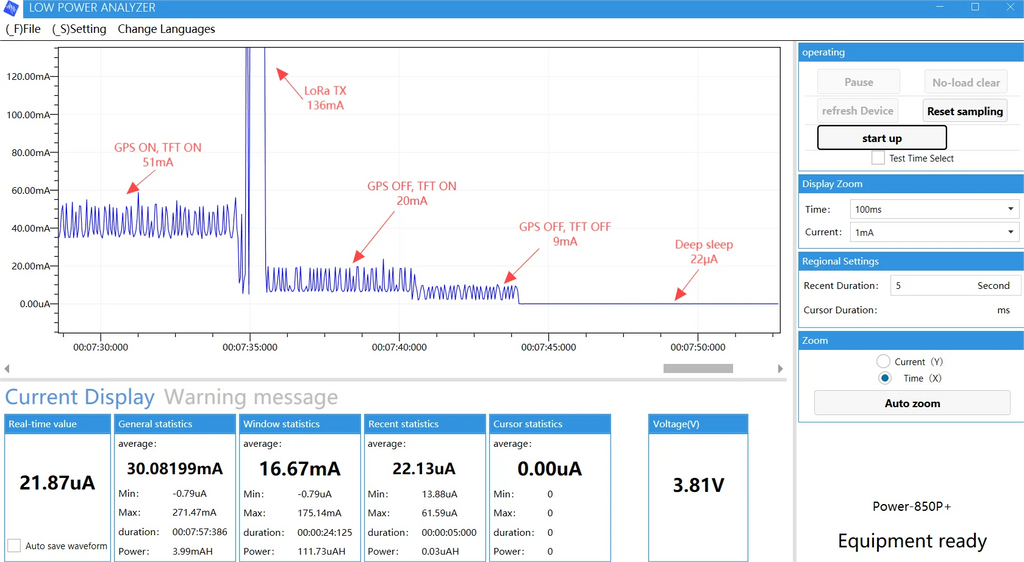

Low Power Consumption in Deep Sleep

11uA

Display

onboard 1.14 inch TFT-LCD display

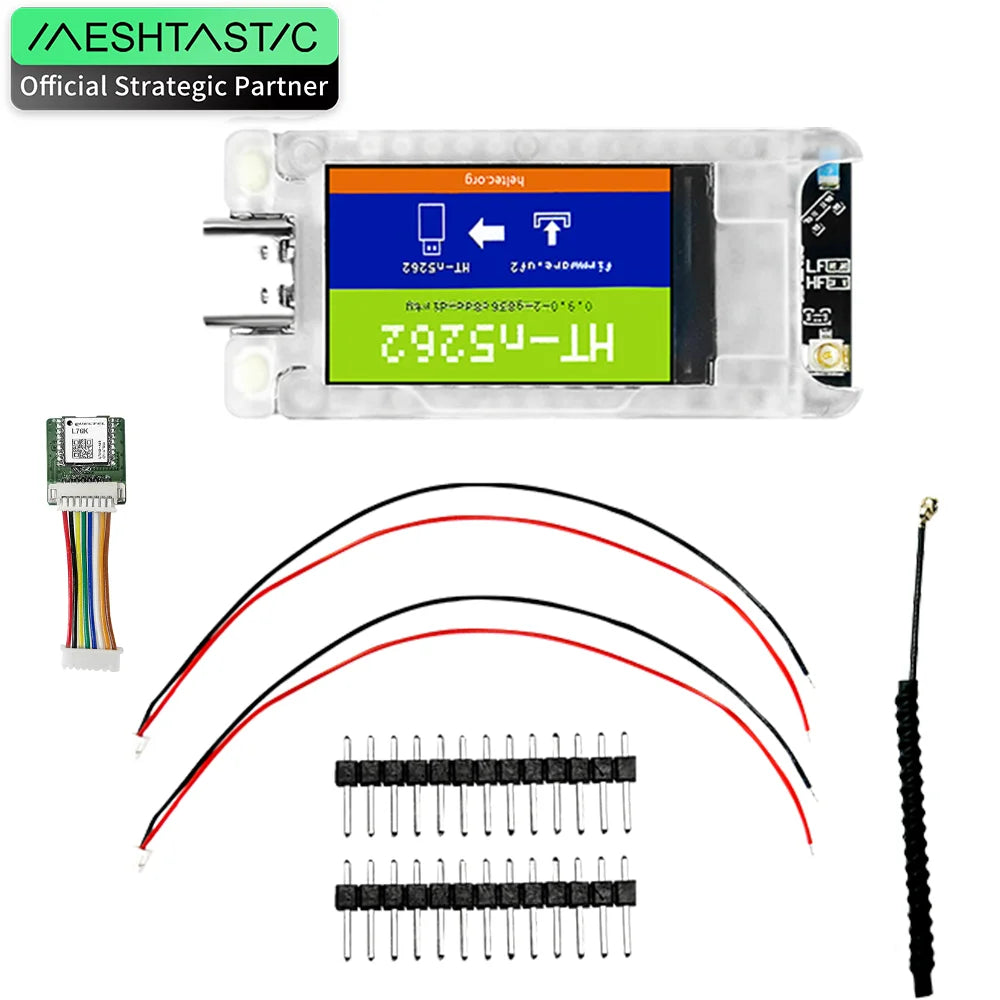

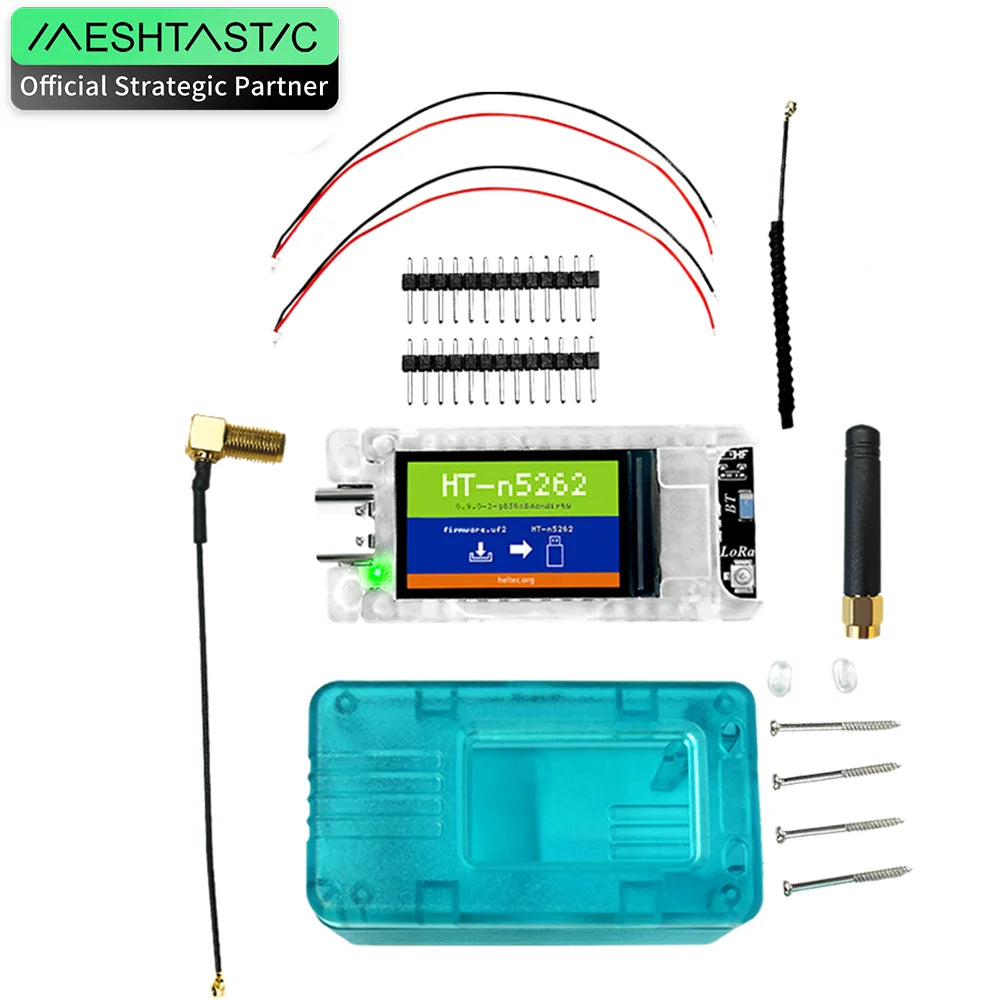

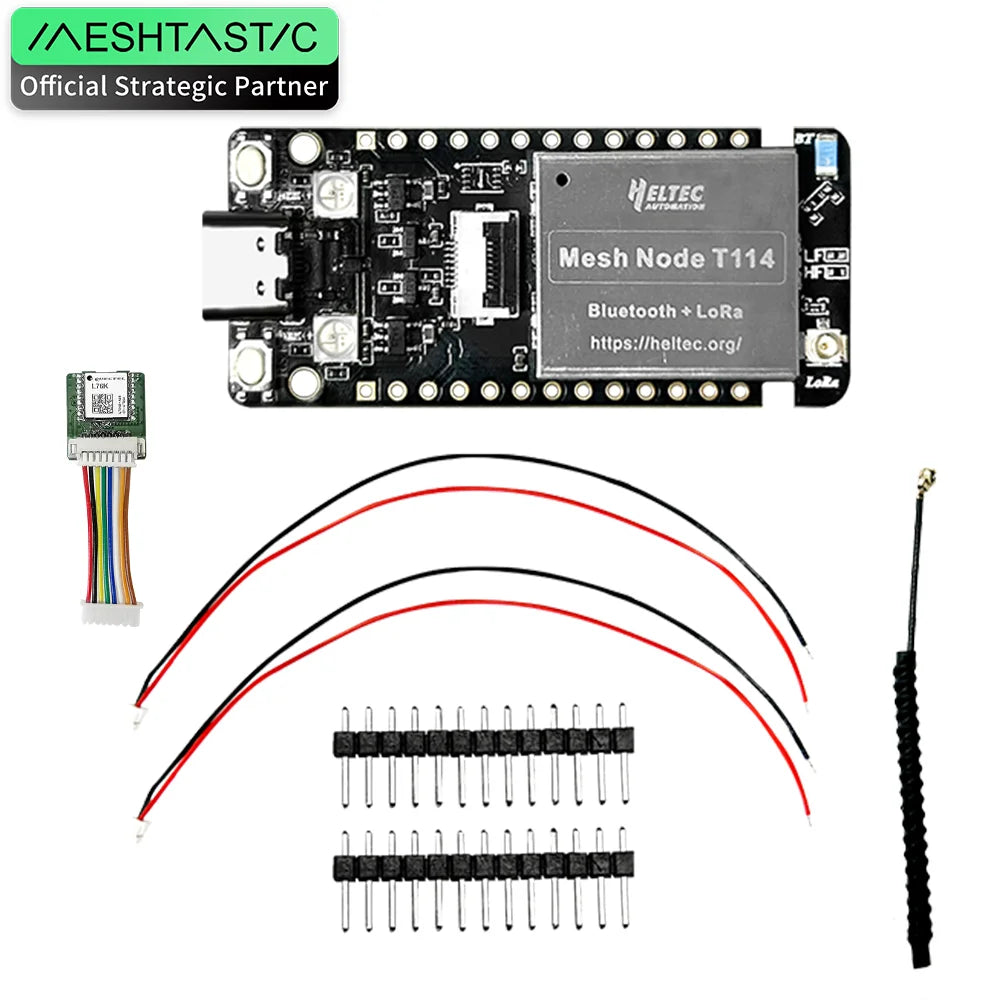

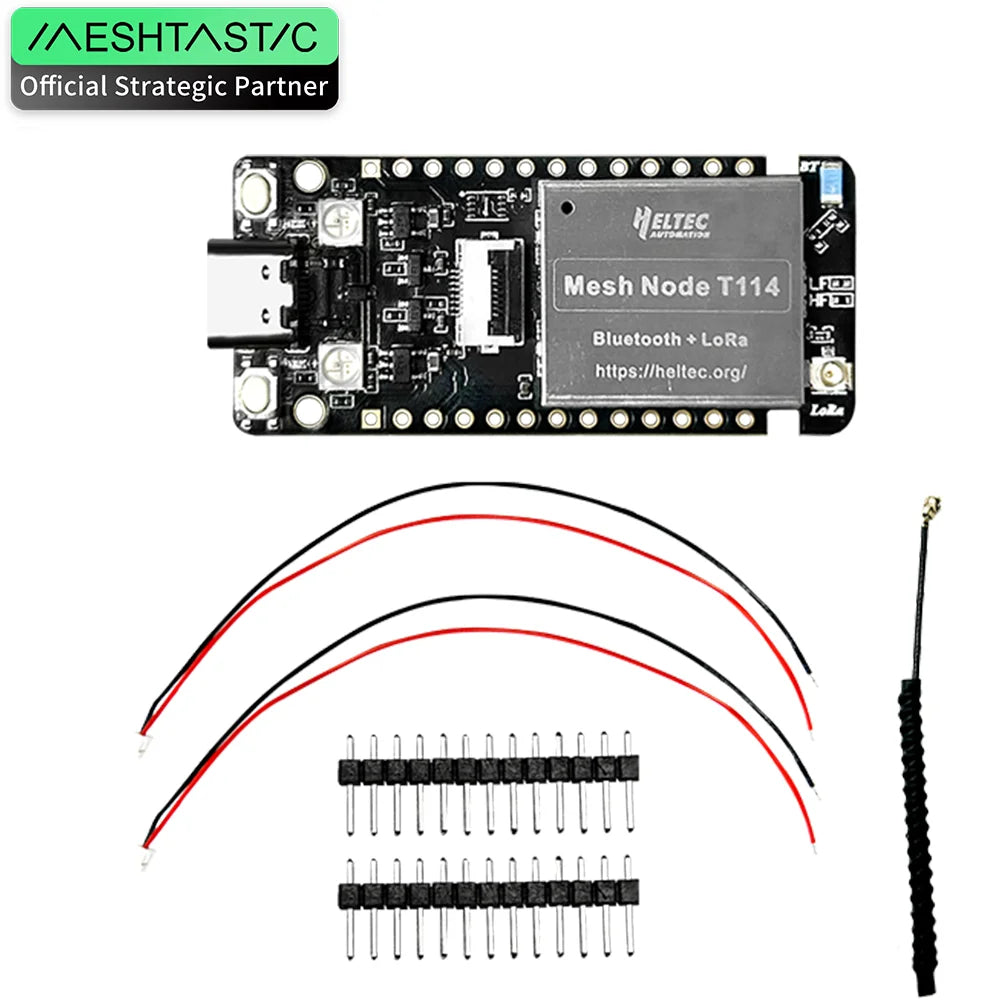

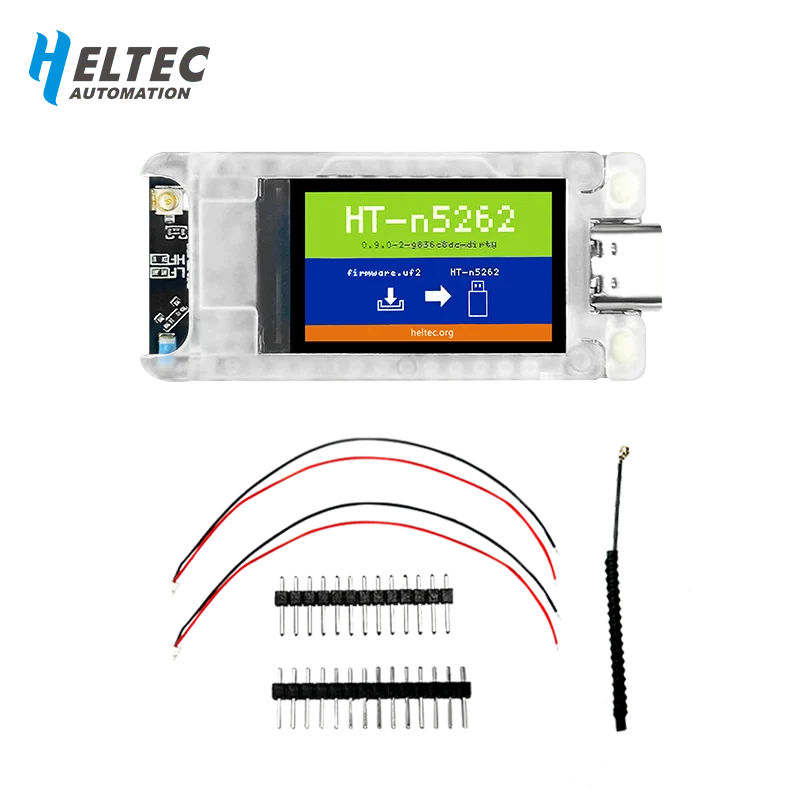

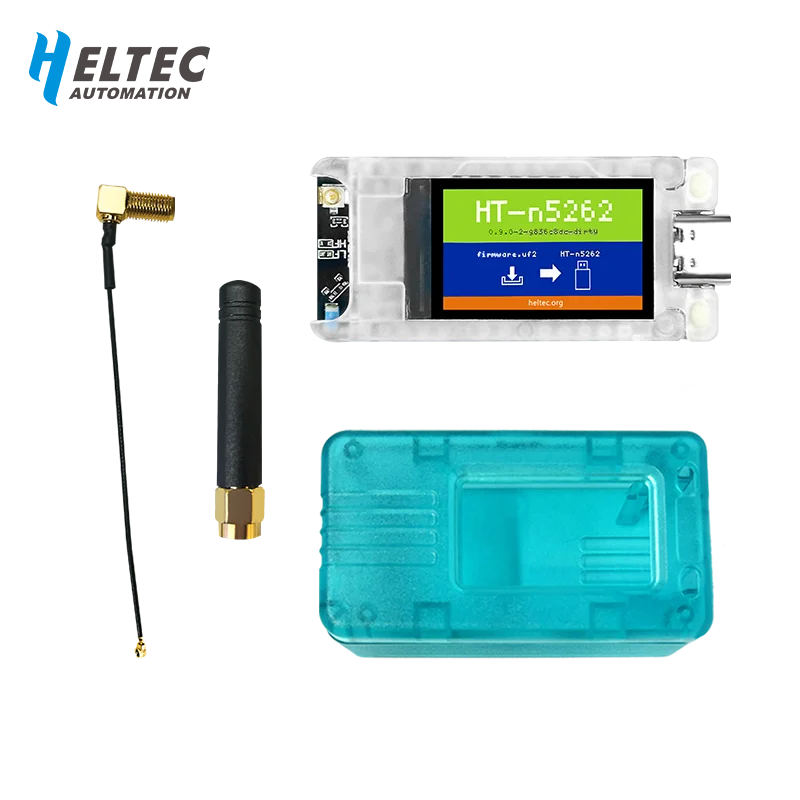

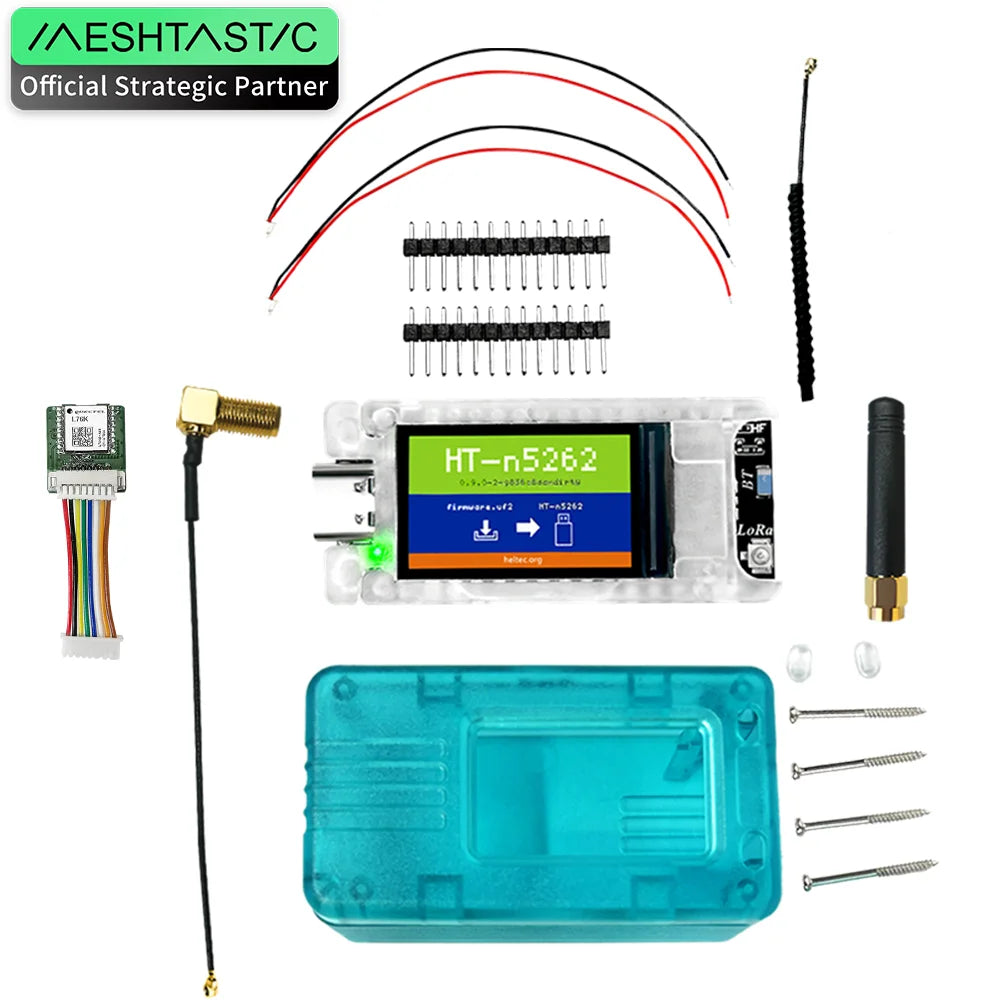

Packing List


The default packing list without selecting any accessories is as follows:

Item

Quantity

Mesh Node T114

1

LoRa Antenna

1

Sensor connection wire

1

SH1.25 x 2 battery connector

1


Notes


1. If you choose the T114 without a screen, you need to connect the device to a computer and view the status and logs through the serial port. Or with the Meshtastic App.


2. How to use?

There are two pins, USER and RST that bootloader will check upon reset/power:


●Double Click RST within 500 ms will enter DFU with Uf2 and CDC support (only works with nRF52840)



●USER = LoW and RST the device : Enter bootloader with OTA, to upgrade with a mobile application such as Nordic nrfConnect/Toolbox
