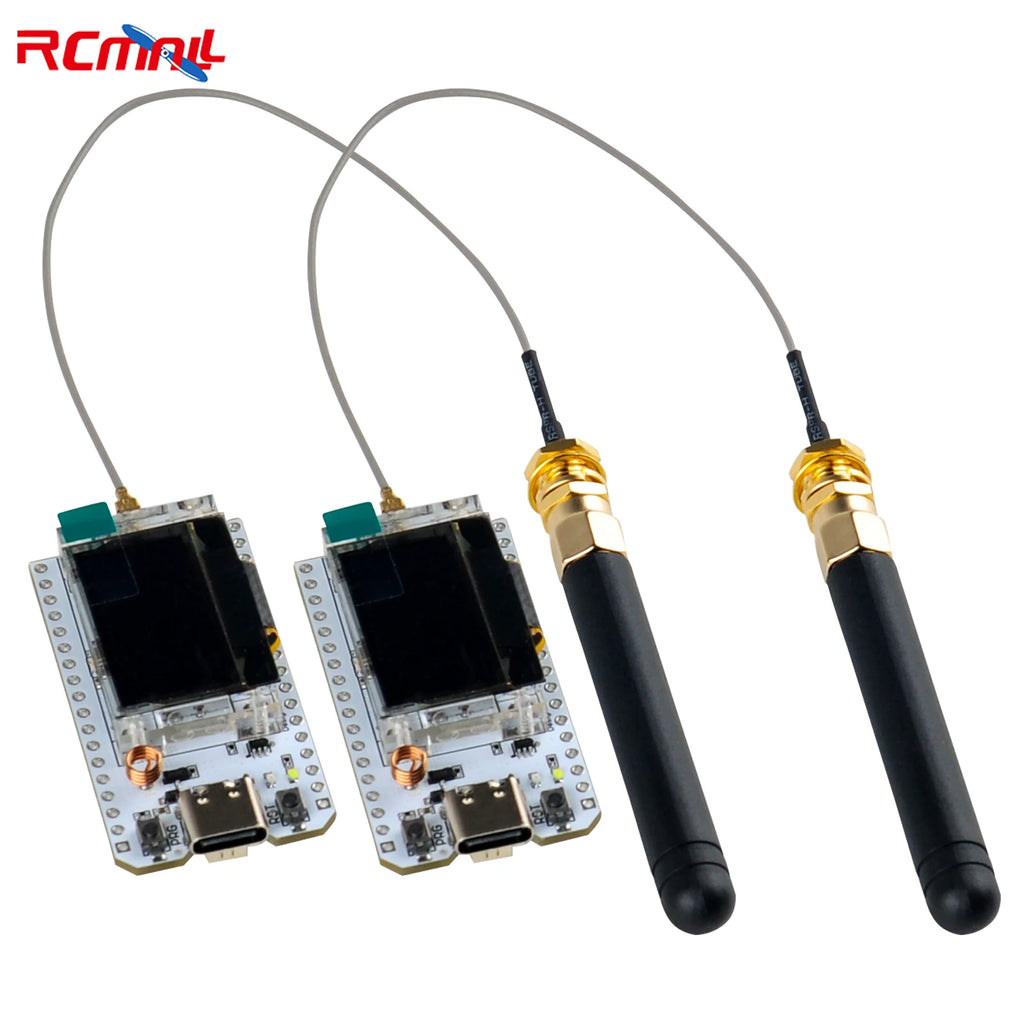

Heltec Meshtastic LoRa32 V3 Development Board 863-928MHZ SX1262 0.96 Inch OLED Display BT WIFI ESP32 Lora Kit for Arduino IOT

Heltec Meshtastic LoRa32 V3 Development Board 863-928MHZ SX1262 0.96 Inch OLED Display BT WIFI ESP32 Lora Kit for Arduino IOT

$223.92

$223.92 $0.00

Description

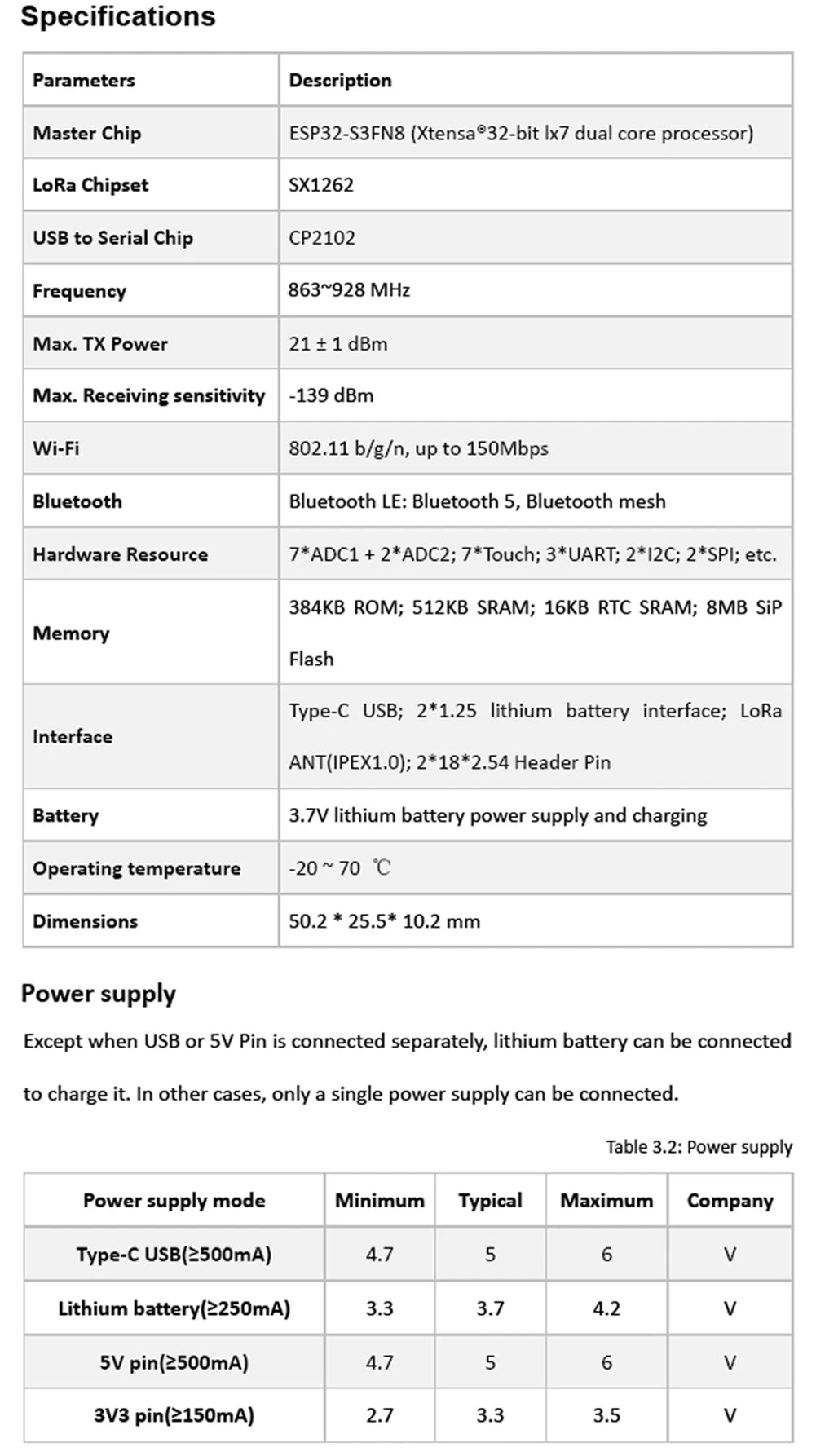

SPECIFICATIONS

Brand Name: RCmall

Choice: yes

High-concerned chemical: none

Model: LoRa32 V3

Origin: Mainland China

Type: ESP Series

1659231766020771

Heltec Meshtastic LoRa32 V3 Development Board 863-928MHZ SX1262 0.96 Inch OLED Display BT WIFI ESP32 Lora Kit for Arduino IOT

Description:

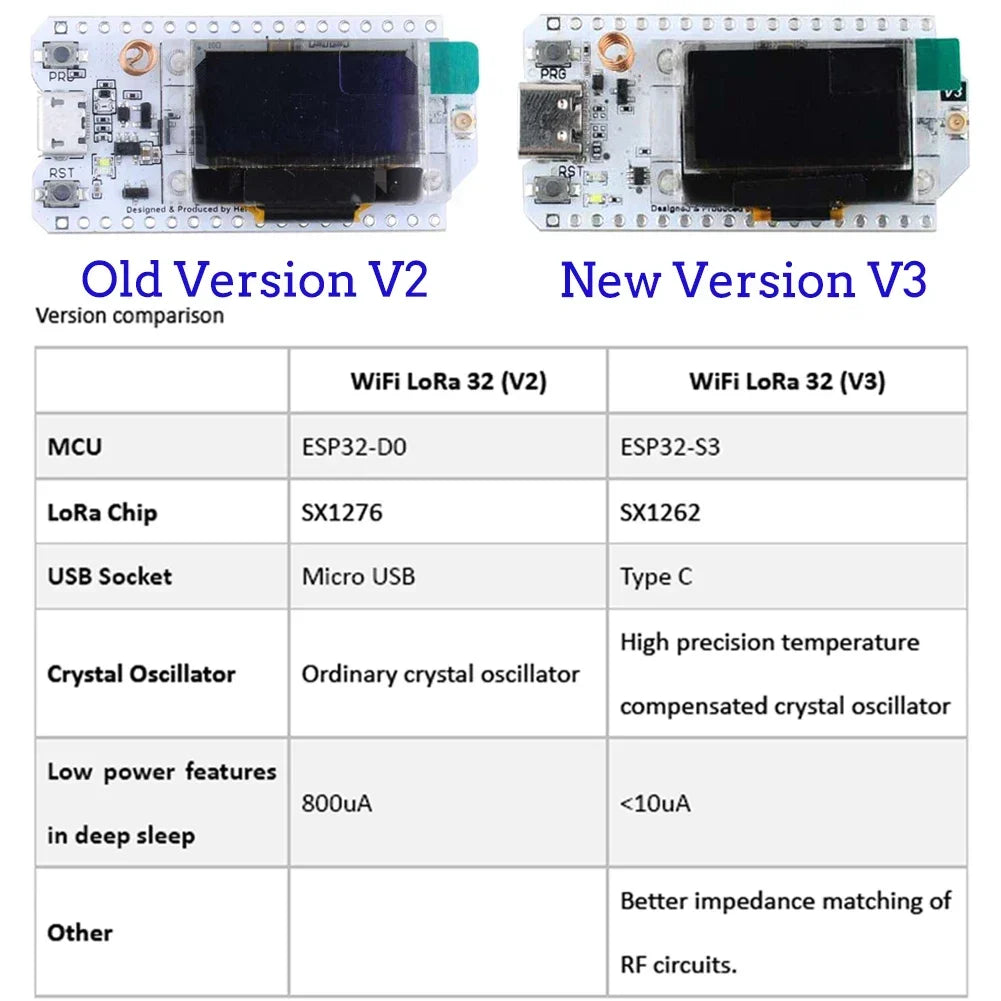

WiFi LoRa 32 is a classic IoT dev-board , it has been loved by developers and makers. The newly launched V3 version has the same pin sequence as the V2 version and retains Wi-Fi, BLE, LoRa, OLED display, and other functions.

It is the best option for smart cities, farms, homes, industrial control, house security, wireless meter reading, and IoT developers.

Note:

Not include battery;

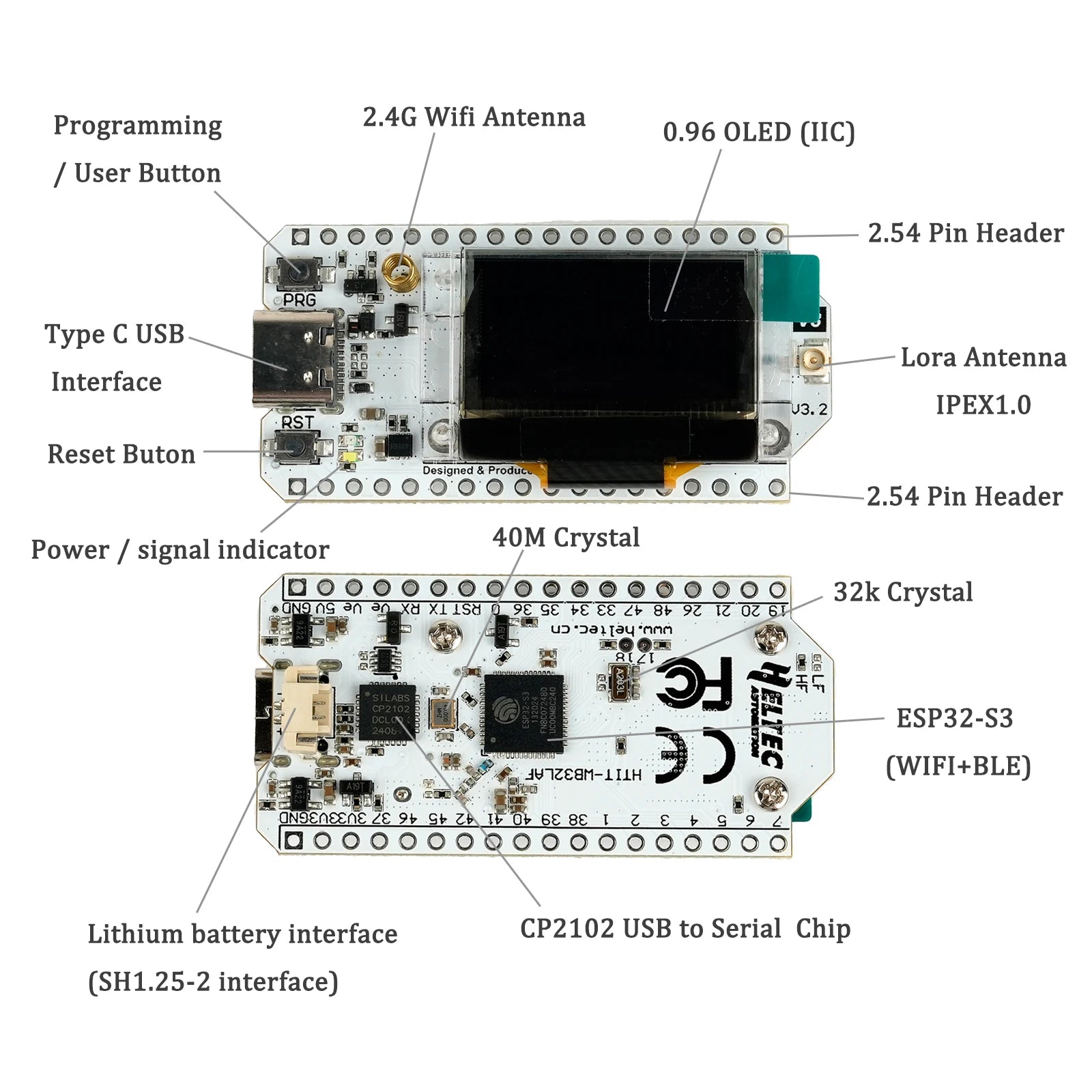

Features:

- Microprocessor: ESP32-S3FN8 (Xtensa® 32-bit LX7 dual-core processor, five-stage pipeline rack Structure, frequency up to 240 MHz).

- SX1262 LoRa node chip.

- Type-C USB interface with a complete voltage regulator, ESD protection, short circuit protection, RF shielding, and other protection measures.

- Onboard SH1.25-2 battery interface, integrated lithium battery management system (charge and discharge management, overcharge protection, battery power detection, USB / battery power automatic switching).

- Integrated WiFi, LoRa, Bluetooth three network connections, onboard Wi-Fi, Bluetooth dedicated 2.4GHz metal spring antenna, reserved (U.FL) interface for LoRa use.

- Onboard 0.96-inch 128*64 dot matrix OLED display can be used to display debugging information, battery power, and other information.

- Integrated CP2102 USB to serial port chip, convenient for program downloading, and debugging information printing.

- Support the Arduino development environment.

- We provide ESP32 + LoRaWAN protocol Arduino® library, this is a standard LoRaWAN protocol that can communicate with any LoRa gateway running the LoRaWAN protocol. To make this code run, a unique license is needed.

- With good RF circuit design and low-power design.

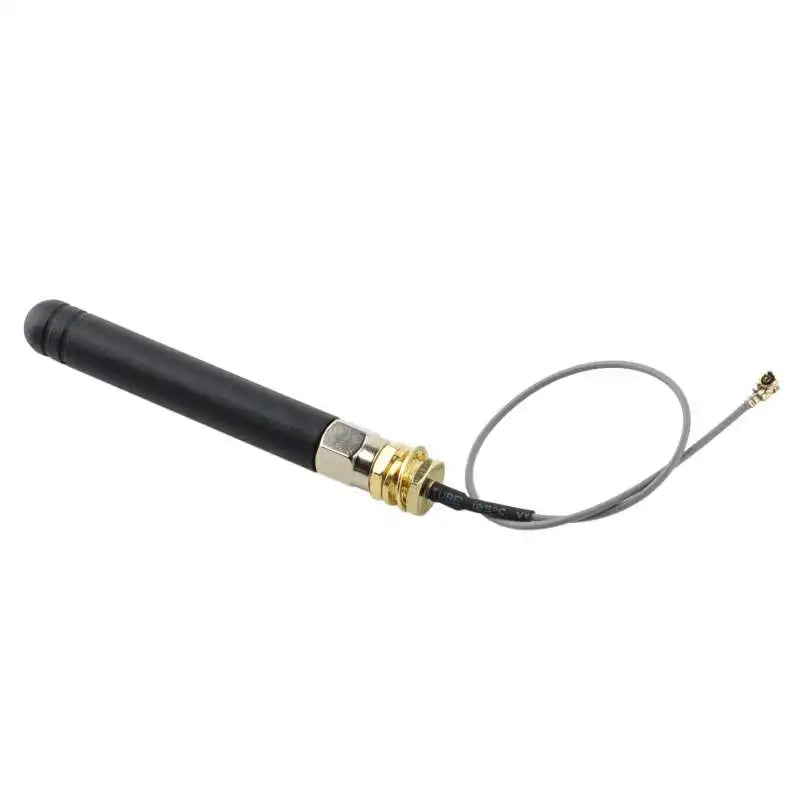

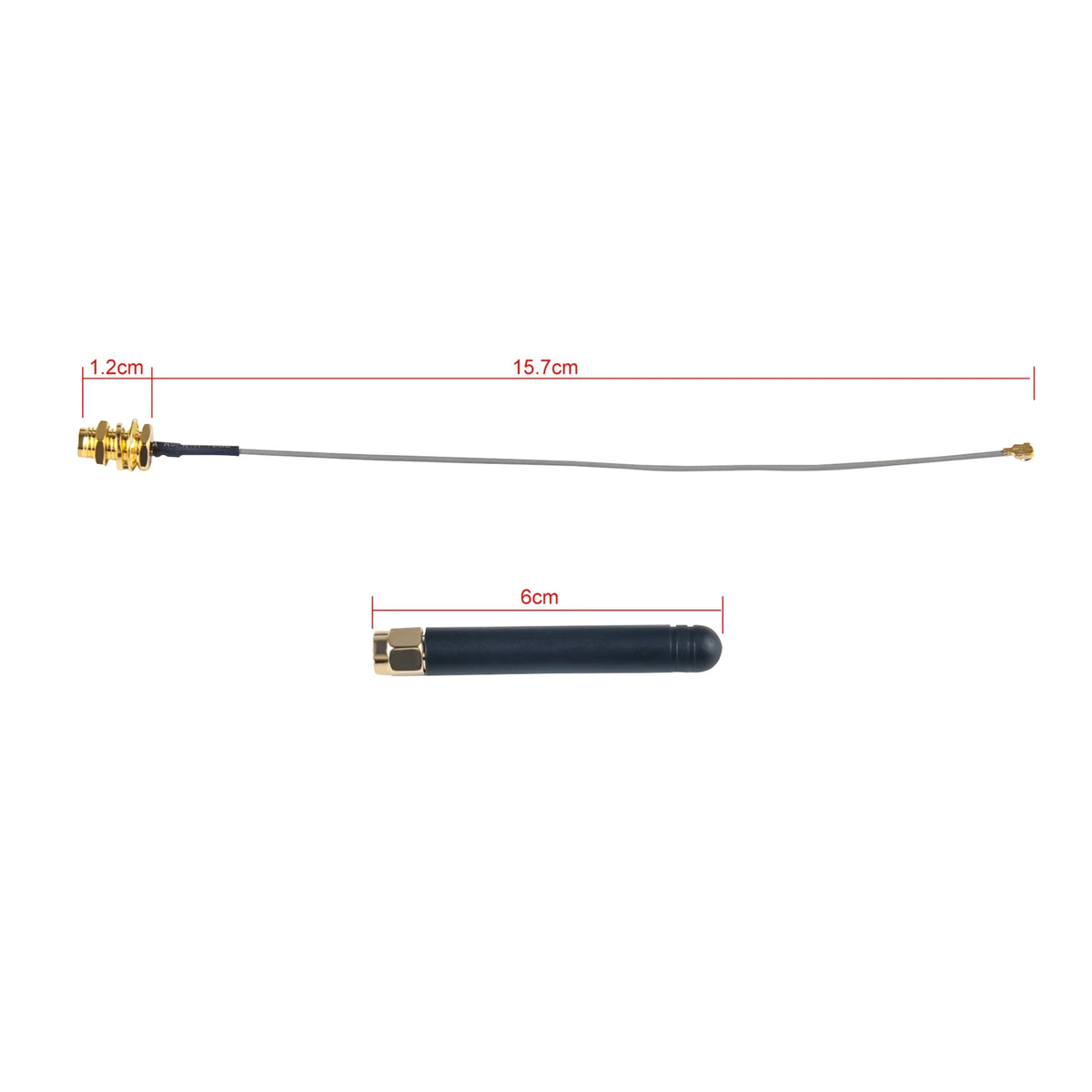

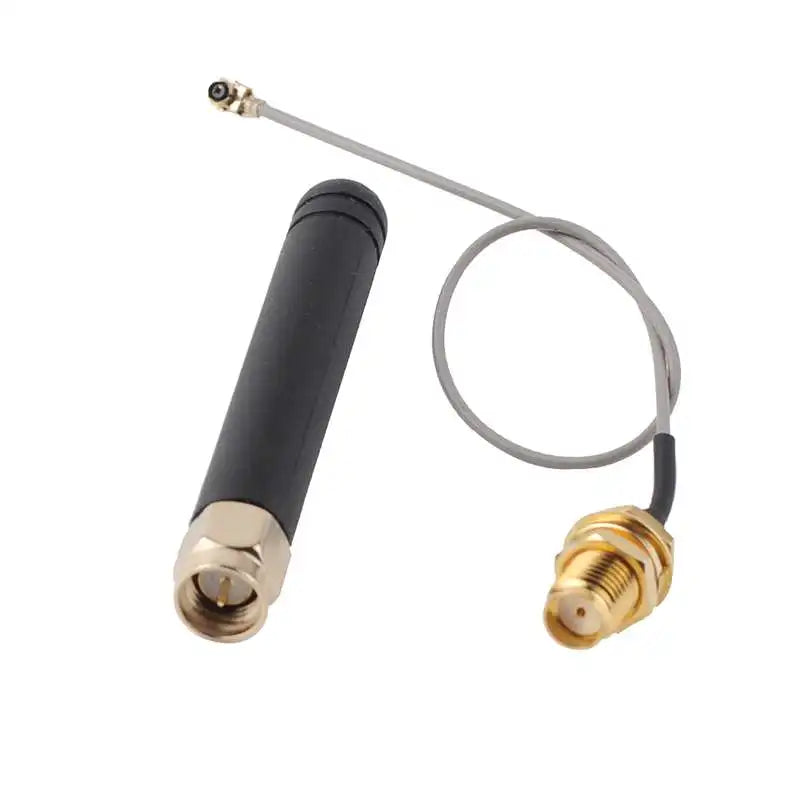

U.FL to SMA Connector Antenna 868MHz for Lora Board Lora32u4 II Wifi Lora32 10cm

Description:

Connector type: U.FL(for i p e x)

Band definition: 868MHz

Standing wave ratio: <= 1.5

Gain: 2dBi

Maximum power: 10W

Input impedance: 50Ω
