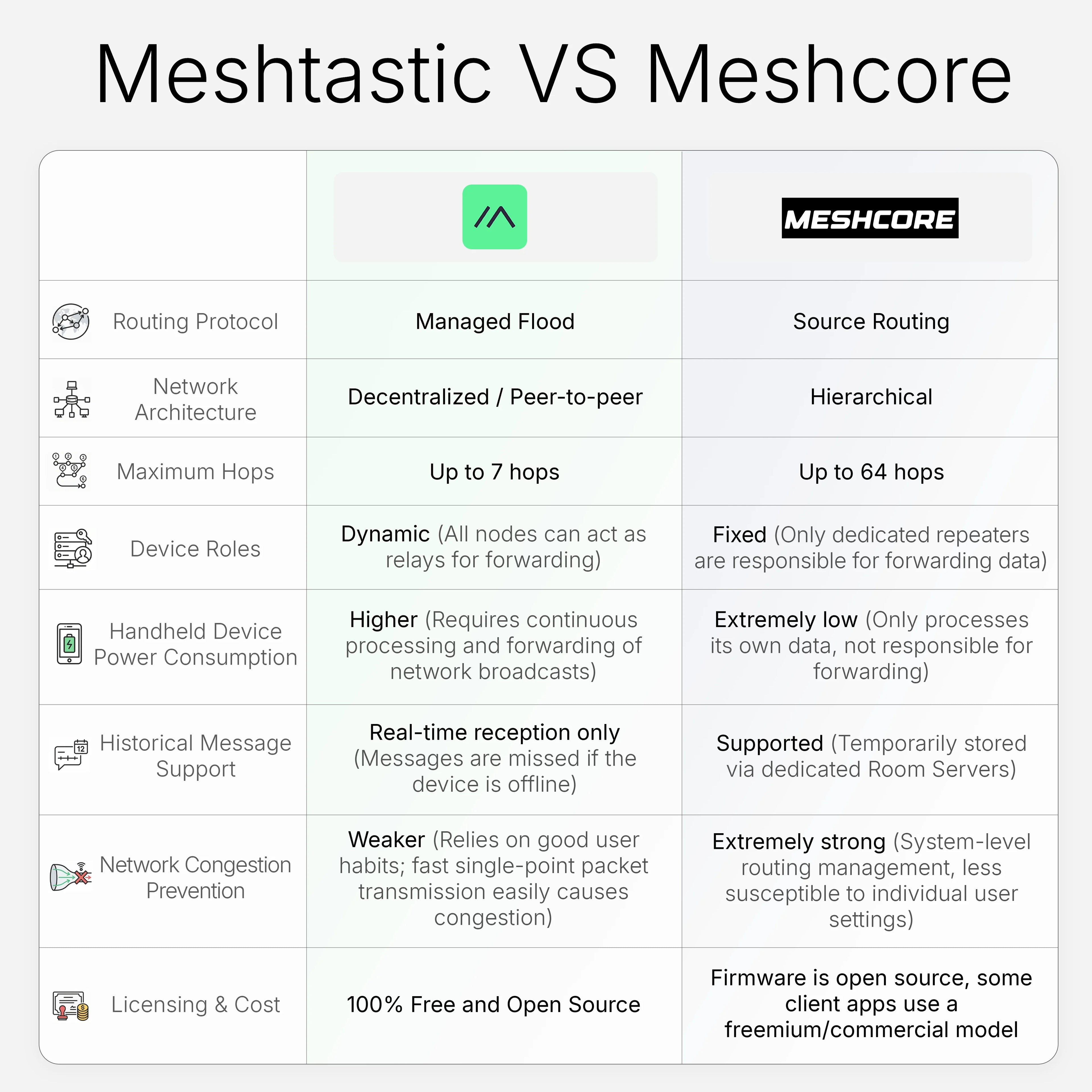

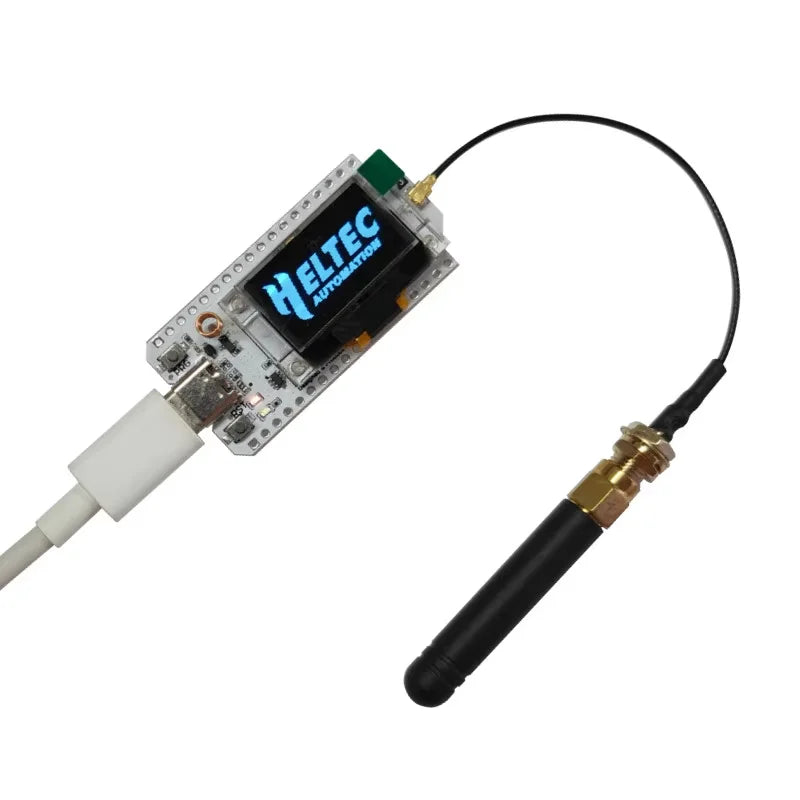

Heltec V3 Dev-board WIFI LoRa 32 V3 with SX1262 and ESP32-S3FN8 Chip OLED, Meshtastic Meshcore Paxcounter Support WiFi

Heltec V3 Dev-board WIFI LoRa 32 V3 with SX1262 and ESP32-S3FN8 Chip OLED, Meshtastic Meshcore Paxcounter Support WiFi

$95.12

$95.12 $0.00

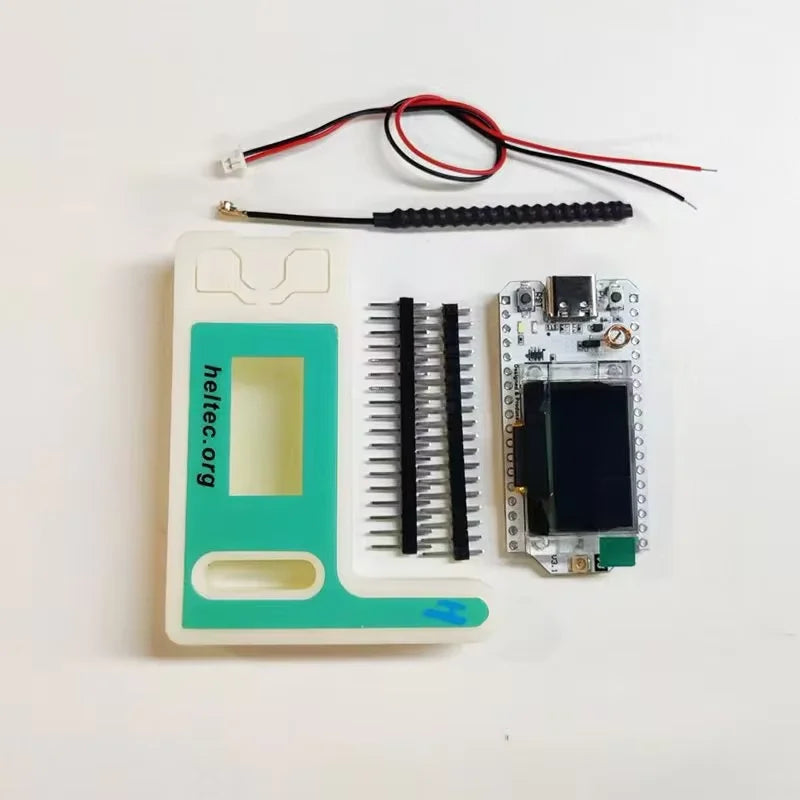

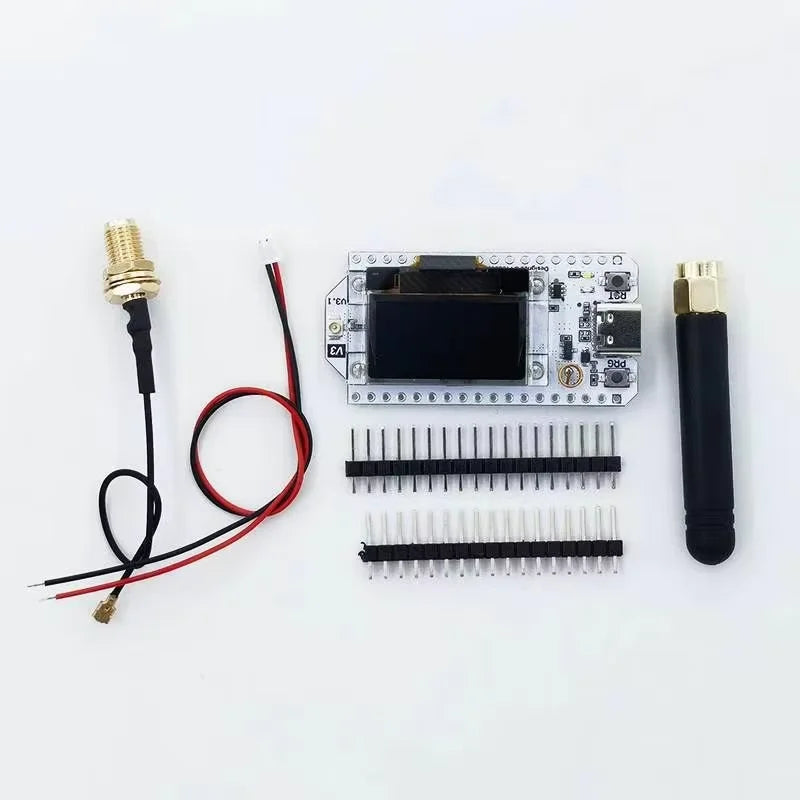

Color Package with shell Standard Edition

Package 863-928MHz 433-510MHz

Description

SPECIFICATIONS

Accessory Type: Extension Board

Battery: 3.7V lithium battery power supply and charging

Battery Included: no

Bluetooth: Bluetooth 5 (LE)

Brand Name: Heltec Automation

Choice: yes

Compatible With: WIFI LoRa 32 V3

Dimensions: 50.2 * 25.5* 10.2 mm

Frequency: 470~510MHz, 863~928MHz

Hardware Resource: 7*ADC1 + 2*ADC2; 7*Touch; 3*UART; 2*I2C; 2*SPI; etc.

High-concerned chemical: none

Interface: Type-C USB; 2*1.25 lithium battery interface; LoRa ANT(IPEX1.0); 2*18*2.54 Header Pin

LoRa Node Chip: SX1262

Master Chip: ESP32-S3FN8

Max. Receiving sensitivity: -134dBm@SF12 BW=125KHz

Max. TX Power: 21±1dBm

Memory: 384KB ROM; 512KB SRAM; 16KB RTC SRAM; 8MB SiP Flash

Operating Temperature: -20 ~ 70 ℃

Origin: Mainland China

Product Name: Heltec V3

Typical Application Fields: Internet of Things (IoT)

USB to Serial Chip: CP2102

Wi-Fi: 802.11 b/g/n, up to 150Mbps

semi_Choice: yes

Docs & Resource

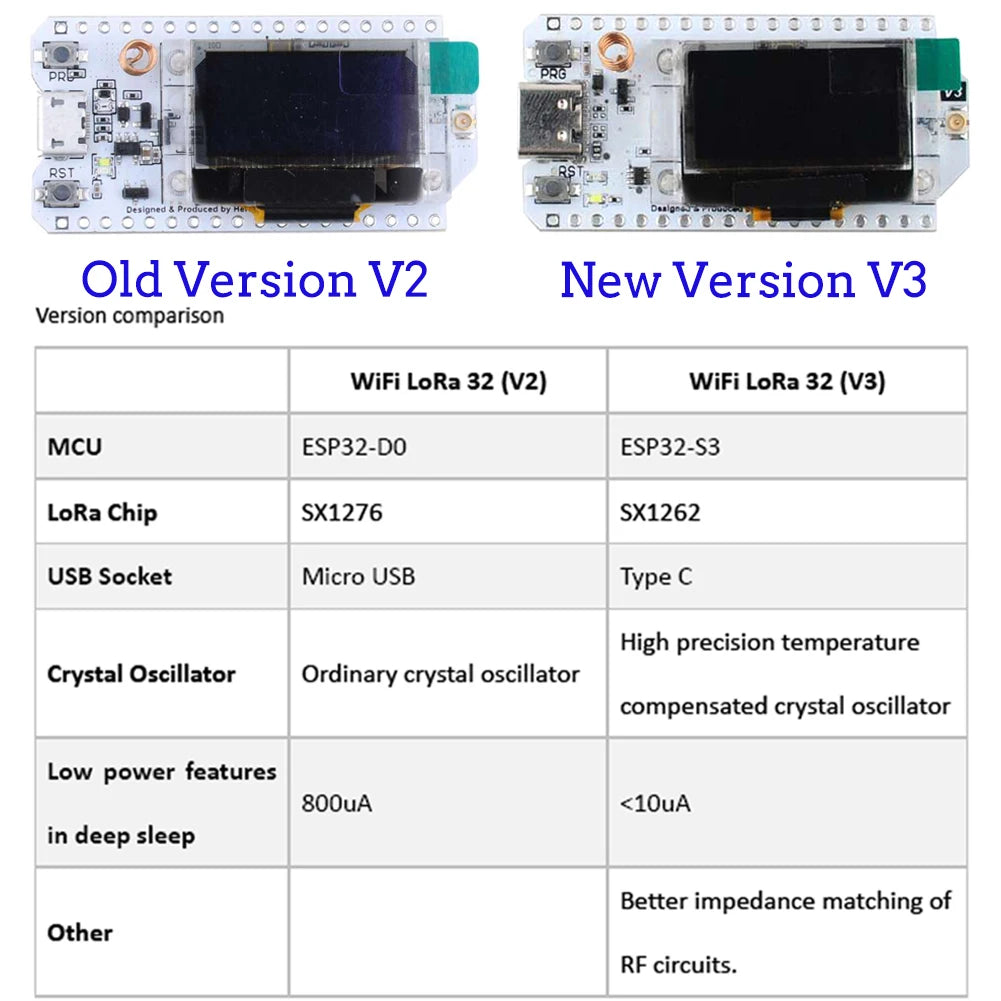

Specifications

Parameters	Description
Master Chip	ESP32-S3FN8 (Xtensa®32-bit lx7 dual core processor)
LoRa Node Chip	SX1262
USB to Serial Chip	CP2102
Frequency	433~510MHz, 863~928MHz
Max. TX Power	21±1dBm
Max. Receiving sensitivity	-134dBm@SF12 BW=125KHz
Wi-Fi	802.11 b/g/n, up to 150Mbps
Bluetooth	Bluetooth 5 (LE)
Hardware Resource	7ADC1 + 2ADC2; 7Touch; 3UART; 2I2C; 2SPI; etc.
Memory	384KB ROM; 512KB SRAM; 16KB RTC SRAM; 8MB SiP Flash
Interface	Type-C USB; 21.25 lithium battery interface; LoRa ANT(IPEX1.0); 218*2.54 Header Pin
Battery	3.7V lithium battery power supply and charging
Operating Temperature	-20 ~ 70 ℃

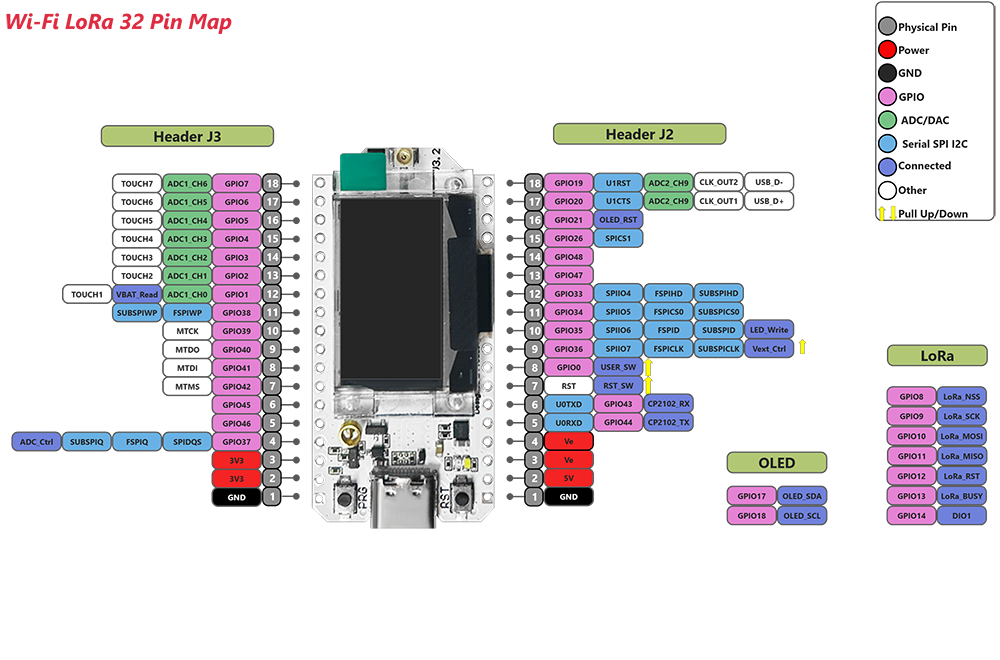

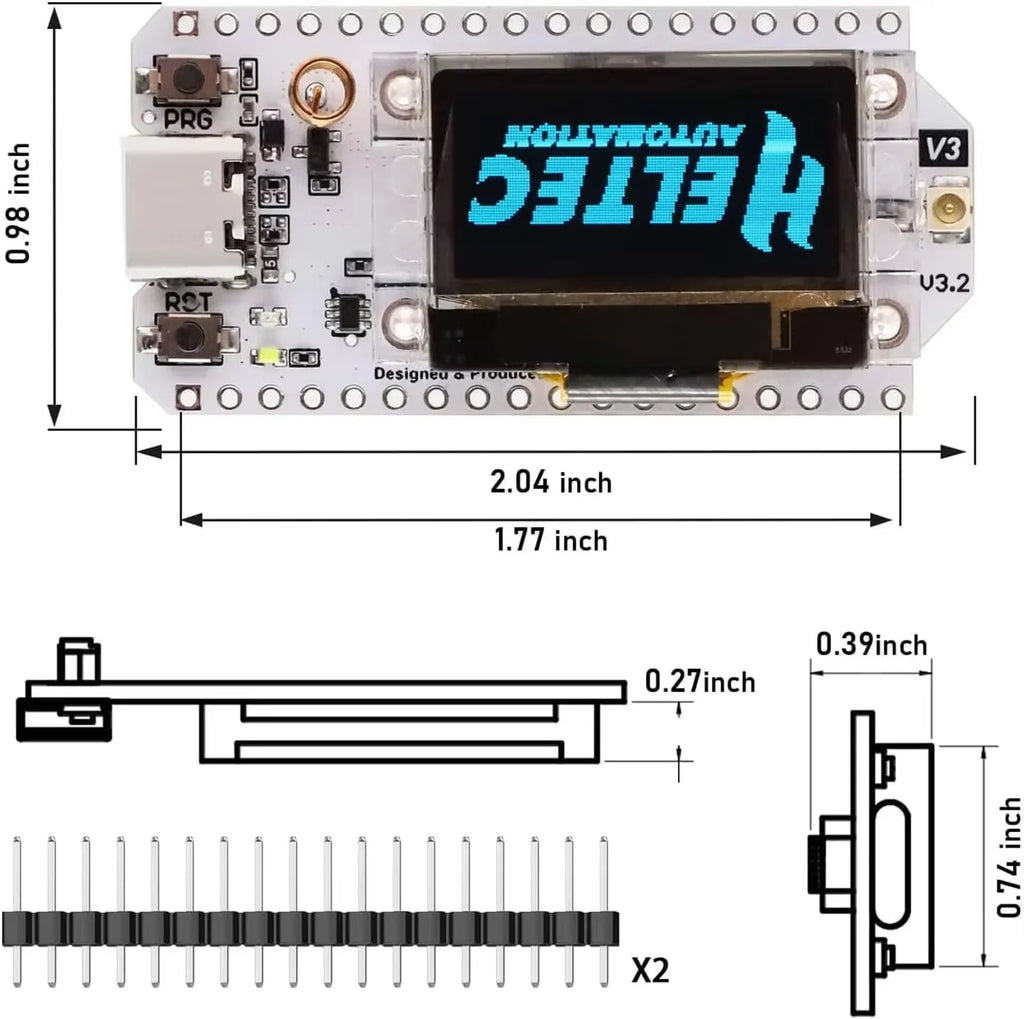

Dimensions	50.2 * 25.5* 10.2 mm

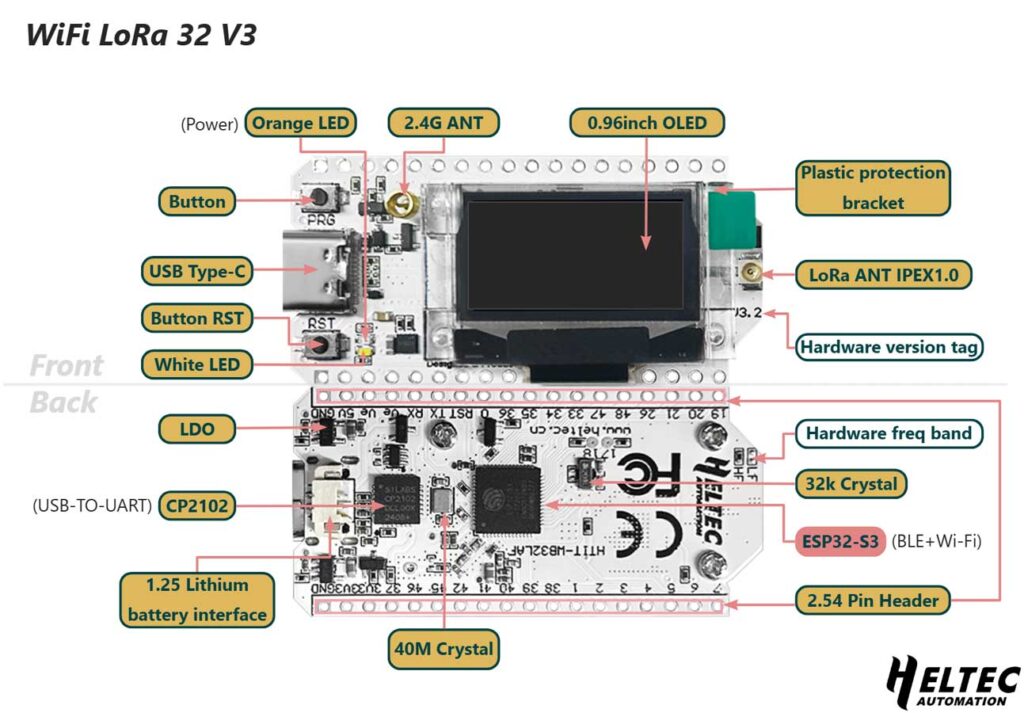

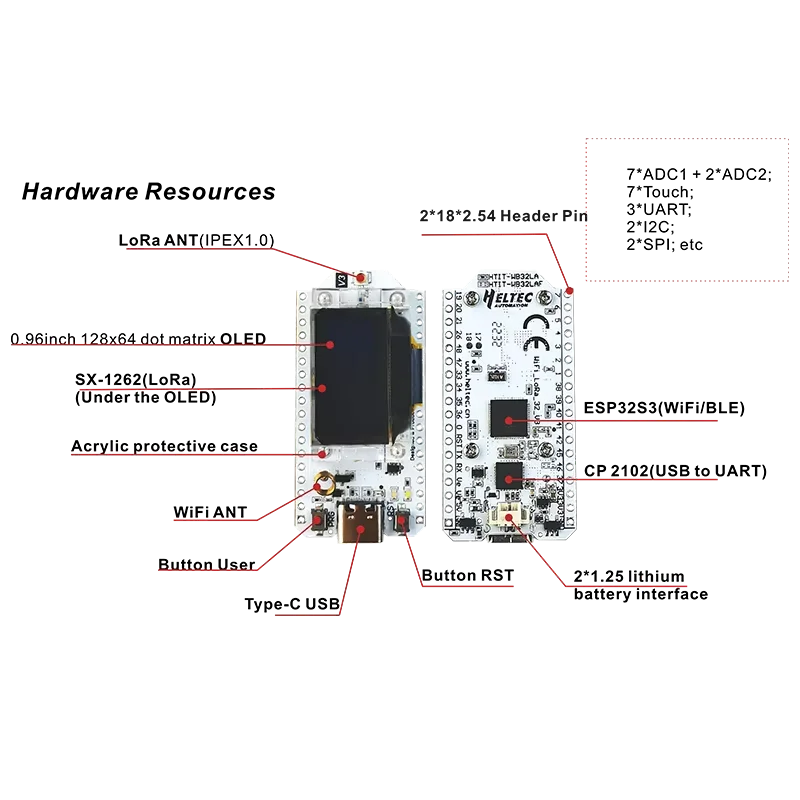

Main Features

Microprocessor: ESP32-S3FN8 (Xtensa® 32-bit LX7 dual-core processor, five-stage pipeline rack Structure, frequency up to 240 MHz).
SX1262 LoRa node chip.
Type-C USB interface with a complete voltage regulator, ESD protection, short circuit protection, RF shielding, and other protection measures.
Onboard SH1.25-2 battery interface, integrated lithium battery management system (charge and discharge management, overcharge protection, battery power detection, USB / battery power automatic switching).
Onboard 0.96-inch 128*64 dot matrix OLED display can be used to display debugging information, battery power, and other information.
Integrated WiFi, LoRa, Bluetooth three network connections, onboard Wi-Fi, Bluetooth dedicated 2.4GHz metal spring antenna, reserved IPEX (U.FL) interface for LoRa use.
Integrated CP2102 USB to serial port chip, convenient for program downloading, and debugging information printing.
Support the Arduino development environment.
With good RF circuit design and low-power design.

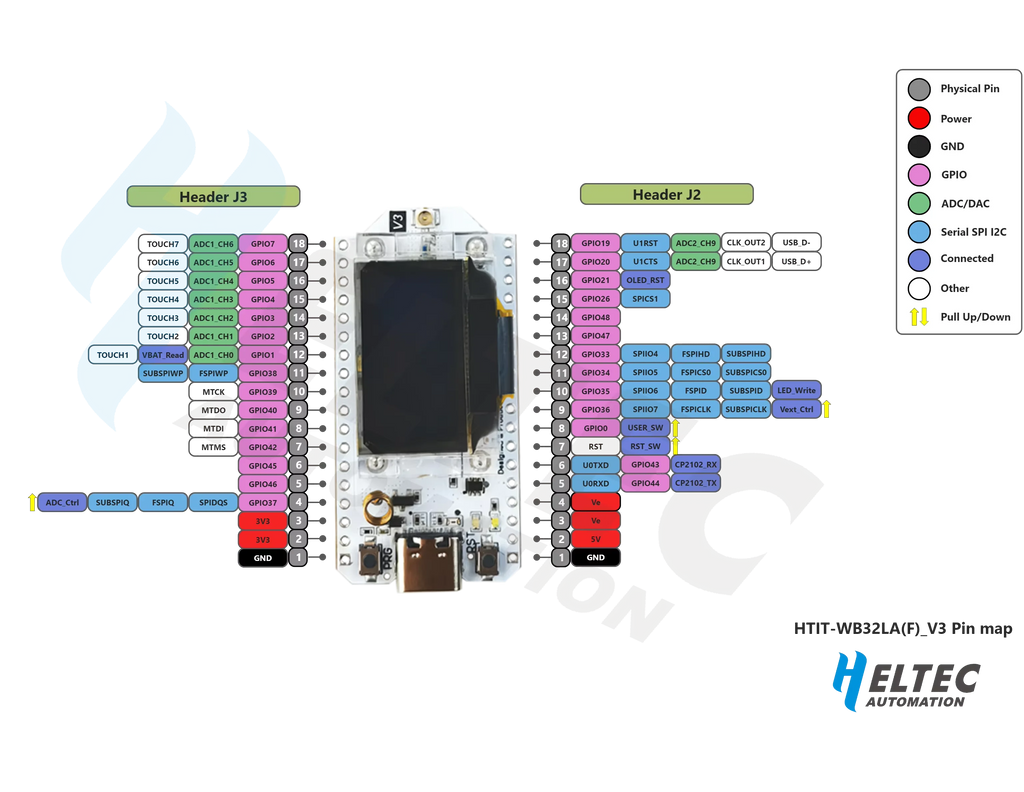

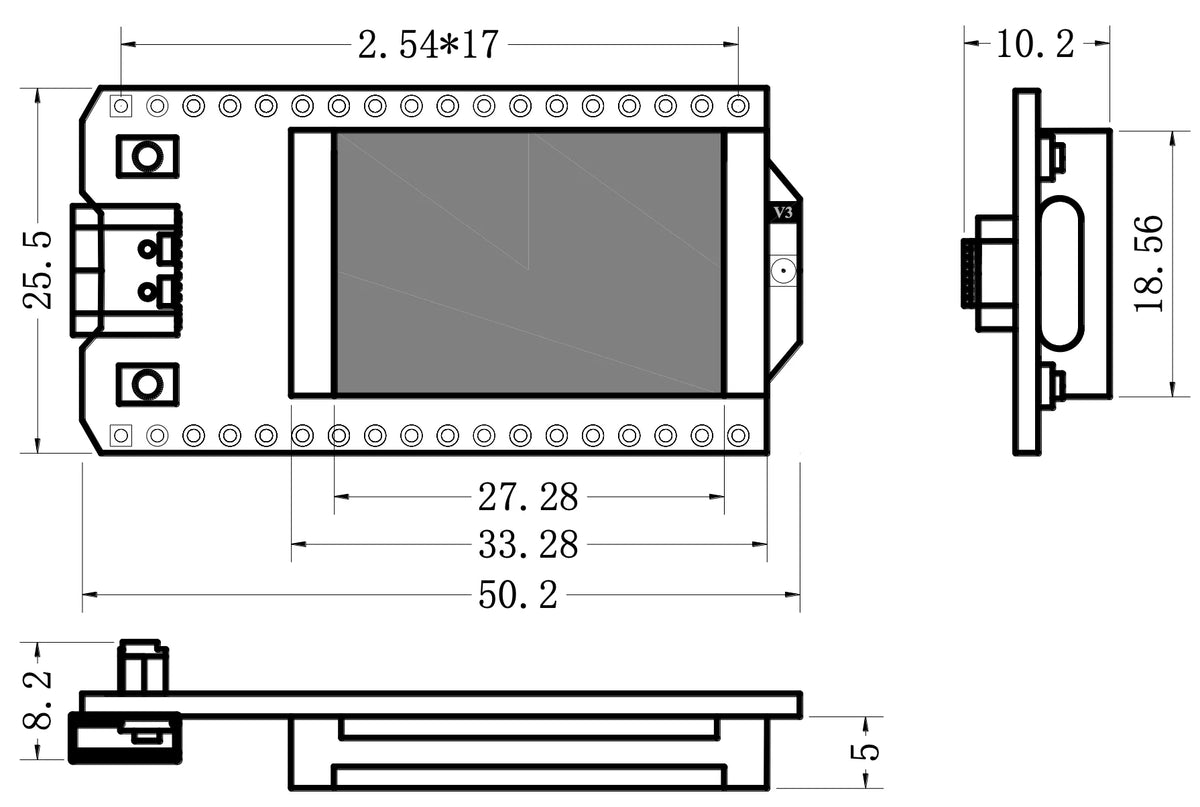

Dimension

FAQ

1.Can the onboard 2.4GHz antenna be replaced?

The 2.4GHz antenna is a spring antenna, and there is no additional interface on the board for

2.4GHz wireless signals.

2.Can ESP32’s WiFi and Bluetooth be used at the same time?

No, the WiFi LoRa 32 don’t have an external PSRAM, if your application need use Bluetooth and Wi-Fi at the same time, you can look into this product: Heltec Wireless Bridge.
