$105.92

$105.92 $0.00

Color 433-510MHz 863-928MHz

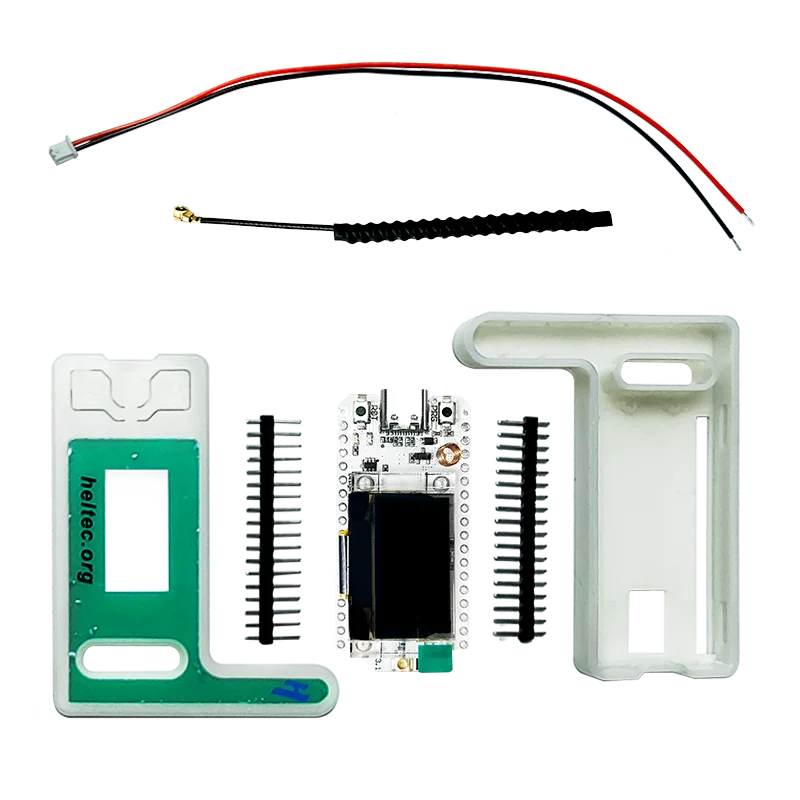

Package With Case Without Case

Ships FromChina Mainland

Description

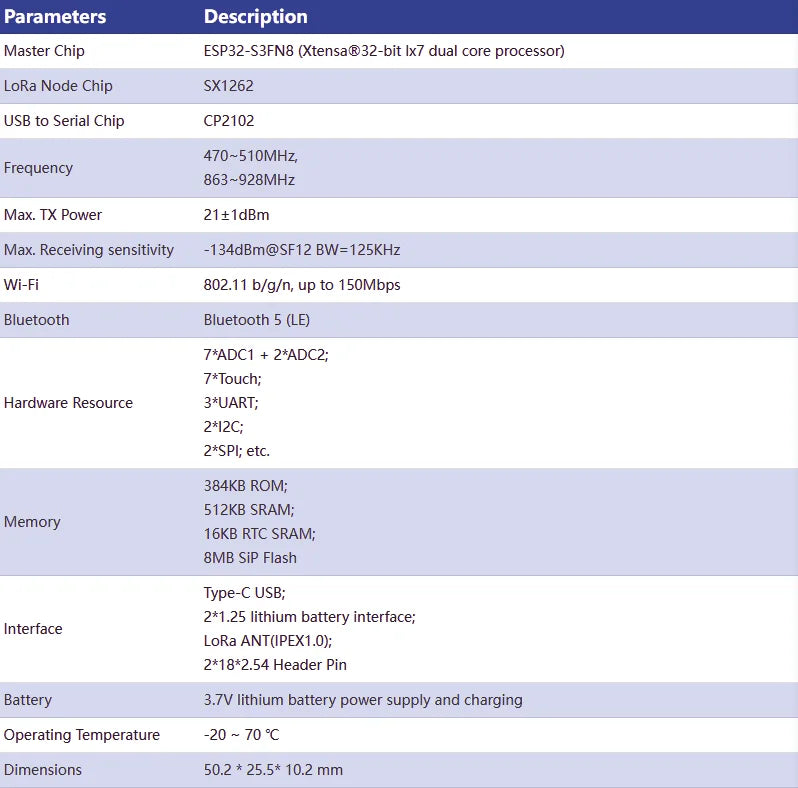

SPECIFICATIONS

Battery: 3.7V lithium battery power supply and charging

Battery Included: no

Bluetooth: Bluetooth 5 (LE)

Brand Name: Meshzeno

Choice: yes

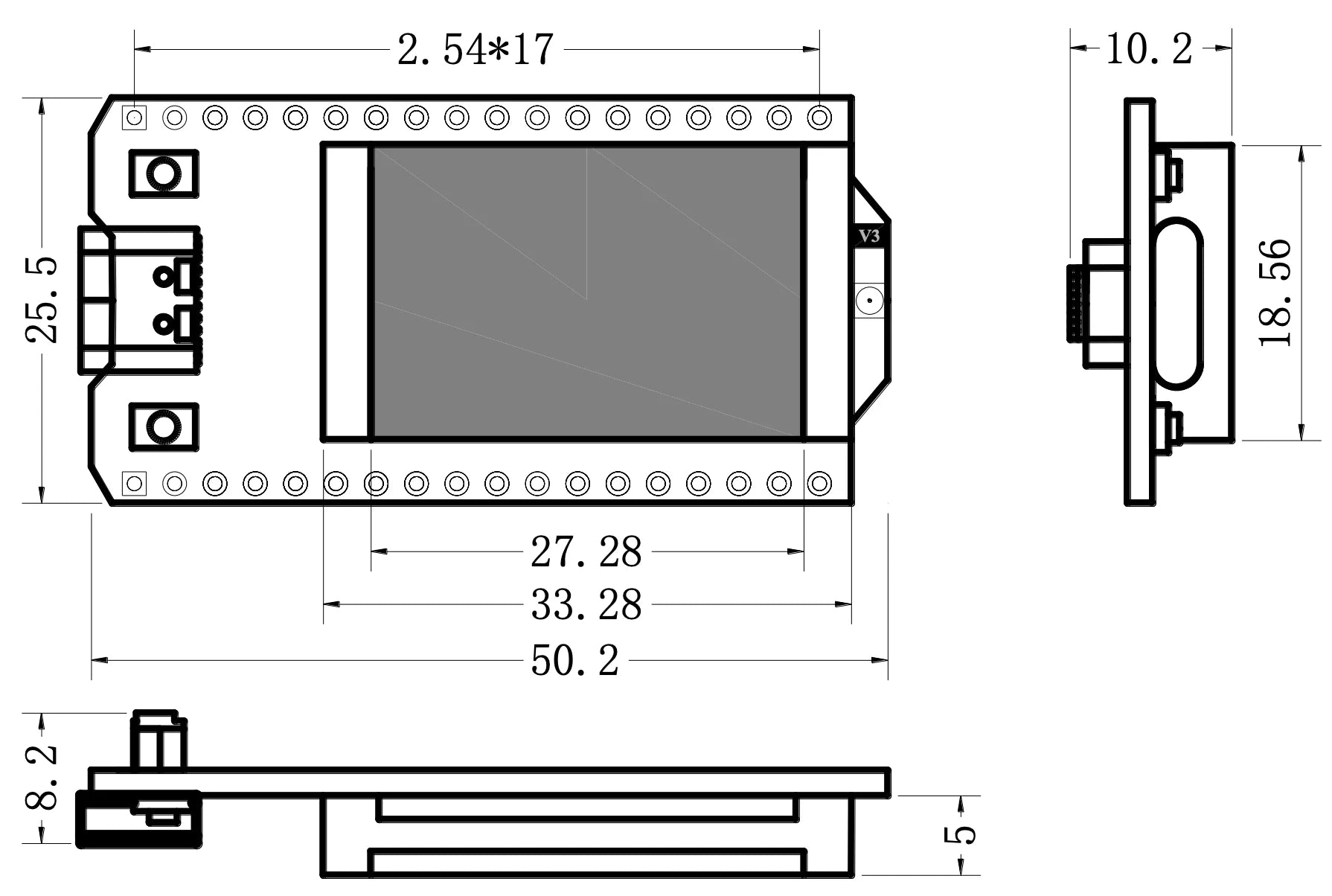

Dimensions: 50.2 * 25.5* 10.2 mm

Frequency: 470~510MHz, 863~928MHz

Function: ESP32 LoRa WiFi BLE

High-concerned chemical: none

LoRa Node Chip: SX1262

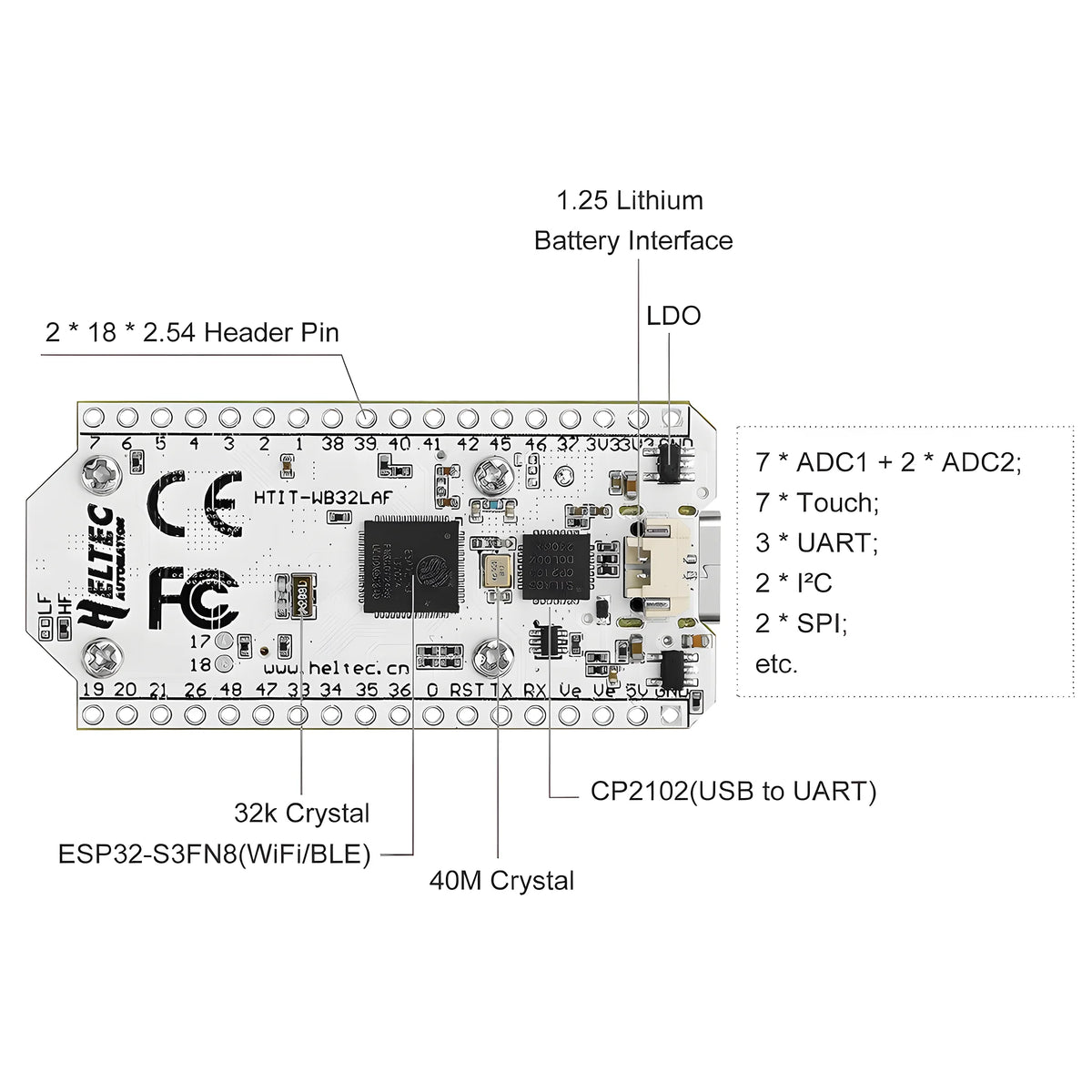

Master Chip: ESP32 S3FN8 (Xtensa 32 bit lx7 dual core processor)

Max. Receiving sensitivity: -136dBm@SF12 BW=125KHz

Max. TX Power: 20±2dBm

Model Number: Lora 32 V3

Origin: Mainland China

Supported: meshstatic

Typical Application Fields: Internet of Things (IoT)

USB to Serial Chip: CP2102

Wi-Fi: 802.11 b/g/n, up to 150Mbps

semi_Choice: yes

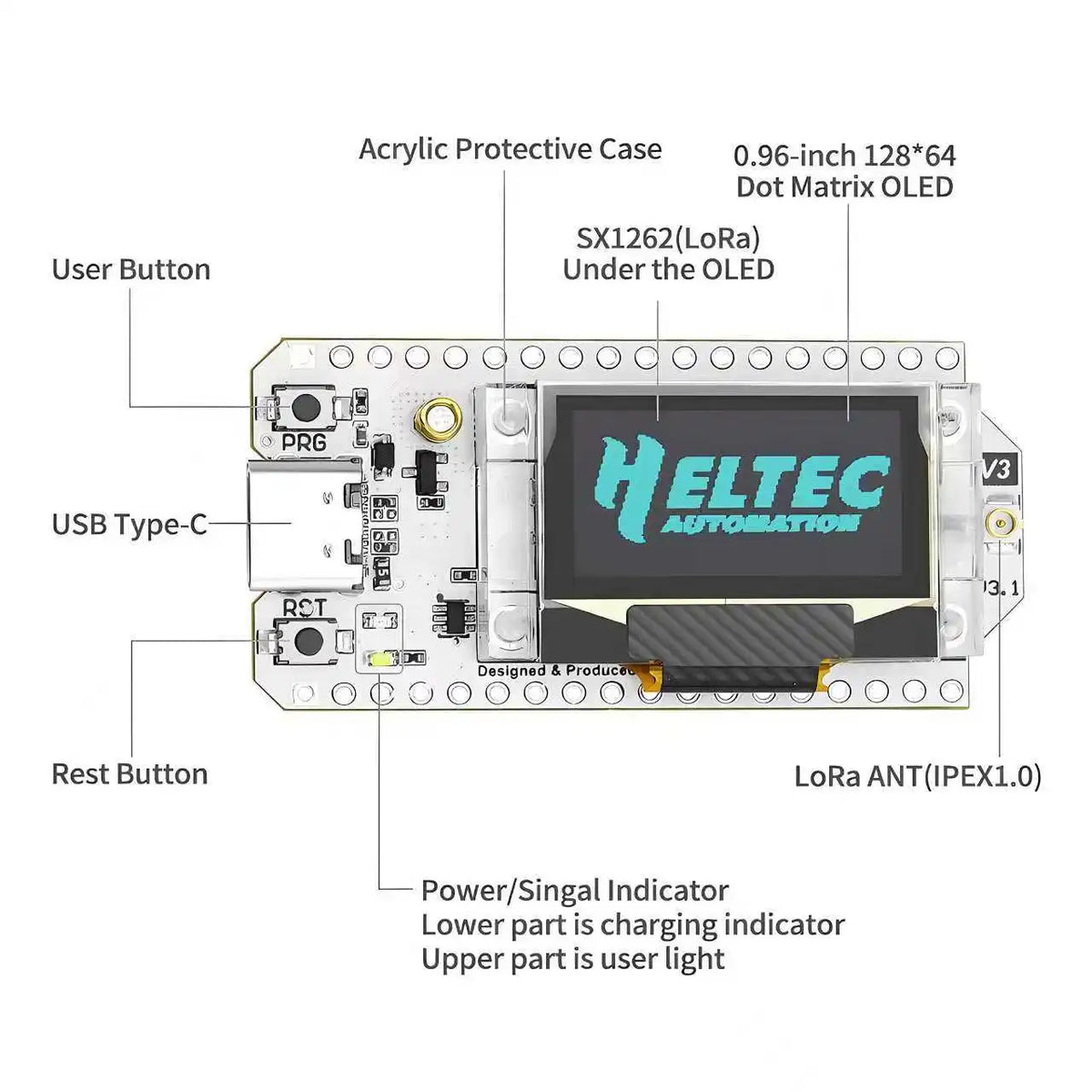

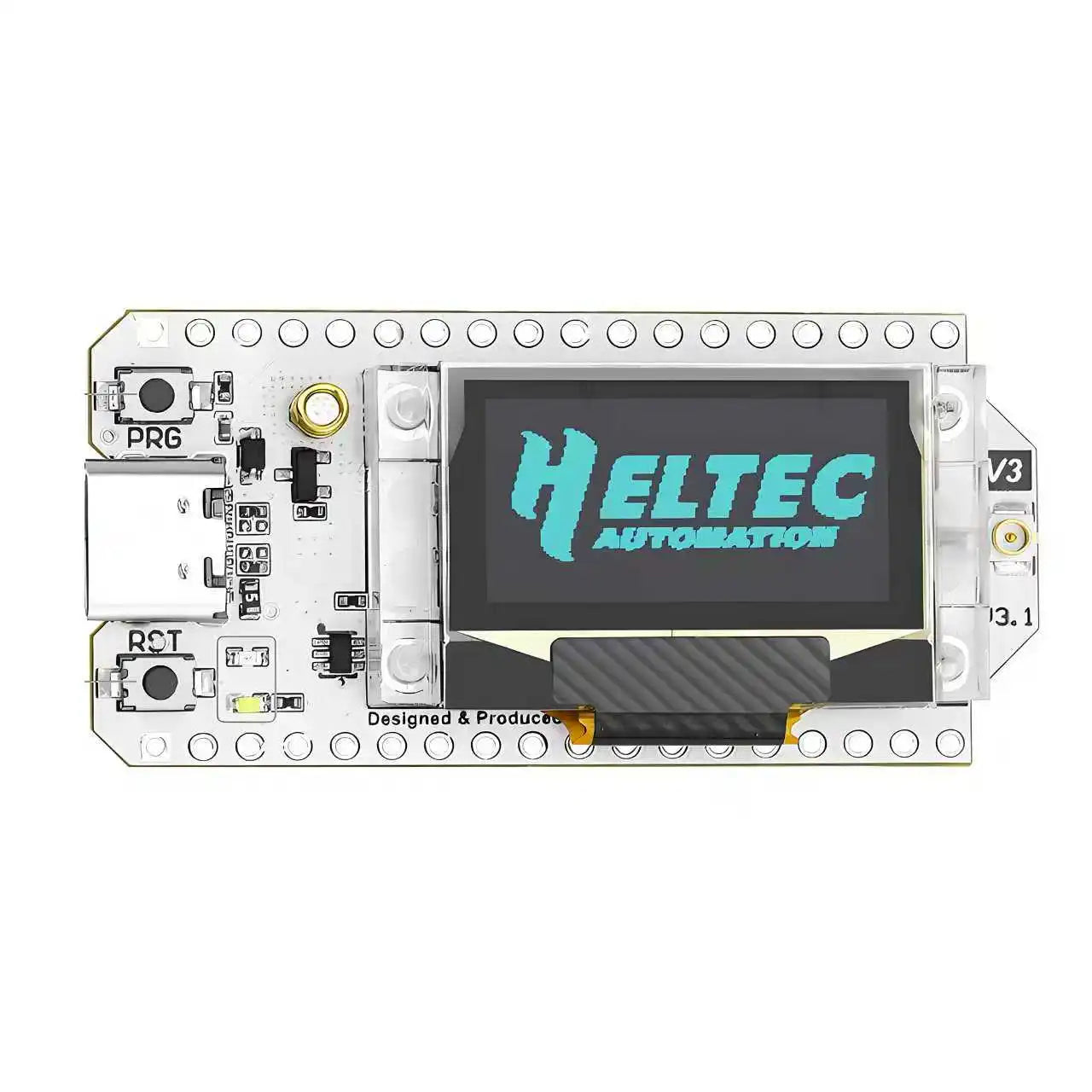

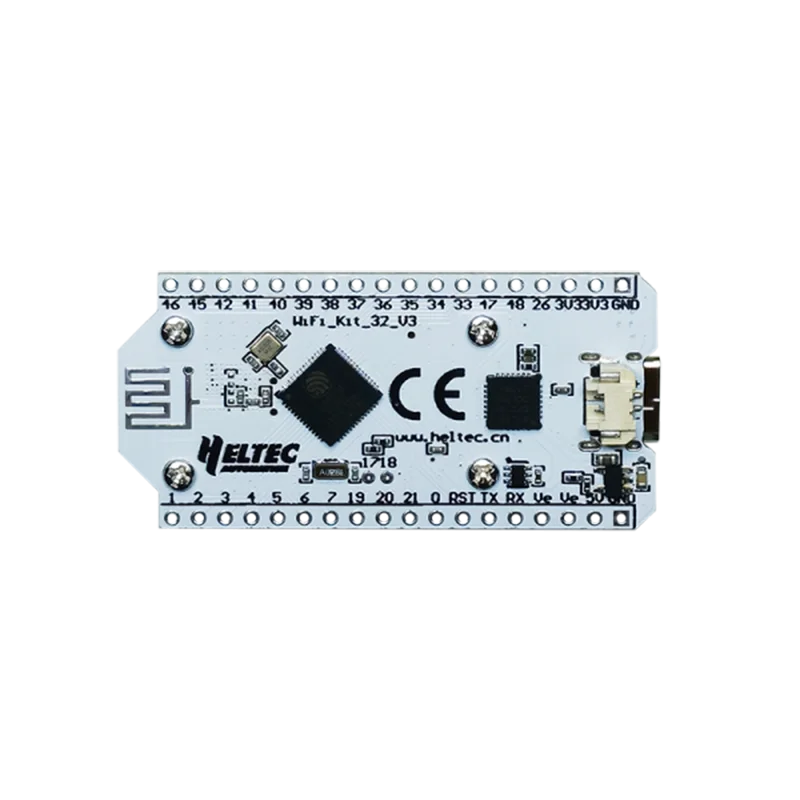

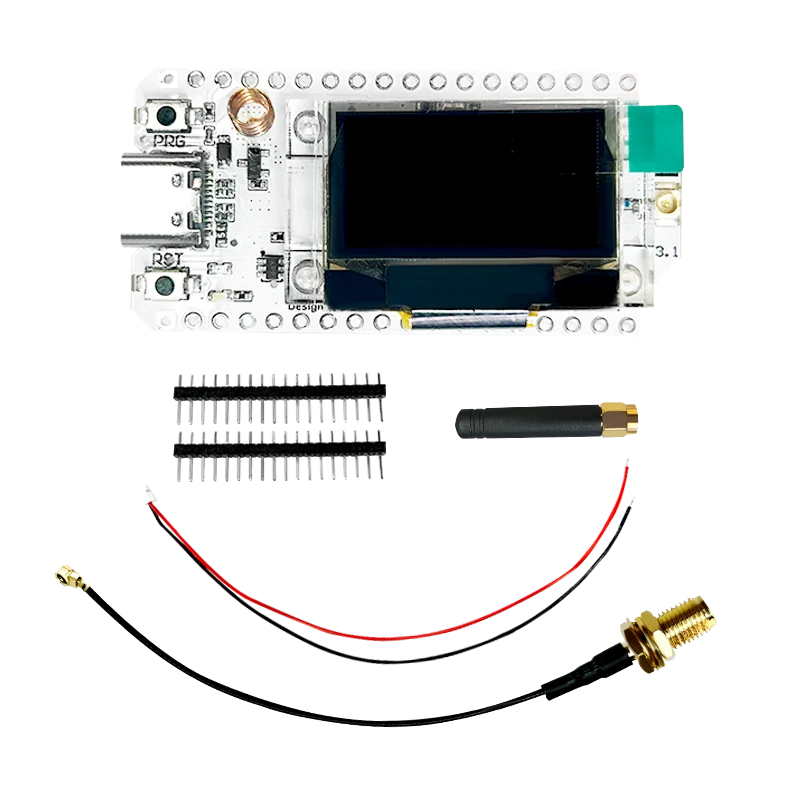

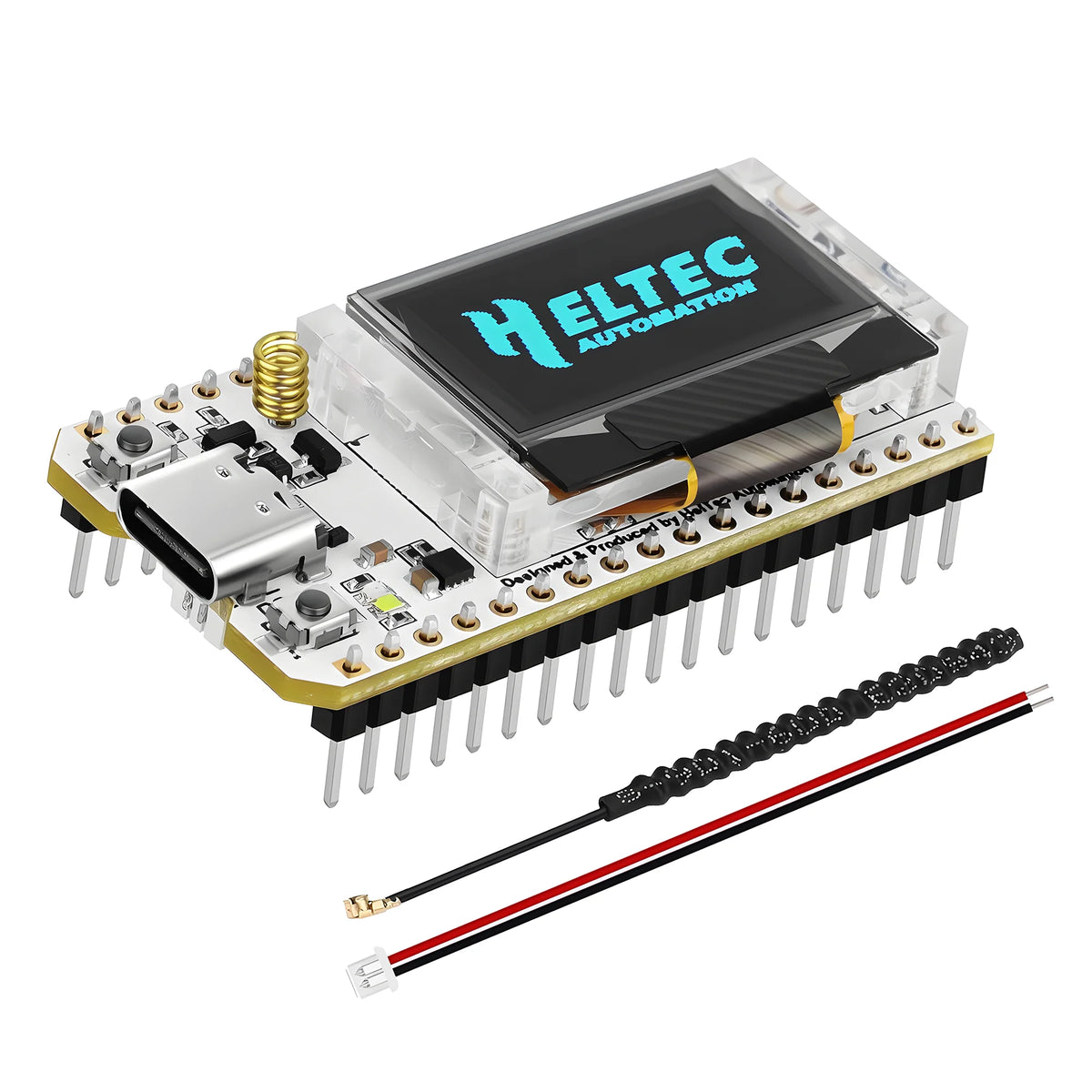

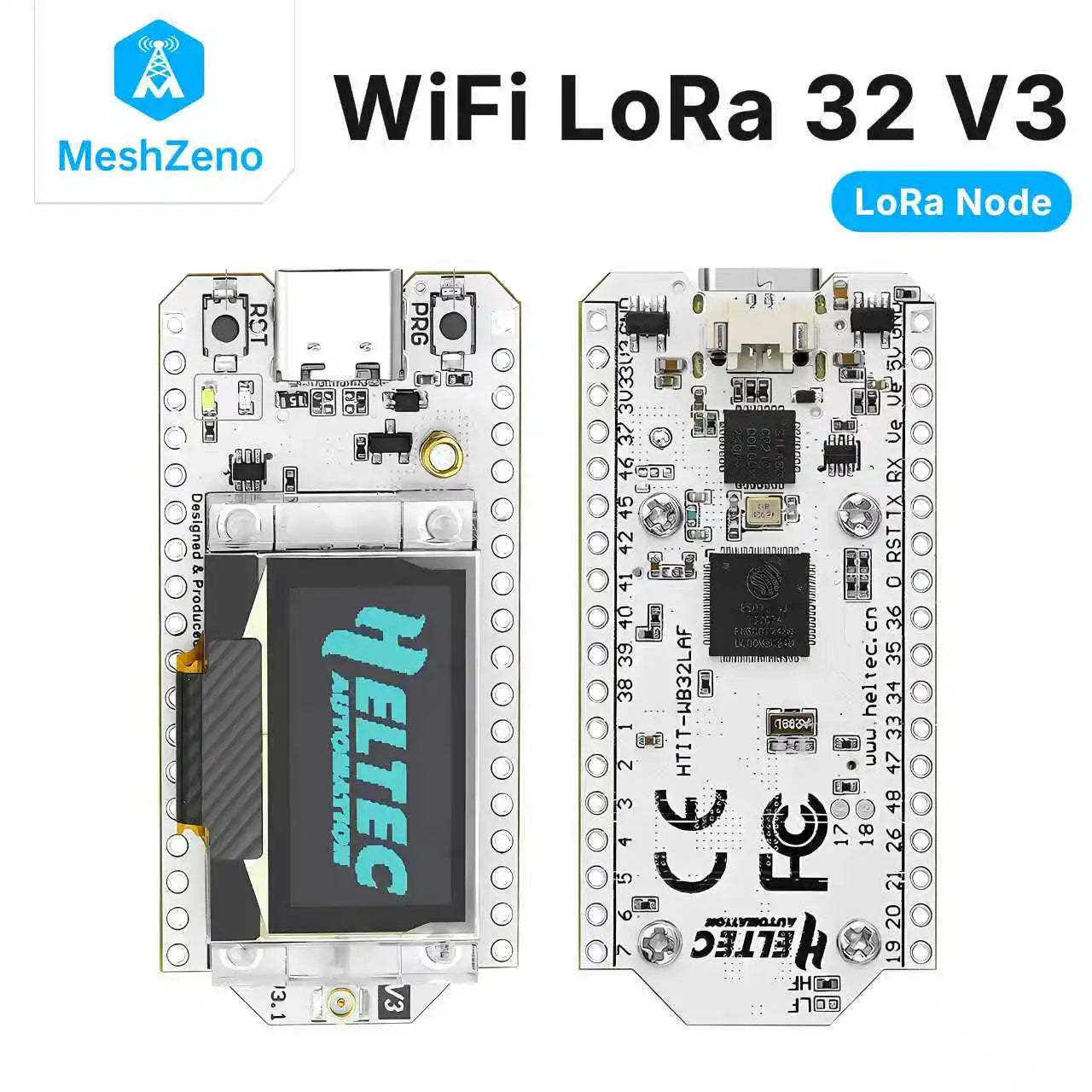

"WiFi LoRa 32 V3 also called Heltec V3, durable IoT maker kit powered by the ESP32S3 MCU and

SX1262 LoRa Node chips, intergrated three wireless communication ways ——LoRa、BLE、Wi-Fi，

along with an on-board OLED display, it presents a robust, all-in-one solution.

Its superior RF design and stable, minimal system design ensure the product is ready-to-use and support

for development methods like Arduino, Platform IO, ESP-IDF, and MicroPython makes it beginner-

friendly. It is now widely used in well-known long-range wireless open-source projects such as Meshtastic

and Meshcore, serving applications in smart cities, smart farms, industrial control, and security systems."

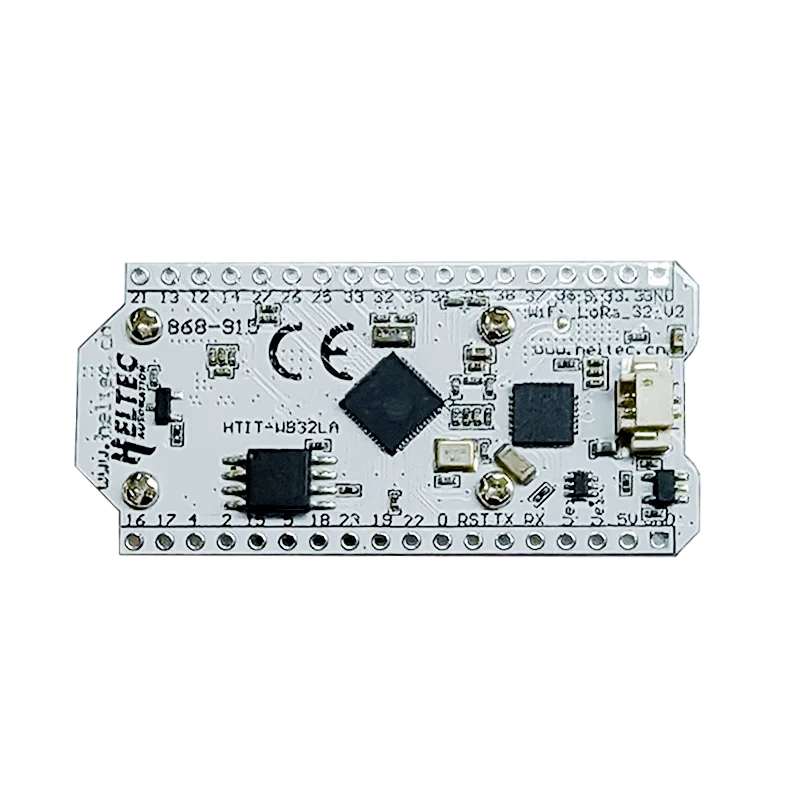

Product	WiFi LoRa 32v3	WiFi LoRa 32v2
Display
Low Power Feature	<10μA	<100μA
MCU	ESP32-S3FN8	ESP32-D0WDQ6
LoRa node chip	SX1262	SX1267
Bluetooth	BLEv5.0	BLEv4.2
Socket	2.54Header;Type-c;IPEX(V1);SH1.25Battery Port	2.54Header;MicroUSB;IPEX(V1);SH1.25Battery Port
