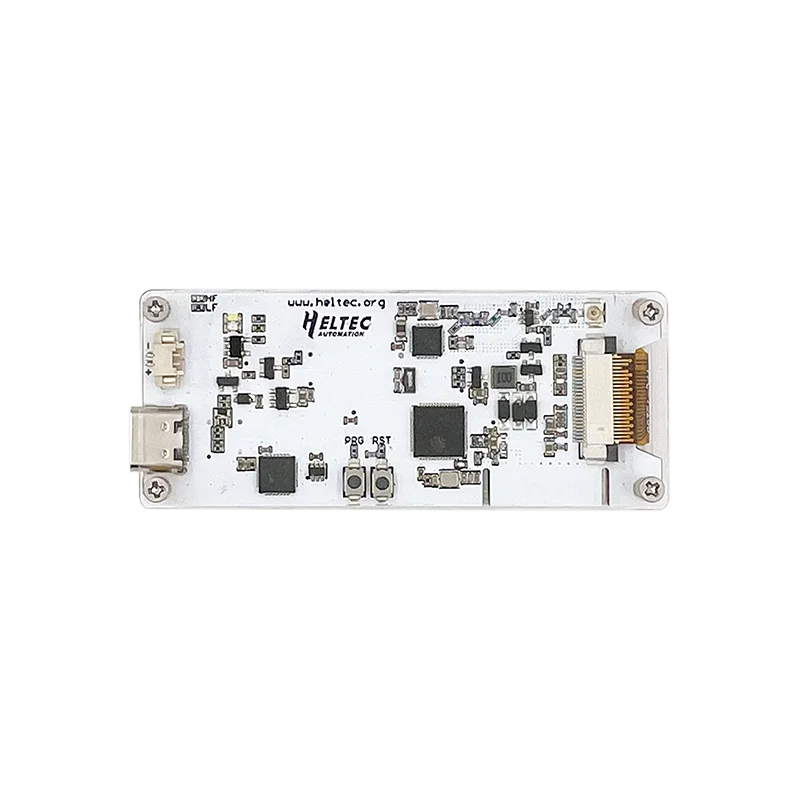

Heltec Wireless Paper Eink Display ESP32 LoRa Meshtastic Smart Price Tag Electronic Shelf Label via Bluebooth SX1262 LoRa WiFi

Heltec Wireless Paper Eink Display ESP32 LoRa Meshtastic Smart Price Tag Electronic Shelf Label via Bluebooth SX1262 LoRa WiFi

$150.96

$150.96 $0.00

Description

SPECIFICATIONS

Active Area: 23.705x48.55

Brand Name: Heltec Automation

Choice: yes

Connection method: Wi-Fi, LoRa, BLE

Display Resolution: 122(H)x250(V) Pixel

High-concerned chemical: none

LoRa chipset: SX1262

MCU: ESP32-S3FN8

Model Number: Wireless Paper

Operating temperture: 0~50℃

Optimal storage humidity: 55±10%

Origin: Mainland China

Pixel Configuration: Square

Pixel Pitch: 0.1942X0.1942

Power Supply: lithium battery, USB Type-C

Screen Size: 2.13 Inch

Storage temperature: -25~70℃

Supply voltage: 3~5v

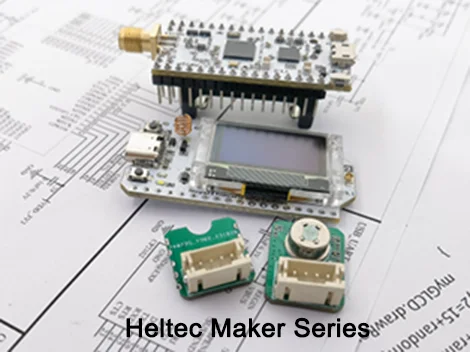

Why do we need Maker series products?

Summary

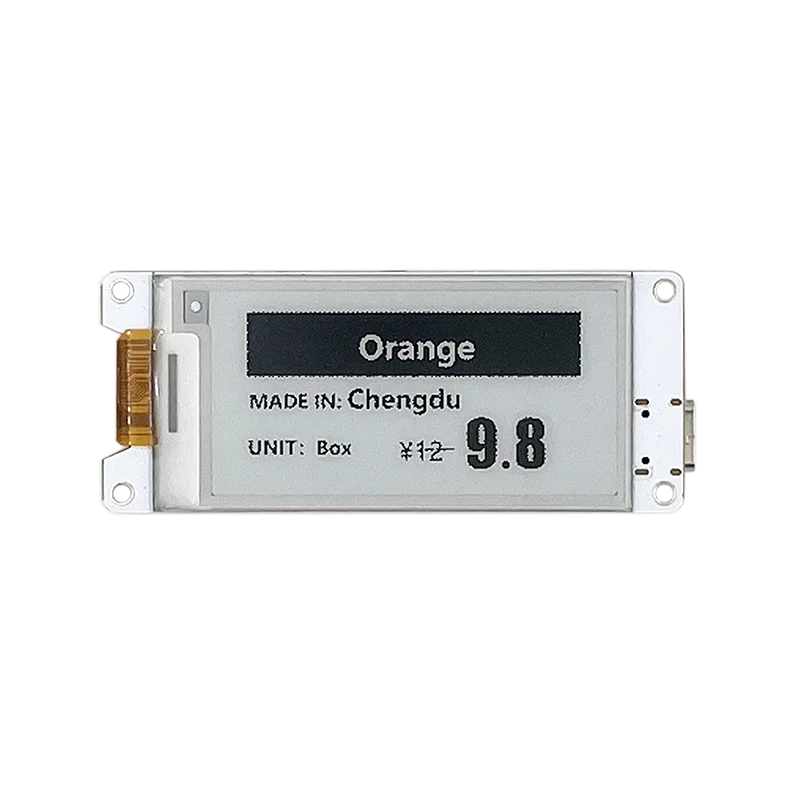

Wireless Paper is an E-Ink development kit with multiple wireless drive methods. Collaborate with the sample programs and development tools we provide, users can operate the display via Bluetooth, Wi-Fi and LoRa. This board is equipped with a default 2.13-inch black and white E-Ink display screen, continuous display for 180 days after power outage. It can be used to develop applications such as electronic tags ons.

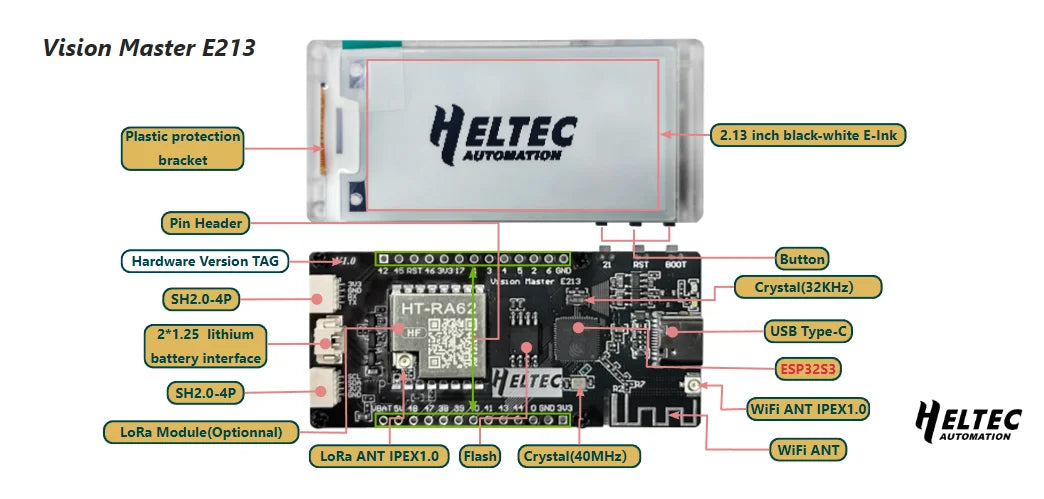

Highlights

USB Type C

The power supply, firmware download, and debugging

interfaces adopt a more universal USB Type C interface,

making development work more convenient.

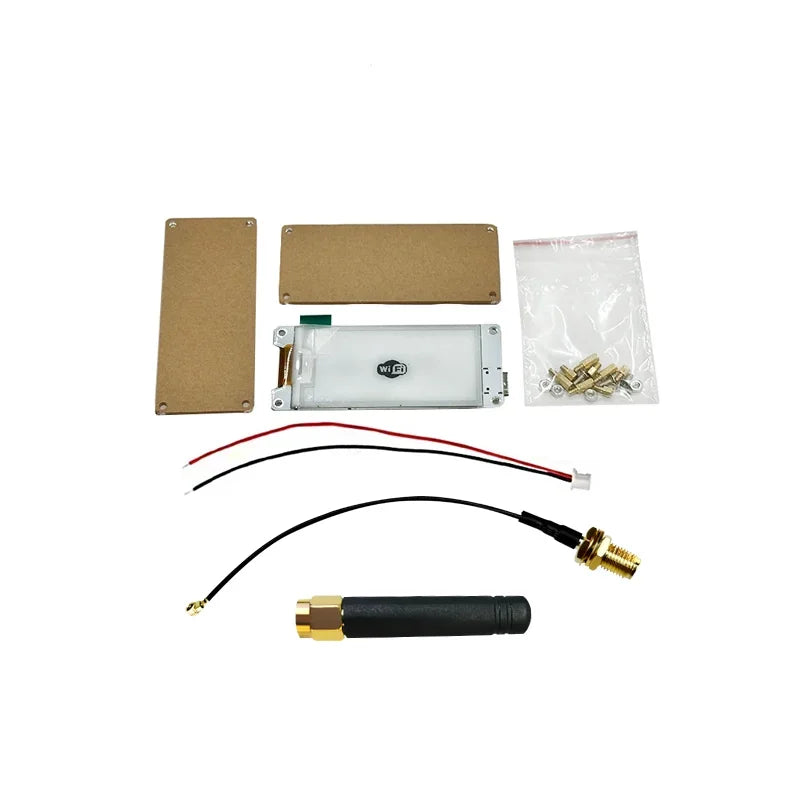

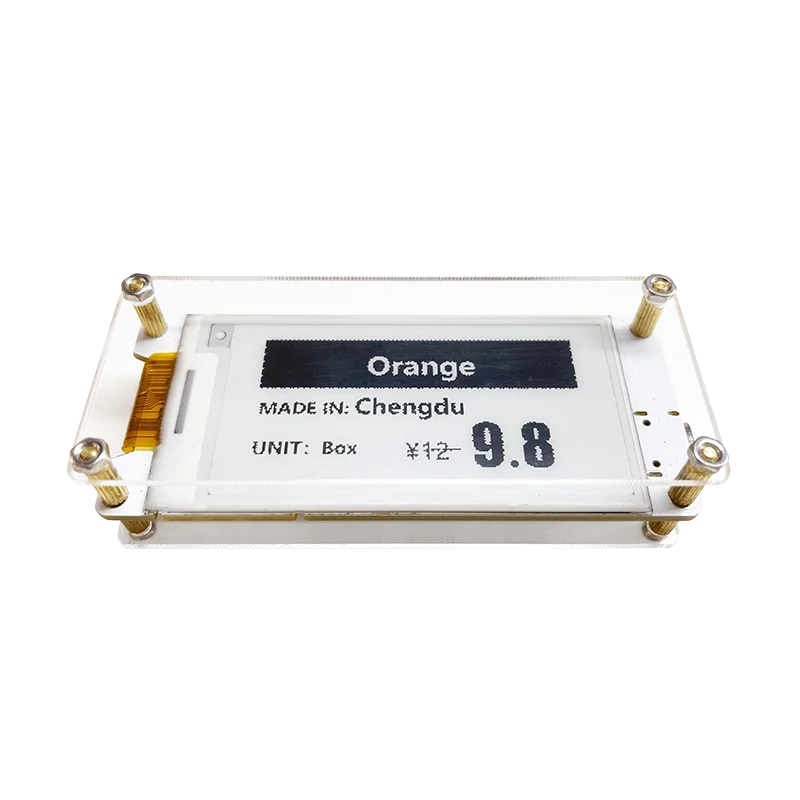

Acrylic protective plate

Transparent acrylic protection plate provide basic

protection for the development board.

E-Ink Display

The integrated E-Ink display can be used to show some

information such as system status and parameters,

making it convenient for users to directly use the entire

development board for their own product design.

Wireless Paper supports the following development methods:

Wireless Paper is compatible with the following open-source projects:

ESP32 Paxcounter
Disaster Radio

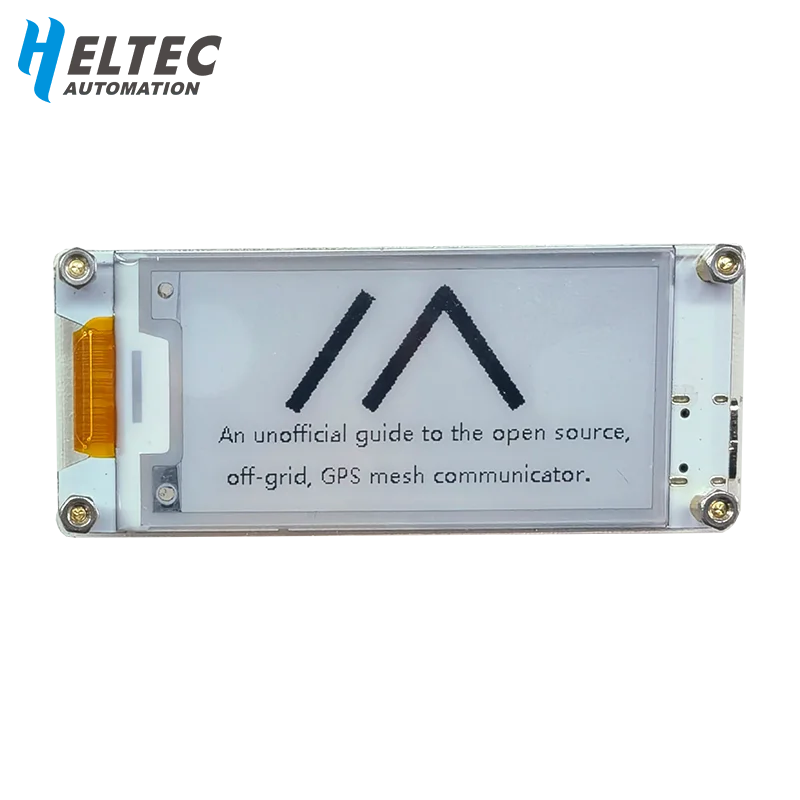

Meshtastic
Tiny GS
...

We also provide a standard ESP32 Arduino LoRaWAN library:

Heltec ESP32 LoRaWAN

This library is already included in the Heltec ESP32 Arduino Framework by default.

Resource

Heltec ESP(ESP32&ESP8266) framework
Heltec LoRaWAN test server based on TTS V3
User Manual Document
Hardware update logs

Main Features

ESP32-S3FN8 + SX1262 Chipset, device can be driven via Wi-Fi, BLE and LoRa;
Default 250 x 122 pixels black-white display, it can also be used to drive E-Ink screens of other sizes;
High contrast, high reflectance, ultra-wide viewing angle;
Low power consumption, 20uA in deep sleep;
Internal integrated display screen refresh page function, users can drag and drop BMP images to achieve refresh;
Operation condition: 0~50℃, 35~70%RH;
Onboard USB-UART bridge, facilitate user secondary development.

Specifications

Parameters	Description
MCU	ESP32-S3FN8
LoRa Chipset	SX1262
Frequency	470~510MHz, 863~928MHz
Power Supply	lithium battery, USB Type-C
Supply Voltage	3~5v
Operating Temperature	0~50℃
Operating Humidity	35~70%
Display Resolution	122(H)x250(V) Pixel
Connection Method	Wi-Fi, LoRa,BLE
Screen Size	2.13 Inch
Active Area	23.705×48.55
Pixel Pitch	0.1942X0.1942
Pixel Configuration	Square
