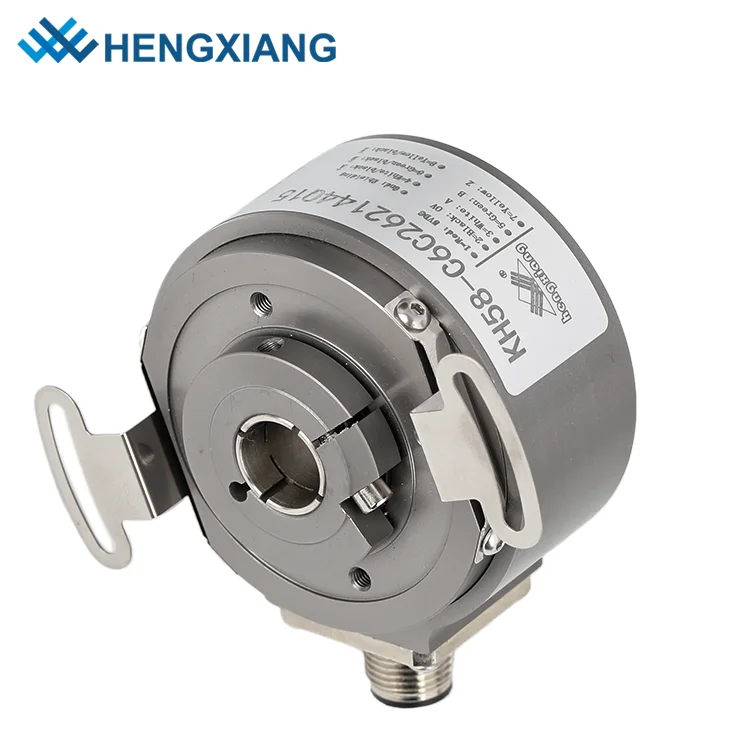

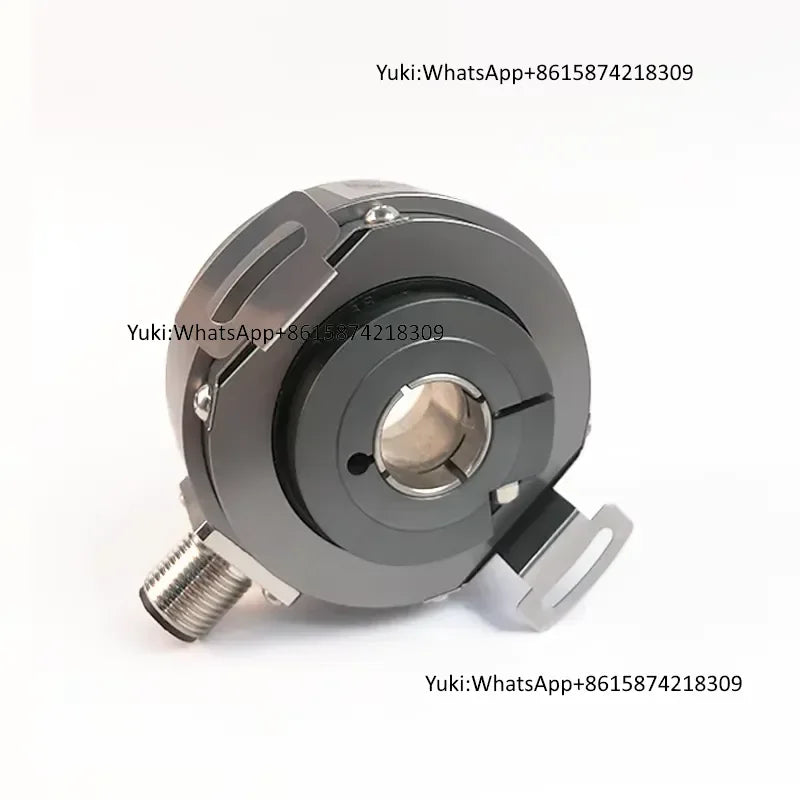

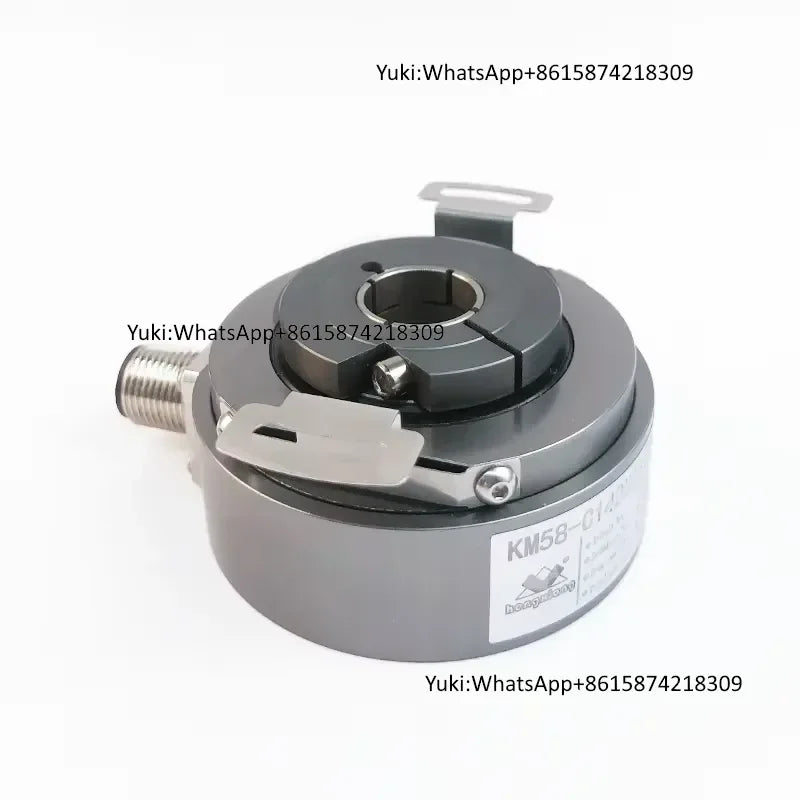

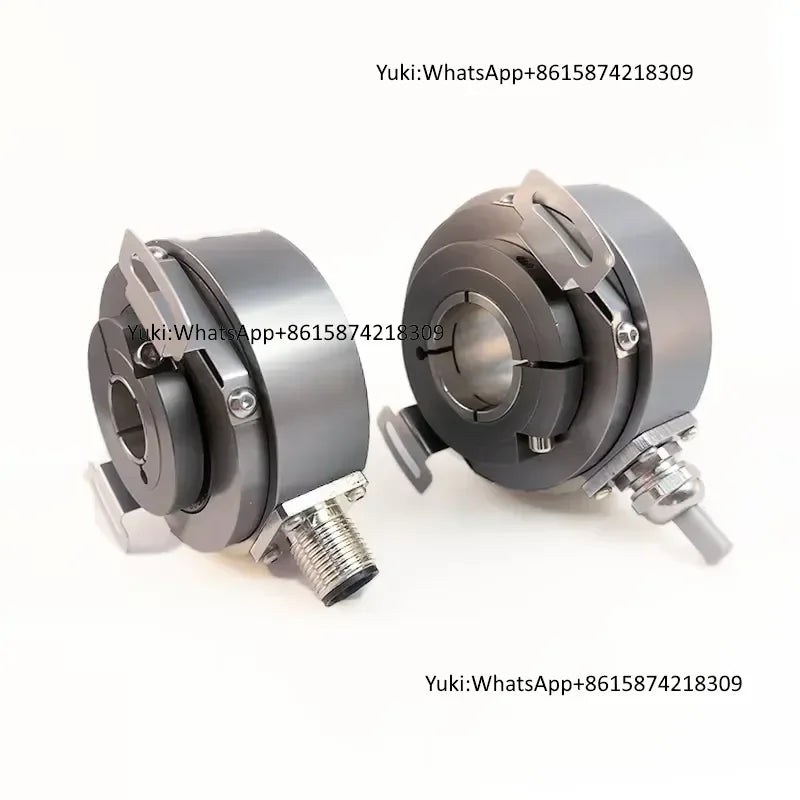

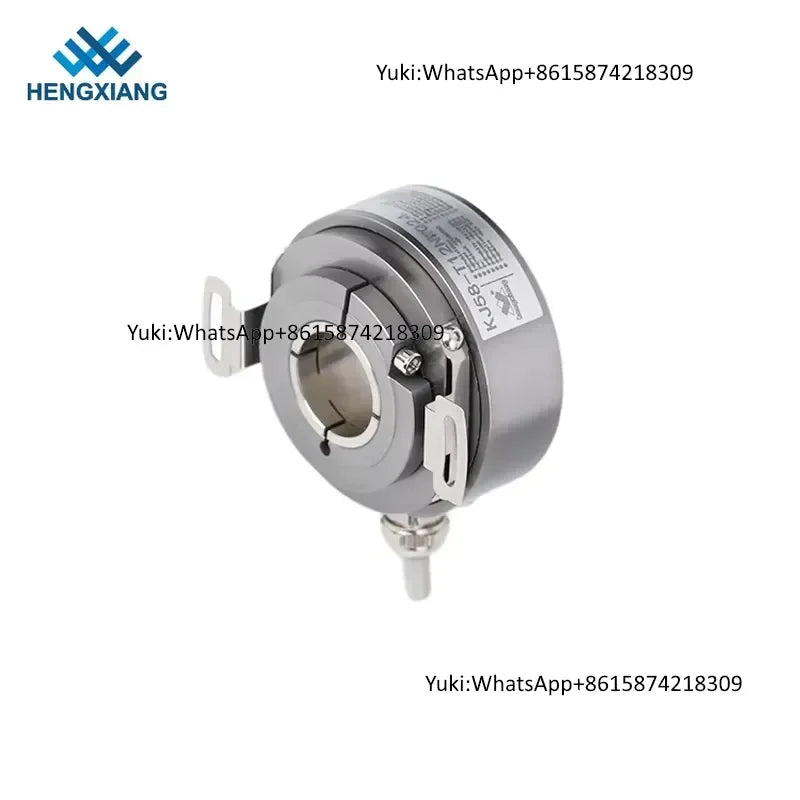

HENGXIANG KJ58 Gray Code Absolute Encoder 12bits Single Turn Hollow Shaft IP65 Protection DC5V-30V 58mm OD Spring Plate Mount

HENGXIANG KJ58 Gray Code Absolute Encoder 12bits Single Turn Hollow Shaft IP65 Protection DC5V-30V 58mm OD Spring Plate Mount

$1,702.49

$1,702.49 $0.00

Description

SPECIFICATIONS

Brand Name: NONE

Count direction: :clockwise(CW);counterclockwlse(CCW);outside control di...

Description: 58mm OD, 4 types of flange available, KJ58 encoder

External Diameter: 58mm

Interface(Parallel): OC(NPN PNP)

Manufacturer Part Number: KJ58

Mounting Type: Spring plate type

Origin: Mainland China

Output: Other

Place of Origin: Shanghai, China

Protection: IP50;IP65

Resolution: 5-12Bits

Series: Absolute tyoe

Shaft Diameter(blind hole through hole): 14-25mm through hole

Speed: 3000 rpm

Supply Voltage: DC5V;DC8-30V

Theory: Optical sensor

Thickness: 30mm

Type: ABSOLUTE ENCODER

Usage: Optical sensor

Working temperature: -20~+85

option description
1.2026

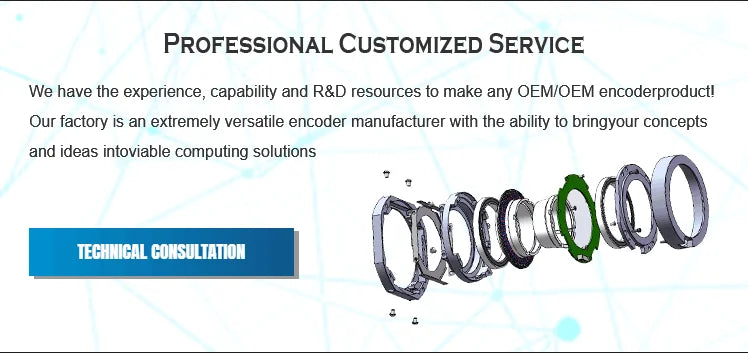

Products Description

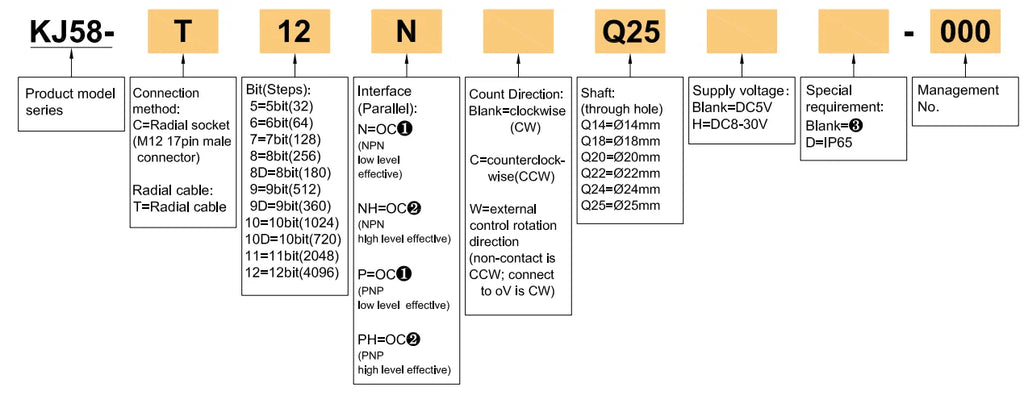

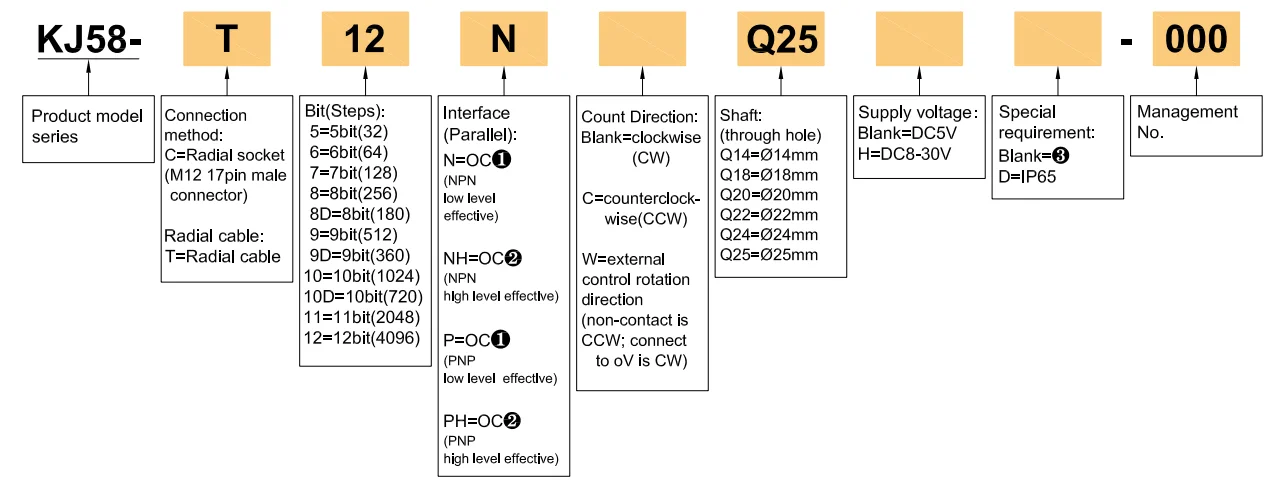

Quick Model Selection

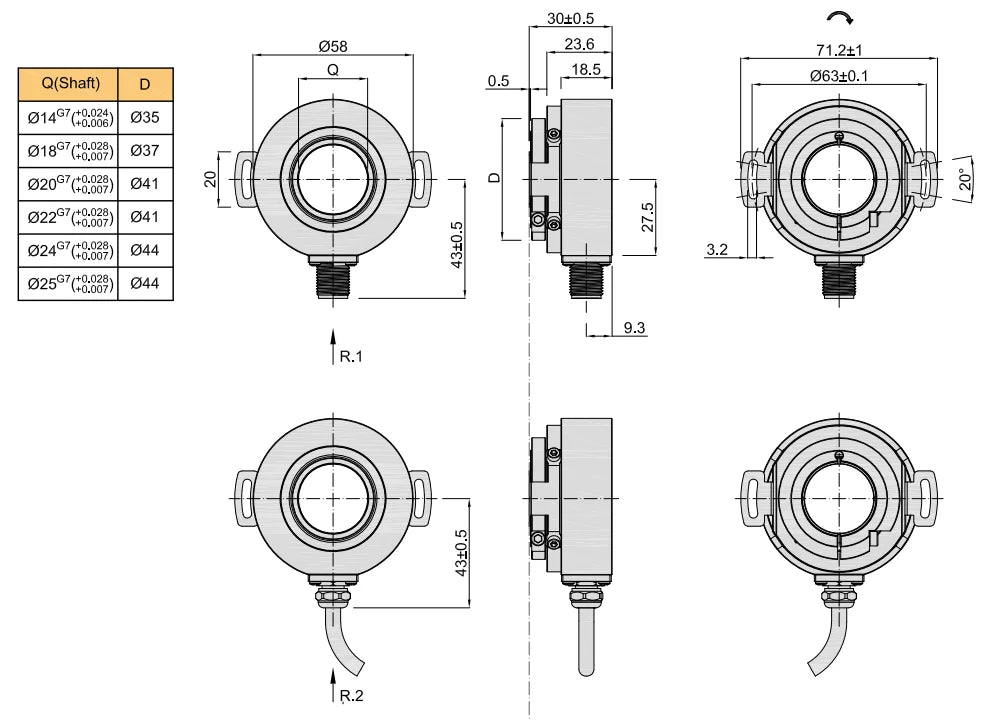

Dimension

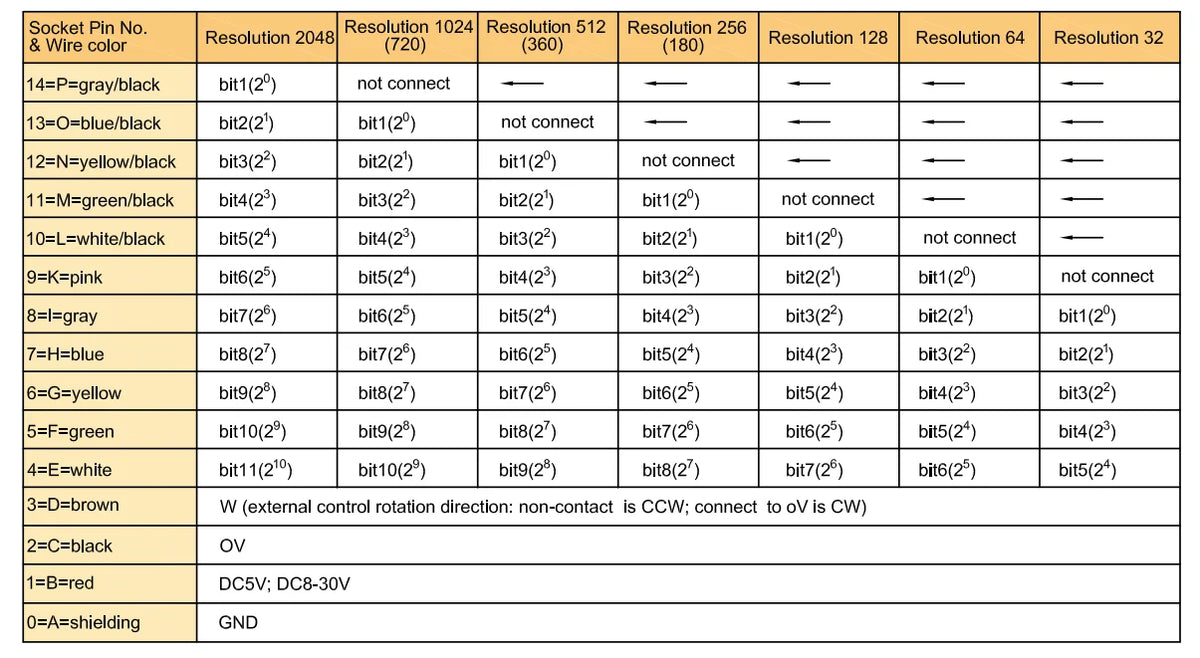

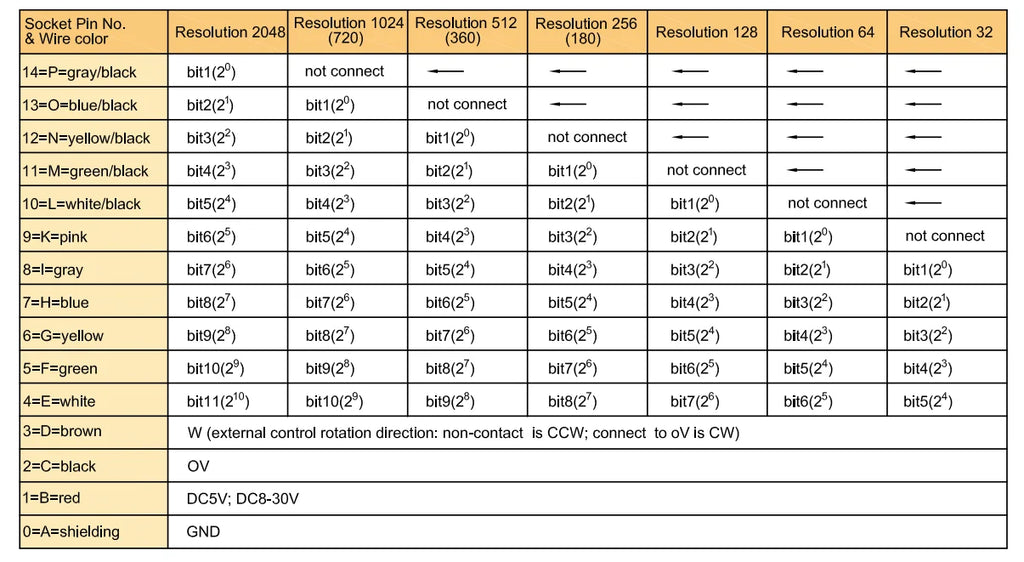

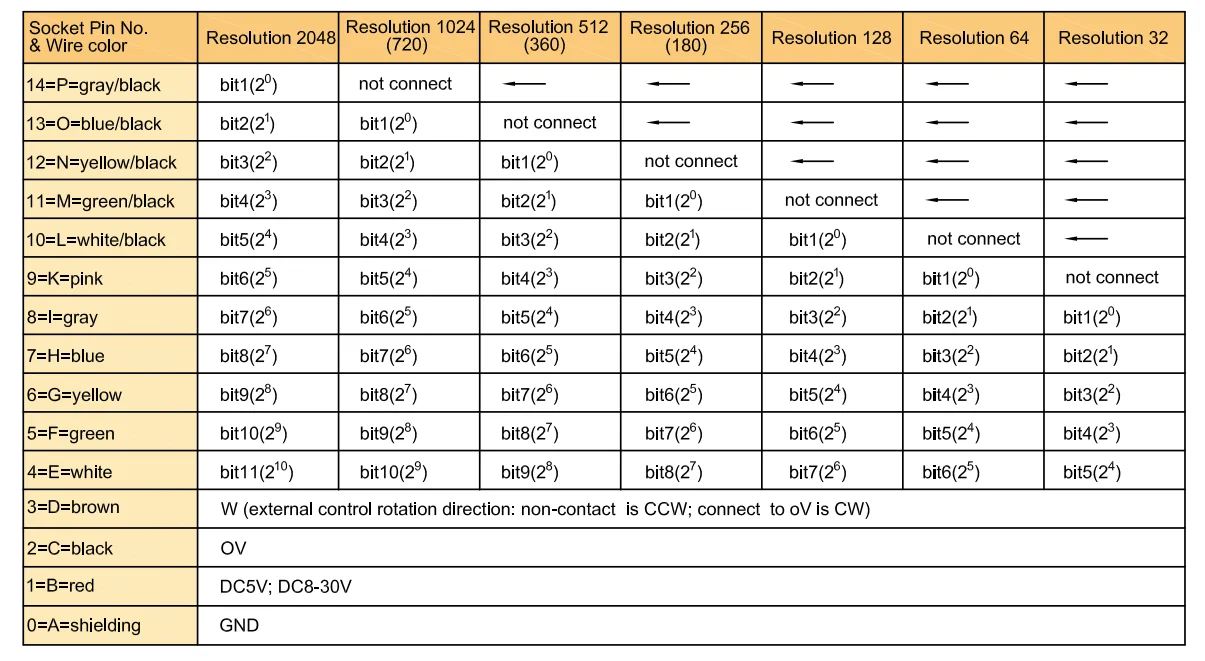

Cable Connection

Brand	HENGXIANG
Encoder type	absolute encoder
External diameter	58mm
Thickness	30mm
Installation dimension	63±0.1mm diameter
Hollow shaft type	through hole
Hollow Shaft diameter	14mm;18mm;20mm;22mm;24mm;25mm
Bit(steps)	5 bit;6 bit;7 bit;8bit;9bit;10 bit;11 bit;12bit
Supply voltage	DC5V;DC8-30V
Outlet type	radial cable
		radial socket(M12, 17pin male connector)
		Other socket could customize
Count direction	clockwise
		counter clockwise
		outside control direction
Interface	NPN/PNP low level effective
Interface		NPN/PNP high level effetive
Protection grade	IP50 ; IP65
Cable length	1M (cable length could be added appropriately by
Cable length		require, but it need payment individually)
Consumption current	100mA MAX
Top response frenquency	100KHZ
Allowable ripple	≤3%rms
Load Voltage	≤DC30V
Output code	gray code
Precision	[360/(resolution x 4)]°
Insulation strength	AC500V 60s
Insulation resistance	10MΩ
GND	not connect to encoder
starting torque	less than 12x 10-3N.m
Intertia moment	less than 11x 10-6kg.m2
Shaft load	Radial 30N; Axial 20N
Slew speed	≤3000 rpm
Bearing life	1.5x109 revs at rated load(100000hrs at 2500RPM)
Environmental temperature	Operating:-20 ～+85°C(repeatable winding cable: -10°C)；storage:-25 ～+90°C
Enviromental humidity	Operating and storage: 35-85%RH(noncondensing)
Vibration(Endurance)	Amplitude 0.75mm,10-50Hz, 1 hour for X,Y,Z direction individually
Sock(Endurance)	49m/s2 , three times for X,Y,Z direction individually
Shaft Material	Stainless steel
Shell Material	Dia cast aluminium
Cable length	1000mm(cable with shielding)
Certification	CE
package	Carton box
Net weight	About 180g (without package)
