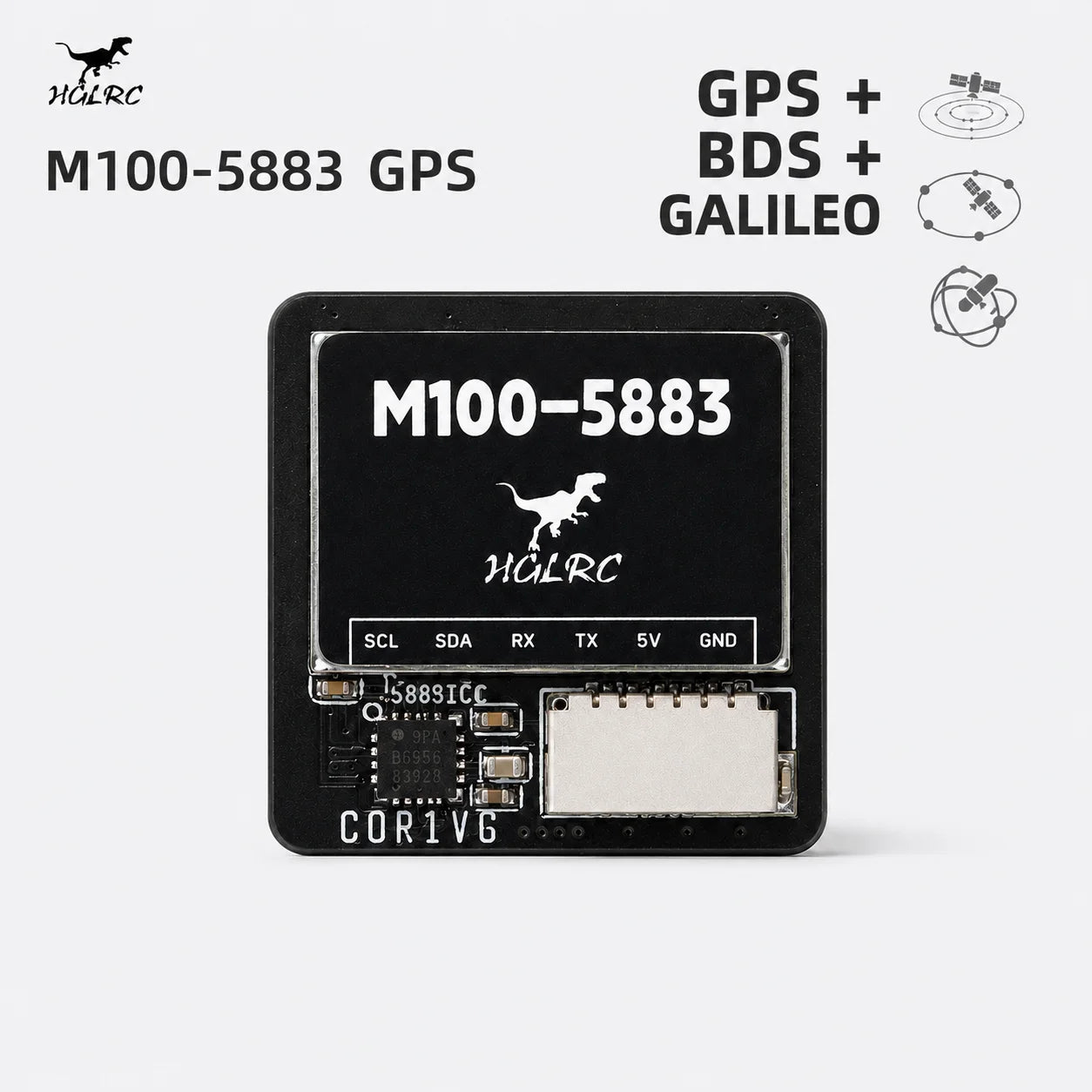

HGLRC M100-5883 Fast Lock M10 GPS Compass Multi GNSS BDS Galileo 72CH UART for FPV Drone Fixed Wing RC Plane M10-25Q Alternative
HGL GPS M100 5883 1p / No plug
$90.64
Sale price
$90.64
Regular price
$0.00
Skip to product information
HGLRC M100-5883 Fast Lock M10 GPS Compass Multi GNSS BDS Galileo 72CH UART for FPV Drone Fixed Wing RC Plane M10-25Q Alternative
$90.64
Sale price
$90.64
Regular price
$0.00
Description

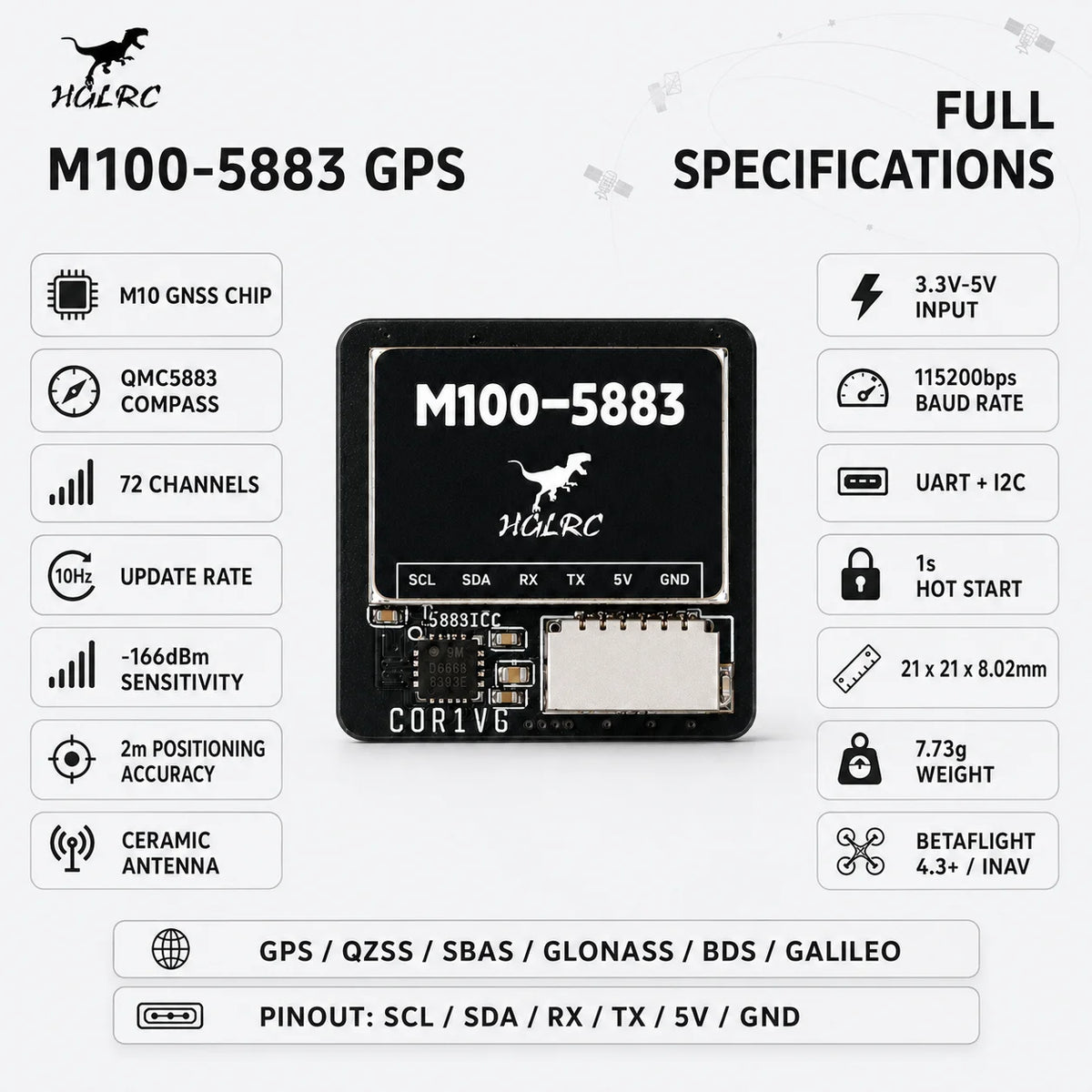

SPECIFICATIONS
Antenna: High-Gain Ceramic Patch Antenna
Application: FPV Racing Drone / RC Airplane / INAV
Baud Rate: 115200bps (Default) for Fast Data
Brand Name: NONE
Chip: M10 (Supports GPS, GLONASS, Galileo, BDS)
Choice: yes
Compass: Built-in QMC5883 Magnetometer
Feature: PPS LED Indicator for Satellite Status
For Vehicle Type: Airplanes
High-concerned chemical: none
Input Voltage: 5V DC (Wide Voltage Range)
Is Batteries Included: No
Is Electric: No battery
Is it battery/power supply: N
Is it charger/adapter: N
Material: Metal
Model Number: GPS Module
Origin: Mainland China
Quantity: 1 pcs
RC Parts & Accs: Gyros
Recommend Age: 14+y
Remote Control Peripherals/Devices: ESC
Service: 24/7 Support & Original Factory Quality
Size: 21x21x8.02mm
Technical parameters: value 2
Tool Supplies: Assembled class
Use: Vehicles & Remote Control Toys
Weight: Approx 7g (Lightweight for Whoops)
Wheelbase: Screws

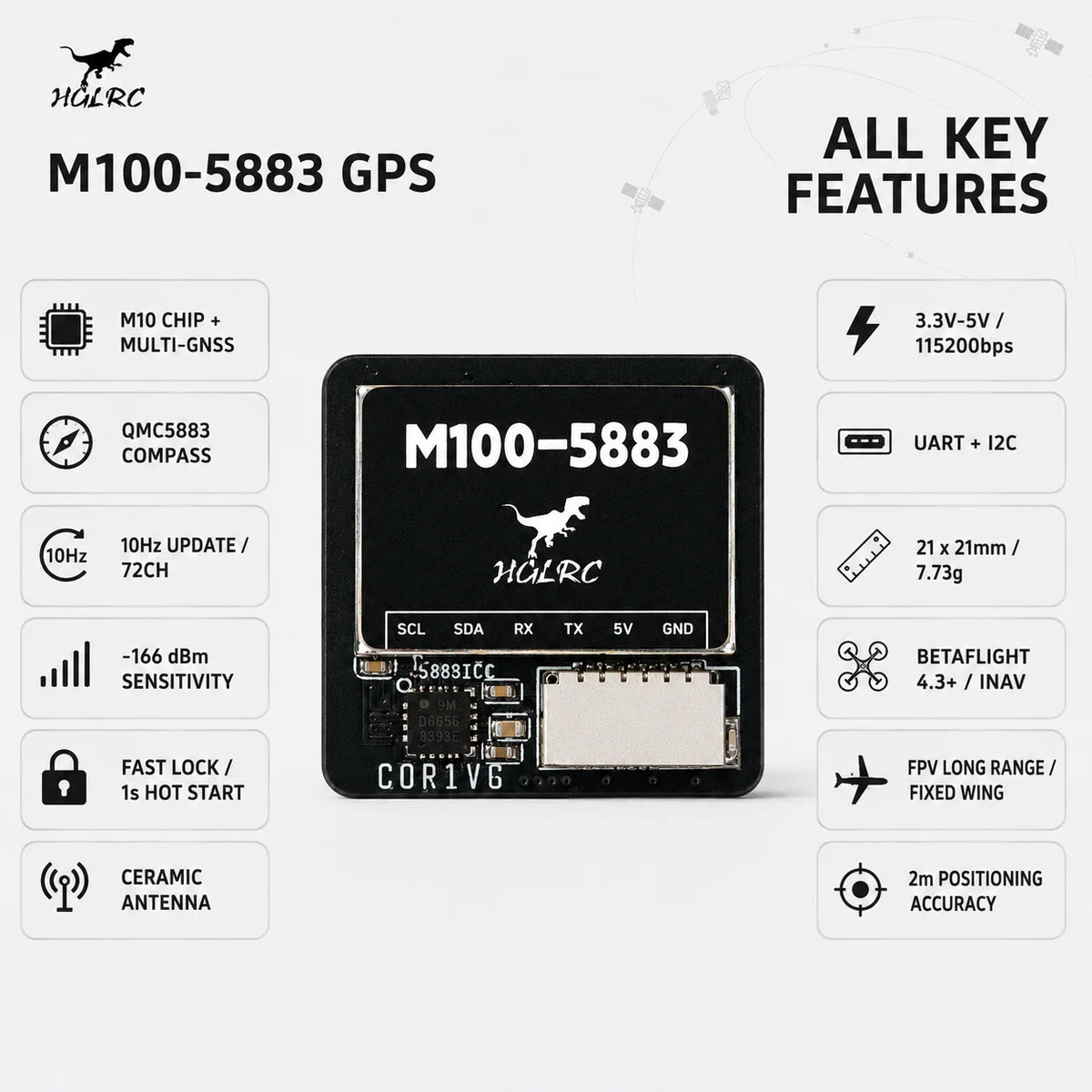

New upgraded 10th generation chip with compass

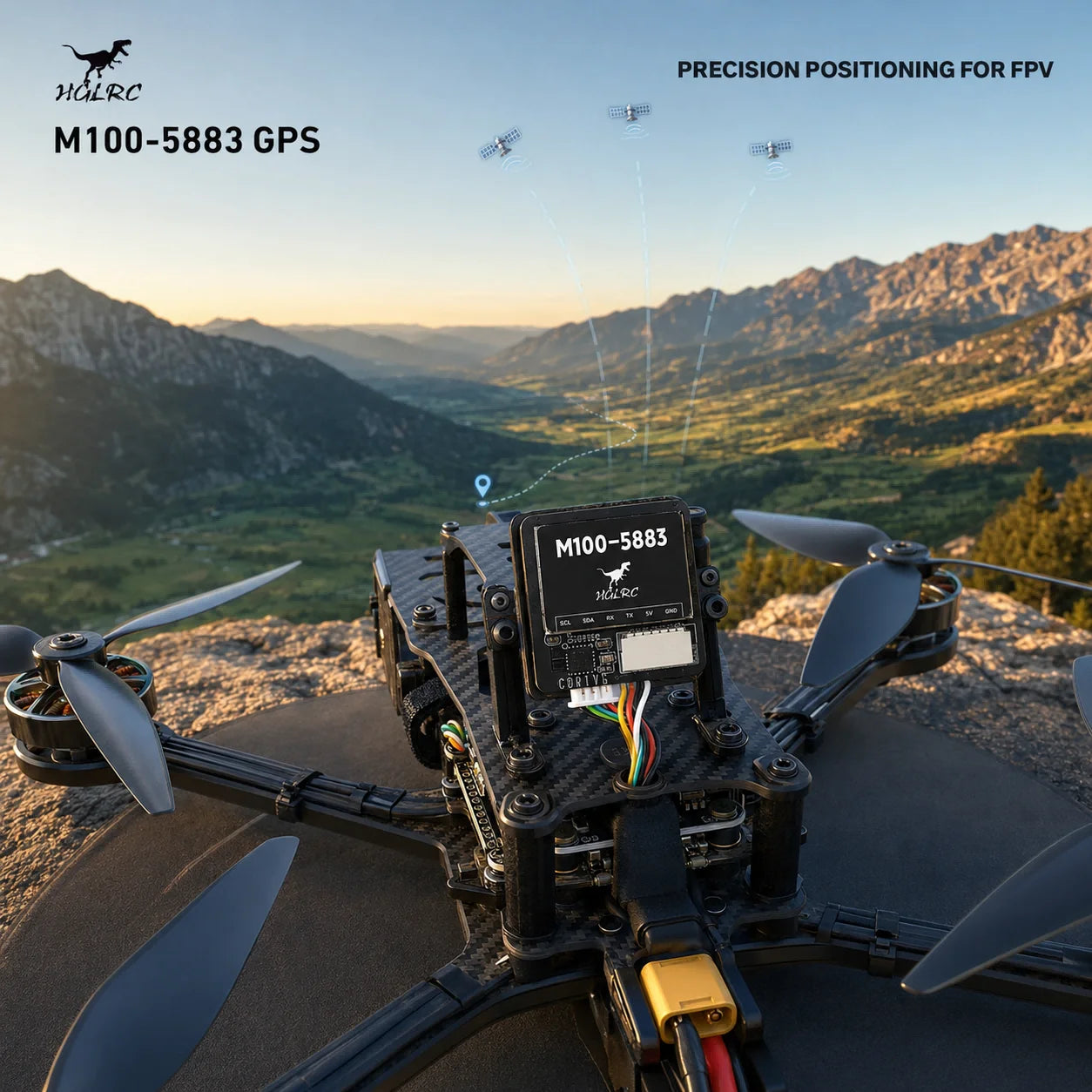

Suitable for FPV fixed-wing UAV
Technical Parameters:
1. Chip: M10 (tenth generation chip)
2. Antenna: ceramic antenna
3. Frequency: GPS/QZSS L1C/A, SBAS EGNOS, GAGAN, MSAS and WAAS
GLONASS L1OF, BDS B1I, Galileo E1B/C
4. Receive channel: 72ch
5. Baud rate: 115200bps.
7. Output frequency: 10Hz
8. Power input: 3.3-5V
9. Size: 21x21x8.02mm

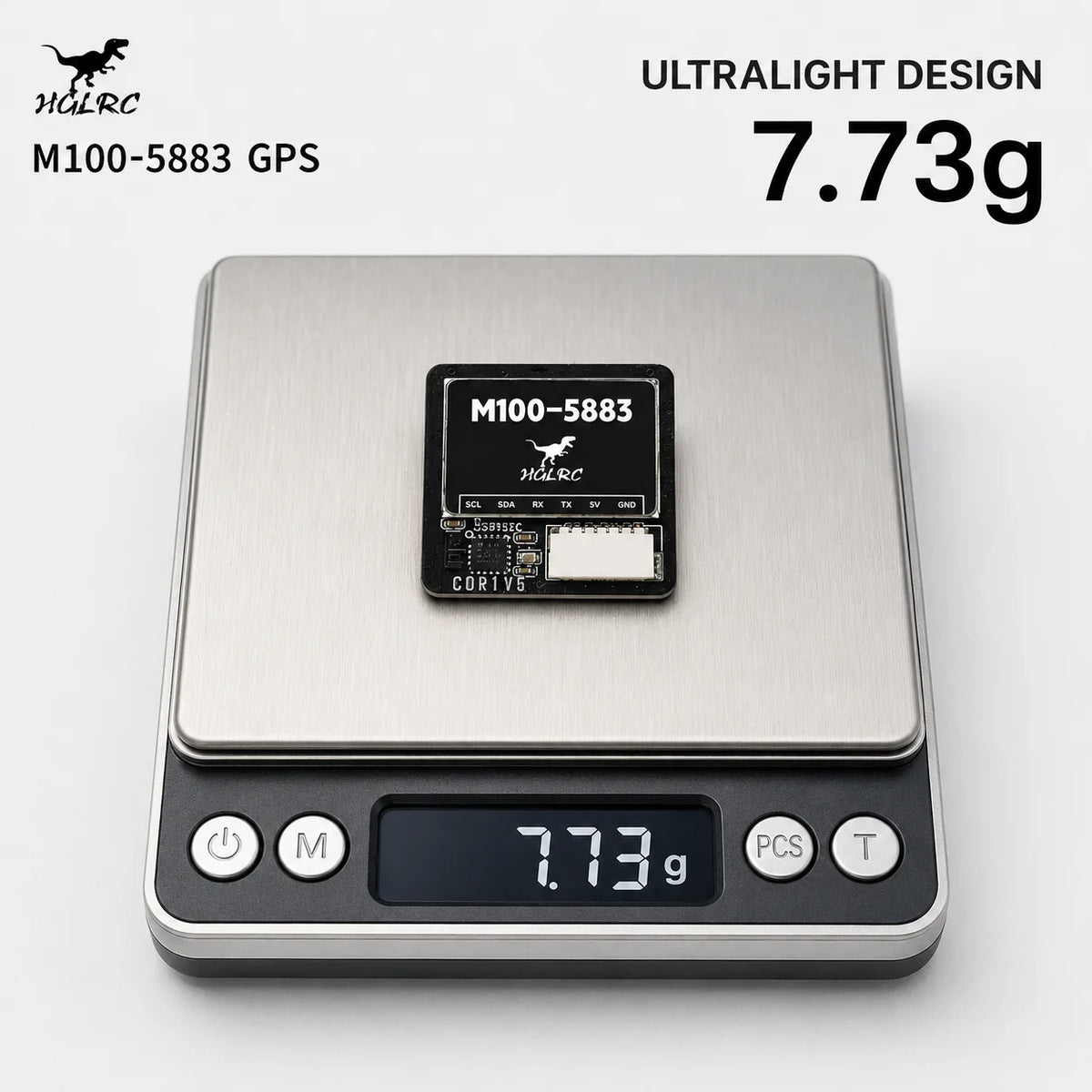

10. Weight: 7.73g
