SPECIFICATIONS

Brand Name: U-Angel-1988

Choice: yes

For Vehicle Type: Airplanes

Four-wheel Drive Attributes: M10 GPS Module

High-concerned chemical: none

Is Batteries Included: No

Is Electric: No battery

Is it battery/power supply: N

Is it charger/adapter: N

Material: Metal

Model Number: HGLRC GPS Module

Origin: Mainland China

Quantity: 1 pcs

RC Parts & Accs: Gyros

Recommend Age: 14+y

Remote Control Peripherals/Devices: ESC

Size: 21x21x8.02mm

Technical parameters: value 2

Tool Supplies: Assembled class

Upgrade Parts/Accessories: HGLRC M100 MINI GPS

Use: Vehicles & Remote Control Toys

Wheelbase: Screws

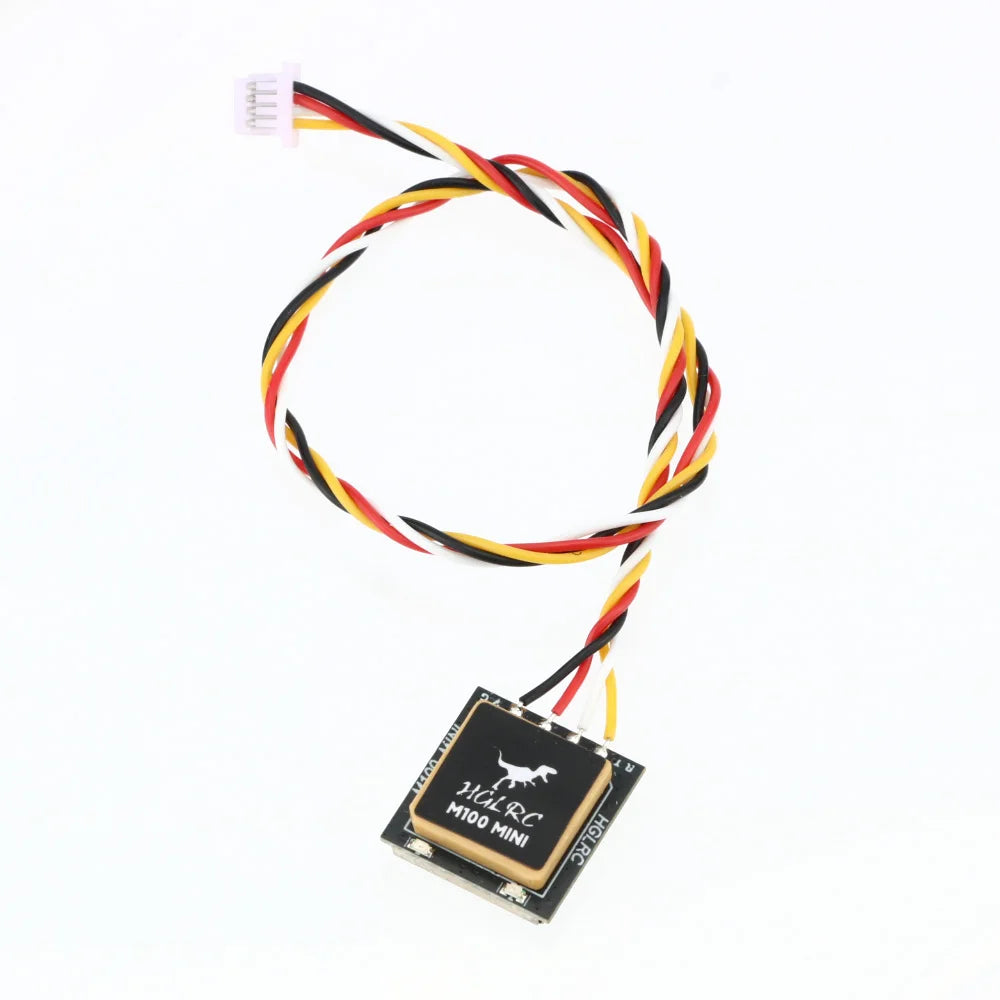

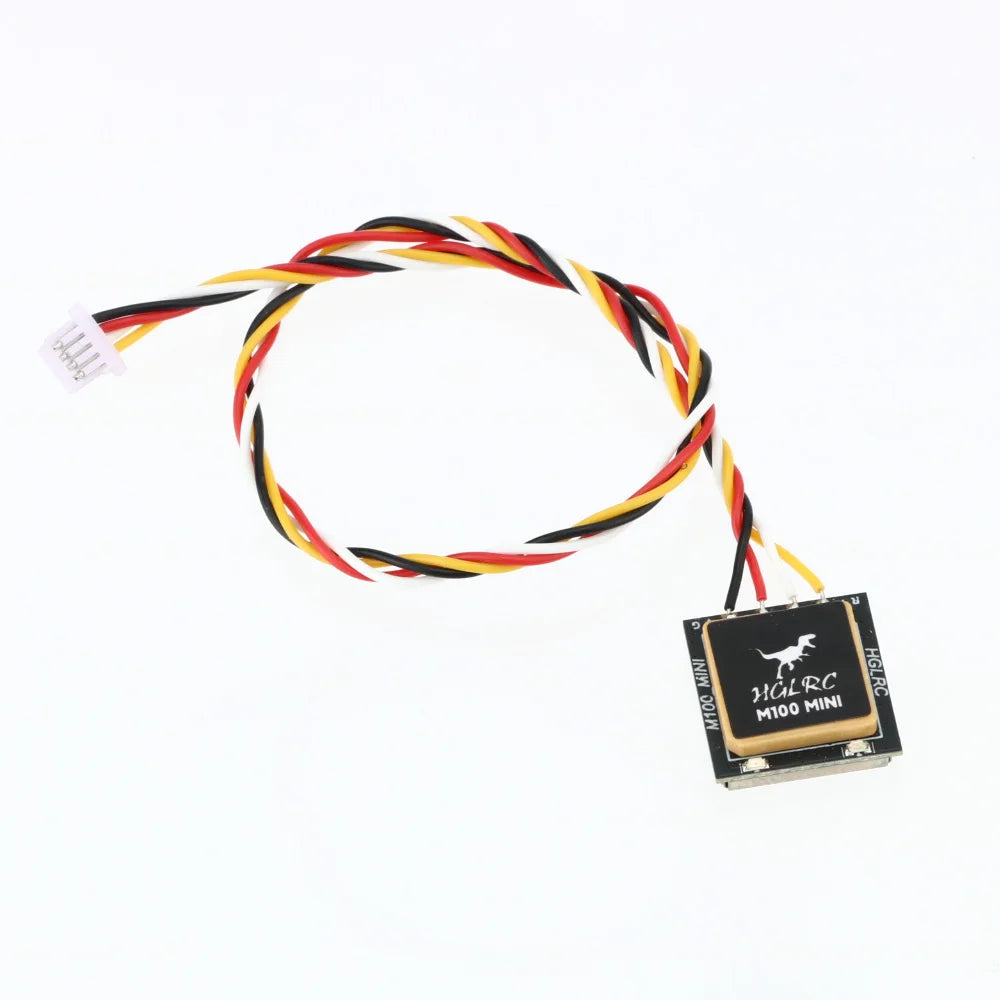

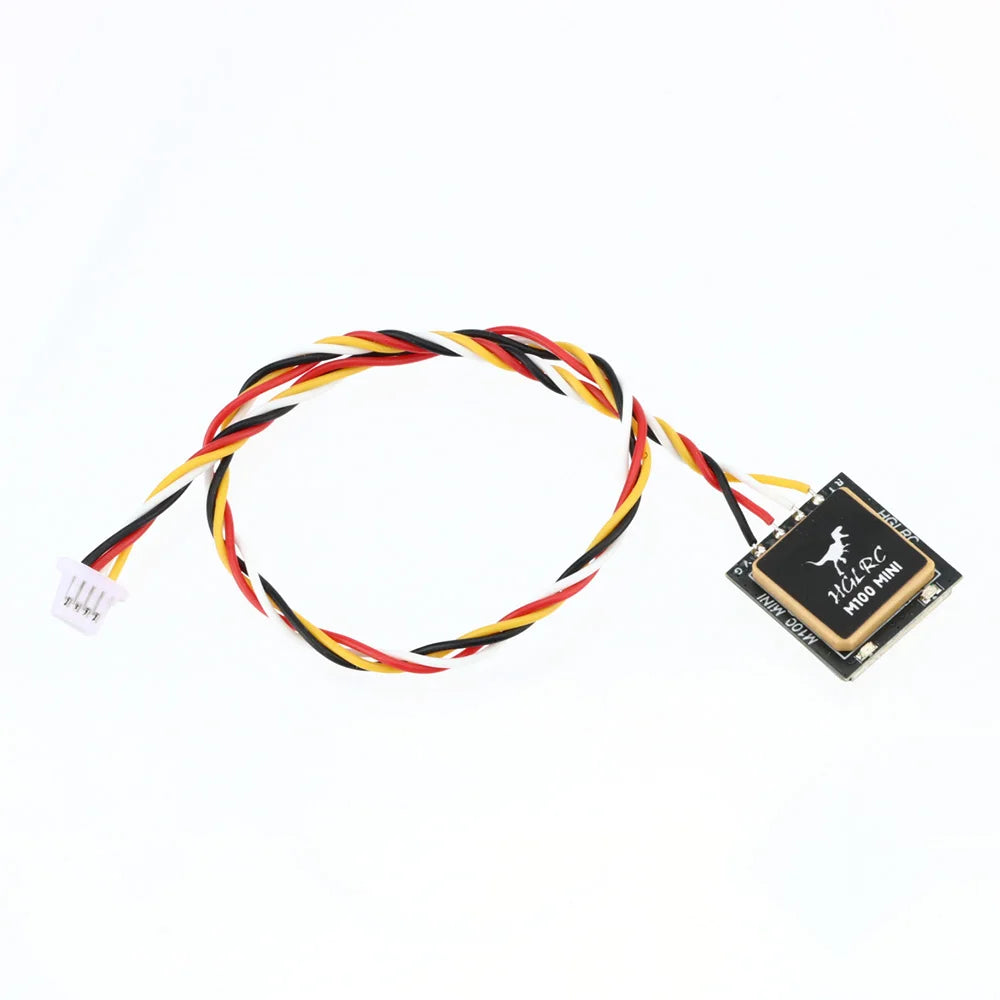

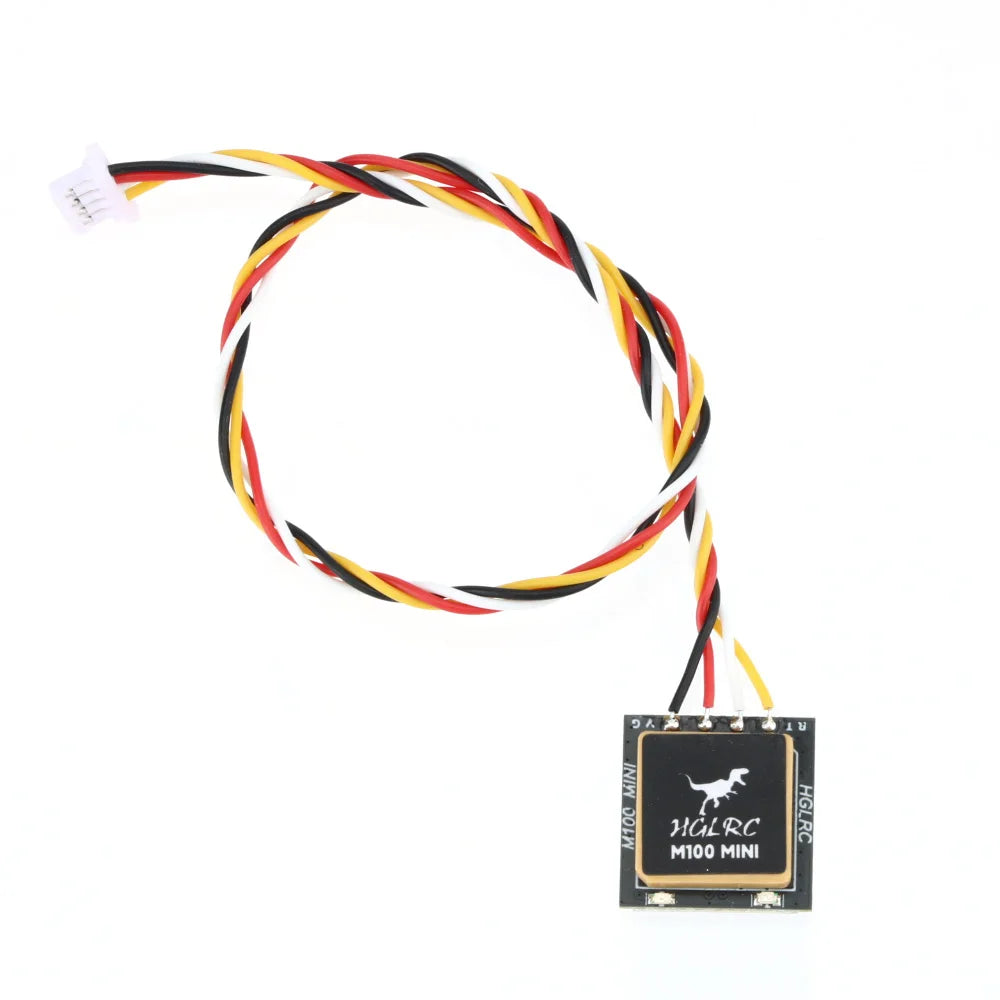

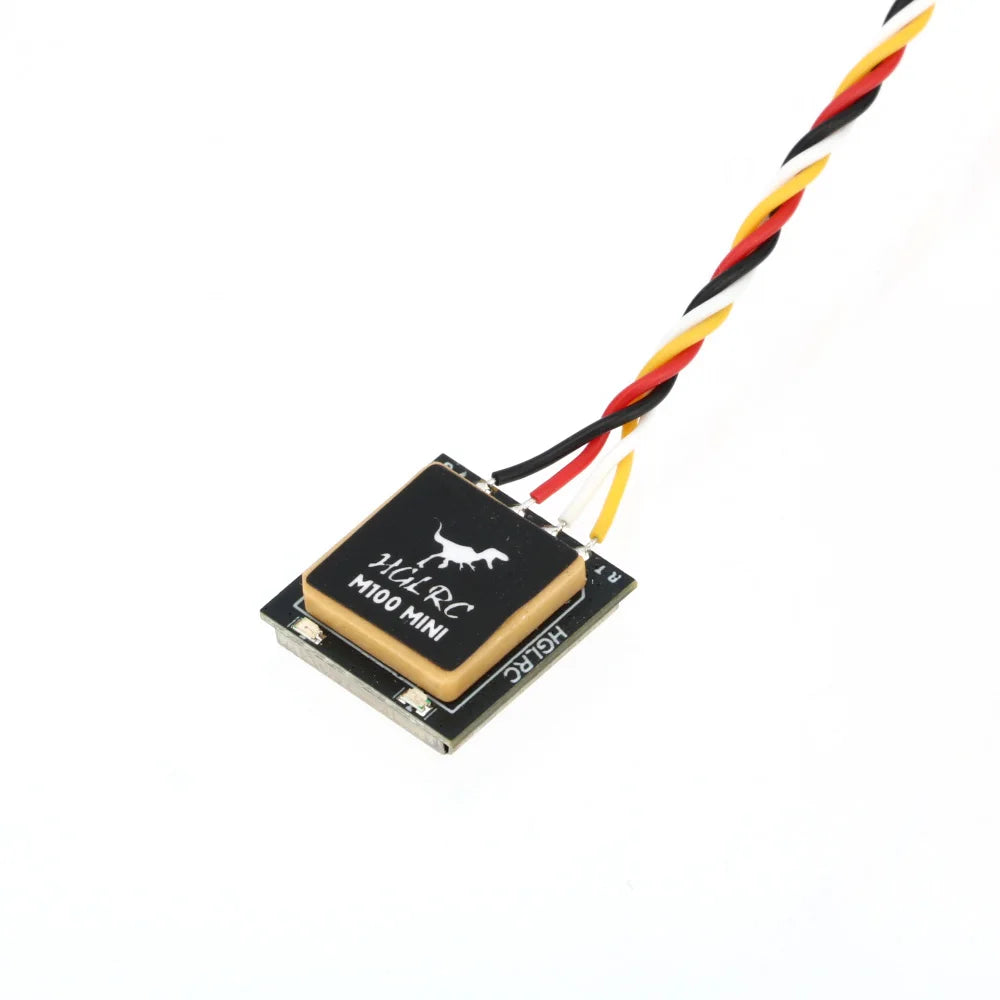

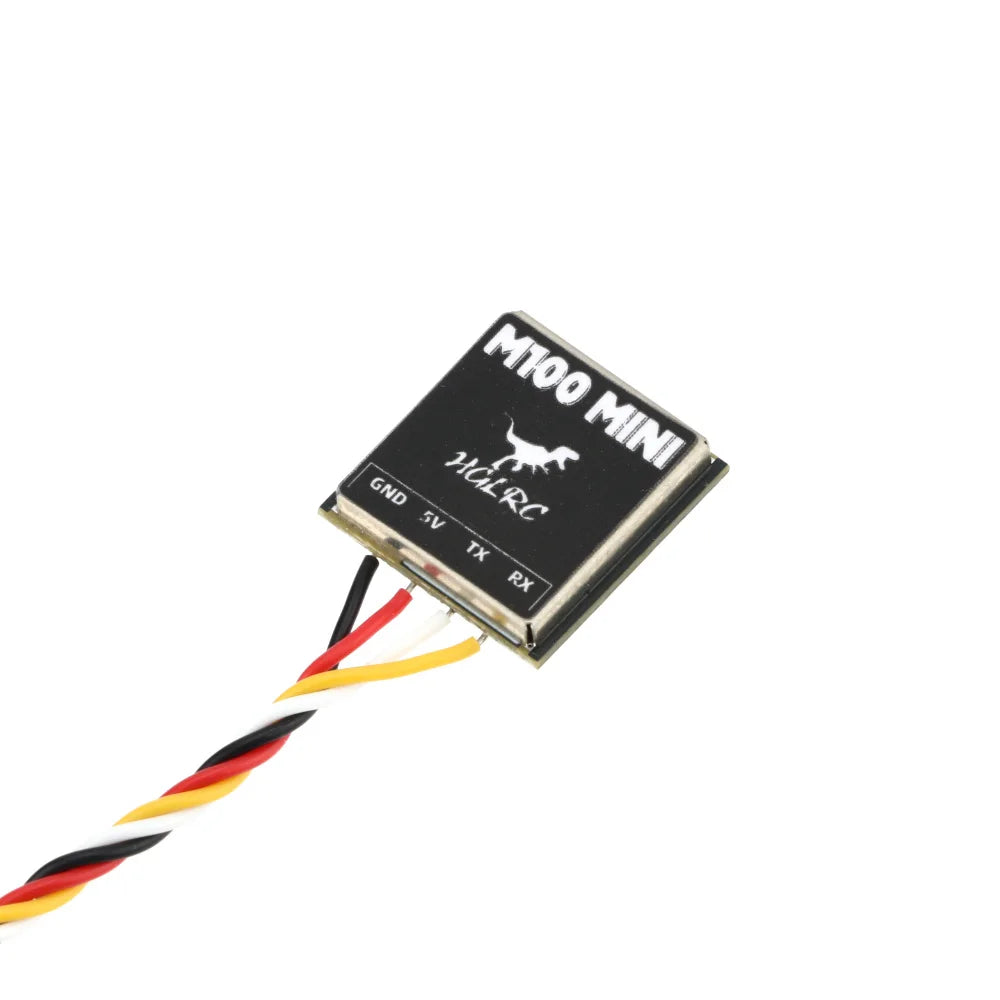

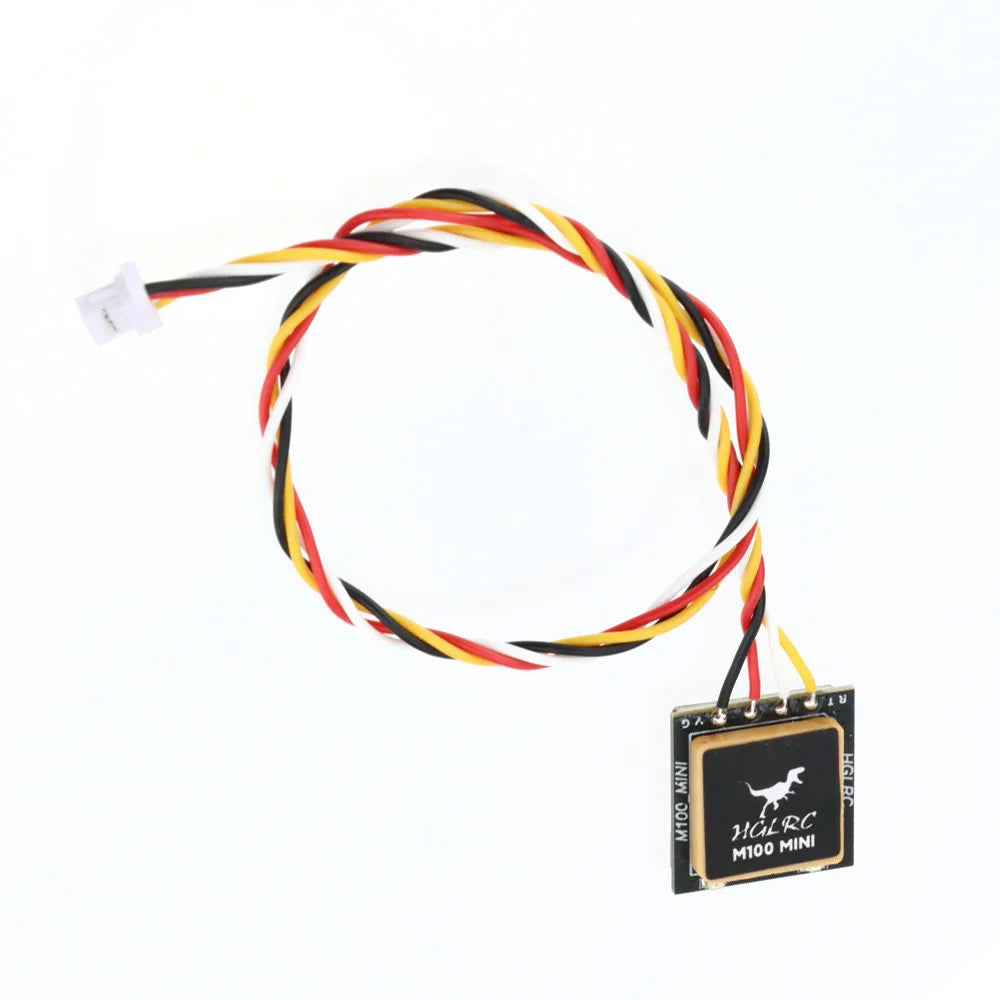

HGLRC M100 MINI M80 PRO M100-5883 GPS 10th Generation Chip three-mode Positioning 3.3V-5V For FPV Racing Drone RC Freestyle

Summary:

Hello everyone, our M80 PRO has been well-received and loved by everyone in the past two years. Beginning in the new 2023, HGLRC will bring you the newly developed M100_MINI GPS. Using the new 10th generation chip design, the positioning is fast and accurate. In the test of our HGLRC laboratory, it takes less than 1 minute for GPS to reach the 8 satellites required for take-off. The small and exquisite 15mmx15mm Size can be loaded on 2-7 inch traversing Drone. Selected ceramic antenna and externally expanded PCB design allow M100_MINI GPS to receive satellite signals effectively. At the same time, it supports receiving GPS, Galileo, and BDS three satellite signals, allowing you to quickly locate in any area. For the convenience of everyone, we have designed onboard LED indicators, including power indicator and positioning PPS indicator, so that you can know the working status of GPS well.

Features:

1.Using the new 10th generation chip design, fast and accurate positioning..

2.Small size, compatible with 2-7 inch traversal Drone on the market

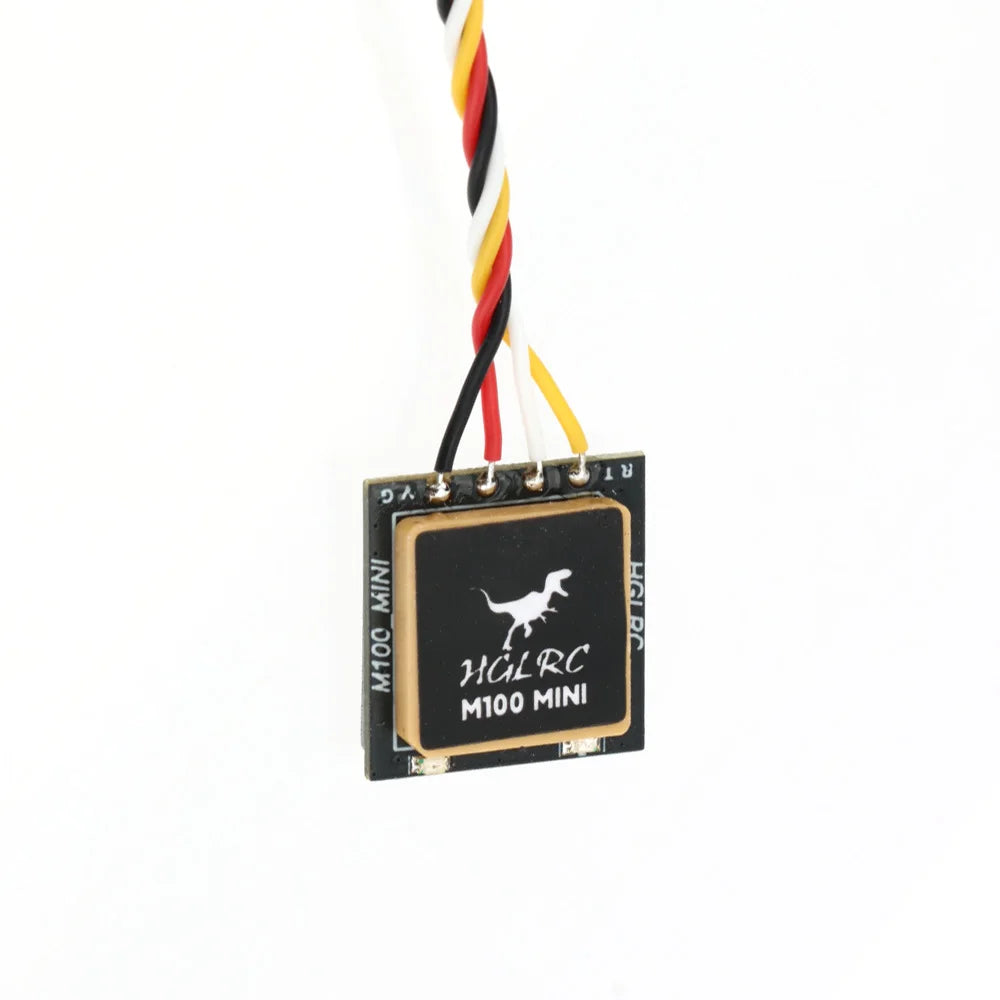

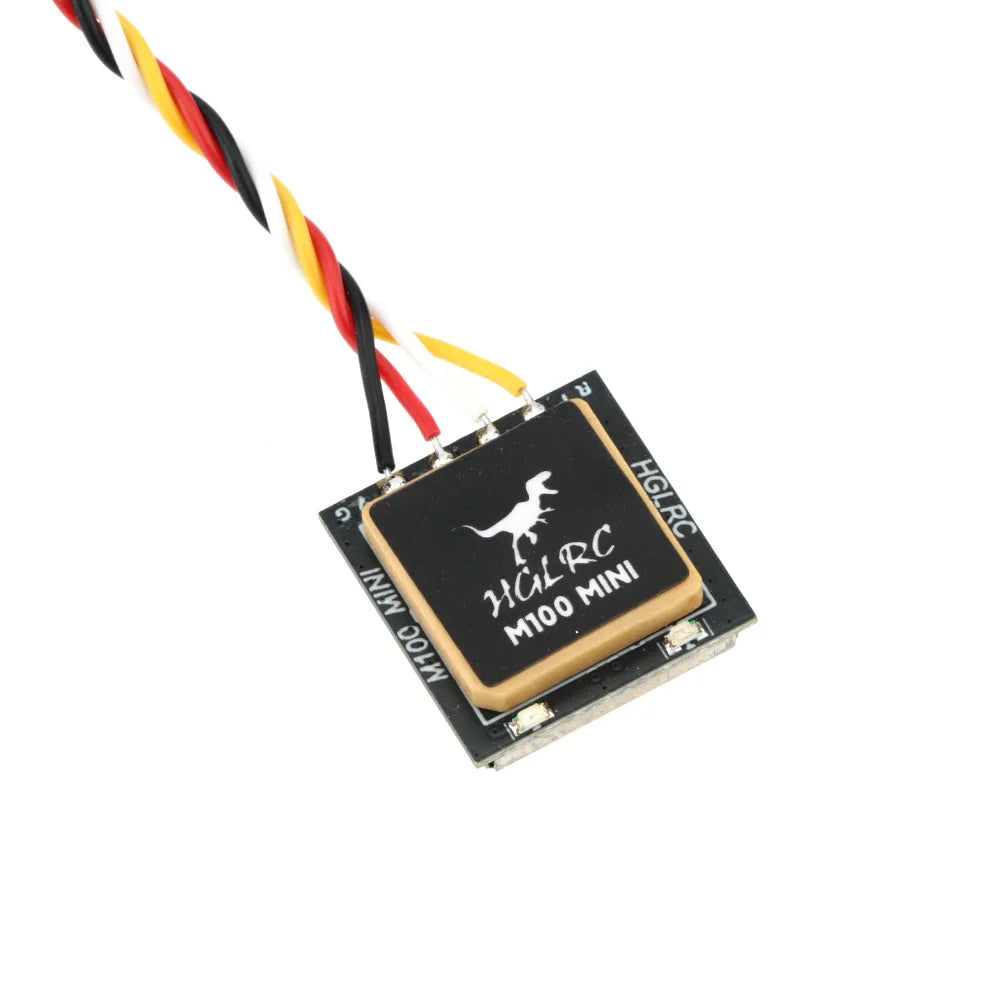

3.Selected ceramic antenna and externally expanded PCB design to effectively receive satellite signals

4.Support GPS, Galileo, BDS three-mode positioning, fast positioning in any area

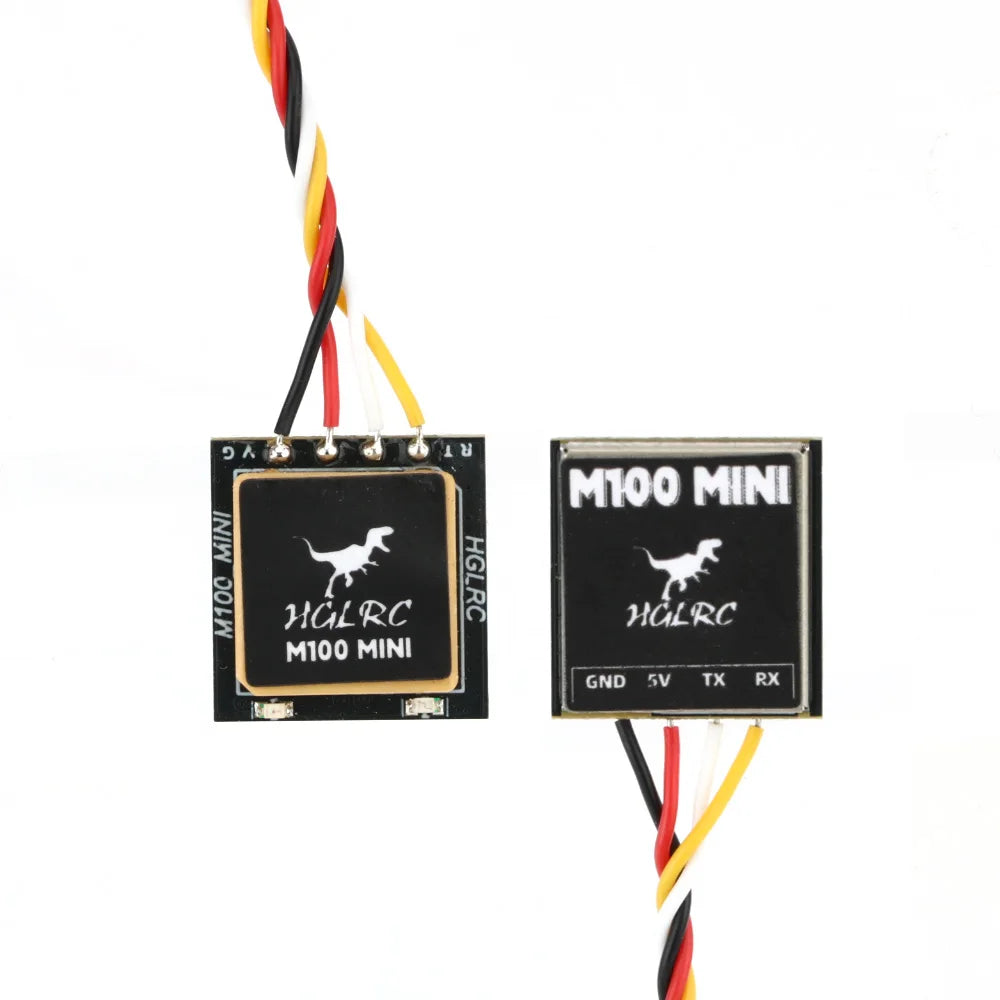

5.Onboard POWER and PPS indicator lights, the working status is clear at a glance

6.Compatible power supply, support 3.3V-5V DC power input

7.Using output protocol and 10Hz output frequency

Specification:

Chip: M10(10th Generation Chip)

Antenna: Ceramic Antenna

Frequency: GPS L1,GLONASS L1,BDS B1,GALILEO E1,SBAS L1,OZSS L1

Receive Channel: 72ch

Baud Rate: 115200bps

Output Frequency: 10Hz

Input: 3.3V-5V

Size: 15x15x5.2mm

Weight: 2.6g

Speed Accuracy: 0.05m/s

Horizontal positioning accuracy: 2D
ACC2.0m(Outdoor)

Receiver Sensitivity: Trace -166dBm

Capture -160dBm

Characteristics: High:50000m,

            Speed: 500m/s,

            acceleration 4G

Operating temperature: -40°C - +85°C

Storage temperature: -40°C - +105°C

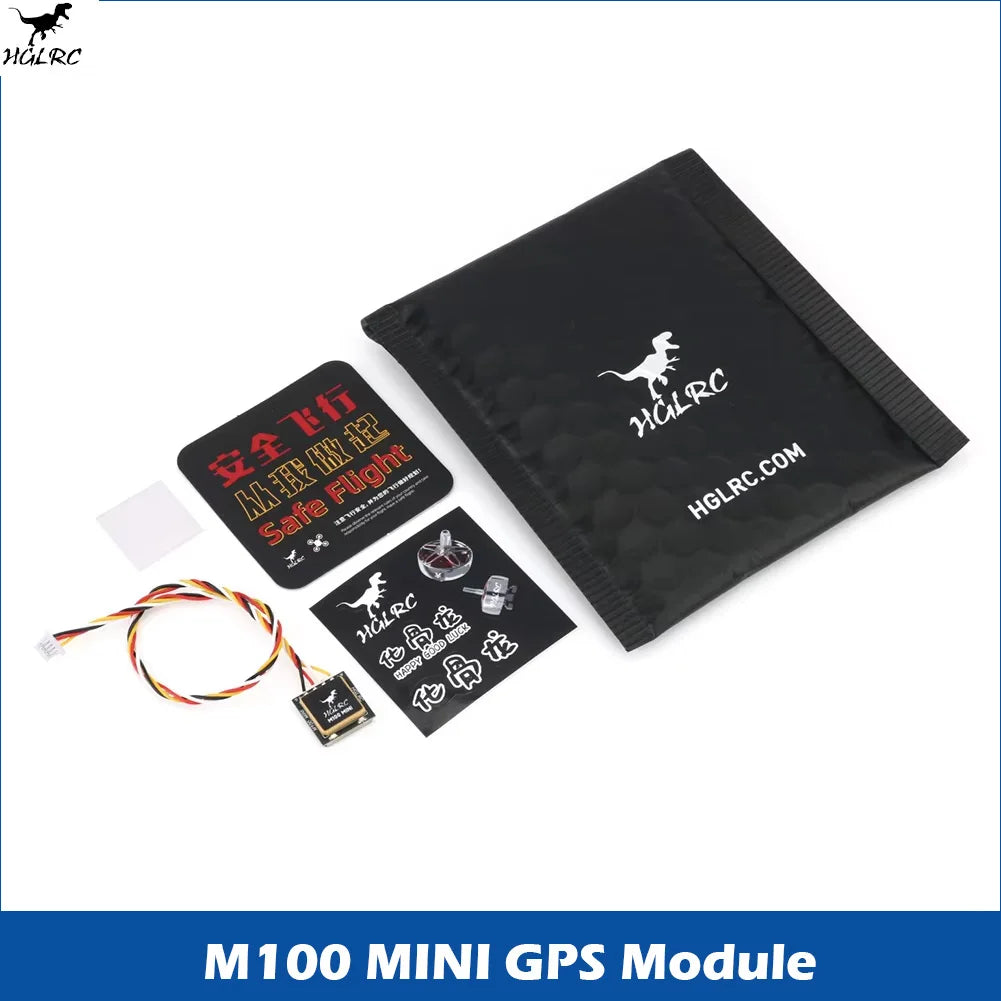

Include:

HGLRC M100_MINI GPSX 1

Heat Shrink Tube (Φ12mm x 20mm) X 1

HGLRC sticker X1

HGLRC Manual X1

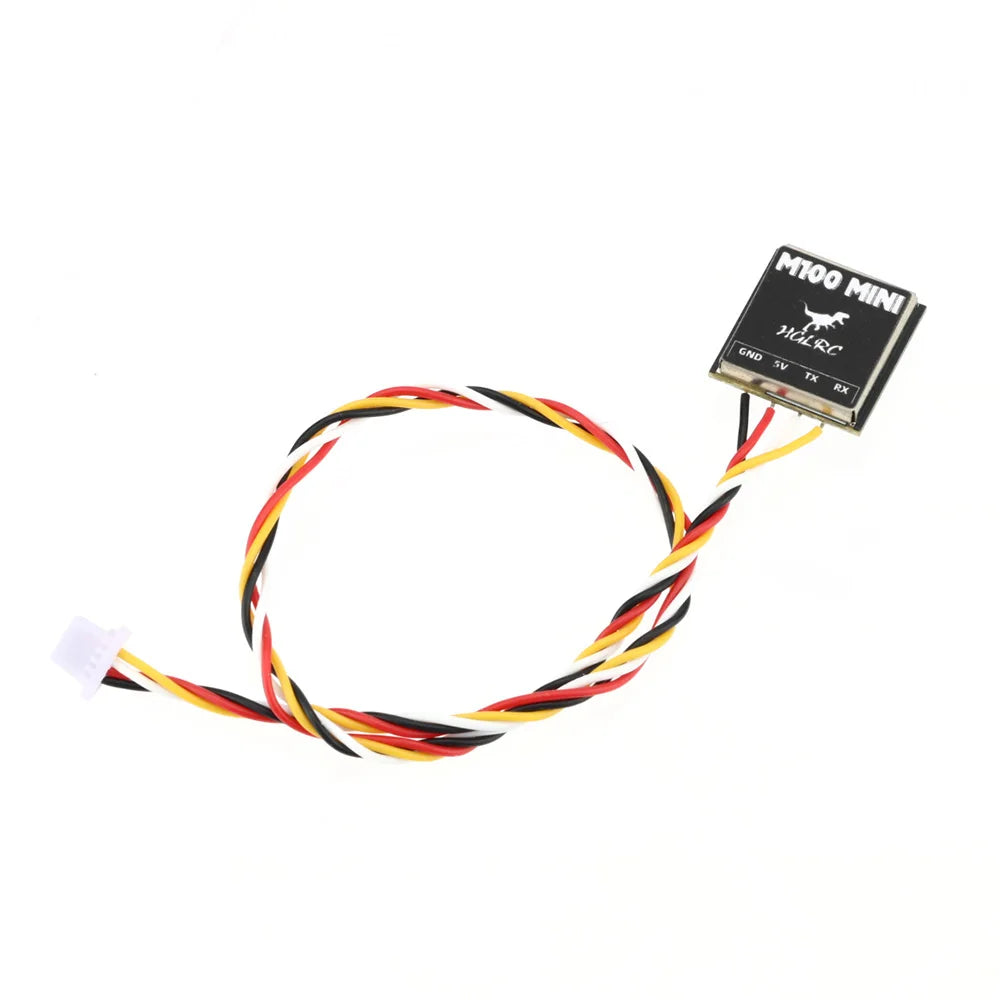

SH1.0-4Pin Cable X1
