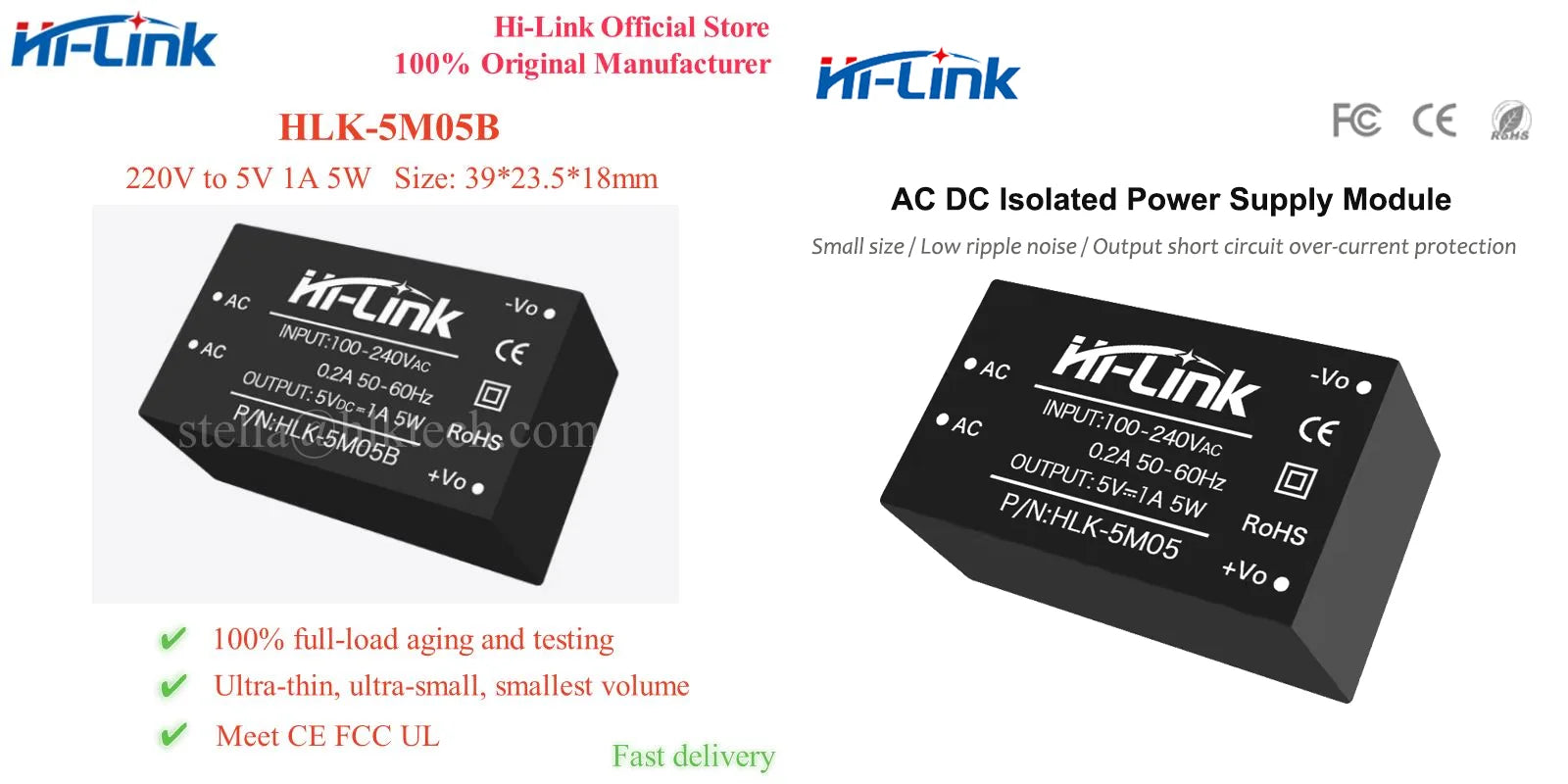

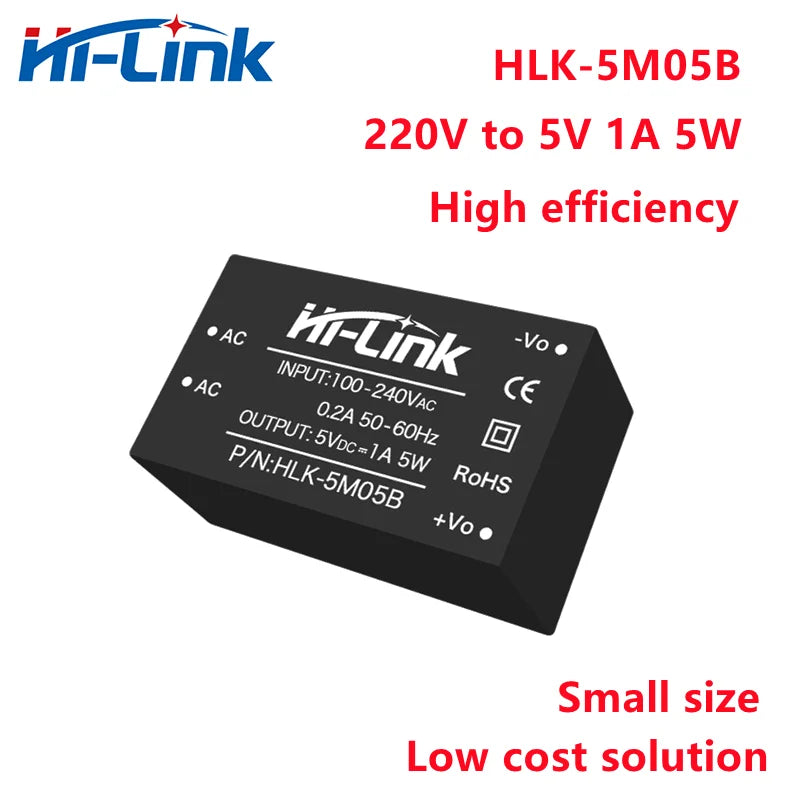

Hi-Link 10pcs/lot HLK-5M05B 5V 1A AC DC Switching Power Supply Module Voltage Step Down Integrated Circuit Compatible with 5M05

Hi-Link 10pcs/lot HLK-5M05B 5V 1A AC DC Switching Power Supply Module Voltage Step Down Integrated Circuit Compatible with 5M05

$72.00

$72.00 $0.00

Description

SPECIFICATIONS

Brand Name: bibikoo

Certification: CE,RoHS

Communication method: Other

Efficiency: 72%

High-concerned chemical: none

Inbox adaptor: No

Input: 90-265V

Manufacturer: Hi-Link

Model Number: HLK-5M05

Origin: Mainland China

Output: 5W 5V 1A

Power Source: Ac,Ac

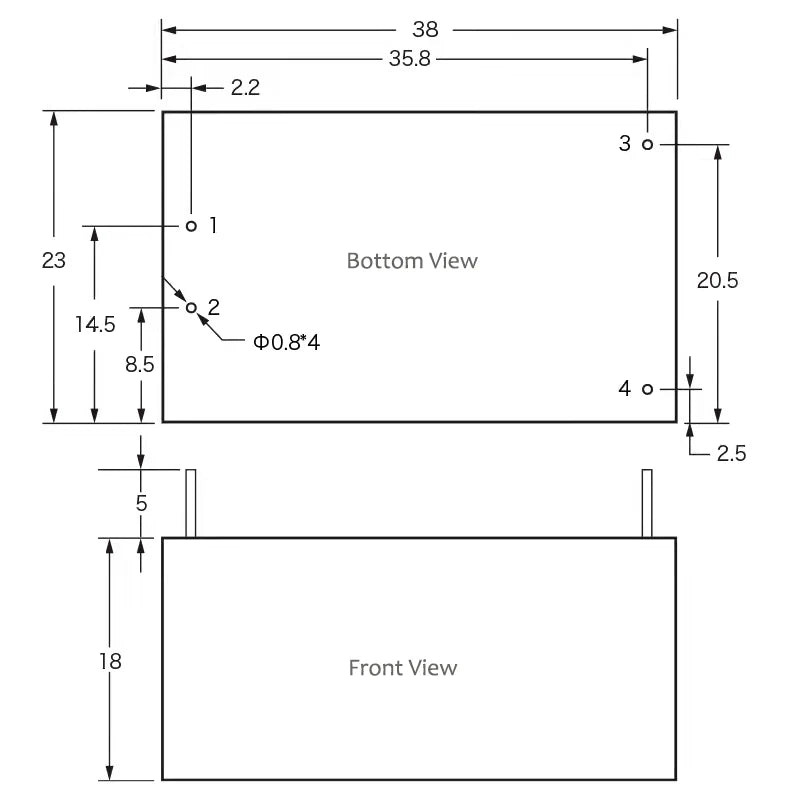

Size: 38*23*18mm

Voltage range: High voltage (50-1000V DC, 75-1000V AC)

Weight: 28g/pcs

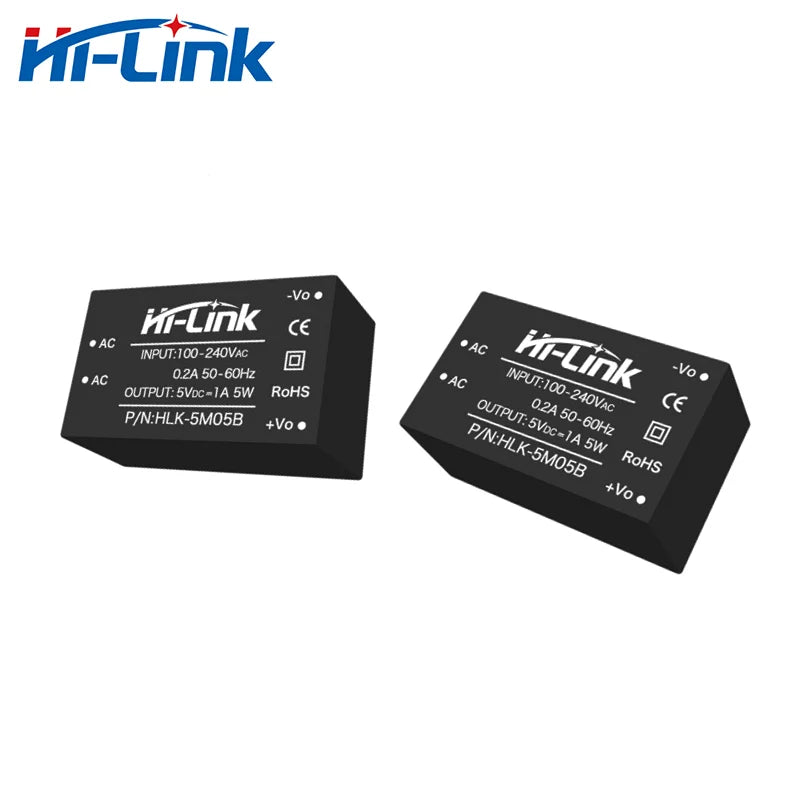

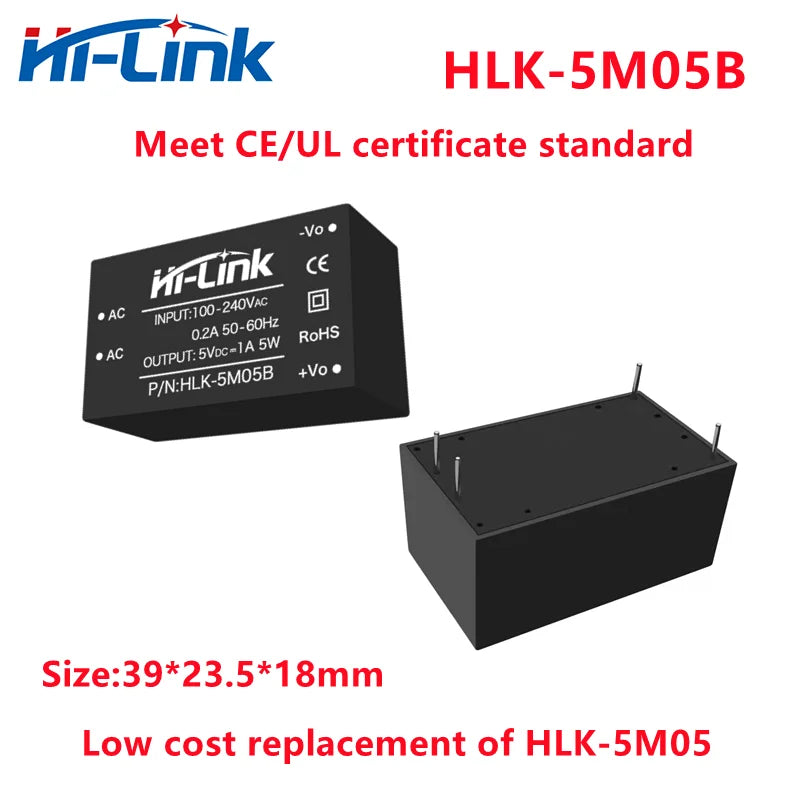

New Version: HLK-5M05B

The main difference between HLK-5M05B and HLK-5M05 is the different chip solutions used, and HLK-5M05B is suitable for low-cost solutions.

Click here: 5W HLK-5MXX Series

1.Ultra-small Series Power Module

The 5W-B ultra-small series module power supply is a small-volume, high-efficiency AC DC power supply module designed by Shenzhen Hi-Link Electronic Co.,Ltd. It has the advantages of global input voltage range, low temperature rise, low power consumption,high efficiency, high reliability and high safety isolation. It has been widely used in smart home, automation control, communications equipment, instrumentation and other industries.

2.Product Model

MODEL	Size (mm)	Output watt (W)	Output voltage (V)	Output current (mA)	Notes
HLK-5M03B	3923.518	5	3.3	1500
HLK-5M05B			5	1000
HLK-5M09B			9	560
HLK-5M12B			12	450
HLK-5M15B			15	333
HLK-5M24B			24	208

3.Product features

1. Ultra-thin, ultra-small, smallest volume;

2. Global universal input voltage（85~265Vac）

3. Low power consumption, green environmental protection, no-load loss<0.1W

4. Low ripple, low noise

5. High output short circuit and over-current protection and self recovery

6. High efficiency, high power density

7. Input and output isolation voltage 3000Vac

8. 100% full load aging and testing

9. High reliability, long life design, continuous working time is greater than 100,000 hours;

10. Meet UL, CE requirements; product design to meet EMC and safety testing requirement;

11. Using high-quality environmentally friendly waterproof plastic potting, moisture, vibration, water and dust to meet IP65 standards

12. Economic solutions, cost-effective

13. Work without external circuit

14. 1 year quality guarantee period

4.Environmental conditions

Items	TechnicalParameters	Units	Notes
Working temperature	-25—+60	℃
Storage temperature	-40—+80	℃
Relative humidity	5—95	%
Thermal methods	Natural cooling
Atmospheric pressure	80—106	Kpa
Altitude	≤2000	m
Vibration	Vibration coefficient 10~500Hz,2G10min./1cycle, 60min.each along X,Y,Z axes		Meets requirements for secondary road transportation

5. Input features

Items	Technical Parameters	Units	Notes
Rated input voltage	100~240	Vac

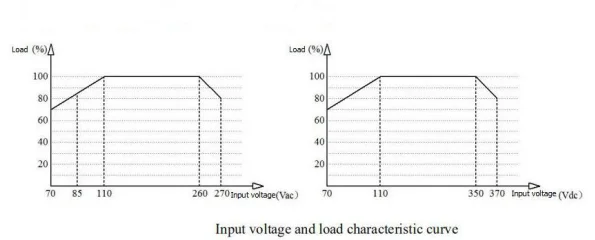

Input voltage range	85-265	Vac	Or 120-350Vdc
The maximum input current	≤0.2	A
Input inrush current	≤10	A
Input low start	≤300	mS
Long-term reliability	MTBF≥100，000	h
External fuse recommended	1A / 250Vac or 10Ω wire wound resistance		Slow blow
