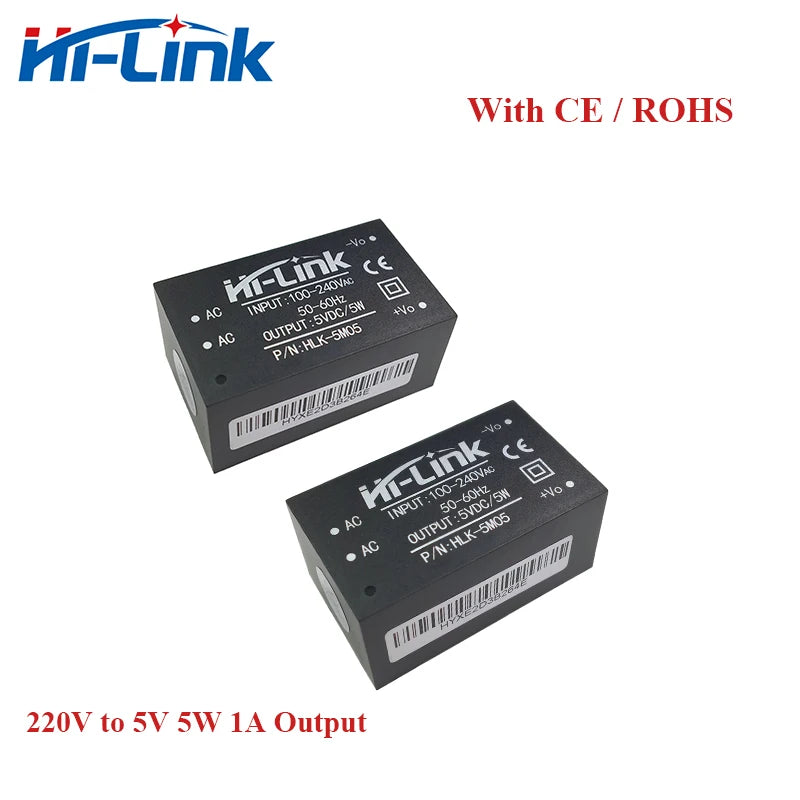

Hi-Link 5W 5V HLK-5M05 HLK-5M12 5M03 5M09 5M15 5M24 AC DC Converter StepDown Power Supply Intelligent Module Smart Electronics

Hi-Link 5W 5V HLK-5M05 HLK-5M12 5M03 5M09 5M15 5M24 AC DC Converter StepDown Power Supply Intelligent Module Smart Electronics

$36.56

$36.56 $0.00

Color 2 PCS 10 PCS

Bundle HLK-5M03 HLK-5M24 HLK-5M12 HLK-5M15 HLK-5M05 HLK-5M09

Description

SPECIFICATIONS

Altitude: ≤2000m

Atmospheric pressure: 80~106Kpa

Brand Name: bibikoo

Camera Equipped: No

Certification: CE,RoHS

Communication method: Other

Current: 1.5A/1A/560mA/450mA/208mA

High-concerned chemical: none

Model Number: HLK-5Mxx

Origin: Mainland China

Power: 5W

Relative humidity: 5~95%

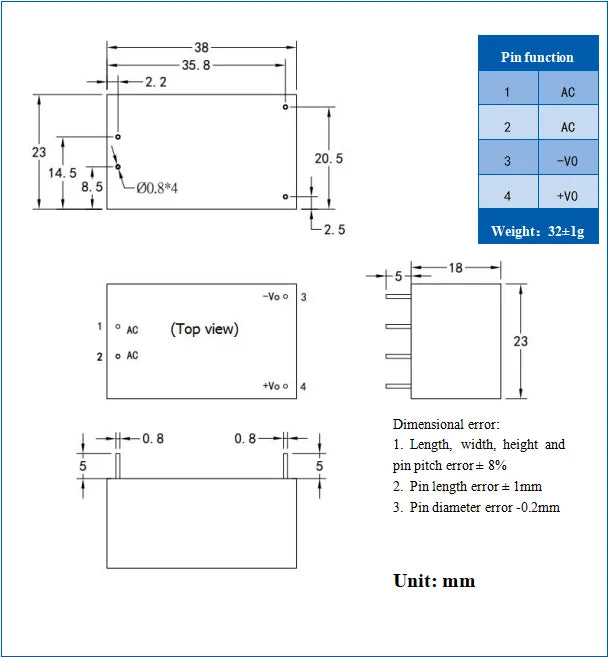

Size: 38*23*18mm

Storage temperature: -40~+80℃

Thermal methods: Natural cooling

Working temperature: -25~+60℃

Welcome to my store!

Hi-Link is the manufacturer of ac dc&dc dc power module,radar sensor module and wifi router module for many years.We are committed to making each intelligent product more convenient, faster and more reliable and providing customers with safe, high-quality and reliable products is our eternal pursuit.

If you need samples, please feel free to contact us.

If you need more, please let us know. we will give you our best price.

Any questions please contact:

Lorine

WhataApp/Wechat: +86 15271765840

Email: lorine@hlktech.com

HLK-5Mxx

*Noted: HLK-5MxxB series is new low cost solution of HLK-5Mxx by Hi-Link Electronic. Their performance and dimension are same, only product model is different.

1. Ultra-small series power module

The 5W ultra-small series module power supply is a small-volume, high-efficiency AC DC power odule supply designed by Shenzhen Hi-Link Electronics Co.,Ltd. It has the advantages of global input voltage range, low temperature rise, low power consumption,high efficiency, high reliability and high safety isolation. It has been widely used in smart home, automation control, communications equipment, instrumentation and other industries.

2. Product model

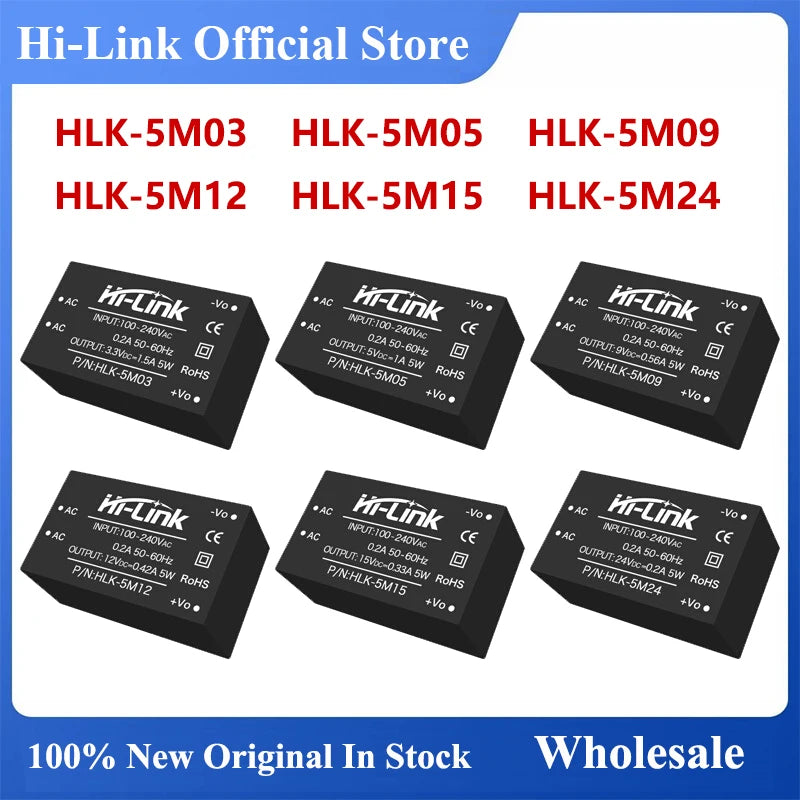

Module mdoel	Size(mm)	Output power(W)	Output voltage(V)	Output current(mA)
HLK-5M03	382318	5W	3.3	1500
HLK-5M05			5	1000
HLK-5M09			9	560

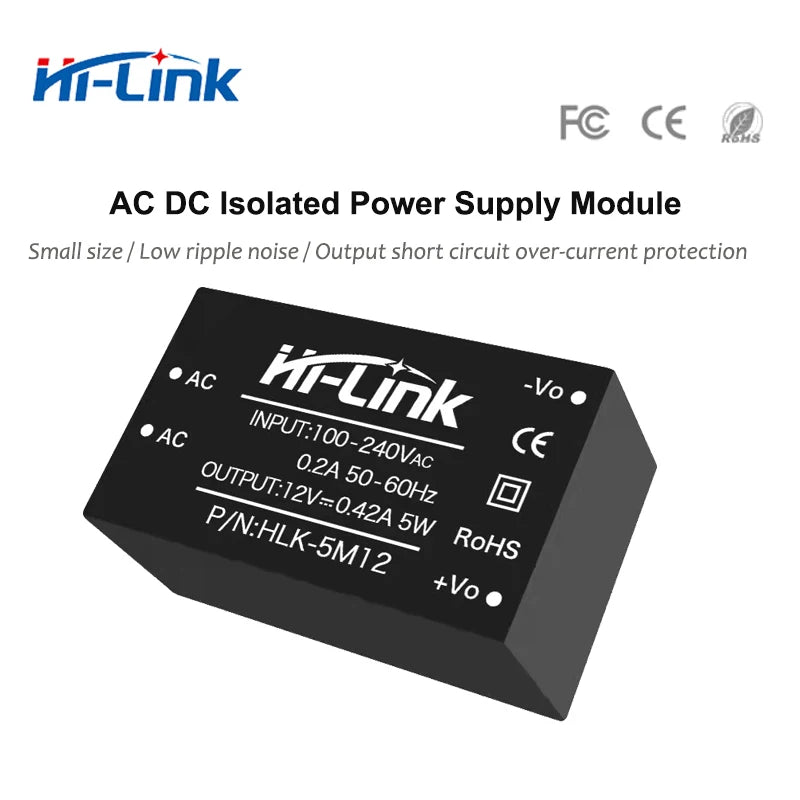

HLK-5M12			12	450
HLK-5M15			15	330

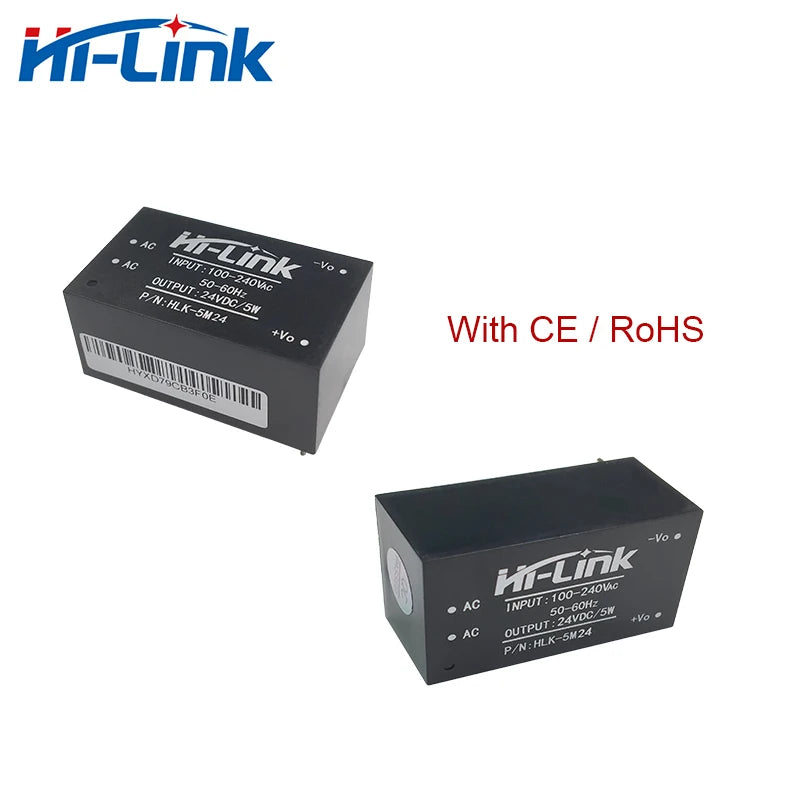

HLK-5M24			24	208

3. Product features

1. Ultra-thin, ultra-small, smallest volume;

2. Global universal input voltage（90~265Vac）

3. Low power consumption, green environmental protection, no-load loss<0.1W

4. Low ripple, low noise

5. High output short circuit and over-current protection and self recovery

6. High efficiency, high power density

7. Input and output isolation voltage 3000Vac

8. 100% full load aging and testing

9. High reliability, long life design, continuous working time is greater than 100,000 hours;

10. Meet UL, CE requirements; product design to meet EMC and safety testing requirement;

11. Using high-quality environmentally friendly waterproof plastic potting, moisture, vibration, water and dust to meet IP65 standards

12. Economic solutions, cost-effective

13. Work without external circuit

14. 1 year quality guarantee period

4. Environmental conditions

Items	Technical Parameters	Units	Notes
Working temperature	-25-+60	ºC
Storage temperature	-40-+80	ºC
Relative humidity	5-95	%
Thermal methods	Natural cooling
Atmospheric pressure	80-106	Kpa
Altitude	≤2000	m
Vibration	Vibration coefficient 10~500Hz,2G10min./1cycle, 60min.each along X,Y,Z axes		Meets requirements for secondary road transportation

5. Input features

Items	Technical Parameters	Units	Notes
Rated input voltage	100-240	Vac
Input voltage range	85-265	Vac	or 70-350Vdc
The maximum input current	≤0.2	A
Input inrush current	≤10	A
Input low start	≤50	mS
Long-term reliability	MTBF≥100, 000	h
External fuse recommended	1A / 250Vac or 10Ω wire wound resistance		Slow blow
