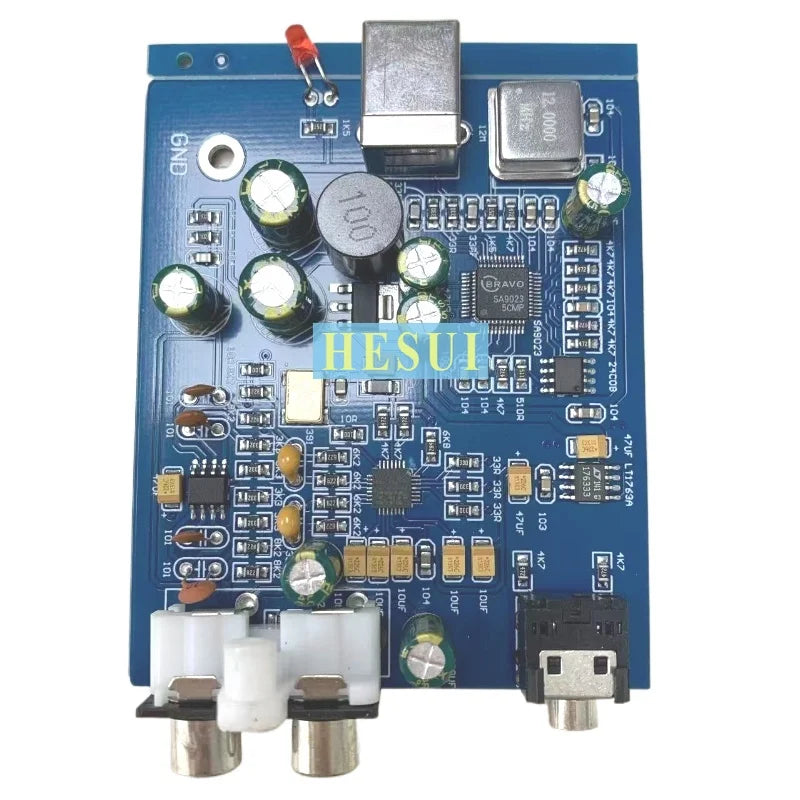

HIFI ES9018 DAC module ES9018K2M SA9023 USB DAC decoding module External sound card audio amplifier Module Board
$116.91
Sale price
$116.91
Regular price
$0.00
Description
SPECIFICATIONS
Application: Computer
Brand Name: NONE
Condition: New
Dissipation Power: standard
High-concerned chemical: none
Operating Temperature: standard
Origin: Mainland China
Supply Voltage: standard
Type: Module
is_customized: Yes
Product Description:
Due to the integrated charge pump in the chip to generate negative voltage, the ES9018 can directly output 2Vrms on a single power supply with a reference ground wire, eliminating the need for DC voltage isolated coupling capacitors. Moreover, the output amplitude can be set to less than 2Vrms level by resistance according to actual needs. Switching noise can also be fully suppressed.
The original SA9023 ES9018K2M is adopted
The main circuit of electrolytic capacitor signal adopts Taiwan famous brand to ensure strong and continuous power support.
The PCB adopts 1.6mm thick double-sided plate, 2.0 Oz copper thickness, and the whole process of tin spraying to ensure the good passing performance of large and small currents.
Supports a maximum 24-bit 96K sampling rate, supporting: 33K,44.1K,48K,88.2K,96K sampling rate.
PCB size: 80*66MM
Due to the integrated charge pump in the chip to generate negative voltage, the ES9018 can directly output 2Vrms on a single power supply with a reference ground wire, eliminating the need for DC voltage isolated coupling capacitors. Moreover, the output amplitude can be set to less than 2Vrms level by resistance according to actual needs. Switching noise can also be fully suppressed.
The original SA9023 ES9018K2M is adopted
The main circuit of electrolytic capacitor signal adopts Taiwan famous brand to ensure strong and continuous power support.
The PCB adopts 1.6mm thick double-sided plate, 2.0 Oz copper thickness, and the whole process of tin spraying to ensure the good passing performance of large and small currents.
Supports a maximum 24-bit 96K sampling rate, supporting: 33K,44.1K,48K,88.2K,96K sampling rate.
PCB size: 80*66MM
